Model LG EP08G11 – Common Parts & Diagrams

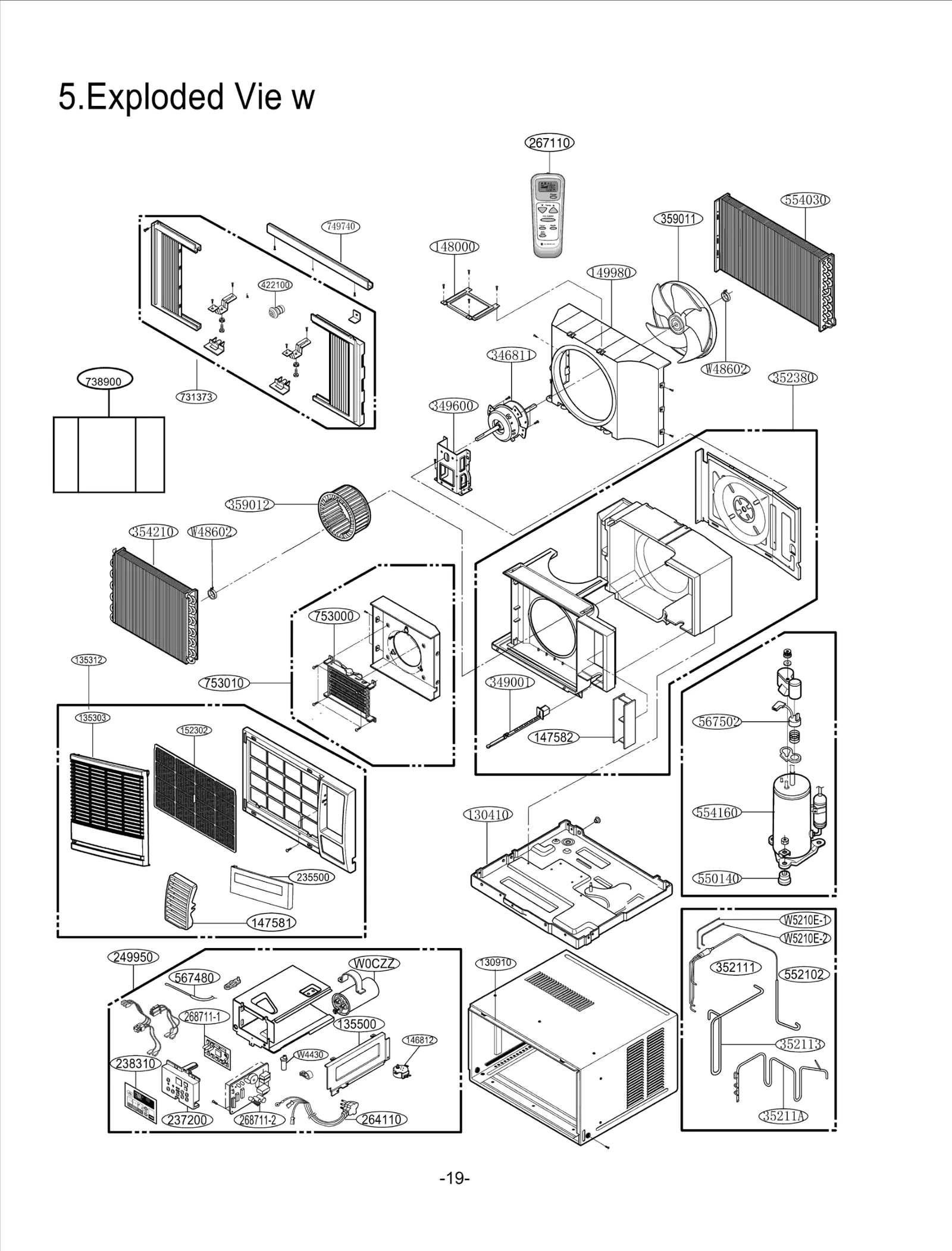

Diagram 0
Common parts from model LG EP08G11
148000
BRACE LGE 4810AR7029A Contact Us For Availability
238310
Escutcheon LGE MDD62202704 Contact Us For Availability
249950
Case Assembly,Control LGE ABQ73943303 Contact Us For Availability
267110
Remote Controller Assembly LGE AKB73616106 Contact Us For Availability
268711-1
PCB Assembly,Display LGE 6871A20611V Contact Us For Availability
268711-2
PCB Assembly,Main LGE EBR74780406 Contact Us For Availability
346811
Motor Assembly,AC LGE EAU61866601 Contact Us For Availability
349001
DAMPER LGE 4900AR7024B Contact Us For Availability
349600
MOUNT LGE 4960AR6165A Contact Us For Availability
352111
Tube Assembly,Connector LGE AJR73162606 Contact Us For Availability
352113
Tube Assembly,Discharge LGE AJR73142721 Contact Us For Availability
352380
Guide Assembly,Air LGE AEC73578101 Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421AR2910W Contact Us For Availability
359011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
550140
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
552102
Tube Assembly,Capillary LGE AJR73144114 Contact Us For Availability
554030
Condenser Assembly,First LGE 5403A20083J Contact Us For Availability
554160
Compressor Set,China LGE TBZ35355801 Contact Us For Availability
567502
Overload Protect LGE EAF34140266 Contact Us For Availability
738900
Box,Installation Kit LGE 3890AZ3595A Contact Us For Availability
753010
Heater Assembly,Electric LGE 5301AR7267C Contact Us For Availability
× ![]()
