Model Electrolux EIED50LIW2 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts &amp; Diagrams

1

5304535760 Frigidaire Heater In Stock WCI 5304535760 $83.97

3

KNOB, RETRACTING, COMPLETE ASMY WCI 134766500 Contact Us For Availability

4

134792100 Frigidaire Bracket Assembly Backorder WCI 134792100 $22.73

4

LOCK, BLOWER HOUSING WCI 134707900 Contact Us For Availability

4

PIPE, KNOB LIGHT WCI 134907400 Contact Us For Availability

6

134767700 Frigidaire Lens Backorder WCI 134767700 $11.64

6

DUCT, AIR WCI 137611800 Contact Us For Availability

7

137046800 Frigidaire Bracket Assembly Backorder WCI 137046800 $14.42

7

5304509710 Frigidaire Tube Backorder WCI 5304509710 $21.08

7A

137046700 Frigidaire Bracket Backorder WCI 137046700 $18.84

8

134711401 Frigidaire Dryer Thermal Fuse In Stock WCI 134711401 $23.30

8

137032600 Frigidaire Washer Dryer Thermal Lim In Stock WCI 137032600 $20.83

8

137560800 Frigidaire Filter Housing Cover Backorder WCI 137560800 $35.45

8

137578600 Frigidaire Cover Assembly Backorder WCI 137578600 $9.40

8A

134935200 Frigidaire Screw Backorder WCI 134935200 $10.50

9

RING, OPTION BUTTON, LIGHT WCI 134894200 Contact Us For Availability

10

137552300 Frigidaire Washer Blower Assembly In Stock WCI 137552300 $249.58

10

ASSEMBLY, INDICATOR, COMPLETE WCI 134933900 Contact Us For Availability

11

131749800 Frigidaire Spacer Backorder WCI 131749800 $33.40

11

BUTTON, MODIFIER, BUTTON 2 & 3 WCI 137032200 Contact Us For Availability

12

134696901 Frigidaire Frame Backorder WCI 134696901 $67.10

14

137015900 Frigidaire Button Backorder WCI 137015900 $25.36

134704600 Frigidaire Hinge Backorder WCI 134704600 $188.00

134711300 Frigidaire Washer Thermistor In Stock WCI 134711300 $42.16

137031800 Frigidaire Cushion Assembly Backorder WCI 137031800 $6.63

137031900 Frigidaire Button Backorder WCI 137031900 $45.46

16

134788000 Frigidaire Screw Backorder WCI 134788000 $11.07

16

5304508449 Frigidaire Washer Dryer Air Duct In Stock WCI 5304508449 $83.20

16

CONTROL BOARD, UI W/HOUSING WCI 809160409 Contact Us For Availability

17

134792900 Frigidaire Protector Backorder WCI 134792900 $10.53

18

131168200 Frigidaire Dryer Screw In Stock WCI 131168200 $11.07

19

134402900 Frigidaire Screw Backorder WCI 134402900 $29.30

19

134711200 Frigidaire Washer Thermistor In Stock WCI 134711200 $39.91

19

134790400 Frigidaire Screw Backorder WCI 134790400 $11.09

20

131017900 Frigidaire Screw Backorder WCI 131017900 $11.09

20

137553000 Frigidaire Dryer Gasket-Door In Stock WCI 137553000 $101.50

20

5304499489 Frigidaire Washer Felt Seal In Stock WCI 5304499489 $52.16

21

137610700 Frigidaire Drum Backorder WCI 137610700 $373.56

22

131601000 Frigidaire Idler Spring Assembly Backorder WCI 131601000 $40.48

22

134790700 Frigidaire Harness Backorder WCI 134790700 $60.99

22

PANEL, FRONT, WHITE WCI 137553710 Contact Us For Availability

23

134786110 Frigidaire Moisture Sensor Backorder WCI 134786110 $72.11

23

134793511 Frigidaire Idler Arm Assembly In Stock WCI 134793511 $39.37

24

134638510 Frigidaire Washer Dryer Top Panel Backorder WCI 134638510 $164.19

25

134719300 Frigidaire Dryer 5-Rib Belt In Stock WCI 134719300 $52.35

25

137538802 Frigidaire Door Latch Backorder WCI 137538802 $78.18

25

137567001 Frigidaire Bracket Assembly Backorder WCI 137567001 $28.28

26

134813600 Frigidaire Dryer Door Switch In Stock WCI 134813600 $33.28

26

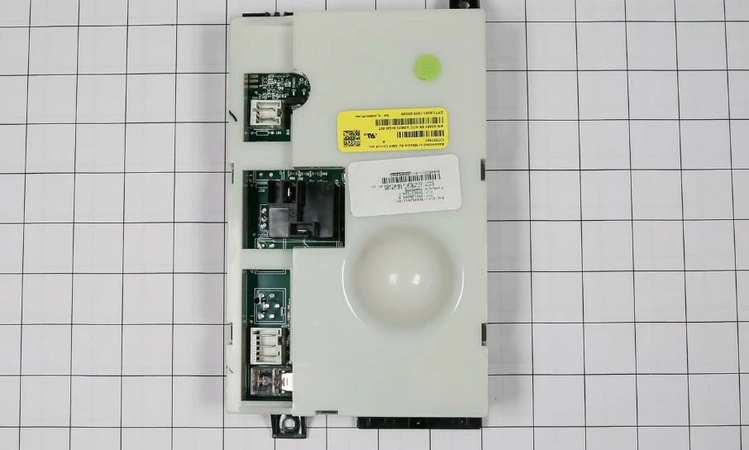

809160320 Frigidaire Control Board Backorder WCI 809160320 $276.19

27

134242400 Frigidaire Washer Clamp Assembly In Stock WCI 134242400 $14.40

27

137623900 Frigidaire Lint Filter In Stock WCI 137623900 $124.57

27

PANEL, CONTROL. DEC, WHITE WCI 134995211 Contact Us For Availability

27A

134710900 Frigidaire Bracket Assembly Backorder WCI 134710900 $16.64

27A

134790600 Frigidaire Screw Backorder WCI 134790600 $11.64

27B

134690203 Frigidaire Base Assembly Backorder WCI 134690203 $214.11

27B

134711000 Frigidaire Bracket Assembly Backorder WCI 134711000 $16.64

27L

134712610 Frigidaire Panel Backorder WCI 134712610 $170.84

27R

PANEL, RIGHT SIDE, WHITE WCI 134712710 Contact Us For Availability

28

137034500 Frigidaire Clip In Stock WCI 137034500 $33.82

29

131205100 Frigidaire Screw In Stock WCI 131205100 $11.09

30

137610610 Frigidaire Vane In Stock WCI 137610610 $51.01

30A

VANE, MIXING, SMOOTH WCI 137610510 Contact Us For Availability

33

3204267 Frigidaire Dryer Safety Thermostat In Stock WCI 3204267 $58.71

35

BRACKET, TOP PANEL MTG., REAR WCI 134713100 Contact Us For Availability

40

5304523155 Frigidaire Washer Kit In Stock WCI 5304523155 $65.43

40A

134716700 Frigidaire Washer Backorder WCI 134716700 $1.65

41

134716800 Frigidaire Nut Backorder WCI 134716800 $2.17

42

BULKHEAD, PANEL, FRONT WCI 137556106 Contact Us For Availability

45

137556623 Frigidaire Bulkhead Backorder WCI 137556623 $284.29

46

134707400 Frigidaire Bracket Backorder WCI 134707400 $55.37

46

GASKET, DOOR GLASS WCI 134934900 Contact Us For Availability

47

5304505715 Frigidaire Trim Ring Backorder WCI 5304505715 $288.61

47

SEAL, EXHAUST TUBE WCI 131633300 Contact Us For Availability

48

COVER, TRIM RING WCI 134618910 Contact Us For Availability

49

134651200 Frigidaire Retainer Clip Backorder WCI 134651200 $123.70

51

137459300 Frigidaire Striker In Stock WCI 137459300 $37.72

56

137576000 Frigidaire Glass In Stock WCI 137576000 $42.63

58

137604200 Frigidaire Appliance Panel Backorder WCI 137604200 $75.98

59

134931500 Frigidaire Cover Assembly Backorder WCI 134931500 $19.97

60

134430300 Frigidaire Screw Backorder WCI 134430300 $14.65

68

134742000 Frigidaire Plug Backorder WCI 134742000 $8.31

70

137526000 Frigidaire LED Lamp Backorder WCI 137526000 $137.47

134693800 Frigidaire Washer Motor Pulley Backorder WCI 134693800 $13.99

134716200 Frigidaire Retainer In Stock WCI 134716200 $2.45

134793200 Frigidaire Harness Backorder WCI 134793200 $46.03

134926600 Frigidaire Damper Backorder WCI 134926600 $11.05

134930800 Frigidaire Harness Backorder WCI 134930800 $37.15

137150200 Frigidaire Terminal In Stock WCI 137150200 $24.95

137380600 Frigidaire Screw - M5 x 0.8 In Stock WCI 137380600 $7.20

137605700 Frigidaire Front Panel Gasket Backorder WCI 137605700 $26.06

STRIKE, DOOR WCI 137555200 Contact Us For Availability

NIB

5304500486 Frigidaire Seal Backorder WCI 5304500486 $36.61

NIB

STRIKER, WCI 137555201 Contact Us For Availability

NIC

5308027429 Frigidaire Dryer High Temperature In Stock WCI 5308027429 $46.27
