Model Whirlpool EHC312 ELECTRIC RANGE – Common Parts & Diagrams

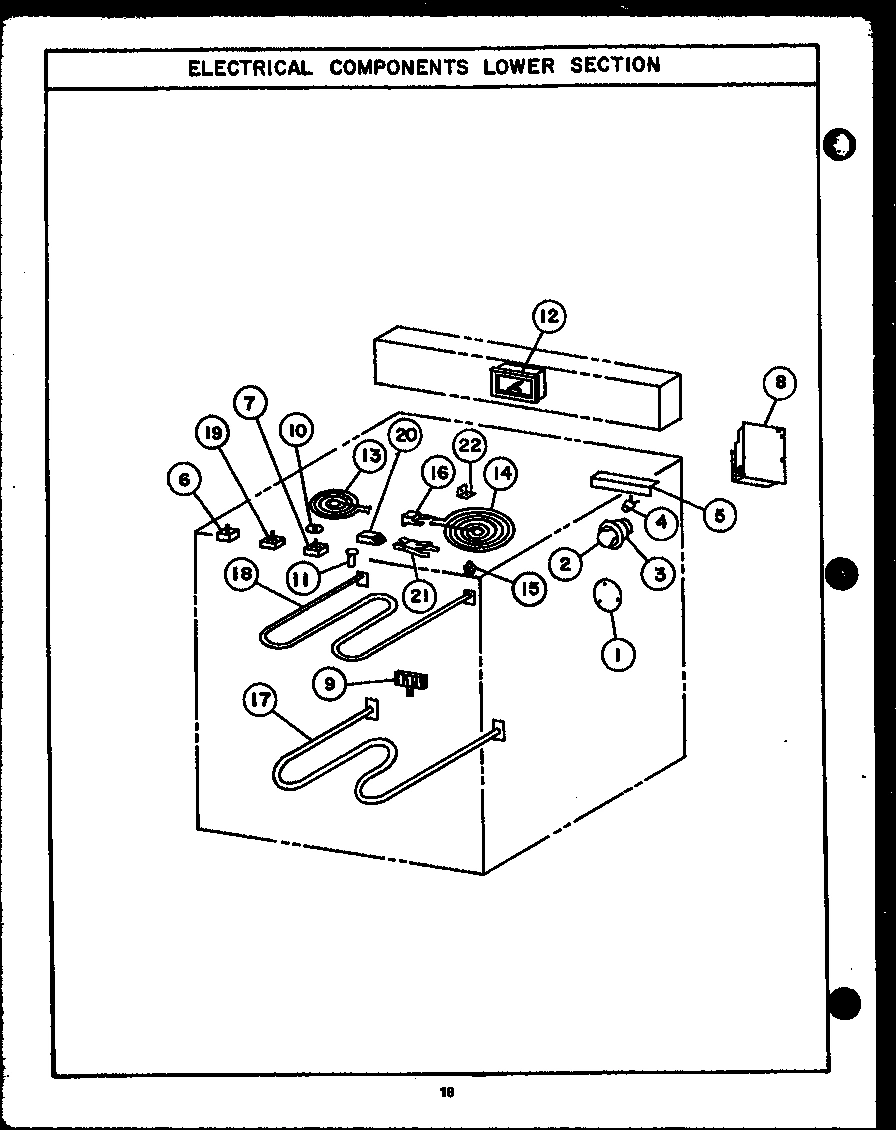

02 - ELECTRICAL COMPONENTS LOWER SECTION

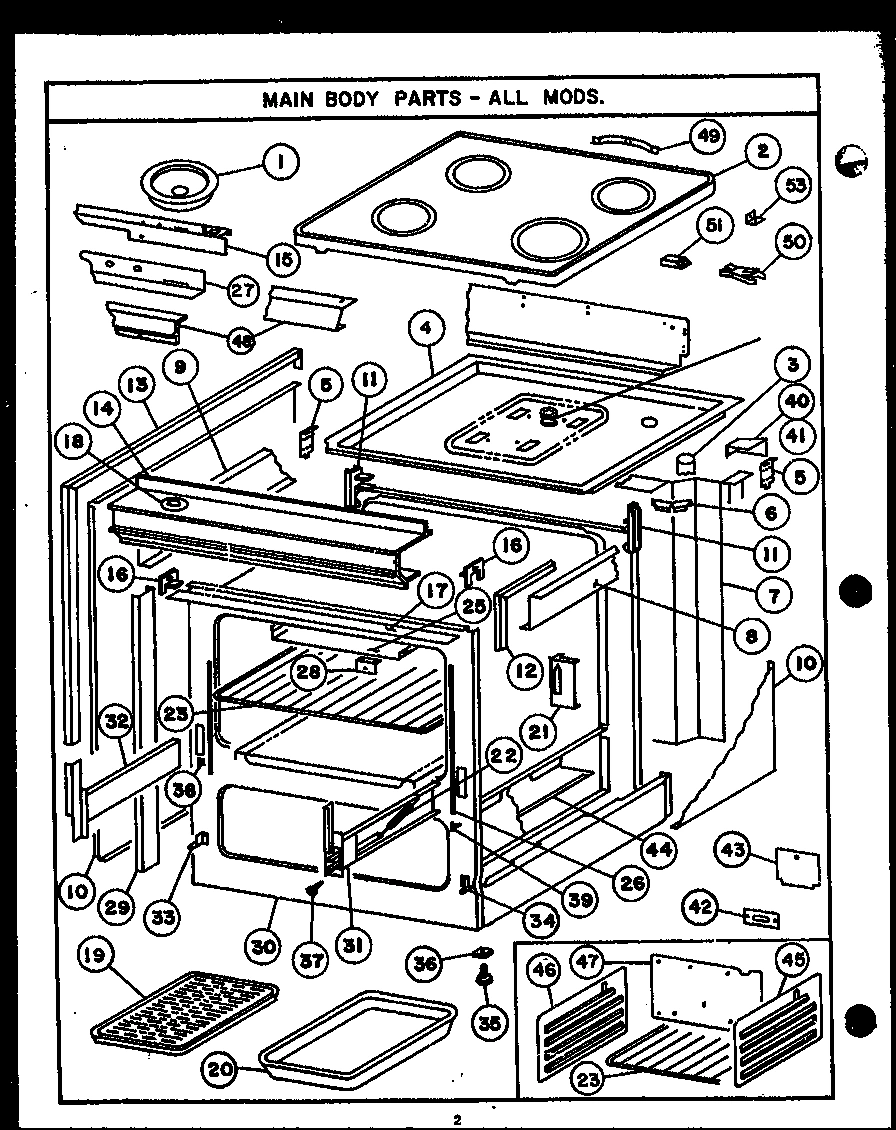

05 - Page 1

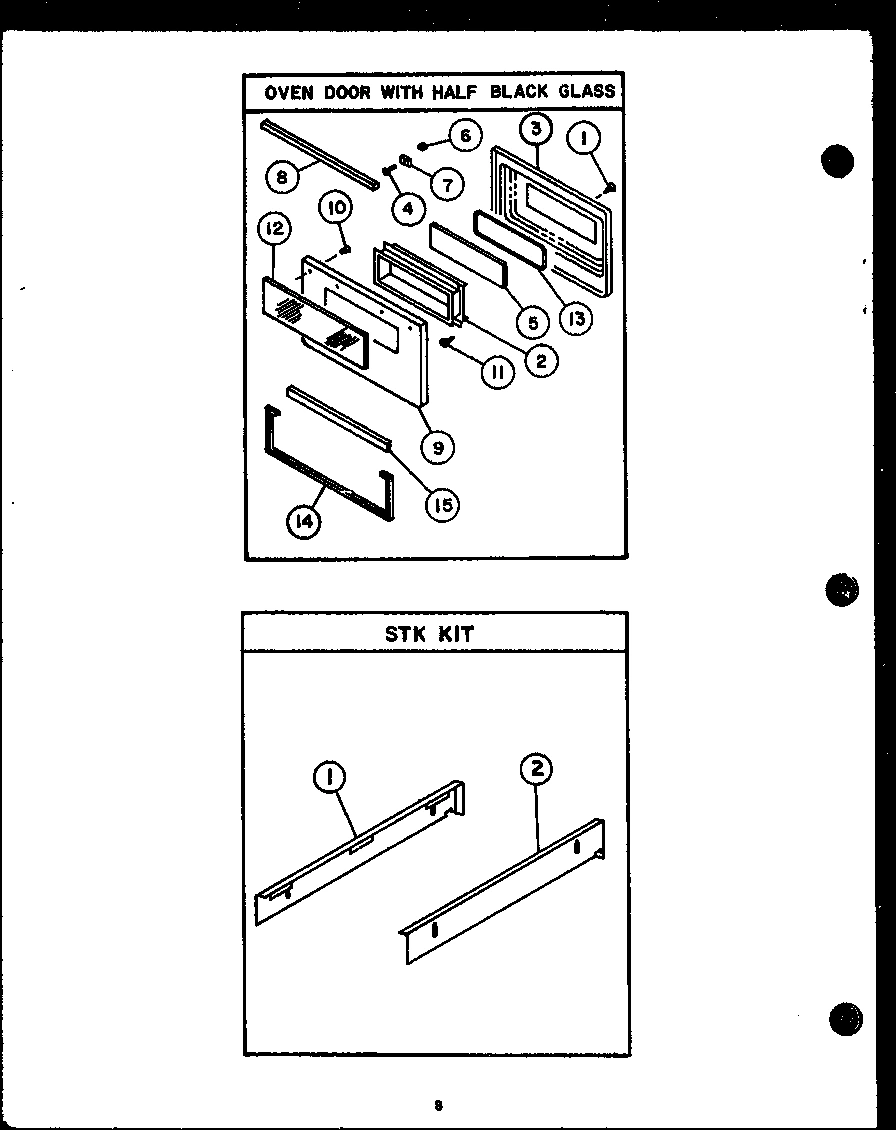

06 - SIDE TRIM (STK) PARTS

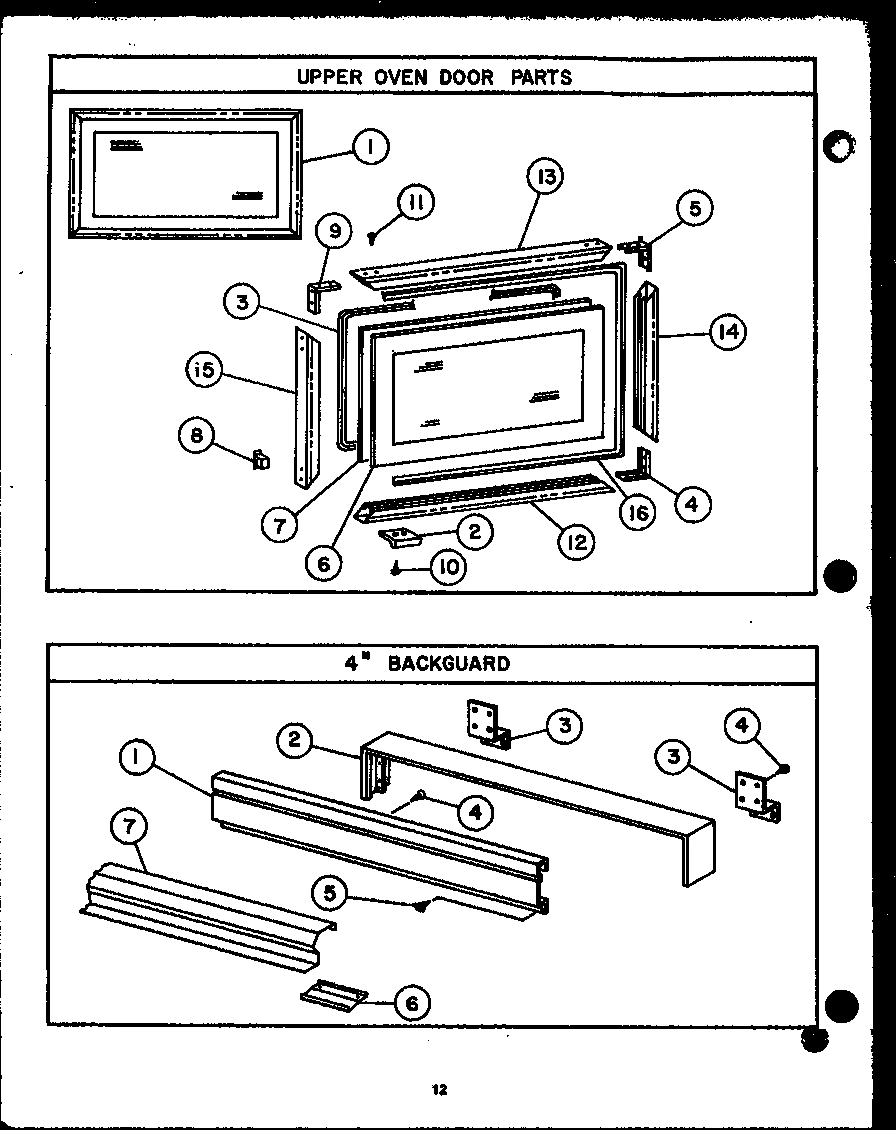

01 - 4`` BACKGUARD

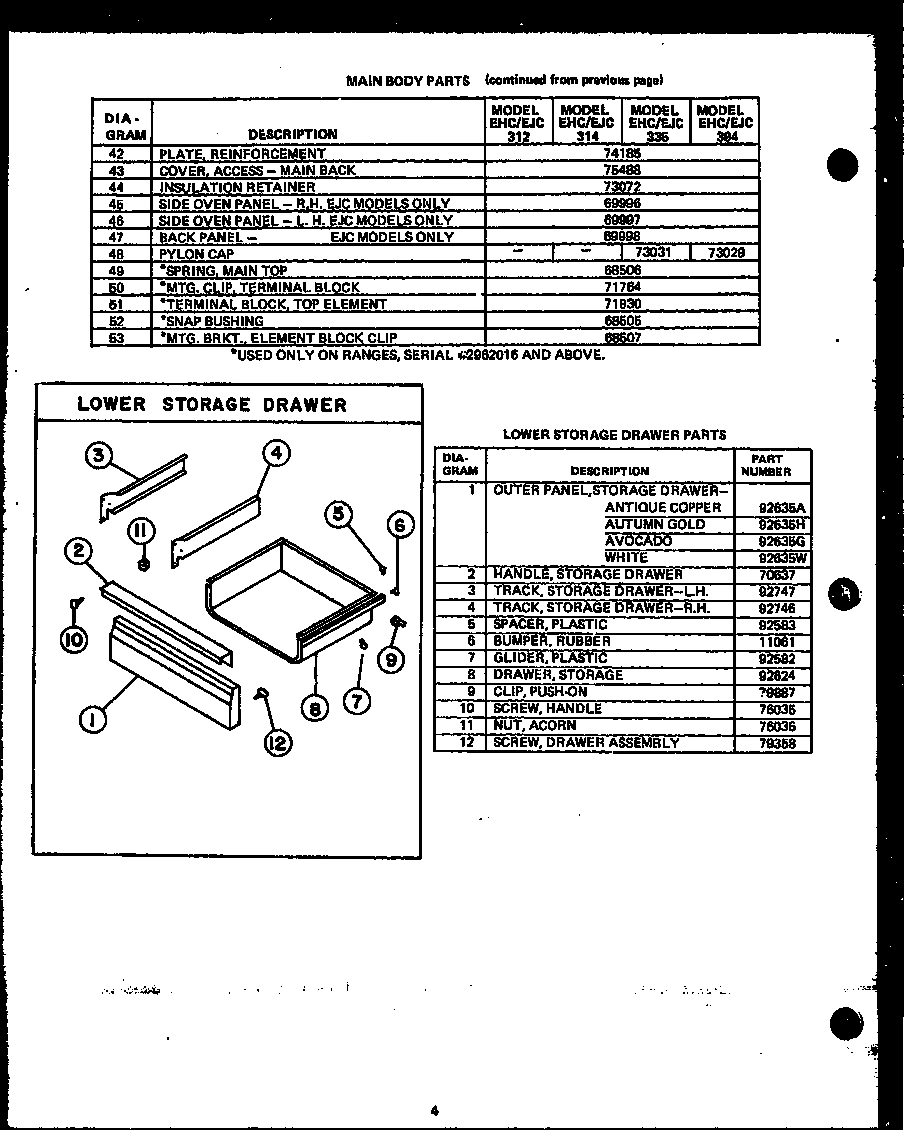

03 - LOWER STORAGE DRAWER

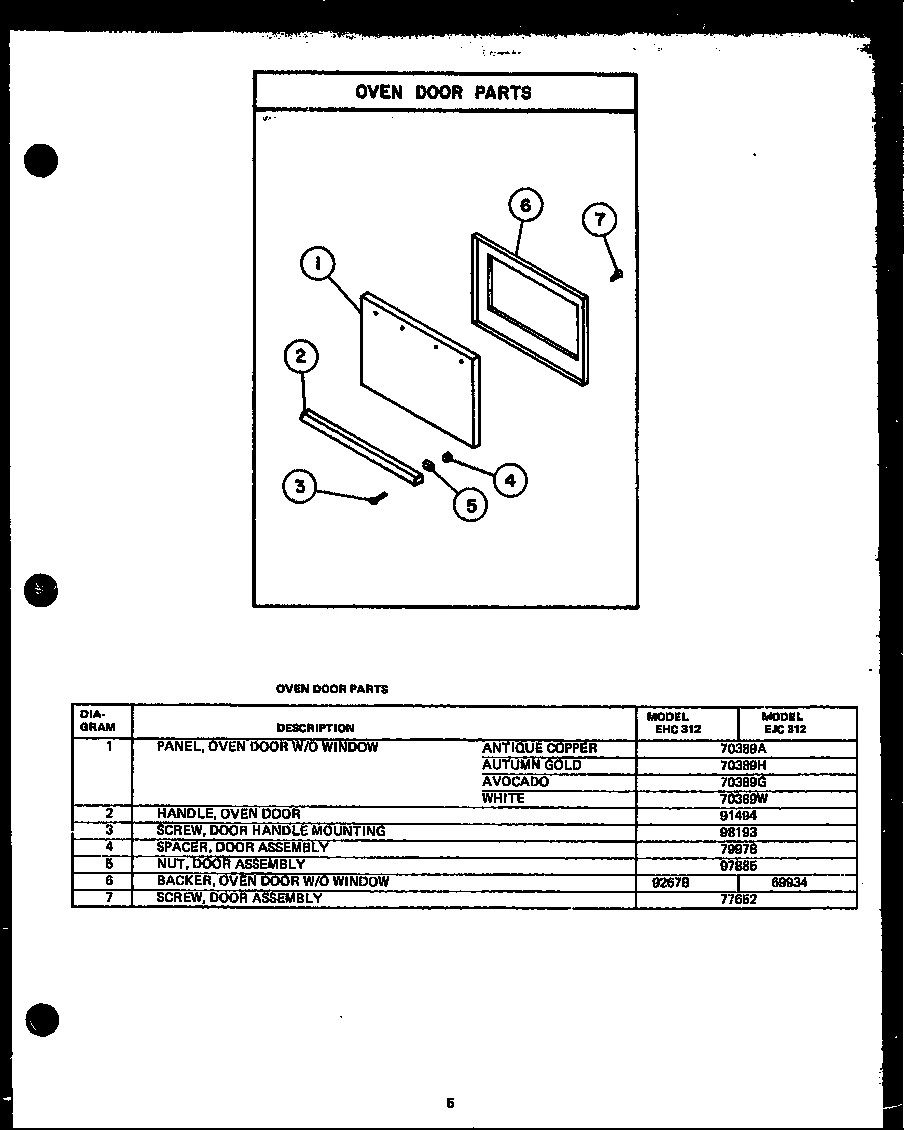

04 - OVEN DOOR PARTS
Common parts from model Whirlpool EHC312 ELECTRIC RANGE
1
COVER PLATE, LIGHT HOLE WPL 35206 Contact Us For Availability
1
HARNESS WPL 75482 Contact Us For Availability
1
HARNESS WPL 75483 Contact Us For Availability
1
TRIM STRIP, L.H. SIDE WPL Y76611 Contact Us For Availability
1
PANNEL, FRONT WPL 76893 Contact Us For Availability
1
OUTER PANEL, STORAGE DRAWER - WPL 92635H Contact Us For Availability
1
STORAGE DRAWER PANEL ANTIQ COP WPL Y092635A Contact Us For Availability
1
STORAGE DRAWER PANEL OLIVETONE WPL Y092635G Contact Us For Availability
1
SUB 92635F, STORAGE DRWR PANEL WPL Y092635W Contact Us For Availability
1
PANEL, OVEN DOOR W/O WINDOW AN WPL 70389A Contact Us For Availability
1
PANEL, OVEN DOOR W/O WINDOW AV WPL 70389G Contact Us For Availability
1
PANEL, OVEN DOOR W/O WINDOW AU WPL 70389H Contact Us For Availability
1
PANEL, OVEN DOOR W/O WINDOW WH WPL 70389W Contact Us For Availability
2
MAIN TOP ANTIQUE COPPER WPL 75493A Contact Us For Availability
2
MAIN TOP AVOCADO WPL 75493G Contact Us For Availability
2
MAIN TOP AUTUMN GOLD WPL 75493H Contact Us For Availability
2
MAIN TOP WHITE WPL 75493W Contact Us For Availability
2
TRIM STRIP, R.H. SIDE WPL 76610 Contact Us For Availability
2
FRAME WPL 76894 Contact Us For Availability
2
HANDLE, OVEN DOOR WPL 70637 Contact Us For Availability
2
HANDLE, OVEN DOOR WPL Y91494 Contact Us For Availability
3
OVEN VENT - SERIAL WPL 68565 Contact Us For Availability
3
SLINGER WPL 75349 Contact Us For Availability
3
BRACKET WPL Y76905 Contact Us For Availability
3
STORAGE DRAWER TRACK LH WPL Y0092747 Contact Us For Availability
3
SCREW 10-24X1/2 PH TR WPL 0098193 Contact Us For Availability
4
ELEMENT BOX - SERIAL WPL 68564 Contact Us For Availability
4
HARNESS WPL 75492 Contact Us For Availability
4
METAL SCREW 6X3/8 PHIL PAN HD WPL Y0092374 Contact Us For Availability
4
TRACK - STORAGE DRAWER - R.H. WPL Y92746 Contact Us For Availability
4
SPACER WPL 79978 Contact Us For Availability
5
SPACER, END PANEL WPL Y76351 Contact Us For Availability
5
SCREW, No.6-20 X .375 PANHD(BLK) WPL Y0092373 Contact Us For Availability
5
PLASTIC SPACER WPL 0092583 Contact Us For Availability
6
INSERT WPL 73055 Contact Us For Availability
6
GUSSET, MAIN BACK WPL Y92975 Contact Us For Availability
6
RUBBER BUMPER WPL 11061 Contact Us For Availability
6
BACKER, OVEN DOOR W/O WINDOW WPL Y92678 Contact Us For Availability
7
SWITCH, TOP ELEMENT 208 VOLT WPL 69644 Contact Us For Availability
7
SWITCH, INFINITE WPL 71745 Contact Us For Availability
7
MAIN BACK WPL 69891 Contact Us For Availability
7
PYLON ANTIQUE COPPER WPL 69888A Contact Us For Availability
7
PYLON AVOCADO WPL 69888G Contact Us For Availability
7
PYLON AUTUMN GOLD WPL 69888H Contact Us For Availability
7
PYLON WHITE WPL 69888W Contact Us For Availability
7
PLASTIC GLIDER WPL 0092582 Contact Us For Availability
7
CAPACITOR WPL 77652 Contact Us For Availability
8
TOP INSIDE TRIM - R.H. ANTIQUE WPL 77357A Contact Us For Availability
8
TOP INSIDE TRIM - R.H. AVOCADO WPL 77357G Contact Us For Availability
8
TOP INSIDE TRIM - R.H. AUTUMN WPL 77357H Contact Us For Availability
8
TOP INSIDE TRIM - R.H. WHITE WPL 77357W Contact Us For Availability
8
DRAWER, STORAGE WPL 92624 Contact Us For Availability
9
HARNESS WPL 75484 Contact Us For Availability
9
TOP INSIDE TRIM - L.H. ANTIQUE WPL 77358A Contact Us For Availability
9
TOP INSIDE TRIM - L.H. AVOCADO WPL 77358G Contact Us For Availability
9
TOP INSIDE TRIM - L.H. AUTUMN WPL 77358H Contact Us For Availability
9
TOP INSIDE TRIM - L.H. WHITE WPL 77358W Contact Us For Availability
9
CLIP, PUSH-ON WPL 79887 Contact Us For Availability
10
GASKET WPL 74744 Contact Us For Availability
10
SUB 93171V MAIN END AVO WPL 093171G Contact Us For Availability
10
SUB 93171D MAIN END GOLD WPL 093171H Contact Us For Availability
10
SUB 93171F MAIN END WPL 093171W Contact Us For Availability
10
SUB 93171C MAIN END DK CP WPL Y093171A Contact Us For Availability
10
DRAWER WPL 76035 Contact Us For Availability
11
NO LONGER AVAILABLE WPL 75351 Contact Us For Availability
11
REAR MTG TRIM BRACKET WPL Y0092944 Contact Us For Availability
11
NYLON TOGGLE NUT WPL 76036 Contact Us For Availability
12
TRIM RAIL, R.H. BKGD MODELS WPL 93053 Contact Us For Availability
12
SCREW, DOOR ASSEMBLY WPL 79358 Contact Us For Availability
13
ELEMENT, SMALL 208 VOLT WPL 69643 Contact Us For Availability
13
TRIM RAIL, L.H. BKDG MODELS WPL 93054 Contact Us For Availability
14
ELEMENT, LARGE 208 VOLT WPL 69642 Contact Us For Availability
14
CONTROL PANEL WPL 69887 Contact Us For Availability
16
DOOR SWITCH WPL 75054 Contact Us For Availability
16
BRACKET, CONTROL PANEL MOUNTIN WPL Y76627 Contact Us For Availability
17
ELEMENT, BAKE 208 VOLT WPL 72957 Contact Us For Availability
17
CODE H WPL 73054 Contact Us For Availability
17
FILLER PIECE, CONTROL PANEL WPL 92967 Contact Us For Availability
18
SCREW WPL 75247 Contact Us For Availability
18
ELEMENT, BROIL 208 VOLT WPL Y72981 Contact Us For Availability
18
KNOB - TOP ELEMENT WPL 69819 Contact Us For Availability
18
IND LIGHT WPL 73037 Contact Us For Availability
18
SWITCH WPL 75477 Contact Us For Availability
19
SUB 73242 WPL 73051 Contact Us For Availability
21
HINGE RETAINER WPL Y0092946 Contact Us For Availability
22
SPRING OVEN DOOR W/WINDOW WPL 0092744 Contact Us For Availability
22
SPRING, OVEN DOOR W/O WINDOW WPL Y92745 Contact Us For Availability
23
OVEN RACK WPL Y93181 Contact Us For Availability
25
HARNESS WPL 75489 Contact Us For Availability
26
OVEN DOOR GASKET WPL 0092930 Contact Us For Availability
28
BRACKET, BROIL ELEMENT - SERIA WPL 68566 Contact Us For Availability
28
ORIFICE WPL 75169 Contact Us For Availability
29
FRONT TRIM, INSIDE - L.H. ANTI WPL 70552A Contact Us For Availability
29
FRONT TRIM, INSIDE - L.H. AVOC WPL 70552G Contact Us For Availability
29
FRONT TRIM, INSIDE - L.H. AUTU WPL 70552H Contact Us For Availability
29
FRONT TRIM, INSIDE-L.H. WHITE WPL 70552W Contact Us For Availability
29
FRONT TRIM, I WPL 70553A Contact Us For Availability
29
WPL 70553G WPL 70553G Contact Us For Availability
29
WPL 70553H WPL 70553H Contact Us For Availability
29
WPL 70553W WPL 70553W Contact Us For Availability
30
WPL Y69892 WPL Y69892 Contact Us For Availability
31
WPL 0092619 WPL 0092619 Contact Us For Availability
32
WPL Y0092618 WPL Y0092618 Contact Us For Availability
33
WPL 92947 WPL 92947 Contact Us For Availability
34
WPL 0092948 WPL 0092948 Contact Us For Availability
35
WPL 76205 WPL 76205 Contact Us For Availability
36
WPL 76204 WPL 76204 Contact Us For Availability
38
WPL 78414 WPL 78414 Contact Us For Availability
39
WPL 11336 WPL 11336 Contact Us For Availability
40
WPL 75474 WPL 75474 Contact Us For Availability
41
WPL 75475 WPL 75475 Contact Us For Availability
42
WPL 74185 WPL 74185 Contact Us For Availability
43
WPL 75488 WPL 75488 Contact Us For Availability
44
WPL 73072 WPL 73072 Contact Us For Availability
45
WPL 69996 WPL 69996 Contact Us For Availability
46
WPL 69997 WPL 69997 Contact Us For Availability
47
WPL 69998 WPL 69998 Contact Us For Availability
49
WPL 68506 WPL 68506 Contact Us For Availability
50
WPL Y71764 WPL Y71764 Contact Us For Availability
52
WPL 68505 WPL 68505 Contact Us For Availability
53
WPL 68507 WPL 68507 Contact Us For Availability
× ![]()
