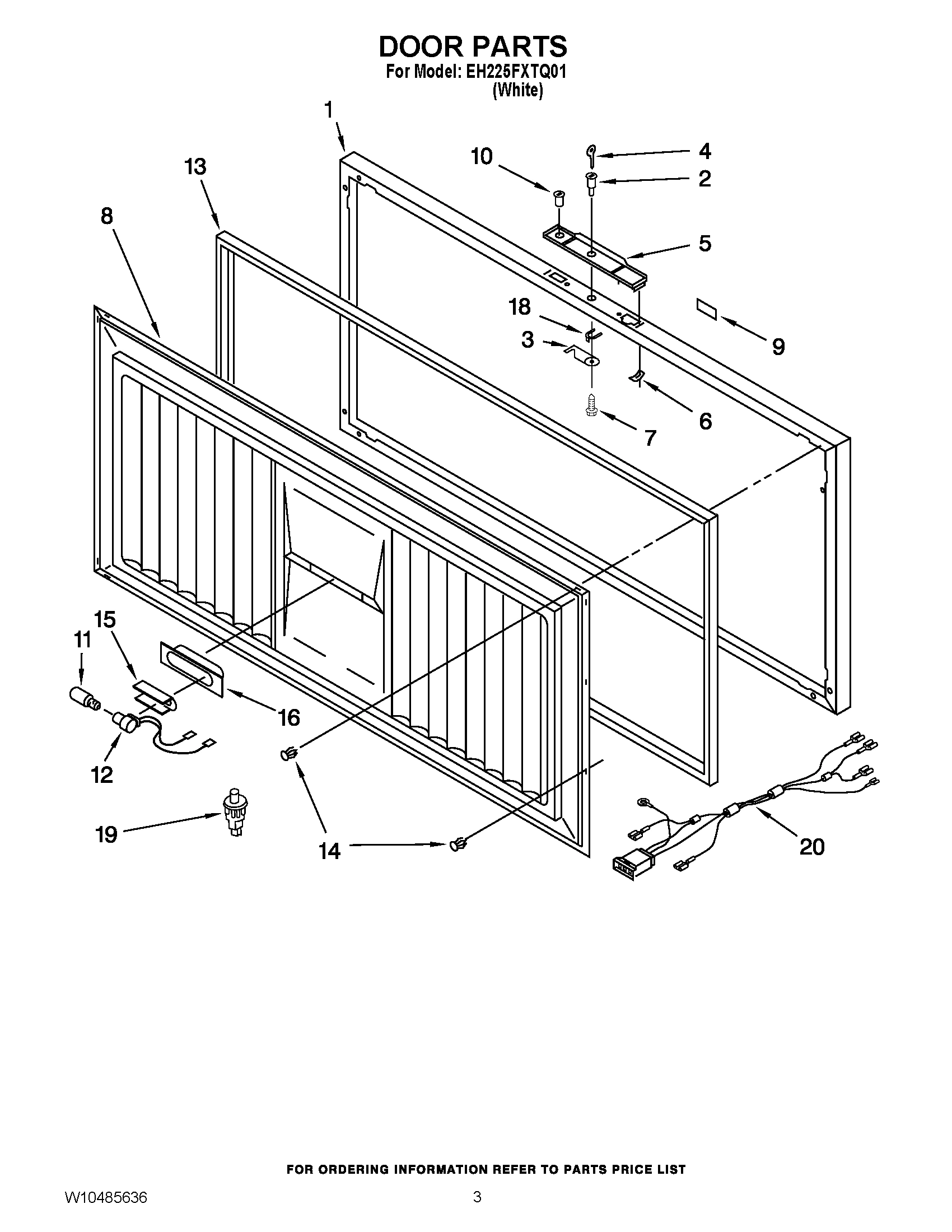

Model Whirlpool EH225FXTQ01 CHEST FREEZER – Common Parts & Diagrams

1
OWNERS MANUAL
OWNERS MANUAL WPL W10326796 Contact Us For Availability
View on Model
1
ENERGY GUIDE
ENERGY GUIDE WPL W10326819 Contact Us For Availability
View on Model
1
EXTERIOR DOOR PANEL (INCLUDES INSULATION)
EXTERIOR DOOR PANEL (INCLUDES INSULATION) WPL 435652404 Contact Us For Availability
View on Model
2
HINGE, ASSEMBLY
HINGE, ASSEMBLY WPL 434582002 Contact Us For Availability
View on Model
2
LOCK (INCLUDES No.3)
LOCK (INCLUDES No.3) WPL 335284001 Contact Us For Availability
View on Model
3
SPACER, HINGE
SPACER, HINGE WPL 117548006 Contact Us For Availability
View on Model
3
HOOK BOLT, LOCK
HOOK BOLT, LOCK WPL 235195006 Contact Us For Availability
View on Model
4
PLASTIC, GROMMET
PLASTIC, GROMMET WPL 323995014 Contact Us For Availability
View on Model
4
KEY
KEY WPL 126355 Contact Us For Availability
View on Model
5
BASKET (UPPER (2))
BASKET (UPPER (2)) WPL 436033002 Contact Us For Availability
View on Model
5
HANDLE
HANDLE WPL 435663149 Contact Us For Availability
View on Model
6
THERMOSTAT
THERMOSTAT WPL 435940004 Contact Us For Availability
View on Model
6
CLIP, OBLONG
CLIP, OBLONG WPL 324059024 Contact Us For Availability
View on Model
7
KNOB, THERMOSTAT
KNOB, THERMOSTAT WPL 435101002 Contact Us For Availability
View on Model
7
SCREW
SCREW WPL 324004013 Contact Us For Availability
View on Model
8
OVERLOAD
OVERLOAD WPL 234286037 Contact Us For Availability
View on Model
8
CONTROL BOX
CONTROL BOX WPL 435976001 Contact Us For Availability
View on Model
8
INTERIOR DOOR PANEL
INTERIOR DOOR PANEL WPL 425770014 Contact Us For Availability
View on Model
9
COVER
COVER WPL 335171003 Contact Us For Availability
View on Model
9
HARNESS, WIRING
HARNESS, WIRING WPL 435521002 Contact Us For Availability
View on Model
10
BRACE
BRACE WPL 381556001 Contact Us For Availability
View on Model
10
PLUG, DRAIN
PLUG, DRAIN WPL 333211001 Contact Us For Availability
View on Model
10
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 375560003 Contact Us For Availability
View on Model
11
ACCESS PANEL
ACCESS PANEL WPL 435099001 Contact Us For Availability
View on Model
11
BULB, LIGHT
BULB, LIGHT WPL 124397001 Contact Us For Availability
View on Model
12
SCREW
SCREW WPL 324004049 Contact Us For Availability
View on Model
12
SOCKET, LIGHT
SOCKET, LIGHT WPL 335862001 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 324004005 Contact Us For Availability
View on Model
13
GASKET
GASKET WPL 435260006 Contact Us For Availability
View on Model
14
FRONT, BREAKER STRIP
FRONT, BREAKER STRIP WPL 435011005 Contact Us For Availability
View on Model
14
GASKET, CLIP
GASKET, CLIP WPL 90013003 Contact Us For Availability
View on Model
15
REAR, BREAKER STRIP
REAR, BREAKER STRIP WPL 435010005 Contact Us For Availability
View on Model
15
SHIELD, HEAT
SHIELD, HEAT WPL 230045001 Contact Us For Availability
View on Model
16
END, BREAKER STRIP (2)
END, BREAKER STRIP (2) WPL 435009003 Contact Us For Availability
View on Model
16
REFLECTOR, LIGHT
REFLECTOR, LIGHT WPL 325693001 Contact Us For Availability
View on Model
17
CABINET (NOT A SERVICEABLE PART)
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
View on Model
18
ALARM (BUZZER)
ALARM (BUZZER) WPL 232304 Contact Us For Availability
View on Model
18
CLIP, SPRING
CLIP, SPRING WPL 126359 Contact Us For Availability
View on Model
19
SWITCH, ALARM
SWITCH, ALARM WPL 232307 Contact Us For Availability
View on Model
19
SWITCH, LIGHT
SWITCH, LIGHT WPL 335645001 Contact Us For Availability
View on Model
20
WIRE, LEAD
WIRE, LEAD WPL 330389079 Contact Us For Availability
View on Model
20
HARNESS, WIRING (LID)
HARNESS, WIRING (LID) WPL 435641002 Contact Us For Availability
View on Model
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (1
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (1 WPL 799344 Contact Us For Availability
View on Model
NI
CLIP, GASKET (KIT OF 60)
CLIP, GASKET (KIT OF 60) WPL 90013001 Contact Us For Availability
View on Model
