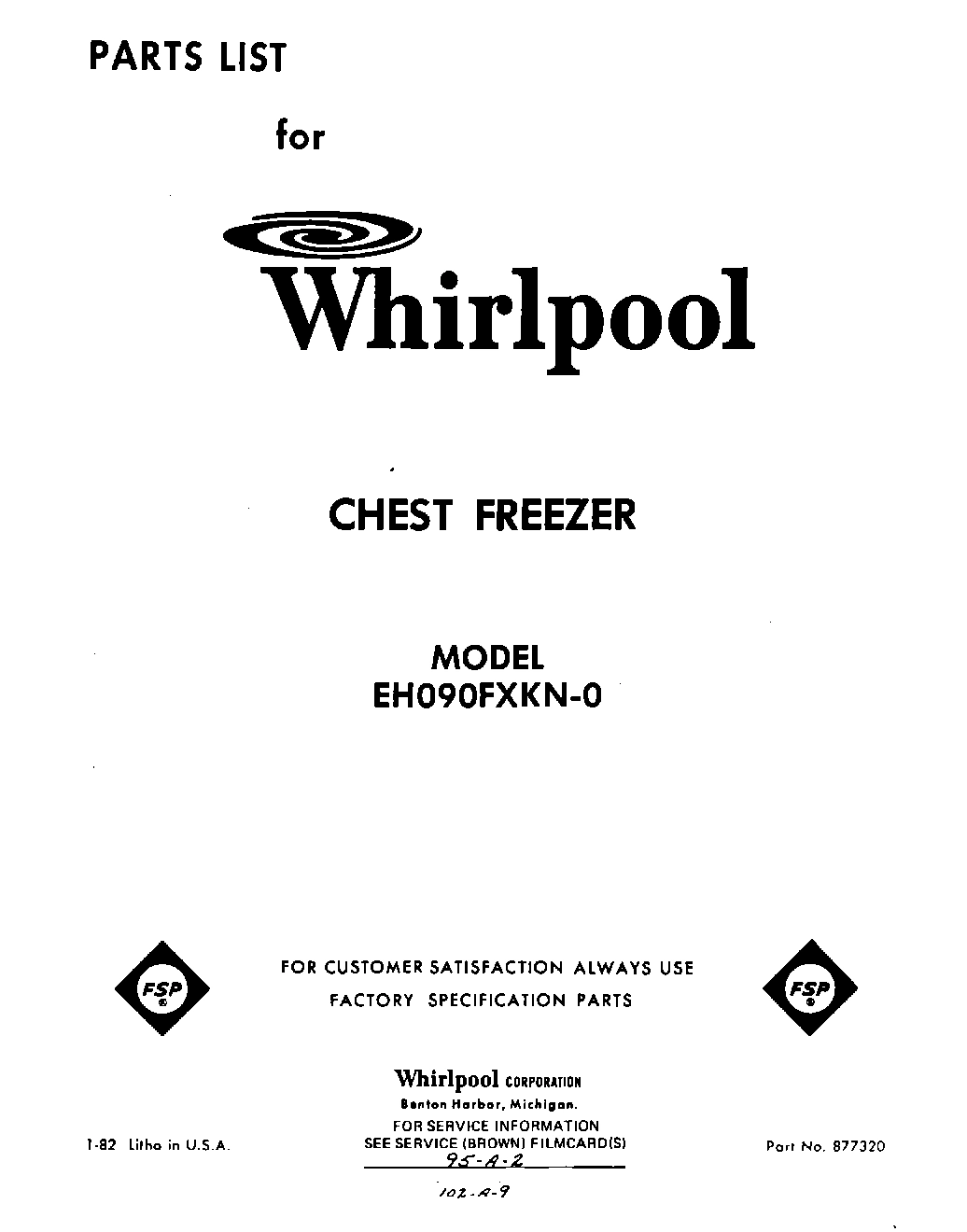

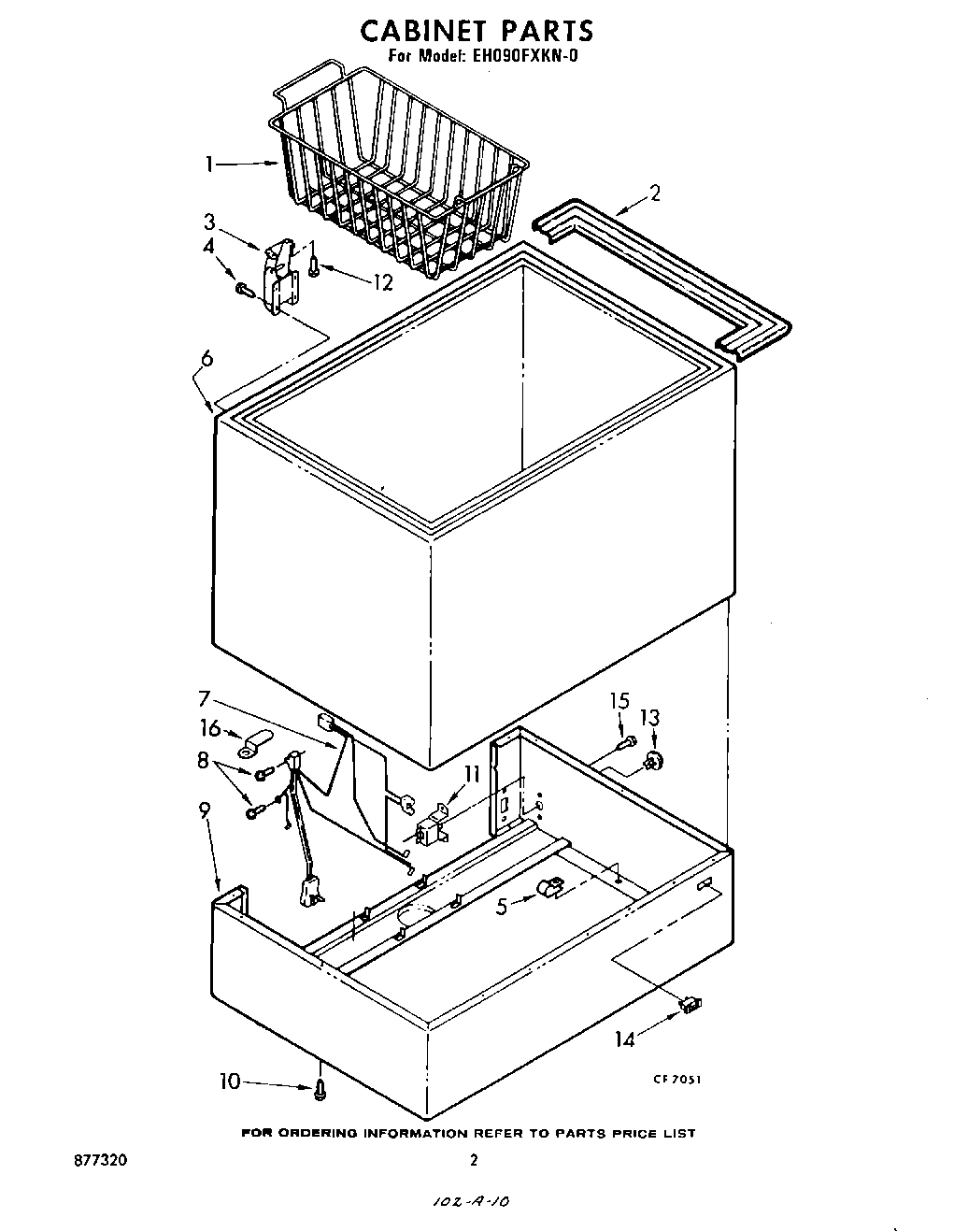

Model Whirlpool EH090FXKN0 CHEST FREEZER – Common Parts & Diagrams

1
Basket
Basket WPL 727489 Contact Us For Availability
View on Model
2
Panel
Panel WPL 727589 Contact Us For Availability
View on Model
2
Collar Breaker
Collar Breaker WPL 727011 Contact Us For Availability
View on Model
3
Hinge
Hinge WPL 727353 Contact Us For Availability
View on Model
4
Clip (44)
Clip (44) WPL 596693 Contact Us For Availability
View on Model
4
Screw (6)
Screw (6) WPL 681574 Contact Us For Availability
View on Model
5
Clamp, Wire
Clamp, Wire WPL 596171 Contact Us For Availability
View on Model
6
Compressor (Includes Items 13, 14, 15, 16 & 1
Compressor (Includes Items 13, 14, 15, 16 & 1 WPL 702219 Contact Us For Availability
View on Model
6
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI39236A7 Contact Us For Availability
View on Model
7
clip (4)
clip (4) WPL 596712 Contact Us For Availability
View on Model
7
Harness, Wiring
Harness, Wiring WPL 589824 Contact Us For Availability
View on Model
8
Washer (4)
Washer (4) WPL 680975 Contact Us For Availability
View on Model
8
Screw
Screw WPL 595325 Contact Us For Availability
View on Model
9
Grommet (4)
Grommet (4) WPL 596355 Contact Us For Availability
View on Model
9
Base
Base WPL 727005 Contact Us For Availability
View on Model
10
Gasket, Handle
Gasket, Handle WPL 589208 Contact Us For Availability
View on Model
11
Handle, Snap-In
Handle, Snap-In WPL 589347 Contact Us For Availability
View on Model
11
Control
Control WPL 589929 Contact Us For Availability
View on Model
12
Screw (6)
Screw (6) WPL 681438 Contact Us For Availability
View on Model
13
Strap, Cover
Strap, Cover WPL 560850 Contact Us For Availability
View on Model
13
Knob, Control
Knob, Control WPL 727020 Contact Us For Availability
View on Model
14
Cover, Relay & Overload
Cover, Relay & Overload WPL 560849 Contact Us For Availability
View on Model
14
Light, Indicator
Light, Indicator WPL 556230 Contact Us For Availability
View on Model
15
Relay
Relay WPL 727308 Contact Us For Availability
View on Model
15
Screw
Screw WPL 595022 Contact Us For Availability
View on Model
16
Spring, Overload
Spring, Overload WPL 560851 Contact Us For Availability
View on Model
16
Clip, Plug Holding
Clip, Plug Holding WPL 653035 Contact Us For Availability
View on Model
17
Overload
Overload WPL 727309 Contact Us For Availability
View on Model
18
Bracket, Capacitor (Used On Start Kit 482278)
Bracket, Capacitor (Used On Start Kit 482278) WPL 482158 Contact Us For Availability
View on Model
19
Bracket, Support (Used On Start Kit 482278)
Bracket, Support (Used On Start Kit 482278) WPL 549939 Contact Us For Availability
View on Model
20
Overload (Used On Start Kit 482278)
Overload (Used On Start Kit 482278) WPL 482280 Contact Us For Availability
View on Model
21
Relay (Used On Start Kit 482278)
Relay (Used On Start Kit 482278) WPL 482279 Contact Us For Availability
View on Model
22
Cap, Capacitor (Used On Start Kit 482278)
Cap, Capacitor (Used On Start Kit 482278) WPL 482157 Contact Us For Availability
View on Model
24
Screw (2) (Used On Start Kit 482278)
Screw (2) (Used On Start Kit 482278) WPL 487631 Contact Us For Availability
View on Model
25
Screw (Used On Start Kit 482278)
Screw (Used On Start Kit 482278) WPL 488487 Contact Us For Availability
View on Model
26
Start Kit
Start Kit WPL 482278 Contact Us For Availability
View on Model
