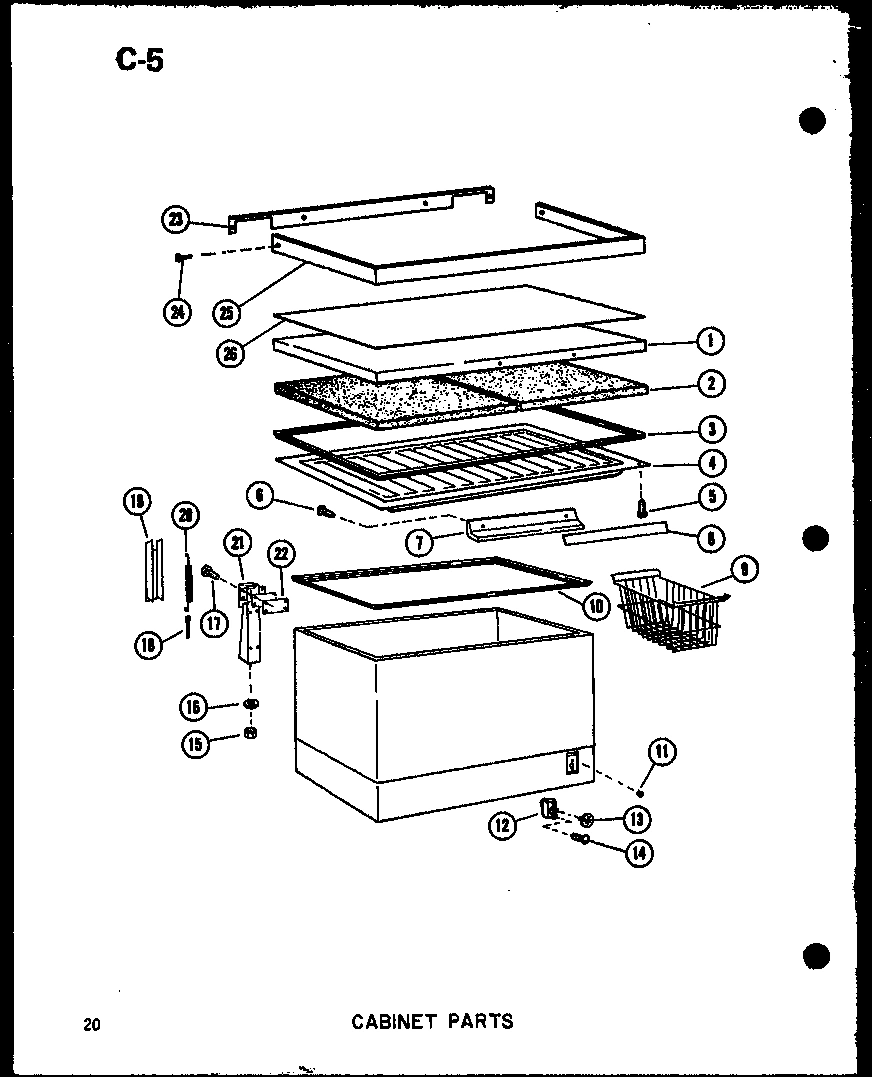

Model Whirlpool EC9-C FREEZER – Common Parts & Diagrams

1
LID SHELL-WHITE
LID SHELL-WHITE WPL C3669803 Contact Us For Availability
View on Model
1
LID SHELL-COPPER
LID SHELL-COPPER WPL C3669807 Contact Us For Availability
View on Model
1
LID SHELL-AVOCADO
LID SHELL-AVOCADO WPL C3669809 Contact Us For Availability
View on Model
1
LID SHELL-GOLD
LID SHELL-GOLD WPL C3669811 Contact Us For Availability
View on Model
2
INSULATION
INSULATION WPL A3073025 Contact Us For Availability
View on Model
3
GASKET
GASKET WPL B5675703 Contact Us For Availability
View on Model
4
LID LINER
LID LINER WPL D7134401 Contact Us For Availability
View on Model
5
SCREW-SM
SCREW-SM WPL M0241118 Contact Us For Availability
View on Model
6
SCREW-HANDLE
SCREW-HANDLE WPL M0225244 Contact Us For Availability
View on Model
7
HANDLE
HANDLE WPL D7134802 Contact Us For Availability
View on Model
8
THINPLATE-HANDLE
THINPLATE-HANDLE WPL B5676601 Contact Us For Availability
View on Model
9
BASKET
BASKET WPL D7134701 Contact Us For Availability
View on Model
10
COLLAR BREAKER
COLLAR BREAKER WPL B5675806 Contact Us For Availability
View on Model
11
RIVET PLASTIC
RIVET PLASTIC WPL A3032601 Contact Us For Availability
View on Model
12
COLD CONTROL
COLD CONTROL WPL C3628405 Contact Us For Availability
View on Model
13
KNOB K
KNOB K WPL C3581901 Contact Us For Availability
View on Model
15
NUT
NUT WPL M0281007 Contact Us For Availability
View on Model
16
WASHER
WASHER WPL M0270513 Contact Us For Availability
View on Model
17
SCREW
SCREW WPL M0246033 Contact Us For Availability
View on Model
18
SCREW
SCREW WPL M0200102 Contact Us For Availability
View on Model
19
HINGE COVER-COPPER
HINGE COVER-COPPER WPL B0583402 Contact Us For Availability
View on Model
19
HINGE COVER W
HINGE COVER W WPL B0583403 Contact Us For Availability
View on Model
19
HINGE COVER-AVOCADO
HINGE COVER-AVOCADO WPL B0583404 Contact Us For Availability
View on Model
19
HINGE COVER-GOLD
HINGE COVER-GOLD WPL B0583405 Contact Us For Availability
View on Model
20
HINGE SPRING
HINGE SPRING WPL B0551701 Contact Us For Availability
View on Model
21
HINGE ASSY PMT
HINGE ASSY PMT WPL C8704401 Contact Us For Availability
View on Model
21
HINGE ASSEMBLY, COPPERTONE
HINGE ASSEMBLY, COPPERTONE WPL C8704402 Contact Us For Availability
View on Model
21
HINGE
HINGE WPL C8704404 Contact Us For Availability
View on Model
21
HINGE ASSY
HINGE ASSY WPL C8704405 Contact Us For Availability
View on Model
22
SHIM
SHIM WPL A0383301 Contact Us For Availability
View on Model
28
SPEED NUT-ANGLE MT
SPEED NUT-ANGLE MT WPL M0288109 Contact Us For Availability
View on Model
29
SCREW
SCREW WPL M0250531 Contact Us For Availability
View on Model
30
ANGLE-COMP MT
ANGLE-COMP MT WPL B5675604 Contact Us For Availability
View on Model
31
GROMMET SLEEVE K
GROMMET SLEEVE K WPL A4002901 Contact Us For Availability
View on Model
32
GROMMET K
GROMMET K WPL A3026101 Contact Us For Availability
View on Model

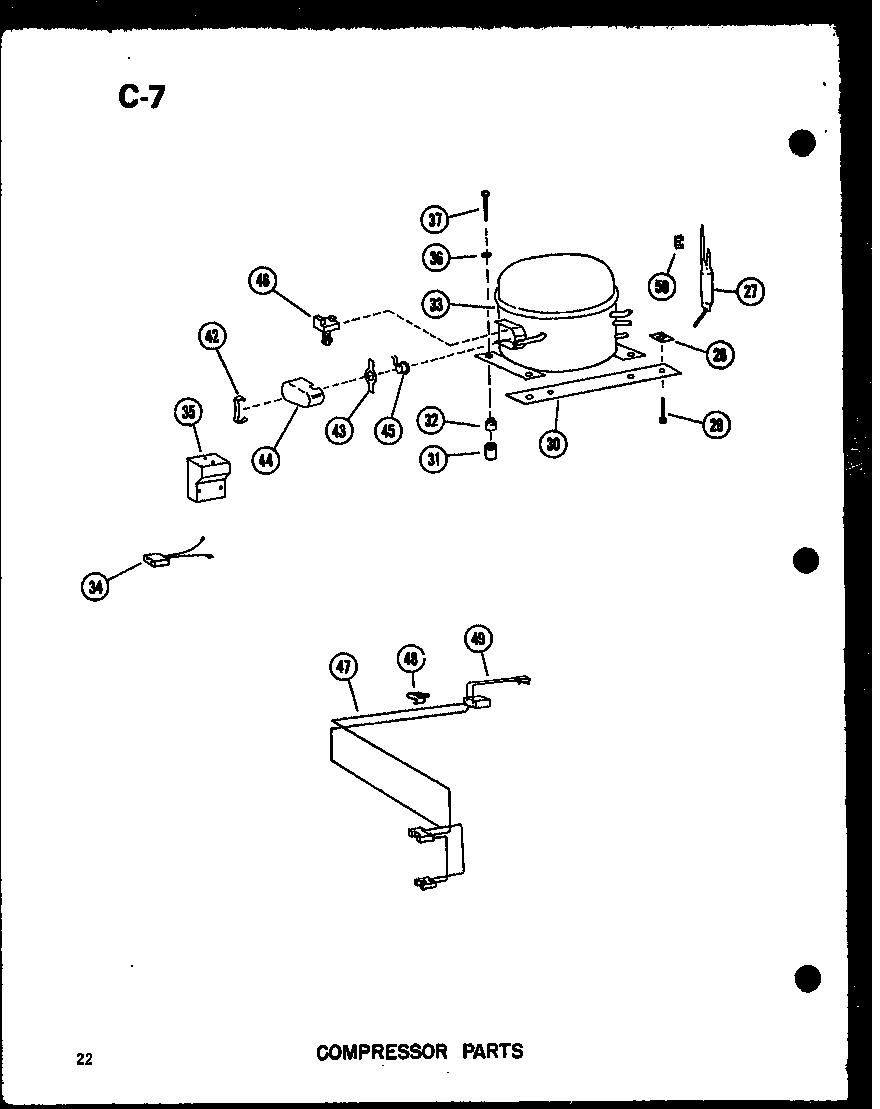

33
COMPRESSOR, 230V., 50HZ, DANFO
COMPRESSOR, 230V., 50HZ, DANFO WPL D7135901 Contact Us For Availability
View on Model
34
WIRING HARNESS-COMP
WIRING HARNESS-COMP WPL B5680501 Contact Us For Availability
View on Model
34
WIRING HARNESS-COMP
WIRING HARNESS-COMP WPL B5680502 Contact Us For Availability
View on Model
35
TERMINAL COVER ASSY
TERMINAL COVER ASSY WPL B5677901 Contact Us For Availability
View on Model
35
TERMINAL COVER ASSY
TERMINAL COVER ASSY WPL B5715301 Contact Us For Availability
View on Model
36
WASHER
WASHER WPL M0270509 Contact Us For Availability
View on Model
37
SCREW
SCREW WPL M0250561 Contact Us For Availability
View on Model
47
WIRING HARNESS
WIRING HARNESS WPL D7149702 Contact Us For Availability
View on Model
48
CLIP
CLIP WPL M0110502 Contact Us For Availability
View on Model
49
STRAIN RELIEF K
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
View on Model
50
CLIP
CLIP WPL M0113402 Contact Us For Availability
View on Model
