Model Whirlpool EC11F FREEZER – Common Parts & Diagrams

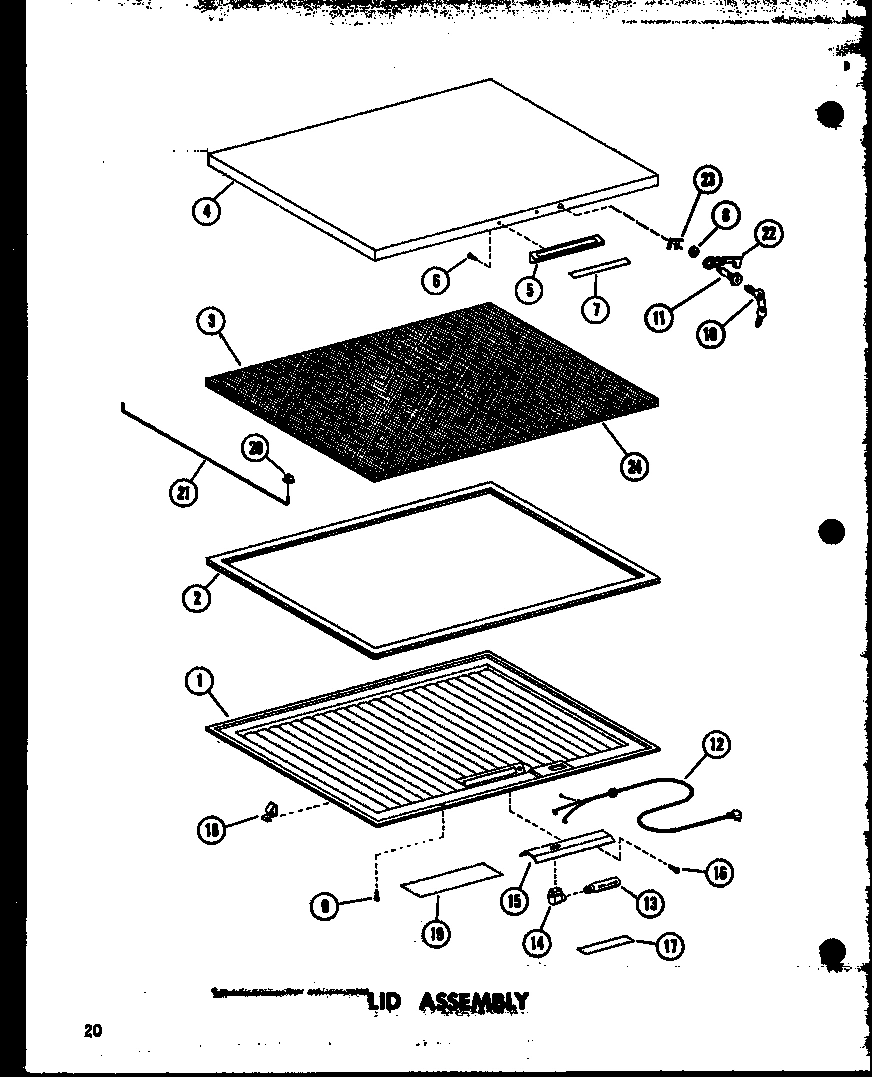

02 - LID ASSY
01 - CABINET PARTS
03 - MACHINE COMPARTMENT PARTS
Common parts from model Whirlpool EC11F FREEZER
1
INNER LID PANEL WPL D3947205 Contact Us For Availability
2
GASKET, LID WPL B0585704 Contact Us For Availability
3
INSULATION BATT. WPL B0523566 Contact Us For Availability
4
OUTER LID SHELL, WHITE WPL D7226701 Contact Us For Availability
4
OUTER LID SHELL, COPPERTONE WPL D7226702 Contact Us For Availability
4
LID A-T-C11B WPL D7226703 Contact Us For Availability
4
LID C11-G WPL D7226704 Contact Us For Availability
5
HANDLE WPL D7218302 Contact Us For Availability
6
SCREW-HANDLE WPL M0225244 Contact Us For Availability
7
THINPLATE-HANDLE WPL B5676601 Contact Us For Availability
8
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
9
SCREW-SM WPL M0241118 Contact Us For Availability
10
KEY K WPL A3199101 Contact Us For Availability
11
BARREL LOCK K WPL B5688002 Contact Us For Availability
12
WIRING HARNESS WPL B5646701 Contact Us For Availability
13
LIGHT BULB WPL A3073102 Contact Us For Availability
14
SOCKET & SWITCH WPL B0585402 Contact Us For Availability
15
HOUSING, LIGHT WPL C3581401 Contact Us For Availability
16
SCREW WPL M0211530 Contact Us For Availability
17
LITE SHIELD WPL A3074101 Contact Us For Availability
18
CLIP WPL M0112201 Contact Us For Availability
19
NAMEPLATE WPL B0586501 Contact Us For Availability
21
COLLAR-BREAKER WPL B5690801 Contact Us For Availability
22
LATCH, LOCK WPL C3685301 Contact Us For Availability
22
BASKET WPL D7231501 Contact Us For Availability
23
CLIP K WPL A3199001 Contact Us For Availability
24
INSULATION WPL A3073001 Contact Us For Availability
25
DIVIDER WPL D7039601 Contact Us For Availability
26
SUPPORT WPL B0585101 Contact Us For Availability
27
SUPPORT WPL B0585801 Contact Us For Availability
28
SCREW WPL M0213529 Contact Us For Availability
28
SCREW WPL M0228703 Contact Us For Availability
29
STRIKE-LOCK WPL B5728001 Contact Us For Availability
30
SHIM WPL A3063205 Contact Us For Availability
30
SHIM WPL A3063206 Contact Us For Availability
31
MACHINE COMPT-WHITE WPL C8722601 Contact Us For Availability
31
PANEL-MACHINE COMP-C WPL C8722603 Contact Us For Availability
31
PANEL-MACHINE COMP-A WPL C8722604 Contact Us For Availability
31
PANEL-MACHINE COMP-G WPL C8722605 Contact Us For Availability
32
SCREW, No.8-32 X1/2 NYL HEX HD WPL M0213528 Contact Us For Availability
33
WARNING LIGHT WPL A3072804 Contact Us For Availability
34
KNOB K WPL C3581901 Contact Us For Availability
35
ESCUTCHEON WPL C3582001 Contact Us For Availability
37
CONTROL, TEMPERATURE WPL C3628403 Contact Us For Availability
38
PLUG WPL B0564701 Contact Us For Availability
39
M0266510 WPL M0266620 Contact Us For Availability
40
SHIM WPL A0383301 Contact Us For Availability
41
HINGE ASSY PMT WPL C3582301 Contact Us For Availability
41
HINGE WPL C3582302 Contact Us For Availability
41
HINGE ASS`Y. WPL C3582304 Contact Us For Availability
41
HINGE ASSY-GOLD WPL C3582305 Contact Us For Availability
42
NUT WPL M0281007 Contact Us For Availability
43
WASHER WPL M0270513 Contact Us For Availability
44
SCREW WPL M0246033 Contact Us For Availability
45
SCREW WPL M0200108 Contact Us For Availability
46
SPACER WPL M0114501 Contact Us For Availability
47
HINGE COVER-COPPER WPL B0583402 Contact Us For Availability
47
HINGE COVER W WPL B0583403 Contact Us For Availability
47
HINGE COVER-AVOCADO WPL B0583404 Contact Us For Availability
47
HINGE COVER-GOLD WPL B0583405 Contact Us For Availability
48
HINGE SPRING WPL B0551701 Contact Us For Availability
52
SPRING K WPL A3043601 Contact Us For Availability
53
OVERLOAD WPL B0589801 Contact Us For Availability
54
WASHER WPL M0270509 Contact Us For Availability
55
SCREW WPL M0221461 Contact Us For Availability
56
WIRING HARNESS WPL D7105002 Contact Us For Availability
57
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
57
CLIP WPL M0110502 Contact Us For Availability
59
CLAMP, DRIER WPL M0102316 Contact Us For Availability
61
CLIP K WPL A3140801 Contact Us For Availability
62
WASHER, NYLON K WPL M0590101 Contact Us For Availability
63
GROMMET K WPL A4002702 Contact Us For Availability
64
SLEEVE K WPL A3072001 Contact Us For Availability
65
COMPRESSOR AE1380A WPL D3949901 Contact Us For Availability
67
RELAY WPL C3584801 Contact Us For Availability
68
COVER K WPL B0559501 Contact Us For Availability
69
STRAP K WPL A3041801 Contact Us For Availability
NI
CLIP WPL M0114401 Contact Us For Availability
× ![]()
