Model Whirlpool EC11F-A FREEZER – Common Parts & Diagrams

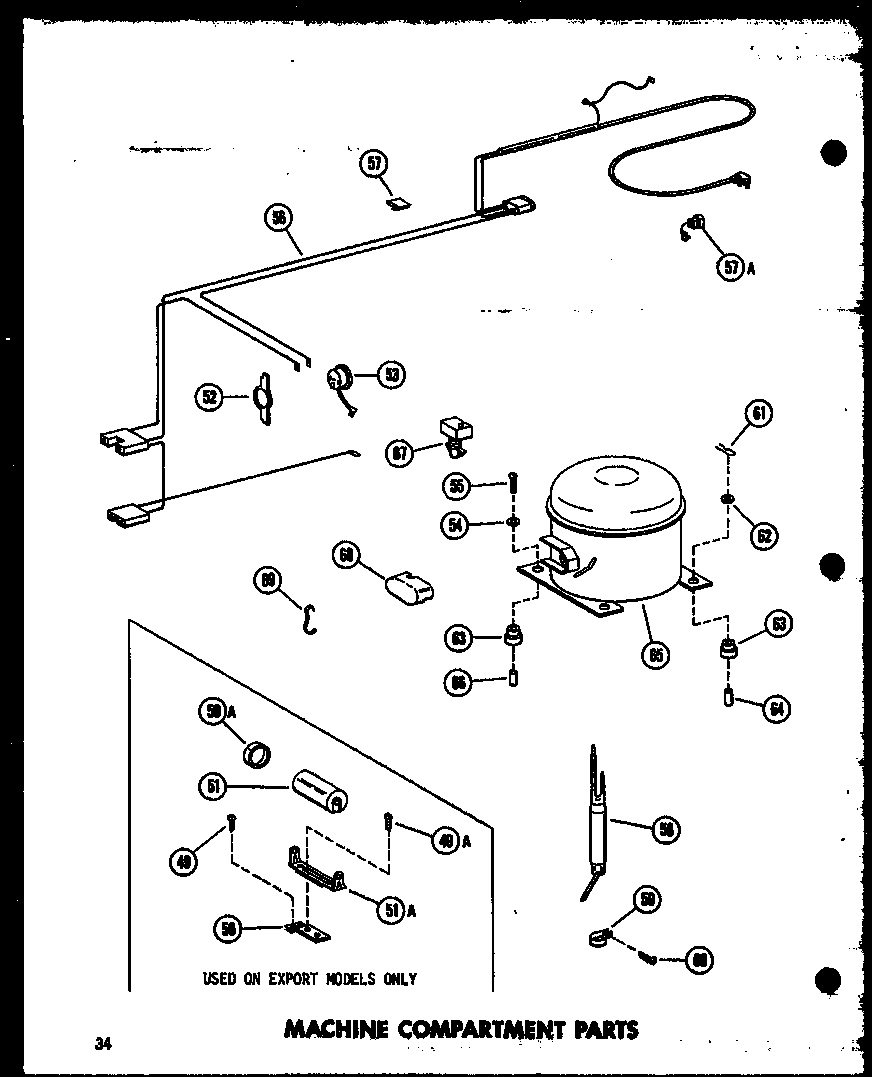

03 - MACHINE COMPARTMENT PARTS

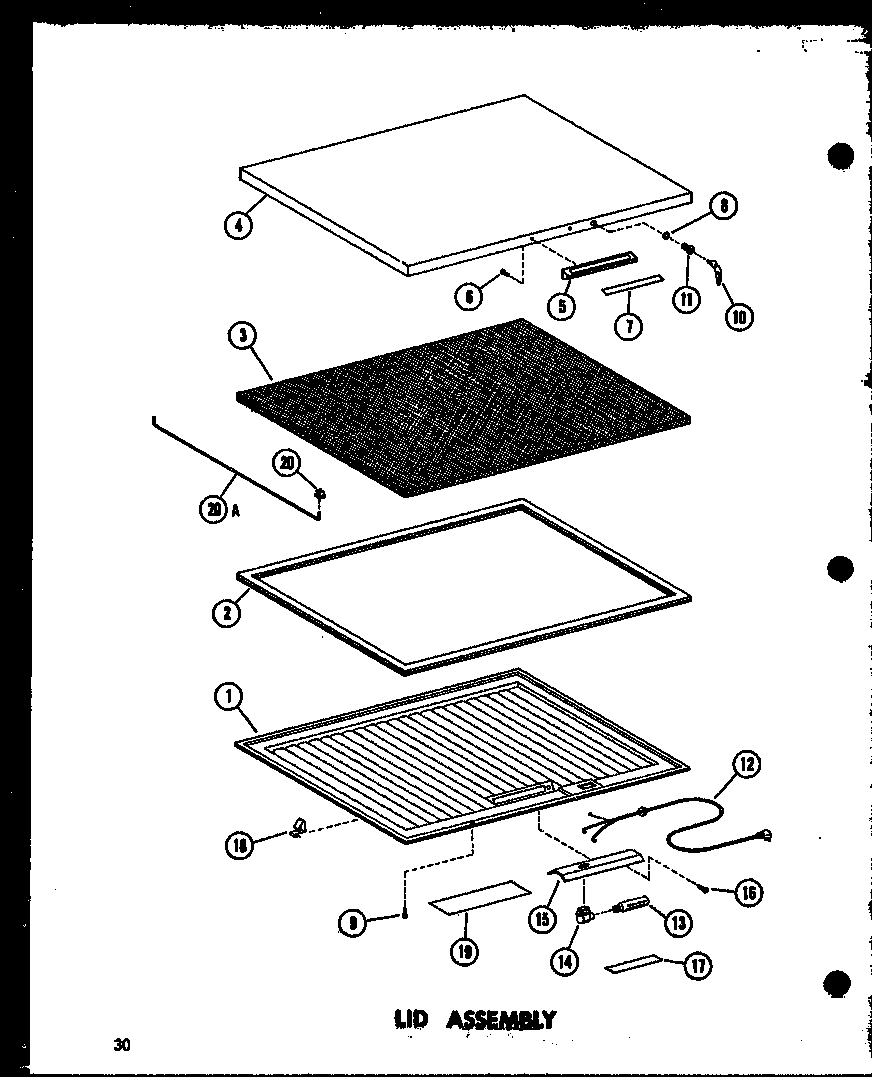

02 - LID ASSY

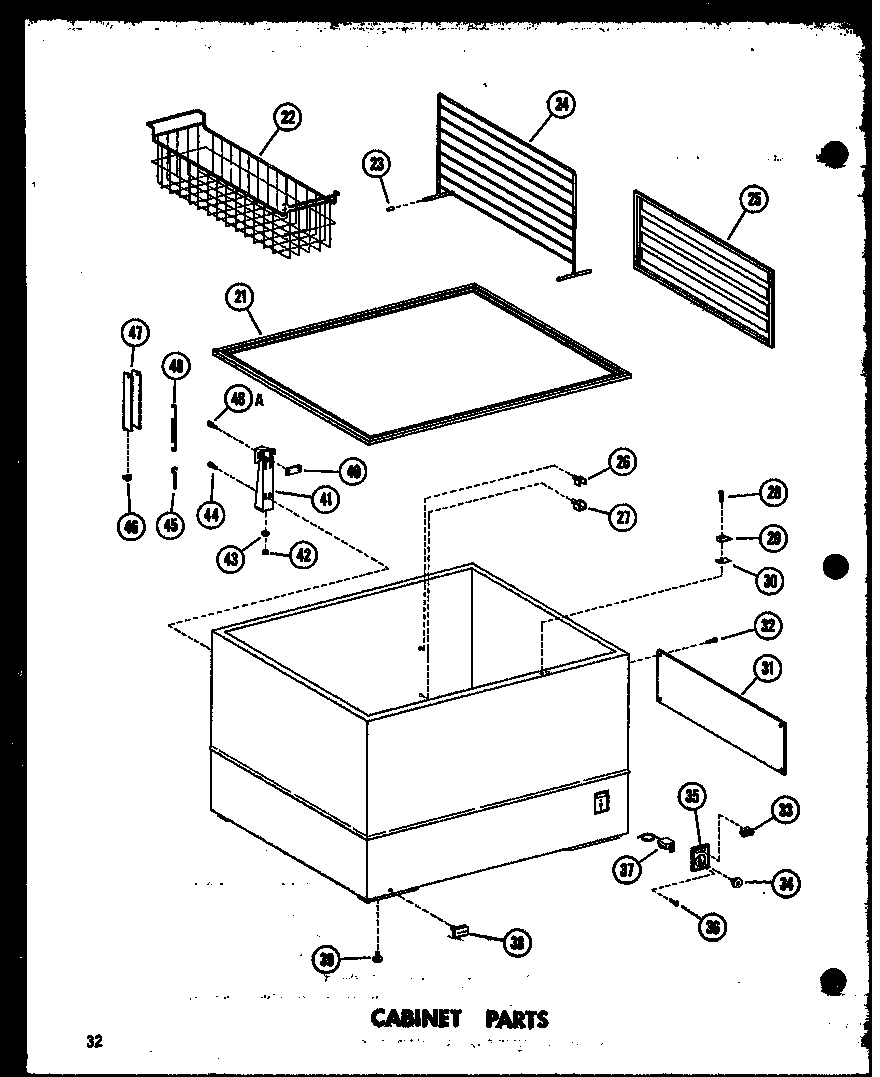

01 - CABINET PARTS
Common parts from model Whirlpool EC11F-A FREEZER
C15F/P60240-4W THESE MODELS ARE BUILT WITH DA WPL NOTE Contact Us For Availability
1
INNER LID PANEL WPL D3947205 Contact Us For Availability
2
GASKET, LID WPL B0585704 Contact Us For Availability
3
INSULATION SHEET WPL B0523814 Contact Us For Availability
4
LID WLD-WHITE-C11 WPL D7164701 Contact Us For Availability
4
LID WLD-COPPER-C11 WPL D7164702 Contact Us For Availability
4
LID WLD-AVOCADO-C11 WPL D7164703 Contact Us For Availability
4
LID WLD-GOLD-C11 WPL D7164704 Contact Us For Availability
5
HANDLE WPL D7134802 Contact Us For Availability
6
SCREW-HANDLE WPL M0225244 Contact Us For Availability
7
THINPLATE-HANDLE WPL B5676601 Contact Us For Availability
8
WASHER-PLASTIC WPL M0274033 Contact Us For Availability
10
KEY K WPL A3199101 Contact Us For Availability
11
LOCK ASSY KIT WPL C3682602 Contact Us For Availability
12
WIRING HARNESS WPL B5646701 Contact Us For Availability
13
LIGHT BULB WPL A3073102 Contact Us For Availability
14
SOCKET & SWITCH WPL B0585402 Contact Us For Availability
15
HOUSING, LIGHT WPL C3581401 Contact Us For Availability
16
SCREW WPL M0211530 Contact Us For Availability
17
LITE SHIELD WPL A3074101 Contact Us For Availability
18
CLIP WPL M0112201 Contact Us For Availability
19
NAMEPLATE WPL B0586501 Contact Us For Availability
21
COLLAR-BREAKER WPL B5690801 Contact Us For Availability
22
BASKET WPL D3946601 Contact Us For Availability
25
DIVIDER WPL D7039601 Contact Us For Availability
26
SUPPORT WPL B0585101 Contact Us For Availability
27
SUPPORT WPL B0585801 Contact Us For Availability
28
SCREW WPL M0228732 Contact Us For Availability
28
SCREW WPL M0230834 Contact Us For Availability
29
STRIKE LOCK WPL B0570101 Contact Us For Availability
30
SHIM, STRIKE WPL A3063203 Contact Us For Availability
30
SHIM WPL A3063204 Contact Us For Availability
31
PANEL M.C WPL C3580801 Contact Us For Availability
31
PANEL M.C WPL C3580803 Contact Us For Availability
31
PANEL M.C WPL C3580804 Contact Us For Availability
31
PANEL M C WPL C3580805 Contact Us For Availability
32
SCREW, No.8-32 X1/2 NYL HEX HD WPL M0213528 Contact Us For Availability
33
WARNING LIGHT WPL A3072804 Contact Us For Availability
34
KNOB K WPL C3581901 Contact Us For Availability
35
ESCUTCHEON WPL C3582001 Contact Us For Availability
37
CONTROL, TEMPERATURE WPL C3628403 Contact Us For Availability
38
PLUG WPL B0564701 Contact Us For Availability
39
M0266510 WPL M0266620 Contact Us For Availability
40
SHIM WPL A0383301 Contact Us For Availability
41
HINGE ASSY PMT WPL C3582301 Contact Us For Availability
41
HINGE WPL C3582302 Contact Us For Availability
41
HINGE ASS`Y. WPL C3582304 Contact Us For Availability
41
HINGE ASSY-GOLD WPL C3582305 Contact Us For Availability
42
NUT WPL M0281007 Contact Us For Availability
43
WASHER WPL M0270513 Contact Us For Availability
45
SCREW WPL M0200108 Contact Us For Availability
46
SPACER WPL M0114501 Contact Us For Availability
47
HINGE COVER-COPPER WPL B0583402 Contact Us For Availability
47
HINGE COVER W WPL B0583403 Contact Us For Availability
47
HINGE COVER-AVOCADO WPL B0583404 Contact Us For Availability
47
HINGE COVER-GOLD WPL B0583405 Contact Us For Availability
48
SCREW WPL M0246033 Contact Us For Availability
48
HINGE SPRING WPL B0551701 Contact Us For Availability
52
SPRING K WPL A3043601 Contact Us For Availability
53
OVERLOAD WPL B0589801 Contact Us For Availability
54
WASHER WPL M0270509 Contact Us For Availability
55
SCREW WPL M0250561 Contact Us For Availability
56
WIRING HARNESS WPL D7105002 Contact Us For Availability
57
STRAIN RELIEF K WPL A0319703 Contact Us For Availability
57
CLIP WPL M0110502 Contact Us For Availability
59
CLAMP WPL M0102315 Contact Us For Availability
61
CLIP K WPL A3140801 Contact Us For Availability
62
WASHER, NYLON K WPL M0590101 Contact Us For Availability
63
GROMMET K WPL A3026101 Contact Us For Availability
64
SLEEVE K WPL A3072001 Contact Us For Availability
65
COMPRESSOR AE1380A WPL D3949901 Contact Us For Availability
66
GROMMET SLEEVE K WPL A4002901 Contact Us For Availability
67
RELAY WPL C3584801 Contact Us For Availability
68
COVER K WPL B0559501 Contact Us For Availability
69
STRAP K WPL A3041801 Contact Us For Availability
NI
CLIP WPL M0114401 Contact Us For Availability
× ![]()
