Model Whirlpool DWA63AC DISHWASHER – Common Parts & Diagrams
05 - Rack

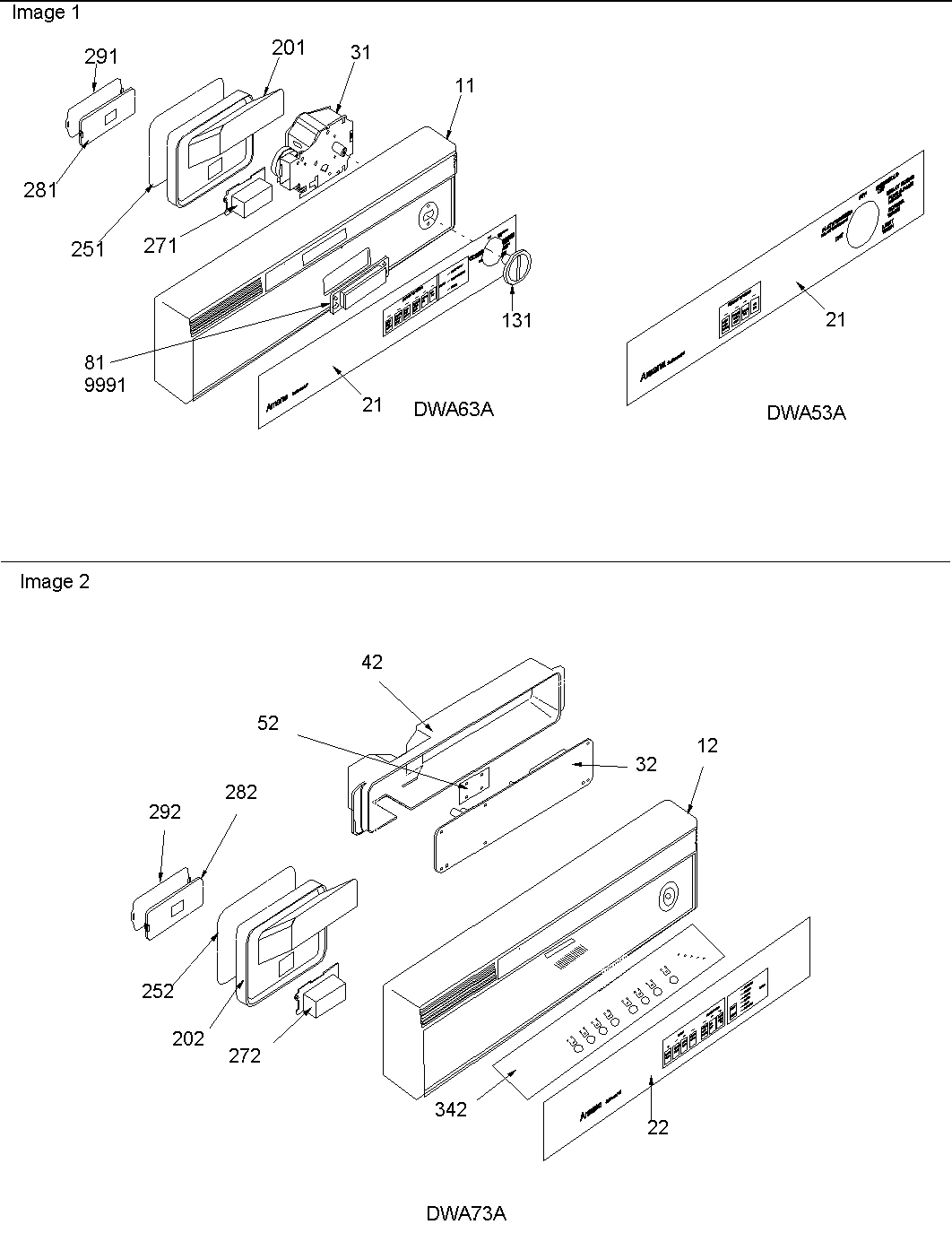

01 - Control Panel

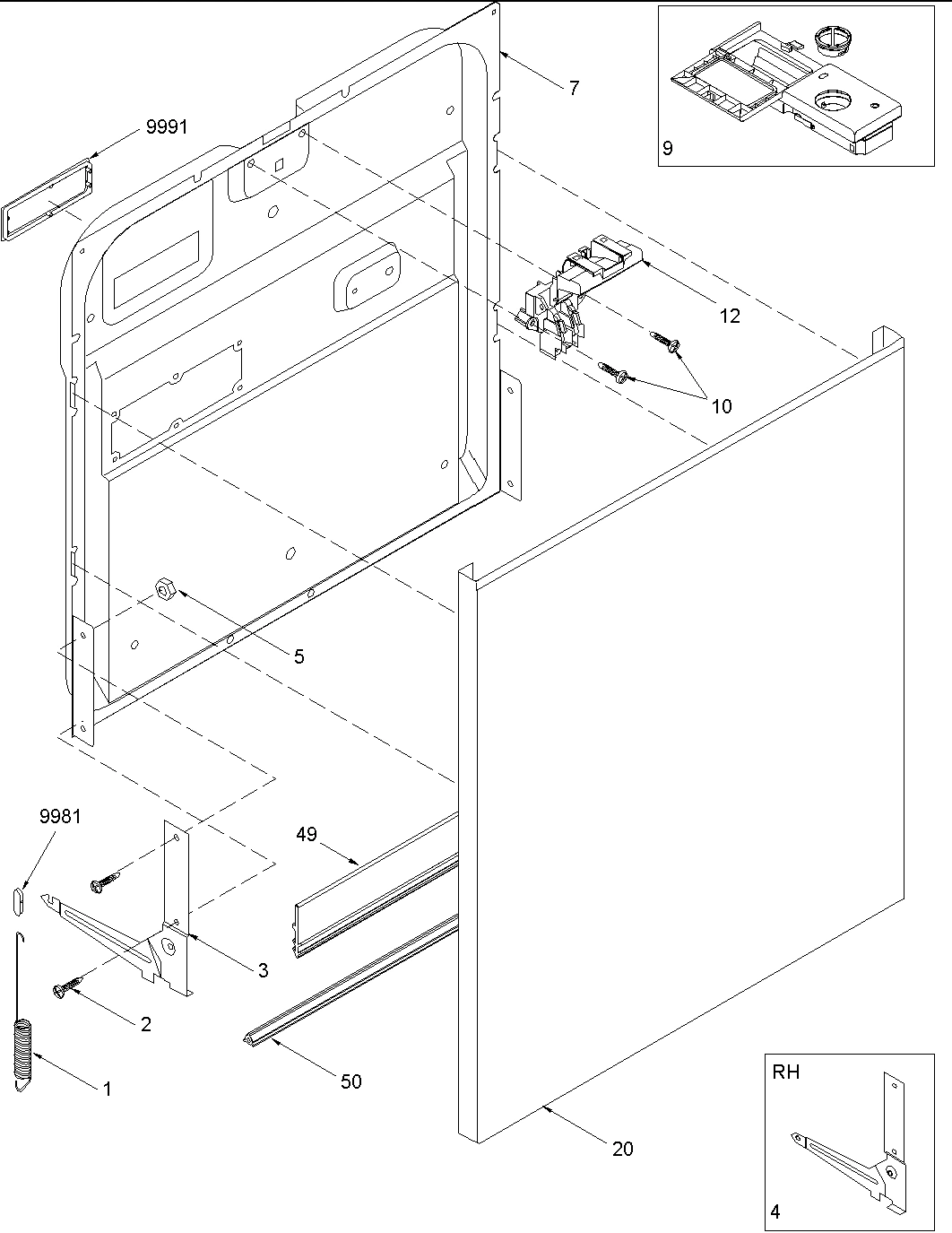

02 - Door

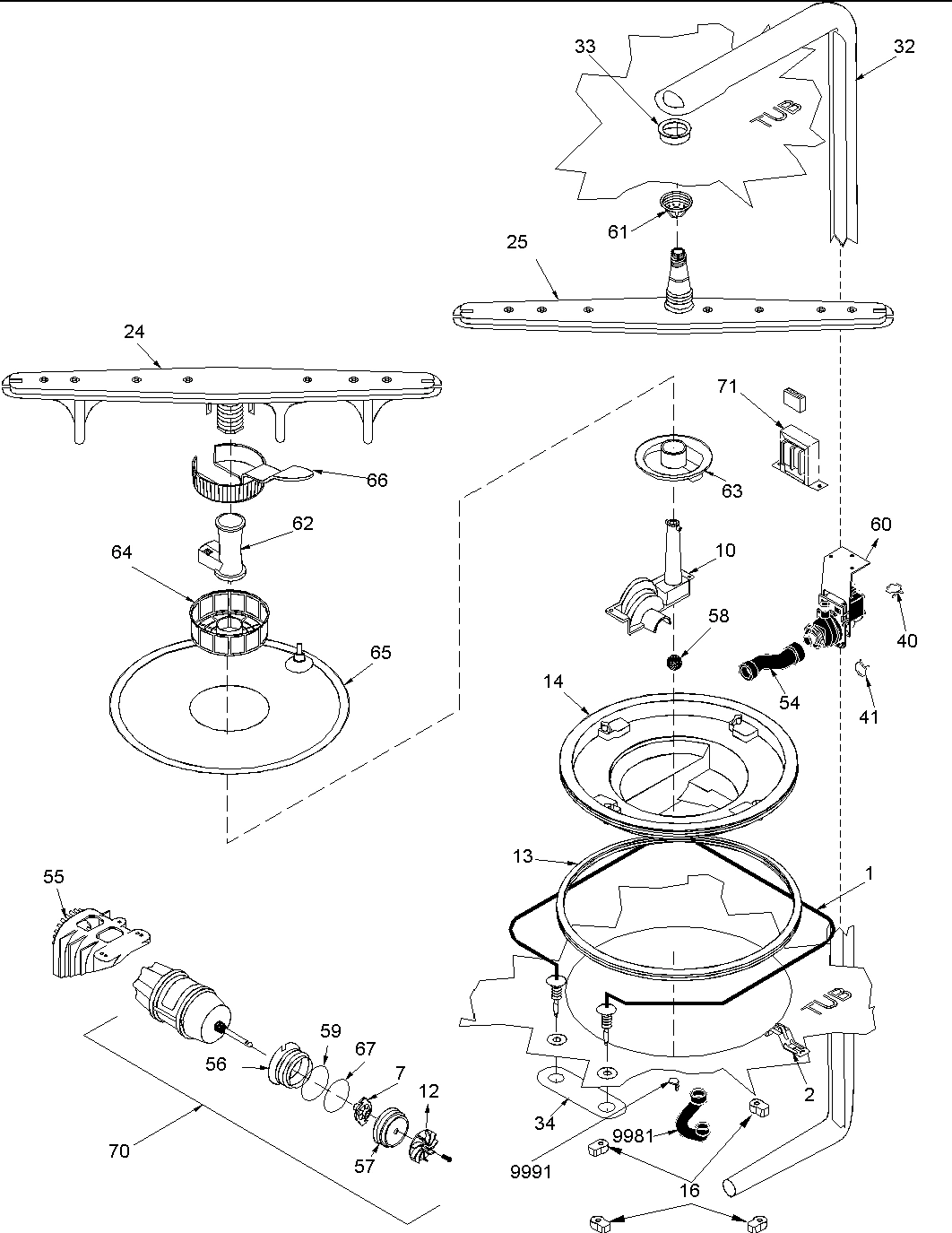

04 - Motor

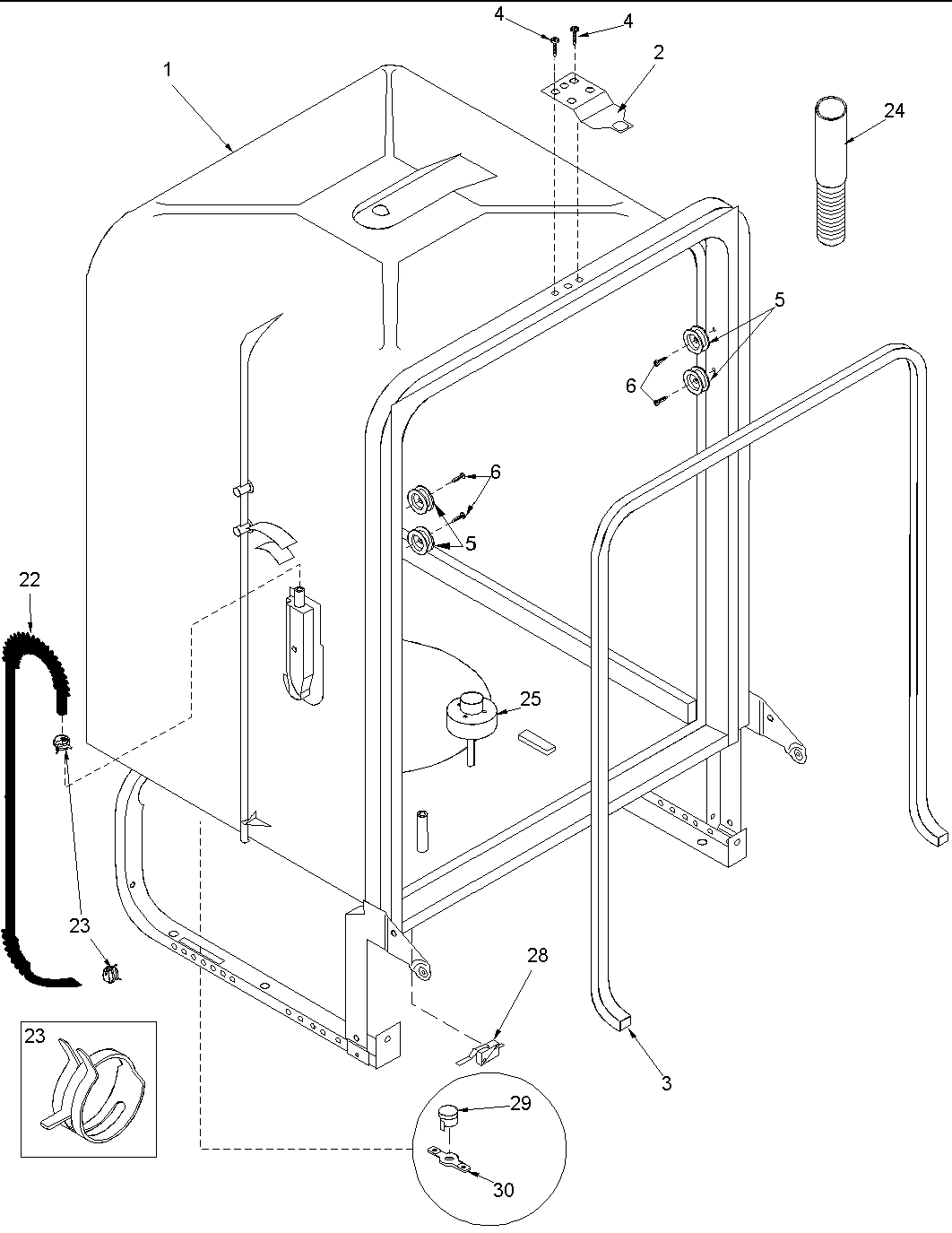

06 - Tub

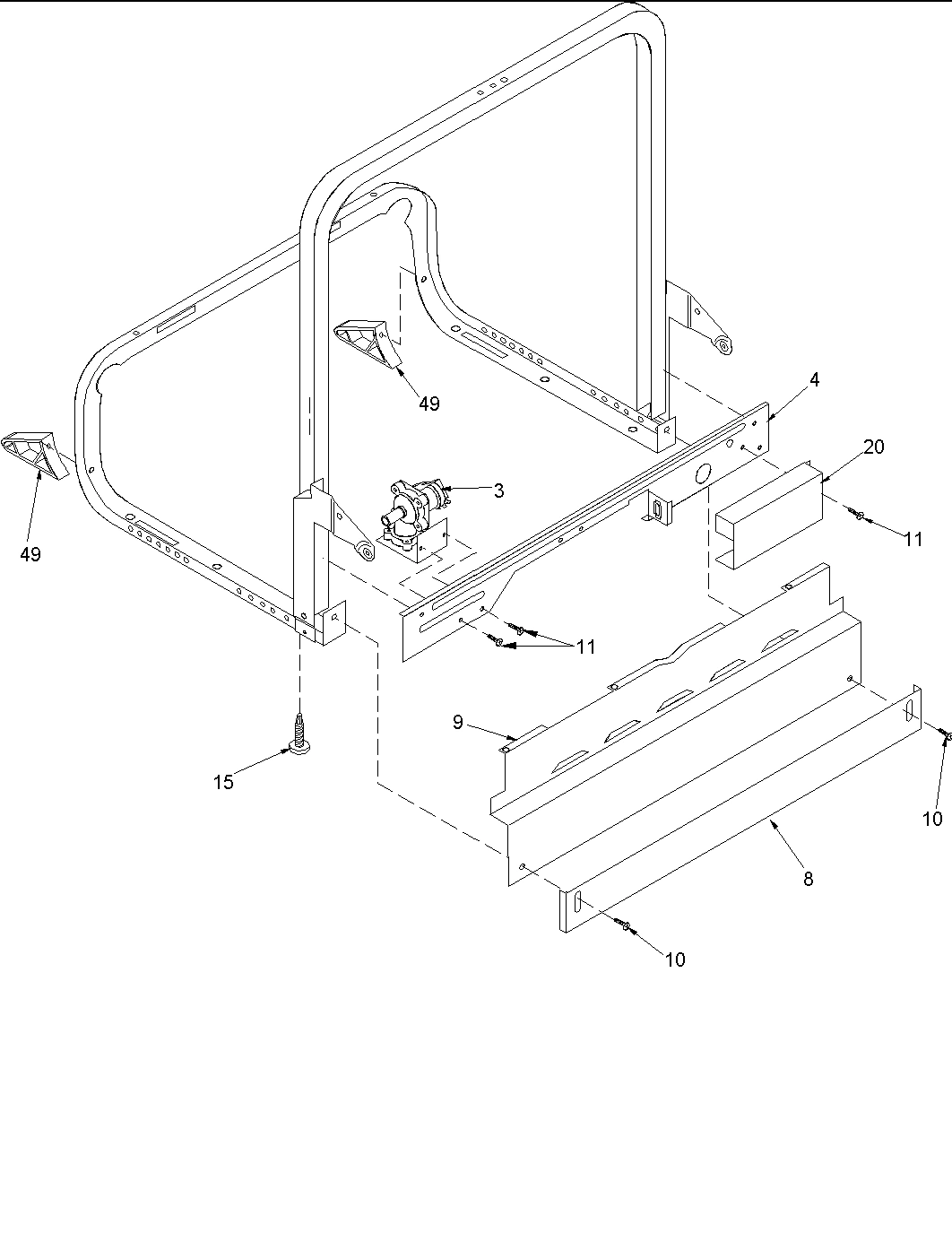

03 - Kickplate

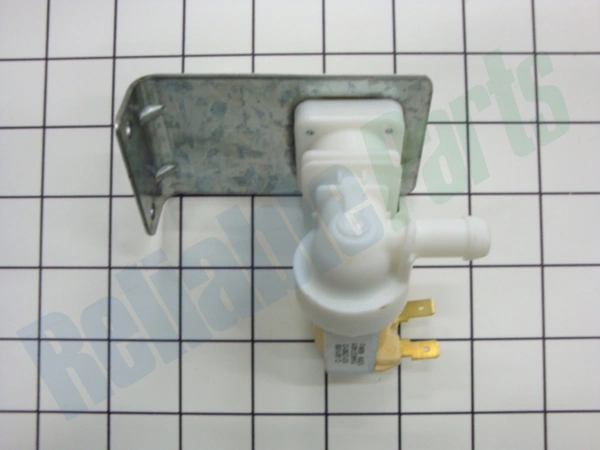

Common parts from model Whirlpool DWA63AC DISHWASHER
1
ASSY, LOWER RACK WPL R9800203 Contact Us For Availability
1
SPRING WPL R0000296 Contact Us For Availability
1
HEATER WPL R9800148 Contact Us For Availability
1
NOT AVAILABLE WPL ARI2518A95 Contact Us For Availability
2
BASKET, SILVERWARE WPL R9800080 Contact Us For Availability
2
SCREW, ARM ASSY WPL R9800063 Contact Us For Availability
2
BRACKET,HEATER (2) WPL R0000303 Contact Us For Availability
2
STRIKE, DOOR WPL R9800084 Contact Us For Availability
3
ASSY, UPPER RACK WPL R0000315 Contact Us For Availability
3
ASSY, L.H. ARM WPL R9800213 Contact Us For Availability
3
GASKET, TUB WPL R9800085 Contact Us For Availability
4
ASSY,UPPER RACK-WHEEL&BUSHING WPL R0000316 Contact Us For Availability
4
ASSY, R.H. HINGE ARM WPL R9800212 Contact Us For Availability
4
SCREW, No.10-16 X 3/8`` HEX WPL R9800072 Contact Us For Availability
4
BRACE, FRONT WPL R9800074 Contact Us For Availability
5
CAP, SLIDE WPL R9800231 Contact Us For Availability
5
ROLLER, TUB WPL R0000301 Contact Us For Availability
6
SLIDE, RACK WPL R9800120 Contact Us For Availability
6
SCREW, W/WASHER WPL R9800236 Contact Us For Availability
7
ASSY, WHEEL & BRKT WPL R9800069 Contact Us For Availability
7
ASSY, INNER DOOR WPL R0000297 Contact Us For Availability
7
MACERATOR WPL R9800136 Contact Us For Availability
8
BASE, FUNNEL WPL R9800189 Contact Us For Availability
8
TOEPLATE, ADJUSTABLE (BLK) WPL R9800209 Contact Us For Availability
9
FUNNEL WPL R9800155 Contact Us For Availability
9
ASSY,KICKPLATE/BAFFLE(BLACK) WPL R0000311 Contact Us For Availability
10
SCREW, LATCH WPL R9800065 Contact Us For Availability
10
COVER, VOLUTE WPL R9800133 Contact Us For Availability
11
HOLDER, CUP WPL R9800094 Contact Us For Availability
11
PANEL,CONTROL(BISQUE) WPL R0000289 Contact Us For Availability
12
BRACKET, SHELF CUP WPL R0000317 Contact Us For Availability
12
ASSY,LATCH W/ HANDLE(BISQUE) WPL R0000298 Contact Us For Availability
12
IMPELLER WPL R9800135 Contact Us For Availability
13
GASKET, SUMP WPL R9800142 Contact Us For Availability
14
HOUSING, SUMP WPL R0000304 Contact Us For Availability
15
HANDLE, SILVERWARE BASKET WPL R9800162 Contact Us For Availability
15
SCREW, LEVELING WPL R9800081 Contact Us For Availability
16
RETAINER, SUMP WPL R9800141 Contact Us For Availability
20
DOOR, BISQUE WPL R0000299 Contact Us For Availability
20
COVER, J-BOX WPL R9800077 Contact Us For Availability
21
INSERT,CONTROL PANEL(BISQUE) WPL R0000290 Contact Us For Availability
22
TUBING, WATER INLET WPL R9800129 Contact Us For Availability
24
ARM, LOWER SPRAY WPL R9800152 Contact Us For Availability
24
HOSE, DRAIN WPL R9800096 Contact Us For Availability
25
ARM, CENTER SPRAY WPL R9800200 Contact Us For Availability
25
FLOAT WPL R9800078 Contact Us For Availability
28
SWITCH, FLOAT WPL R9800095 Contact Us For Availability
29
THERMOSTAT, RESET WPL R9800173 Contact Us For Availability
30
RETAINER, THERMOSTAT WPL R9800132 Contact Us For Availability
31
TIMER WPL R9800178 Contact Us For Availability
32
NOZZLE KIT WPL R9800154 Contact Us For Availability
33
GASKET,DELIVERY TUBE WPL R0000306 Contact Us For Availability
34
WASHER, INSULATING WPL R9800060 Contact Us For Availability
41
CLAMP, DRAIN PUMP WPL R9800145 Contact Us For Availability
49
GSKET, DOOR BOTTOM WPL R9800180 Contact Us For Availability
49
GUARD, MOTOR WPL R9800110 Contact Us For Availability
50
SUPPORT, HINGE WPL R9800082 Contact Us For Availability
54
HOSE CONNECTOR WPL R9800121 Contact Us For Availability
55
BRACKET, MOTOR MTG WPL R9800134 Contact Us For Availability
56
MOUNT, FRONT MOTOR WPL R9800139 Contact Us For Availability
57
BARREL,FRONT WPL R9800137 Contact Us For Availability
58
CHECK, BALL WPL R9800140 Contact Us For Availability
59
O-RING, REAR WPL R9800143 Contact Us For Availability
60
ASSY, DRAIN PUMP WPL R9800147 Contact Us For Availability
61
NOZZLE,3RD LEVEL-SPRAY ARM WPL R0000308 Contact Us For Availability
62
SUPPORT, SPRAY ARM WPL R9800175 Contact Us For Availability
63
BASE, SOIL DIRECTOR WPL R9800157 Contact Us For Availability
64
FILTER, STAINLESS STEEL WPL R9800158 Contact Us For Availability
65
FILTER, STAINLESS STEEL WPL R9800159 Contact Us For Availability
66
TRAP, GLASS WPL R9800160 Contact Us For Availability
67
O-RING, FRONT WPL R9800144 Contact Us For Availability
70
ASSY, MOTOR/PUMP WPL R9800174 Contact Us For Availability
81
SWITCH, SELECTOR WPL R0000291 Contact Us For Availability
131
KNOB,TIMER(BISQUE) WPL R0000293 Contact Us For Availability
201
ASSY, VAPOR WELDMENT WPL R9800165 Contact Us For Availability
251
SEAL, CHAMBER WPL R9800116 Contact Us For Availability
271
ACTUATOR, WAX WPL R9800108 Contact Us For Availability
281
VENT, VALVE WPL R9800109 Contact Us For Availability
291
GASKET, VALVE WPL R0000294 Contact Us For Availability
9981
HOSE, DRAIN SHUNT WPL R0000309 Contact Us For Availability
9991
SHIELD, SWITCH WPL R0000292 Contact Us For Availability
9991
GRATE, LINER WPL R9800100 Contact Us For Availability
9991
VALVE, CHECK WPL R0000305 Contact Us For Availability
NI
HARNESS, WIRING WPL R0000295 Contact Us For Availability
NI
SCREW, TIMER WPL R9800064 Contact Us For Availability
NI
SHIELD, TIMER WPL R9800068 Contact Us For Availability
NI
SCREW, No.8-10 X 3/8`` PHIL WPL R9800166 Contact Us For Availability
NI
LENS, INDICATOR WPL R9800184 Contact Us For Availability
NI
GASKET, VENT WPL R9800188 Contact Us For Availability
NI
SCREW, SWITCH MTG WPL R9800235 Contact Us For Availability
NI
SPRING, LINKAGE WPL R9800211 Contact Us For Availability
NI
CLAMP-WIRE,DRIP LOOP WPL R0000300 Contact Us For Availability
NI
PIN, ARM WPL R9800083 Contact Us For Availability
NI
T`STAT, TEMP BOOST WPL R9800114 Contact Us For Availability
NI
INSULATION, DOOR WPL R9800161 Contact Us For Availability
NI
WASHER, ARM WPL R9800183 Contact Us For Availability
NI
SCREW, No.8 C.R.TRUSS WPL R9800230 Contact Us For Availability
NI
BRACKET, MOTOR WPL R0000307 Contact Us For Availability
NI
NUT, HEATER WPL R9800066 Contact Us For Availability
NI
BRACKET, DRAIN MOTOR WPL R9800122 Contact Us For Availability
NI
BARREL, REAR WPL R9800138 Contact Us For Availability
NI
CLAMP, CONNECTOR PUMP WPL R9800146 Contact Us For Availability
NI
NUT, SPRAY ARM WPL R9800156 Contact Us For Availability
NI
SCREW, SS IMPELLER WPL R9800164 Contact Us For Availability
NI
SHIELD, HEATER TERMINAL WPL R9800171 Contact Us For Availability
NI
COVER, FAN WPL R9800216 Contact Us For Availability
NI
SCREW, TRUSS WPL R9800233 Contact Us For Availability
NI
SCREW, RETAINER WPL R9800238 Contact Us For Availability
NI
INSULATION,BLANKET BACK WPL R0000302 Contact Us For Availability
NI
No.10 T X 3/8`` SCREW WPL R9800073 Contact Us For Availability
NI
BRACKET, FLOAT SWITCH WPL R9800079 Contact Us For Availability
NI
T`STAT, TEMP ASURE WPL R9800113 Contact Us For Availability
NI
INSULATION, TUB WPL R9800126 Contact Us For Availability
NI
SCREW, RETAINER THERMOSTAT WPL R9800182 Contact Us For Availability
NI
SCREW WPL R9800227 Contact Us For Availability
NI
INSULATION,BAFFLE-SIDE WPL R0000312 Contact Us For Availability
NI
GUARD-WIRE, BAFFLE WPL R0000313 Contact Us For Availability
NI
BAFFLE, SOUND WPL R0000314 Contact Us For Availability
NI
SCREW, No.1 WPL R9800059 Contact Us For Availability
NI
ASSY, SOUND BAFFLE WPL R9800076 Contact Us For Availability
NI
INSULATION, KICKPLATE WPL R9800149 Contact Us For Availability
NI
WASHER WPL R9800228 Contact Us For Availability
× ![]()
