Model LG DVR1000 – Common Parts & Diagrams
Diagram 0

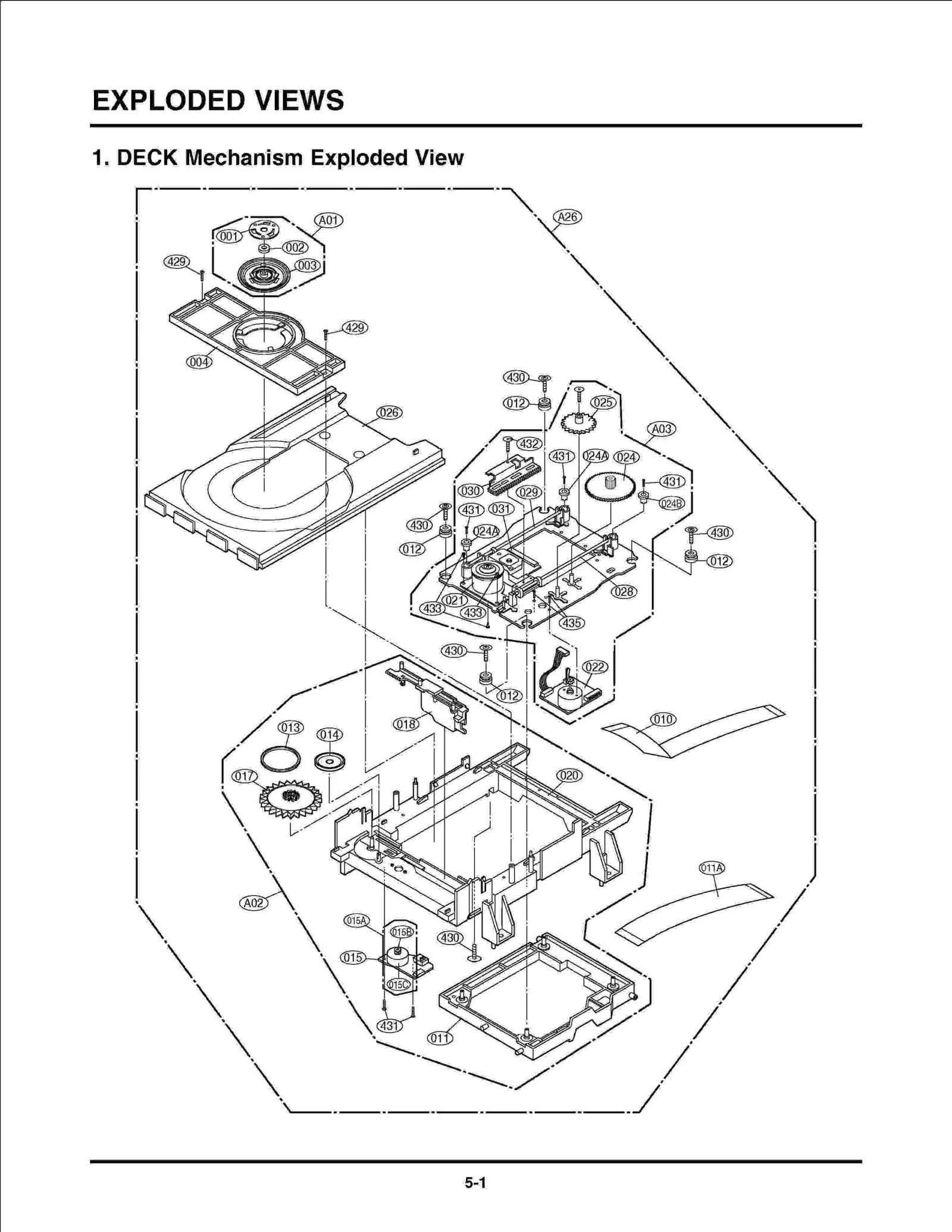

Diagram 1

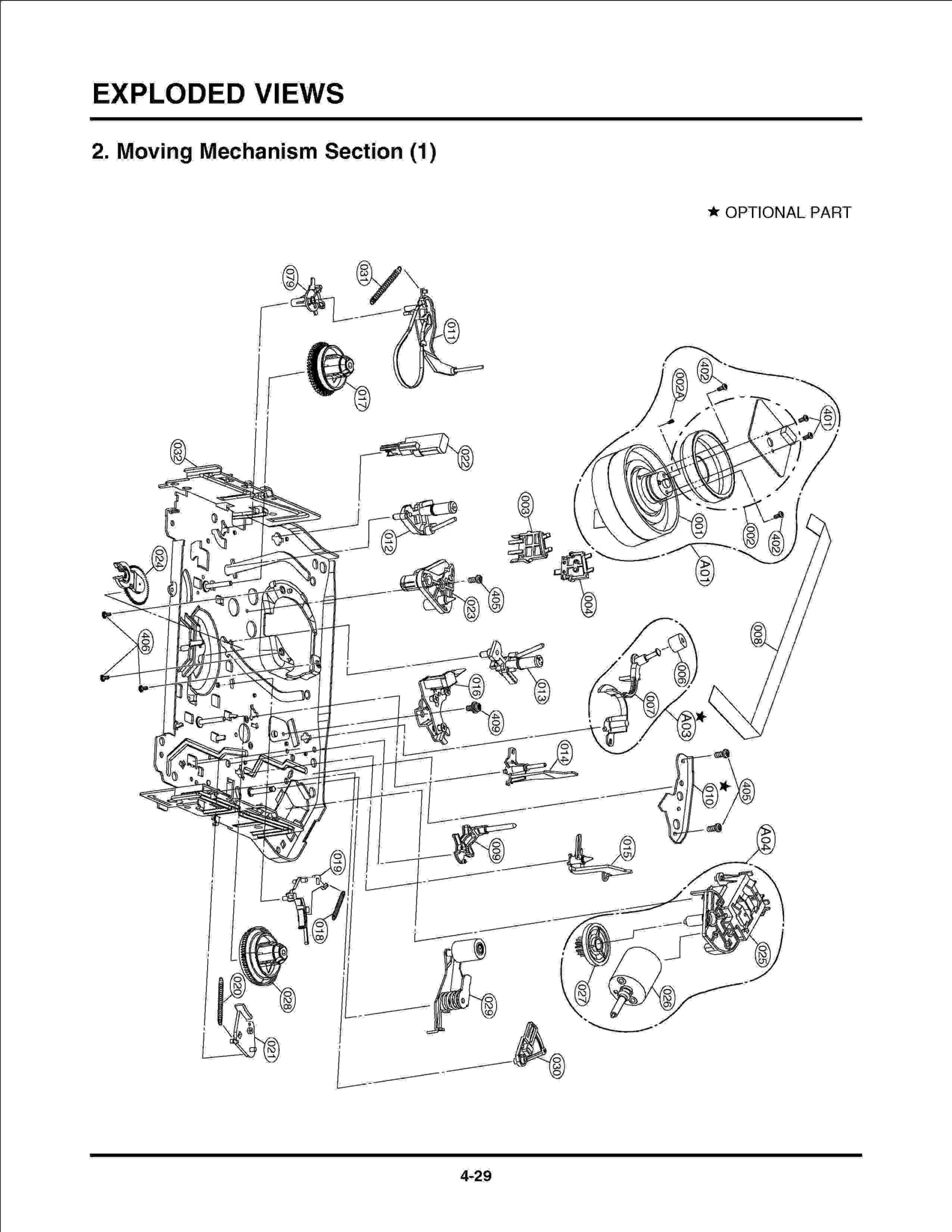

Diagram 2

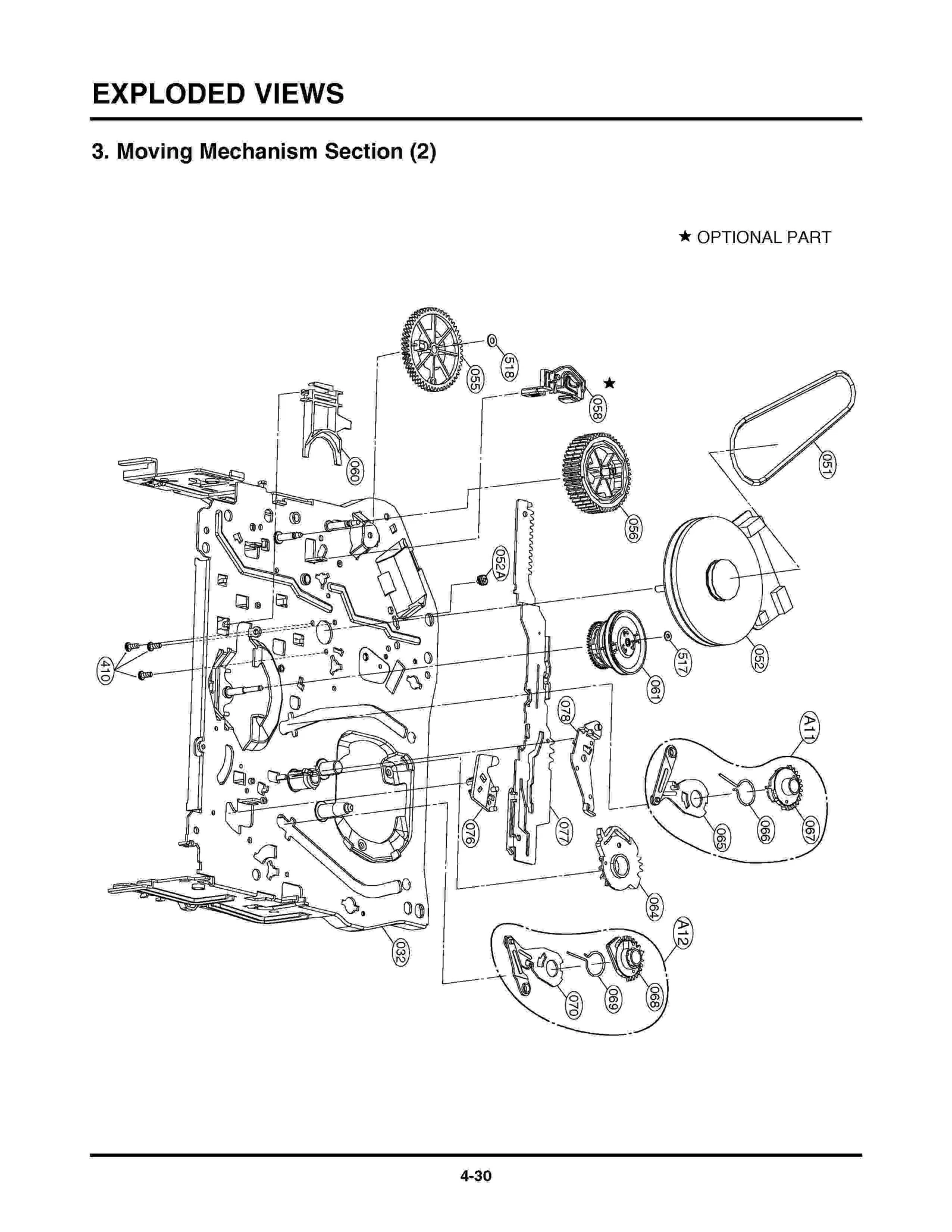

Diagram 3
Diagram 4
Common parts from model LG DVR1000
001
PLATE LGE 3300R-0547A Contact Us For Availability
001
DRUM(CIRC) ASSEMBLY LGE 6723R-D305A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
004
HOLDER LGE 4930R-0171A Contact Us For Availability
010
LGE 4810R-0125A LGE 4810R-0125A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK22Z Contact Us For Availability
011
FRAME LGE 3210R-M002A Contact Us For Availability
011A
CABLE,FLAT LGE 6850R-JW14E Contact Us For Availability
012
Damper LGE 5040R-0075B Contact Us For Availability
012
RUBBER LGE 5040R-0075D Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,TO LGE 6871R-4415C Contact Us For Availability
015B
LGE 4470R-0129A LGE 4470R-0129A Contact Us For Availability
015C
LGE 4470R-0120A LGE 4470R-0120A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
BASE LGE 3040R-M001A Contact Us For Availability
021
MOTOR(MECH) LGE 4680R-C011A Contact Us For Availability
022
LGE 4681R-0038A LGE 4681R-0038A Contact Us For Availability
024
GEAR LGE 4470R-0131A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0029A Contact Us For Availability
024A
CAP LGE 5006R-0044A Contact Us For Availability
024B
CAP LGE 5006R-0043A Contact Us For Availability
025
GEAR LGE 4470R-0130A Contact Us For Availability
026
TRAY LGE 3390R-0014A Contact Us For Availability
028
SHAFT LGE 4370R-0082B Contact Us For Availability
029
ARM ASSY LGE 4261R-0019A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019C Contact Us For Availability
029
LGE 4261R-0019D LGE 4261R-0019D Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019B Contact Us For Availability
029
SHAFT LGE 4370R-0082A Contact Us For Availability
030
GEAR ASSEMBLY LGE 4471R-0013A Contact Us For Availability
031
PICK UP,DVD LGE 6716DPH005A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0006A Contact Us For Availability
250
CASE LGE 3110R-V004D Contact Us For Availability
260
FRAME LGE 3210R-V002A Contact Us For Availability
283
LGE 3580R-V052G LGE 3580R-V052G Contact Us For Availability
285
LGE 3581R-T082C LGE 3581R-T082C Contact Us For Availability
300
POWER CORD LGE 6410RAHK02D Contact Us For Availability
300
POWER CORD LGE 6410RAHS02D Contact Us For Availability
330
CHASSIS LGE 3140R-V001A Contact Us For Availability
429
SCREW, LGE 1SZZR-0012A Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
433
SCREW,DRAWING LGE 1SZZR-0050A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
463
SCREW,DRAWING LGE 353-051G Contact Us For Availability
801
LGE 3835RM0061R LGE 3835RM0061R Contact Us For Availability
802
LGE 3890R-H816S LGE 3890R-H816S Contact Us For Availability
803
LGE 3920R-E080A LGE 3920R-E080A Contact Us For Availability
804
Sheet LGE 3858R-S001A Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA22 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
810
LGE 6851RN0006G LGE 6851RN0006G Contact Us For Availability
811
PLUG ASSY LGE 6611R1G001A Contact Us For Availability
812
PLUG ASSY LGE 6611R2G001A Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R1N134A Contact Us For Availability
A00
LGE 6721R-0720W LGE 6721R-0720W Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-D402A Contact Us For Availability
A01
LGE 4861R-0016A LGE 4861R-0016A Contact Us For Availability
A01
LGE 6723R-C402A LGE 6723R-C402A Contact Us For Availability
A02
LGE 3041R-M013A LGE 3041R-M013A Contact Us For Availability
A03
LGE 3041R-M022A LGE 3041R-M022A Contact Us For Availability
A26
DECK ASSEMBLY,VIDEO LGE 6721R-0377A Contact Us For Availability
A43
LGE 3721R-F321Y LGE 3721R-F321Y Contact Us For Availability
A46
LGE 3501R-8610A LGE 3501R-8610A Contact Us For Availability
A46A
LGE 6885R-2022H LGE 6885R-2022H Contact Us For Availability
A48
LGE 6871R-8211N LGE 6871R-8211N Contact Us For Availability
BD02
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C5G1
Capacitor,AL,Radial LGE 0CE1086C638 Contact Us For Availability
C102
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
C103
CAPACITOR,AL.ELECTROLYTIC LGE 0CE157CR610 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C109
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C123
LGE 0CE477BH638 LGE 0CE477BH638 Contact Us For Availability
C126
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C127
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C128
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C131
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C133
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C152
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C163
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C244
Capacitor,Ceramic,Chip LGE 0CH4561K412 Contact Us For Availability
C265
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C272
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C273
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C274
Capacitor,Ceramic,Chip LGE 0CH4471K412 Contact Us For Availability
C277
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C278
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C293
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C316
LGE 0CH1272K516 LGE 0CH1272K516 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C344
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C349
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C422
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C423
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K416 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4270K416 Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE 0CH1225F944 Contact Us For Availability
C533
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C534
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C537
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C546
CAPACITOR,ELECTROLYTIC LGE 0CE4764H638 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C563
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C566
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C567
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C571
Capacitor,Ceramic,Chip LGE 0CH4180K416 Contact Us For Availability
C584
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C587
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C590
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C595
LGE 0CH4120K416 LGE 0CH4120K416 Contact Us For Availability
C597
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C608
CHIP CAPA CERAMIC M/L H.D F/S LGE 0CH1104K946 Contact Us For Availability
C616
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C706
LGE 0CH4300K416 LGE 0CH4300K416 Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D101
DIODE LGE 0DD010009CA Contact Us For Availability
D111
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D113
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D114
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D121
DIODE 1SS133 DETECT, SW TP LGE 0DD133009AA Contact Us For Availability
D401
DIODE,SWITCHING LGE 0DSRM00118A Contact Us For Availability
D601
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
F501
Filter,LCR LGE 6200JB8010V Contact Us For Availability
F604
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
FH01
HOLDER FUSE LGE 586-008B Contact Us For Availability
IC5A1
IC,MEMORIES LGE 0IMMRFU010A Contact Us For Availability
IC5A1
LGE 0IMMRBA001A LGE 0IMMRBA001A Contact Us For Availability
IC5A1A
LGE 6957R-254AP LGE 6957R-254AP Contact Us For Availability
IC5C1
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGFF001A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGJR007A Contact Us For Availability
IC151
IC,Voltage Regulator LGE 0IPMGSH009A Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGFA016A Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGFA046A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRNF006A Contact Us For Availability
IC202
IC,PERIPHERALS LGE 0IPRPSA010A Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC401
IC,PERIPHERALS LGE 0IPRPCI003B Contact Us For Availability
IC402
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCRMI051D Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF007A Contact Us For Availability
IC503
IC,ELITE MEMORY TECH LGE 0IEB121616B Contact Us For Availability
IC503
IC,MEMORIES LGE 0IMMREB006A Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC510
IC,CMOS LGE 0IFA742440F Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPMT007B Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
JK601
LGE 6612JH002UB LGE 6612JH002UB Contact Us For Availability
L5G1
INDUCTOR RADIAL LEAD 470M K 6X LGE 0LR4700K035 Contact Us For Availability
L102
FILTER(CIRC),DRAWING LGE 616-145P Contact Us For Availability
L123
COIL,CHOKE LGE 633-088G Contact Us For Availability
L125
Coil,Choke LGE 633-088D Contact Us For Availability
L203
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L303
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
L305
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L613
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
MS501
LGE 6600JB8005C LGE 6600JB8005C Contact Us For Availability
Q150
TRANSISTOR LGE 0TR115100AA Contact Us For Availability
Q150
LGE 0TR115100AC LGE 0TR115100AC Contact Us For Availability
Q156
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q161
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q162
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q162
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q162
TRANSISTOR KTC-3199-BL MINI T LGE 0TR319909AF Contact Us For Availability
Q202
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q204
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q304
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q405
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q507
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q603
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q702
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q703
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
R5C9
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R5K2
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R6T1
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R6T2
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R6T4
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R6T5
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R6T6
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R6T7
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R106
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R112
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R113
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R115
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R116
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R117
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R119
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R132
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R153
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R155
Resistor,Carbon Film LGE 0RD1802F608 Contact Us For Availability
R159
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R170
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R204
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R205
Resistor,Chip LGE 0RH0272C622 Contact Us For Availability
R212
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R215
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R233
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R236
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R242
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R251
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R257
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R305
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R306
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R320
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R407
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R411
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R416
Resistor,Chip LGE 0RH1801C622 Contact Us For Availability
R418
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R422
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R424
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R503
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R513
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R516
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R526
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R528
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R546
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R565
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R571
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R574
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R577
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R584
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R585
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R586
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R597
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
RS501
LGE 6500RAB007A LGE 6500RAB007A Contact Us For Availability
SW606
SWITCH,DETECTOR LGE 556-213C Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW12A Contact Us For Availability
TU701
LGE 6700NFNG04A LGE 6700NFNG04A Contact Us For Availability
TU701
TUNER LGE 6700NFNL04A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X301
Crystal LGE 6202R1357AE Contact Us For Availability
X301
CRYSTAL,STANDARD LGE 6202R1357AC Contact Us For Availability
X501
Crystal LGE 6212AC2327E Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X502
LGE 6212AA2143F LGE 6212AA2143F Contact Us For Availability
ZD103
LGE 0DZ120009CA LGE 0DZ120009CA Contact Us For Availability
ZD501
LGE 0DZ560009CA LGE 0DZ560009CA Contact Us For Availability
× ![]()
Login and Registration Form
