Model Whirlpool DUS300B DISHWASHER – Common Parts & Diagrams

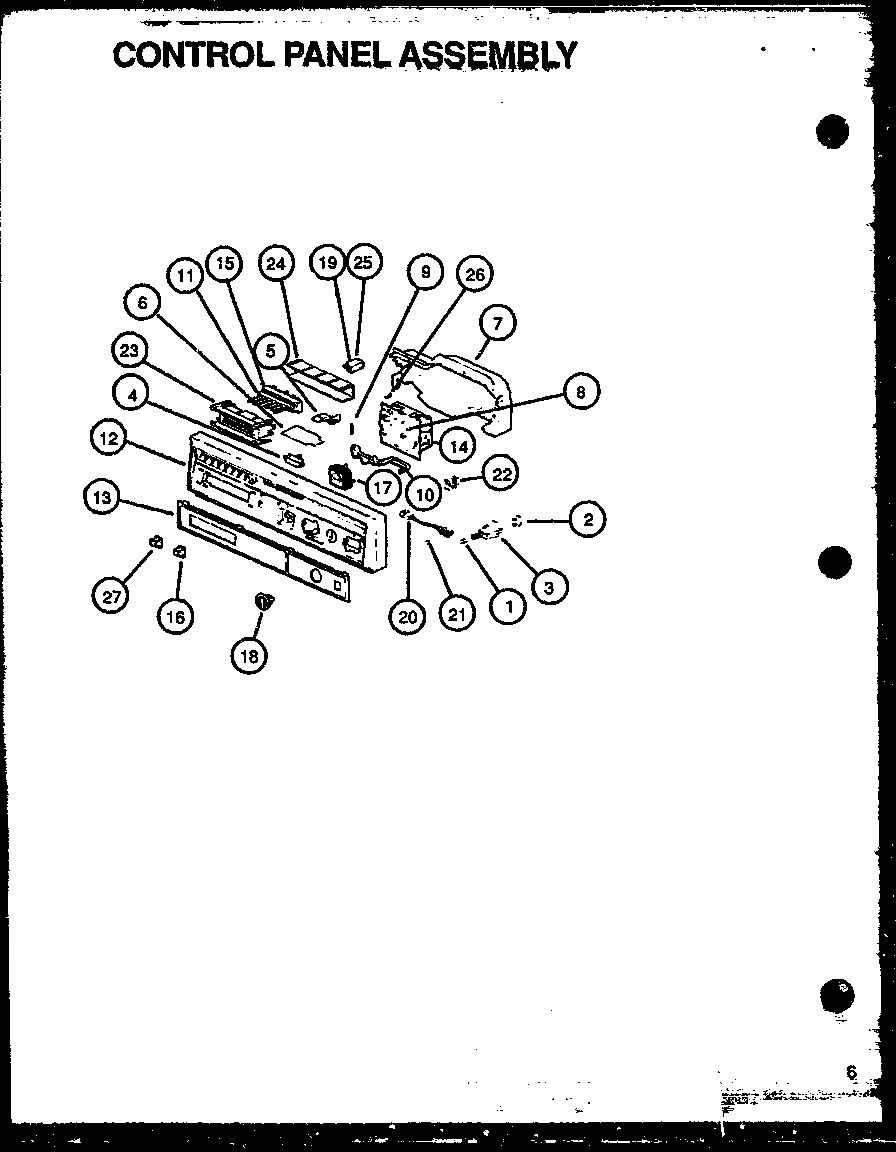

01 - CONTROL PANEL ASSY

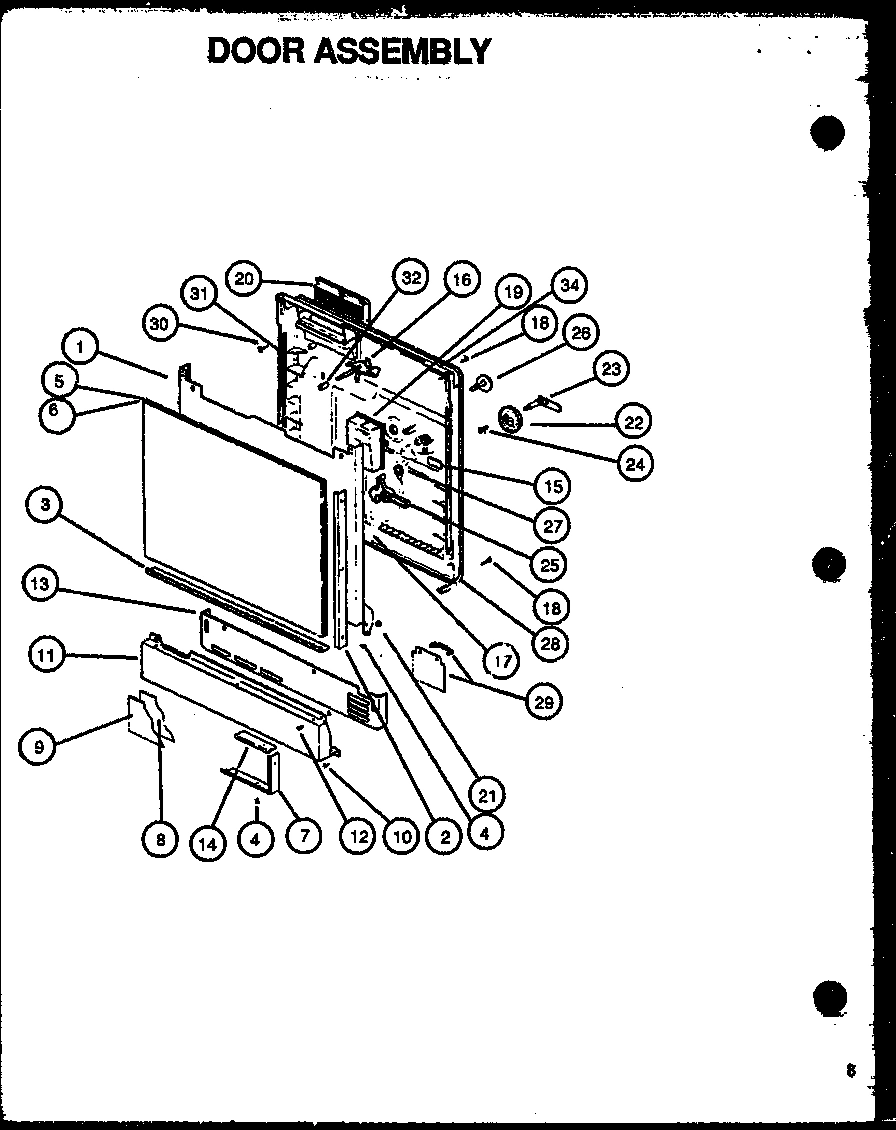

02 - DOOR ASSY

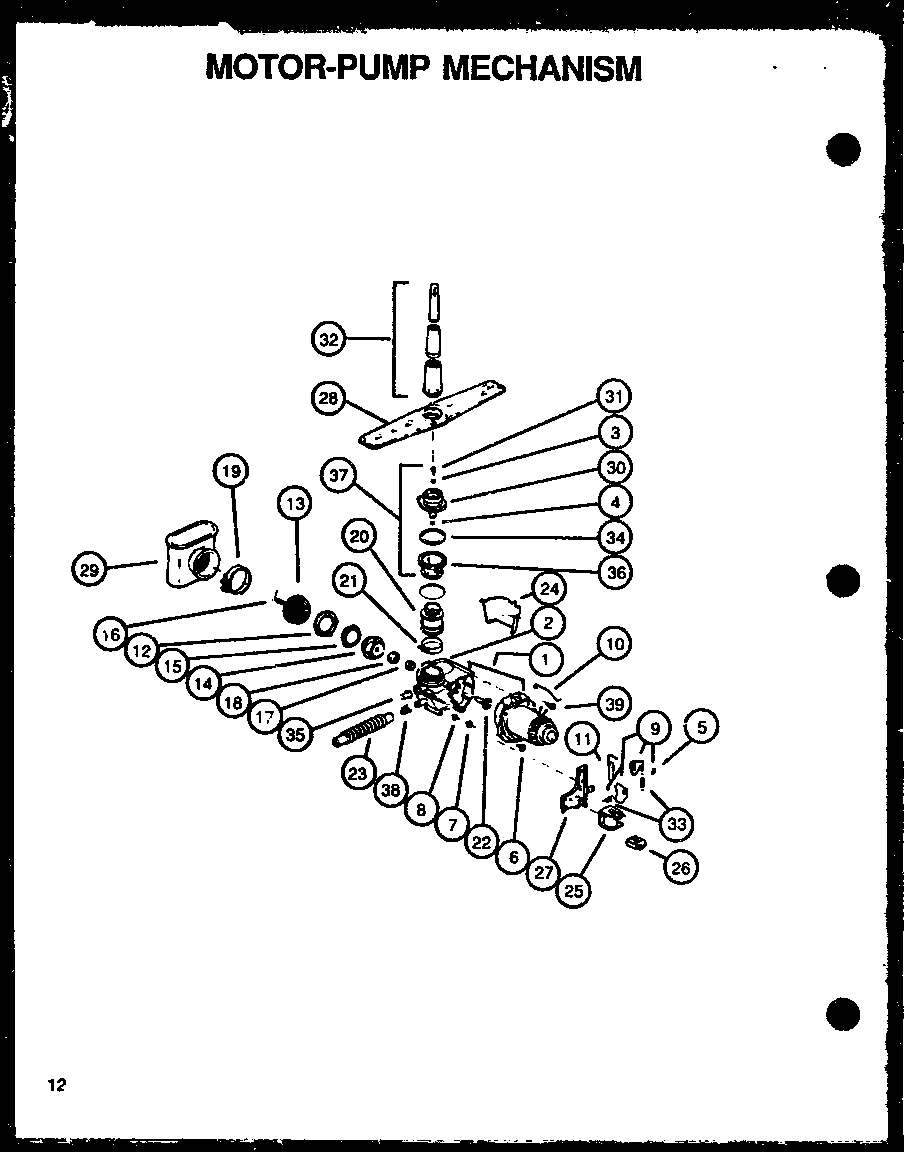

03 - MOTOR-PUMP MECHANISM

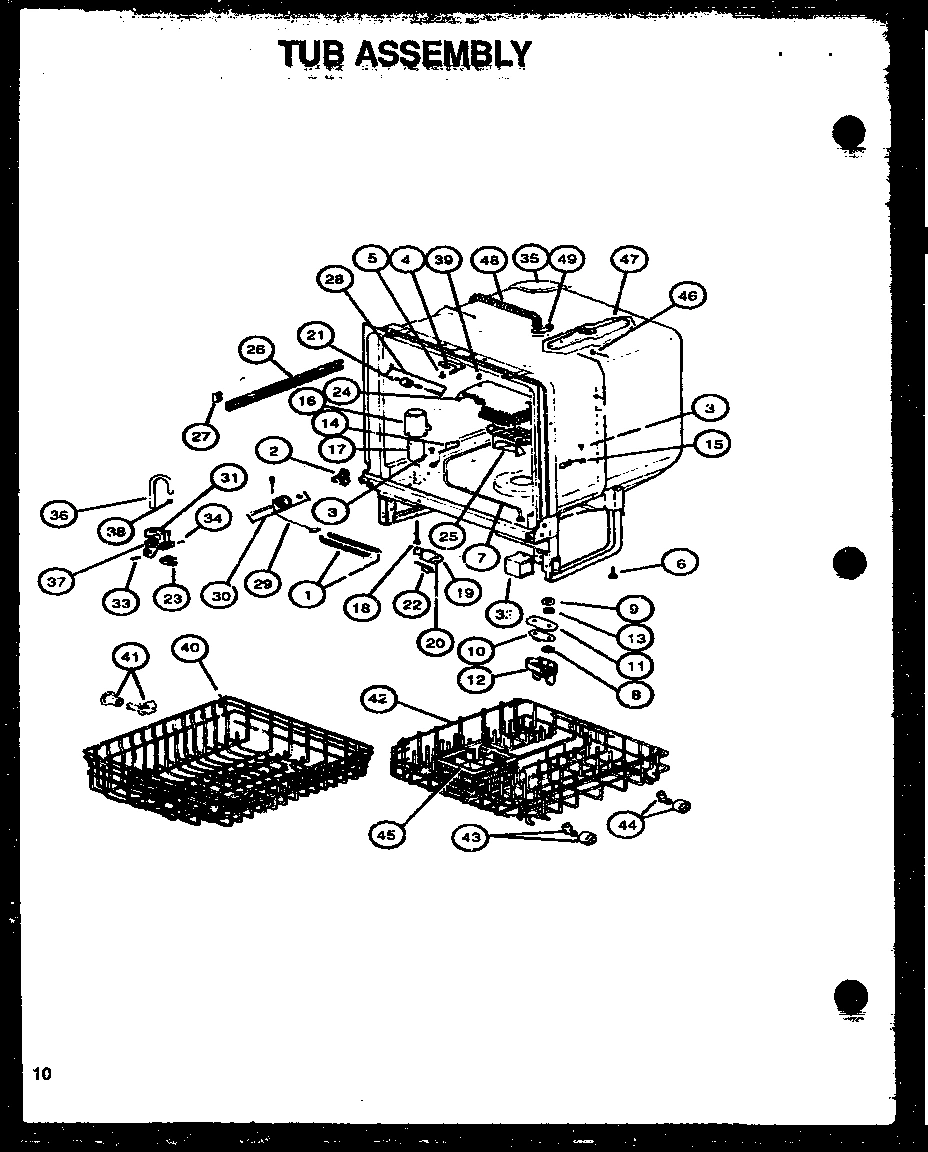

04 - TUB ASSY
Common parts from model Whirlpool DUS300B DISHWASHER
1
DOOR & HINGE ASSY, OUTER WPL R0905637 Contact Us For Availability
1
MOTOR/PUMP ASSY DISHWA WPL R0907001 Contact Us For Availability
1
DOOR SPRING YELLOW WPL R0905504 Contact Us For Availability
2
TRIM DOOR SIDE WPL R0905644 Contact Us For Availability
2
MOTOR/PUMP ASSY DISHWA WPL R0910001 Contact Us For Availability
2
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
2
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
3
TRIM-DOOR BOTTOM WPL R0905645 Contact Us For Availability
3
THRUST WASHER WPL R0900508 Contact Us For Availability
4
SWITCH, INTERLOCK WPL R0902506 Contact Us For Availability
4
SCREW WPL R0900010 Contact Us For Availability
4
LATCH KEEPER WPL R0905505 Contact Us For Availability
5
SWITCH LEAF WPL R0905533 Contact Us For Availability
5
RETAINER WPL R0901503 Contact Us For Availability
5
SCREW WPL R0900025 Contact Us For Availability
6
SHIELD, SWITCH WPL R0905534 Contact Us For Availability
6
DOOR PANEL INSERT WPL R0905559 Contact Us For Availability
6
INSERT, DOOR PANEL WPL R0905620 Contact Us For Availability
6
SCREW WPL R0900002 Contact Us For Availability
6
LEG, LEVELING WPL R0905506 Contact Us For Availability
7
COVER ELECTRIC WPL R0905641 Contact Us For Availability
7
TRIM-SIDE/BOT SERV PANEL WPL R0905653 Contact Us For Availability
7
NUT WPL R0906510 Contact Us For Availability
7
HEATER WPL R0906001 Contact Us For Availability
8
CAM-TIMER WPL R0904007 Contact Us For Availability
8
SEAL, SHAFT WPL R0906504 Contact Us For Availability
8
NUT WPL R0901001 Contact Us For Availability
9
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
9
INSERT, SVC PANEL WPL R0905602 Contact Us For Availability
9
INSERT, SERV. PANEL WPL R0905623 Contact Us For Availability
9
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
9
WASHER WPL R0900501 Contact Us For Availability
10
LEVER, TIMER WPL R0905545 Contact Us For Availability
10
HANGER MECH. WPL R0905516 Contact Us For Availability
10
BARRIER BRKT WPL R0905507 Contact Us For Availability
11
BARRIER WPL R0904514 Contact Us For Availability
11
PANEL SERVICE WPL R0903009 Contact Us For Availability
11
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
11
INSULATION WPL R0906501 Contact Us For Availability
12
ESCUTCHEON WPL R0903025 Contact Us For Availability
12
SCREW WPL R0900017 Contact Us For Availability
12
WEAR RING BASE WPL R0905518 Contact Us For Availability
12
BARRIER WPL R0905508 Contact Us For Availability
13
INSERT-ESCUTCHEON WPL R0905651 Contact Us For Availability
13
TOE KICK ASSY WPL R0903022 Contact Us For Availability
13
NUT WPL R0905563 Contact Us For Availability
13
GROMMET WPL R0906502 Contact Us For Availability
14
TIMER WPL R0904011 Contact Us For Availability
14
TRIM-TOP SERV PANEL WPL R0905648 Contact Us For Availability
14
PUMP IMPELLER WPL R0905519 Contact Us For Availability
14
SUPPORT, HEATER FRONT WPL R0905632 Contact Us For Availability
15
SWITCH-PUSH BUTTON WPL R0902519 Contact Us For Availability
15
DEFLECTER WPL R0905523 Contact Us For Availability
15
WEAR RING WPL R0905520 Contact Us For Availability
15
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
16
LATCH ASSY WPL R0905531 Contact Us For Availability
16
SPRING, CUTTER WPL R0905521 Contact Us For Availability
16
FLOAT WPL R0905511 Contact Us For Availability
17
SWITCH, CYCLE WPL R0902507 Contact Us For Availability
17
DOOR, INNER WPL R0903021 Contact Us For Availability
17
SEAL WPL R0903502 Contact Us For Availability
17
FLOOD FLOAT WPL R0903501 Contact Us For Availability
18
KNOB TIMER ASSY WPL R0903539 Contact Us For Availability
18
SCREW WPL R0900006 Contact Us For Availability
18
SHAFT SEAL WPL R0903503 Contact Us For Availability
18
FLOAT STEM WPL R0905512 Contact Us For Availability
19
HOUSING TERMINAL WPL R0910049 Contact Us For Availability
19
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
19
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
20
DOOR VENT WPL R0905536 Contact Us For Availability
20
CONNECTOR, PUMP WPL R0903520 Contact Us For Availability
20
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
21
HINGE ARM BEARING WPL R0905537 Contact Us For Availability
21
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
22
SWITCH-ROCKER WPL R0902516 Contact Us For Availability
22
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
22
SHAFT GUARD/SLINGER WPL R0905564 Contact Us For Availability
22
SWITCH FLOOD WPL R0902501 Contact Us For Availability
23
RETAINER-SWITCH 006 WPL R0905652 Contact Us For Availability
23
SHAFT HAND D CUP WPL R0905538 Contact Us For Availability
23
DRAIN TUBE ASSY WPL R0906508 Contact Us For Availability
23
INSULATOR WPL R0903507 Contact Us For Availability
24
COVER, SWITCH WPL R0905547 Contact Us For Availability
24
GUARD WPL R0905522 Contact Us For Availability
24
COVER INLET SUMP WPL R0905527 Contact Us For Availability
25
TERM SPEC.(1=12) WPL R0910050 Contact Us For Availability
25
LATCH DETERGENT CUP WPL R0905539 Contact Us For Availability
25
SOLENOID KIT WPL R0909001 Contact Us For Availability
25
CAP, SUMP WPL R0905528 Contact Us For Availability
26
CAP FILL WPL R0905646 Contact Us For Availability
26
INSULATOR WPL R0903506 Contact Us For Availability
26
RACK SLIDE WPL R0905567 Contact Us For Availability
27
PUSH BUTTON WPL R0903542 Contact Us For Availability
27
TRIP SPRING WPL R0905542 Contact Us For Availability
27
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
27
END CAP WPL R0903517 Contact Us For Availability
28
DOOR GASKET WPL R0904501 Contact Us For Availability
28
ASSY SPRAY ARM SHIELD WPL R0910055 Contact Us For Availability
28
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
29
DRIP SHIELD WPL R0910011 Contact Us For Availability
29
INLET, SUMP WPL R0905604 Contact Us For Availability
29
CABLE AND EYELET WPL R0905640 Contact Us For Availability
30
SCREW WPL R0900009 Contact Us For Availability
30
SPRAY ARM HUB WPL R0910056 Contact Us For Availability
30
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
31
KNOB, LATCH WPL R0903532 Contact Us For Availability
31
SCREW, HUB WPL R0900026 Contact Us For Availability
31
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
32
ASSEMBLY-CENTER SPRAY WPL R0910057 Contact Us For Availability
32
COVER, JCT. BOX WPL R0905553 Contact Us For Availability
33
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
33
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
34
KIT SPRAY ASSY WPL R0903535 Contact Us For Availability
34
SCREW WPL R0900011 Contact Us For Availability
35
CAP, POWER SHOWER WPL R0903508 Contact Us For Availability
35
INSULATION WPL R0904502 Contact Us For Availability
36
CHECK VALVE WPL R0910037 Contact Us For Availability
36
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
37
HUB & SUPPT. WPL R0903515 Contact Us For Availability
37
SOLENOID ASSEMBLY, WATER VALVE WPL R0909002 Contact Us For Availability
38
CLAMP WPL R0901510 Contact Us For Availability
39
SCREW WPL R0900007 Contact Us For Availability
39
SCREW WPL R0900008 Contact Us For Availability
40
ASSEMBLY-UPPER RACK WPL R0910058 Contact Us For Availability
41
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
42
ASSEMBLY-LOWER RACK & ROLLER WPL R0910059 Contact Us For Availability
43
LOWER ROLLER ASSY WPL R0910007 Contact Us For Availability
44
ROLLER ASSY WPL R0910008 Contact Us For Availability
45
BASKET, SILVERWARE WPL R0910009 Contact Us For Availability
NI
KIT, CONVERSION WPL R0910120 Contact Us For Availability
NI
CALORIC DISHWASHER INSTALL INS WPL R0913024 Contact Us For Availability
NI
MANUAL, USE & CARE WPL R0913041 Contact Us For Availability
NI
MANUAL, USE & CARE WPL R0913042 Contact Us For Availability
NI
MANUAL, USE & CARE WPL R0913043 Contact Us For Availability
NI
PLUG WPL R0903588 Contact Us For Availability
NI
KIT, DOOR SPRING WPL R0905711 Contact Us For Availability
× ![]()
