Model Whirlpool DUS20819-OA DISHWASHER – Common Parts & Diagrams

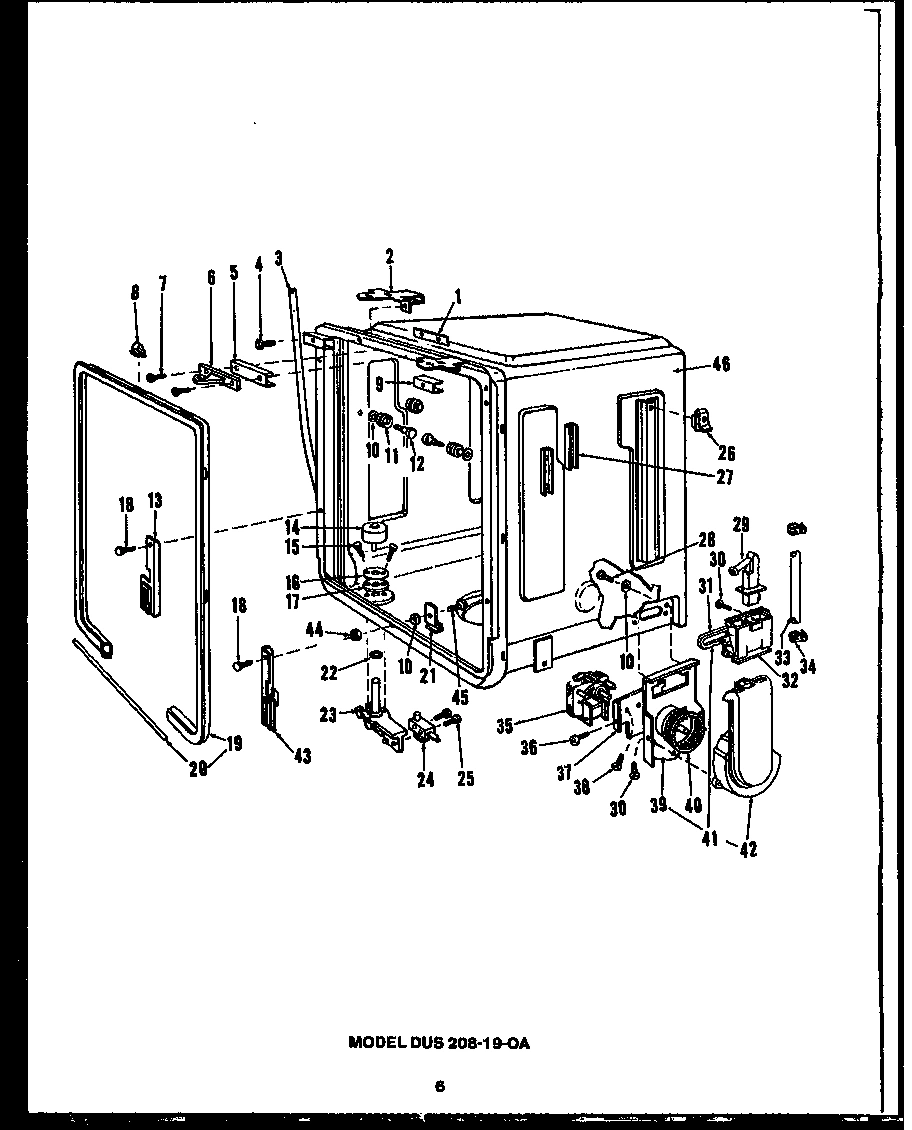

06 - Page 3

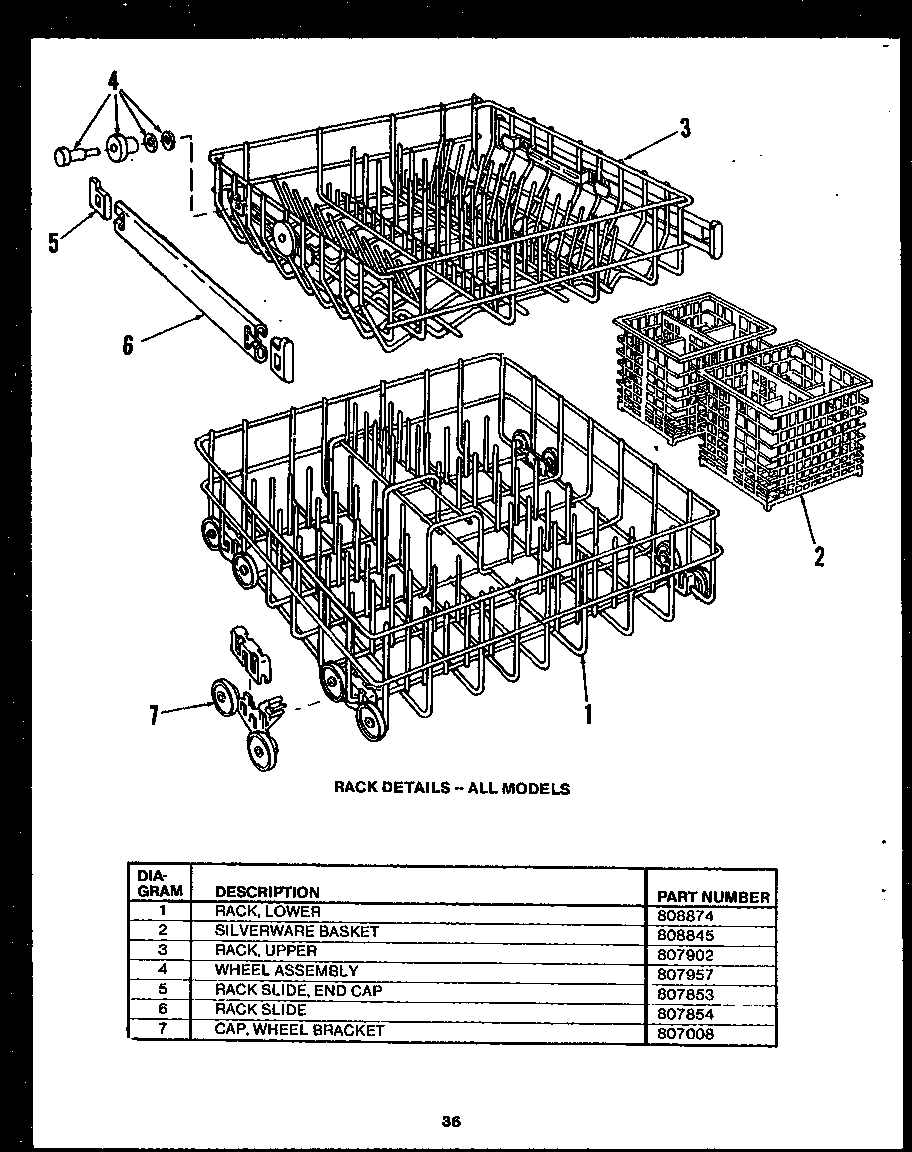

07 - RACK DETAILS

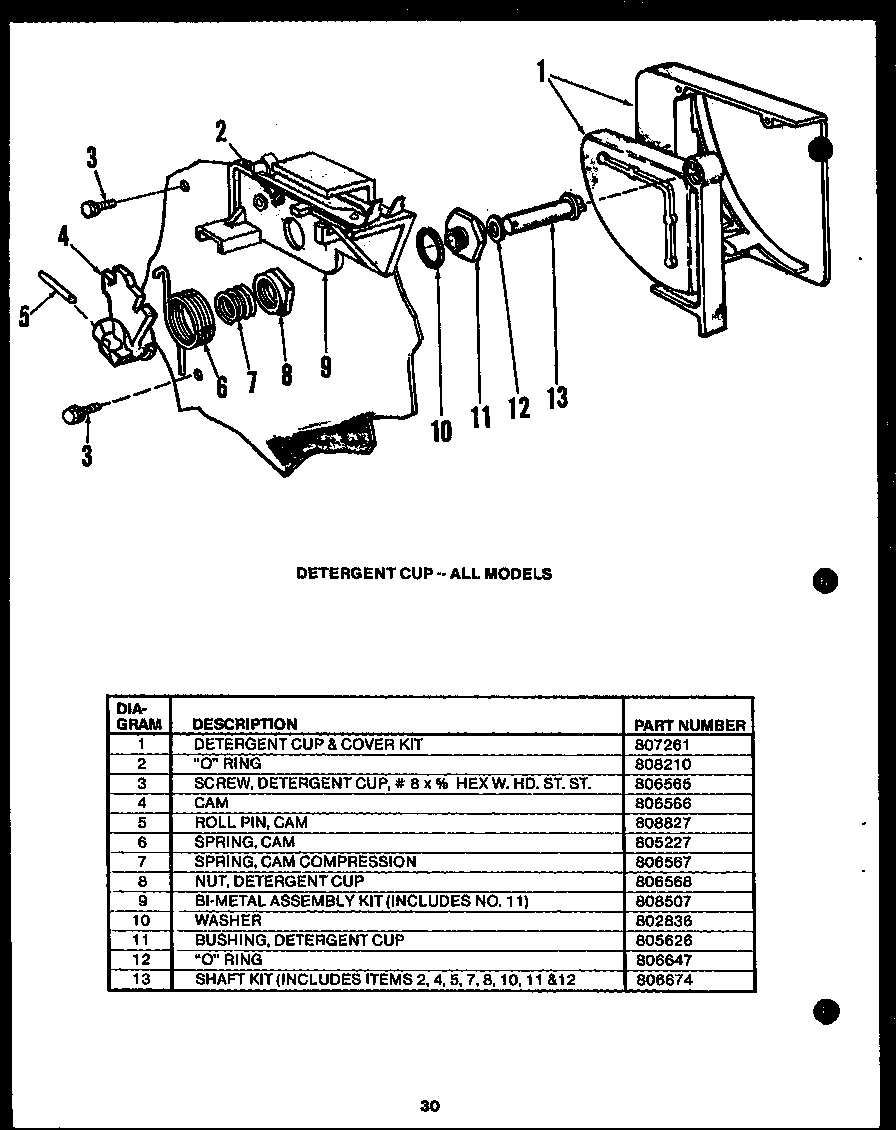

02 - DETERGENT CUP

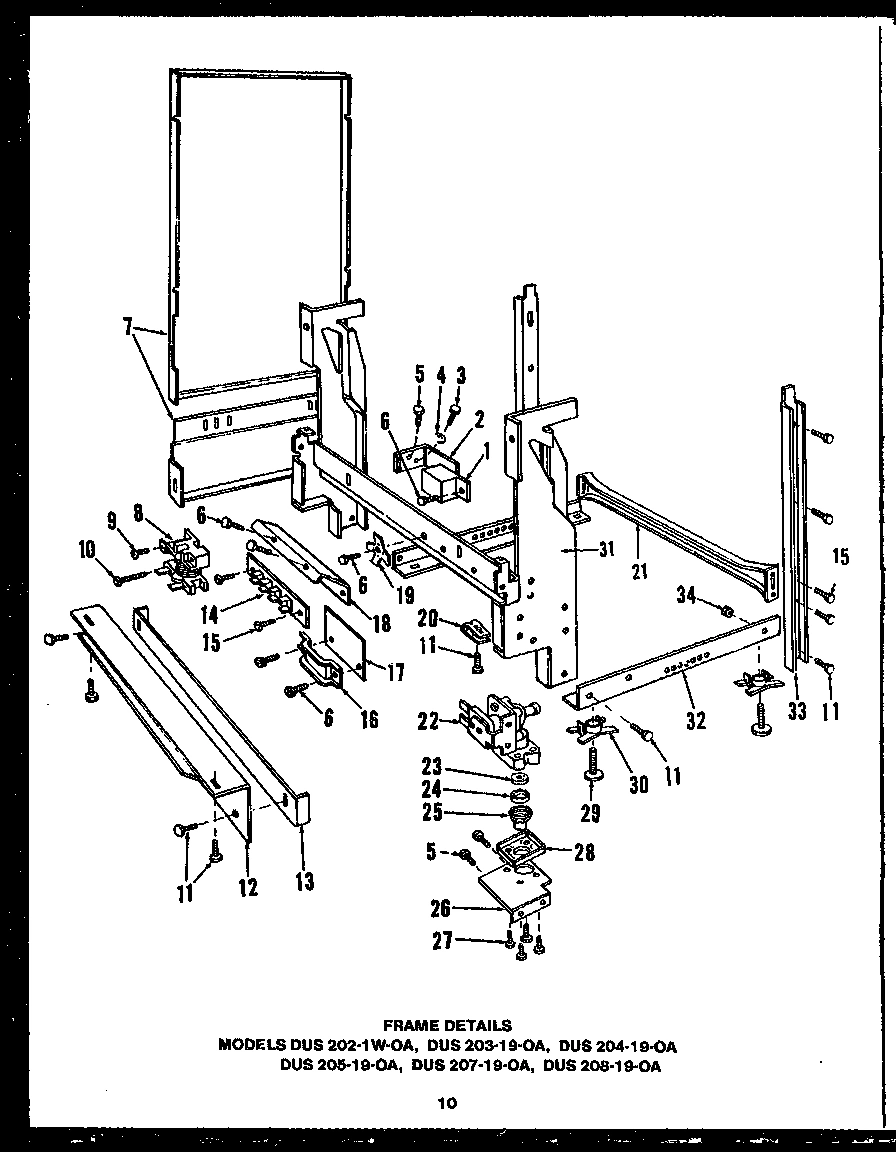

04 - FRAME DETAILS

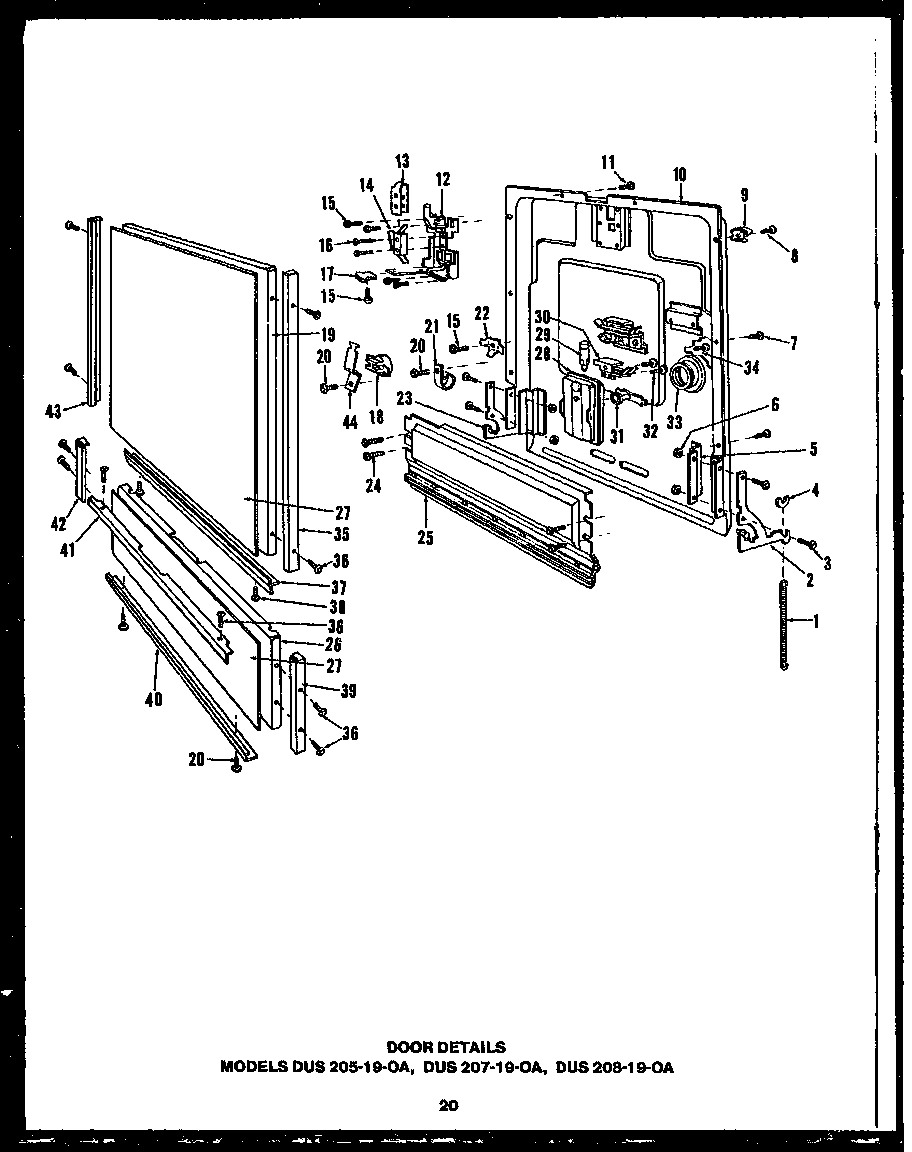

03 - DOOR DETAILS

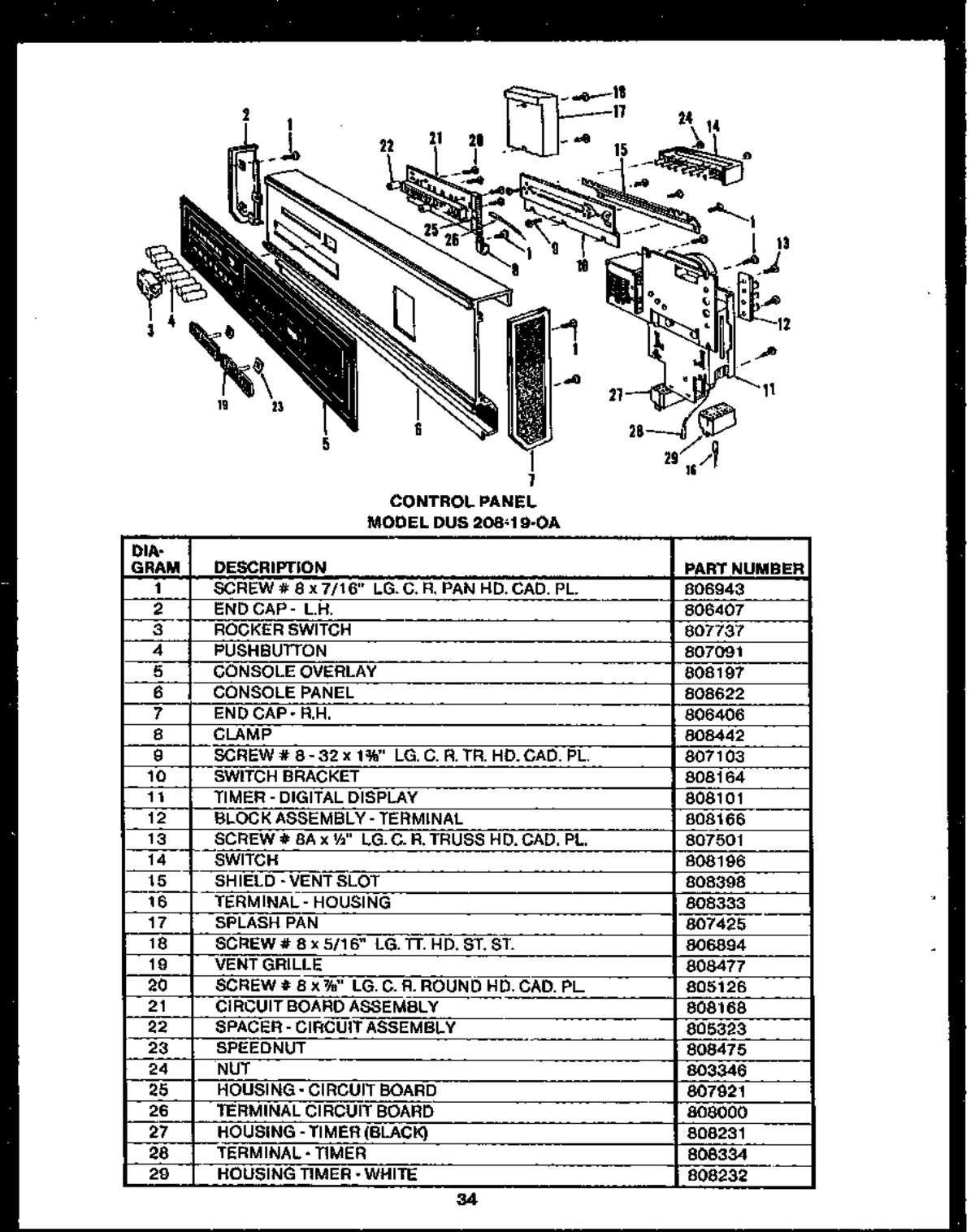

01 - CONTROL PANEL

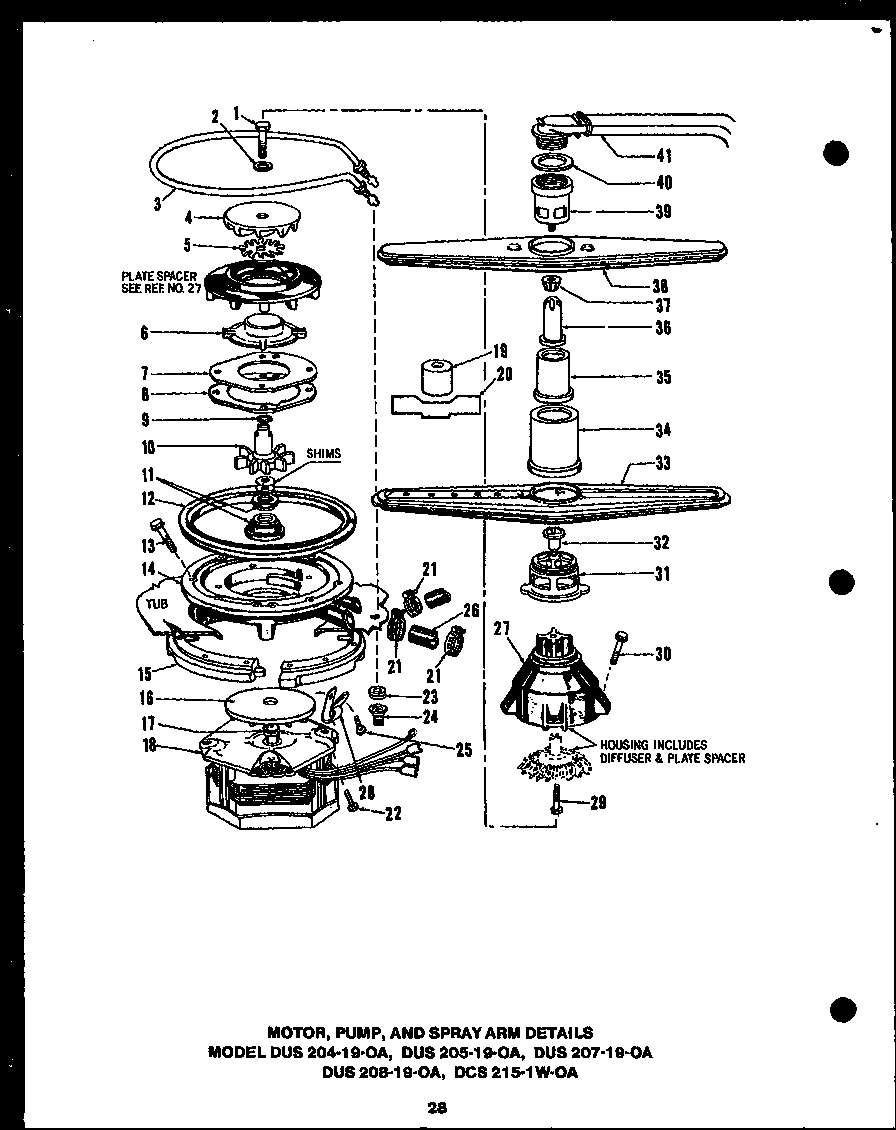

05 - MOTOR
Common parts from model Whirlpool DUS20819-OA DISHWASHER
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
1
LOWER RACK ASSY WPL Y0808874 Contact Us For Availability
1
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
1
JUNCTION BOX COVER WPL 0800222 Contact Us For Availability
1
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
1
SCREW WPL 0806943 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
2
CLIP WPL 0808289 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0808845 Contact Us For Availability
2
``O`` RING WPL Y0808210 Contact Us For Availability
2
COVER BRACKET WPL 0807019 Contact Us For Availability
2
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
2
LH END CAP WPL 806407 Contact Us For Availability
2
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
3
DRAIN HOSE WPL Y0809112 Contact Us For Availability
3
RACK, UPPER WPL 0807902 Contact Us For Availability
3
SCREW WPL 0806565 Contact Us For Availability
3
SCREW WPL 0807951 Contact Us For Availability
3
SCREW WPL 0803311 Contact Us For Availability
3
x ROCKER SWITCH WPL 0807737 Contact Us For Availability
3
HEATER WPL Y0809060 Contact Us For Availability
4
SCREW WPL 0806976 Contact Us For Availability
4
ROLLER WPL Y0807957 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
4
WASHER WPL 0807373 Contact Us For Availability
4
SPRING PAD WPL 0805884 Contact Us For Availability
4
PUSHBUTTON WPL Y0807091 Contact Us For Availability
4
UPPER IMPELLER WPL Y0809005 Contact Us For Availability
5
SHIM STRIKE WPL 0807073 Contact Us For Availability
5
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
5
SPIROL PIN WPL Y0808827 Contact Us For Availability
5
SCREW WPL Y0807950 Contact Us For Availability
5
ARM BRACKET WPL Y0806717 Contact Us For Availability
5
OVERLAY, CONTROL PANEL WPL 0808197 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
6
STRIKE WPL Y0807015 Contact Us For Availability
6
RACK SLIDE WPL 0807854 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
6
CONSOLE PANEL WPL 808622 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
7
SIDE PANEL KIT, WHITE WPL 0808880 Contact Us For Availability
7
SIDE PANEL KIT, ALMOND WPL 0808884 Contact Us For Availability
7
SIDE PANEL KIT WPL 808881 Contact Us For Availability
7
SIDE PANEL KIT WPL 808882 Contact Us For Availability
7
SIDE PANEL KIT WPL 808883 Contact Us For Availability
7
SCREW WPL 0806967 Contact Us For Availability
7
END CAP R.H. WPL 0806406 Contact Us For Availability
7
PUMP PLATE WPL 0807884 Contact Us For Availability
8
FASTENER GASKET WPL Y0805763 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
8
RELAY WPL 0805255 Contact Us For Availability
8
SCREW WPL Y0808749 Contact Us For Availability
8
GASKET, PUMP WPL Y0807709 Contact Us For Availability
9
SHIM WPL Y0808366 Contact Us For Availability
9
TRIGGER ASSY WPL Y0808507 Contact Us For Availability
9
DOOR GUIDE WPL 0807449 Contact Us For Availability
9
SCREW WPL 0807103 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
10
SCREW WPL 0804672 Contact Us For Availability
10
INNER DR. ASSY. WPL 0807194 Contact Us For Availability
10
BRACKET, SWITCH WPL 0808164 Contact Us For Availability
10
PUMP SEAL KIT WPL Y0809110 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
11
SCREW WPL 0807001 Contact Us For Availability
11
TIMER, DIGITAL DISPLAY WPL Y0808101 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
12
KIT, SCREW & WASHER WPL 0808564 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
12
TOE PLATE WPL 0807850 Contact Us For Availability
12
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
12
BLOCK, TERMINAL WPL 0808166 Contact Us For Availability
12
GASKET WPL Y0809008 Contact Us For Availability
13
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
13
SCREW WPL Y0807268 Contact Us For Availability
13
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
13
TOE PLATE, ADJUSTABLE WPL 0806295 Contact Us For Availability
13
SWITCH COVER WPL 0807450 Contact Us For Availability
14
FLOAT WPL Y0804630 Contact Us For Availability
14
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
14
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
14
SWITCH WPL Y0808196 Contact Us For Availability
14
PUMP HOUSING WPL Y0809102 Contact Us For Availability
15
SCREW WPL 0806830 Contact Us For Availability
15
SHIELD, VENT PLATE WPL Y0808398 Contact Us For Availability
15
CLAMP RING WPL Y0807712 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
16
WIRING CLAMP WPL 0806723 Contact Us For Availability
16
SCREW WPL 0808618 Contact Us For Availability
16
TERMINAL, (PACK OF 25) WPL 0808333 Contact Us For Availability
16
SLINGER, PLASTIC WPL 0808899 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
17
WIRE SHIELD WPL 0808013 Contact Us For Availability
17
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
17
SPLASH PAN WPL 0807425 Contact Us For Availability
17
TOLERANCE RING WPL 0808898 Contact Us For Availability
18
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
18
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
18
SCREW WPL 0806894 Contact Us For Availability
18
THERMOSTAT WPL Y0808956 Contact Us For Availability
18
MOTOR ASSY WPL Y0809100 Contact Us For Availability
19
SUB 808959, GASKET & WIRE ASSY WPL Y0809034 Contact Us For Availability
19
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
19
VENT GRILLE WPL Y0808477 Contact Us For Availability
19
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
20
JUNCTION, WIRE GASKET WPL 0808344 Contact Us For Availability
20
SPEED NUT WPL 0808170 Contact Us For Availability
20
USE M0217224 WPL Y0803416 Contact Us For Availability
20
SCREW WPL 0805126 Contact Us For Availability
20
SHIM GAUGE WPL 0807077 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
21
BRACE, REAR WPL Y0807852 Contact Us For Availability
21
CIRCUIT BOARD WPL 0808168 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
22
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
22
VALVE WPL 0808668 Contact Us For Availability
22
SPACER WPL 0805323 Contact Us For Availability
22
SCREW WPL Y0809022 Contact Us For Availability
23
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
23
FLOW WASHER WPL Y0808457 Contact Us For Availability
23
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
23
SPEED NUT WPL Y0808475 Contact Us For Availability
23
GROMMET WPL Y0806833 Contact Us For Availability
24
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
24
USE M0281003 WPL 0803346 Contact Us For Availability
24
GASKET WPL Y0806100 Contact Us For Availability
24
USE 0806976 WPL 0806810 Contact Us For Availability
24
NUT WPL 0806834 Contact Us For Availability
25
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
25
FITTING WPL Y0808337 Contact Us For Availability
25
SUB 809243, VENT PLATE ASSY. WPL Y0809122 Contact Us For Availability
25
HOUSING, CIRCUIT BOARD WPL 0807921 Contact Us For Availability
25
SCREW WPL 0807270 Contact Us For Availability
26
NUT, CAGE WPL 0806291 Contact Us For Availability
26
MOUNTING BRACKET WPL 0807613 Contact Us For Availability
26
ACCESS PANEL, WHITE WPL 0809108 Contact Us For Availability
26
TERMINAL, CIRCUIT BOARD WPL 0808000 Contact Us For Availability
26
HOSE CONNECTOR WPL 0808174 Contact Us For Availability
27
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
27
SCREW WPL 0808368 Contact Us For Availability
27
DOOR & ACCESS PANEL INSERT,ALM WPL 0808908 Contact Us For Availability
27
DOOR & ACCESS PNL INSERTS AVOC WPL 0808909 Contact Us For Availability
27
DOOR & ACCESS PNL INSERTS HARV WPL 0808912 Contact Us For Availability
27
SUB 808804, DOOR&ACC. PANEL IN WPL 0808913 Contact Us For Availability
27
DOOR AND ACCESS PANEL INSERTS WPL 0808914 Contact Us For Availability
27
DOOR TRIM WPL 808916 Contact Us For Availability
27
HOUSING, TIMER B WPL Y0808231 Contact Us For Availability
27
IMPELLER, HOUSING KIT WPL Y0809119 Contact Us For Availability
28
SCREW WPL Y0806901 Contact Us For Availability
28
FITTING, RETAINER WPL Y0808458 Contact Us For Availability
28
CLAMP WPL Y0808442 Contact Us For Availability
28
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
28
TERMINAL END WPL 0808334 Contact Us For Availability
29
INLET NOZZLE WPL 0808707 Contact Us For Availability
29
LEVELING LEGS WPL 0807672 Contact Us For Availability
29
PLUNGER WPL 0806757 Contact Us For Availability
29
HOUSING, TIMER W WPL 0808232 Contact Us For Availability
30
SCREW WPL 0808818 Contact Us For Availability
30
TEE NUT - SNAP IN WPL 0807671 Contact Us For Availability
30
BI-METAL ASSY WPL Y0809109 Contact Us For Availability
30
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
31
GASKET WPL Y0806797 Contact Us For Availability
31
WELD ASSEMBLY, HINGE WPL 0807848 Contact Us For Availability
31
SUB 807673, FILL PLUG WPL Y0806755 Contact Us For Availability
31
BEARING WPL Y0809046 Contact Us For Availability
32
VENT STACK WPL 0808706 Contact Us For Availability
32
``U`` FRAME ASSEMBLY WPL Y0807851 Contact Us For Availability
32
SPRAY ARM BOLT WPL Y0809018 Contact Us For Availability
33
TUBE, INLET WPL 0807891 Contact Us For Availability
33
SUPPORT CHANNEL WPL 0808670 Contact Us For Availability
33
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
33
SPRAY ARM WPL 0808177 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
34
SCREW WPL 0806863 Contact Us For Availability
34
TOWER BASE WPL Y0808178 Contact Us For Availability
35
SUB 807389 MOTOR WPL Y0807385 Contact Us For Availability
35
DOOR PNL TRIM, RH WPL 0808976 Contact Us For Availability
35
TOWER SECTION WPL Y0808179 Contact Us For Availability
36
KNOB SCREW WPL 0804164 Contact Us For Availability
36
TOWER TIP WPL Y0808180 Contact Us For Availability
37
PLATE, MOTOR WPL 0806793 Contact Us For Availability
37
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
37
NUT, SPRAY ARM WPL Y0808181 Contact Us For Availability
38
SCREW WPL 803003 Contact Us For Availability
38
SPRAY ARM WPL Y0809021 Contact Us For Availability
39
PLATE, BLOWER WPL 0806794 Contact Us For Availability
39
TRIM, R.H. WPL 0808028 Contact Us For Availability
39
DISTRIBUTOR WPL 0808183 Contact Us For Availability
40
WHEEL & CLIP ASSEMBLY WPL 0806230 Contact Us For Availability
40
ACCESS PANEL TRIM, BOTTOM WPL Y0808027 Contact Us For Availability
40
GASKET WPL 0808184 Contact Us For Availability
41
HOUSING ASSY. WPL 0808765 Contact Us For Availability
41
TRIM, TOP, ACCESS PANEL WPL 0808346 Contact Us For Availability
41
ELBOW & TUBE ASSY WPL 0808185 Contact Us For Availability
42
HOUSING, BLOWER WPL 0808738 Contact Us For Availability
43
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
43
DOOR PNL TRIM, LH WPL 0808977 Contact Us For Availability
44
THERMOSTAT RETAINER WPL 0809097 Contact Us For Availability
45
TRIM, DOOR KIT, WOOD WPL 0808936 Contact Us For Availability
46
TUB & GASKET ASSY WPL 0809127 Contact Us For Availability
NI
TUB INSULATION WPL 0809113 Contact Us For Availability
× ![]()
Login and Registration Form
