Model Whirlpool DUS203-19 DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL

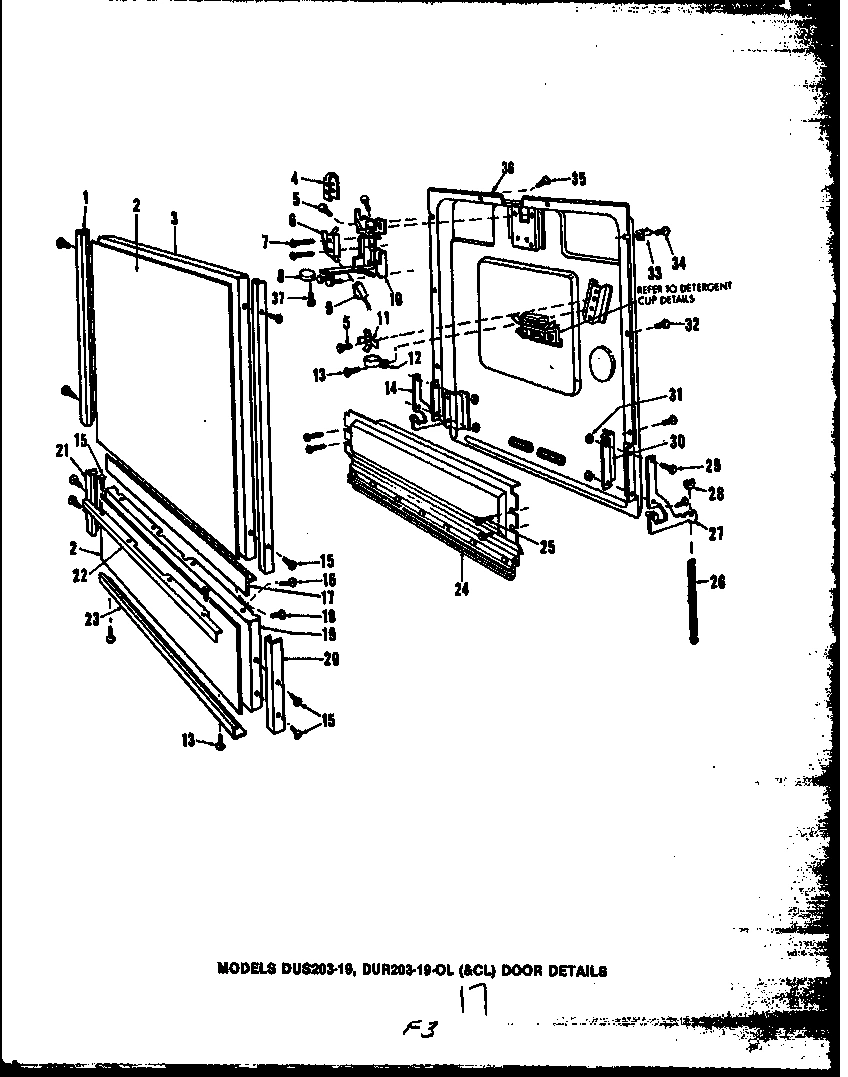

03 - DOOR DETAILS

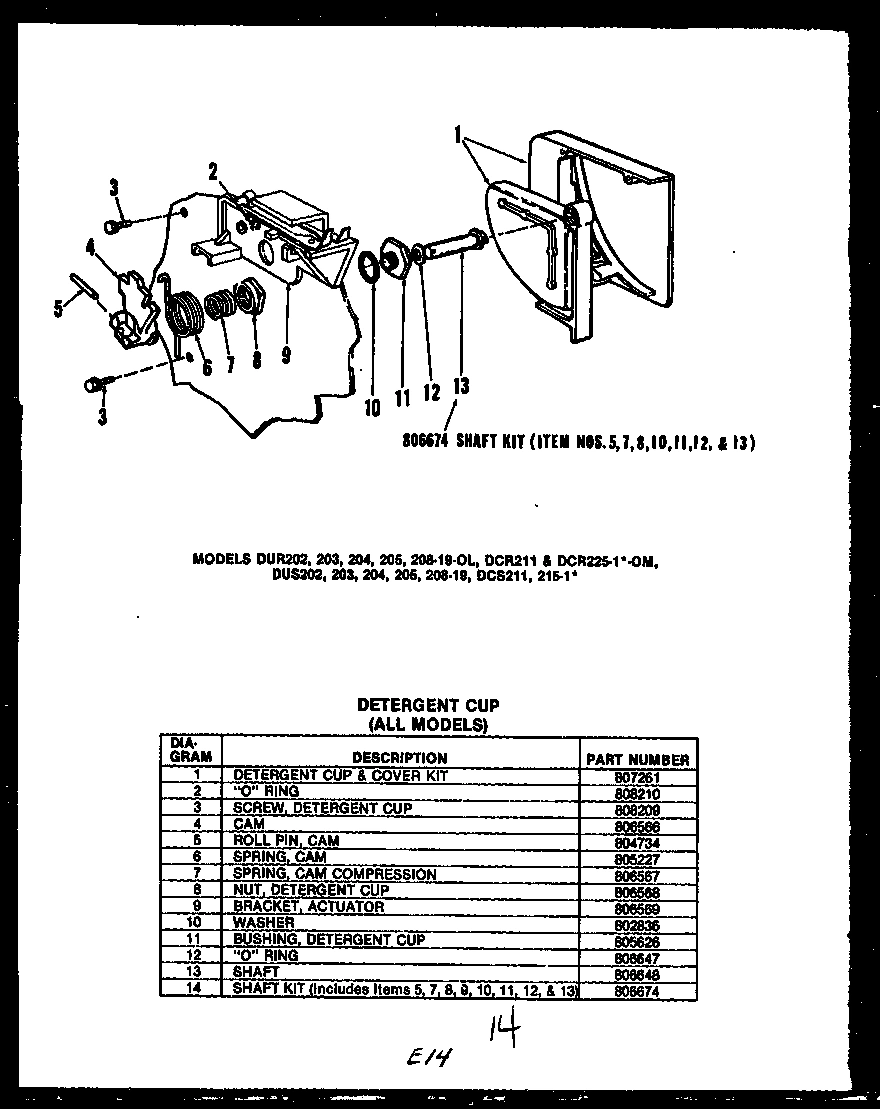

02 - DETERGENT CUP

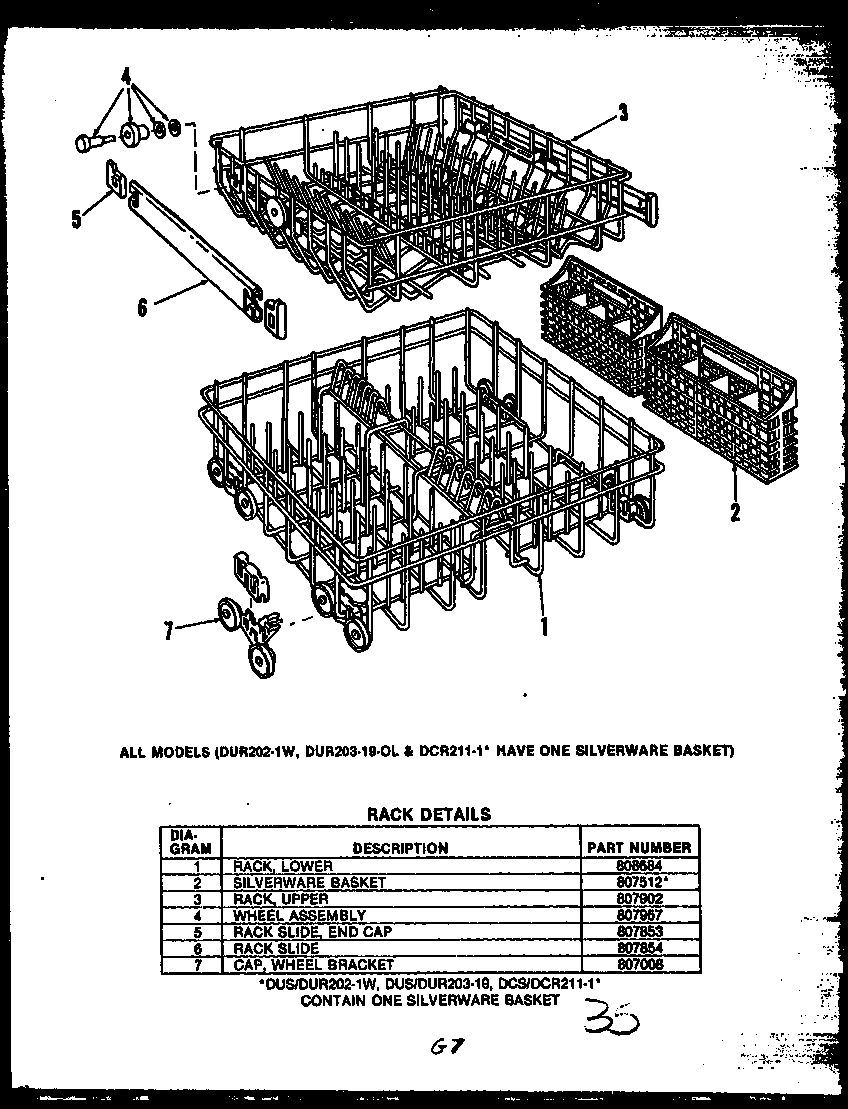

05 - RACK DETAILS

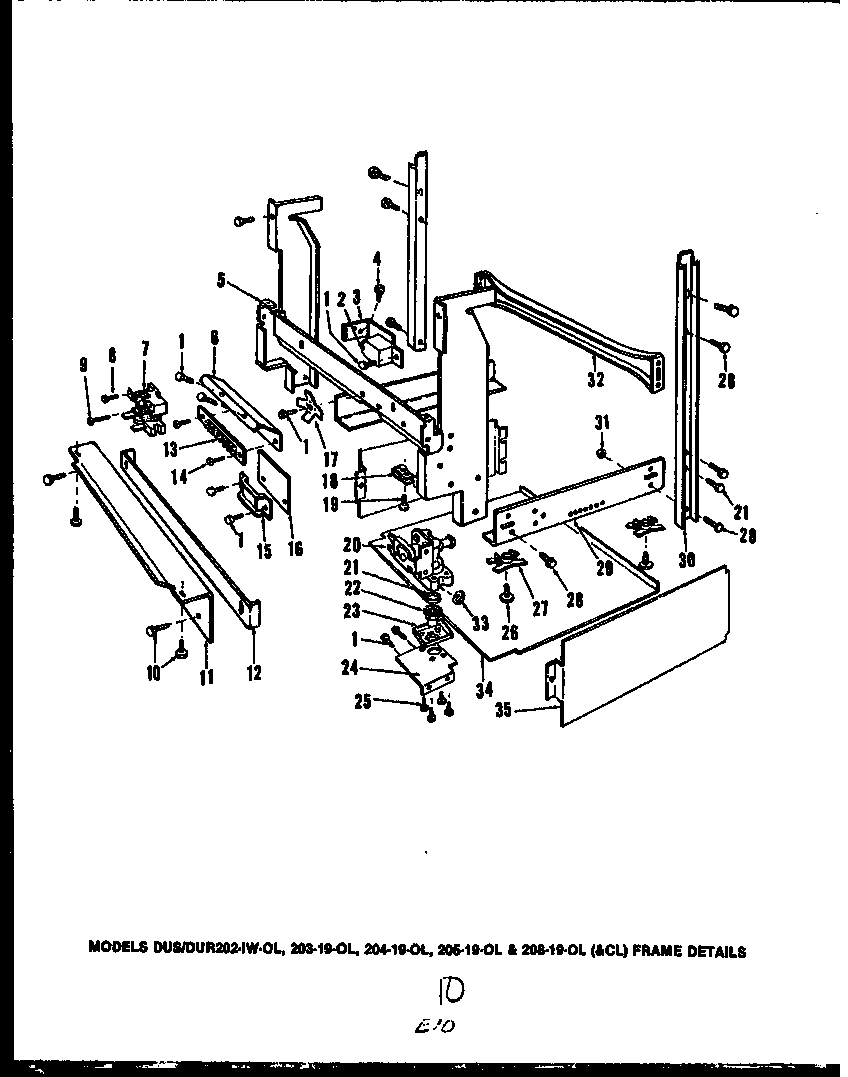

04 - Page 5
Common parts from model Whirlpool DUS203-19 DISHWASHER
1
SCREW WPL 0806943 Contact Us For Availability
1
DOOR TRIM, SIDE WPL 0808026 Contact Us For Availability
1
SCREW WPL 0806830 Contact Us For Availability
1
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
1
SUB 808946,RACK LOWER WPL 0808684 Contact Us For Availability
2
END CAP, RH WPL 0806402 Contact Us For Availability
2
PANEL INSERT WPL 808404 Contact Us For Availability
2
``O`` RING WPL Y0808210 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
2
JUNCTION BOX COVER WPL 0800222 Contact Us For Availability
3
SWITCH ROCKER WPL Y0807718 Contact Us For Availability
3
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
3
SUB 806565, SCREW WPL 0808209 Contact Us For Availability
3
RACK, UPPER WPL 0807902 Contact Us For Availability
3
COVER BRACKET WPL 0807019 Contact Us For Availability
4
SPEED NUT WPL Y0808475 Contact Us For Availability
4
SWITCH COVER WPL 0807450 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
4
ROLLER WPL Y0807957 Contact Us For Availability
4
SCREW WPL 0807951 Contact Us For Availability
5
VENT GRILLE WPL Y0808477 Contact Us For Availability
5
SUB 808827, ROLL PIN WPL Y0804734 Contact Us For Availability
5
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
5
WELD ASSEMBLY, HINGE WPL 0807848 Contact Us For Availability
6
SUB 808482 KNOB, TIMER WPL Y0807094 Contact Us For Availability
6
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
6
RACK SLIDE WPL 0807854 Contact Us For Availability
6
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
7
SCREW, No.10-32 X 1 7/64 WPL 0808422 Contact Us For Availability
7
SCREW WPL Y0808425 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
SUB 805255 RELAY WPL 0806121 Contact Us For Availability
8
LENS WPL 0805664 Contact Us For Availability
8
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
9
CONSOLE PANEL WPL 808624 Contact Us For Availability
9
TERMINAL INSULATOR WPL 0806846 Contact Us For Availability
9
SUB 808507, TRIGGER ASSY WPL Y0806569 Contact Us For Availability
9
SCREW WPL 0804672 Contact Us For Availability
10
SUB 806407, END CAP, LH WPL 0806401 Contact Us For Availability
10
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
10
SCREW WPL 0807001 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
11
TOE PLATE WPL 0807850 Contact Us For Availability
12
CLAMP WPL Y0808442 Contact Us For Availability
12
SPACER WPL 0808424 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
12
TOE PLATE, ADJUSTABLE WPL 0806295 Contact Us For Availability
13
HOUSING, TIMER B WPL Y0808231 Contact Us For Availability
13
USE M0217224 WPL Y0803416 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
13
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
14
LIGHT ASSY. WPL 0808711 Contact Us For Availability
14
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
14
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
15
TERMINAL, (PACK OF 25) WPL 0808333 Contact Us For Availability
15
WIRING CLAMP WPL 0806723 Contact Us For Availability
16
TERMINAL END WPL 0808334 Contact Us For Availability
16
WIRE SHIELD WPL 0808013 Contact Us For Availability
17
TIMER WPL 0808681 Contact Us For Availability
17
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
17
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
18
TERMINAL BOARD ASSY. WPL Y0808483 Contact Us For Availability
18
SPEED NUT WPL 0808170 Contact Us For Availability
19
SUB 809108, ACCESS PANEL WPL 0807257 Contact Us For Availability
19
SCREW WPL Y0807002 Contact Us For Availability
20
TRIM, R.H. WPL 0808028 Contact Us For Availability
20
SUB 808668, VALVE WPL 0808556 Contact Us For Availability
21
GASKET WPL Y0806100 Contact Us For Availability
22
SPLASH PAN WPL 0807425 Contact Us For Availability
22
TRIM, TOP, ACCESS PANEL WPL 0808346 Contact Us For Availability
22
FITTING WPL Y0808337 Contact Us For Availability
23
SHIELD, VENT PLATE WPL Y0808398 Contact Us For Availability
23
ACCESS PANEL TRIM, BOTTOM WPL Y0808027 Contact Us For Availability
23
FITTING, RETAINER WPL Y0808458 Contact Us For Availability
24
VENT PLATE ASSEMBLY WPL 0808369 Contact Us For Availability
24
MOUNTING BRACKET WPL 0807613 Contact Us For Availability
25
USE 0806976 WPL 0806810 Contact Us For Availability
25
SCREW WPL 0808368 Contact Us For Availability
26
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
26
LEVELING LEGS WPL 0807672 Contact Us For Availability
27
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
27
TEE NUT - SNAP IN WPL 0807671 Contact Us For Availability
28
SPRING PAD WPL 0805884 Contact Us For Availability
28
SCREW WPL 0806889 Contact Us For Availability
29
SCREW WPL 0803311 Contact Us For Availability
29
``U`` FRAME ASSEMBLY WPL Y0807851 Contact Us For Availability
30
ARM BRACKET WPL Y0806717 Contact Us For Availability
30
SUPPORT CHANNEL WPL 0808670 Contact Us For Availability
32
SCREW WPL 0806967 Contact Us For Availability
32
BRACE, REAR WPL Y0807852 Contact Us For Availability
33
DOOR GUIDE WPL 0807449 Contact Us For Availability
33
FLOW WASHER WPL 0808432 Contact Us For Availability
34
SCREW WPL 0806976 Contact Us For Availability
34
BOTTOM PANEL WPL Y0808434 Contact Us For Availability
35
SCREW WPL 0806894 Contact Us For Availability
35
SIDE PANEL WPL Y0808433 Contact Us For Availability
36
SUB 809288, INNER DOOR PANEL WPL 0807191 Contact Us For Availability
× ![]()
