Model Whirlpool DUS202-1C DISHWASHER – Common Parts & Diagrams

1

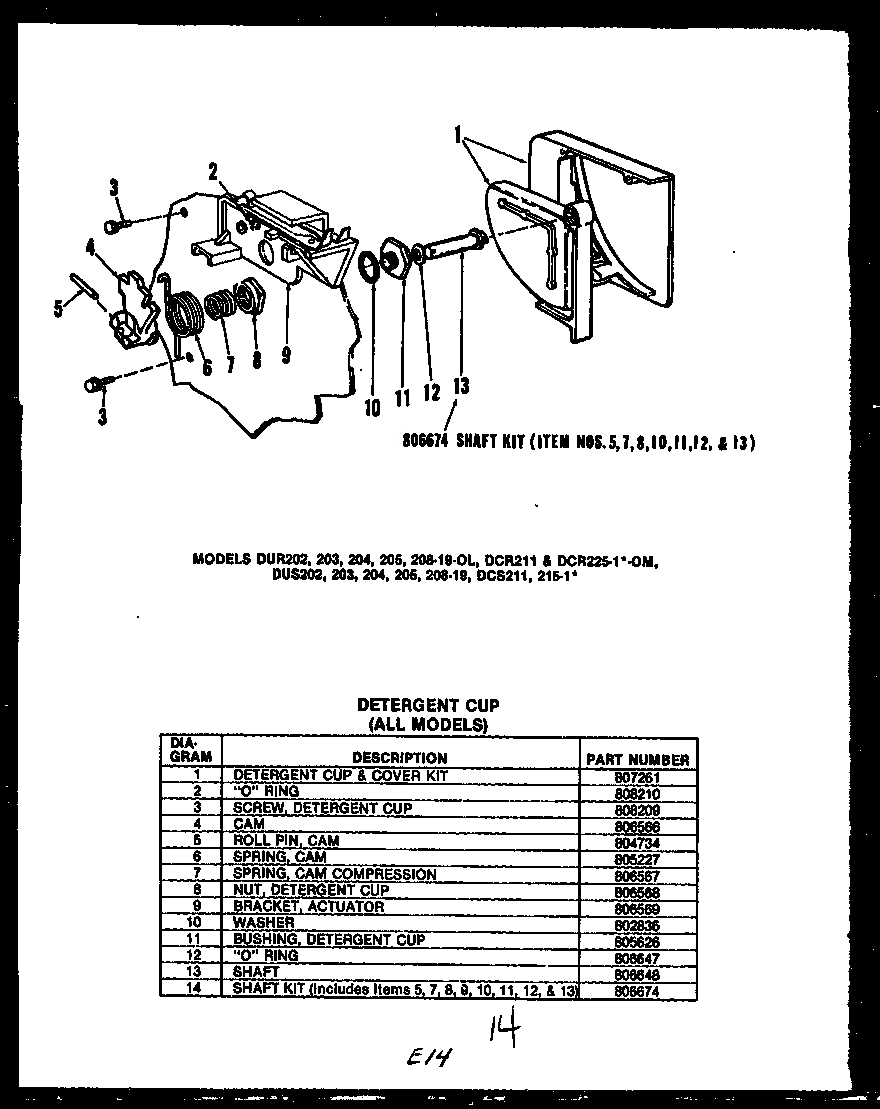

KIT, DETERGENT CUP
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
View on Model
1
LATCH ASSEMBLY
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
View on Model
1
SUB 808946,RACK LOWER
SUB 808946,RACK LOWER WPL 0808684 Contact Us For Availability
View on Model
2
``O`` RING
``O`` RING WPL Y0808210 Contact Us For Availability
View on Model
2
SWITCH COVER
SWITCH COVER WPL 0807450 Contact Us For Availability
View on Model
2
SILVERWARE BASKET
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
View on Model
3
SUB 806565, SCREW
SUB 806565, SCREW WPL 0808209 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL 0806830 Contact Us For Availability
View on Model
3

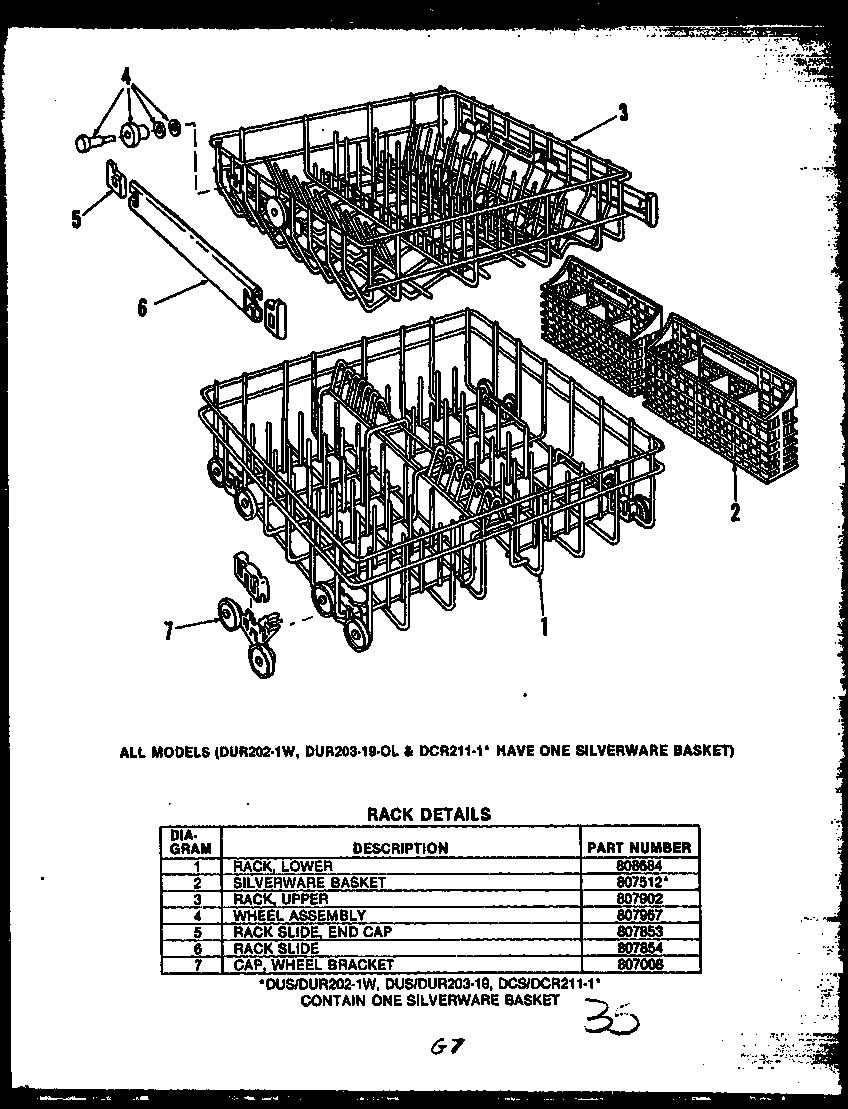

RACK, UPPER
RACK, UPPER WPL 0807902 Contact Us For Availability
View on Model
4
CAM
CAM WPL Y0806566 Contact Us For Availability
View on Model
4
SWITCH, DOOR LATCH
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
View on Model
4
ROLLER
ROLLER WPL Y0807957 Contact Us For Availability
View on Model
5
SUB 808827, ROLL PIN
SUB 808827, ROLL PIN WPL Y0804734 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL Y0808425 Contact Us For Availability
View on Model
5
END CAP, RACK SLIDE
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
View on Model
6
SPRING
SPRING WPL Y0805227 Contact Us For Availability
View on Model
6
KNOB, LATCH
KNOB, LATCH WPL 0808712 Contact Us For Availability
View on Model
6
RACK SLIDE
RACK SLIDE WPL 0807854 Contact Us For Availability
View on Model
7
SPRING, CAM COMPRESSION
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
View on Model
7
WIRE RETAINER
WIRE RETAINER WPL 0806845 Contact Us For Availability
View on Model
7
WHEEL ASSY
WHEEL ASSY WPL Y0807008 Contact Us For Availability
View on Model
8
NUT
NUT WPL Y0806568 Contact Us For Availability
View on Model
8

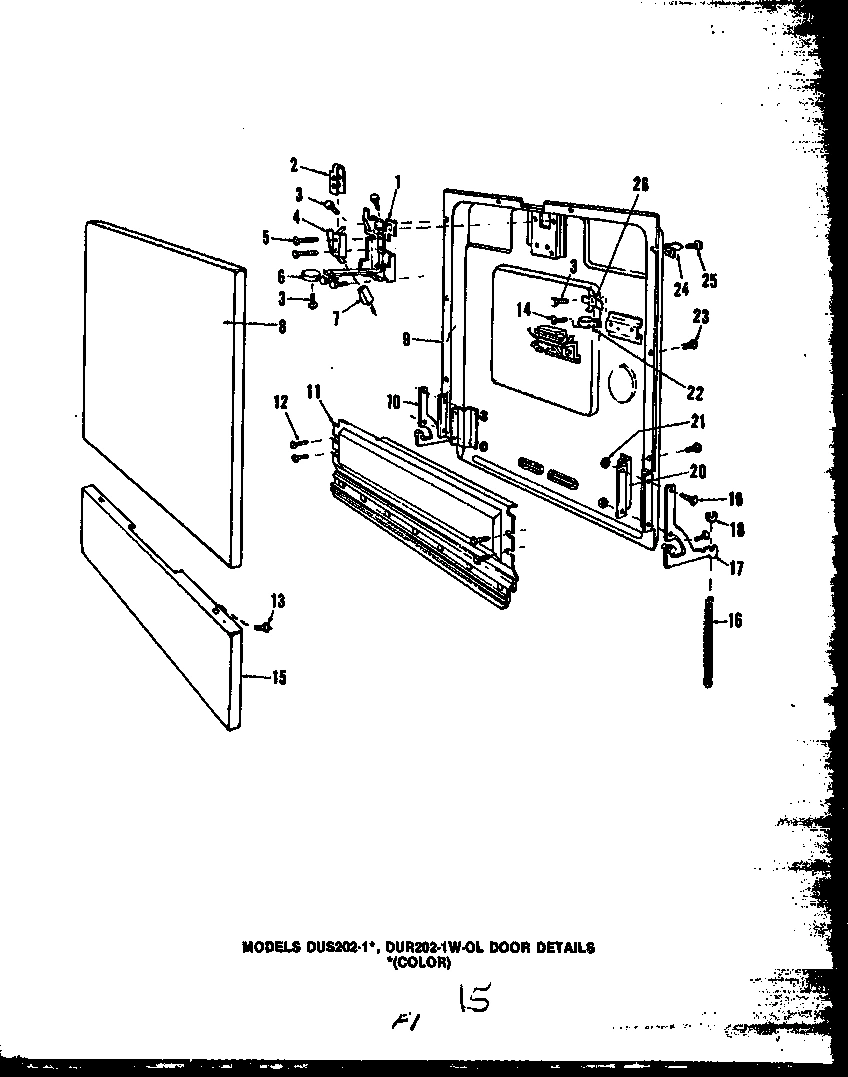

DOOR PANEL, WHITE
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
View on Model
9
SUB 808507, TRIGGER ASSY
SUB 808507, TRIGGER ASSY WPL Y0806569 Contact Us For Availability
View on Model
9
SUB 809288, INNER DOOR PANEL
SUB 809288, INNER DOOR PANEL WPL 0807191 Contact Us For Availability
View on Model
10
WASHER
WASHER WPL 0802836 Contact Us For Availability
View on Model
10
ARM ASSY LH COUNTERBALANCE
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
View on Model
11
BUSHING
BUSHING WPL 0805626 Contact Us For Availability
View on Model
11
VENT PLATE ASSEMBLY
VENT PLATE ASSEMBLY WPL 0808369 Contact Us For Availability
View on Model
12
``O`` RING
``O`` RING WPL Y0806647 Contact Us For Availability
View on Model
12
USE 0806976
USE 0806976 WPL 0806810 Contact Us For Availability
View on Model
13
SHAFT
SHAFT WPL 806648 Contact Us For Availability
View on Model
14
KIT, SHAFT SEAL
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
View on Model
15
SUB 809108, ACCESS PANEL
SUB 809108, ACCESS PANEL WPL 0807257 Contact Us For Availability
View on Model
16
SPRING, COUNTERBALANCE
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
View on Model
17
ARM ASSY COUNTERBALANCE R H
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
View on Model
18
SPRING PAD
SPRING PAD WPL 0805884 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL 0803311 Contact Us For Availability
View on Model
20
ARM BRACKET
ARM BRACKET WPL Y0806717 Contact Us For Availability
View on Model
22
CLAMP
CLAMP WPL Y0808442 Contact Us For Availability
View on Model
23
SCREW
SCREW WPL 0806967 Contact Us For Availability
View on Model
24
DOOR GUIDE
DOOR GUIDE WPL 0807449 Contact Us For Availability
View on Model
25
TRUSS HD. CAD. PL.
TRUSS HD. CAD. PL. WPL 806926 Contact Us For Availability
View on Model
26
TERMINAL, GROUNDING
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
View on Model
