Model Whirlpool DUR20819OL DISHWASHER – Common Parts & Diagrams

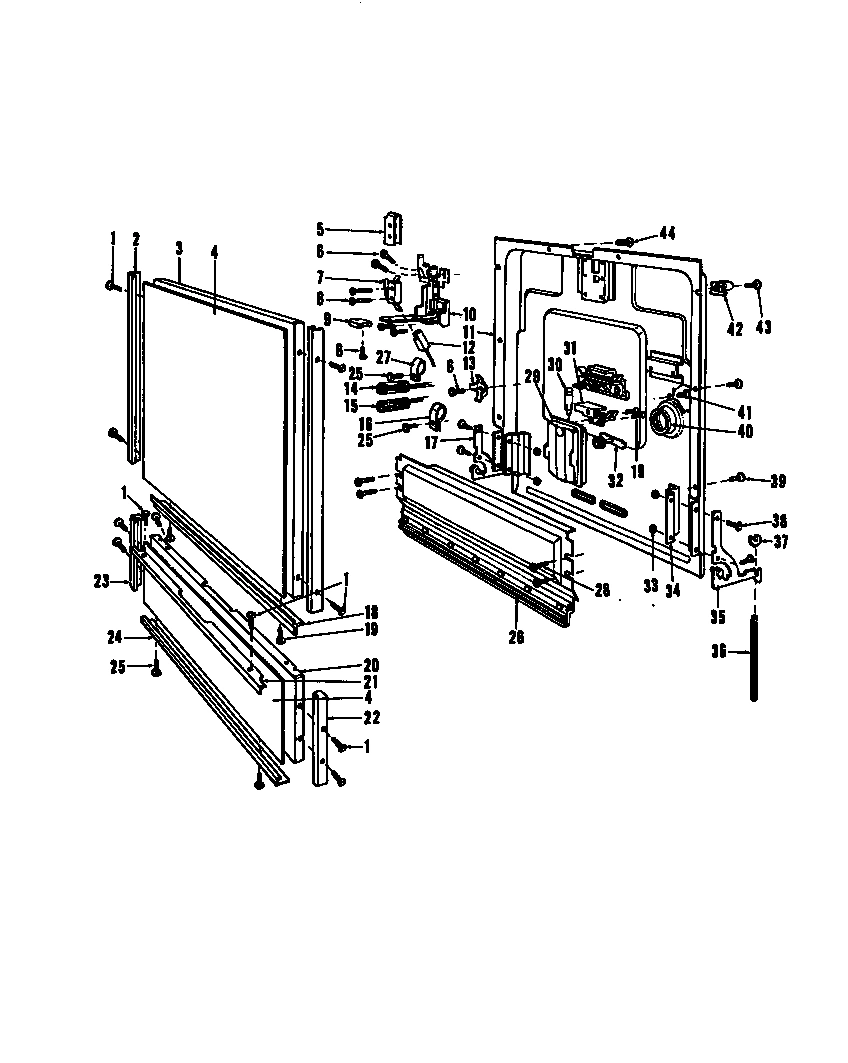

03 - DOOR DETAILS

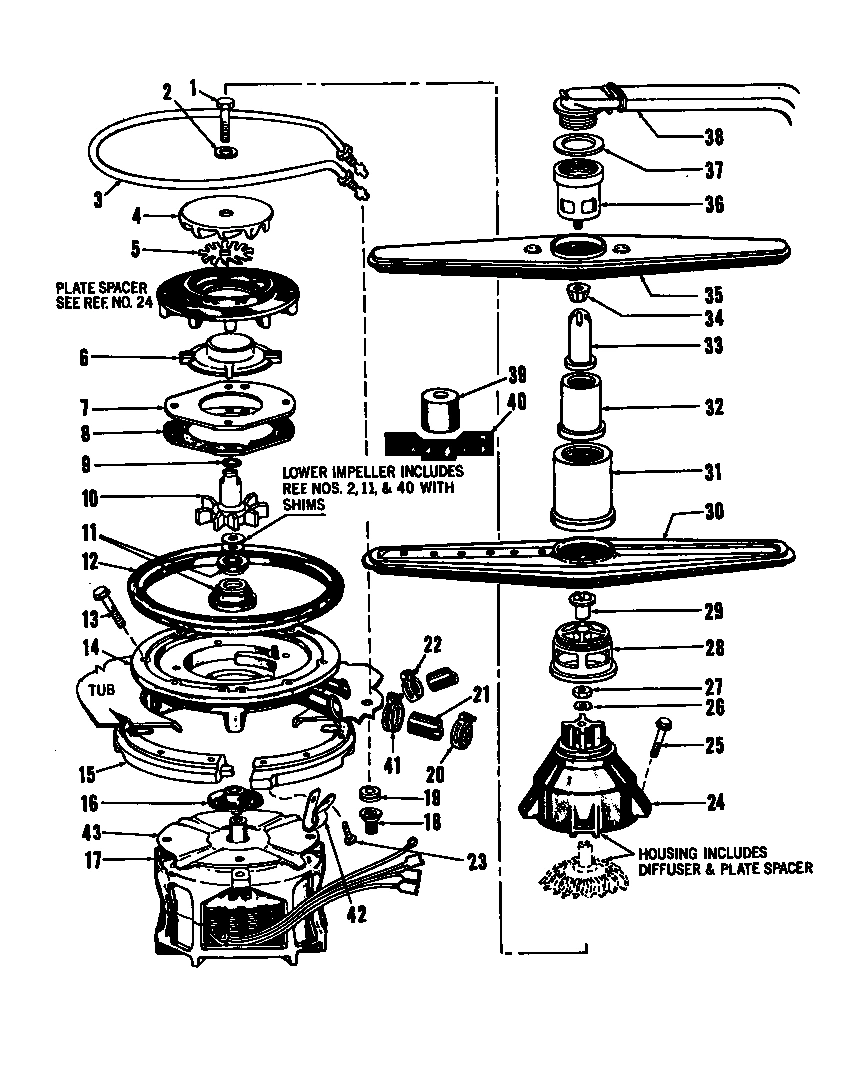

05 - MOTOR, HEATER & SPRAY ARM DETAILS

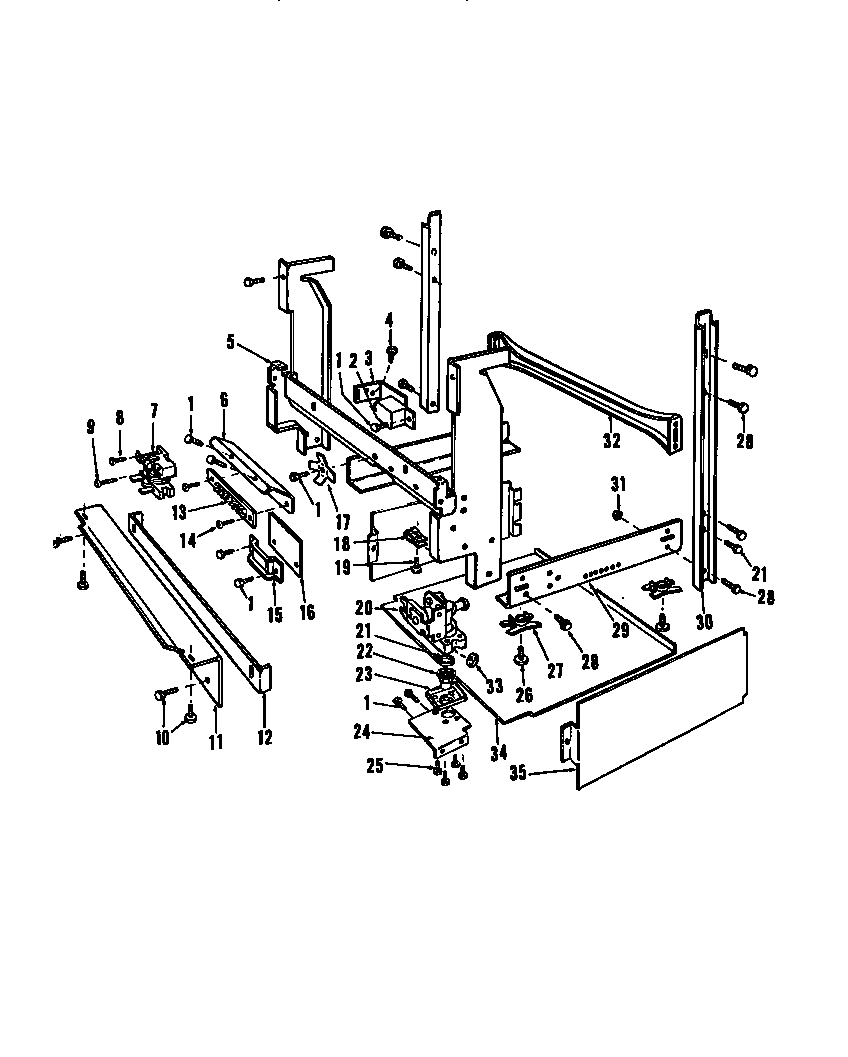

04 - FRAME DETAILS

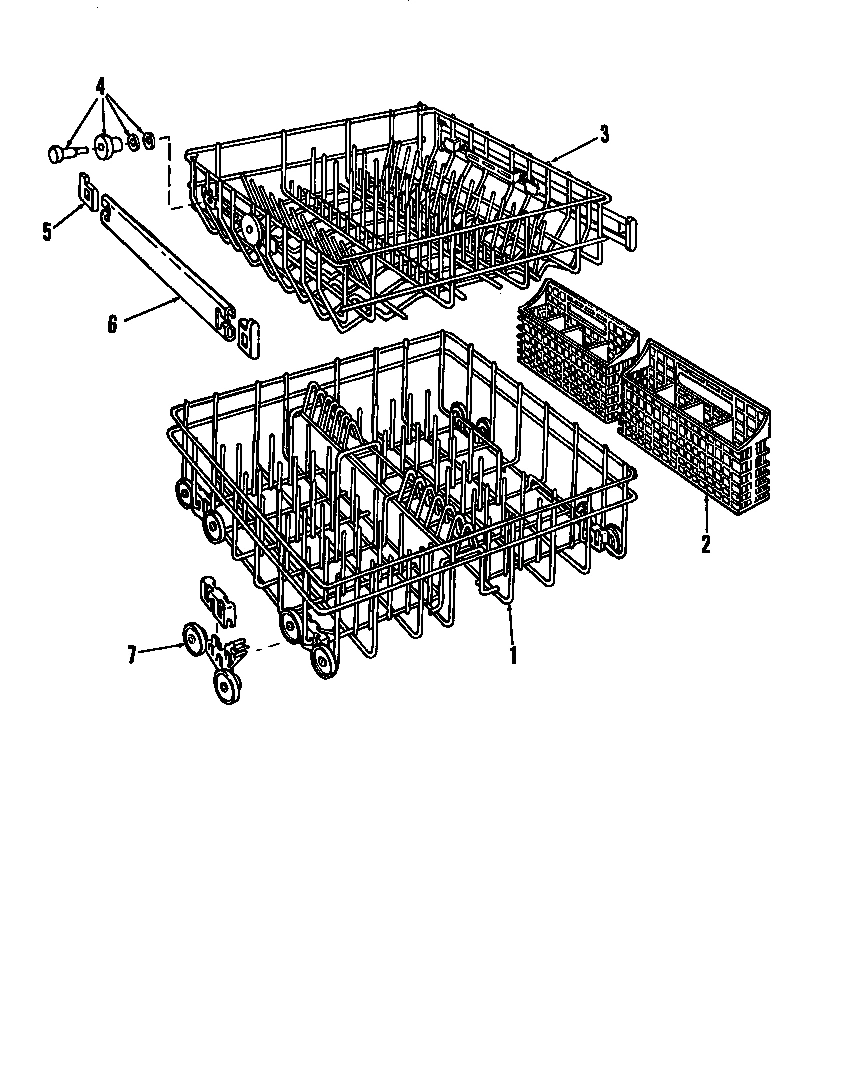

06 - RACK DETAILS

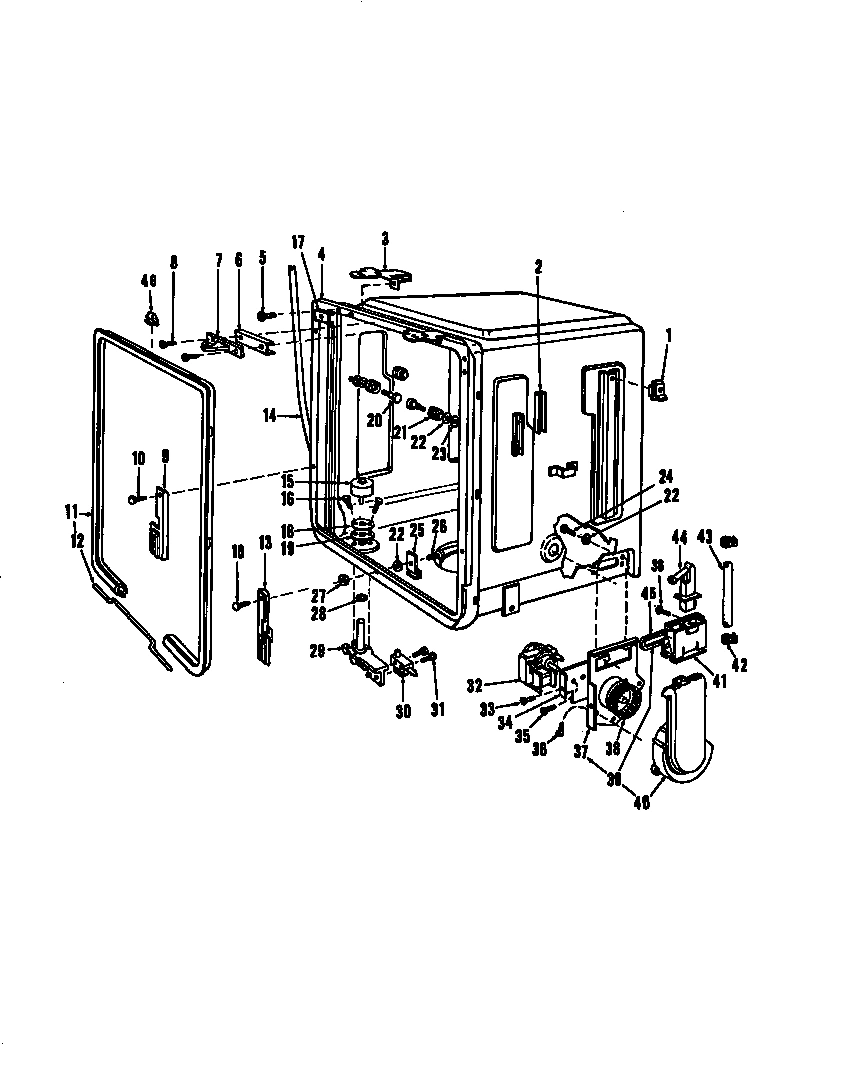

07 - TUB DETAILS

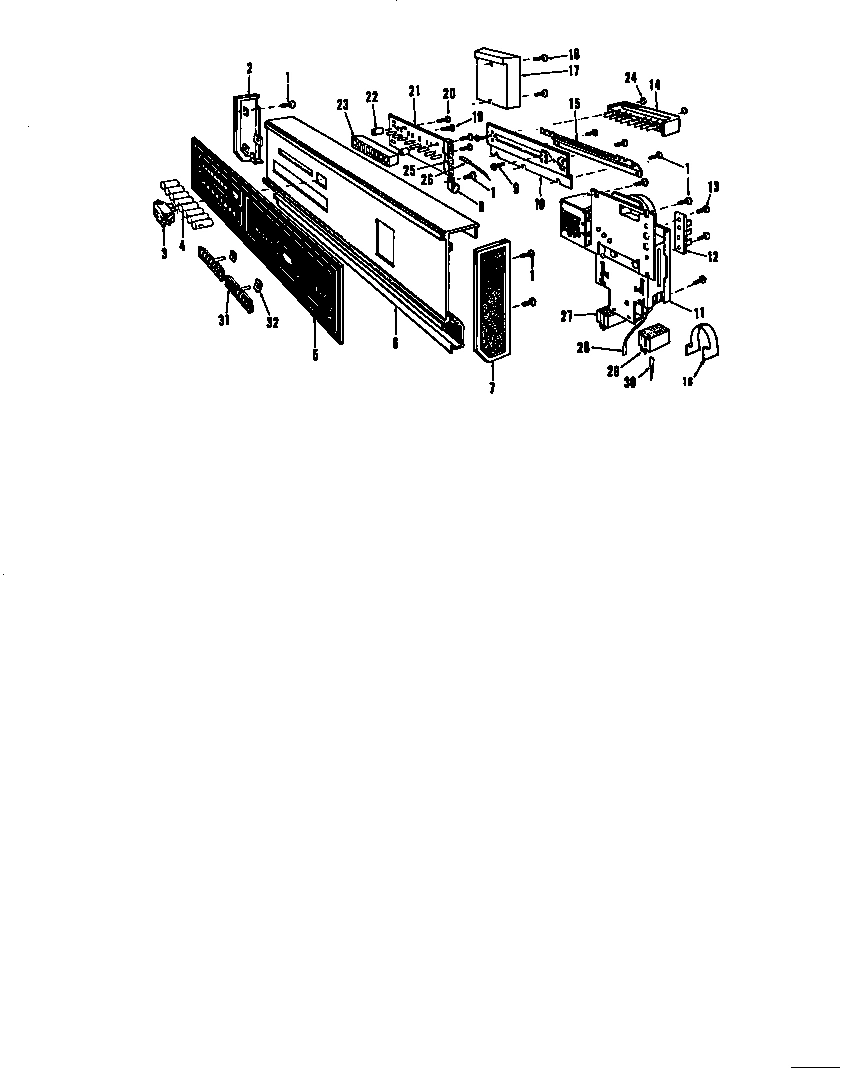

01 - CONTROL PANEL

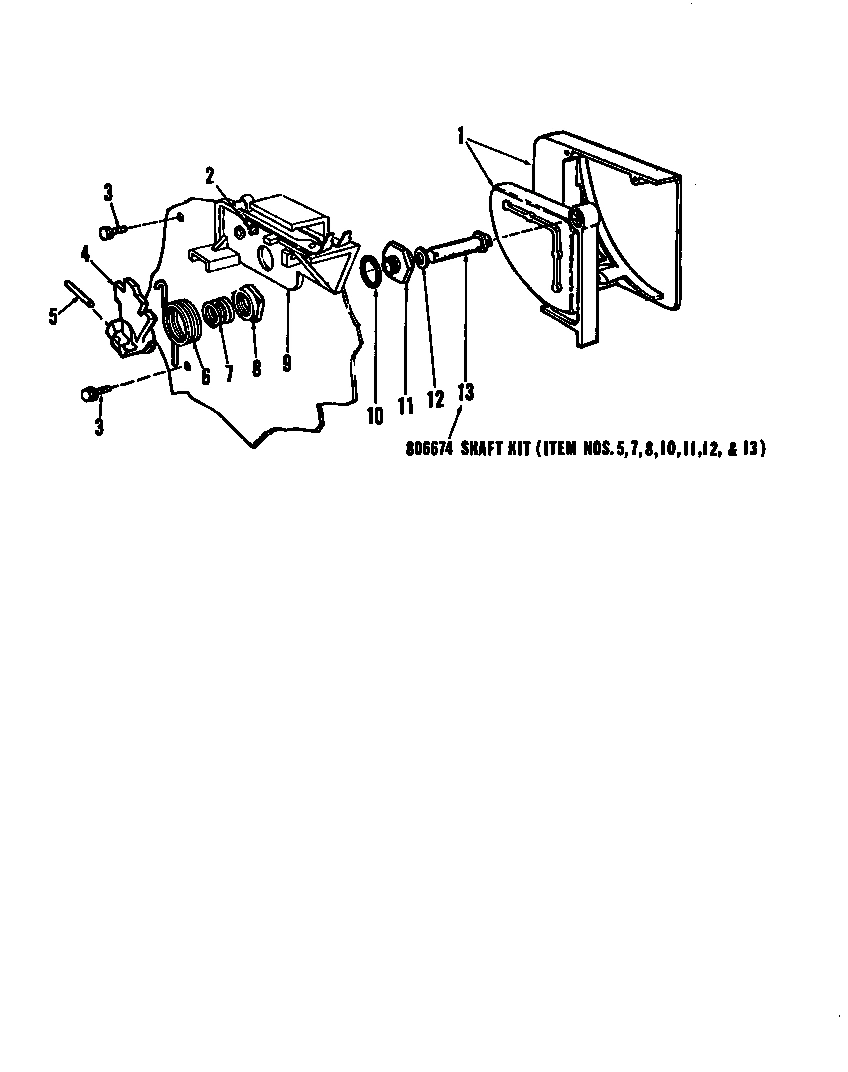

02 - DETERGENT CUP
Common parts from model Whirlpool DUR20819OL DISHWASHER
1
SCREW WPL 0806830 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
RACK, LOWER WPL 0808946 Contact Us For Availability
1
NUT, CAGE WPL 0806291 Contact Us For Availability
1
SCREW WPL 0806943 Contact Us For Availability
1
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
2
DOOR TRIM, SIDE WPL 0808026 Contact Us For Availability
2
JUNCTION BOX COVER WPL 0800222 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
2
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
2
LH END CAP WPL 806407 Contact Us For Availability
2
``O`` RING WPL Y0808210 Contact Us For Availability
3
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
3
SUB 806864 HEATER SERVICE KIT WPL Y0806836 Contact Us For Availability
3
COVER BRACKET WPL 0807019 Contact Us For Availability
3
RACK, UPPER WPL 0807902 Contact Us For Availability
3
CLIP WPL 0808289 Contact Us For Availability
3
x ROCKER SWITCH WPL 0807737 Contact Us For Availability
3
SUB 806565, SCREW WPL 0808209 Contact Us For Availability
4
PANEL INSERT WPL 808404 Contact Us For Availability
4
IMPELLER, UPPER WPL 0808041 Contact Us For Availability
4
SCREW WPL 0807951 Contact Us For Availability
4
ROLLER WPL Y0807957 Contact Us For Availability
4
SUB 808372, TUB & GASKET ASSY. WPL 0808725 Contact Us For Availability
4
PUSHBUTTON WPL Y0807091 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
5
SWITCH COVER WPL 0807450 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
WELD ASSEMBLY, HINGE WPL 0807848 Contact Us For Availability
5
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
5
SCREW WPL 0807036 Contact Us For Availability
5
OVERLAY, CONTROL PANEL WPL 0808197 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
6
RACK SLIDE WPL 0807854 Contact Us For Availability
6
SHIM STRIKE WPL 0807073 Contact Us For Availability
6
CONSOLE PANEL WPL 808622 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
7
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
7
PUMP PLATE WPL 0807884 Contact Us For Availability
7
SUB 805255 RELAY WPL 0806121 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
STRIKE WPL Y0807015 Contact Us For Availability
7
END CAP R.H. WPL 0806406 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
8
SCREW WPL 0808618 Contact Us For Availability
8
CLAMP WPL Y0808442 Contact Us For Availability
8
GASKET, PUMP WPL Y0807709 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
9
TOLERANCE RING WPL 0808898 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
SCREW WPL 0804672 Contact Us For Availability
9
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
9
SCREW WPL 0807103 Contact Us For Availability
9
SUB 808507, TRIGGER ASSY WPL Y0806569 Contact Us For Availability
10
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
10
KIT, IMPELLER WPL 0808042 Contact Us For Availability
10
SCREW WPL 0807001 Contact Us For Availability
10
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
10
SWITCH BRACKET WPL Y0808279 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
11
INNER DR. ASSY. WPL 0807194 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
11
TOE PLATE WPL 0807850 Contact Us For Availability
11
SUB 808959, GASKET & WIRE ASSY WPL Y0808345 Contact Us For Availability
11
TIMER, DIGITAL DISPLAY WPL Y0808101 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
12
TERMINAL INSULATOR WPL 806646 Contact Us For Availability
12
SUB 809008, GASKET, PUMP WPL Y0807710 Contact Us For Availability
12
TOE PLATE, ADJUSTABLE WPL 0806295 Contact Us For Availability
12
JUNCTION, WIRE GASKET WPL 0808344 Contact Us For Availability
12
BLOCK, TERMINAL WPL 0808166 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
13
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
13
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
14
THERMOSTAT WPL 808623 Contact Us For Availability
14
SUB 809102, PUMP HSG. WPL Y0807711 Contact Us For Availability
14
TUBING HOSE WPL Y0806089 Contact Us For Availability
14
SWITCH WPL Y0808196 Contact Us For Availability
14
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
15
THERMOSTAT WPL Y0808280 Contact Us For Availability
15
CLAMPING RING WPL Y707712 Contact Us For Availability
15
WIRING CLAMP WPL 0806723 Contact Us For Availability
15
FLOAT WPL Y0804630 Contact Us For Availability
15
SHIELD, VENT PLATE WPL Y0808398 Contact Us For Availability
16
SCREW WPL Y0807268 Contact Us For Availability
16
SLINGER WPL 0808561 Contact Us For Availability
16
WIRE SHIELD WPL 0808013 Contact Us For Availability
16
TIMER INSULATOR WPL Y0808664 Contact Us For Availability
17
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
17
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
17
MOTOR ASSEMBLY WPL Y0806300 Contact Us For Availability
17
SHIM WPL Y0808366 Contact Us For Availability
17
SPLASH PAN WPL 0807425 Contact Us For Availability
18
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
18
SCREW WPL 0806894 Contact Us For Availability
18
NUT WPL 0806834 Contact Us For Availability
18
SPEED NUT WPL 0808170 Contact Us For Availability
18
RING WPL Y0808064 Contact Us For Availability
19
GROMMET WPL Y0806833 Contact Us For Availability
19
SCREW WPL Y0807002 Contact Us For Availability
19
GASKET WPL Y0808063 Contact Us For Availability
19
SCREW WPL 0807141 Contact Us For Availability
20
SUB 809108, ACCESS PANEL WPL 0807257 Contact Us For Availability
20
CLAMP WPL 0805495 Contact Us For Availability
20
SUB 808668, VALVE WPL 0808556 Contact Us For Availability
20
SUB 808564, KIT, SCREW & WSR. WPL 0807181 Contact Us For Availability
20
SCREW WPL 0805126 Contact Us For Availability
21
HOSE CONNECTOR WPL 0808174 Contact Us For Availability
21
GASKET WPL Y0806100 Contact Us For Availability
21
ROLLER WPL 0807180 Contact Us For Availability
21
CIRCUIT BOARD WPL 0808168 Contact Us For Availability
22
TRIM, R.H. WPL 0808028 Contact Us For Availability
22
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
22
CLAMP, HOSE WPL 0806090 Contact Us For Availability
22
SPACER WPL 0805323 Contact Us For Availability
23
SCREW WPL 0807270 Contact Us For Availability
23
FITTING, RETAINER WPL Y0808458 Contact Us For Availability
23
USE 0809044 WPL 0805776 Contact Us For Availability
23
DIVIDER WPL 0807140 Contact Us For Availability
24
ACCESS PANEL TRIM, BOTTOM WPL Y0808027 Contact Us For Availability
24
HOUSING WPL Y0806978 Contact Us For Availability
24
MOUNTING BRACKET WPL 0807613 Contact Us For Availability
24
SCREW WPL Y0806901 Contact Us For Availability
24
USE M0281003 WPL 0803346 Contact Us For Availability
25
USE M0217224 WPL Y0803416 Contact Us For Availability
25
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
25
SCREW WPL 0808368 Contact Us For Availability
25
CLIP, GASKET WPL 0808115 Contact Us For Availability
25
HOUSING, CIRCUIT BOARD WPL 0807921 Contact Us For Availability
26
VENT PLATE ASSEMBLY WPL 0808369 Contact Us For Availability
26
LOCKWASHER WPL 0804526 Contact Us For Availability
26
LEVELING LEGS WPL 0807672 Contact Us For Availability
26
TERMINAL, CIRCUIT BOARD WPL 0808000 Contact Us For Availability
27
NUT WPL 0804527 Contact Us For Availability
27
TEE NUT - SNAP IN WPL 0807671 Contact Us For Availability
27
HOUSING, TIMER B WPL Y0808231 Contact Us For Availability
28
USE 0806976 WPL 0806810 Contact Us For Availability
28
SCREW No.8 WPL 0808715 Contact Us For Availability
28
SCREW WPL 0806889 Contact Us For Availability
28
``0`` RING WPL Y0807759 Contact Us For Availability
28
TERMINAL END WPL 0808334 Contact Us For Availability
29
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
29
NUT WPL Y0808176 Contact Us For Availability
29
``U`` FRAME ASSEMBLY WPL Y0807851 Contact Us For Availability
29
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
29
HOUSING, TIMER W WPL 0808232 Contact Us For Availability
30
PLUNGER WPL 0806757 Contact Us For Availability
30
SPRAY ARM WPL 0808177 Contact Us For Availability
30
SUPPORT CHANNEL WPL 0808670 Contact Us For Availability
30
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
30
TERMINAL, (PACK OF 25) WPL 0808333 Contact Us For Availability
31
BRACKET ASSEMBLY WPL 0806756 Contact Us For Availability
31
TOWER BASE WPL Y0808178 Contact Us For Availability
31
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
31
VENT GRILLE WPL Y0808477 Contact Us For Availability
32
SUB 807673, FILL PLUG WPL Y0806755 Contact Us For Availability
32
TOWER SECTION WPL Y0808179 Contact Us For Availability
32
BRACE, REAR WPL Y0807852 Contact Us For Availability
32
SUB 807389 MOTOR WPL Y0807385 Contact Us For Availability
32
SPEED NUT WPL Y0808475 Contact Us For Availability
33
TOWER TIP WPL Y0808180 Contact Us For Availability
33
FLOW WASHER WPL 0808432 Contact Us For Availability
33
KNOB SCREW WPL 0804164 Contact Us For Availability
34
ARM BRACKET WPL Y0806717 Contact Us For Availability
34
NUT, SPRAY ARM WPL Y0808181 Contact Us For Availability
34
BOTTOM PANEL WPL Y0808434 Contact Us For Availability
34
PLATE, MOTOR WPL 0806793 Contact Us For Availability
35
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
35
SPRAY ARM, UPPER WPL 0808259 Contact Us For Availability
35
SIDE PANEL WPL Y0808433 Contact Us For Availability
35
SCREW WPL 803003 Contact Us For Availability
36
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
36
DISTRIBUTOR WPL 0808183 Contact Us For Availability
37
SPRING PAD WPL 0805884 Contact Us For Availability
37
GASKET WPL 0808184 Contact Us For Availability
37
PLATE, BLOWER WPL 0806794 Contact Us For Availability
38
SCREW WPL 0803311 Contact Us For Availability
38
ELBOW & TUBE ASSY WPL 0808185 Contact Us For Availability
38
WHEEL & CLIP ASSEMBLY WPL 0806230 Contact Us For Availability
39
SCREW WPL 0806967 Contact Us For Availability
39
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
39
HOUSING ASSEMBLY WPL 0806838 Contact Us For Availability
40
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
40
SHIM GAUGE WPL 0807077 Contact Us For Availability
40
HOUSING, BLOWER WPL 0808738 Contact Us For Availability
41
SCREW WPL 0806863 Contact Us For Availability
41
VENT STACK WPL 0808706 Contact Us For Availability
42
DOOR GUIDE WPL 0807449 Contact Us For Availability
42
CLAMP WPL Y0807813 Contact Us For Availability
43
SCREW WPL 0806976 Contact Us For Availability
43
WATER SHIELD ASSY WPL 0808435 Contact Us For Availability
43
TUBE, INLET WPL 0807891 Contact Us For Availability
44
INLET NOZZLE WPL 0808707 Contact Us For Availability
45
GASKET WPL Y0806797 Contact Us For Availability
46
FASTENER GASKET WPL Y0805763 Contact Us For Availability
× ![]()
Login and Registration Form
