Model Whirlpool DUR20319-OS DISHWASHER – Common Parts & Diagrams

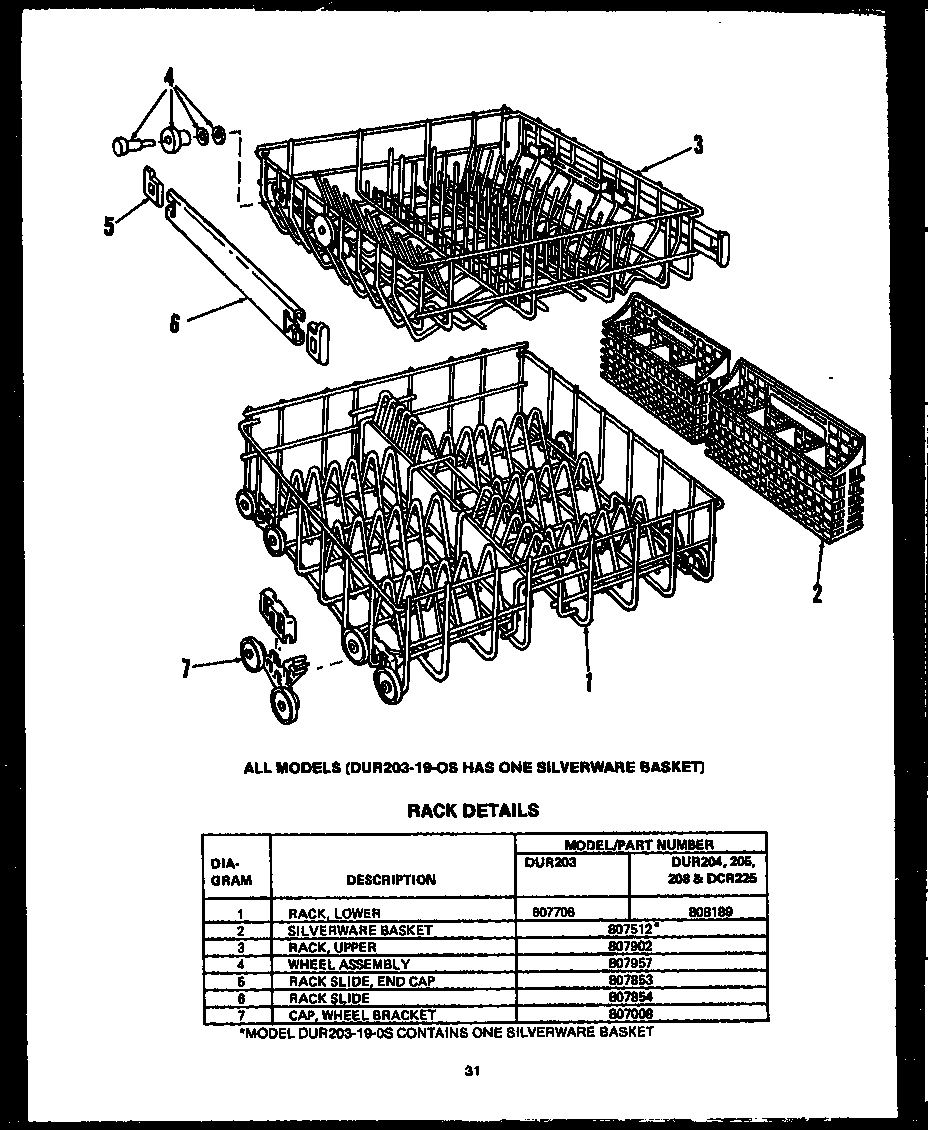

07 - RACK DETAILS

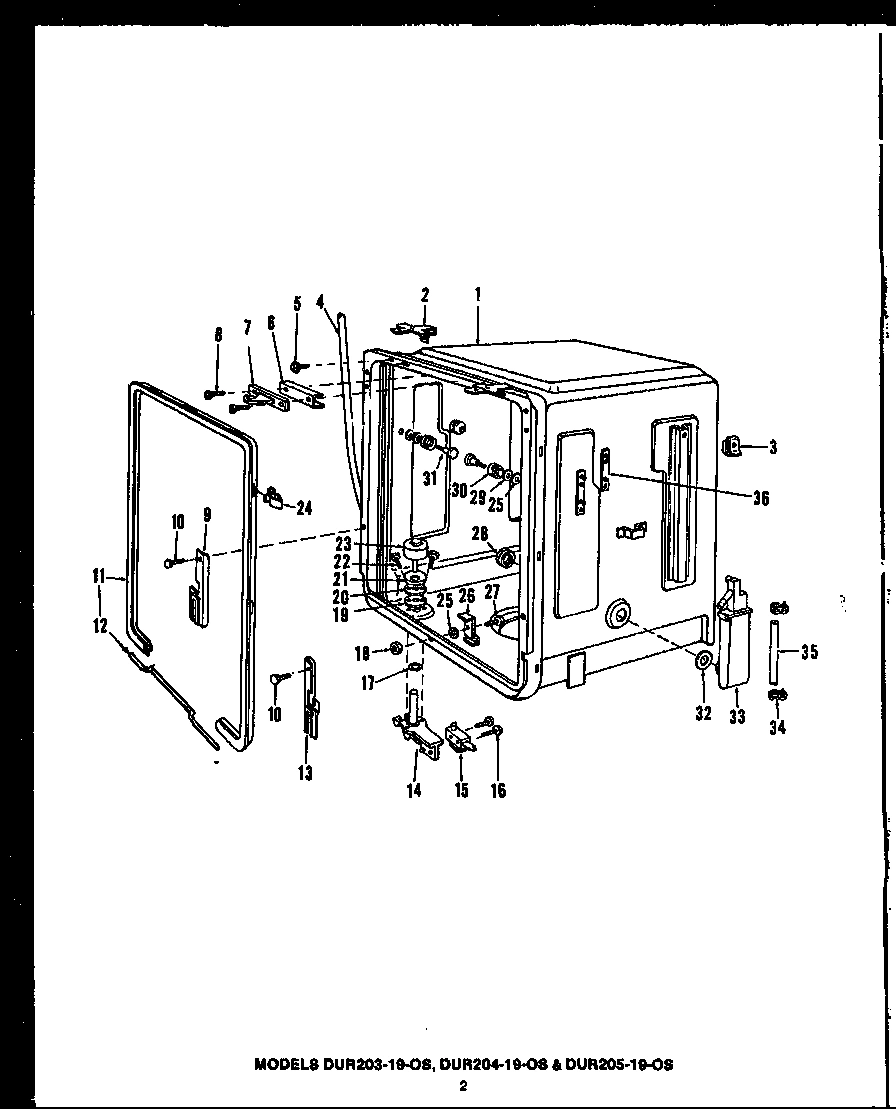

03 - Page 1

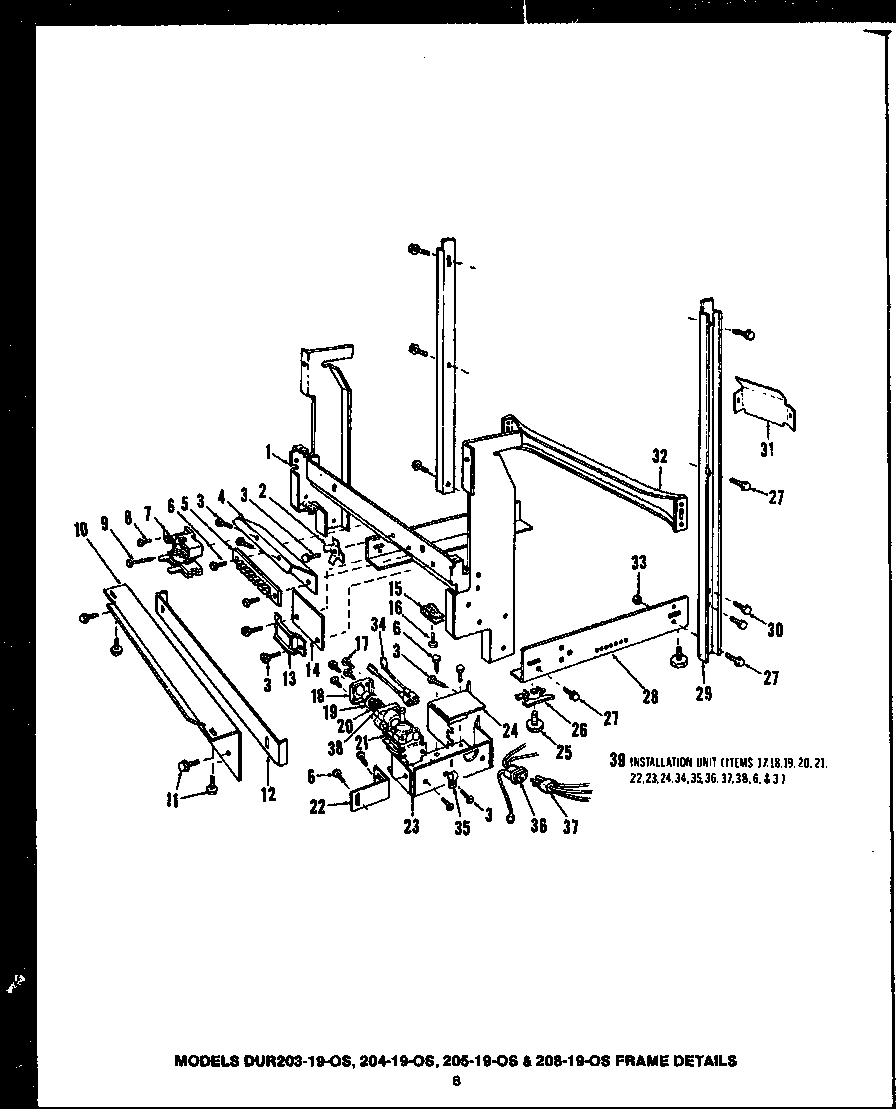

05 - Page 4

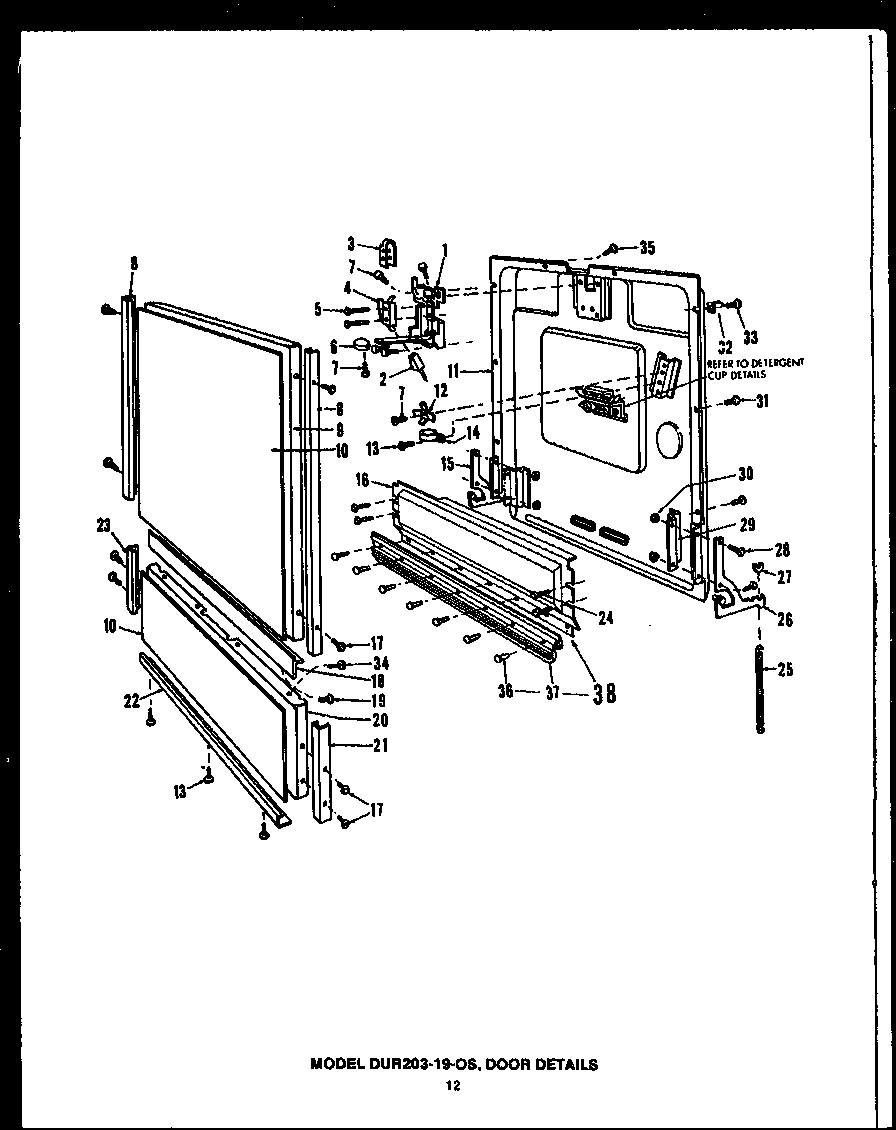

06 - Page 6

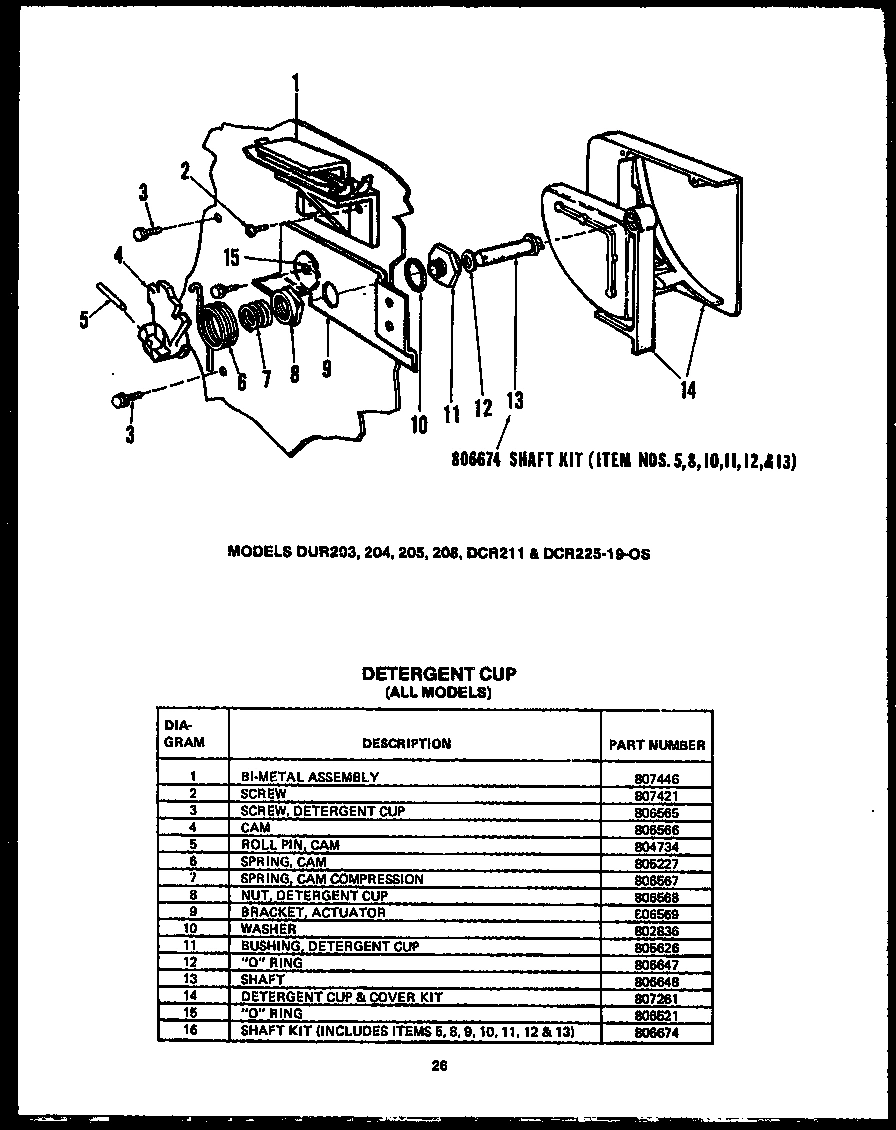

02 - DETERGENT CUP

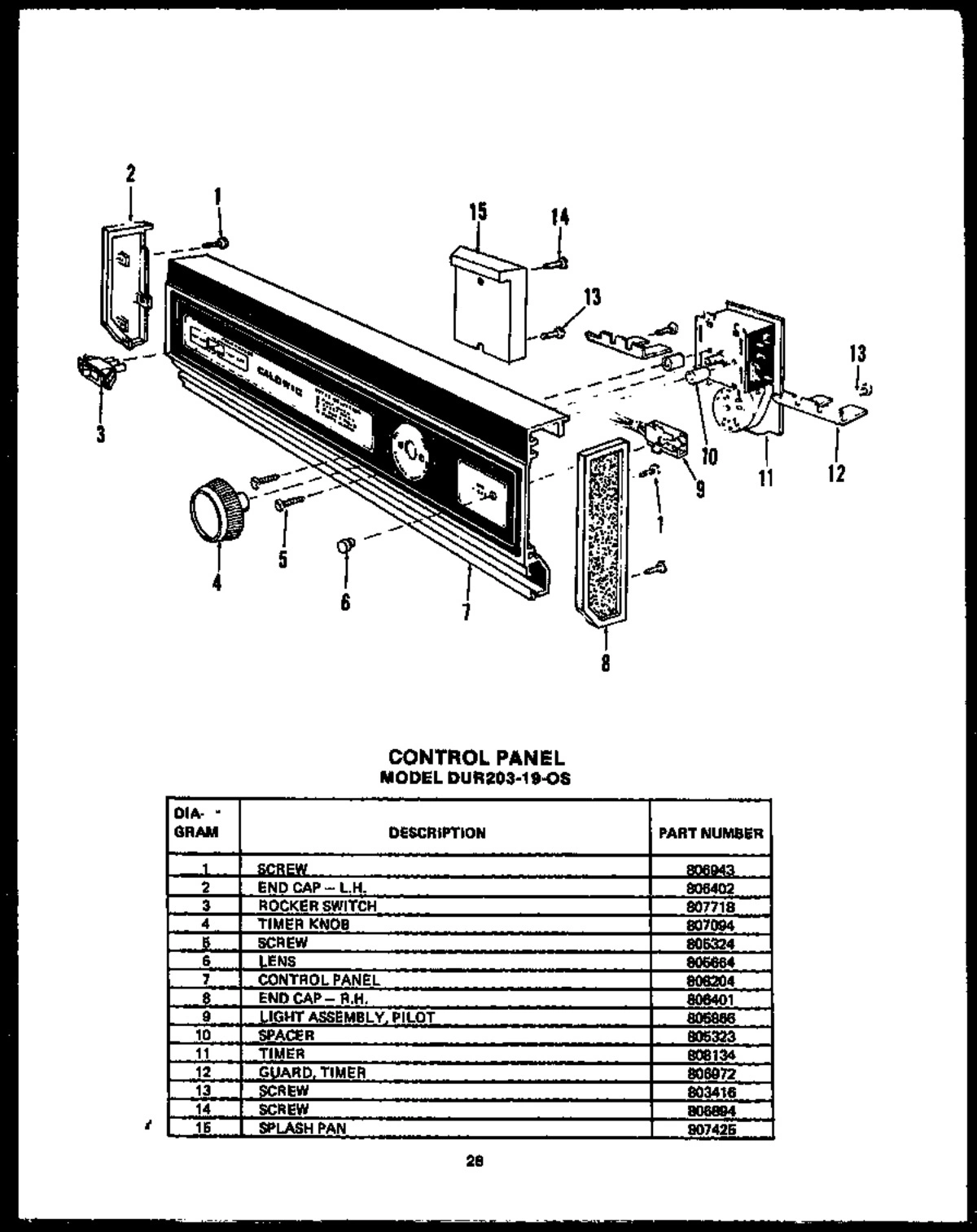

01 - CONTROL PANEL

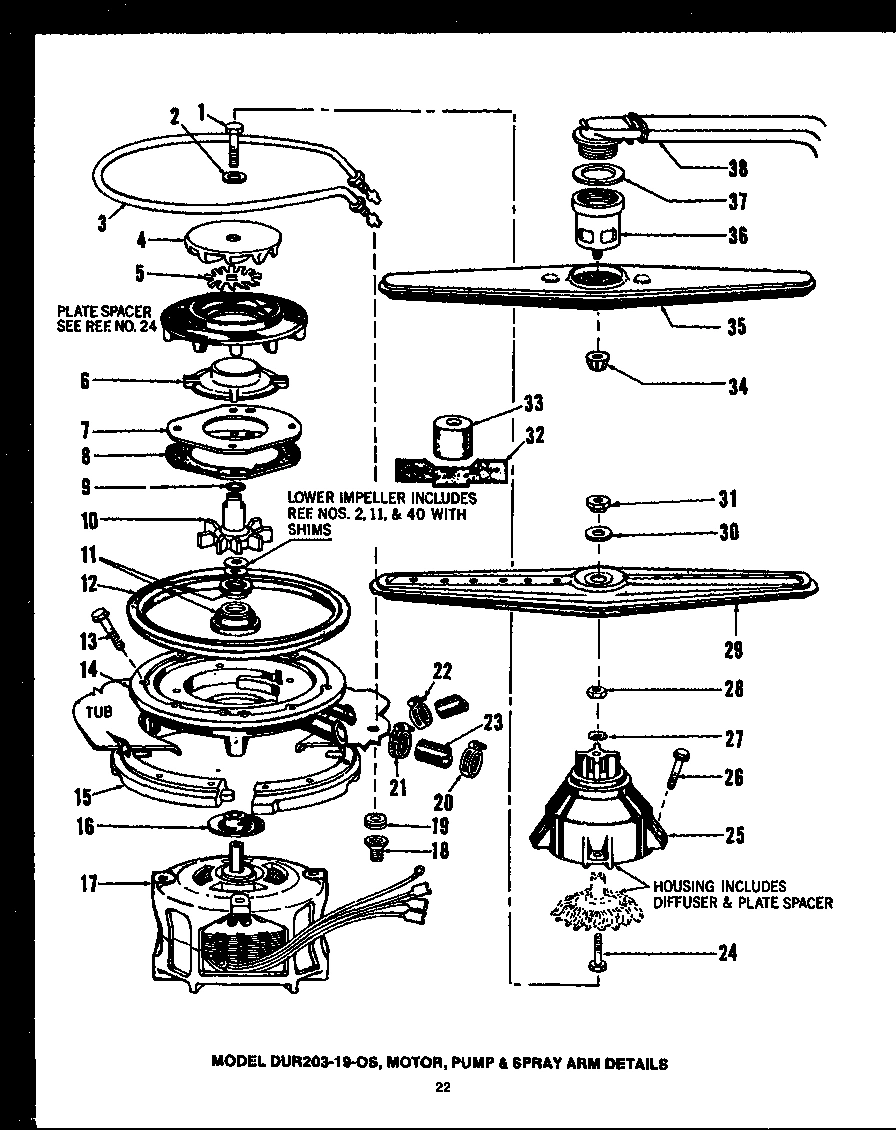

04 - Page 11
Common parts from model Whirlpool DUR20319-OS DISHWASHER
1
UPPER RACK ASM WPL 0807708 Contact Us For Availability
1
SUB 809261, TUB & GASKET ASSY. WPL 0808187 Contact Us For Availability
1
WELD ASSEMBLY, HINGE WPL 0807848 Contact Us For Availability
1
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
1
SUB 808507, TRIGGER ASSY WPL Y0807446 Contact Us For Availability
1
SCREW WPL 0806943 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
2
CLIP WPL 0808289 Contact Us For Availability
2
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
2
TERMINAL INSULATOR WPL 0806846 Contact Us For Availability
2
END CAP, RH WPL 0806402 Contact Us For Availability
3
RACK, UPPER WPL 0807902 Contact Us For Availability
3
NUT, CAGE WPL 0806291 Contact Us For Availability
3
SWITCH COVER WPL 0807450 Contact Us For Availability
3
SCREW WPL 0806565 Contact Us For Availability
3
SWITCH ROCKER WPL Y0807718 Contact Us For Availability
3
SUB 806864 HEATER SERVICE KIT WPL Y0806836 Contact Us For Availability
4
ROLLER WPL Y0807957 Contact Us For Availability
4
TUBING HOSE WPL Y0806089 Contact Us For Availability
4
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
4
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
4
SUB 808482 KNOB, TIMER WPL Y0807094 Contact Us For Availability
4
IMPELLER, UPPER WPL 0808041 Contact Us For Availability
5
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
5
SCREW WPL 0807036 Contact Us For Availability
5
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
5
SCREW, FLOAT SWITCH WPL 0803051 Contact Us For Availability
5
SUB 808827, ROLL PIN WPL Y0804734 Contact Us For Availability
5
SCREW WPL 0805324 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
6
RACK SLIDE WPL 0807854 Contact Us For Availability
6
SHIM STRIKE WPL 0807073 Contact Us For Availability
6
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
6
LENS WPL 0805664 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
STRIKE WPL Y0807015 Contact Us For Availability
7
SCREW WPL 0806830 Contact Us For Availability
7
SUB 805255 RELAY WPL 0806121 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
7
CONTROL PANEL WPL 808204 Contact Us For Availability
7
PUMP PLATE WPL 0807884 Contact Us For Availability
8
DOOR TRIM, SIDE WPL 0808026 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
8
SUB 806407, END CAP, LH WPL 0806401 Contact Us For Availability
8
GASKET, PUMP WPL Y0807709 Contact Us For Availability
9
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
9
SCREW WPL 0804672 Contact Us For Availability
9
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
9
SUB 808507, TRIGGER ASSY WPL Y0806569 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
LIGHT ASSEMBLY (WHITE) WPL 0805866 Contact Us For Availability
10
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
10
TOE PLATE WPL 0807850 Contact Us For Availability
10
INSERT, DOOR PANEL WPL 807645 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
10
SPACER WPL 0805323 Contact Us For Availability
10
KIT, IMPELLER WPL 0808042 Contact Us For Availability
11
SUB 808959, GASKET & WIRE ASSY WPL Y0808345 Contact Us For Availability
11
SCREW WPL 0807001 Contact Us For Availability
11
SUB 809288, INNER DOOR PANEL WPL 0807191 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
11
TIMER WPL 0808134 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
12
JUNCTION, WIRE GASKET WPL 0808344 Contact Us For Availability
12
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
12
TOE PLATE, ADJUSTABLE WPL 0806295 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
12
TIMER GUARD WPL 0806972 Contact Us For Availability
12
SUB 809008, GASKET, PUMP WPL Y0807710 Contact Us For Availability
13
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
13
SCREW WPL Y0807268 Contact Us For Availability
13
WIRING CLAMP WPL 0806723 Contact Us For Availability
13
USE M0217224 WPL Y0803416 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
14
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
14
WIRE SHIELD WPL 0808013 Contact Us For Availability
14
CLAMP WPL Y0807212 Contact Us For Availability
14
SCREW WPL 0806894 Contact Us For Availability
14
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
14
SUB 809102, PUMP HSG. WPL Y0807711 Contact Us For Availability
15
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
15
SPEED NUT WPL 0808170 Contact Us For Availability
15
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
15
SPLASH PAN WPL 0807425 Contact Us For Availability
15
CLAMP RING WPL Y0807712 Contact Us For Availability
16
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
16
UPPER RACK ASSY WPL 0809056 Contact Us For Availability
16
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
16
SLINGER WPL 0800062 Contact Us For Availability
17
``0`` RING WPL Y0807759 Contact Us For Availability
17
SUB 808368, SCREW WPL 0805286 Contact Us For Availability
17
MOTOR ASSEMBLY WPL Y0806300 Contact Us For Availability
18
USE M0281003 WPL 0803346 Contact Us For Availability
18
SUB 808458 FITTING, RETAINER WPL Y0808336 Contact Us For Availability
18
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
18
NUT WPL 0806834 Contact Us For Availability
19
GASKET WPL Y0808063 Contact Us For Availability
19
FITTING WPL Y0808337 Contact Us For Availability
19
GROMMET WPL Y0806833 Contact Us For Availability
20
RING WPL Y0808064 Contact Us For Availability
20
SUB 809108, ACCESS PANEL WPL 0807257 Contact Us For Availability
20
CLAMP WPL 0805495 Contact Us For Availability
21
COLLAR WPL 0804149 Contact Us For Availability
21
SUB 808668, INLET VALVE WPL 0808338 Contact Us For Availability
21
TRIM, R.H. WPL 0808028 Contact Us For Availability
22
CLIP WPL Y0808339 Contact Us For Availability
22
ACCESS PANEL TRIM, BOTTOM WPL Y0808027 Contact Us For Availability
22
CLAMP, HOSE WPL 0806090 Contact Us For Availability
23
FLOAT WPL Y0804630 Contact Us For Availability
23
MOUNTING BRACKET WPL Y0808340 Contact Us For Availability
23
HOSE CONNECTOR WPL 0808174 Contact Us For Availability
24
FASTENER GASKET WPL Y0805763 Contact Us For Availability
24
COVER WPL Y0808341 Contact Us For Availability
24
USE 0806976 WPL 0806810 Contact Us For Availability
24
SCREW WPL 0806945 Contact Us For Availability
25
USE 0809044 WPL 0805776 Contact Us For Availability
25
LEVELING LEGS WPL 0807672 Contact Us For Availability
25
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
25
HOUSING WPL Y0806978 Contact Us For Availability
26
CLIP, GASKET WPL 0808115 Contact Us For Availability
26
TEE NUT - SNAP IN WPL 0807671 Contact Us For Availability
26
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
26
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
27
SCREW WPL 0806889 Contact Us For Availability
27
SPRING PAD WPL 0805884 Contact Us For Availability
27
LOCKWASHER WPL 0804526 Contact Us For Availability
28
NUT PLASTIC WPL 0805669 Contact Us For Availability
28
``U`` FRAME ASSEMBLY WPL Y0807851 Contact Us For Availability
28
SCREW WPL 0803311 Contact Us For Availability
28
NUT WPL 0804527 Contact Us For Availability
29
SIDE CHANNEL WPL 0806290 Contact Us For Availability
29
ARM BRACKET WPL Y0806717 Contact Us For Availability
29
LWR SPRAY ARM WPL Y0805577 Contact Us For Availability
30
ROLLER WPL 0807180 Contact Us For Availability
30
SCREW WPL Y0807950 Contact Us For Availability
30
NUT WPL 0800928 Contact Us For Availability
30
WASHER WPL 0807590 Contact Us For Availability
31
SUB 808564, KIT, SCREW & WSR. WPL 0807181 Contact Us For Availability
31
SUPPORT, DRAIN HOSE WPL Y0808342 Contact Us For Availability
31
SCREW WPL 0806967 Contact Us For Availability
31
NUT WPL 0804473 Contact Us For Availability
32
WASHER WPL Y0803573 Contact Us For Availability
32
BRACE, REAR WPL Y0807852 Contact Us For Availability
32
DOOR GUIDE WPL 0807449 Contact Us For Availability
32
SHIM GAUGE WPL 0807077 Contact Us For Availability
33
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
33
SCREW WPL 0806976 Contact Us For Availability
33
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
34
SCREW WPL Y0807784 Contact Us For Availability
34
CONNECTOR, INLET VALVE WPL Y0808354 Contact Us For Availability
34
NUT, SPRAY ARM WPL Y0808181 Contact Us For Availability
35
TUBE, INLET WPL 0807891 Contact Us For Availability
35
SUB 808259 SPRAY ARM WPL 0808182 Contact Us For Availability
36
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
36
SUB 808409, RECEPTACLE WPL Y0808358 Contact Us For Availability
36
RIVET, PLASTIC, PKG. OF 7 WPL Y0808330 Contact Us For Availability
36
DISTRIBUTOR WPL 0808183 Contact Us For Availability
37
PIN CONNECTOR WPL Y0808356 Contact Us For Availability
37
SEAL, BAFFLE WPL Y0808331 Contact Us For Availability
37
GASKET WPL 0808184 Contact Us For Availability
38
FLOW WASHER WPL 0807609 Contact Us For Availability
38
VENT PLATE ASSEMBLY WPL 0808369 Contact Us For Availability
38
ELBOW & TUBE ASSY WPL 0808185 Contact Us For Availability
39
INSTALLATION KIT WPL 0808360 Contact Us For Availability
× ![]()
