Model Whirlpool DU9010W DISHWASHER – Common Parts & Diagrams

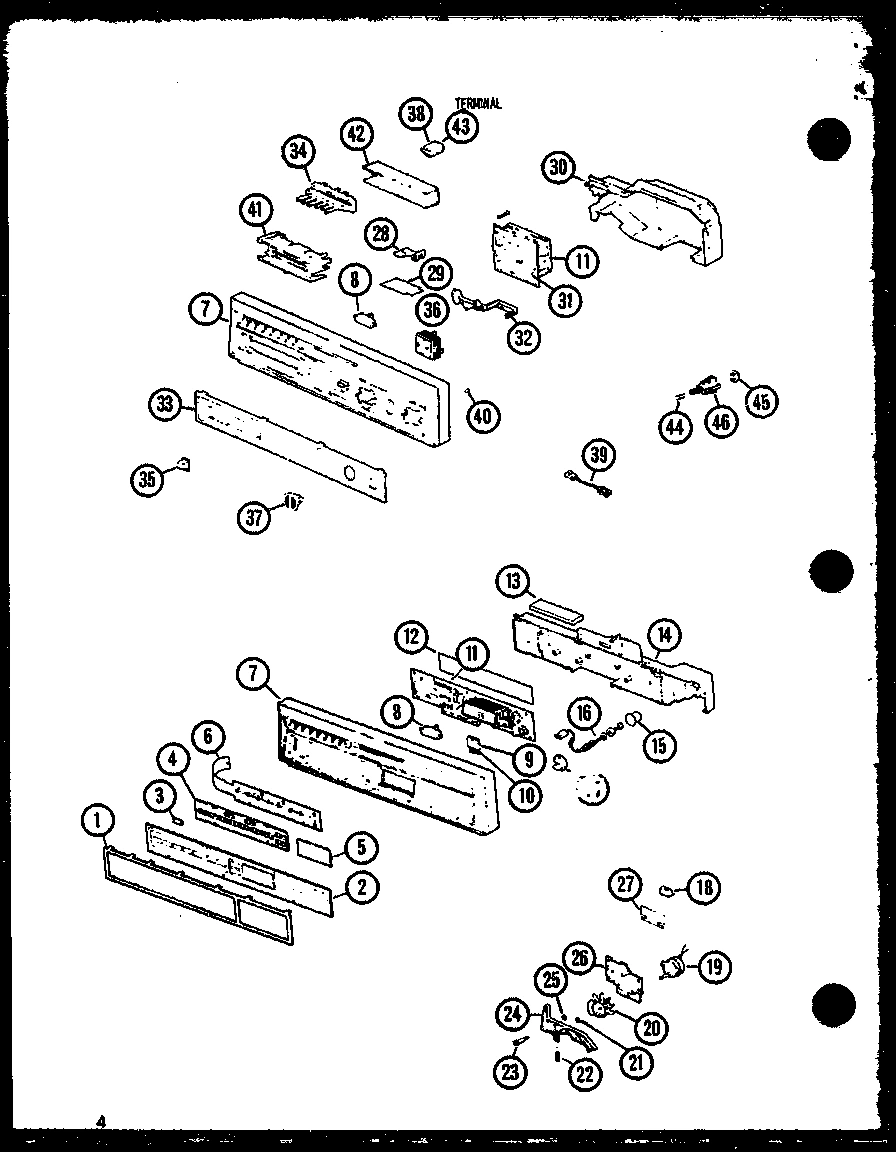

02 - Page 1

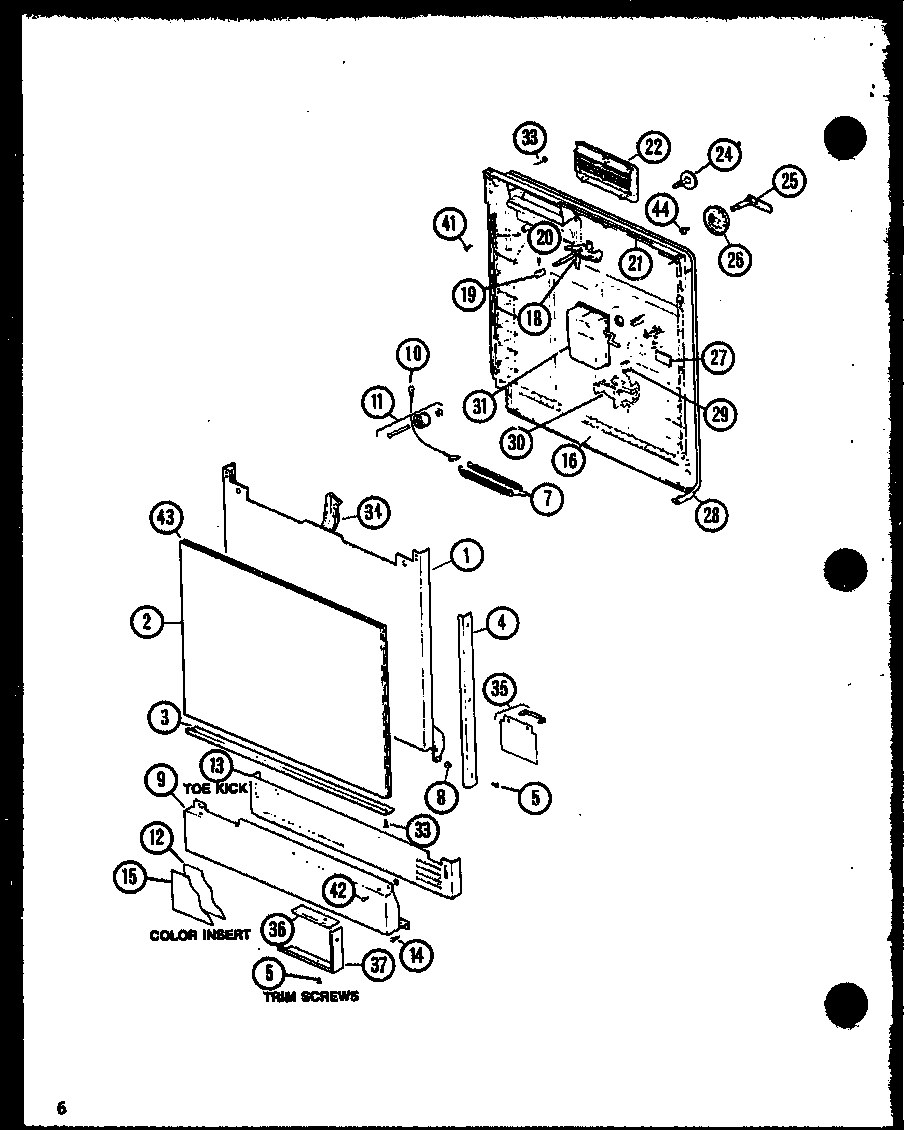

03 - Page 2

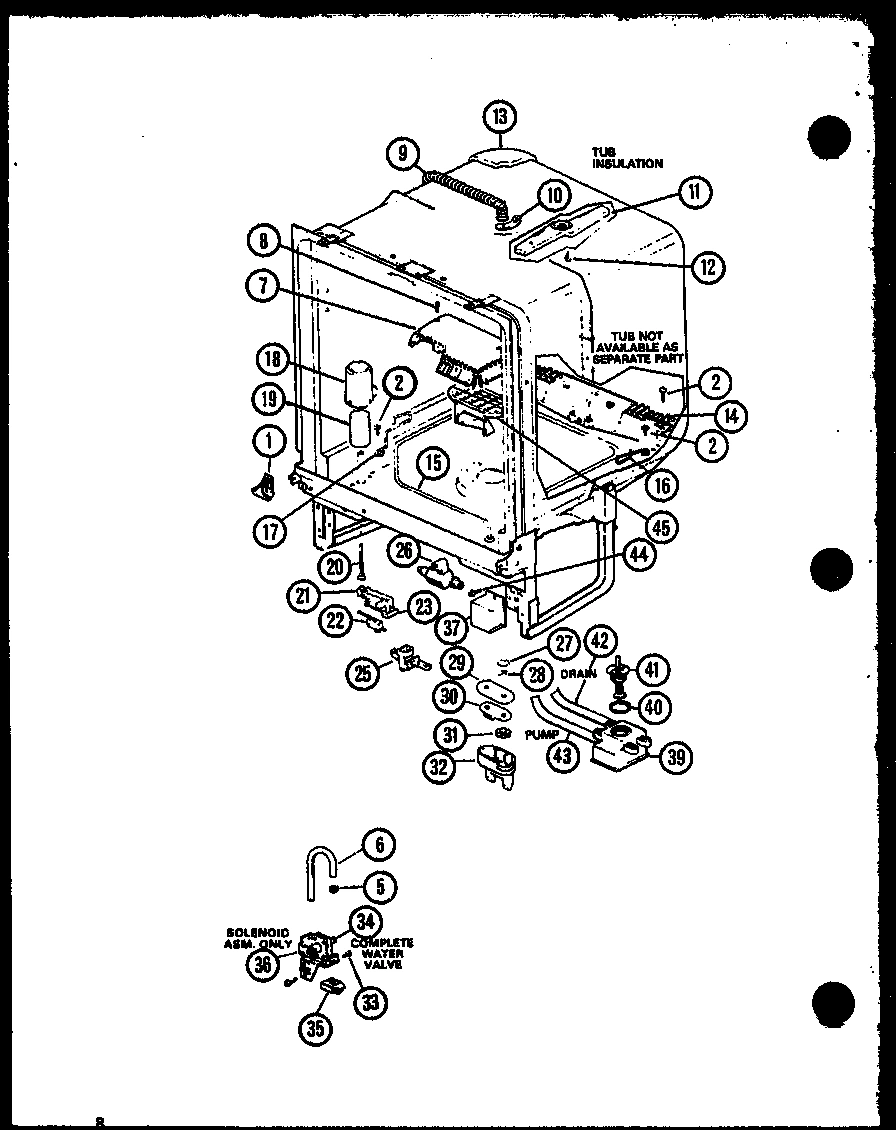

04 - Page 3

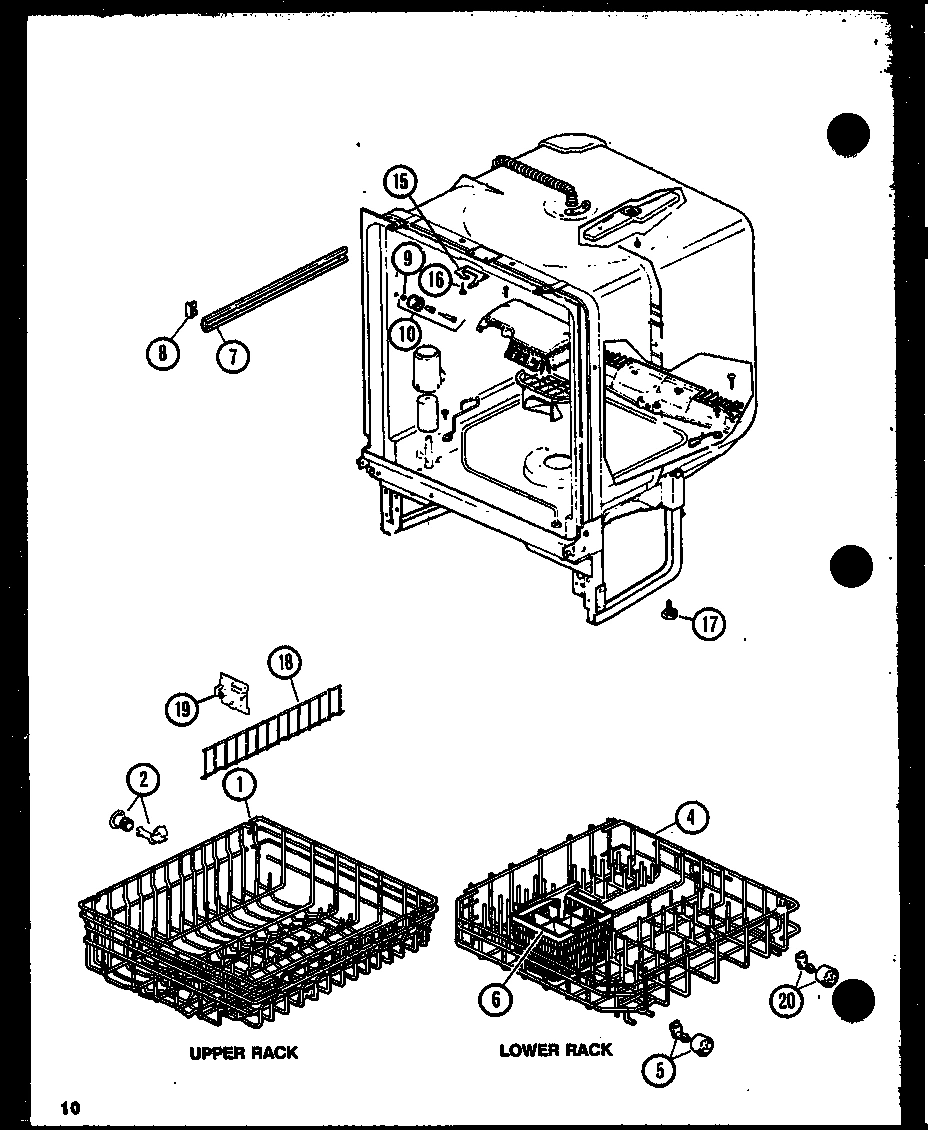

05 - Page 4

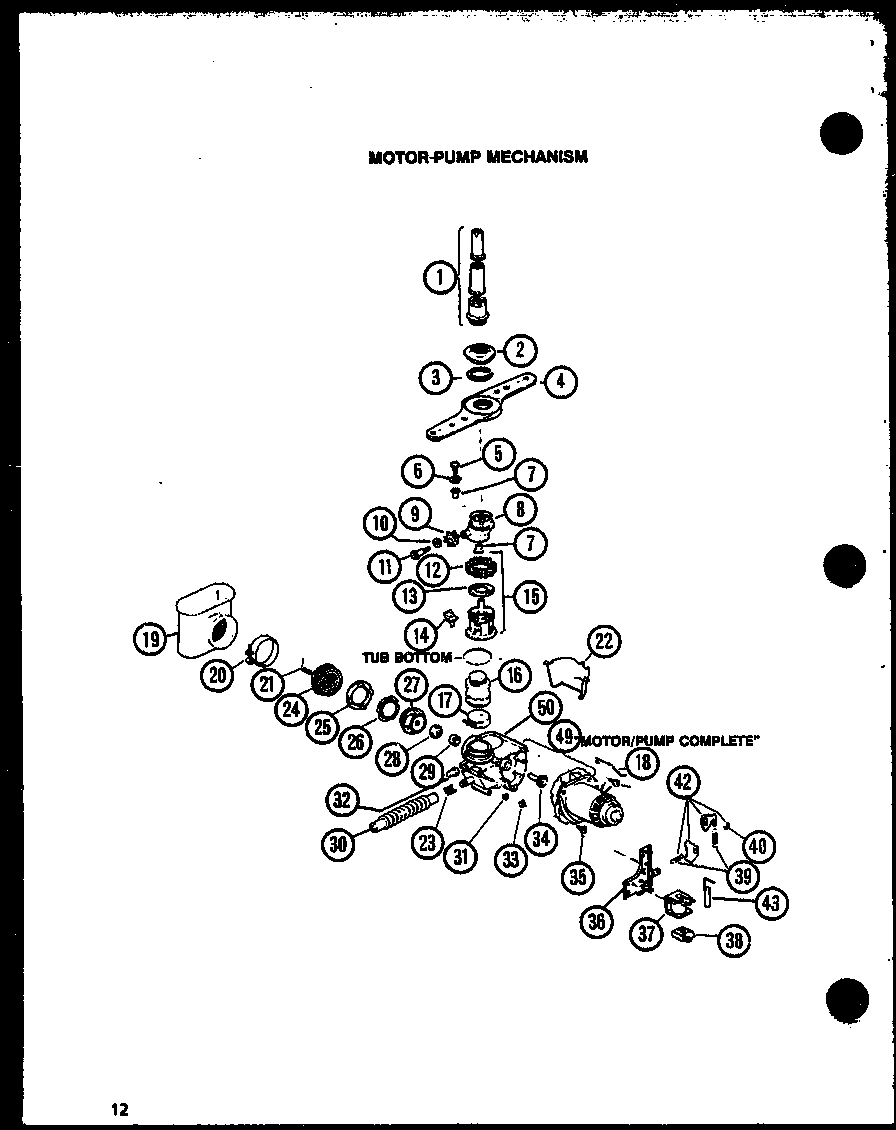

01 - MOTOR-PUMPMECHANISM
Common parts from model Whirlpool DU9010W DISHWASHER
1
FRAME, ESCUTCHEON WPL R0905630 Contact Us For Availability
1
DOOR & HINGE ASSY, OUTER WPL R0905637 Contact Us For Availability
1
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
1
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
1
RACK UPPER ASSY WPL R0910043 Contact Us For Availability
1
CENTER SPRAY ASSY WPL R0910017 Contact Us For Availability
2
FILM COVER WPL R0910046 Contact Us For Availability
2
INSERT, DOOR PANEL WPL R0905620 Contact Us For Availability
2
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910040 Contact Us For Availability
2
ADAPTER PWR TWR WPL R0905558 Contact Us For Availability
3
SWITCH, KEY WPL R0902512 Contact Us For Availability
3
TRIM BTM DOOR WPL R0905635 Contact Us For Availability
3
SEAL, SPLIT RING WPL R0905557 Contact Us For Availability
4
BARRIER WPL R0904513 Contact Us For Availability
4
TRIM SIDE DOOR WPL R0905636 Contact Us For Availability
4
ASSY LOWER RACK & ROLLER WPL R0910006 Contact Us For Availability
4
SPRAY ARM WPL R0910051 Contact Us For Availability
5
FILTER DISPLAY WPL R0910048 Contact Us For Availability
5
SCREW WPL R0900010 Contact Us For Availability
5
LOWER ROLLER ASSY WPL R0910007 Contact Us For Availability
5
SCREW WPL R0900014 Contact Us For Availability
6
MEMBRANE SWITCH WPL R0902513 Contact Us For Availability
6
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
6
SILVERWARE BASKET WPL R0910030 Contact Us For Availability
6
WASHER WPL R0900502 Contact Us For Availability
7
ESCUTCHEON WPL R0903015 Contact Us For Availability
7
DOOR SPRING YELLOW WPL R0905504 Contact Us For Availability
7
COVER INLET SUMP WPL R0905527 Contact Us For Availability
7
RACK SLIDE WPL R0905567 Contact Us For Availability
7
BEARING WPL R0905556 Contact Us For Availability
8
SWITCH INTERLOCK WPL R0902514 Contact Us For Availability
8
HINGE ARM BEARING WPL R0905537 Contact Us For Availability
8
SCREW WPL R0900008 Contact Us For Availability
8
END CAP WPL R0903517 Contact Us For Availability
8
HUB/PINION ASSY WPL R0905555 Contact Us For Availability
9
CONNECTOR, ELECT, SPIN WPL R0906005 Contact Us For Availability
9
CONNECTOR, ELECT, 6 PIN WPL R0906006 Contact Us For Availability
9
PANEL SERVICE WPL R0903009 Contact Us For Availability
9
HOSE, SHOWER ASSY WPL R0903527 Contact Us For Availability
9
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
9
PINION GEAR WPL R0910016 Contact Us For Availability
10
THERMINAL PIN & SOCKET WPL R0906007 Contact Us For Availability
10
CABLE AND EYELET WPL R0905640 Contact Us For Availability
10
NUT WPL R0901003 Contact Us For Availability
10
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
10
WASHER WPL R0900504 Contact Us For Availability
11
P C BOARD ASSY WPL R0906004 Contact Us For Availability
11
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
11
ASSY, PWR SHOWER WPL R0905554 Contact Us For Availability
11
SCREW WPL R0900015 Contact Us For Availability
12
BARRIER WPL R0904512 Contact Us For Availability
12
INSULATOR, INSERT PANEL WPL R0910036 Contact Us For Availability
12
SCREW WPL R0900013 Contact Us For Availability
12
NUT WPL R0901004 Contact Us For Availability
13
FOAM PAD WPL R0904510 Contact Us For Availability
13
TOE KICK ASSY WPL R0903022 Contact Us For Availability
13
INSULATION WPL R0904508 Contact Us For Availability
13
SEAL LOWER WPL R0910029 Contact Us For Availability
14
CIRCUIT BOARD COVER WPL R0905626 Contact Us For Availability
14
FRAME ASSY WPL R0910052 Contact Us For Availability
14
CHECK VALVE WPL R0910037 Contact Us For Availability
15
THERMISTOR HOUSING WPL R0911003 Contact Us For Availability
15
INSERT, SERV. PANEL WPL R0905623 Contact Us For Availability
15
HEATER WPL R0906001 Contact Us For Availability
15
LATCH KEEPER WPL R0905505 Contact Us For Availability
15
SUPT & NUT ARM WPL R0901009 Contact Us For Availability
16
THERMISTOR & SPRING WPL R0911005 Contact Us For Availability
16
DOOR, INNER WPL R0903001 Contact Us For Availability
16
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
16
SCREW WPL R0900025 Contact Us For Availability
16
CONNECTOR, PUMP WPL R0903520 Contact Us For Availability
17
THERMISTOR RETAINER WPL R0911004 Contact Us For Availability
17
SUPPORT, HEATER FRONT WPL R0905632 Contact Us For Availability
17
LEG, LEVELING WPL R0905506 Contact Us For Availability
18
SWITCH DET. MOTOR WPL R0902511 Contact Us For Availability
18
LATCH ASSY WPL R0905531 Contact Us For Availability
18
FLOAT WPL R0905511 Contact Us For Availability
18
SHELF WPL R0910045 Contact Us For Availability
18
HANGER MECH. WPL R0905516 Contact Us For Availability
19
MOTOR, DET. CUP WPL R0907002 Contact Us For Availability
19
KNOB, LATCH WPL R0903534 Contact Us For Availability
19
FLOOD FLOAT WPL R0903501 Contact Us For Availability
19
SHELF SUPPORT WPL R0910044 Contact Us For Availability
19
INLET SUMP WPL R0905526 Contact Us For Availability
20
CAM, MOTOR WPL R0907003 Contact Us For Availability
20
FLOAT STEM WPL R0905512 Contact Us For Availability
20
ROLLER ASSY WPL R0910008 Contact Us For Availability
21
RETAINER WPL R0901514 Contact Us For Availability
21
DOOR BAR WPL R0905532 Contact Us For Availability
21
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
21
SPRING, CUTTER WPL R0905521 Contact Us For Availability
22
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
22
DOOR VENT WPL R0905536 Contact Us For Availability
22
SWITCH FLOOD WPL R0902501 Contact Us For Availability
22
GUARD WPL R0905522 Contact Us For Availability
23
STUD WPL R0905578 Contact Us For Availability
23
CLAMP WPL R0901510 Contact Us For Availability
23
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
24
LEAVER DET. TRIP WPL R0905628 Contact Us For Availability
24
CAP, FILL WPL R0905614 Contact Us For Availability
24
NUT WPL R0905563 Contact Us For Availability
25
NUT WPL R0901006 Contact Us For Availability
25
SHAFT HAND D CUP WPL R0905615 Contact Us For Availability
25
WEAR RING BASE WPL R0905518 Contact Us For Availability
26
MOUNTING PLATE WPL R0905627 Contact Us For Availability
26
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
26
CHECK VALVE WPL R0910053 Contact Us For Availability
26
WEAR RING WPL R0905520 Contact Us For Availability
27
INSULATOR SWITCH WPL R0904511 Contact Us For Availability
27
DEFLECTOR WPL R0955523 Contact Us For Availability
27
WASHER WPL R0900501 Contact Us For Availability
27
PUMP IMPELLER WPL R0905519 Contact Us For Availability
28
DOOR GASKET WPL R0904507 Contact Us For Availability
28
GROMMET WPL R0906502 Contact Us For Availability
28
SHAFT SEAL WPL R0903503 Contact Us For Availability
29
SPRING DET TRIP WPL R0905624 Contact Us For Availability
29
INSULATION WPL R0906501 Contact Us For Availability
29
SEAL WPL R0903502 Contact Us For Availability
30
CAM, DET. WPL R0905625 Contact Us For Availability
30
BARRIER BRKT WPL R0905507 Contact Us For Availability
30
DRAIN TUBE ASSY WPL R0906508 Contact Us For Availability
31
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
31
NUT WPL R0901001 Contact Us For Availability
31
SEAL, SHAFT WPL R0906504 Contact Us For Availability
32
BARRIER WPL R0905508 Contact Us For Availability
33
SCREW WPL R0900006 Contact Us For Availability
33
SCREW WPL R0900011 Contact Us For Availability
33
NUT WPL R0906510 Contact Us For Availability
34
HARNESS, CONDUIT WPL R0905621 Contact Us For Availability
34
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
34
SHAFT GUARD/SLINGER WPL R0905564 Contact Us For Availability
35
SCREW WPL R0900002 Contact Us For Availability
35
DRIP SHIELD WPL R0910011 Contact Us For Availability
35
INSULATOR WPL R0903507 Contact Us For Availability
36
TRIM, TOP SERVICE PANEL WPL R0905609 Contact Us For Availability
36
SOLENOID ASSEMBLY, WATER VALVE WPL R0909002 Contact Us For Availability
36
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
37
TRIM, SIDE AND BOTTOM WPL R0905610 Contact Us For Availability
37
COVER, JCT. BOX WPL R0905553 Contact Us For Availability
37
SOLENOID KIT WPL R0909001 Contact Us For Availability
38
INSULATOR WPL R0903506 Contact Us For Availability
39
COLL. CHAMBER WPL R0910054 Contact Us For Availability
39
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
40
GASKET WPL R0904503 Contact Us For Availability
40
RETAINER WPL R0901503 Contact Us For Availability
41
SCREW WPL R0900009 Contact Us For Availability
41
PISTON & NUT ASSY WPL R0910025 Contact Us For Availability
42
SCREW WPL R0900017 Contact Us For Availability
42
HOSE, CHAMBER TO CHECK VALVE WPL R0906511 Contact Us For Availability
42
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
43
INSULATOR WPL R0906002 Contact Us For Availability
43
HOSE, CHAMBER WPL R0906506 Contact Us For Availability
43
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
44
SCREW WPL R0900007 Contact Us For Availability
44
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
45
CAP, SUMP WPL R0905528 Contact Us For Availability
49
MOTOR/PUMP ASSY DISHWA WPL R0907001 Contact Us For Availability
50
MOTOR/PUMP ASSY DISHWA WPL R0910001 Contact Us For Availability
× ![]()
