Model Whirlpool DU9010B DISHWASHER – Common Parts & Diagrams

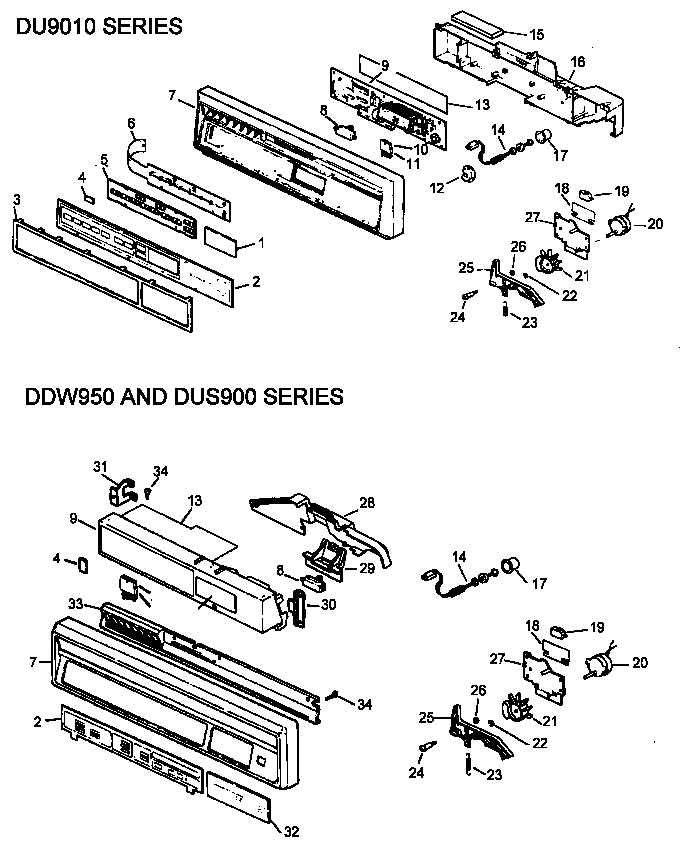

01 - CONTROL PANEL ASSY
02 - DOOR/TRIM PARTS
05 - UPPER/LOWER RACK PARTS
04 - TUB PARTS
03 - PUMP & WATER DISTRIBUTION COMPONENTS
Common parts from model Whirlpool DU9010B DISHWASHER
1
FILTER DISPLAY WPL R0910048 Contact Us For Availability
1
ROLLER ASSY WPL R0910008 Contact Us For Availability
1
NUT WPL R0901001 Contact Us For Availability
1
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
2
FILM COVER WPL R0910047 Contact Us For Availability
2
TRIM, SIDE AND BOTTOM WPL R0905610 Contact Us For Availability
2
LOWER ROLLER ASSY WPL R0910007 Contact Us For Availability
2
BARRIER, HTG ELEMENT WPL R0903581 Contact Us For Availability
2
RETAINER WPL R0901503 Contact Us For Availability
3
FRAME, ESCUTCHEON WPL R0905629 Contact Us For Availability
3
TRIM, TOP SERVICE PANEL WPL R0905609 Contact Us For Availability
3
SILVERWARE BASKET WPL R0910030 Contact Us For Availability
3
BASE BARRIER WPL R0903580 Contact Us For Availability
3
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
4
SWITCH, KEY WPL R0902512 Contact Us For Availability
4
INSERT, SERVICE PANEL WPL R0903526 Contact Us For Availability
4
INSERT, SVC PANEL WPL R0905602 Contact Us For Availability
4
ASSY LOWER RACK & ROLLER WPL R0910006 Contact Us For Availability
4
HOSE, CHAMBER WPL R0906506 Contact Us For Availability
4
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
5
BARRIER WPL R0904513 Contact Us For Availability
5
INSULATOR, INSERT PANEL WPL R0910036 Contact Us For Availability
5
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
5
COLL. CHAMBER WPL R0910054 Contact Us For Availability
5
INSUL, HSG TERMINAL WPL R0903582 Contact Us For Availability
6
MEMBRANE SWITCH WPL R0902513 Contact Us For Availability
6
PANEL ACCESS WPL R0905714 Contact Us For Availability
6
RACK UPPER ASSY WPL R0910043 Contact Us For Availability
6
GASKET WPL R0904503 Contact Us For Availability
6
SOLENOID KIT WPL R0909003 Contact Us For Availability
7
ESCUTCHEON WPL R0903014 Contact Us For Availability
7
TOE KICK ASSY WPL R0903022 Contact Us For Availability
7
SHELF SUPPORT WPL R0910044 Contact Us For Availability
7
PISTON & NUT ASSY WPL R0903586 Contact Us For Availability
7
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
8
SWITCH INTERLOCK WPL R0902514 Contact Us For Availability
8
SCREW WPL R0900002 Contact Us For Availability
8
TRIM BTM DOOR WPL R0905635 Contact Us For Availability
8
SHELF WPL R0910045 Contact Us For Availability
8
LEG, LEVELING WPL R0905506 Contact Us For Availability
9
P C BOARD ASSY WPL R0906004 Contact Us For Availability
9
DOOR PANEL INSERT WPL R0903525 Contact Us For Availability
9
DOOR PANEL INSERT WPL R0905559 Contact Us For Availability
9
GROMMET WPL R0906502 Contact Us For Availability
9
SHAFT GUARD/SLINGER WPL R0905564 Contact Us For Availability
10
CONNECTOR, ELECT, SPIN WPL R0906005 Contact Us For Availability
10
CONNECTOR, ELECT, 6 PIN WPL R0906006 Contact Us For Availability
10
INSULATOR WPL R0906002 Contact Us For Availability
10
WASHER WPL R0900501 Contact Us For Availability
10
NUT WPL R0906510 Contact Us For Availability
11
THERMINAL PIN & SOCKET WPL R0906007 Contact Us For Availability
11
HARNESS, CONDUIT WPL R0905621 Contact Us For Availability
11
COVER, JUNC BOX WPL R0903032 Contact Us For Availability
11
SEAL, SHAFT WPL R0906504 Contact Us For Availability
12
THERMISTOR RETAINER WPL R0911004 Contact Us For Availability
12
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
12
CLAMP WPL R0901510 Contact Us For Availability
13
BARRIER WPL R0904512 Contact Us For Availability
13
TRIM SIDE DOOR WPL R0905636 Contact Us For Availability
13
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
13
DRAIN TUBE ASM WPL R0903584 Contact Us For Availability
14
THERMISTOR & SPRING WPL R0911005 Contact Us For Availability
14
DRIP SHIELD WPL R0910011 Contact Us For Availability
14
SWITCH FLOOD WPL R0902501 Contact Us For Availability
14
SWITCH BRACKET WPL R0903016 Contact Us For Availability
15
FOAM PAD WPL R0904510 Contact Us For Availability
15
DOOR SPRING BLUE WPL R0905503 Contact Us For Availability
15
DOOR SPRING YELLOW WPL R0905504 Contact Us For Availability
15
SWITCH FLOOD WPL R0902515 Contact Us For Availability
16
DOOR, SPRING, RED WPL R0905616 Contact Us For Availability
16
HINGE ARM BEARING WPL R0905537 Contact Us For Availability
16
FLOAT STEM WPL R0905512 Contact Us For Availability
16
SWITCH GUARD WPL R0903017 Contact Us For Availability
17
THERMISTOR HOUSING WPL R0911003 Contact Us For Availability
17
CHECK VALVE WPL R0910053 Contact Us For Availability
17
SUMP, INLET WPL R0905719 Contact Us For Availability
18
INSULATOR SWITCH WPL R0904511 Contact Us For Availability
18
BOX, JUNCTION WPL R0903587 Contact Us For Availability
19
SWITCH DET. MOTOR WPL R0902511 Contact Us For Availability
19
SCREW WPL R0900009 Contact Us For Availability
19
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
19
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
19
SPRING, CUTTER WPL R0905521 Contact Us For Availability
20
MOTOR, DET. CUP WPL R0907002 Contact Us For Availability
20
SCREW WPL R0900006 Contact Us For Availability
20
CABLE AND EYELET WPL R0910012 Contact Us For Availability
20
NUT WPL R0905563 Contact Us For Availability
21
CAM, MOTOR WPL R0907003 Contact Us For Availability
21
DOOR VENT WPL R0905536 Contact Us For Availability
21
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
21
WEAR RING BASE WPL R0905518 Contact Us For Availability
22
RETAINER WPL R0901514 Contact Us For Availability
22
WEAR RING WPL R0905520 Contact Us For Availability
23
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
23
CAP, FILL WPL R0905614 Contact Us For Availability
23
SCREW WPL R0900011 Contact Us For Availability
23
PUMP IMPELLER WPL R0905519 Contact Us For Availability
24
STUD WPL R0905578 Contact Us For Availability
24
SHAFT HAND D CUP WPL R0905615 Contact Us For Availability
24
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
24
SHAFT SEAL WPL R0903503 Contact Us For Availability
25
LEAVER DET. TRIP WPL R0905628 Contact Us For Availability
25
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
25
SOLENOID ASSEMBLY, WATER VALVE WPL R0909002 Contact Us For Availability
25
SEAL WPL R0903502 Contact Us For Availability
26
NUT WPL R0901006 Contact Us For Availability
26
DEFLECTER WPL R0905523 Contact Us For Availability
26
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
27
MOUNTING PLATE WPL R0905627 Contact Us For Availability
27
DOOR GASKET WPL R0904507 Contact Us For Availability
27
CHECK VALVE WPL R0910037 Contact Us For Availability
28
DOOR, INNER WPL R0903021 Contact Us For Availability
28
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
28
SEAL LOWER WPL R0910029 Contact Us For Availability
29
CAM, DET. WPL R0905625 Contact Us For Availability
29
END CAP WPL R0903517 Contact Us For Availability
29
NUT WPL R0901004 Contact Us For Availability
30
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
30
RACK SLIDE WPL R0905567 Contact Us For Availability
30
SCREW WPL R0900015 Contact Us For Availability
31
SPRING DET TRIP WPL R0905624 Contact Us For Availability
31
HEATER WPL R0906001 Contact Us For Availability
31
WASHER WPL R0900504 Contact Us For Availability
32
LATCH ASSY WPL R0905531 Contact Us For Availability
32
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
32
PINION GEAR WPL R0910016 Contact Us For Availability
33
SCREW WPL R0900007 Contact Us For Availability
33
KNOB, LATCH WPL R0903532 Contact Us For Availability
34
FLOOD FLOAT WPL R0903501 Contact Us For Availability
34
SEAL, SPLIT RING WPL R0905557 Contact Us For Availability
35
FLOAT WPL R0905511 Contact Us For Availability
35
CENTER SPRAY ASSY WPL R0910017 Contact Us For Availability
36
CAP, SUMP WPL R0905718 Contact Us For Availability
37
COVER INLET WPL R0905717 Contact Us For Availability
37
ADAPTER PWR TWR WPL R0905558 Contact Us For Availability
38
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
38
SPRAY ARM WPL R0910051 Contact Us For Availability
39
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
39
SCREW, HUB WPL R0900045 Contact Us For Availability
40
LATCH KEEPER WPL R0905505 Contact Us For Availability
40
WASHER WPL R0900502 Contact Us For Availability
41
SCREW WPL R0900025 Contact Us For Availability
41
HUB/PINION ASSY WPL R0905555 Contact Us For Availability
42
SCREW WPL R0900008 Contact Us For Availability
42
BEARING WPL R0905556 Contact Us For Availability
43
SUPT & NUT ARM WPL R0901009 Contact Us For Availability
44
NUT WPL R0901003 Contact Us For Availability
44
CONNECTOR, PUMP WPL R0903520 Contact Us For Availability
45
INSULATION WPL R0904508 Contact Us For Availability
45
GUARD WPL R0905522 Contact Us For Availability
46
ASSY, PWR SHOWER WPL R0905554 Contact Us For Availability
46
MOTOR/PUMP ASSY DISHWA WPL R0910001 Contact Us For Availability
47
SCREW WPL R0900013 Contact Us For Availability
47
MOTOR/PUMP ASSY DISHWA WPL R0907005 Contact Us For Availability
48
SUPPORT, CALROD WPL R0905720 Contact Us For Availability
48
HANGER MECHANISM WPL R0905712 Contact Us For Availability
49
ASSY, FILTER FRAME WPL R0910122 Contact Us For Availability
50
HOSE, CHAMBER TO CHECK VALVE WPL R0906511 Contact Us For Availability
NI
DOOR & HINGE ASSY, OUTER WPL R0905637 Contact Us For Availability
× ![]()
