Model Whirlpool DU599B DISHWASHER – Common Parts & Diagrams
07 - RACKS

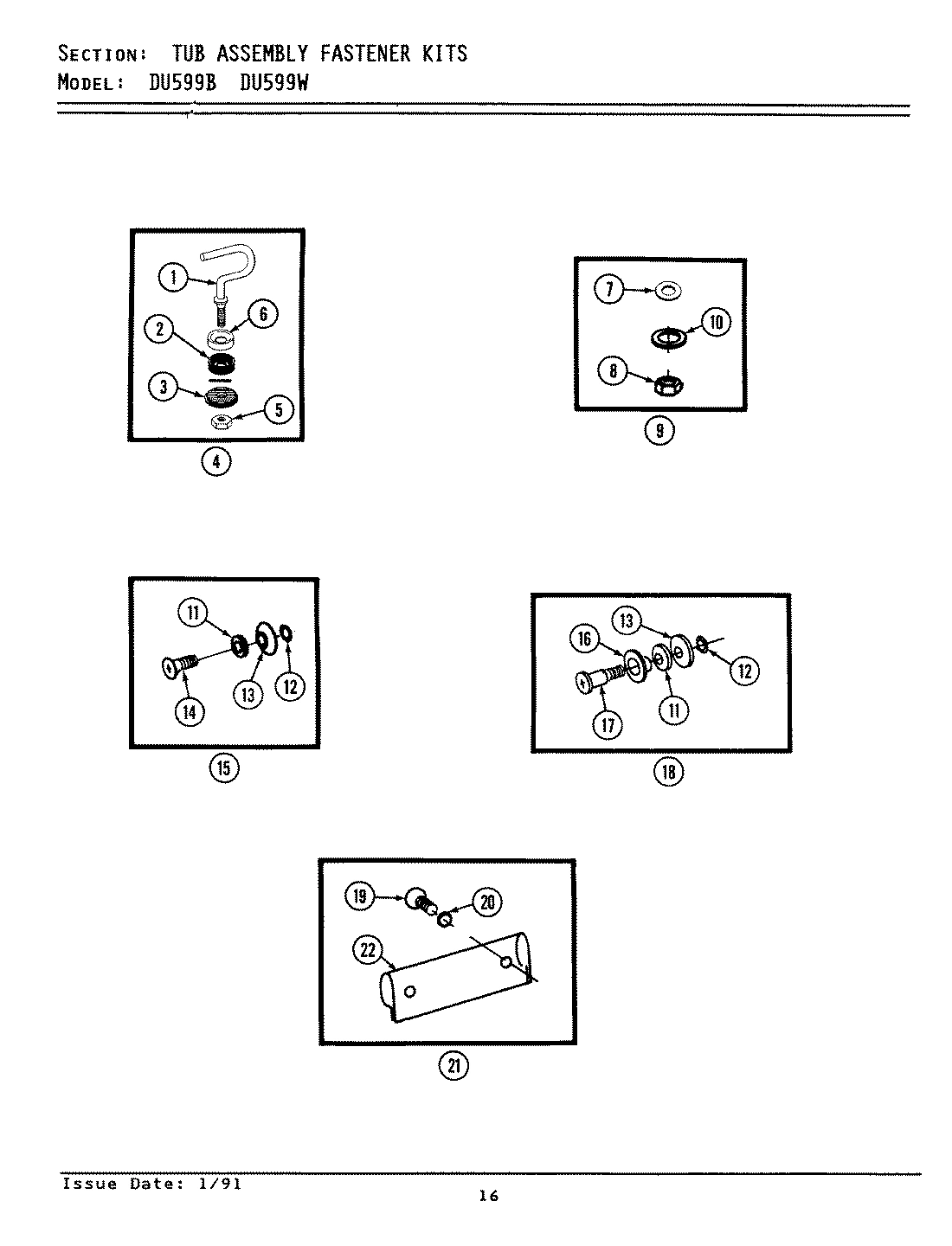

09 - TUB ASSEMBLY FASTENER KITS

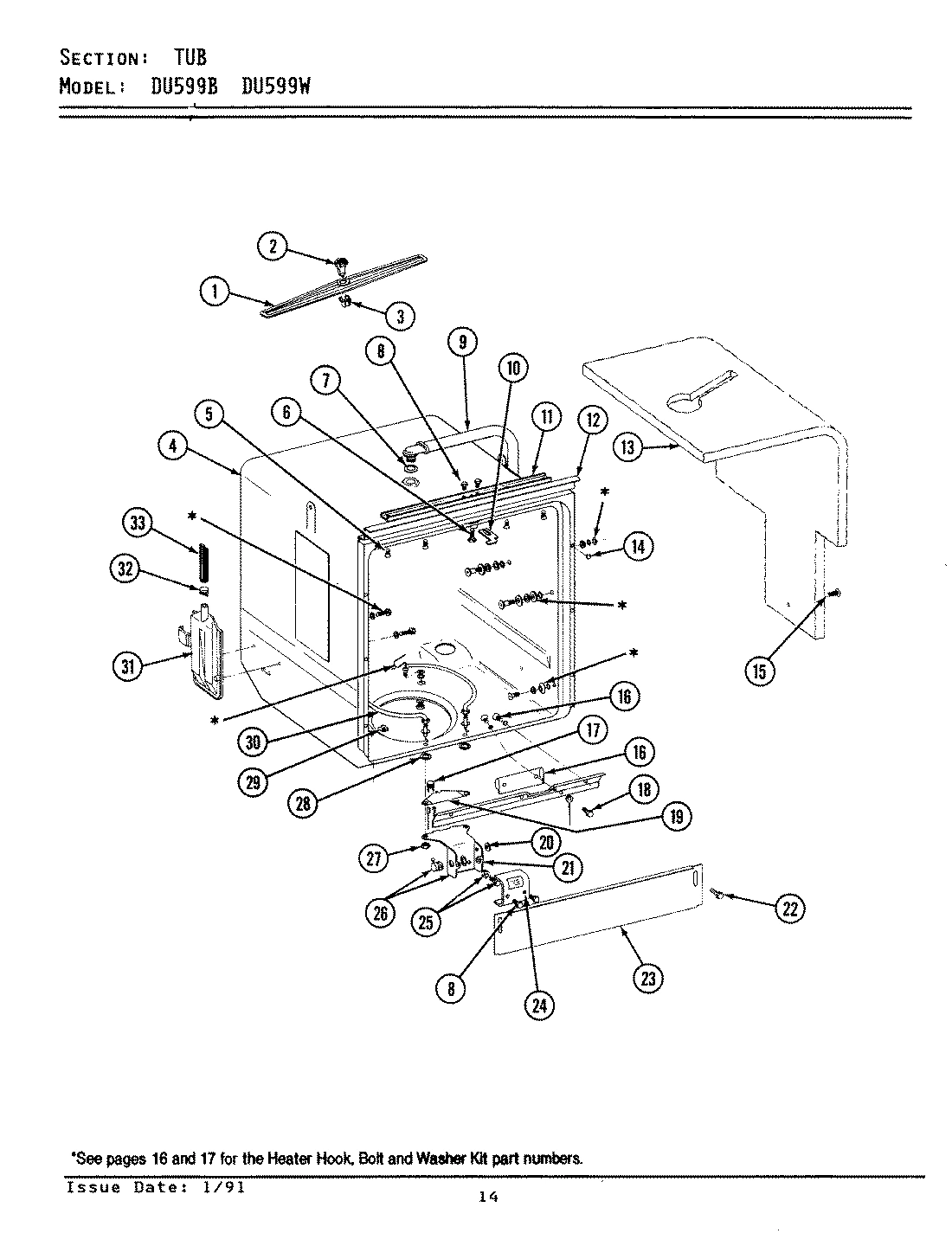

08 - TUB

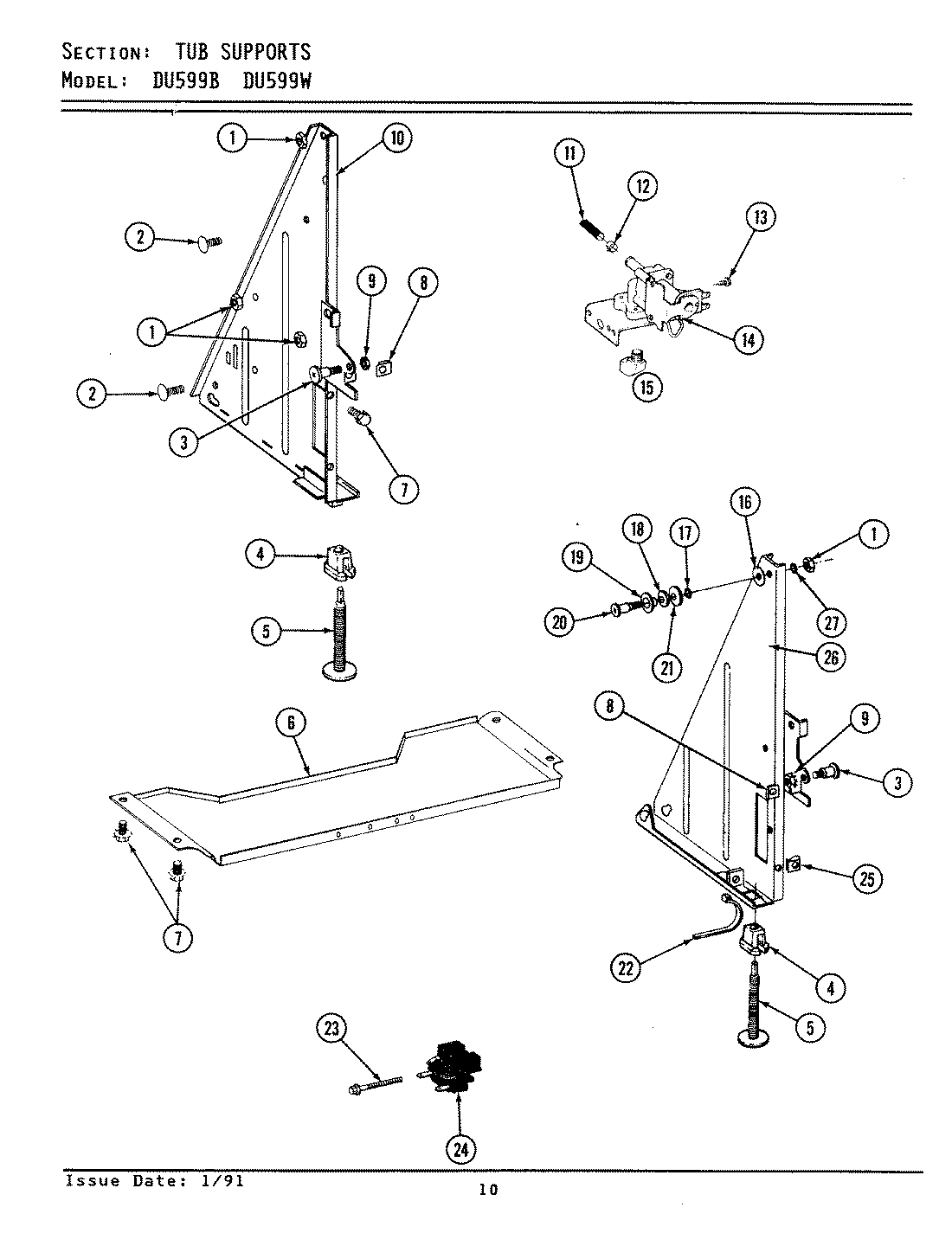

10 - TUB SUPPORT

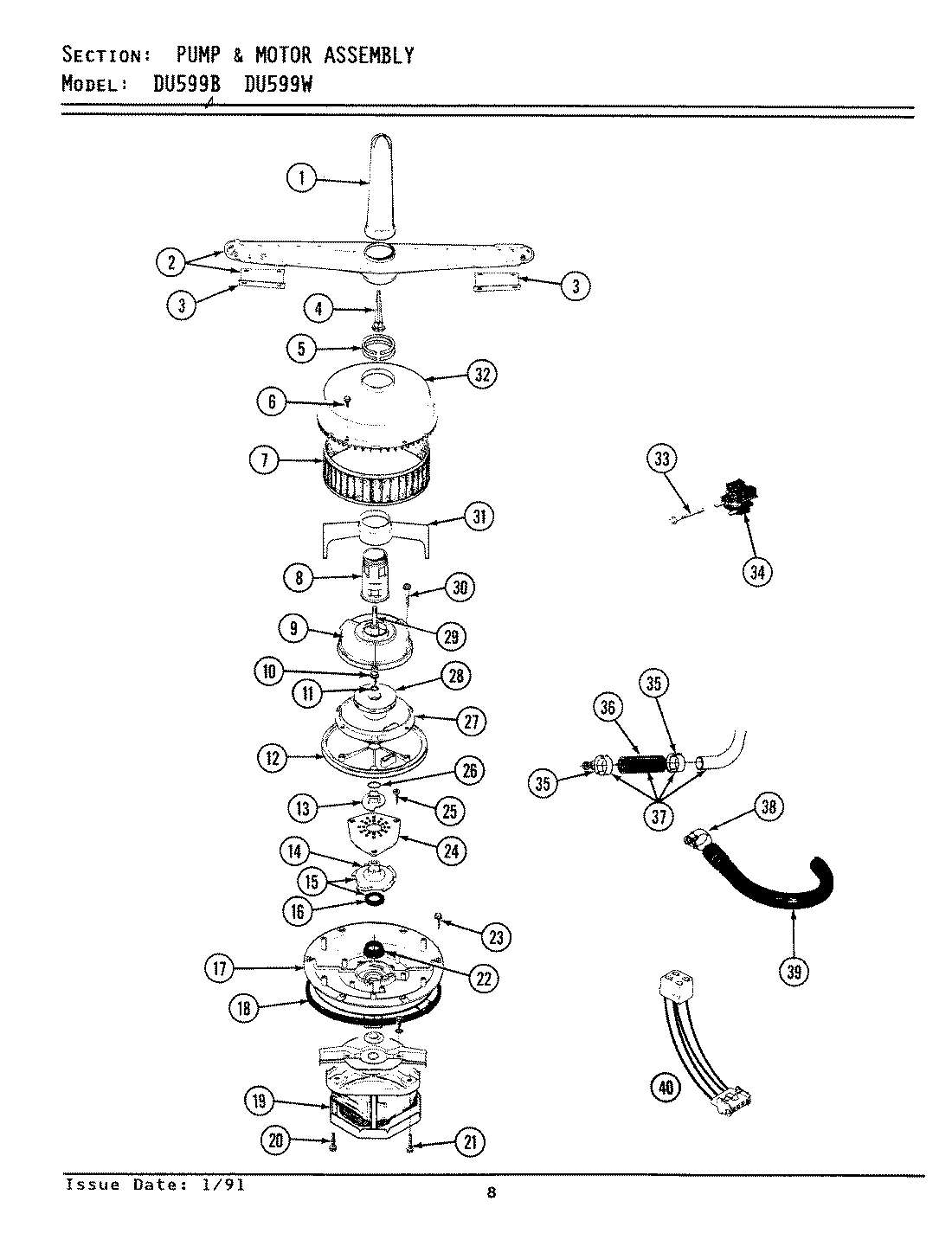

06 - PUMP ASSEMBLY

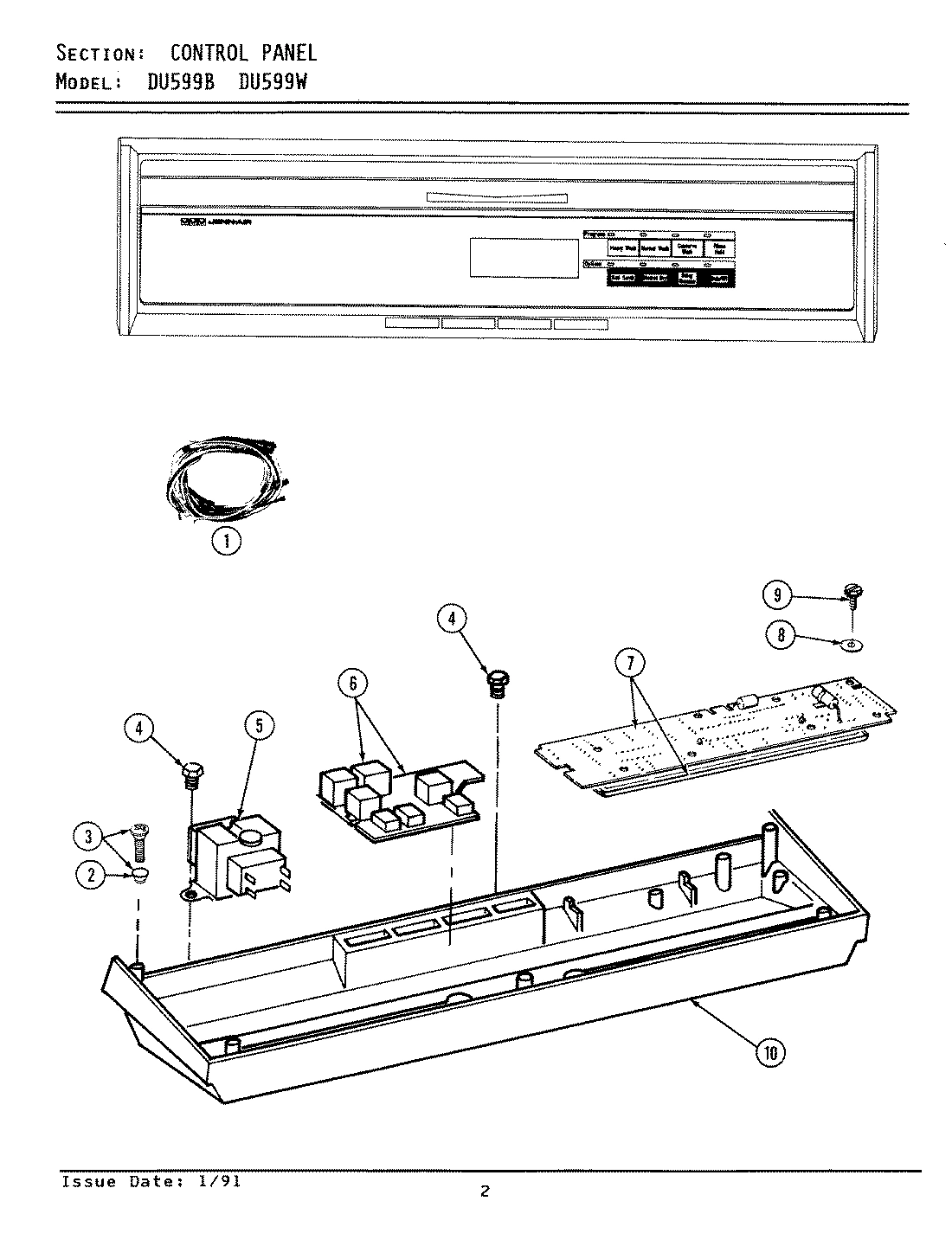

03 - CONTROL PANEL

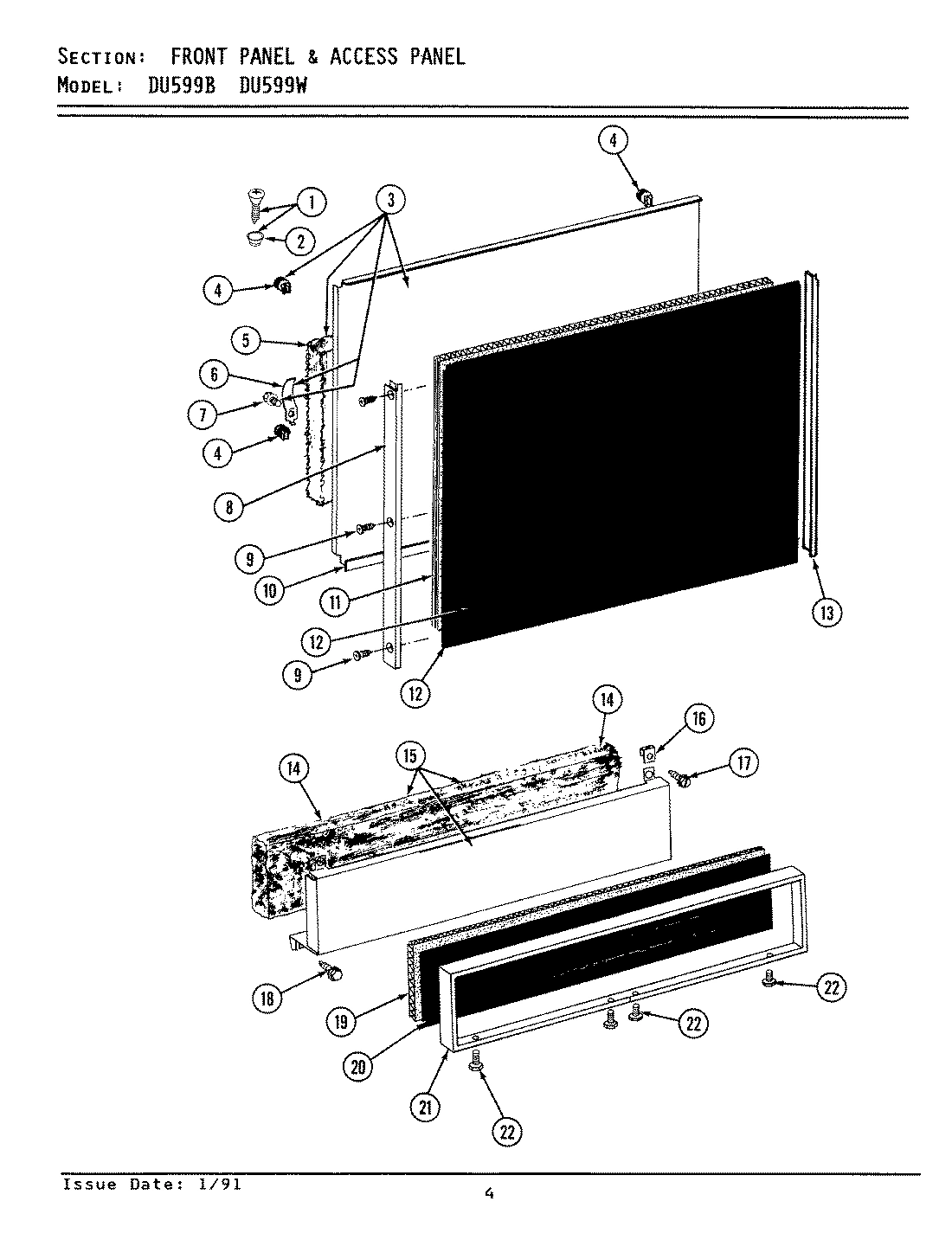

05 - PANEL ASSEMBLY
02 - CARTONS

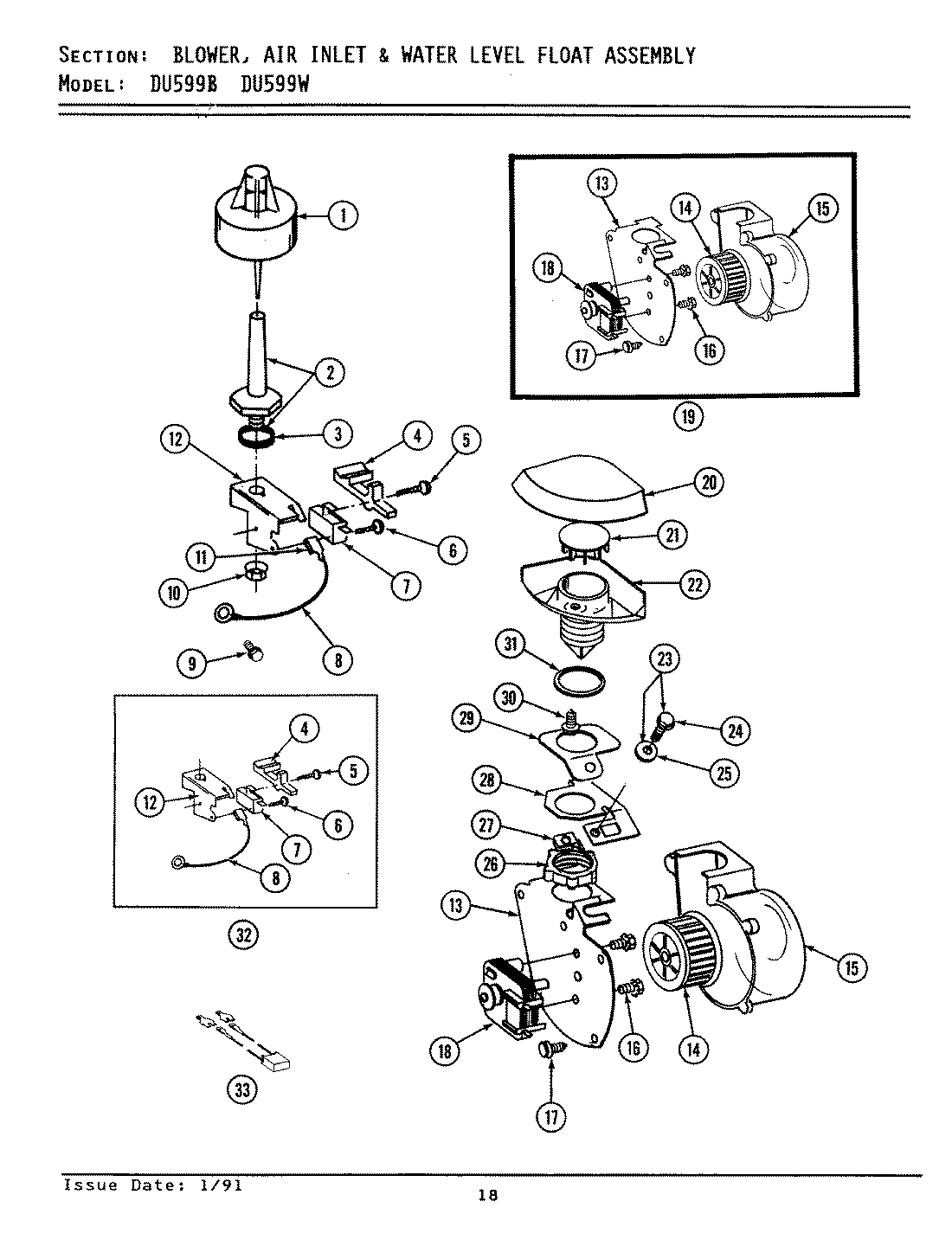

01 - BLOWER ASSEMBLY

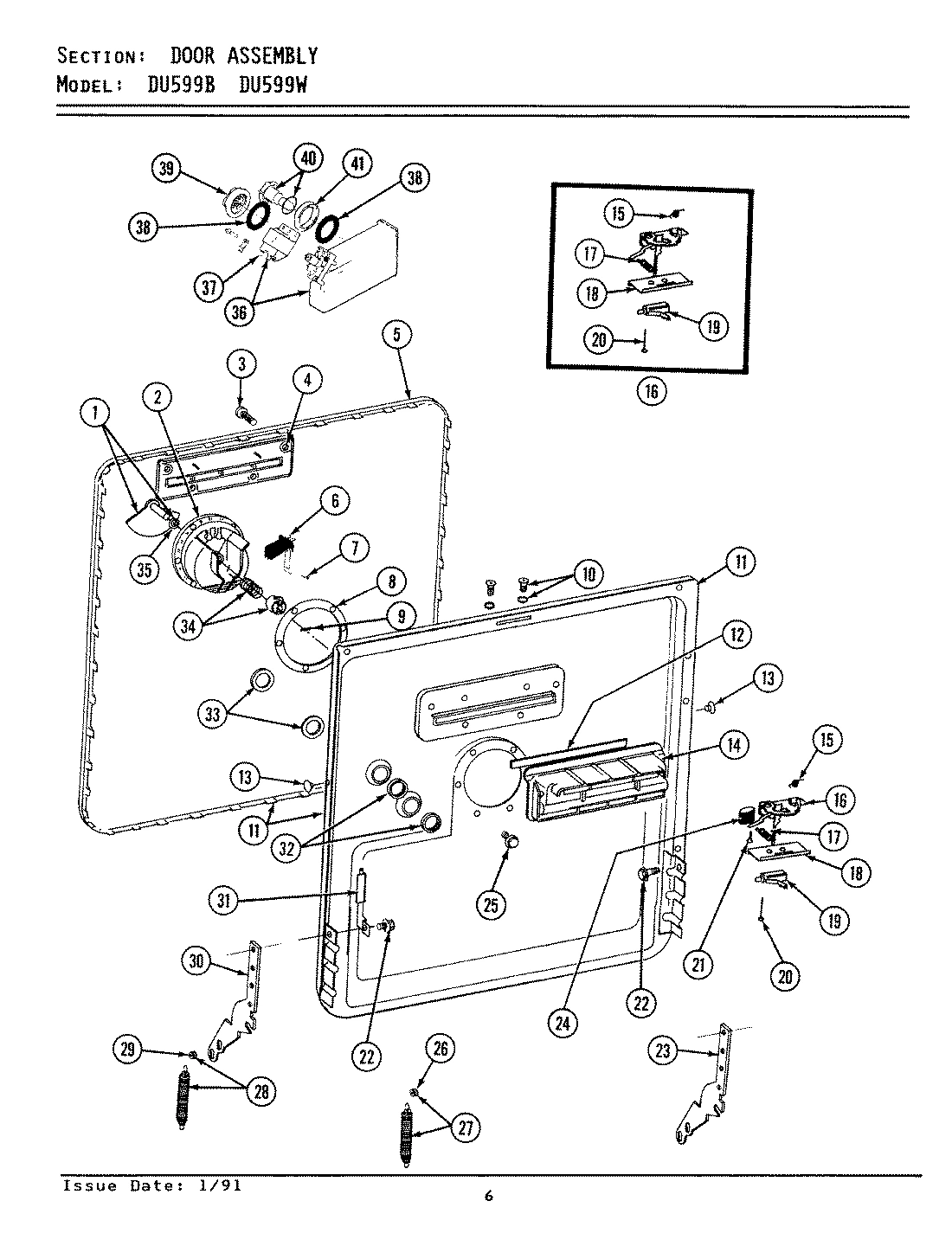

04 - DOOR ASSEMBLY
Common parts from model Whirlpool DU599B DISHWASHER
0
SHIPPING BASE WPL 901644 Contact Us For Availability
0
TOP SUPPORT WPL 901645 Contact Us For Availability
0
SCREW WPL 910285 Contact Us For Availability
0
BRACKET WPL 911379 Contact Us For Availability
0
CORNER POST WPL 911867 Contact Us For Availability
0
CARTON BLANK 27-1 26-0 36-3 WPL 912043 Contact Us For Availability
1
HEATER HOOK WPL 910033 Contact Us For Availability
1
UPPER SPRAY ARM (W/NUT) WPL 900020 Contact Us For Availability
1
NOZZLE WPL 912324 Contact Us For Availability
1
WIRE HARNESS WPL 903038 Contact Us For Availability
1
SCREW AND WASHER ASSEMBLY WPL 901433 Contact Us For Availability
1
FLOAT WPL 901141 Contact Us For Availability
1
DETERGENT CUP,COVER & SEAL WPL 901108 Contact Us For Availability
2
SEAL WASHER WPL 910031 Contact Us For Availability
2
OUTLET FOR UPPER SPRAY ARM WPL 911594 Contact Us For Availability
2
FASTENER, INSULATION WPL 911917 Contact Us For Availability
2
SPRAY ARM W/SHIELD WPL 902807 Contact Us For Availability
2
WASHER WPL 912006 Contact Us For Availability
2
FLOAT GUIDE WITH GASKET WPL 901114 Contact Us For Availability
2
DETERGENT CUP WPL 902884 Contact Us For Availability
3
SEALING WASHER WPL 910090 Contact Us For Availability
3
NUT WPL 911861 Contact Us For Availability
3
HINGE PIN WPL 910747 Contact Us For Availability
3
RADIANT SHIELD WPL 911919 Contact Us For Availability
3
SCREW AND WASHER ASSEMBLY WPL 901434 Contact Us For Availability
3
FRONT PANEL WPL 902887 Contact Us For Availability
3
GASKET WPL 911244 Contact Us For Availability
3
SCREW WPL 911700 Contact Us For Availability
4
HEATER HOOK W/SEALS WPL 900100 Contact Us For Availability
4
TUB ASSEMBLY WPL 901304 Contact Us For Availability
4
INSERT, LEG WPL 912447 Contact Us For Availability
4
NUT WPL 912316 Contact Us For Availability
4
GROMMET WPL 912005 Contact Us For Availability
4
LEVER, ACTUATOR WPL 912014 Contact Us For Availability
4
COVER FOR DOOR VENT WPL 911598 Contact Us For Availability
5
LEG, ADJUSTABLE WPL W10176519 No Longer Available
5
RACK REPAIR KIT WPL 902286 Contact Us For Availability
5
RING, SEAL WPL 912313 Contact Us For Availability
5
TRANSFORMER WPL 902911 Contact Us For Availability
5
INSULATION, DOOR WPL 912455 Contact Us For Availability
5
PIN, LEVER PIVOT WPL 912015 Contact Us For Availability
6
RACK ROLLER KIT WPL 901836 Contact Us For Availability
6
WASHER WPL 910030 Contact Us For Availability
6
BASE, FRAME WPL 911231 Contact Us For Availability
6
SCREW WPL 912384 Contact Us For Availability
6
RELAY ASSEMBLY WPL 902916 Contact Us For Availability
6
GROUNDING CLIP WPL 911875 Contact Us For Availability
6
SCREW WPL 912012 Contact Us For Availability
6
BI-METAL RELEASE WPL 901011 Contact Us For Availability
7
RACK, CUP WPL 901531 Contact Us For Availability
7
WASHER WPL 910054 Contact Us For Availability
7
PRINTED CIRCUIT BOARD WPL 902912 Contact Us For Availability
7
SCREW WPL 910186 Contact Us For Availability
8
RACK, LOWER WPL 901527 Contact Us For Availability
8
U TYPE FASTENER WPL 911765 Contact Us For Availability
8
SUPPORT FOR WASH ARM WPL Y912320 Contact Us For Availability
8
WASHER WPL 910309 Contact Us For Availability
8
TRIM STRIP - LEFT HAND WPL 911945 Contact Us For Availability
8
GROUND WIRE WPL 901858 Contact Us For Availability
8
GASKET WPL 910413 Contact Us For Availability
9
RACK, ADJUSTABLE (UPPER) WPL 902131 Contact Us For Availability
9
HEATER SEAL KIT WPL 900381 Contact Us For Availability
9
DISCHARGE HOUSING (UPR) WPL 912321 Contact Us For Availability
9
SCREW----NA WPL 912011 Contact Us For Availability
9
DETERGENT CUP PIN WPL 911348 Contact Us For Availability
10
PIVOT WPL 912098 Contact Us For Availability
10
SCREW AND WASHER ASSEMBLY WPL 901090 Contact Us For Availability
10
STRIKE WPL 911582 Contact Us For Availability
10
TUB SUPPORT ASSY LH WPL 902769 Contact Us For Availability
10
SCREW, IMPELLER WPL 910654 Contact Us For Availability
10
CONTROL PANEL ASSY (DU599B) WPL 902998 Contact Us For Availability
10
LOWER TRIM KIT WPL 902164 Contact Us For Availability
11
SLEEVE WPL 912099 Contact Us For Availability
11
TOP FLANGE CHANNEL WPL 911941 Contact Us For Availability
11
INJECTOR HOSE WPL 911249 Contact Us For Availability
11
FILLER FOR FRONT PANEL WPL 911946 Contact Us For Availability
11
RECEPTACLE WPL 912016 Contact Us For Availability
11
DOOR AND GASKET ASSEMBLY WPL 901551 Contact Us For Availability
12
RACK, SAUCER (LEFT HAND) WPL 902014 Contact Us For Availability
12
TOP FLANGE ASSY WPL 902888 Contact Us For Availability
12
SCREEN SUPPORT WPL 912329 Contact Us For Availability
12
INSERT-WHITE/BLACK WPL 911928 Contact Us For Availability
12
MOUNTING PLATE WPL 912013 Contact Us For Availability
12
FLAPPER FOR VENT WPL 911692 Contact Us For Availability
13
SAUCER RACK - RIGHT WPL 902015 Contact Us For Availability
13
SCREW WPL Y310632 Contact Us For Availability
13
DISC, CUTTER WPL 912310 Contact Us For Availability
13
TRIM STRIP - RIGHT HAND WPL 911944 Contact Us For Availability
13
BLOWER BRACKET WPL 911579 Contact Us For Availability
13
GUIDE BUTTON WPL 911036 Contact Us For Availability
14
RACK, BOWL WPL 902013 Contact Us For Availability
14
SCREW WPL 910175 Contact Us For Availability
14
HOLE PLUG WPL 911401 Contact Us For Availability
14
WATER VALVE WPL 902543 Contact Us For Availability
14
DRAIN IMPELLER WPL 912317 Contact Us For Availability
14
INSULATION, ACCESS PANEL WPL 912457 Contact Us For Availability
14
BLOWER WHEEL WPL 901289 Contact Us For Availability
14
VENT FOR DOOR WPL 911597 Contact Us For Availability
15
TRACK SHAFT AND SEAL KIT WPL 900689 Contact Us For Availability
15
BOLT, WASHER AND SEAL ASSM. WPL 901037 Contact Us For Availability
15
STREET ELBOW W/SEALING TAPE WPL 901107 Contact Us For Availability
15
ACCESS PANEL WPL 902798 Contact Us For Availability
15
BLOWER HOUSING WPL 911577 Contact Us For Availability
15
SPRING, INTERLOCK WPL 911591 Contact Us For Availability
16
SCREW WPL 910604 Contact Us For Availability
16
WASHER WPL 910567 Contact Us For Availability
16
SCREWS,WASHERS & SHIELD ASS WPL 901303 Contact Us For Availability
16
WASHER WPL 911855 Contact Us For Availability
16
FASTENER WPL 910646 Contact Us For Availability
16
SEAL SEAT ASSY WPL 902883 Contact Us For Availability
16
SCREW WPL 910683 Contact Us For Availability
16
LATCH ASSY WPL 902791 Contact Us For Availability
17
WASHER WPL 911461 Contact Us For Availability
17
THERMOSTAT WPL 901965 Contact Us For Availability
17
THERMOSTAT WPL 902885 Contact Us For Availability
17
PUMP HOUSING WPL 912330 Contact Us For Availability
17
SCREW WPL 911814 Contact Us For Availability
17
SCREW WPL 911439 Contact Us For Availability
17
RETURN SPRING WPL 911592 Contact Us For Availability
18
WASHER WPL 911356 Contact Us For Availability
18
WASHER WPL 900669 Contact Us For Availability
18
SHAFT, WASHER AND SEAL ASSM WPL 901038 Contact Us For Availability
18
GASKET WITH FASTENERS WPL 901674 Contact Us For Availability
18
BLOWER MOTOR WPL 901290 Contact Us For Availability
18
DOOR SWITCH SHIELD WPL 912078 Contact Us For Availability
19
ROLLER WPL 910390 Contact Us For Availability
19
BRACKET, THERMOSTAT WPL Y911235 Contact Us For Availability
19
MOTOR & PUMP COMPLETE WPL 902598 Contact Us For Availability
19
FILLER FOR ACCESS PANEL WPL 911947 Contact Us For Availability
19
BLOWER ASSEMBLY WPL 901392 Contact Us For Availability
19
SWITCH, DOOR WPL 901284 Contact Us For Availability
20
SHAFT, RACK ROLLER WPL 910053 Contact Us For Availability
20
WASHER WPL Y054858 Contact Us For Availability
20
INSULATING BUSHING WPL 910564 Contact Us For Availability
20
INSERT-WHITE/BLACK WPL 911929 Contact Us For Availability
20
AIR INLET CAP WPL 911575 Contact Us For Availability
20
SCREW WPL 910337 Contact Us For Availability
21
CUSHION WASHER WPL Y911355 Contact Us For Availability
21
TERMINAL COMPARTMENT WPL 911386 Contact Us For Availability
21
SCREW WPL 912382 Contact Us For Availability
21
TRIM FOR ACCESS PANEL WPL 911604 Contact Us For Availability
21
BLOWER VALVE WPL 911775 Contact Us For Availability
21
SCREW WPL Y911263 Contact Us For Availability
22
SHIELD WPL 911621 Contact Us For Availability
22
SEAL, PUMP WPL 902882 Contact Us For Availability
22
AIR INLET WPL 911595 Contact Us For Availability
22
SCREW WPL 911066 Contact Us For Availability
23
PANEL, TOE WPL 911232 Contact Us For Availability
23
SCREW AND WASHERS ASSEMBLY WPL 901587 Contact Us For Availability
23
HINGE-RIGHT HAND WPL 911466 Contact Us For Availability
24
COVER, TERMINAL WPL 911221 Contact Us For Availability
24
LABEL WPL 911766 Contact Us For Availability
24
SCREW WPL 911857 Contact Us For Availability
24
PLATE, CHOPPER WPL 912309 Contact Us For Availability
24
KNOB WPL 912273 Contact Us For Availability
25
WASHER WPL 902283 Contact Us For Availability
26
TUB SUPPORT ASSY (RIGHT) WPL 902768 Contact Us For Availability
26
O-RING WPL 912510 Contact Us For Availability
26
NUT, AIR INLET WPL 911576 Contact Us For Availability
26
INSERT WPL 910391 Contact Us For Availability
27
DOOR SPRING KIT WPL Y901862 Contact Us For Availability
27
JAM NUT WPL 910180 Contact Us For Availability
27
WASHER, LOCK (BRACE) WPL 911852 Contact Us For Availability
27
PLATE, SUCTION WPL 912323 Contact Us For Availability
27
NO LONGER AVAILABLE WPL 310217 Contact Us For Availability
28
DOOR SPRING KIT WPL 901111 Contact Us For Availability
28
WASHER, HEATING ELEMENT WPL 910603 Contact Us For Availability
28
BLOWER SUPPORT WPL 911580 Contact Us For Availability
29
FASTENER WPL 911268 Contact Us For Availability
29
WASH ARM SUPPORT SHAFT WPL 912314 Contact Us For Availability
29
PAD, BLOWER SUPPORT WPL 911813 Contact Us For Availability
30
HEATING ELEMENT WPL 900871 Contact Us For Availability
30
SCREW WPL 912383 Contact Us For Availability
30
SCREW WPL 911536 Contact Us For Availability
30
HINGE-LEFT HAND WPL 911467 Contact Us For Availability
31
VENT COVER WPL 911610 Contact Us For Availability
31
RINSE ARM ASSY WPL 902463 Contact Us For Availability
31
GASKET WPL 911578 Contact Us For Availability
31
GROUNDING BRACKET WPL 911874 Contact Us For Availability
32
STRAINER WPL 912327 Contact Us For Availability
32
FLOAT SWITCH & BRACKET ASSM WPL 900911 Contact Us For Availability
33
SCREW WPL 912381 Contact Us For Availability
34
RELAY,MOTOR WPL 902460 Contact Us For Availability
34
CAM AND SPRING KIT WPL 902247 Contact Us For Availability
35
DETERGENT CUP SEAL WPL 911397 Contact Us For Availability
36
RUBBER COUPLING WPL 911593 Contact Us For Availability
36
DISPENSING VALVE WPL 902355 Contact Us For Availability
37
TOP SPRAY HOSE W/COUPLING WPL 901586 Contact Us For Availability
37
COIL FOR VALVE WPL 902358 Contact Us For Availability
38
WASHER, TUB TOP WPL 910069 Contact Us For Availability
39
HOSE, DRAIN WPL 912307 Contact Us For Availability
39
SPOUT CAP WPL 912262 Contact Us For Availability
40
ADAPTER HARNESS WPL 903008 Contact Us For Availability
40
INDICATOR, LEVEL WPL 902354 Contact Us For Availability
41
NUT-FILL SPOUT WPL 910170 Contact Us For Availability
× ![]()
Login and Registration Form
