Model Whirlpool DU5000 DISHWASHER – Common Parts & Diagrams
04 - Page 5

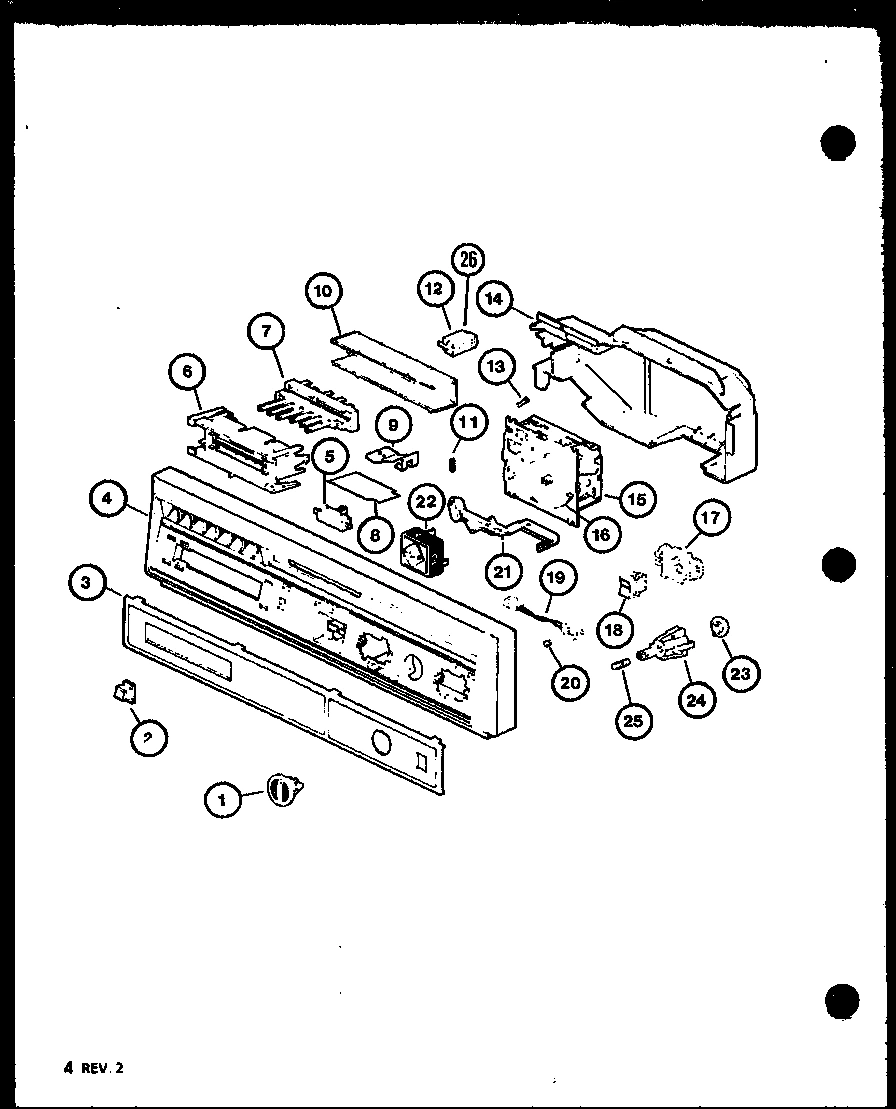

01 - Page 1

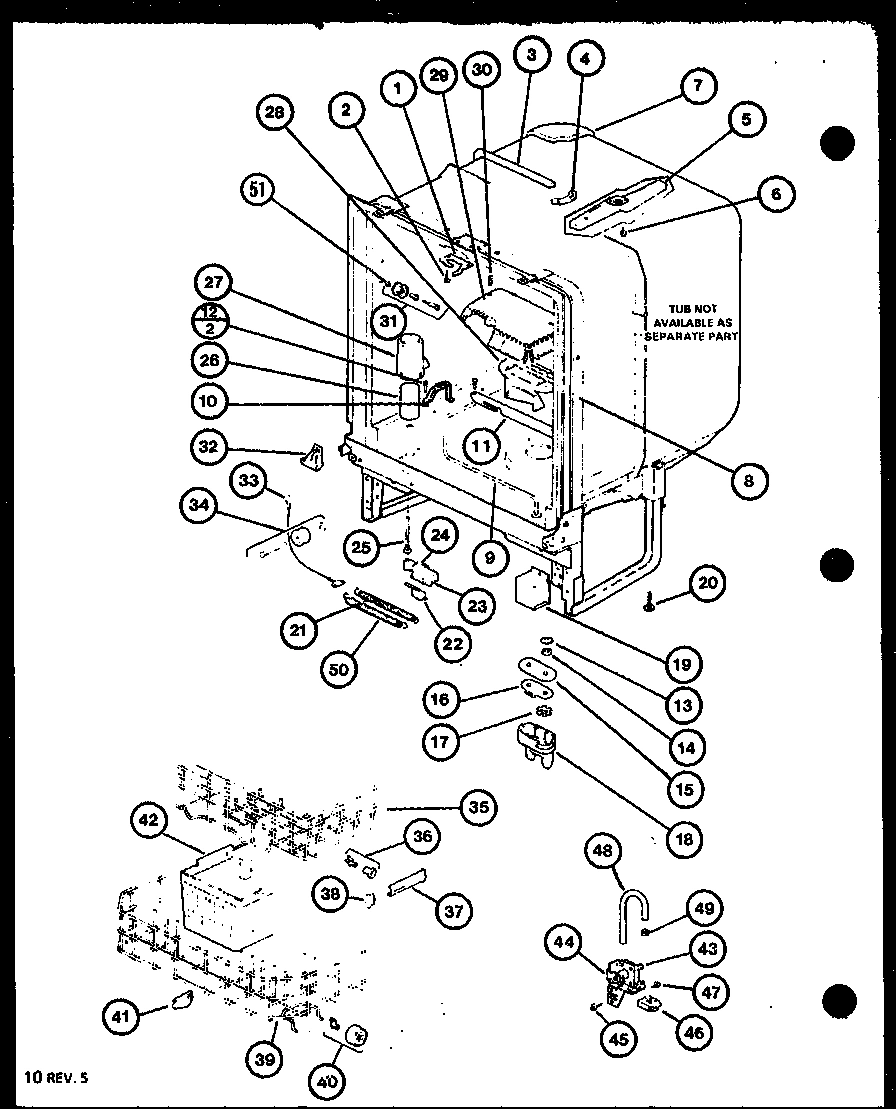

03 - Page 4

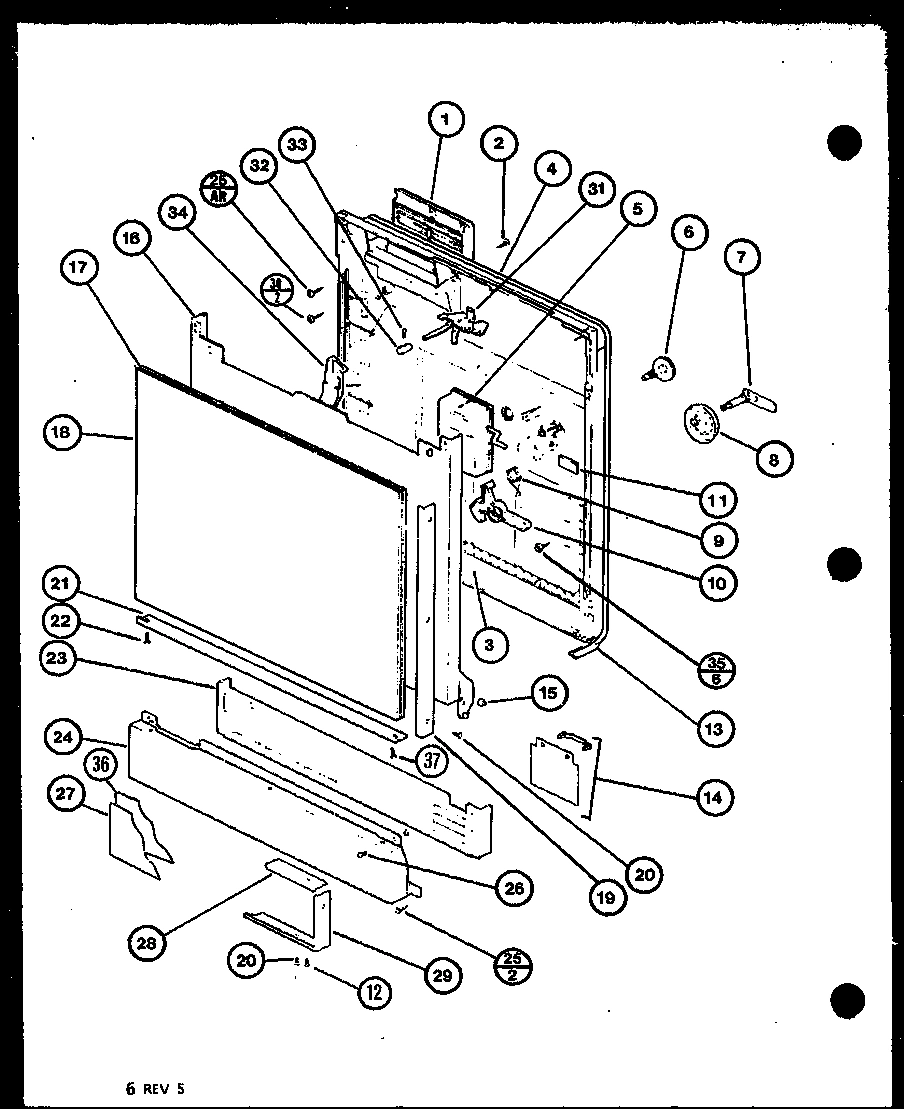

02 - Page 2
Common parts from model Whirlpool DU5000 DISHWASHER
DU4000B/P7712007W ALL DU4000B, P7712007W DISH WPL NOTE Contact Us For Availability
1
CENTER SPRAY ASSY WPL R0910017 Contact Us For Availability
1
KNOB, TIMER WPL R0903510 Contact Us For Availability
1
LATCH KEEPER WPL R0905505 Contact Us For Availability
1
DOOR VENT WPL R0905536 Contact Us For Availability
2
ADAPTER PWR TWR WPL R0905558 Contact Us For Availability
2
PUSH BUTTON WPL R0903509 Contact Us For Availability
2
SCREW WPL R0900025 Contact Us For Availability
2
SCREW WPL R0900006 Contact Us For Availability
3
SEAL, SPLIT RING WPL R0905557 Contact Us For Availability
3
INSERT ESCUTCHEON WPL R0905566 Contact Us For Availability
3
HOSE, SHOWER ASSEMBLY WPL R0903516 Contact Us For Availability
3
DOOR, INNER WPL R0903001 Contact Us For Availability
4
SPRAY ARM WPL R0905525 Contact Us For Availability
4
ESCUTCHEON WPL R0903007 Contact Us For Availability
4
NUT WPL R0901003 Contact Us For Availability
4
DOOR BAR WPL R0905532 Contact Us For Availability
5
SCREW WPL R0900014 Contact Us For Availability
5
SWITCH, INTERLOCK WPL R0902506 Contact Us For Availability
5
ASSY, PWR SHOWER WPL R0905554 Contact Us For Availability
5
RINSE AID INJECTOR ASSY WPL R0905535 Contact Us For Availability
6
RETAINER, SWITCH WPL R0905546 Contact Us For Availability
6
SCREW WPL R0900013 Contact Us For Availability
6
CAP, FILL WPL R0905540 Contact Us For Availability
7
BEARING WPL R0905556 Contact Us For Availability
7
SWITCH P/B WPL R0902503 Contact Us For Availability
7
INSULATION WPL R0904502 Contact Us For Availability
7
SHAFT HAND D CUP WPL R0905538 Contact Us For Availability
8
HUB/PINION ASSY WPL R0905555 Contact Us For Availability
8
SHIELD, SWITCH WPL R0905534 Contact Us For Availability
8
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
9
PINION GEAR WPL R0910016 Contact Us For Availability
9
SWITCH LEAF WPL R0905533 Contact Us For Availability
9
HEATER WPL R0906001 Contact Us For Availability
9
TRIP SPRING WPL R0905542 Contact Us For Availability
10
WASHER WPL R0900504 Contact Us For Availability
10
COVER, SWITCH WPL R0905547 Contact Us For Availability
10
SUPPORT FRONT HEATER WPL R0905509 Contact Us For Availability
10
LATCH DETERGENT CUP WPL R0905539 Contact Us For Availability
11
SCREW WPL R0900015 Contact Us For Availability
11
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
11
SUPPORT HEATER REAR WPL R0905510 Contact Us For Availability
11
DEFLECTER WPL R0905523 Contact Us For Availability
12
PLUG WPL R0903511 Contact Us For Availability
12
SCREW WPL R0900022 Contact Us For Availability
13
NUT WPL R0901004 Contact Us For Availability
13
WASHER WPL R0900501 Contact Us For Availability
13
DOOR GASKET WPL R0904501 Contact Us For Availability
14
SEAL LOWER WPL R0910029 Contact Us For Availability
14
COVER ELECTRICAL WPL R0905560 Contact Us For Availability
14
GROMMET WPL R0906502 Contact Us For Availability
14
DRIP SHIELD WPL R0910011 Contact Us For Availability
15
CHECK VALVE WPL R0910037 Contact Us For Availability
15
TIMER WPL R0904001 Contact Us For Availability
15
INSULATION WPL R0906501 Contact Us For Availability
15
HINGE ARM BEARING WPL R0905537 Contact Us For Availability
16
SUPT & NUT ARM WPL R0901009 Contact Us For Availability
16
CAM, TIMER WPL R0905544 Contact Us For Availability
16
BARRIER BRKT WPL R0905507 Contact Us For Availability
16
DOOR, OUTER AND HINGE ASSEMBLY WPL R0903002 Contact Us For Availability
17
GUARD WPL R0905522 Contact Us For Availability
17
NUT WPL R0901001 Contact Us For Availability
17
INSULATOR WPL R0906002 Contact Us For Availability
18
CONNECTOR, PUMP WPL R0903520 Contact Us For Availability
18
BARRIER WPL R0905508 Contact Us For Availability
18
DOOR PANEL INSERT WPL R0905559 Contact Us For Availability
18
INSERT, SERVICE PANEL, GOLD/BL WPL R0905584 Contact Us For Availability
19
LIGHT PILOT WPL R0912001 Contact Us For Availability
19
COVER, JCT. BOX WPL R0905553 Contact Us For Availability
19
TRIM SIDE WPL R0905549 Contact Us For Availability
20
LENS INDICATOR WPL R0910015 Contact Us For Availability
20
LEG, LEVELING WPL R0905506 Contact Us For Availability
20
SCREW WPL R0900010 Contact Us For Availability
21
INLET, SUMP WPL R0905604 Contact Us For Availability
21
LEVER, TIMER WPL R0905545 Contact Us For Availability
21
DOOR SPRING BLUE WPL R0905503 Contact Us For Availability
21
TRIM, BOTTOM WPL R0905550 Contact Us For Availability
22
SWITCH, CYCLE WPL R0902507 Contact Us For Availability
22
SWITCH FLOOD WPL R0902501 Contact Us For Availability
22
SCREW WPL R0900002 Contact Us For Availability
23
SPRING, CUTTER WPL R0905521 Contact Us For Availability
23
THERMOSTAT, WATER WPL R0911001 Contact Us For Availability
23
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
23
TOE KICK ASSY WPL R0903003 Contact Us For Availability
24
NUT WPL R0905563 Contact Us For Availability
24
RETAINER WPL R0901502 Contact Us For Availability
24
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
24
PANEL SERVICE WPL R0903009 Contact Us For Availability
25
WEAR RING BASE WPL R0905518 Contact Us For Availability
25
SPRING WPL R0901501 Contact Us For Availability
25
FLOAT STEM WPL R0905512 Contact Us For Availability
26
WEAR RING WPL R0905520 Contact Us For Availability
26
INSERT ESCUTCHEON WPL R0905583 Contact Us For Availability
26
FLOOD FLOAT WPL R0903501 Contact Us For Availability
26
SCREW WPL R0900017 Contact Us For Availability
27
PUMP IMPELLER WPL R0905519 Contact Us For Availability
27
FLOAT WPL R0905511 Contact Us For Availability
27
INSERT, SVC PANEL WPL R0905602 Contact Us For Availability
27
INSERT, SERV. PANEL WPL R0905603 Contact Us For Availability
28
SHAFT SEAL WPL R0903503 Contact Us For Availability
28
CAP, SUMP WPL R0905528 Contact Us For Availability
28
TRIM, TOP SERV PANEL WPL R0905599 Contact Us For Availability
29
SEAL WPL R0903502 Contact Us For Availability
29
COVER INLET SUMP WPL R0905527 Contact Us For Availability
29
TRIM, SIDE & BOTTOM WPL R0905601 Contact Us For Availability
30
SCREW WPL R0900009 Contact Us For Availability
30
SCREW WPL R0900008 Contact Us For Availability
31
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
31
LATCH ASSY WPL R0905531 Contact Us For Availability
32
HOSE DRAIN WPL R0903505 Contact Us For Availability
32
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
32
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
32
KNOB WPL R0903513 Contact Us For Availability
33
CABLE AND EYELET WPL R0910012 Contact Us For Availability
34
MOTOR/PUMP ASSY DISHWA WPL R0910001 Contact Us For Availability
34
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
34
CONDUIT HARNESS WPL R0905543 Contact Us For Availability
35
MOTOR/PUMP ASSY DISHWA WPL R0907001 Contact Us For Availability
35
SCREW WPL R0900007 Contact Us For Availability
35
RACK, UPPER WPL R0910003 Contact Us For Availability
36
SHAFT GUARD/SLINGER WPL R0905564 Contact Us For Availability
36
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
36
INSULATOR, INSERT PANEL WPL R0910036 Contact Us For Availability
37
SEAL, SHAFT WPL R0906504 Contact Us For Availability
37
RACK SLIDE WPL R0905567 Contact Us For Availability
38
WASHER WPL R0900502 Contact Us For Availability
38
END CAP WPL R0903517 Contact Us For Availability
39
E RING WPL R0906503 Contact Us For Availability
39
ASSY LOWER RACK & ROLLER WPL R0910006 Contact Us For Availability
40
LOWER ROLLER ASSY WPL R0910007 Contact Us For Availability
40
ROLLER ASSY WPL R0910008 Contact Us For Availability
41
BRKT, SOLENOID WPL R0905524 Contact Us For Availability
41
BUMPER RACK WPL R0906507 Contact Us For Availability
42
SOLENOID KIT WPL R0909001 Contact Us For Availability
42
BASKET, SILVERWARE WPL R0910009 Contact Us For Availability
43
INSULATOR WPL R0903506 Contact Us For Availability
43
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
44
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
44
SOLENOID ASSEMBLY, WATER VALVE WPL R0909002 Contact Us For Availability
45
RETAINER WPL R0901503 Contact Us For Availability
45
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
46
GATE VALVE ARM WPL R0905515 Contact Us For Availability
46
INSULATOR WPL R0903507 Contact Us For Availability
47
GATE VALVE ARM KIT WPL R0905530 Contact Us For Availability
47
SCREW WPL R0900011 Contact Us For Availability
48
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
48
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
49
CLAMP WPL R0901510 Contact Us For Availability
49
SCREW {J} WPL R0900003 Contact Us For Availability
50
HANGER MECH. WPL R0905516 Contact Us For Availability
50
DOOR SPRING YELLOW WPL R0905504 Contact Us For Availability
51
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
× ![]()
