Model Whirlpool DU476 DISHWASHER – Common Parts & Diagrams
01 - CONTROL PANEL (DU476/DP476)

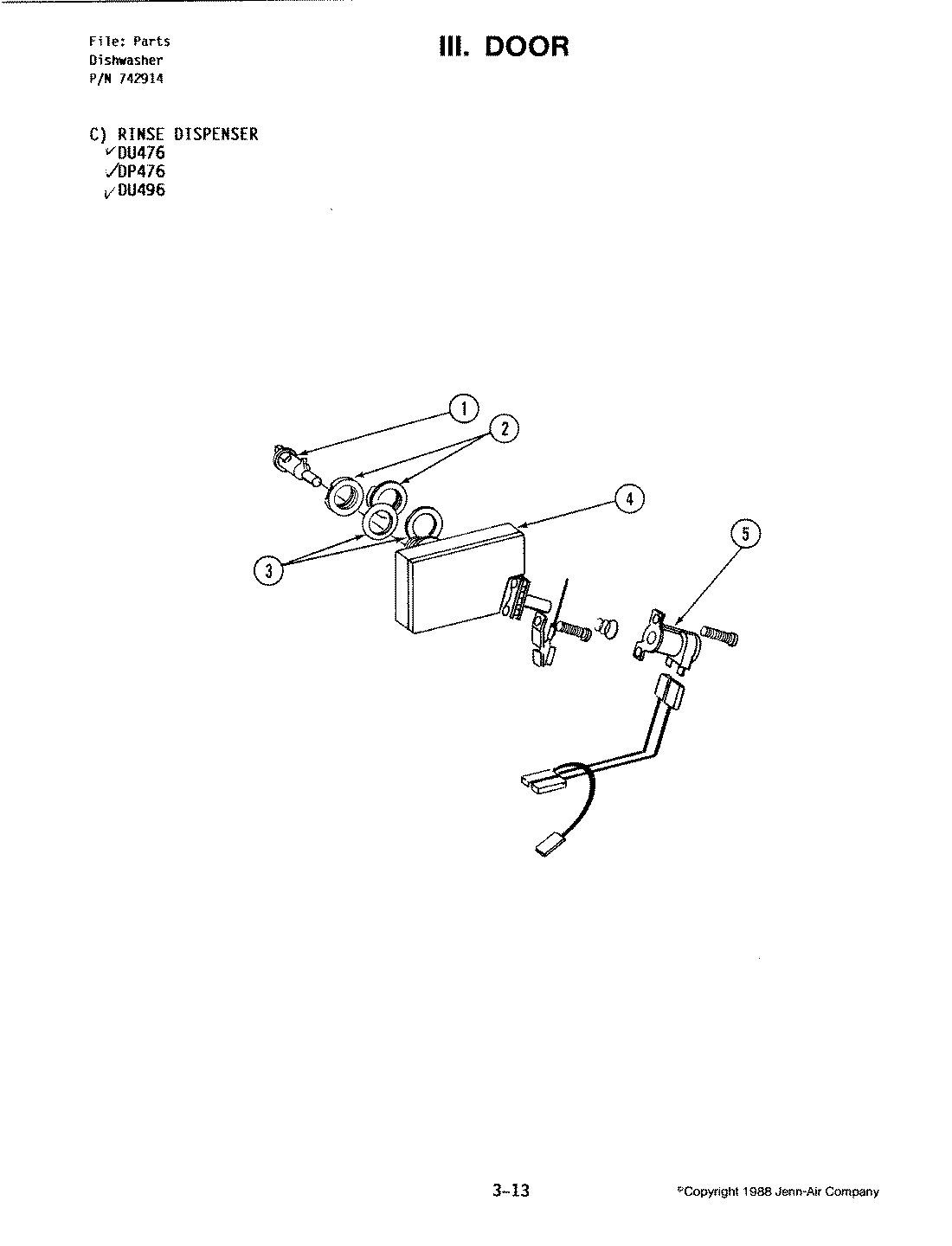

03 - DOOR ASSEMBLY
04 - DOOR ASSEMBLY (DU476)

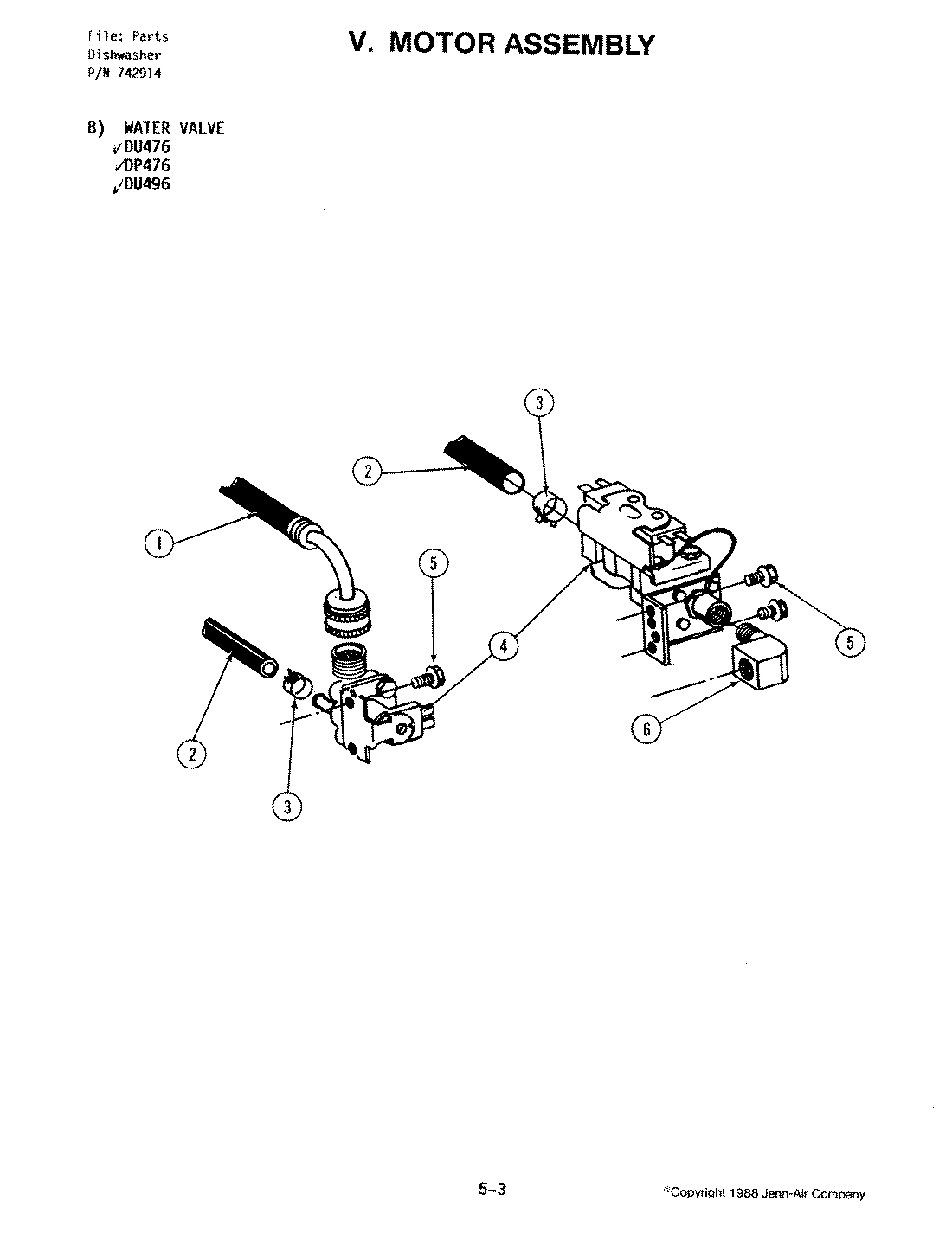

06 - MOTOR ASSEMBLY

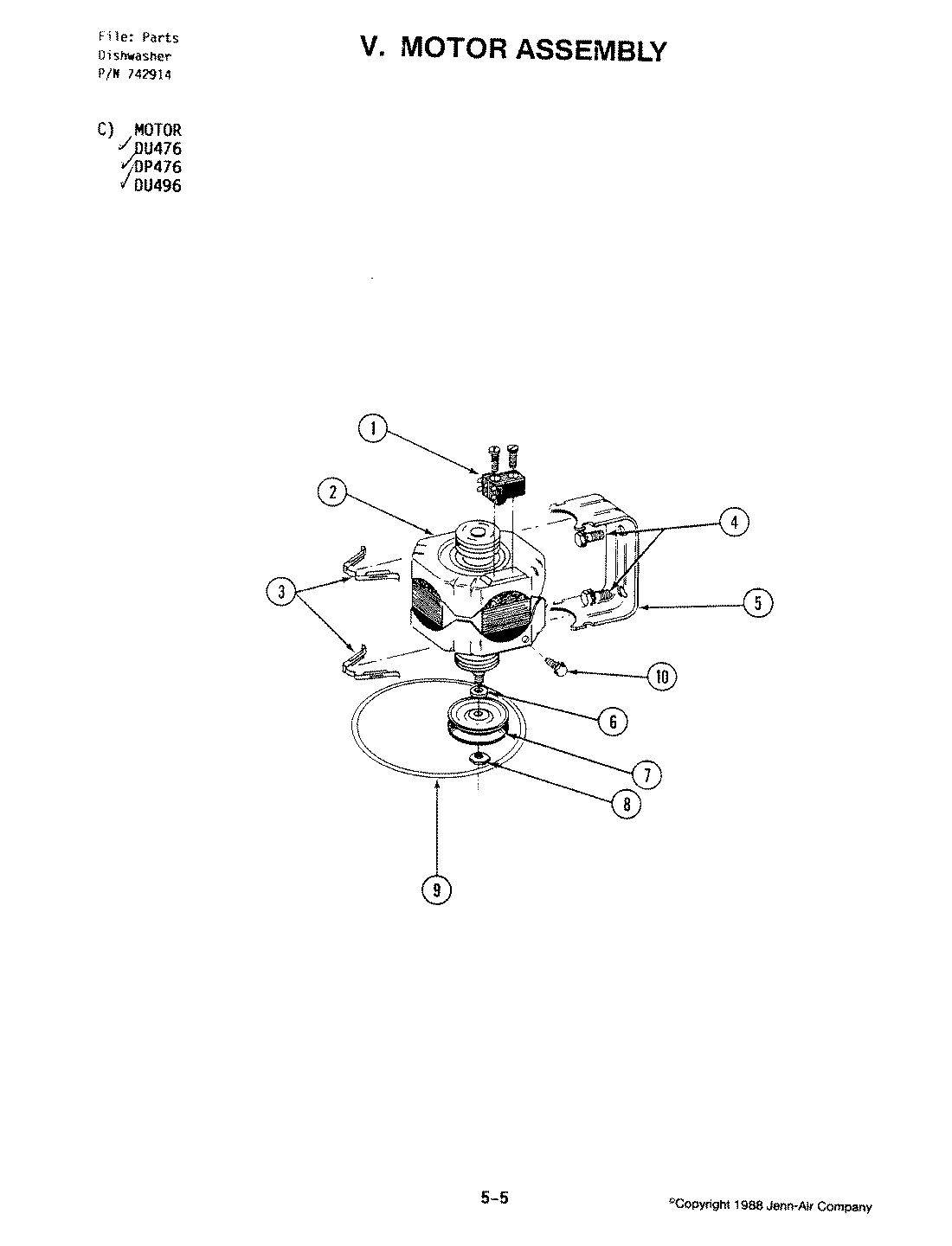

07 - MOTOR ASSEMBLY

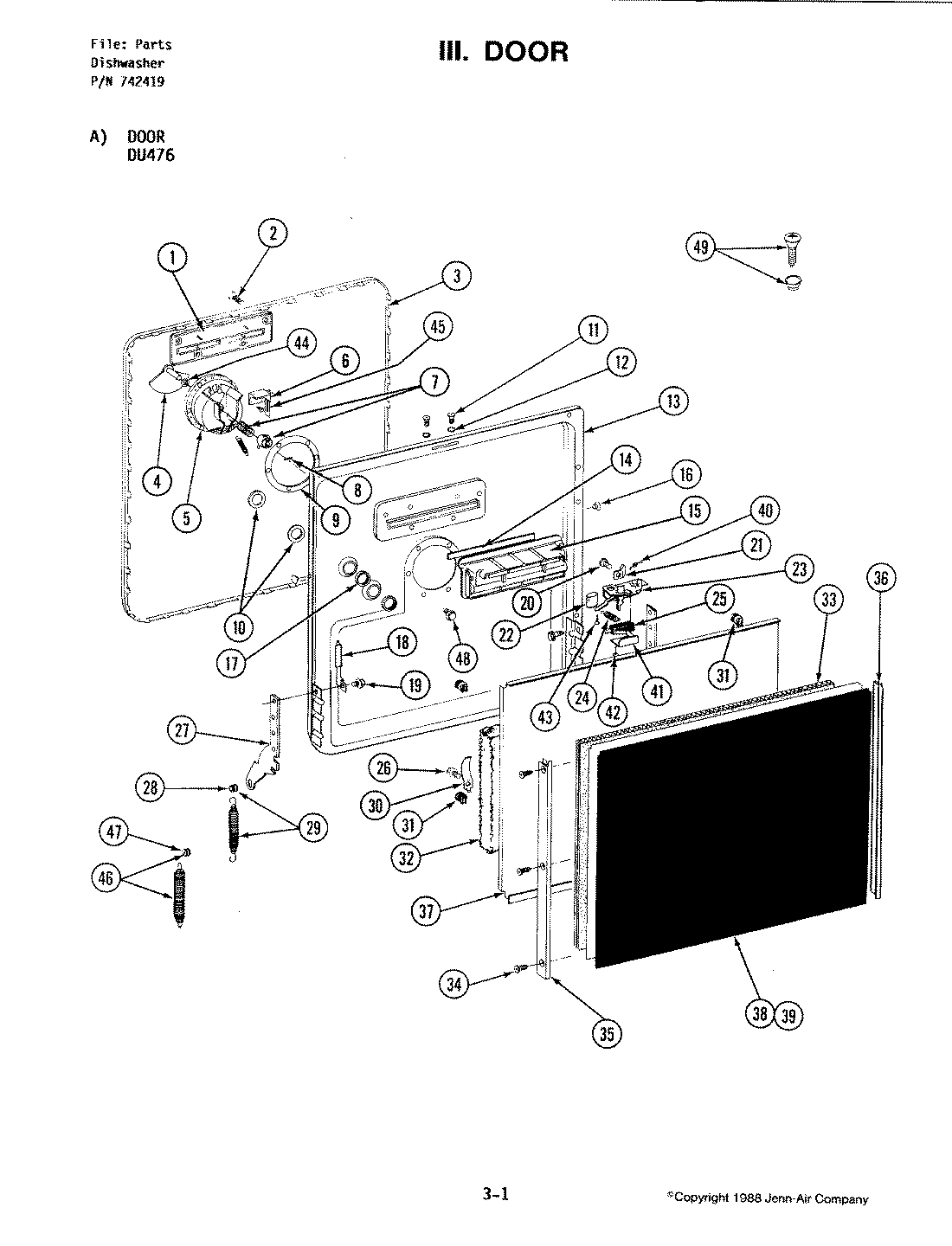

02 - DOOR (DU476)

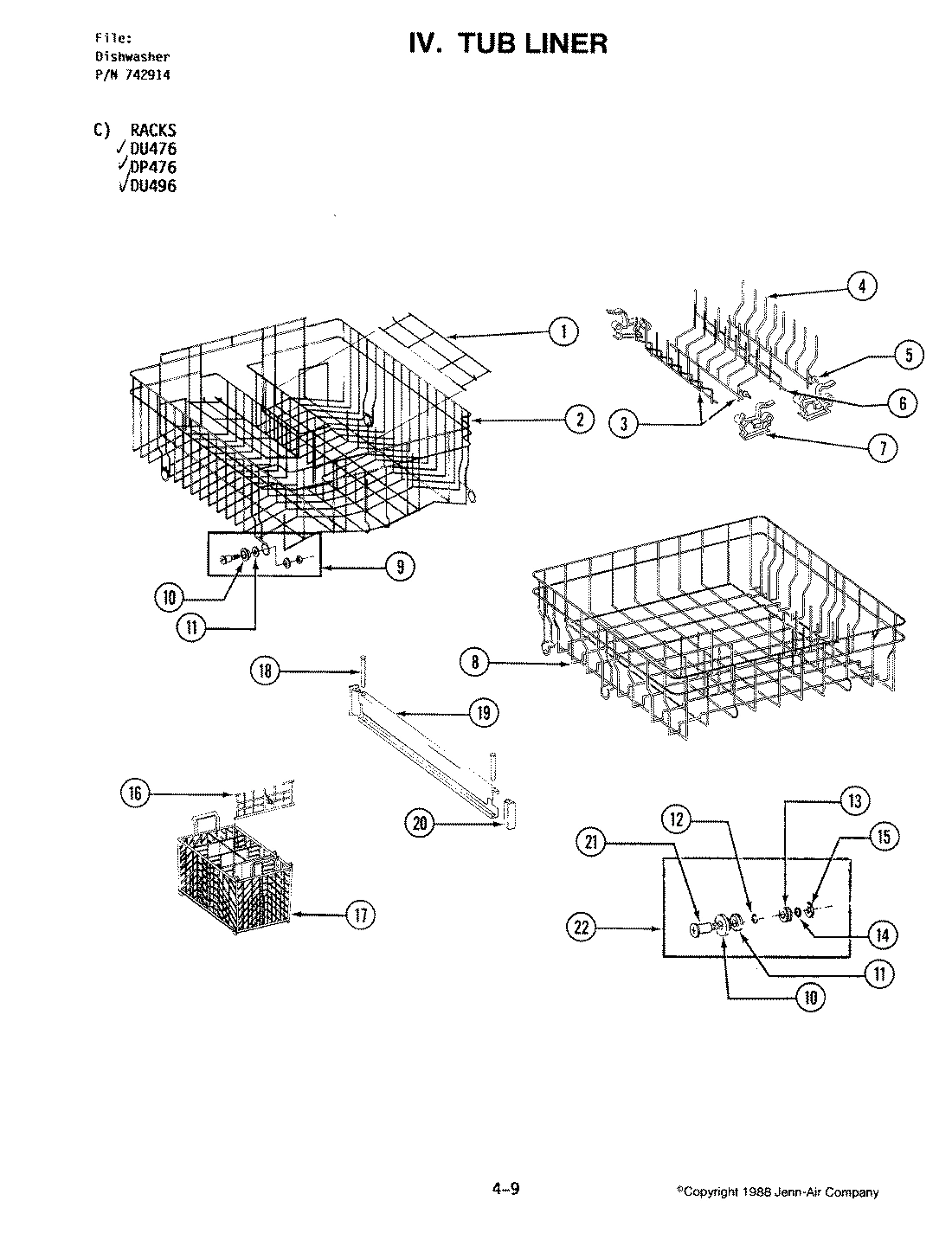

10 - TUB ASSEMBLY

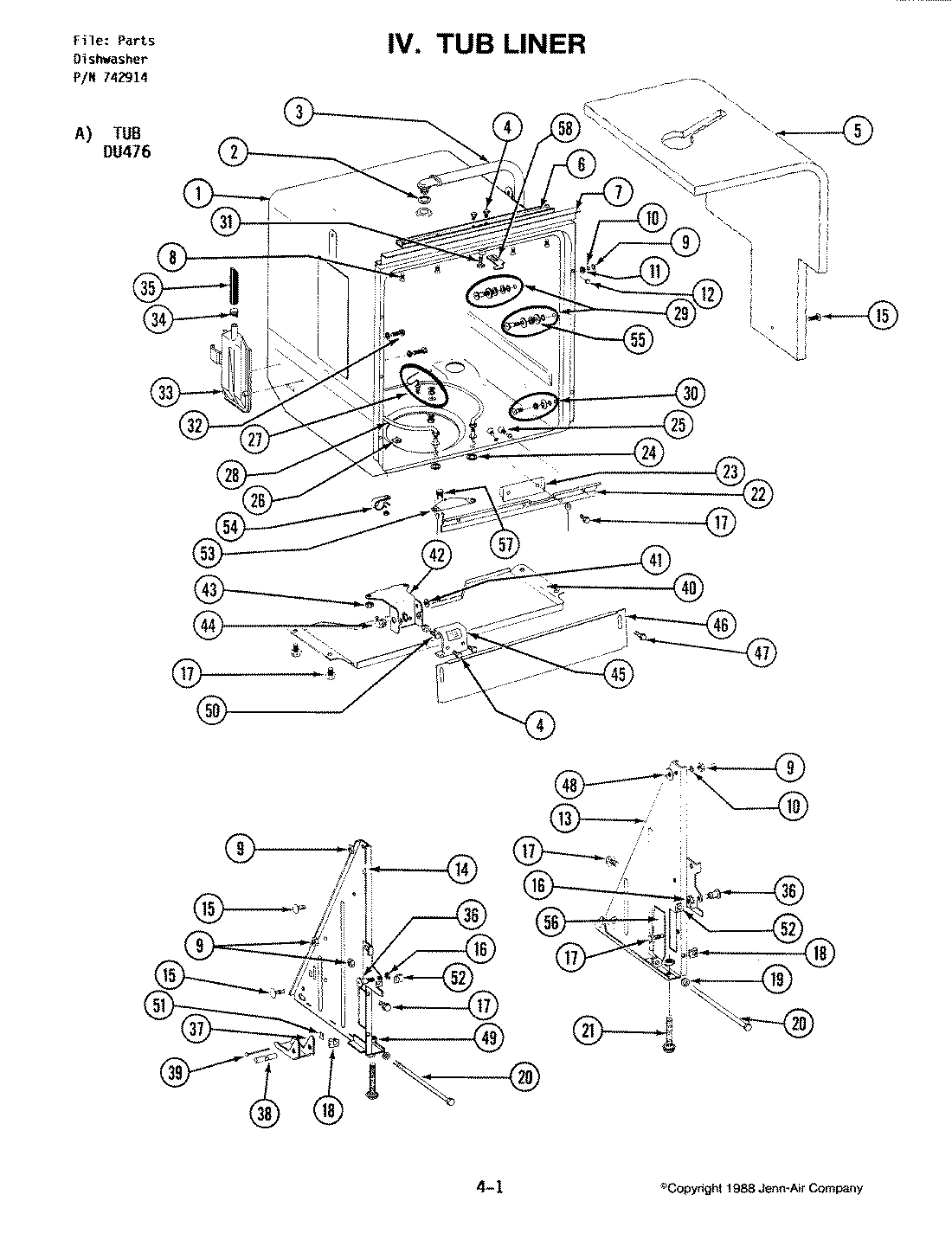

11 - TUB ASSEMBLY (DU476)

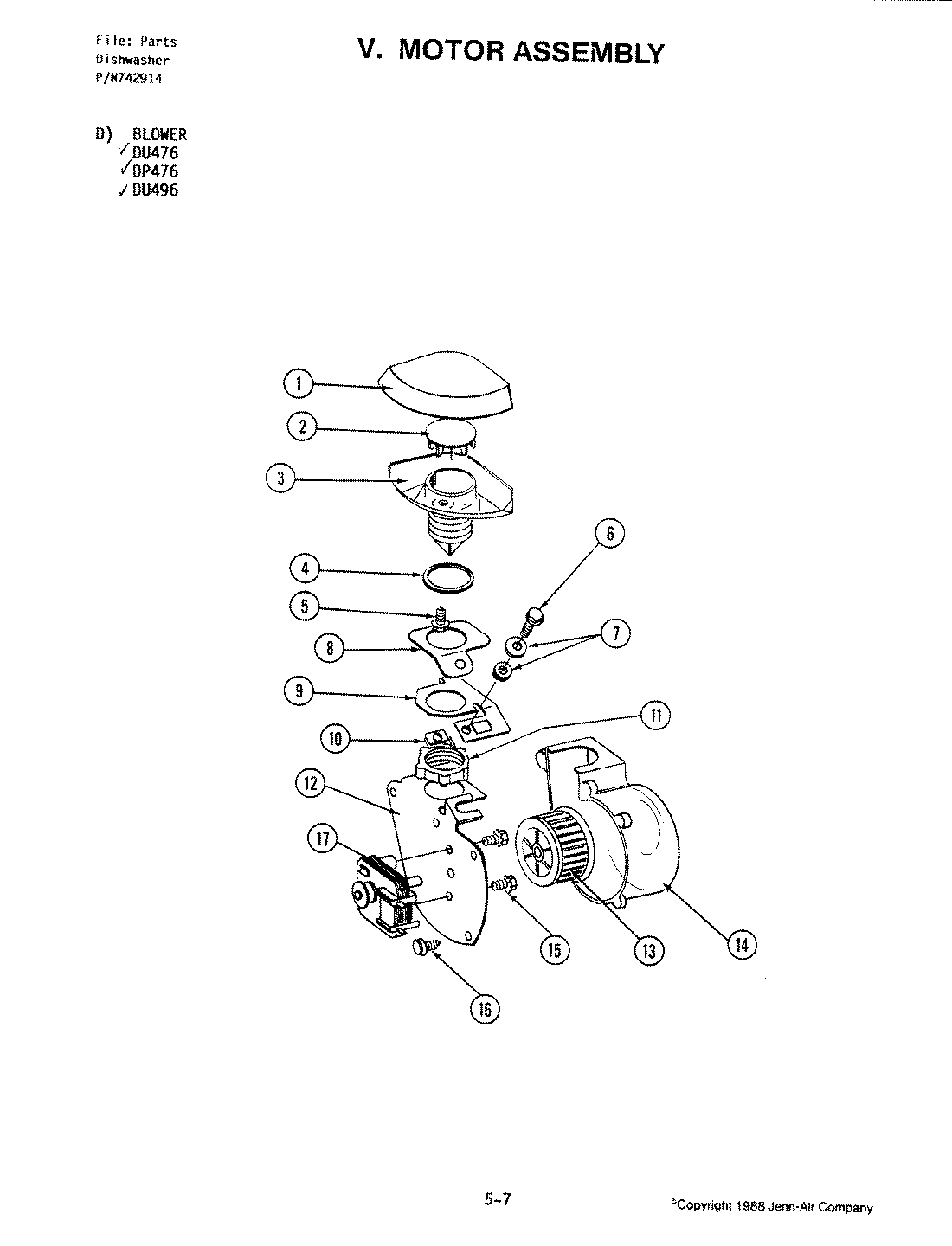

08 - MOTOR ASSEMBLY

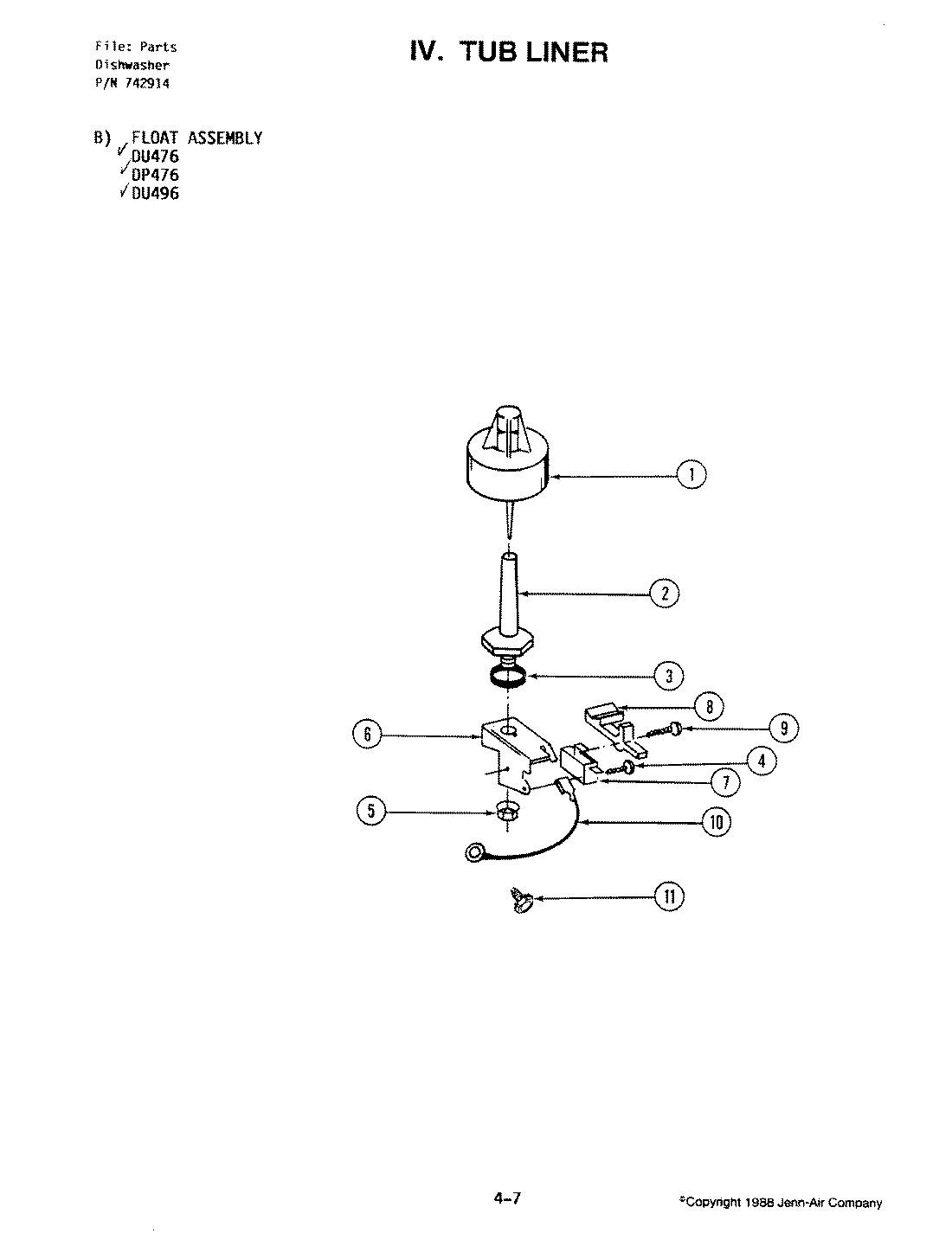

09 - TUB ASSEMBLY

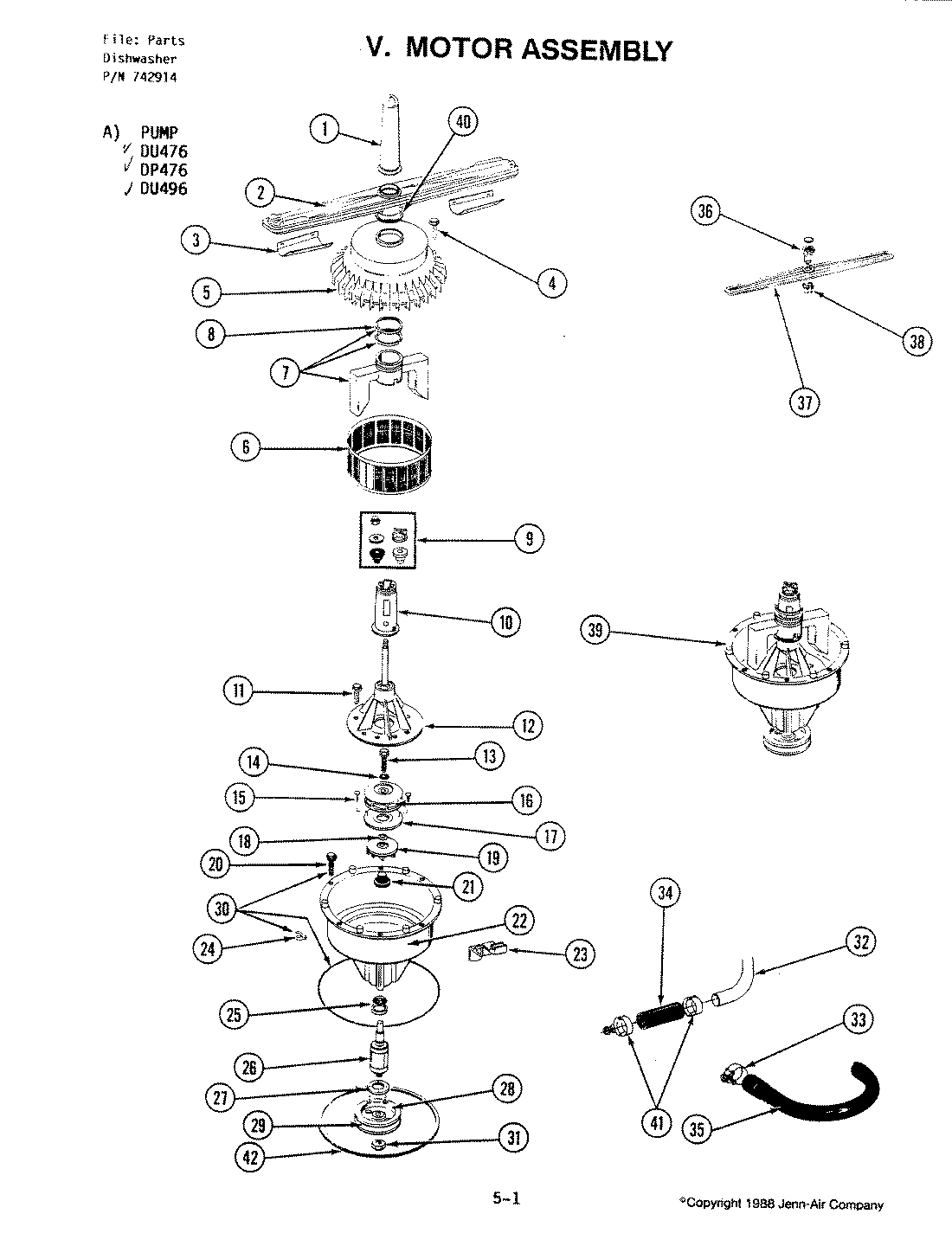

05 - MOTOR ASSEMBLY
Common parts from model Whirlpool DU476 DISHWASHER
1
CONTROL PANEL W/INSERTS WPL 757511 Contact Us For Availability
1
FILLER PLUG WPL Y757364 Contact Us For Availability
1
ACCESS PANEL BARRIER WPL Y757282 Contact Us For Availability
1
SWITCH MOTOR START WPL 757358 Contact Us For Availability
1
SWITCH MOTOR START WPL 757382 Contact Us For Availability
1
SWITCH, MOTOR START WPL Y757527 Contact Us For Availability
1
COVER, DOOR VENT WPL Y757087 Contact Us For Availability
1
RACK-CUP WPL Y757040 Contact Us For Availability
1
TUB WPL 757034 Contact Us For Availability
1
AIR INLET CAP WPL Y757081 Contact Us For Availability
1
FLOAT WPL Y757024 Contact Us For Availability
1
NOZZLE WPL Y757008 Contact Us For Availability
2
WASHER, DISPENSER VALVE WPL Y757159 Contact Us For Availability
2
INSULATION WPL 757283 Contact Us For Availability
2
MOTOR WPL Y757044 Contact Us For Availability
2
SCREW WPL 757256 Contact Us For Availability
2
DISHRACK LOWER WPL 757039 Contact Us For Availability
2
BLOWER VALVE WPL Y757091 Contact Us For Availability
2
GUIDE, FLOAT & WASHER WPL Y757017 Contact Us For Availability
2
LOWER SPRAY ARM W/SHIELD WPL Y757050 Contact Us For Availability
3
INDICATOR LIGHT LENS WPL 757106 Contact Us For Availability
3
RACK-BOWL WPL Y757446 Contact Us For Availability
3
AIR INLET WPL 757085 Contact Us For Availability
3
GASKET WPL Y757250 Contact Us For Availability
3
RADIANT SHIELD WPL Y757099 Contact Us For Availability
4
CONTROL SWITCH 2 BUTTON WPL 757515 Contact Us For Availability
4
RINSE DISPENCER COMPLETE WPL Y757045 Contact Us For Availability
4
FILLER PANEL WPL 757287 Contact Us For Availability
4
WATER VALVE WPL Y757032 Contact Us For Availability
4
WATER VALVE WPL Y757539 Contact Us For Availability
4
SCREW WPL 757360 Contact Us For Availability
4
DETERGENT CUP COVER WPL 757257 Contact Us For Availability
4
SAUCER RACK R.H. WPL Y757448 Contact Us For Availability
4
GASKET WPL Y757233 Contact Us For Availability
4
SCREW WPL 757234 Contact Us For Availability
4
SCREW WPL Y757438 Contact Us For Availability
5
CONTROL SWITCH 3 BUTTON WPL Y757514 Contact Us For Availability
5
SOLENOID WPL Y757365 Contact Us For Availability
5
INSERT-ACC.PANEL/ALM. HARV.WH WPL Y757133 Contact Us For Availability
5
SCREW WPL 757248 Contact Us For Availability
5
MOTOR SUPPORT WPL 757361 Contact Us For Availability
5
DETERGENT CUP ASSEMBLY WPL Y757063 Contact Us For Availability
5
SLEEVE, UPPER RACK WPL Y757420 Contact Us For Availability
5
INSULATION WPL Y757097 Contact Us For Availability
5
STRAINER WPL Y757072 Contact Us For Availability
6
TIMER WPL Y757507 Contact Us For Availability
6
INSERT-ACC. PANEL-WHITE/BLACK WPL Y757101 Contact Us For Availability
6
STREET ELBOW WPL 757249 Contact Us For Availability
6
WASHER WPL Y757362 Contact Us For Availability
6
BI-METAL RELEASE ASSEMBLY WPL Y757258 Contact Us For Availability
6
SAUCER RACK L.H. WPL Y757447 Contact Us For Availability
6
CHANNEL, TOP FLANGE WPL 757315 Contact Us For Availability
6
FLOAT SWITCH BRACKET WPL Y757252 Contact Us For Availability
6
FILTER SCREEN WPL Y757080 Contact Us For Availability
7
TIMER MOTOR WPL Y757190 Contact Us For Availability
7
MOTOR PULLEY WPL Y757076 Contact Us For Availability
7
CAM & SPRING KIT WPL 757259 Contact Us For Availability
7
PIVOT UPPER RACK WPL Y757419 Contact Us For Availability
7
FLANGE TOP WPL Y757316 Contact Us For Availability
7
WASHER & SEAL WPL 757236 Contact Us For Availability
7
FLUSH ARM & SEALS WPL Y757025 Contact Us For Availability
8
PIN, DETERGENT CUP WPL Y757262 Contact Us For Availability
8
SCREW AND WASHER WPL 757317 Contact Us For Availability
8
DISHRACK UPPER WPL Y757449 Contact Us For Availability
8
GASKET WPL 757238 Contact Us For Availability
8
LEVER, ACTUATOR WPL Y757253 Contact Us For Availability
8
SEAL RING WPL Y757291 Contact Us For Availability
9
TRIM FOR ACCESS PANEL WPL 757090 Contact Us For Availability
9
GASKET WPL Y757263 Contact Us For Availability
9
ROLLER KIT WPL Y757057 Contact Us For Availability
9
BLOWER SUPPORT BRACKET WPL Y757239 Contact Us For Availability
9
PIVOT PIN WPL Y757437 Contact Us For Availability
9
BEARING-NUT WPL 757403 Contact Us For Availability
10
ACCESS PANEL ASSEMBLY WPL Y757062 Contact Us For Availability
10
ROLLER WPL Y757196 Contact Us For Availability
10
LOCK WASHER WPL Y757319 Contact Us For Availability
10
FASTENER WPL 757240 Contact Us For Availability
10
GROUND WIRE MOUNTING PLATE WPL 757439 Contact Us For Availability
10
SUPPORT FOR WASH ARM WPL Y757071 Contact Us For Availability
11
SCREW WPL Y757285 Contact Us For Availability
11
DOMED WASHER WPL Y757198 Contact Us For Availability
11
CUSHION WASHER WPL Y757201 Contact Us For Availability
11
NUT, AIR INLET WPL Y757241 Contact Us For Availability
11
SCREW WPL 757295 Contact Us For Availability
12
TIMER DIAL WPL 757512 Contact Us For Availability
12
U FASTENER WPL 757284 Contact Us For Availability
12
WASHER ONLY WPL 757266 Contact Us For Availability
12
SEALING WASHER WPL 757200 Contact Us For Availability
12
HOLE PLUG WPL Y757321 Contact Us For Availability
12
BLOWER BRACKET WPL 757242 Contact Us For Availability
12
PUMP COVER ASSEMBLY WPL 757296 Contact Us For Availability
13
KNOB, TIMER WPL Y757525 Contact Us For Availability
13
DOOR & GASKET WPL Y757042 Contact Us For Availability
13
SUPPORT, TUB R.H. WPL 757323 Contact Us For Availability
13
BLOWER WHEEL WPL Y757028 Contact Us For Availability
13
SCREW WPL 757297 Contact Us For Availability
14
TIMER BARRIER WPL 757445 Contact Us For Availability
14
BAFFLE WPL 757267 Contact Us For Availability
14
LOCK WASHER WPL Y757202 Contact Us For Availability
14
SUPP0RT, TUB L.H. WPL 757324 Contact Us For Availability
14
BLOWER HOUSING WPL Y757243 Contact Us For Availability
15
SCREW/WASHER ASSEMBLY WPL Y757431 Contact Us For Availability
15
DOOR VENT WPL Y757086 Contact Us For Availability
15
FASTENER WPL Y757325 Contact Us For Availability
15
SCREW WPL Y757244 Contact Us For Availability
15
SCREW WPL 757299 Contact Us For Availability
16
HARNESS, WIRE WPL 757516 Contact Us For Availability
16
HARNESS SUB WIRE WPL 757517 Contact Us For Availability
16
WASHER, COUNTERSUNK WPL Y757383 Contact Us For Availability
16
GUIDE BUTTON WPL Y757268 Contact Us For Availability
16
SCREW DETERGENT CUP WPL 757245 Contact Us For Availability
16
COVER, SILVERWARE BASKET WPL Y757092 Contact Us For Availability
16
CIRCULATING IMPELLER WPL Y757300 Contact Us For Availability
17
PLASTIC NUT WPL Y757160 Contact Us For Availability
17
SILVERWARE BASKET WPL Y757041 Contact Us For Availability
17
BLOWER MOTOR WPL Y757029 Contact Us For Availability
17
BAFFLE WPL Y757301 Contact Us For Availability
18
BRACKET, GROUNDING WPL 757270 Contact Us For Availability
18
PIN WPL Y757356 Contact Us For Availability
18
FASTENER WPL Y757327 Contact Us For Availability
18
SEAL WPL Y757302 Contact Us For Availability
19
SCREW WPL Y757271 Contact Us For Availability
19
TRACK ASSEMBLY WPL 757009 Contact Us For Availability
19
WASHER WPL Y757328 Contact Us For Availability
19
DRAIN IMPELLER ASSEMBLY WPL Y757303 Contact Us For Availability
20
RACK STOP WPL Y757357 Contact Us For Availability
20
SCREW FOR ADJUSTABLE LEGS WPL Y757329 Contact Us For Availability
20
SCREW WPL Y757235 Contact Us For Availability
21
ADJUSTABLE LEG WPL W10176519 No Longer Available
21
HARNESS RECEPTACLE WPL Y757191 Contact Us For Availability
21
SHAFT TRACK ROLLER WPL Y757195 Contact Us For Availability
21
SEAL ASSEMBLY WPL 757305 Contact Us For Availability
22
KNOB, DOOR LATCH WPL 757513 Contact Us For Availability
22
TRACK SHAFT & SEAL KIT WPL 757006 Contact Us For Availability
22
DRIP FLANGE WPL 757331 Contact Us For Availability
22
PUMP HOUSING W/DEFLECTOR WPL 757306 Contact Us For Availability
23
DOOR LATCH WPL 757043 Contact Us For Availability
23
ASSEMBLY SCREW,WASHER & SHIELD WPL Y757333 Contact Us For Availability
23
INSERT FOR PUMP HOUSING WPL 757307 Contact Us For Availability
24
RETURN SPRING WPL Y757274 Contact Us For Availability
24
WASHER WPL Y757334 Contact Us For Availability
24
FASTENER WPL 757308 Contact Us For Availability
25
SWITCH-DOOR WPL 757027 Contact Us For Availability
25
SCREW WPL 757335 Contact Us For Availability
25
SLINGER & DEFLECTOR KIT WPL Y757309 Contact Us For Availability
26
PUMP SHAFT & BEARING ASSEMBLY WPL Y757311 Contact Us For Availability
27
HINGE, (LEFT) WPL Y757276 Contact Us For Availability
27
HINGE (RIGHT) WPL Y757434 Contact Us For Availability
27
ASSEMBLY, HEATER HOOK WPL 757337 Contact Us For Availability
27
RETAINER FOR BEARING WPL Y757310 Contact Us For Availability
28
SCREW WPL Y757312 Contact Us For Availability
28
HEAT ELEMENT WPL Y757010 Contact Us For Availability
29
DOOR SPRING INSERT WPL Y757016 Contact Us For Availability
29
ASSY.SHAFT,WASHER & SEAL WPL Y757014 Contact Us For Availability
29
PULLEY WPL Y757098 Contact Us For Availability
30
GROUND CLIP & SCREW WPL Y757279 Contact Us For Availability
30
ASSEMBLY BOLT & WASHER WPL Y757338 Contact Us For Availability
30
GASKET W/SCREWS & FASTENERS WPL Y757049 Contact Us For Availability
31
HEX NUT WPL Y757313 Contact Us For Availability
31
GROMMET WPL 757275 Contact Us For Availability
32
INSULATION WPL 757096 Contact Us For Availability
32
HOSE, TOP SPRAY WPL 757046 Contact Us For Availability
32
SCREW WASHER WPL 757340 Contact Us For Availability
33
PANEL, FILLER WPL 757281 Contact Us For Availability
33
VENT COVER WPL Y757341 Contact Us For Availability
34
SCREW WPL Y757280 Contact Us For Availability
34
RUBBER COUPLING WPL Y757083 Contact Us For Availability
35
INJECTOR HOSE WPL Y757077 Contact Us For Availability
35
TRIM STRIP L.H. WPL 757103 Contact Us For Availability
35
DRAIN HOSE WPL Y757078 Contact Us For Availability
36
TRIM STRIP R.H. WPL 757102 Contact Us For Availability
36
HINGE PIN WPL Y757343 Contact Us For Availability
36
OUTLET UPPER SPRAY WPL Y757084 Contact Us For Availability
37
FRONT PANEL ASSEMBLY WPL Y757061 Contact Us For Availability
37
SHOE FOR ADJUSTABLE LEG WPL Y757344 Contact Us For Availability
37
UPPER SPRAY ARM WPL Y757001 Contact Us For Availability
38
INSERT, PANEL (WHT/BLK) WPL Y757100 Contact Us For Availability
38
INSERT, PANEL (ALM/HRV WHEAT) WPL Y757132 Contact Us For Availability
38
NUT WPL Y757345 Contact Us For Availability
38
NUT WPL Y757094 Contact Us For Availability
39
KIT, PANEL (ALM/HARV WHEAT) WPL Y757058 Contact Us For Availability
39
DOOR/ACC.-WHITE/BLACK WPL Y757477 Contact Us For Availability
39
PIN WPL Y757346 Contact Us For Availability
39
PUMP ASSY (INCLUDES 7 THRU 31) WPL 757037 Contact Us For Availability
40
SPRING FOR INTERLOCK WPL Y757389 Contact Us For Availability
40
FRAME BASE WPL Y757348 Contact Us For Availability
40
GASKET WPL Y757093 Contact Us For Availability
41
SHIELD DOOR SWITCH WPL Y757435 Contact Us For Availability
41
INSULATING BUSHING WPL 757349 Contact Us For Availability
42
SCREW-DOOR SW. SHIELD WPL 757392 Contact Us For Availability
42
COMPARTMENT, TERMINAL WPL 757350 Contact Us For Availability
43
JAM NUT FOR ELEMENT WPL 757351 Contact Us For Availability
44
SEAL WPL Y757395 Contact Us For Availability
44
CABLE CONNECTOR WPL 757353 Contact Us For Availability
45
SCREW WPL 737394 Contact Us For Availability
45
COVER FOR TERMINAL WPL Y757354 Contact Us For Availability
46
BOOSTER SPRING WPL Y757380 Contact Us For Availability
46
TOE PANEL WPL Y757095 Contact Us For Availability
47
GROMMET WPL Y757277 Contact Us For Availability
48
WASHER WPL 757397 Contact Us For Availability
49
SCREW & WASHER ASSEMBLY WPL Y757462 Contact Us For Availability
51
FASTENER WPL 757596 Contact Us For Availability
52
FASTENER WPL Y757398 Contact Us For Availability
53
BRACKET FOR THERMOSTAT WPL Y757444 Contact Us For Availability
54
CLIP, CABLE WPL 757443 Contact Us For Availability
55
WASHER CUSHION WPL Y757199 Contact Us For Availability
56
COVER, ACCESS WPL 757400 Contact Us For Availability
57
THERMOSTAT WPL Y757455 Contact Us For Availability
58
STRIKE,DOOR LATCH WPL Y757082 Contact Us For Availability
× ![]()
Login and Registration Form
