Model Whirlpool DU25B- DISHWASHER – Common Parts & Diagrams

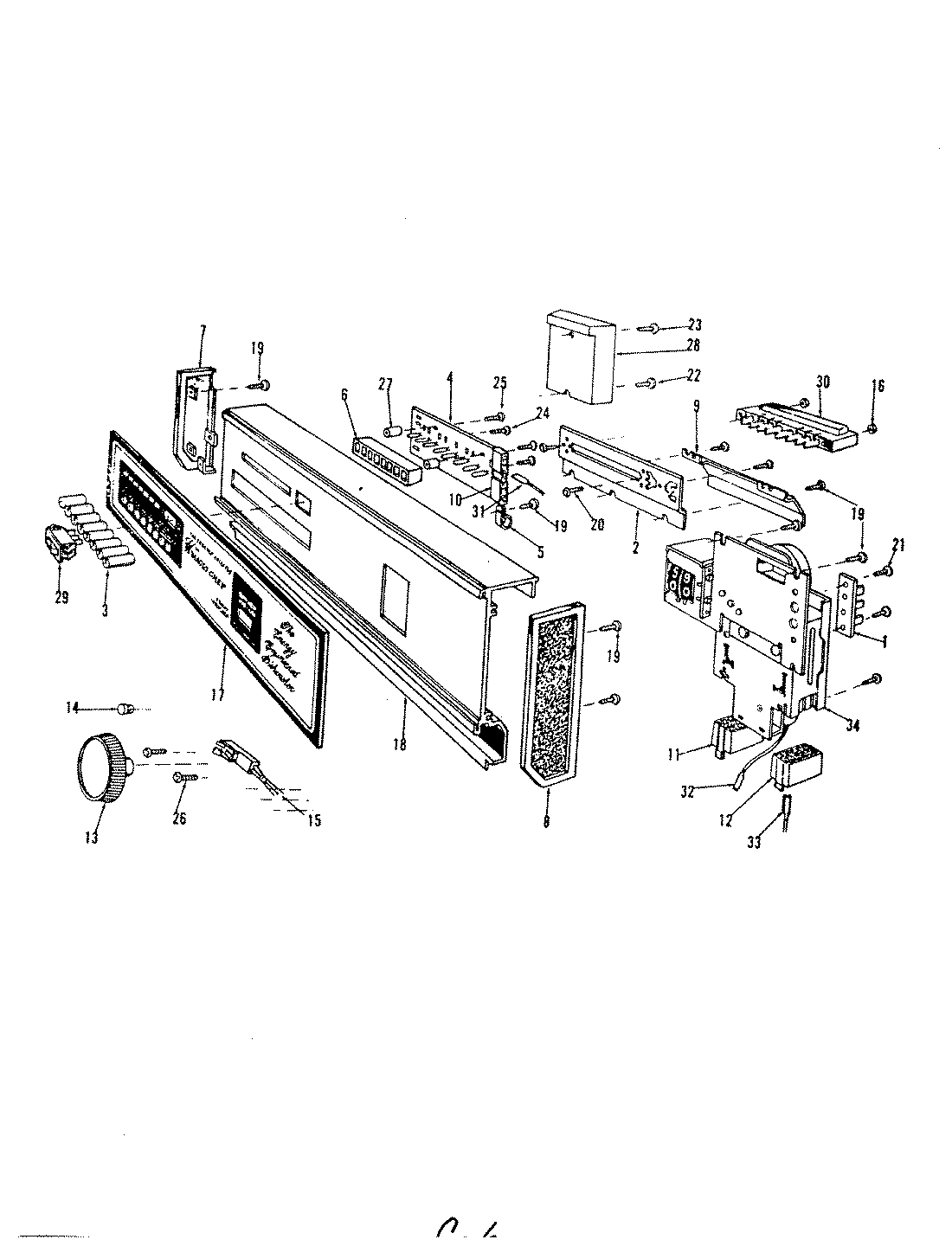

01 - CONTROL PANEL PARTS

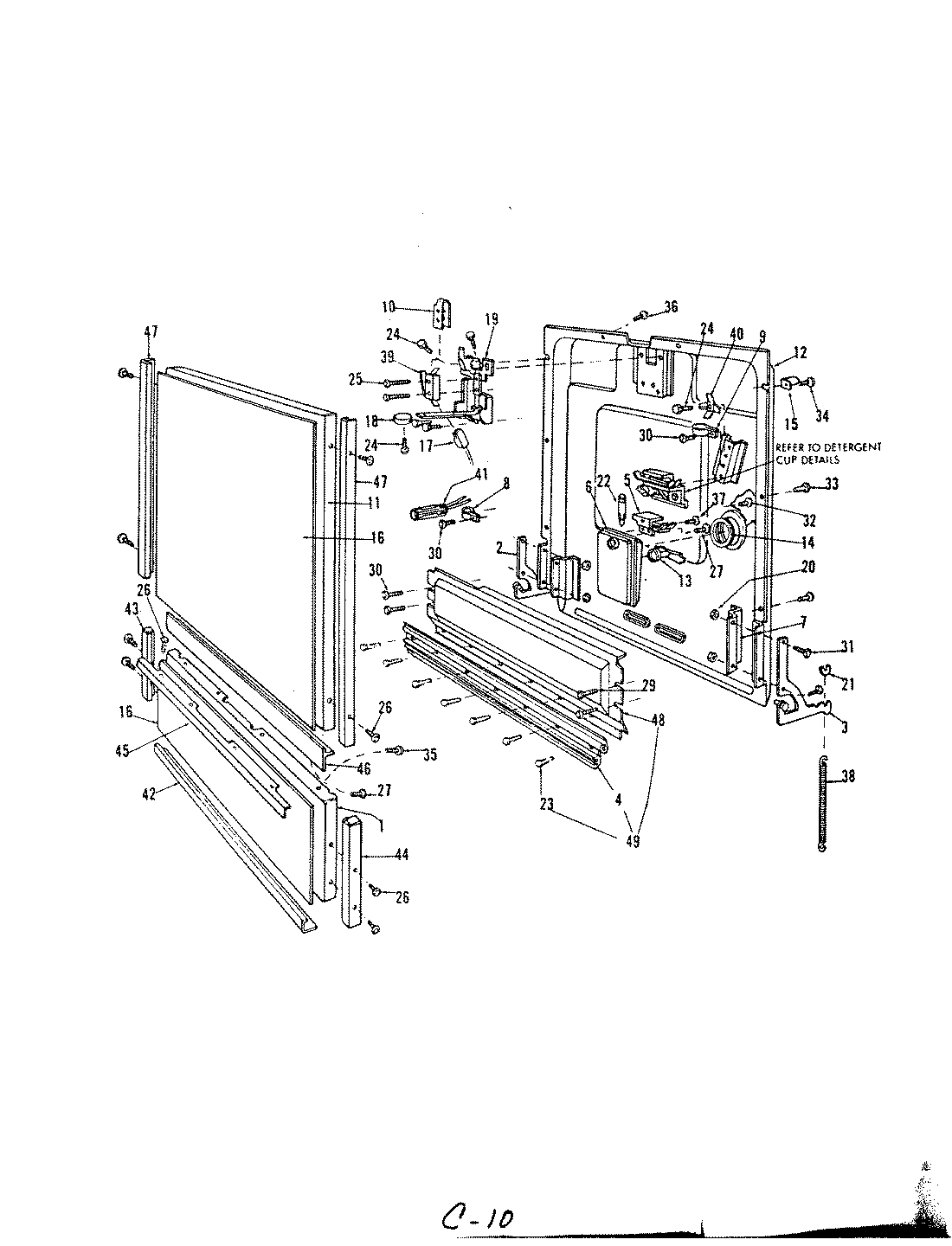

03 - DOOR

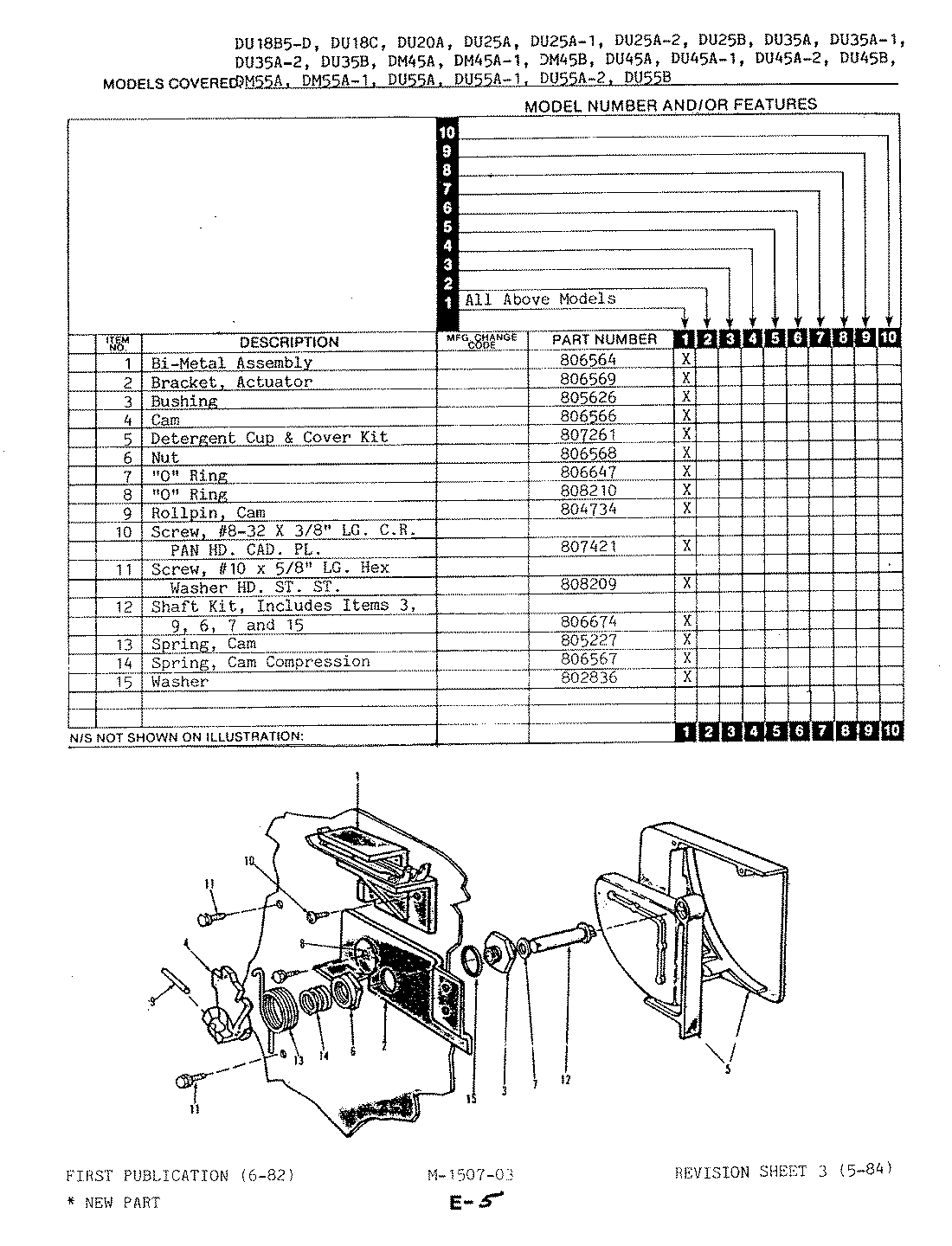

02 - DETERGENT CUP

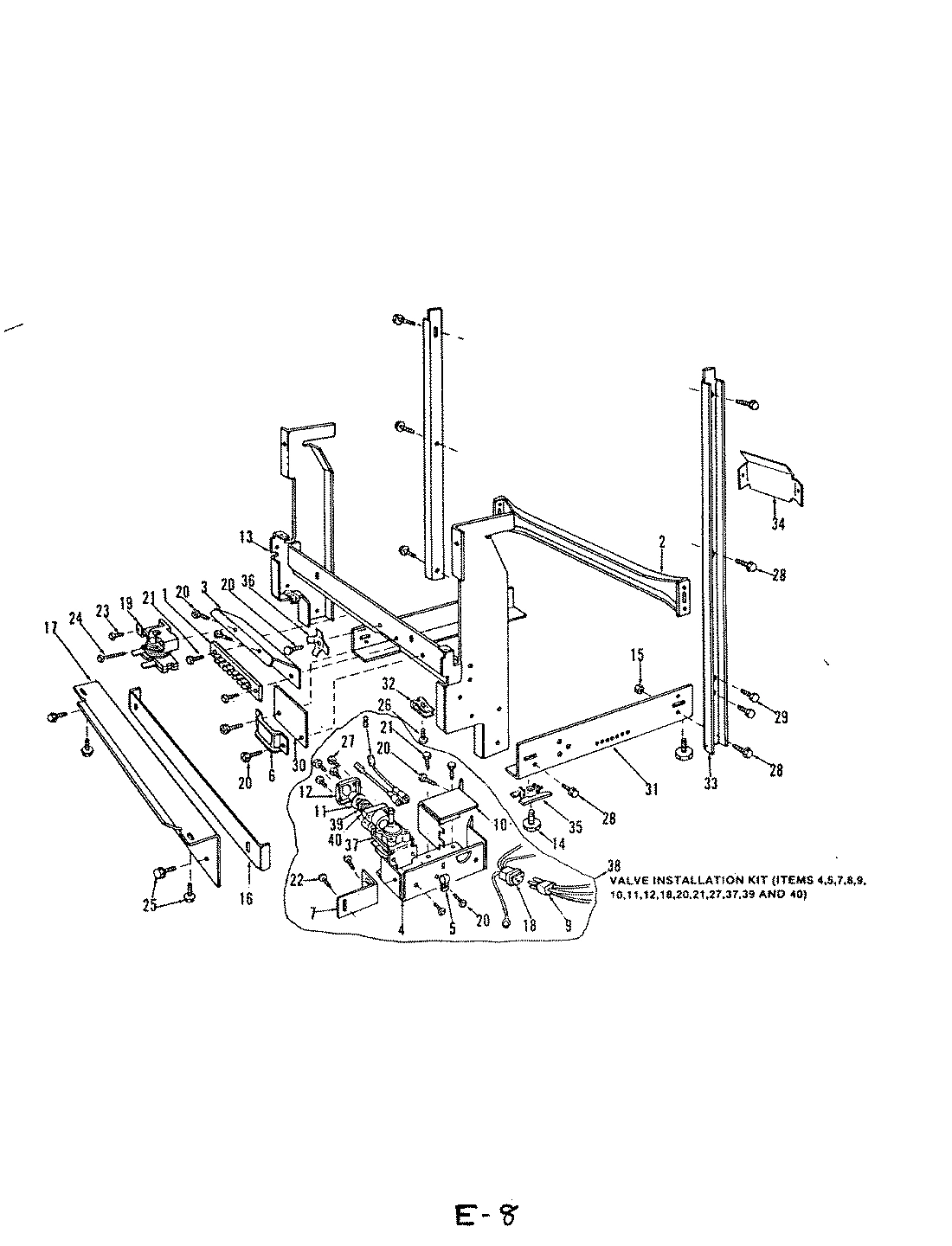

04 - FRAME PARTS

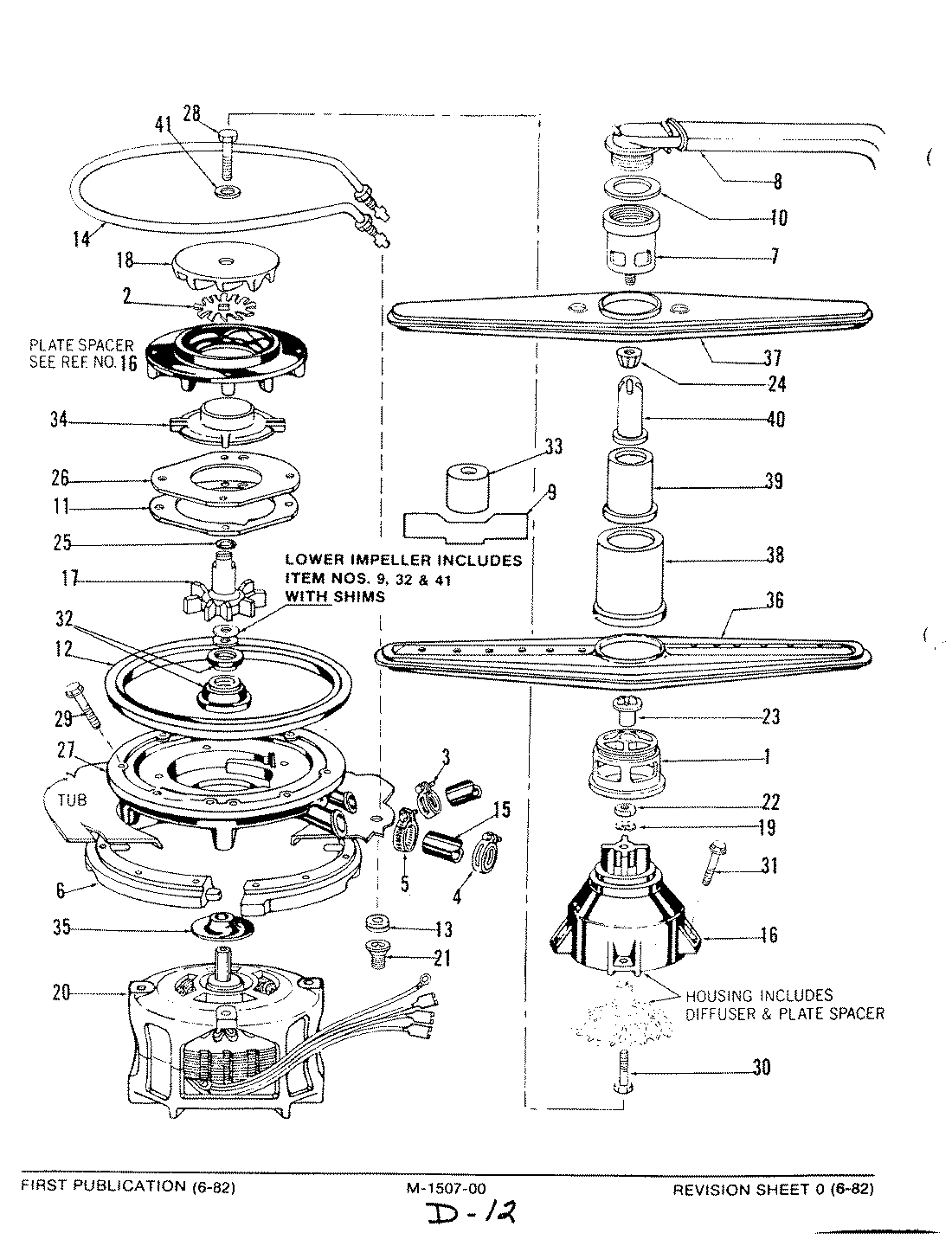

05 - MOTOR, HEATER & SPRAY ARM

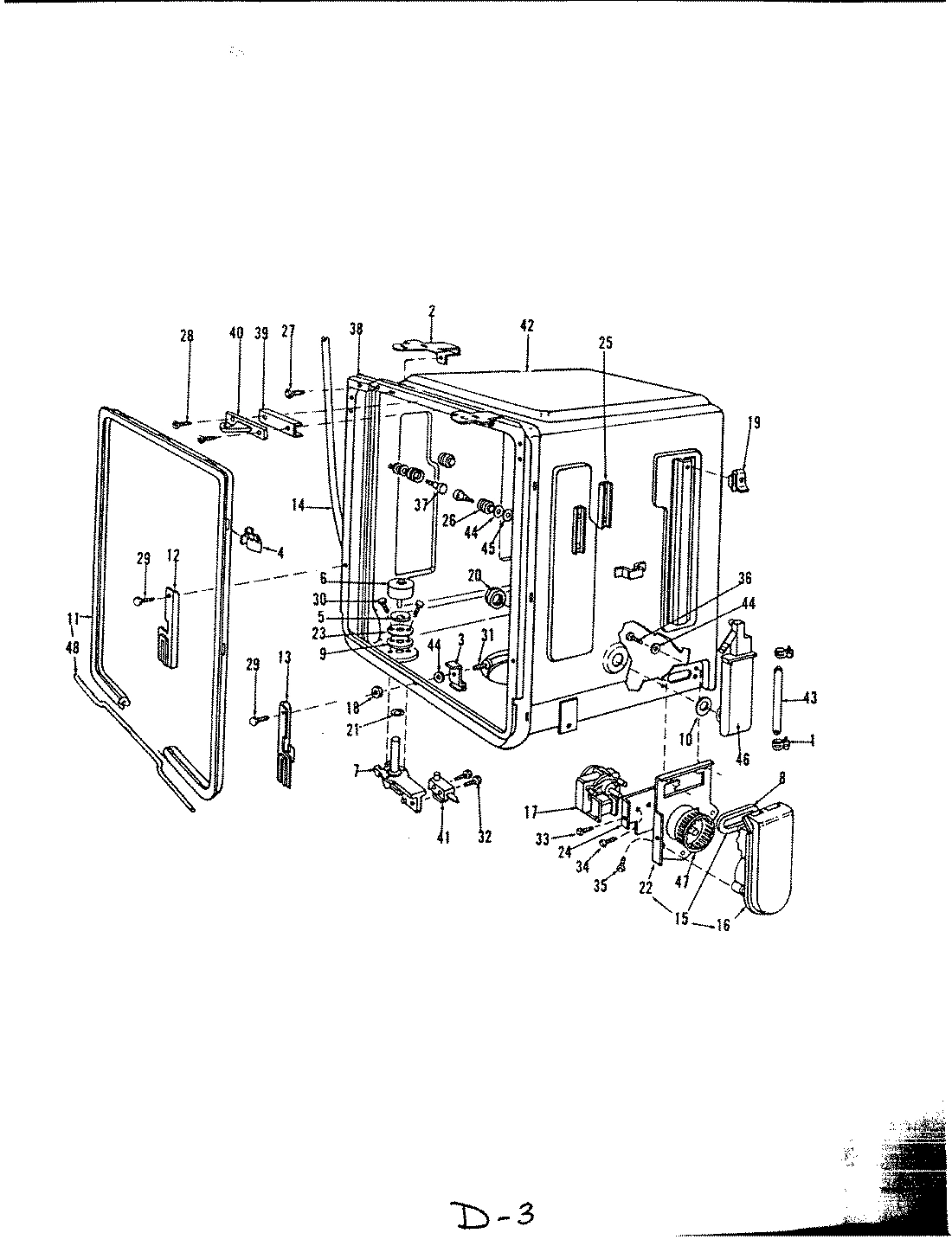

07 - TUB

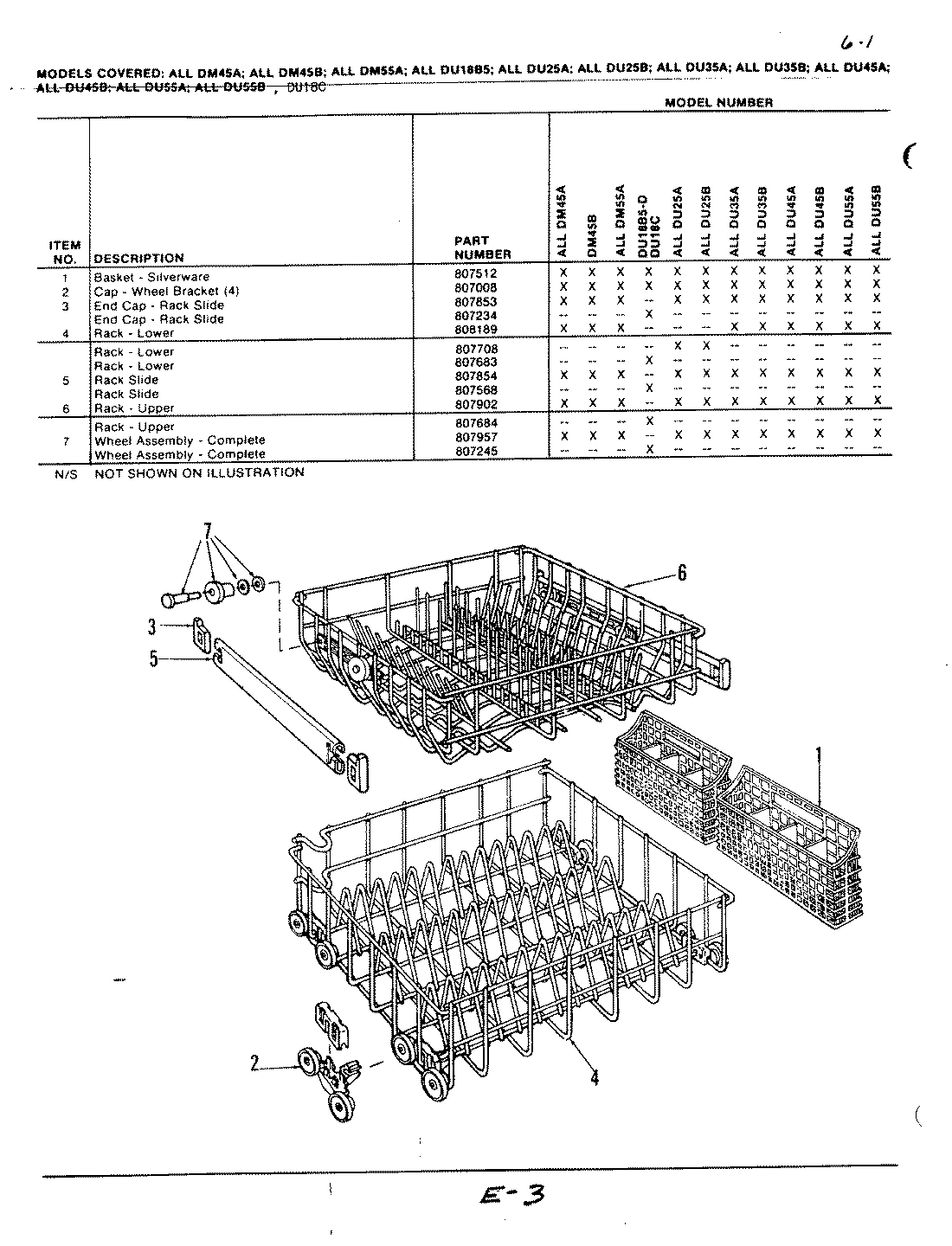

06 - RACKS
Common parts from model Whirlpool DU25B- DISHWASHER
1
PANEL WPL 807257 Contact Us For Availability
1
TRIGGER WPL 806564 Contact Us For Availability
1
TERMINAL BLOCK WPL 807486 Contact Us For Availability
1
CLAMP WPL 807813 Contact Us For Availability
1
SILVRWR BASKET WPL 807512 Contact Us For Availability
2
SWITCH BRACKET WPL 806594 Contact Us For Availability
2
LH ARM WPL 805682 Contact Us For Availability
2
BRACKET WPL 806569 Contact Us For Availability
2
REAR BRACE WPL 807852 Contact Us For Availability
2
MACERATOR BLADE WPL 808075 Contact Us For Availability
2
CLIP WPL 808289 Contact Us For Availability
2
WHEEL ASM WPL 807008 Contact Us For Availability
3
PUSH BUTTON WPL 807091 Contact Us For Availability
3
RH ARM WPL 805681 Contact Us For Availability
3
BUSHING WPL 805626 Contact Us For Availability
3
BRACKET WPL 807849 Contact Us For Availability
3
CLAMP WPL 806090 Contact Us For Availability
3
CLIP WPL 808115 Contact Us For Availability
3
END CAP WPL 807853 Contact Us For Availability
4
CIRCUIT BOARD WPL 808168 Contact Us For Availability
4
BAFFLE SEAL WPL 808331 Contact Us For Availability
4
CAM WPL 806566 Contact Us For Availability
4
MTG BRACKET WPL 808340 Contact Us For Availability
4
CLAMP WPL 805495 Contact Us For Availability
4
CLIP KIT (TUB GASKET) WPL 805763 Contact Us For Availability
4
RACK KIT WPL 807708 Contact Us For Availability
5
BRACKET WPL 806756 Contact Us For Availability
5
DETRG CUP KIT WPL 807261 Contact Us For Availability
5
COLLAR WPL 804149 Contact Us For Availability
5
RACK SLIDE WPL 807854 Contact Us For Availability
6
DIVIDER WPL 807140 Contact Us For Availability
6
DISPENSER WPL 806753 Contact Us For Availability
6
NUT WPL 806568 Contact Us For Availability
6
CLAMP WPL 806723 Contact Us For Availability
6
CLAMP RING WPL 807712 Contact Us For Availability
6
FLOAT WPL 804630 Contact Us For Availability
6
UPPER RACK WPL 807902 Contact Us For Availability
7
LH END CAP WPL 806402 Contact Us For Availability
7
ARM BRACKET WPL 806717 Contact Us For Availability
7
O-RING WPL 806647 Contact Us For Availability
7
CLIP WPL 808339 Contact Us For Availability
7
DISTRIBUTOR WPL 808183 Contact Us For Availability
7
FLOAT ASM WPL 807677 Contact Us For Availability
7
WHEEL ASM WPL 807957 Contact Us For Availability
8
RH END CAP WPL 806401 Contact Us For Availability
8
CLAMP WPL 805340 Contact Us For Availability
8
O RING WPL 808210 Contact Us For Availability
8
CONNECTOR WPL 808354 Contact Us For Availability
8
ELBOW & TUBE WPL 808185 Contact Us For Availability
8
GASKET WPL 806797 Contact Us For Availability
9
CLAMP WPL 807212 Contact Us For Availability
9
TIMER GUARD WPL 806972 Contact Us For Availability
9
SWITCH GUARD WPL 808398 Contact Us For Availability
9
ROLLPIN WPL 804734 Contact Us For Availability
9
CONNECTOR WPL 808356 Contact Us For Availability
9
SHIM GAUGE WPL 807077 Contact Us For Availability
9
GASKET WPL 808063 Contact Us For Availability
10
HOUSING WPL 807921 Contact Us For Availability
10
SWITCH COVER WPL 807450 Contact Us For Availability
10
JUNC BOX COVER WPL 808341 Contact Us For Availability
10
GASKET WPL 808184 Contact Us For Availability
10
WASHER WPL 803573 Contact Us For Availability
11
RH TIMER HOUSNG WPL 808231 Contact Us For Availability
11
OUTER PANEL WPL 807262 Contact Us For Availability
11
SCREW WPL 808209 Contact Us For Availability
11
FITTING WPL 808337 Contact Us For Availability
11
GASKET WPL 807709 Contact Us For Availability
11
DOOR GASKET WPL 808345 Contact Us For Availability
12
LH TIMER HOUSNG WPL 808232 Contact Us For Availability
12
INNER PANEL WPL 807191 Contact Us For Availability
12
SHAFT KIT WPL 806674 Contact Us For Availability
12
FITTING RETAINR WPL 808336 Contact Us For Availability
12
PUMP GASKET WPL 807710 Contact Us For Availability
12
LH GUIDE WPL 807470 Contact Us For Availability
13
TIMER KNOB WPL 807094 Contact Us For Availability
13
FILL PLUG WPL 807673 Contact Us For Availability
13
SPRING WPL 805227 Contact Us For Availability
13
HINGE WPL 807848 Contact Us For Availability
13
GROMMET WPL 806833 Contact Us For Availability
13
RH GUIDE WPL 807471 Contact Us For Availability
14
RED LENS WPL 807096 Contact Us For Availability
14
GROMMET WPL 805631 Contact Us For Availability
14
SPRING WPL 806567 Contact Us For Availability
14
LEVELER WPL 807672 Contact Us For Availability
14
HEATER KIT WPL 806864 Contact Us For Availability
14
DRAIN HOSE WPL 806089 Contact Us For Availability
15
LIGHT ASM WPL 805866 Contact Us For Availability
15
DOOR GUIDE WPL 807449 Contact Us For Availability
15
GASKET WPL 802836 Contact Us For Availability
15
HOSE CONNECTOR WPL 808174 Contact Us For Availability
15
HOUSING WPL 806838 Contact Us For Availability
16
INSERT WPL 807644 Contact Us For Availability
16
INSERT, DOOR PANEL WPL 807645 Contact Us For Availability
16
PANEL WPL 808215 Contact Us For Availability
16
PANEL INSERT WPL 808404 Contact Us For Availability
16
TOE PLATE WPL 806295 Contact Us For Availability
16
PUMPHOUSING KIT WPL 806978 Contact Us For Availability
16
BLOWER HOUSING WPL 806844 Contact Us For Availability
17
CONSOLE TRIM WPL 808211 Contact Us For Availability
17
INSULATOR WPL 806846 Contact Us For Availability
17
TOE PLATE WPL 807850 Contact Us For Availability
17
IMPELLER KIT WPL 808042 Contact Us For Availability
17
BLOWER MOTOR WPL 807389 Contact Us For Availability
18
NUT WPL 803346 Contact Us For Availability
18
CONSOLE PANEL WPL 808399 Contact Us For Availability
18
KNOB WPL 806893 Contact Us For Availability
18
RECEPTACLE WPL 808358 Contact Us For Availability
18
UPPER IMPELLER WPL 808041 Contact Us For Availability
19
SCREW WPL 806943 Contact Us For Availability
19
LATCH ASM WPL 807016 Contact Us For Availability
19
RELAY WPL 805255 Contact Us For Availability
19
LOCKWASHER WPL 804526 Contact Us For Availability
19
CAGE NUT WPL 806291 Contact Us For Availability
20
SCREW WPL 806830 Contact Us For Availability
20
MOTOR WPL 806300 Contact Us For Availability
21
SPRING PAD WPL 805884 Contact Us For Availability
21
NUT WPL 806834 Contact Us For Availability
21
O RING WPL 807759 Contact Us For Availability
22
PLUNGER WPL 806757 Contact Us For Availability
22
NUT WPL 804527 Contact Us For Availability
22
PLATE WPL 806794 Contact Us For Availability
23
RIVET WPL 808330 Contact Us For Availability
23
NUT WPL 808176 Contact Us For Availability
23
PLATE, FLOAT TUBE WPL 808064 Contact Us For Availability
24
SCREW WPL 807141 Contact Us For Availability
24
SCREW WPL 804672 Contact Us For Availability
24
NUT WPL 804473 Contact Us For Availability
24
NUT WPL 808181 Contact Us For Availability
24
PLATE WPL 806793 Contact Us For Availability
25
SCREW WPL 803051 Contact Us For Availability
25
SCREW WPL 807001 Contact Us For Availability
25
O RING WPL 806521 Contact Us For Availability
25
TAPPING PLATE WPL 807038 Contact Us For Availability
26
SCREW WPL 805324 Contact Us For Availability
26
PUMP PLATE WPL 807884 Contact Us For Availability
26
ROLLER WPL 807180 Contact Us For Availability
27
SPACER WPL 805323 Contact Us For Availability
27
SCREW WPL 808368 Contact Us For Availability
27
PUMP HOUSING WPL 807711 Contact Us For Availability
27
SCREW WPL 807036 Contact Us For Availability
28
SPLASH PAN WPL 807425 Contact Us For Availability
28
SCREW WPL 806889 Contact Us For Availability
28
SCREW WPL 806353 Contact Us For Availability
29
SCREW WPL 806810 Contact Us For Availability
29
SCREW WPL 807950 Contact Us For Availability
29
SCREW WPL 806539 Contact Us For Availability
30
SCREW WPL 803416 Contact Us For Availability
30
SWITCH WPL 806961 Contact Us For Availability
30
WIRE SHIELD WPL 808013 Contact Us For Availability
30
SCREW WPL 807268 Contact Us For Availability
30
SCREW WPL 806945 Contact Us For Availability
31
TERMINAL WPL 808000 Contact Us For Availability
31
SCREW WPL 803311 Contact Us For Availability
31
SIDE CHANNEL WPL 807851 Contact Us For Availability
31
SCREW WPL 807359 Contact Us For Availability
32
TERMINAL WPL 808334 Contact Us For Availability
32
SCREW WPL 806863 Contact Us For Availability
32
SPEEDNUT WPL 808170 Contact Us For Availability
32
GASKET WPL 803903 Contact Us For Availability
32
BOLT WPL 804594 Contact Us For Availability
33
TERMINAL WPL 808333 Contact Us For Availability
33
SCREW WPL 806967 Contact Us For Availability
33
CHANNEL WPL 806290 Contact Us For Availability
33
SEAL TOOL WPL 803923 Contact Us For Availability
33
SCREW WPL 804164 Contact Us For Availability
34
TIMER WPL 808134 Contact Us For Availability
34
SCREW WPL 806976 Contact Us For Availability
34
HOSE SUPPORT WPL 808342 Contact Us For Availability
34
SHROUD WPL 806267 Contact Us For Availability
34
SCREW WPL 803003 Contact Us For Availability
35
SCREW WPL 807501 Contact Us For Availability
35
TEENUT WPL 807671 Contact Us For Availability
35
SLINGER WPL D800062 Contact Us For Availability
36
SCREW WPL 806894 Contact Us For Availability
36
GROUND TERMINAL WPL 807213 Contact Us For Availability
36
LWR SPRAY ARM WPL 805577 Contact Us For Availability
36
SCREW WPL 806901 Contact Us For Availability
37
SCREW WPL 804895 Contact Us For Availability
37
INLET VALVE WPL 808467 Contact Us For Availability
37
UPR SPRAY ARM WPL 808182 Contact Us For Availability
37
SCREW WPL 807181 Contact Us For Availability
38
DOOR SPRING WPL 805683 Contact Us For Availability
38
VALVE KIT WPL 808360 Contact Us For Availability
38
TOWER BASE WPL 808178 Contact Us For Availability
38
CLIP SHIM WPL 808366 Contact Us For Availability
39
SWITCH WPL 807043 Contact Us For Availability
39
GASKET WPL 806100 Contact Us For Availability
39
TOWER SECTION WPL 808179 Contact Us For Availability
39
STRIKE SHIM WPL 807073 Contact Us For Availability
40
FLOW WASHER WPL 807609 Contact Us For Availability
40
TOWER TIP WPL 808180 Contact Us For Availability
40
STRIKE WPL 807015 Contact Us For Availability
41
THERMOSTAT WPL 808280 Contact Us For Availability
41
FLOAT SWITCH WPL 807680 Contact Us For Availability
42
BOTTOM TRIM WPL 808027 Contact Us For Availability
42
TUB WPL 808187 Contact Us For Availability
43
LH TRIM WPL 808029 Contact Us For Availability
43
INLET TUBE WPL 807891 Contact Us For Availability
44
RH TRIM WPL 808028 Contact Us For Availability
44
WASHER WPL 803367 Contact Us For Availability
45
ACC PNL TRIM WPL 808346 Contact Us For Availability
45
SEALER WPL 805776 Contact Us For Availability
46
DOOR TRIM WPL 807347 Contact Us For Availability
46
WATER INLET WPL 806470 Contact Us For Availability
47
DOOR TRIM WPL 808026 Contact Us For Availability
47
BLOWER WHEEL WPL 806230 Contact Us For Availability
48
VENT BAFFLE WPL 808329 Contact Us For Availability
48
WIRE,GASKT JUNC WPL 808344 Contact Us For Availability
49
VENT BAFFLE WPL 808369 Contact Us For Availability
× ![]()
Login and Registration Form
