Model LG DU-42PY10X – Common Parts & Diagrams
Diagram 0

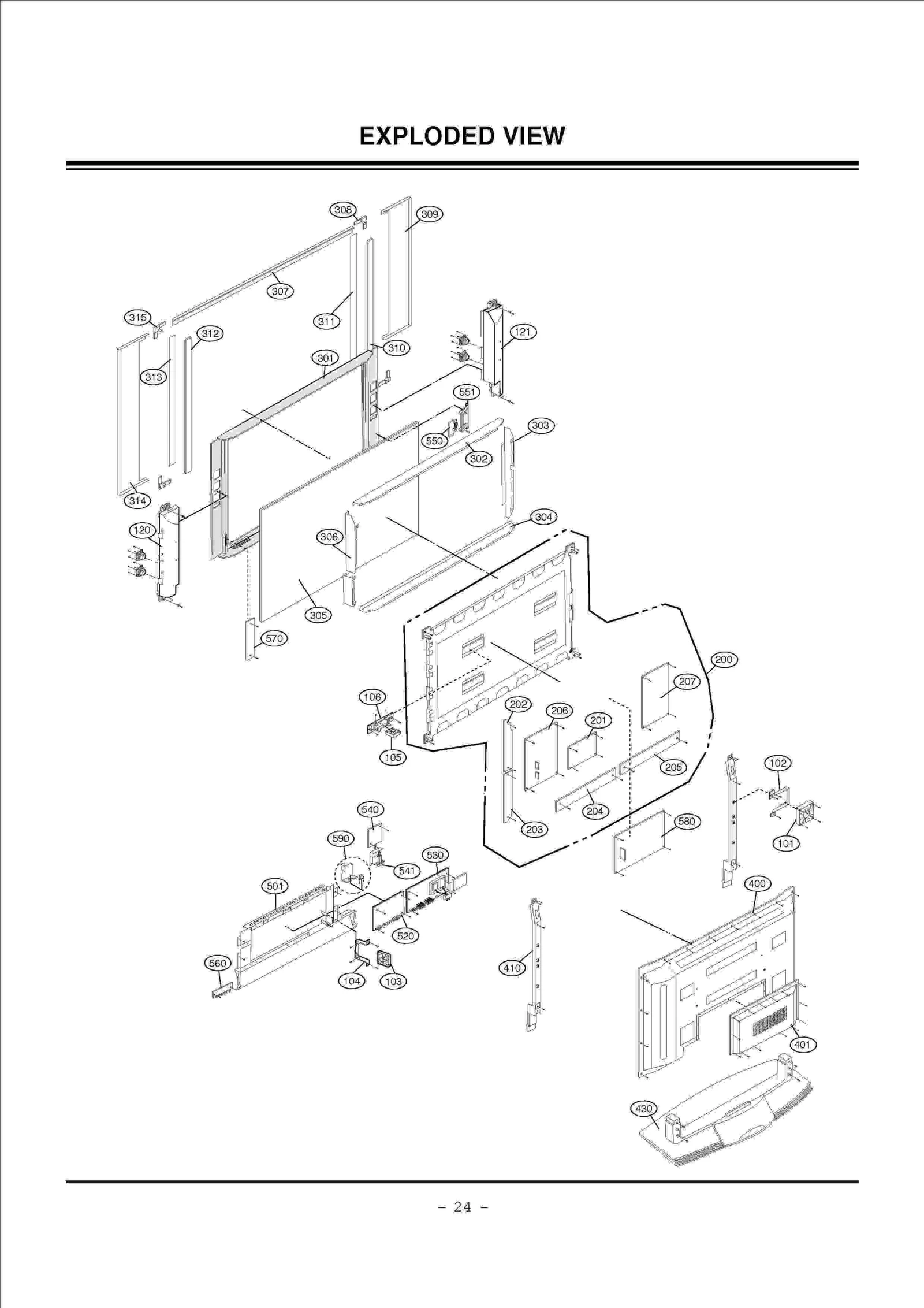

Diagram 1
Common parts from model LG DU-42PY10X
101
FAN,DC LGE 5900V06008B Contact Us For Availability
102
SUPPORTER LGE 4980V01135A Contact Us For Availability
103
FAN,DC LGE 5900V06008A Contact Us For Availability
104
SUPPORTER LGE 4980V00B81A Contact Us For Availability
120
SPEAKER ASSEMBLY LGE 6401VD0013C Contact Us For Availability
121
SPEAKER ASSEMBLY LGE 6401VD0013D Contact Us For Availability
200
PDP NO FILTER LGE 6348Q-E042D Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DI LGE 6871QCH038A Contact Us For Availability
202
PWB(PCB) ASSEMBLY,DI LGE 6871QDH068A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QDH069A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QRH043A Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QYH030A Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DI LGE 6871QZH034A Contact Us For Availability
301
LGE 3091V00649B LGE 3091V00649B Contact Us For Availability
302
LGE 4980V01063A LGE 4980V01063A Contact Us For Availability
303
LGE 4980V01066A LGE 4980V01066A Contact Us For Availability
304
LGE 4980V01064A LGE 4980V01064A Contact Us For Availability
305
FILTER(MECH) LGE 5230V00021C Contact Us For Availability
306
LGE 4980V01065A LGE 4980V01065A Contact Us For Availability
307
LGE 3210V00249A LGE 3210V00249A Contact Us For Availability
308
FIXER LGE 4972V00112A Contact Us For Availability
309
BRACKET ASSEMBLY LGE 4811V00109A Contact Us For Availability
310
LGE 3210V00252A LGE 3210V00252A Contact Us For Availability
311
WINDOW LGE 3790V00744D Contact Us For Availability
312
LGE 3210V00251A LGE 3210V00251A Contact Us For Availability
313
LGE 3790V00743C LGE 3790V00743C Contact Us For Availability
314
BRACKET ASSEMBLY LGE 4811V00108A Contact Us For Availability
315
FIXER LGE 4972V00111A Contact Us For Availability
400
BACK COVER ASSEMBLY LGE 3809V00448A Contact Us For Availability
401
PLATE LGE 3300V00407A Contact Us For Availability
410
SUPPORTER LGE 4980V01062A Contact Us For Availability
430
BOARD ASSEMBLY LGE 3501V00184A Contact Us For Availability
501
LGE 3301V00027F LGE 3301V00027F Contact Us For Availability
520
PWB(PCB) ASSEMBLY,MA LGE 6871VMMT13A Contact Us For Availability
541
BUTTON LGE 5020V00918A Contact Us For Availability
550
PWB(PCB) ASSEMBLY,SU LGE 6871VSMF13A Contact Us For Availability
551
BRACKET ASSEMBLY LGE 4811V00111E Contact Us For Availability
560
PWB(PCB) ASSEMBLY,SU LGE 6871VSMF55A Contact Us For Availability
570
PWB(PCB) ASSEMBLY,SU LGE 6871VSMF19A Contact Us For Availability
580
BOARD ASSEMBLY LGE 3501V00181B Contact Us For Availability
590
CHASSIS ASSEMBLY LGE 3141VSN932A Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00116Y Contact Us For Availability
A3
POWER CORD LGE 6410VUH005A Contact Us For Availability
A4
CABLE ASSEMBLY LGE 6851V00019A Contact Us For Availability
A5
CABLE ASSEMBLY LGE 6851V00023B Contact Us For Availability
A7
BRACKET LGE 4810V00509A Contact Us For Availability
AR107
Resistor,Array LGE 0RRZVTA001C Contact Us For Availability
AR301
LGE 0RRZVTA001B LGE 0RRZVTA001B Contact Us For Availability
AR914
RESISTOR,ARRAY LGE 0RRZVTA001D Contact Us For Availability
C104
LGE 0CE1059K538 LGE 0CE1059K538 Contact Us For Availability
C315
Capacitor,AL,Chip LGE 0CE476VK6DC Contact Us For Availability
C336
Capacitor,AL,Chip LGE 0CE225VK6DC Contact Us For Availability
C471
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C508
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C532
Capacitor,AL,Chip LGE 0CE335SK6DC Contact Us For Availability
C537
Capacitor,AL,Chip LGE 0CE477SF6DC Contact Us For Availability
C540
CAPACITOR,FIXED CERA LGE 0CK823DK56A Contact Us For Availability
C613
Capacitor,Ceramic,Chip LGE 0CK684DF56A Contact Us For Availability
C616
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C620
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C802
Capacitor,AL,Chip LGE 0CE106SH6DC Contact Us For Availability
C814
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C942
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C1001
Capacitor,AL,Chip LGE 0CE226SH6DC Contact Us For Availability
C1003
Capacitor,TA,Niobium LGE 0CS335EFKDC Contact Us For Availability
C1130
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C1242
Capacitor,AL,Radial LGE 0CE108BJ618 Contact Us For Availability
C1244
Capacitor,Film,DIP LGE 0CF4741L438 Contact Us For Availability
CH1100
Inductor,Wire Wound,Chip LGE 6140VB0021A Contact Us For Availability
D201
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D204
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
DL301
LED LGE 0DL233309AC Contact Us For Availability
F801
FUSE,SLOW BLOW LGE 0FS1002B53K Contact Us For Availability
FL1001
Filter,LCR LGE 6200VJT001A Contact Us For Availability
IC100
IC,Video Processors LGE 0IMMRNE002A Contact Us For Availability
IC100
IC,MICRO CONTROLLER LGE 0IMCRBM003A Contact Us For Availability
IC101
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC101
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC102
FILTER(CIRC),BAND PA LGE 6200C000010 Contact Us For Availability
IC102
IC,MITSUBISHI LGE 0IMI623200B Contact Us For Availability
IC102
IC LGE 0IPH741400E Contact Us For Availability
IC103
IC,Gate LGE 0IMCRPH015A Contact Us For Availability
IC104
LED Display Module LGE 6301V00003A Contact Us For Availability
IC105
FILTER(CIRC),BAND PA LGE 6200C000009 Contact Us For Availability
IC105
IC,POWER MANAGEMENT LGE 0IMCRFA015A Contact Us For Availability
IC200
IC,SDRAM LGE 0IMMRHY038C Contact Us For Availability
IC200
IC,MICRO CONTROLLER LGE 0IMCRMN027B Contact Us For Availability
IC201
IC,Audio Amplifier LGE 0IMCRNL001A Contact Us For Availability
IC202
IC,MICRO CONTROLLER LGE 0IMCRTI028C Contact Us For Availability
IC203
LGE 0IMMRAM006B LGE 0IMMRAM006B Contact Us For Availability
IC204
IC,FPGA LGE 0IMCRXL004A Contact Us For Availability
IC205
IC,Hub LGE 0IMCRPH026A Contact Us For Availability
IC205
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC206
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC207
IC,LDO Voltage Regulator LGE 0IMX232162A Contact Us For Availability
IC300
IC,CUSTOMIZED LGE 0ICTMLG009A Contact Us For Availability
IC301
IC,TOKO LGE 0ITK118100B Contact Us For Availability
IC304
LGE 0ICTMLG014B LGE 0ICTMLG014B Contact Us For Availability
IC400
IC,CUSTOMIZED LGE 0ICTMLG013A Contact Us For Availability
IC400
LGE 0IMCRSO008A LGE 0IMCRSO008A Contact Us For Availability
IC401
IC,Multiplexer LGE 0IMO140530D Contact Us For Availability
IC402
LGE 0IPH740800M LGE 0IPH740800M Contact Us For Availability
IC403
IC,SDRAM LGE 0IMMRSS041D Contact Us For Availability
IC403
IC,EEPROM LGE 0IAL242110A Contact Us For Availability
IC404
LGE 0IZZVA3001A LGE 0IZZVA3001A Contact Us For Availability
IC405
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC405
IC,Buffer LGE 0IMCRCY002A Contact Us For Availability
IC408
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCRAD002A Contact Us For Availability
IC502
LGE 0IMCRS5005A LGE 0IMCRS5005A Contact Us For Availability
IC502
Filter,Saw LGE 6200QL3002E Contact Us For Availability
IC504
IC,Video Amplifier LGE 0IMCRTI035A Contact Us For Availability
IC505
FILTER(CIRC),BAND PA LGE 6200VKR002A Contact Us For Availability
IC506
IC,MICRO CONTROLLER LGE 0IMCRFA004A Contact Us For Availability
IC508
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC508
IC,MEMORIES LGE 0IMMRAL014B Contact Us For Availability
IC510
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
IC600
IC,LINEAR LGE 0ILNRMN005A Contact Us For Availability
IC701
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC702
IC,CUSTOMIZED LGE 0ICTMLG018A Contact Us For Availability
IC704
IC,PHILIPS LGE 0IPH827150A Contact Us For Availability
IC800
IC,MICRO CONTROLLER LGE 0IMCRFA013A Contact Us For Availability
IC801
IC,Multiplexer LGE 0ITO741570C Contact Us For Availability
IC802
IC,CRYSTAL SEMICONDU LGE 0ICB841500B Contact Us For Availability
IC803
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC804
IC,OP Amplifier LGE 0IMO330780B Contact Us For Availability
IC901
IC,Transceiver LGE 0ICTMLG017A Contact Us For Availability
IC902
IC,Analog Switch LGE 0IMCRLT002A Contact Us For Availability
IC905
IC,POWER MANAGEMENT LGE 0IMCRSJ001B Contact Us For Availability
IC1001
IC,Microcontrollers LGE 0IMCRMT003A Contact Us For Availability
IC1002
IC,Multiplexer LGE 0IMO744053B Contact Us For Availability
IC1003
IC,Comparator LGE 0IPMGNS026A Contact Us For Availability
IC1004
IC,Microcontrollers LGE 0IMCRMP006A Contact Us For Availability
IC1005
IC,Microcontrollers LGE 0IMCRMP007A Contact Us For Availability
IC1100
LGE 0IMCRTI025A LGE 0IMCRTI025A Contact Us For Availability
IC1101
Diode,TVS LGE 0DRSE00018A Contact Us For Availability
IC1202
IC,POWER MANAGEMENT LGE 0IPMGKE032A Contact Us For Availability
IC1205
IC,Comparator LGE 0IDS162100B Contact Us For Availability
IC1207
IC,MICRO CONTROLLER LGE 0IMCRSJ001A Contact Us For Availability
J800
JACK TOTX179 TOSHIBA OPT LGE 6612BBBHN4A Contact Us For Availability
J802
JACK,DIN LGE 6612BBBHN4B Contact Us For Availability
JK100
JACK,RCA LGE 6612VJH020B Contact Us For Availability
JK103
JACK ASSEMBLY LGE 6613V00026A Contact Us For Availability
JK200
JACK,RCA LGE 6612VJH019B Contact Us For Availability
JK201
JACK,PHONE LGE 380-068E Contact Us For Availability
JK400
CONNECTOR (CIRC),D-SUB LGE 6630VGA001C Contact Us For Availability
JK401
JACK,RCA LGE 6612VJH020C Contact Us For Availability
L222
LGE 6140VB0024A LGE 6140VB0024A Contact Us For Availability
L233
Filter,Bead LGE 6210VC0006A Contact Us For Availability
L314
LGE 6140VR0006A LGE 6140VR0006A Contact Us For Availability
L406
Filter,Bead LGE 6210VC0005A Contact Us For Availability
L801
LGE 6200J000025 LGE 6200J000025 Contact Us For Availability
P201
CONNECTOR (CIRC),D-S LGE 6630VGA004B Contact Us For Availability
P501
JACK,DIN LGE 6612B00015A Contact Us For Availability
P1003
Jack,Phone LGE 6612F00055B Contact Us For Availability
P1100
LGE 6630SD01304 LGE 6630SD01304 Contact Us For Availability
Q100
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q207
TRANSISTOR LGE 0TR102008AA Contact Us For Availability
Q403
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
R801
Resistor,Metal Film LGE 0RKZVTA001L Contact Us For Availability
R1202
RESISTOR,FIXED CARBO LGE 0RD0392A609 Contact Us For Availability
R1218
LGE 0RS0202K607 LGE 0RS0202K607 Contact Us For Availability
SW001
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
TU301
TUNER LGE 6700NFNS04F Contact Us For Availability
TU500
TUNER LGE 6700NC0001B Contact Us For Availability
X100
Oscillator,Crystal LGE 6204B47985L Contact Us For Availability
X100
Crystal LGE 6212AB2015B Contact Us For Availability
X200
CRYSTAL LGE 156-A02M Contact Us For Availability
X400
Crystal LGE 6212AB2015A Contact Us For Availability
X400
OSCILLATOR LGE 6204B60001B Contact Us For Availability
X601
CRYSTAL,STANDARD LGE 6202VDB007B Contact Us For Availability
X900
Crystal LGE 6212AC2001D Contact Us For Availability
X1100
Oscillator,Crystal LGE 6204B47985M Contact Us For Availability
X1101
RESONATOR,CRYSTAL LGE 6212AB2806A Contact Us For Availability
× ![]()
Login and Registration Form
