Model LG DU-42PX12XC – Common Parts & Diagrams

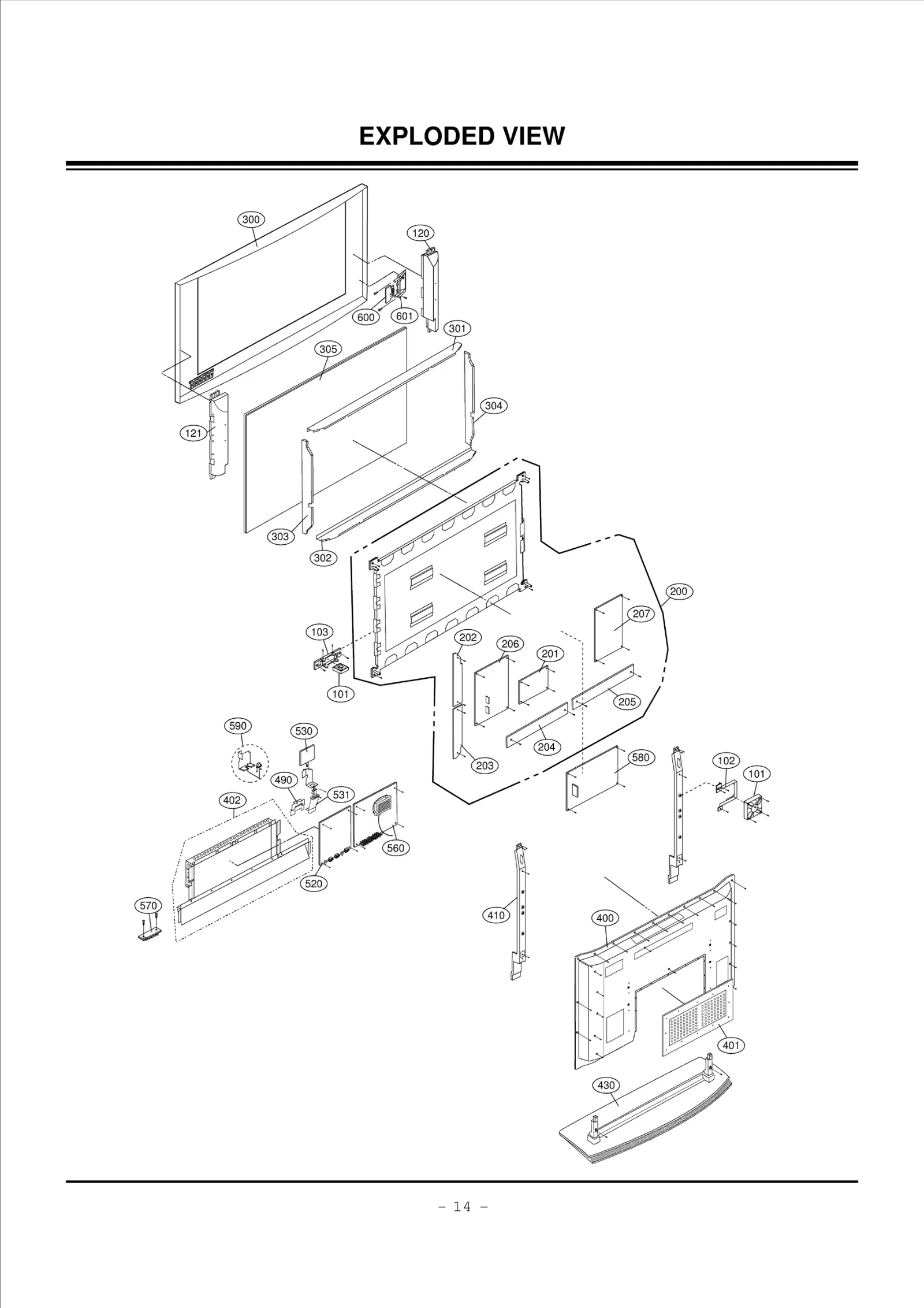

Diagram 0
Diagram 1
Common parts from model LG DU-42PX12XC
101
FAN,DC LGE 5900V06008B Contact Us For Availability
102
SUPPORTER LGE 4980V01135A Contact Us For Availability
103
SUPPORTER LGE 4980V00D43B Contact Us For Availability
120
SPEAKER ASSEMBLY LGE 6401VD0013P Contact Us For Availability
121
SPEAKER ASSEMBLY LGE 6401VD0013N Contact Us For Availability
200
PLASMA DISPLAY PANEL NO FILTER LGE 6348Q-E120N Contact Us For Availability
201
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871QCH060Q Contact Us For Availability
202
PWB(PCB) ASSEMBLY,DI LGE 6871QYH051P Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QDH107P Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QLH037R Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QRH043S Contact Us For Availability
207
PWB(PCB) ASSEMBLY,DI LGE 6871QZH054P Contact Us For Availability
300
CABINET ASSEMBLY LGE 3091V00684X Contact Us For Availability
301
LGE 4980V01067D LGE 4980V01067D Contact Us For Availability
302
SUPPORTER LGE 4980V01068D Contact Us For Availability
303
SUPPORTER LGE 4980V01069D Contact Us For Availability
304
SUPPORTER LGE 4980V01070D Contact Us For Availability
305
FILTER(MECH) LGE 3790V00709C Contact Us For Availability
400
BACK COVER ASSEMBLY LGE 3809V00444F Contact Us For Availability
402
PLATE ASSEMBLY LGE 3301V00023X Contact Us For Availability
410
SUPPORTER LGE 4980V01056A Contact Us For Availability
430
BOARD ASSEMBLY STAND LGE 3501V00171A Contact Us For Availability
490
SUPPORTER LGE 4980V01057A Contact Us For Availability
520
LGE 68719MMT30A LGE 68719MMT30A Contact Us For Availability
530
PWB(PCB) ASSEMBLY,SU LGE 6871VSMZ74A Contact Us For Availability
531
BUTTON LGE 5020V00915A Contact Us For Availability
560
PWB(PCB) ASSEMBLY,SU LGE 6871VSMFA1A Contact Us For Availability
580
BOARD ASSEMBLY LGE 3501V00181B Contact Us For Availability
600
PWB(PCB) ASSEMBLY,SU LGE 6871VSMF13A Contact Us For Availability
601
BRACKET ASSEMBLY LGE 4811V00118B Contact Us For Availability
A1
MANUAL,OWNERS LGE 3828VA0479D Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00116F Contact Us For Availability
A3
POWER CORD LGE 6410VUH005E Contact Us For Availability
A5
CABLE ASSEMBLY LGE 6851V00019A Contact Us For Availability
A7
FIXER LGE 4972V00178A Contact Us For Availability
AR804
RESISTOR,ARRAY LGE 0RRZVTA001D Contact Us For Availability
C1
CONNECTOR ASSEMBLY LGE 6631V12042L Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 387-G03C Contact Us For Availability
C4
CONNECTOR ASSEMBLY LGE 6631V10004Z Contact Us For Availability
C5
CONNECTOR ASSEMBLY LGE 6631V00020F Contact Us For Availability
C6
CONNECTOR ASSEMBLY LGE 6631V39021H Contact Us For Availability
C7
CONNECTOR ASSEMBLY LGE 6631V00045D Contact Us For Availability
C8
CONNECTOR ASSEMBLY LGE 6631V25061D Contact Us For Availability
C9
CONNECTOR ASSEMBLY LGE 6631V25083C Contact Us For Availability
C10
CONNECTOR ASSEMBLY LGE 6631V25084C Contact Us For Availability
C11
CONNECTOR ASSEMBLY LGE 6631V39013Z Contact Us For Availability
C12
CONNECTOR ASSEMBLY LGE 6631V39018B Contact Us For Availability
C13
CONNECTOR (CIRC),WAF LGE 366-036B Contact Us For Availability
C20
CABLE,DVI LGE 6850J00005C Contact Us For Availability
C21
CABLE,COAXIAL LGE 6851V00022A Contact Us For Availability
C22
ADAPTER,RF LGE 6634D00002B Contact Us For Availability
C104
LGE 0CE1059K538 LGE 0CE1059K538 Contact Us For Availability
C202
Capacitor,AL,Radial LGE 0CE4763F618 Contact Us For Availability
C295
Capacitor,AL,Chip LGE 0CE335VK6DC Contact Us For Availability
C315
Capacitor,Ceramic,Chip LGE 0CK684DF56A Contact Us For Availability
C325
Capacitor,AL,Chip LGE 0CE476VK6DC Contact Us For Availability
C336
Capacitor,AL,Chip LGE 0CE225VK6DC Contact Us For Availability
C343
CAPACITOR,FIXED CERA LGE 0CK823DK56A Contact Us For Availability
C349
CAPACITOR,AL.ELECTRO LGE 0CE226SF6DC Contact Us For Availability
C370
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C546
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C739
Capacitor,AL,Chip LGE 0CE477SF6DC Contact Us For Availability
C745
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
C751
CAPACITOR,FIXED ELEC LGE 0CE227VF6DC Contact Us For Availability
C823
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C828
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE106SF6DC Contact Us For Availability
C1226
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C1242
CAPACITOR 1000UF STD 35V M FL LGE 0CE108DJ618 Contact Us For Availability
C1244
Capacitor,Film,DIP LGE 0CF4741L438 Contact Us For Availability
D204
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
D303
DIODE,SWITCHING LGE 0DD226239AA Contact Us For Availability
D702
DIODE EU1ZV, TP (52MM), SANKE LGE 0DD100009AM Contact Us For Availability
DL700
LED LGE 0DL233309AC Contact Us For Availability
F801
FUSE,SLOW BLOW LGE 0FS1002B53K Contact Us For Availability
IC100
IC,MEMORIES LGE 0IMMRNE002B Contact Us For Availability
IC101
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC101
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC102
FILTER(CIRC),BAND PA LGE 6200C000010 Contact Us For Availability
IC103
IC,Microprocessors LGE 0IMCRSS016A Contact Us For Availability
IC104
IC LGE 0IPH741400E Contact Us For Availability
IC105
FILTER(CIRC),BAND PA LGE 6200C000009 Contact Us For Availability
IC107
LGE 6927V1216AH LGE 6927V1216AH Contact Us For Availability
IC108
LGE 6927V1217AH LGE 6927V1217AH Contact Us For Availability
IC112
SOFT WARE LGE 6927V1259AA Contact Us For Availability
IC114
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC200
IC,MICRO CONTROLLER LGE 0IMCRMN027D Contact Us For Availability
IC201
IC,MICRO CONTROLLER LGE 0IMCRNL001C Contact Us For Availability
IC202
IC,CUSTOMIZED LGE 0ICTMLG013A Contact Us For Availability
IC202
IC,MICRO CONTROLLER LGE 0IMCRTI028C Contact Us For Availability
IC203
IC,Buffer LGE 0IMCRCY002A Contact Us For Availability
IC204
IC,MICRO CONTROLLER LGE 0IMCRSJ001A Contact Us For Availability
IC204
IC,ATMEL LGE 0IAL242561B Contact Us For Availability
IC205
IC,FPGA LGE 0IMCRXL004A Contact Us For Availability
IC302
IC,TOKO LGE 0ITK118100B Contact Us For Availability
IC304
IC,Receiver LGE 0ICTMLG014A Contact Us For Availability
IC306
IC,Video Decode LGE 0ILNRMN005B Contact Us For Availability
IC308
IC,A/D Converter LGE 0IPRPAD008B Contact Us For Availability
IC313
FILTER(CIRC),BAND PA LGE 6200VKR002A Contact Us For Availability
IC400
IC,CUSTOMIZED LGE 0ICTMLG009D Contact Us For Availability
IC401
IC,MEMORIES LGE 0IMMRSS041G Contact Us For Availability
IC502
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC600
LGE 0IMCRSO008A LGE 0IMCRSO008A Contact Us For Availability
IC601
IC,Multiplexer LGE 0IMO140530D Contact Us For Availability
IC602
LGE 0IPH740800M LGE 0IPH740800M Contact Us For Availability
IC603
IC,MEMORIES LGE 0IMMRAL014B Contact Us For Availability
IC604
IC,MICRO CONTROLLER LGE 0IMCRFA013A Contact Us For Availability
IC605
IC,CRYSTAL SEMICONDU LGE 0ICB841500B Contact Us For Availability
IC607
IC,Multiplexer LGE 0ITO741570C Contact Us For Availability
IC608
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC609
IC,OP Amplifier LGE 0IMO330780B Contact Us For Availability
IC701
IC,POWER MANAGEMENT LGE 0IPMGKE030A Contact Us For Availability
IC704
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC705
IC,PERIPHERALS LGE 0IPRPNS054A Contact Us For Availability
IC706
IC,POWER MANAGEMENT LGE 0IPMGKE032A Contact Us For Availability
IC800
IC,CUSTOMIZED LGE 0ICTMLG018A Contact Us For Availability
IC801
IC,LDO Voltage Regulator LGE 0IPRPML001A Contact Us For Availability
IC802
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
JK100
JACK,RCA LGE 6612VJH020B Contact Us For Availability
JK102
CONNECTOR (CIRC),D-S LGE 6630VGA004B Contact Us For Availability
JK102
JACK,RCA LGE 6612VJH020C Contact Us For Availability
JK103
JACK ASSEMBLY LGE 6613V00026A Contact Us For Availability
JK200
JACK,RCA LGE 6612VJH019B Contact Us For Availability
JK301
JACK,PHONE LGE 380-068E Contact Us For Availability
JK600
CONNECTOR (CIRC),D-SUB LGE 6630VGA001C Contact Us For Availability
JK601
JACK,DIN LGE 6612BBBHN4D Contact Us For Availability
JK602
JACK,DIN LGE 6612BBBHN4E Contact Us For Availability
L222
LGE 6140VB0024A LGE 6140VB0024A Contact Us For Availability
L608
Filter,Bead LGE 6210VC0005A Contact Us For Availability
L707
Filter,Bead LGE 6210VC0006A Contact Us For Availability
L801
LGE 6200J000025 LGE 6200J000025 Contact Us For Availability
LD201
LED LGE 0DL200000CA Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 366-922L Contact Us For Availability
P102
CONNECTOR (CIRC),WAF LGE 6602T12006M Contact Us For Availability
P201
Connector,Wafer LGE 6602T12002M Contact Us For Availability
P204
Connector,Wafer LGE 366-932C Contact Us For Availability
P501
Connector,Wafer LGE 6602T12007D Contact Us For Availability
P701
Connector,Wafer LGE 366-921L Contact Us For Availability
P704
Connector,Wafer LGE 366-932B Contact Us For Availability
P801
LGE 6630VM01604 LGE 6630VM01604 Contact Us For Availability
P802
CONNECTOR (CIRC),WAF LGE 6630VM01702 Contact Us For Availability
Q119
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q207
TRANSISTOR LGE 0TR102008AA Contact Us For Availability
Q502
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q616
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
R717
LGE 0RD0302A609 LGE 0RD0302A609 Contact Us For Availability
R742
LGE 0RS0202K607 LGE 0RS0202K607 Contact Us For Availability
R802
Resistor,Metal Film LGE 0RKZVTA001L Contact Us For Availability
SW206
SWITCH TACT 4LEAD 160G H4.7 LGE 140-315A Contact Us For Availability
SW800
SWITCH,PUSH LGE 6600VM2006A Contact Us For Availability
TU301
TUNER LGE 6700NFNS04F Contact Us For Availability
TU302
TUNER LGE 6700VNF019E Contact Us For Availability
VR301
Resistor,Array LGE 0RRZVTA001C Contact Us For Availability
X100
Crystal LGE 6212AB2015B Contact Us For Availability
X200
CRYSTAL LGE 156-A02M Contact Us For Availability
X201
OSCILLATOR LGE 6204B60001B Contact Us For Availability
X301
CRYSTAL,STANDARD LGE 6202VDB007B Contact Us For Availability
X600
Crystal LGE 6212AB2015A Contact Us For Availability
ZD501
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
