Model Whirlpool DP450-C DISHWASHER – Common Parts & Diagrams
02 - BODY (DP450,DP450-C)

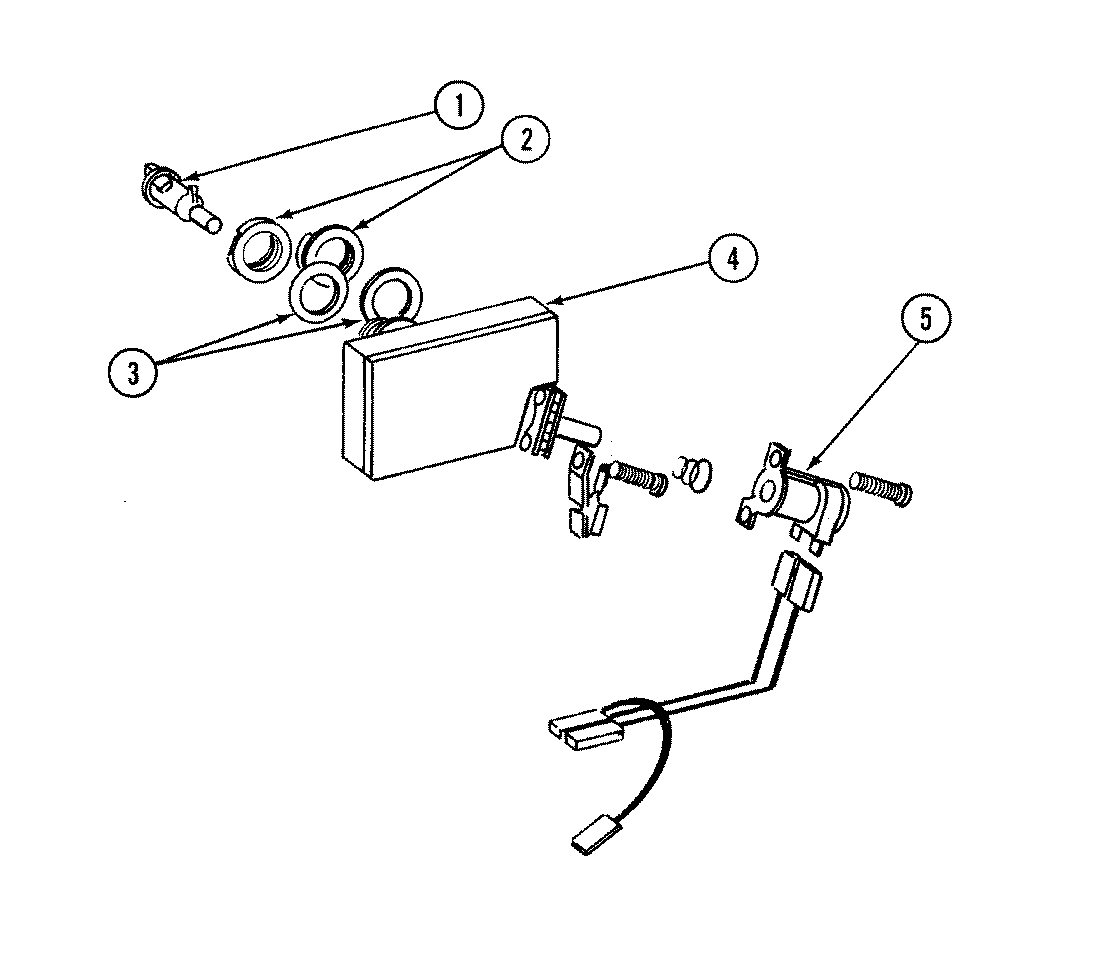

08 - RINSE DISPENSER

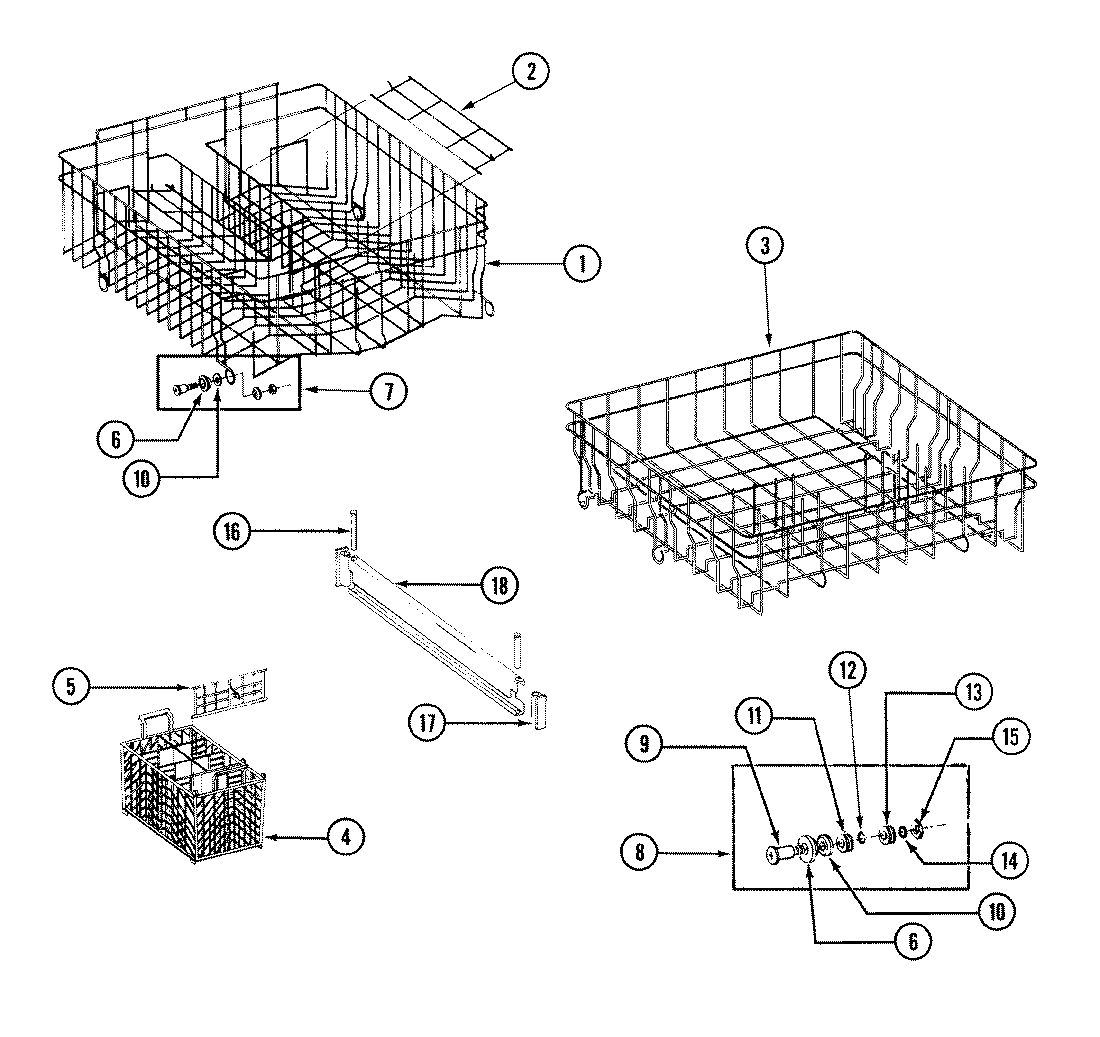

09 - TRACK & RACK ASSEMBLY

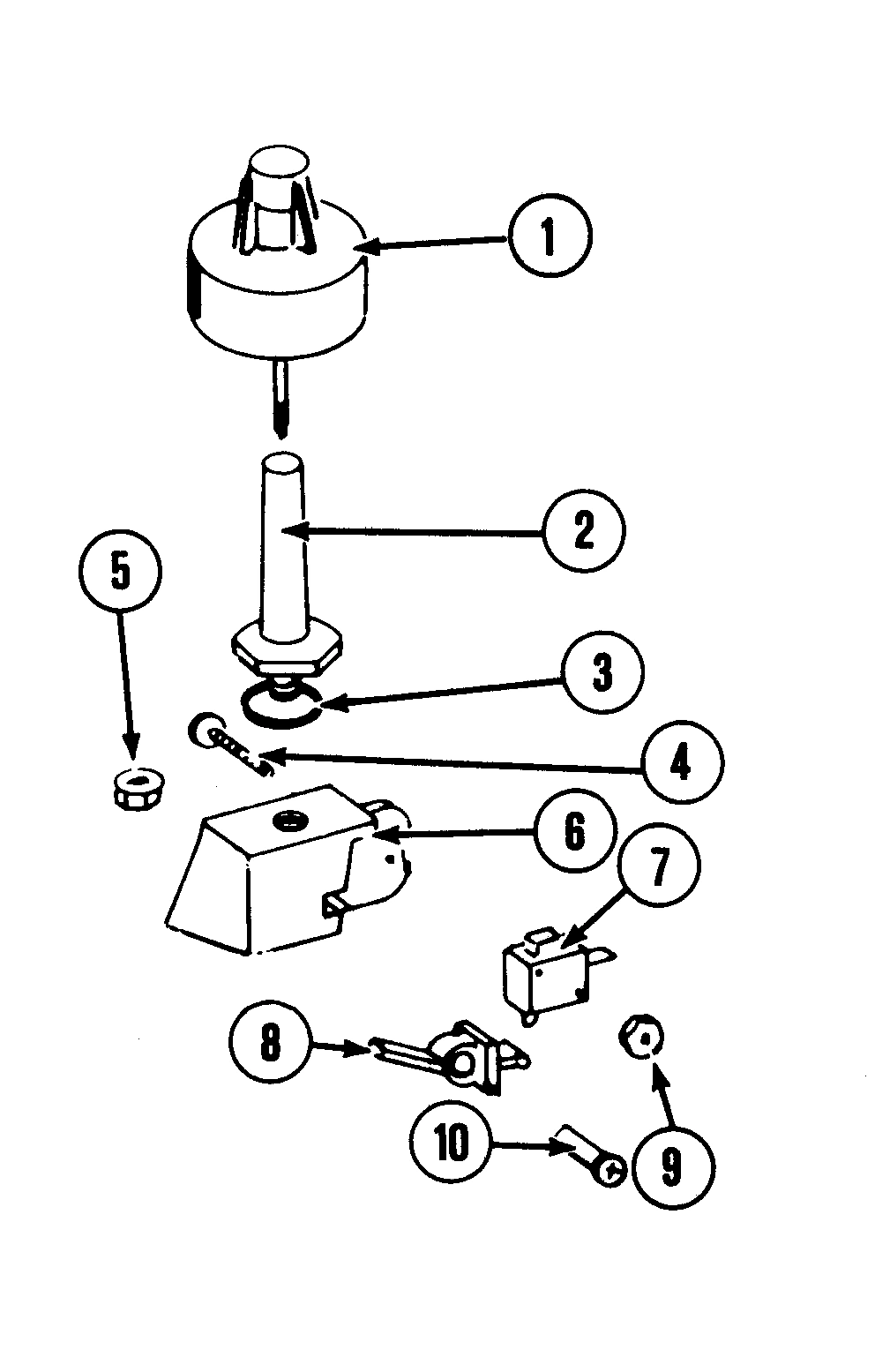

05 - FLOAT ASSEMBLY

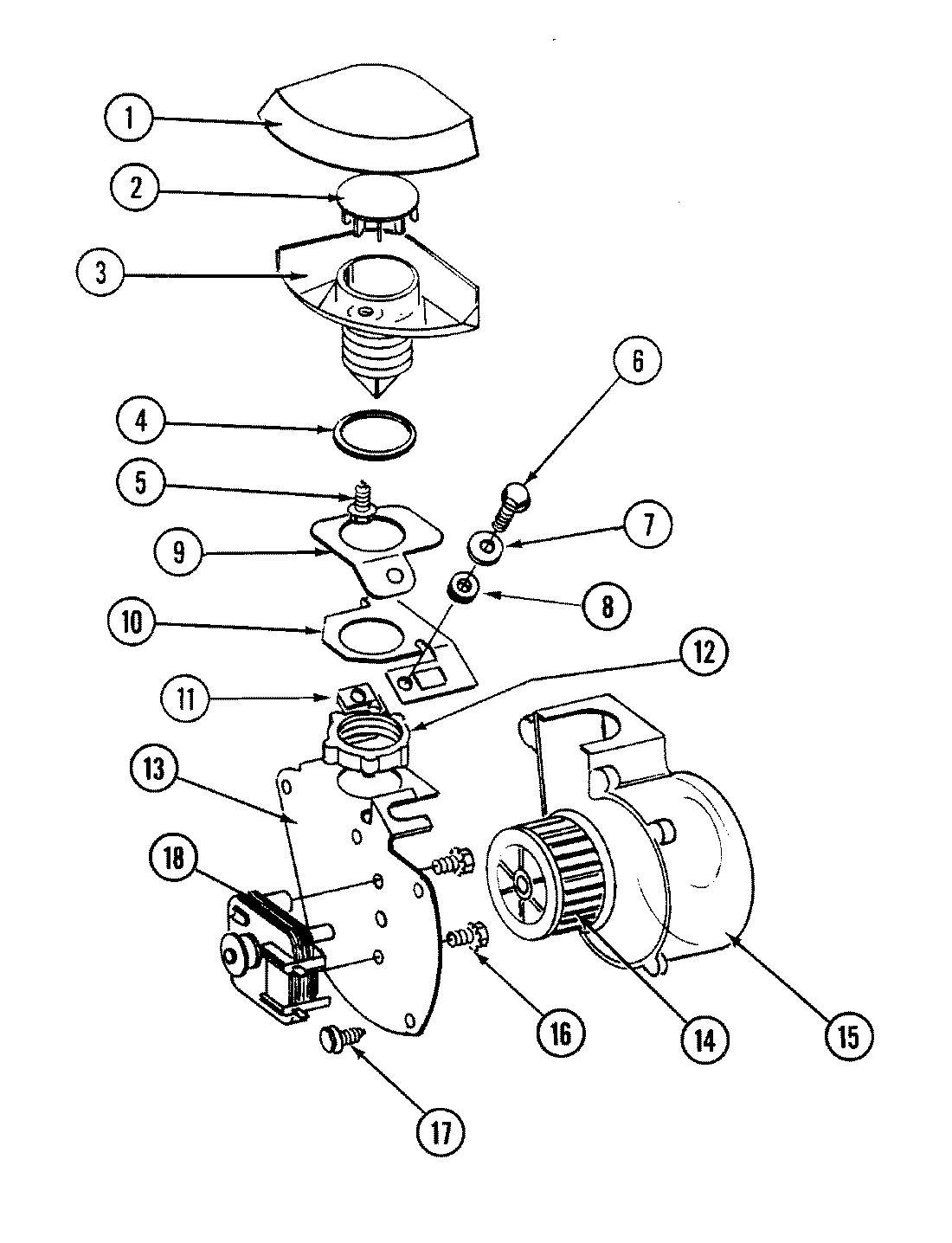

01 - BLOWER ASSEMBLY

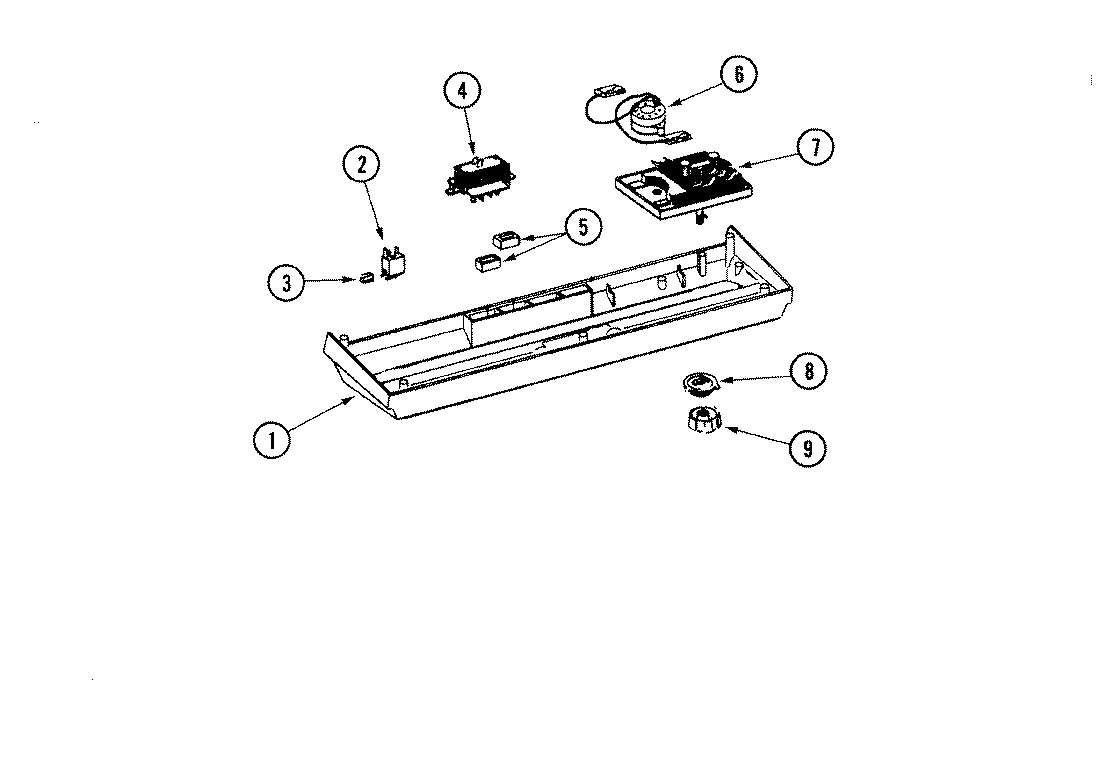

03 - CONTROL PANEL

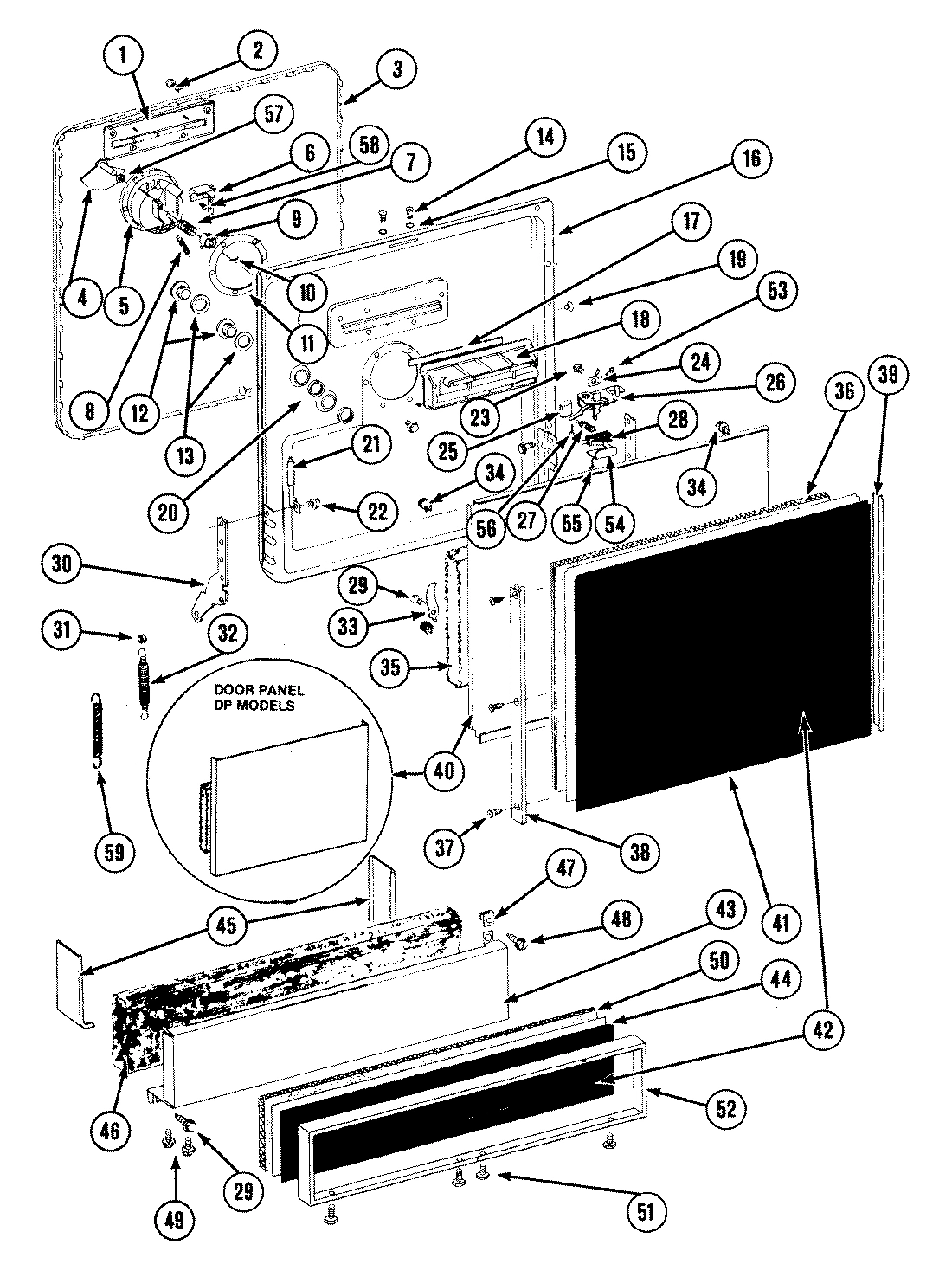

04 - DOOR

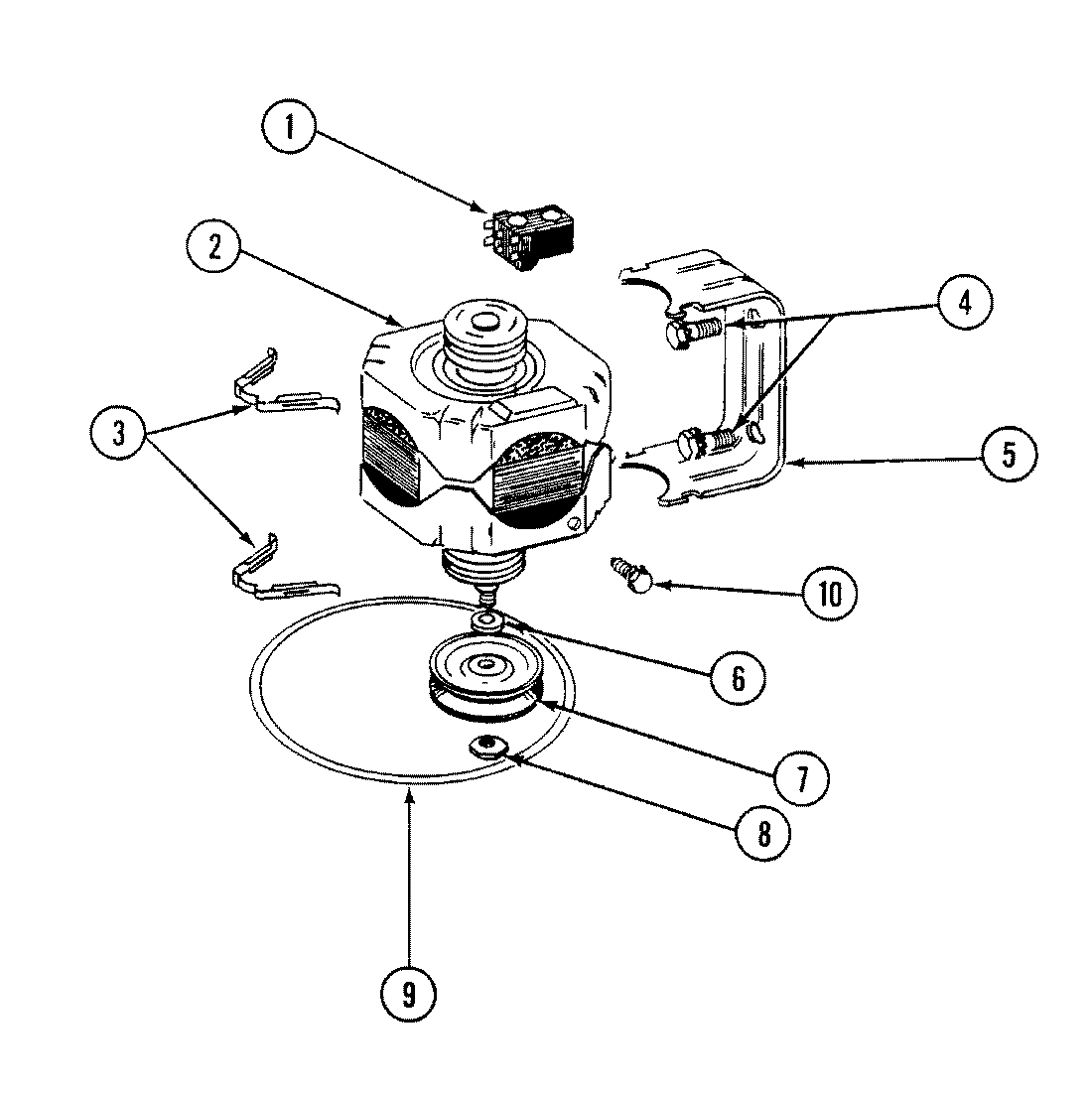

06 - MOTOR ASSEMBLY

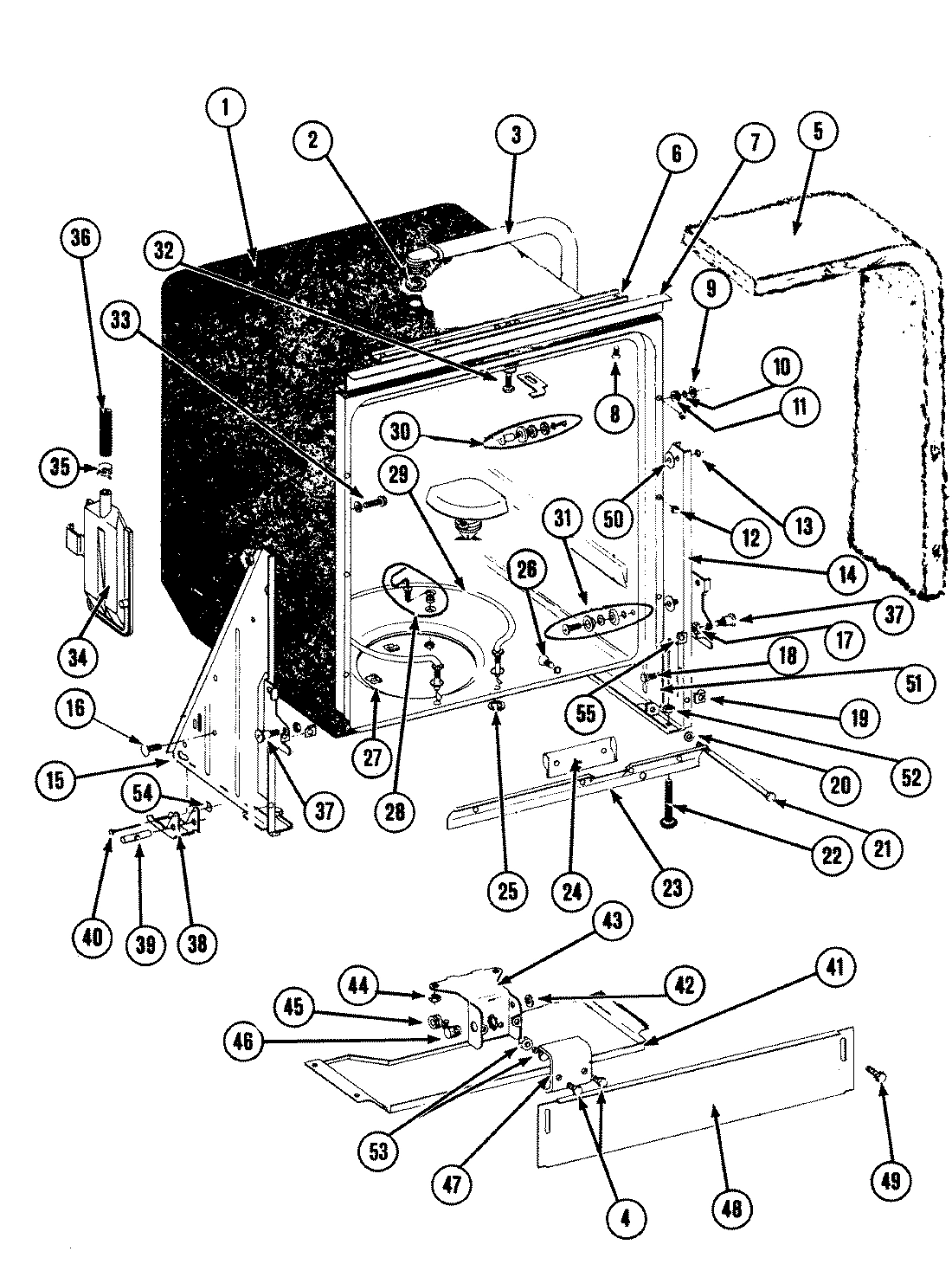

10 - TUB ASSEMBLY

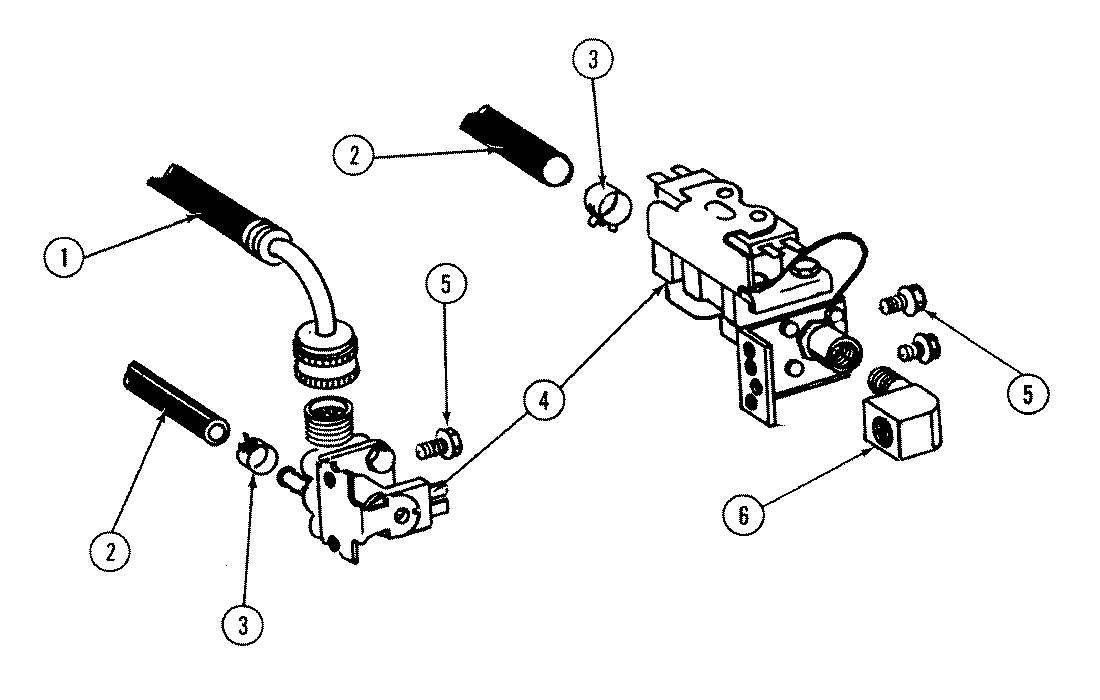

11 - WATER VALVE

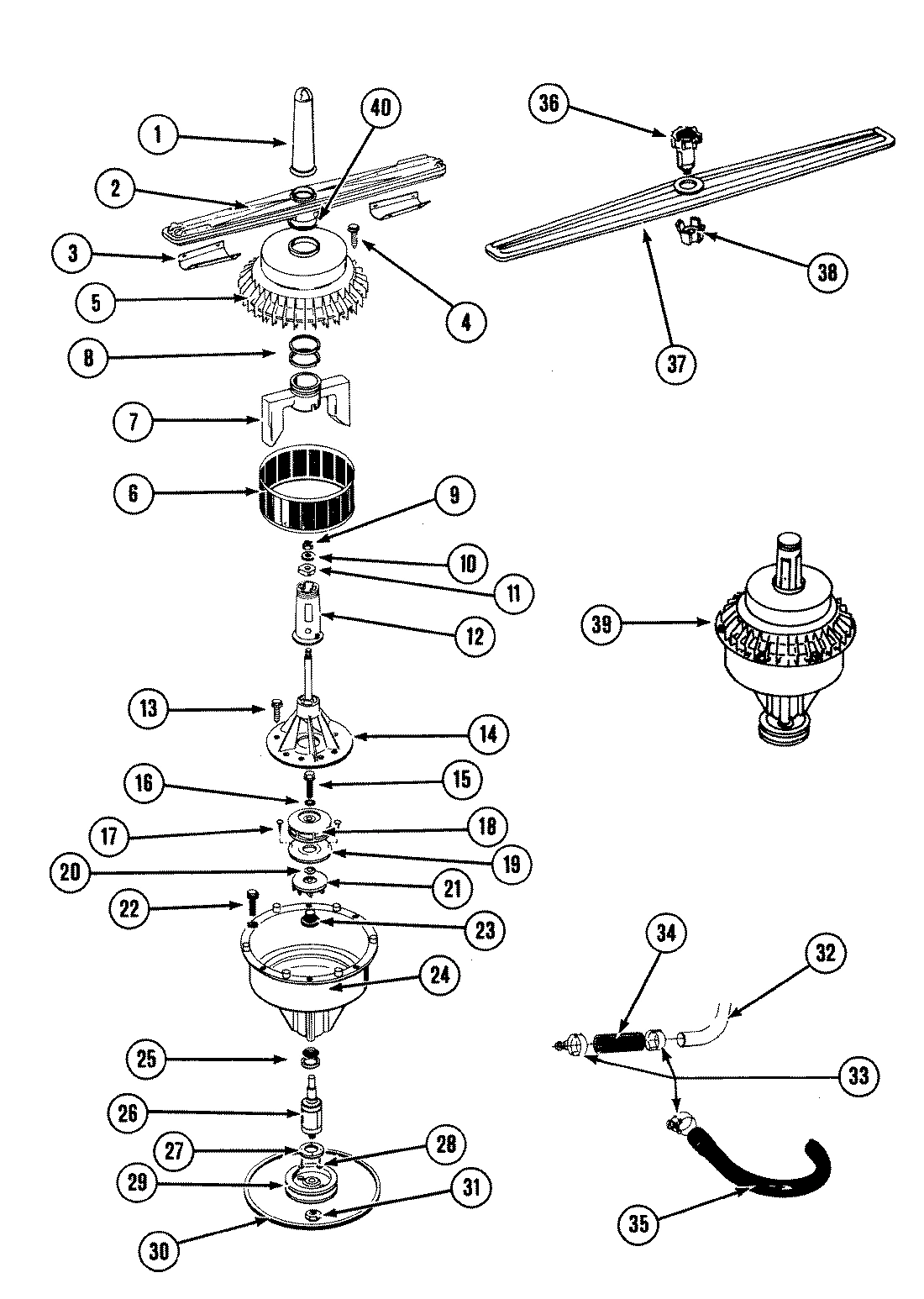

07 - PUMP ASSEMBLY
Common parts from model Whirlpool DP450-C DISHWASHER
1
CABINET WHITE WPL 757020 Contact Us For Availability
1
CABINET ALMOND WPL 757021 Contact Us For Availability
1
CABINET HARV. WHEAT WPL 757022 Contact Us For Availability
1
INLET HOSE WPL 757012 Contact Us For Availability
1
FILLER PLUG WPL Y757364 Contact Us For Availability
1
DISHRACK LOWER WPL 757039 Contact Us For Availability
1
FLOAT WPL Y757024 Contact Us For Availability
1
AIR INLET CAP WPL Y757081 Contact Us For Availability
1
CONTROL PANEL W/INSERTS WPL 757064 Contact Us For Availability
1
COVER, DOOR VENT WPL Y757087 Contact Us For Availability
1
SWITCH MOTOR START WPL 757358 Contact Us For Availability
1
SWITCH MOTOR START WPL 757382 Contact Us For Availability
1
TUB WPL 757034 Contact Us For Availability
1
NOZZLE WPL Y757008 Contact Us For Availability
2
WASHER, DISPENSER VALVE WPL Y757159 Contact Us For Availability
2
RACK-CUP WPL Y757040 Contact Us For Availability
2
GUIDE, FLOAT & WASHER WPL Y757017 Contact Us For Availability
2
BLOWER VALVE WPL Y757091 Contact Us For Availability
2
INDICATOR LIGHT WPL 757047 Contact Us For Availability
2
SCREW WPL 757256 Contact Us For Availability
2
MOTOR WPL Y757044 Contact Us For Availability
2
INJECTOR HOSE WPL Y757077 Contact Us For Availability
2
LOWER SPRAY ARM W/SHIELD (CAN) WPL Y757019 Contact Us For Availability
3
WOOD TOP WPL Y757007 Contact Us For Availability
3
DISHRACK, UPPER WPL Y757038 Contact Us For Availability
3
GASKET WPL Y757250 Contact Us For Availability
3
AIR INLET WPL 757085 Contact Us For Availability
3
INDICATOR LIGHT LENS WPL 757106 Contact Us For Availability
3
RADIANT SHIELD WPL Y757099 Contact Us For Availability
4
SCREW WPL Y757204 Contact Us For Availability
4
RINSE DISPENCER COMPLETE WPL Y757045 Contact Us For Availability
4
SILVERWARE BASKET WPL Y757041 Contact Us For Availability
4
SCREW WPL 757251 Contact Us For Availability
4
GASKET WPL Y757233 Contact Us For Availability
4
SCREW WPL 757234 Contact Us For Availability
4
BUTTON SELECTOR SWITCH WPL 757068 Contact Us For Availability
4
DETERGENT CUP COVER WPL 757257 Contact Us For Availability
4
WASHER ONLY WPL 757266 Contact Us For Availability
4
SCREW WPL 757360 Contact Us For Availability
4
WATER VALVE WPL Y757033 Contact Us For Availability
5
WASHER WPL Y757205 Contact Us For Availability
5
SOLENOID WPL Y757365 Contact Us For Availability
5
COVER, SILVERWARE BASKET WPL Y757092 Contact Us For Availability
5
CONTROL SWITCH BUTTON WPL 757105 Contact Us For Availability
5
DETERGENT CUP WPL Y757060 Contact Us For Availability
5
MOTOR SUPPORT WPL 757361 Contact Us For Availability
5
INSULATION WPL Y757097 Contact Us For Availability
5
SCREW WPL 757248 Contact Us For Availability
5
STRAINER WPL Y757072 Contact Us For Availability
6
POWER CORD WPL Y757018 Contact Us For Availability
6
ROLLER WPL Y757196 Contact Us For Availability
6
FLOAT SWITCH BRACKET WPL Y757252 Contact Us For Availability
6
TIMER MOTOR WPL Y757190 Contact Us For Availability
6
BI-METAL RELEASE ASSEMBLY WPL Y757258 Contact Us For Availability
6
WASHER WPL Y757362 Contact Us For Availability
6
CHANNEL, TOP FLANGE WPL 757315 Contact Us For Availability
6
FILTER SCREEN WPL Y757080 Contact Us For Availability
7
ROLLER KIT WPL Y757057 Contact Us For Availability
7
WASHER & SEAL WPL 757236 Contact Us For Availability
7
TIMER WPL Y757048 Contact Us For Availability
7
CAM & SPRING KIT WPL 757259 Contact Us For Availability
7
MOTOR PULLEY WPL Y757076 Contact Us For Availability
7
FLANGE TOP WPL Y757316 Contact Us For Availability
7
FLUSH ARM & SEALS WPL Y757025 Contact Us For Availability
8
FASTENER WPL Y757207 Contact Us For Availability
8
TRACK SHAFT & SEAL KIT WPL 757006 Contact Us For Availability
8
LEVER, ACTUATOR WPL Y757253 Contact Us For Availability
8
RUBBER WASHER WPL 757237 Contact Us For Availability
8
INDICATOR DIAL FOR TIMER WPL 757089 Contact Us For Availability
8
EXTENSION SPRING WPL Y757260 Contact Us For Availability
8
SCREW AND WASHER WPL 757317 Contact Us For Availability
8
SEAL RING WPL Y757291 Contact Us For Availability
9
FAUCET COUPLER WPL Y757003 Contact Us For Availability
9
SHAFT TRACK ROLLER WPL Y757195 Contact Us For Availability
9
NUT WPL 757254 Contact Us For Availability
9
GASKET WPL 757238 Contact Us For Availability
9
TIMER KNOB W/INSERT WPL 757194 Contact Us For Availability
9
DETERGENT CUP CAM WPL Y757261 Contact Us For Availability
9
NUT WPL Y757292 Contact Us For Availability
10
BUTTON VALVE WPL 757211 Contact Us For Availability
10
DOMED WASHER WPL Y757198 Contact Us For Availability
10
SCREW BUSHNG WPL Y757255 Contact Us For Availability
10
BLOWER SUPPORT BRACKET WPL Y757239 Contact Us For Availability
10
PIN, DETERGENT CUP WPL Y757262 Contact Us For Availability
10
WASHER WPL Y757293 Contact Us For Availability
11
COUPLER GRIP WPL Y757209 Contact Us For Availability
11
WASHER CUSHION WPL Y757199 Contact Us For Availability
11
CUSHION WASHER WPL Y757201 Contact Us For Availability
11
FASTENER WPL 757240 Contact Us For Availability
11
GASKET WPL Y757263 Contact Us For Availability
11
BEARING WPL Y757294 Contact Us For Availability
12
SCREW WPL Y757208 Contact Us For Availability
12
SEALING WASHER WPL 757200 Contact Us For Availability
12
NUT, AIR INLET WPL Y757241 Contact Us For Availability
12
PLUG BUTTON WPL Y757264 Contact Us For Availability
12
SUPPORT FOR WASH ARM WPL Y757071 Contact Us For Availability
13
DISCONNECT LEVER WPL 757212 Contact Us For Availability
13
BLOWER BRACKET WPL 757242 Contact Us For Availability
13
LOCK WASHER WPL Y757319 Contact Us For Availability
13
SCREW WPL 757295 Contact Us For Availability
14
LOCK WASHER WPL Y757202 Contact Us For Availability
14
BLOWER WHEEL WPL Y757028 Contact Us For Availability
14
SCREW & WASHER WPL Y757015 Contact Us For Availability
14
SUPPORT, TUB R.H. WPL 757323 Contact Us For Availability
14
PUMP COVER ASSEMBLY WPL 757296 Contact Us For Availability
15
WASHER WPL Y757210 Contact Us For Availability
15
BLOWER HOUSING WPL Y757243 Contact Us For Availability
15
SUPP0RT, TUB L.H. WPL 757324 Contact Us For Availability
15
SCREW WPL 757297 Contact Us For Availability
16
FAUCET ADAPTOR WPL Y757213 Contact Us For Availability
16
PIN WPL Y757356 Contact Us For Availability
16
SCREW WPL Y757244 Contact Us For Availability
16
DOOR & GASKET WPL Y757042 Contact Us For Availability
16
FASTENER WPL Y757325 Contact Us For Availability
17
WASHER WPL Y757215 Contact Us For Availability
17
RACK STOP WPL Y757357 Contact Us For Availability
17
SCREW DETERGENT CUP WPL 757245 Contact Us For Availability
17
BAFFLE WPL 757267 Contact Us For Availability
17
SCREW WPL 757299 Contact Us For Availability
18
RELEASE WPL Y757214 Contact Us For Availability
18
TRACK ASSEMBLY WPL 757009 Contact Us For Availability
18
BLOWER MOTOR WPL Y757029 Contact Us For Availability
18
DOOR VENT (CANADIAN) WPL 757104 Contact Us For Availability
18
CIRCULATING IMPELLER WPL Y757300 Contact Us For Availability
19
COVER, HOSE CLAMP WPL Y757216 Contact Us For Availability
19
GUIDE BUTTON WPL Y757268 Contact Us For Availability
19
FASTENER WPL Y757327 Contact Us For Availability
19
BAFFLE WPL Y757301 Contact Us For Availability
20
COUPLER NIPPLE WPL Y757217 Contact Us For Availability
20
PLASTIC NUT WPL Y757160 Contact Us For Availability
20
SEAL WPL Y757302 Contact Us For Availability
21
BRACKET, GROUNDING WPL 757270 Contact Us For Availability
21
DRAIN IMPELLER ASSEMBLY WPL Y757303 Contact Us For Availability
22
DRAIN HOSE WPL Y757074 Contact Us For Availability
22
SCREW WPL Y757235 Contact Us For Availability
22
SCREW WPL Y757271 Contact Us For Availability
23
DRIP FLANGE CANADIAN WPL 757332 Contact Us For Availability
23
SEAL ASSEMBLY WPL 757305 Contact Us For Availability
24
FAUCET COUPLER RETAINER WPL 757219 Contact Us For Availability
24
HARNESS RECEPTACLE WPL Y757191 Contact Us For Availability
24
ASSEMBLY SCREW,WASHER & SHIELD WPL Y757333 Contact Us For Availability
24
FASTENER WPL 757308 Contact Us For Availability
24
PUMP HOUSING W/DEFLECTOR WPL 757306 Contact Us For Availability
24
INSERT FOR PUMP HOUSING WPL 757307 Contact Us For Availability
25
CABLE STRAP WPL 757220 Contact Us For Availability
25
DOOR LATCH KNOB WPL Y757088 Contact Us For Availability
25
WASHER WPL Y757334 Contact Us For Availability
25
SLINGER & DEFLECTOR KIT WPL Y757309 Contact Us For Availability
26
PALNUT WPL 757221 Contact Us For Availability
26
DOOR LATCH WPL 757043 Contact Us For Availability
26
SCREW WPL 757335 Contact Us For Availability
26
PUMP SHAFT & BEARING ASSEMBLY WPL Y757311 Contact Us For Availability
27
SCREW WPL Y757222 Contact Us For Availability
27
RETURN SPRING WPL Y757274 Contact Us For Availability
27
RETAINER FOR BEARING WPL Y757310 Contact Us For Availability
28
CASTER REAR WPL Y757002 Contact Us For Availability
28
SWITCH-DOOR WPL 757027 Contact Us For Availability
28
SCREW WPL Y757312 Contact Us For Availability
28
ASSEMBLY, HEATER HOOK WPL 757337 Contact Us For Availability
29
FRONT CASTER WPL Y757005 Contact Us For Availability
29
HEAT ELEMENT WPL Y757010 Contact Us For Availability
29
PULLEY WPL Y757098 Contact Us For Availability
30
HINGE, (LEFT) WPL Y757276 Contact Us For Availability
30
ASSY.SHAFT,WASHER & SEAL WPL Y757014 Contact Us For Availability
30
GASKET W/SCREWS & FASTENERS WPL Y757049 Contact Us For Availability
31
GROMMET WPL Y757277 Contact Us For Availability
31
HEX NUT WPL Y757313 Contact Us For Availability
31
ASSEMBLY BOLT & WASHER WPL Y757338 Contact Us For Availability
32
DOOR SPRING INSERT WPL Y757016 Contact Us For Availability
32
HOSE, TOP SPRAY WPL 757046 Contact Us For Availability
33
GROUND CLIP & SCREW WPL Y757279 Contact Us For Availability
33
SCREW WASHER WPL 757340 Contact Us For Availability
34
LOCKWASHER WPL 757225 Contact Us For Availability
34
GROMMET WPL 757275 Contact Us For Availability
34
VENT COVER WPL Y757341 Contact Us For Availability
34
RUBBER COUPLING WPL Y757083 Contact Us For Availability
35
HEX NUT WPL Y757226 Contact Us For Availability
35
INSULATION WPL 757096 Contact Us For Availability
35
DRAIN HOSE WPL Y757078 Contact Us For Availability
36
OUTLET UPPER SPRAY WPL Y757084 Contact Us For Availability
37
HINGE PIN WPL Y757343 Contact Us For Availability
37
UPPER SPRAY ARM WPL Y757001 Contact Us For Availability
38
NYLON WASHER,CABINET TO TUB WPL Y757230 Contact Us For Availability
38
NUT WPL Y757094 Contact Us For Availability
39
CORD BARRIER WPL 757232 Contact Us For Availability
39
PUMP ASSY (INCLUDES 7 THRU 31) WPL 757037 Contact Us For Availability
40
DOOR PANEL (HARVEST WHEAT) WPL 757056 Contact Us For Availability
40
DOOR PANEL (WHITE) WPL Y757054 Contact Us For Availability
40
DOOR PANEL (ALMOND) WPL Y757055 Contact Us For Availability
40
GASKET WPL Y757093 Contact Us For Availability
41
BASE FRAME WPL Y757227 Contact Us For Availability
42
INSULATING BUSHING WPL 757349 Contact Us For Availability
43
PANEL ALMOND WPL 757052 Contact Us For Availability
43
ACCESS PANEL HARVEST WHEAT WPL 757053 Contact Us For Availability
43
PANEL WHITE WPL Y757051 Contact Us For Availability
43
COMPARTMENT, TERMINAL WPL 757350 Contact Us For Availability
44
JAM NUT FOR ELEMENT WPL 757351 Contact Us For Availability
45
ACCESS PANEL BARRIER WPL Y757282 Contact Us For Availability
45
GROMMET WPL 757352 Contact Us For Availability
46
INSULATION WPL 757283 Contact Us For Availability
47
U FASTENER WPL 757284 Contact Us For Availability
47
COVER FOR TERMINAL WPL Y757354 Contact Us For Availability
48
SCREW WPL Y757285 Contact Us For Availability
48
TOE PANEL WPL Y757075 Contact Us For Availability
50
WASHER WPL 757397 Contact Us For Availability
51
COVER, ACCESS WPL 757400 Contact Us For Availability
53
SPRING FOR INTERLOCK WPL 747389 Contact Us For Availability
54
SHIELD-DOOR SW(CANADIAN) WPL 757391 Contact Us For Availability
54
FASTENER WPL Y757396 Contact Us For Availability
55
SCREW-DOOR SW. SHIELD WPL 757392 Contact Us For Availability
55
FASTENER WPL Y757398 Contact Us For Availability
57
SEAL WPL Y757395 Contact Us For Availability
58
SCREW WPL Y757394 Contact Us For Availability
59
BOOSTER SPRING WPL Y757380 Contact Us For Availability
NI
BLOWER MOTOR COVER WPL Y757246 Contact Us For Availability
NI
WIRE HARNESS (CANADA) WPL 757373 Contact Us For Availability
× ![]()
Login and Registration Form
