Model Whirlpool DNT18K9A REFRIGERATOR – Common Parts & Diagrams

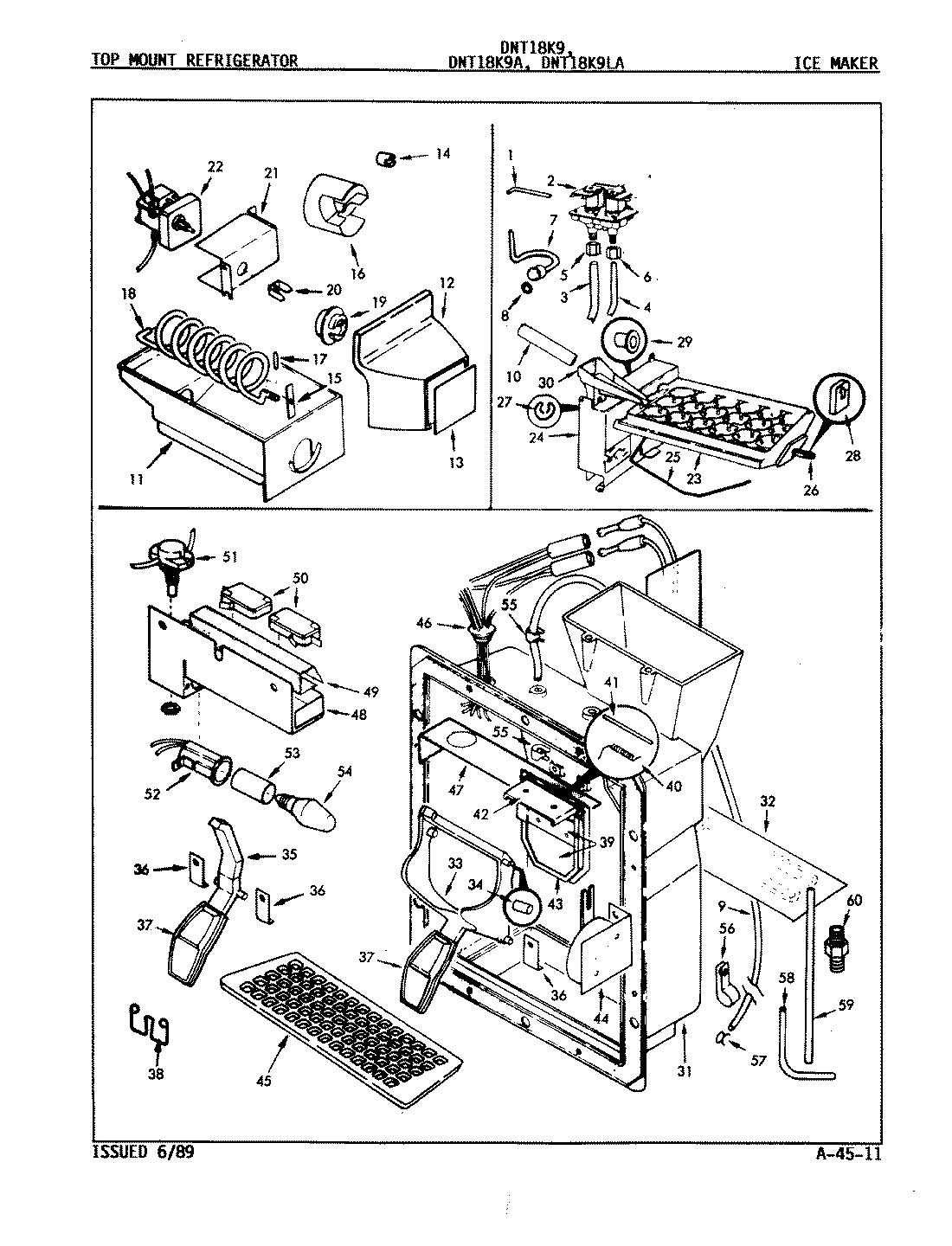

01 - ICE MAKER
Common parts from model Whirlpool DNT18K9A REFRIGERATOR
1
SCREW WPL 4000171 Contact Us For Availability
1
CLAMP WPL 535162 Contact Us For Availability
1
CLAMP, SPRING WPL 603333 Contact Us For Availability
1
TUBE WPL 667582 Contact Us For Availability
2
SCREW WPL 4010181 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
3
TUBING WPL 556038 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
7
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
9
TUBING WPL 556023 Contact Us For Availability
10
TUBE, FILL WPL 584613 Contact Us For Availability
11
BIN, STORAGE WPL 664461 Contact Us For Availability
12
SCREW WPL 405022103 Contact Us For Availability
12
ICE DISP FRONT WPL 662051 Contact Us For Availability
13
INSERT, ID FRONT WPL 6813117 Contact Us For Availability
14
NUT, AUGER WPL 660981 Contact Us For Availability
15
HUB, REINFORCING WPL 630841 Contact Us For Availability
16
IMPELLER, AUGER WPL 664481 Contact Us For Availability
17
PIN, AUGER WPL 630711 Contact Us For Availability
18
AUGER WPL 664361 Contact Us For Availability
19
RING, DRIVE WPL 630171 Contact Us For Availability
20
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
21
SCREW WPL 406026103 Contact Us For Availability
21
MOTOR MTG BRKT WPL 653682 Contact Us For Availability
22
IM MOTOR WPL 641433 Contact Us For Availability
22
MOTOR MTG SHIM WPL 655791 Contact Us For Availability
23
TRAY, ICE WPL 596881 Contact Us For Availability
24
LATCH HANDLE WPL 400021 Contact Us For Availability
24
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
25
SENSOR ARM WPL 604671 Contact Us For Availability
26
SHAFT, DRIVE WPL 653191 Contact Us For Availability
27
RING, RETAINER WPL 587061 Contact Us For Availability
28
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
29
SPACER WPL 653171 Contact Us For Availability
30
SCREW WPL 405009103 Contact Us For Availability
30
SPOUT, FILL WPL 537481 Contact Us For Availability
31
SCREW WPL 4050221 Contact Us For Availability
31
DISPENSER, WATER WPL 630003 Contact Us For Availability
32
HEATER WPL 605081 Contact Us For Availability
33
ACTUATOR ARM (ICE) WPL 666201 Contact Us For Availability
34
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
35
COVER WPL 666161 Contact Us For Availability
35
ACTUATOR ARM (WATER) WPL 666181 Contact Us For Availability
36
CLIP WPL 630352 Contact Us For Availability
37
PAD, ARM WPL 630661 Contact Us For Availability
38
SPRING WPL 633061 Contact Us For Availability
39
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
40
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
41
PIN, ICE DOOR WPL 630531 Contact Us For Availability
42
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
43
INSULATION WPL 630892 Contact Us For Availability
43
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
44
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
44
MOTOR, INERTIA WPL 652121 Contact Us For Availability
44
CLIP WPL 655171 Contact Us For Availability
45
GRILLE WPL 630253 Contact Us For Availability
46
WIRE HARNESS WPL 606231 Contact Us For Availability
47
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
48
BRACKET, SWITCH WPL 630132 Contact Us For Availability
49
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
50
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
51
SCREW WPL 4050711 Contact Us For Availability
51
SWITCH, LIGHT WPL 630401 Contact Us For Availability
52
SOCKET, LIGHT WPL 630391 Contact Us For Availability
53
SCREW WPL 4010111 Contact Us For Availability
53
SEAL WPL 630561 Contact Us For Availability
54
BULB, LIGHT WPL 631791 Contact Us For Availability
55
CLAMP, SPRING WPL 603331 Contact Us For Availability
56
CLAMP WPL 535169 Contact Us For Availability
57
CLAMP, TUBING WPL 96029 Contact Us For Availability
58
WATER LINE WPL 630382 Contact Us For Availability
59
WIRE HARNESS WPL 605231 Contact Us For Availability
59
WIRE WPL 606241 Contact Us For Availability
59
SCREW WPL 4000221 Contact Us For Availability
59
CLAMP, SPRING WPL 603332 Contact Us For Availability
59
WPL 620284 WPL 620284 Contact Us For Availability
59
WPL 634592 WPL 634592 Contact Us For Availability
59
WPL 6500215 WPL 6500215 Contact Us For Availability
59
WPL 662231 WPL 662231 Contact Us For Availability
60
WPL 554191 WPL 554191 Contact Us For Availability
60
WPL 592051 WPL 592051 Contact Us For Availability
× ![]()
