Model Whirlpool DNT18F9LH REFRIGERATOR – Common Parts & Diagrams
02 - ICE MAKER

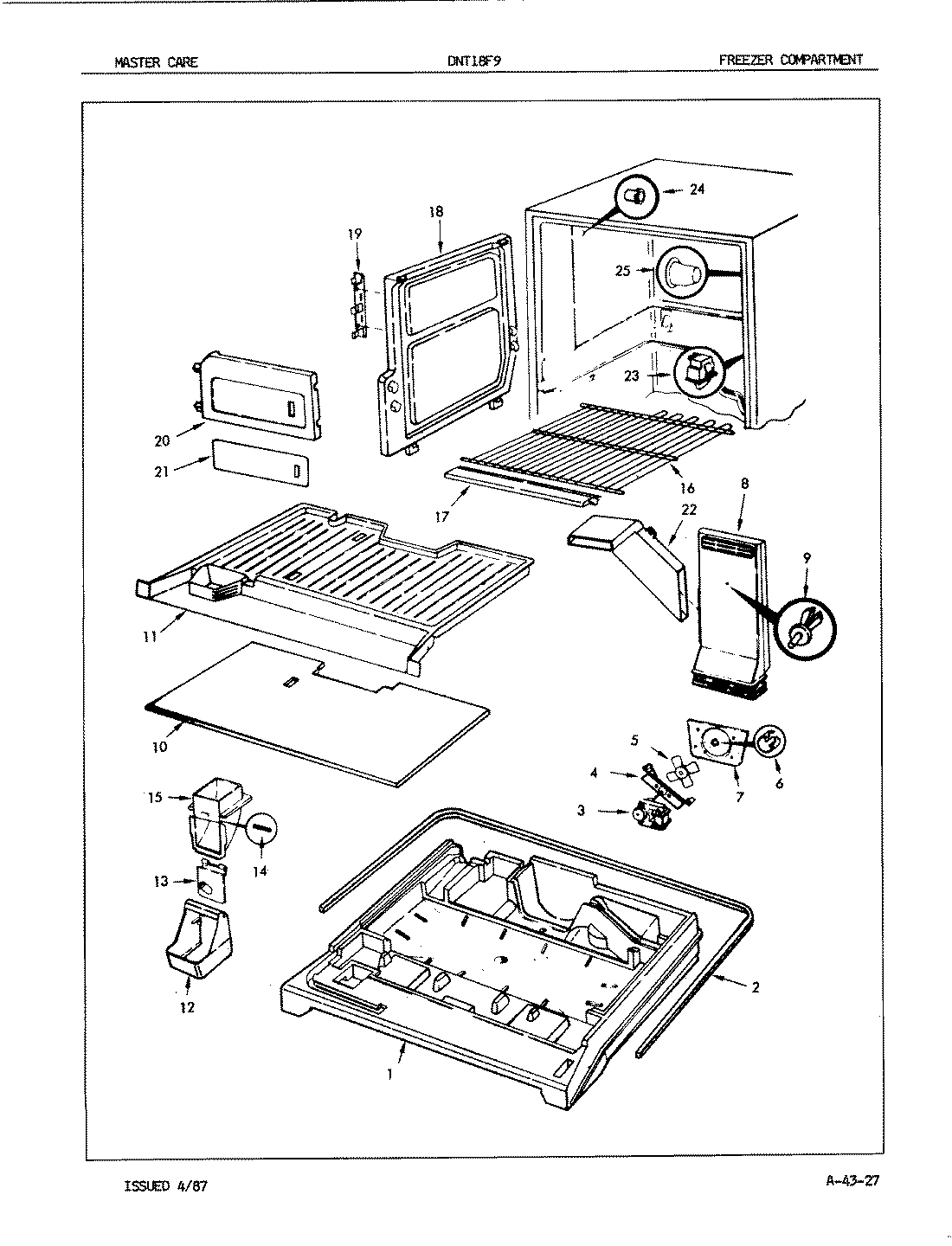

01 - FREEZER COMPARTMENT

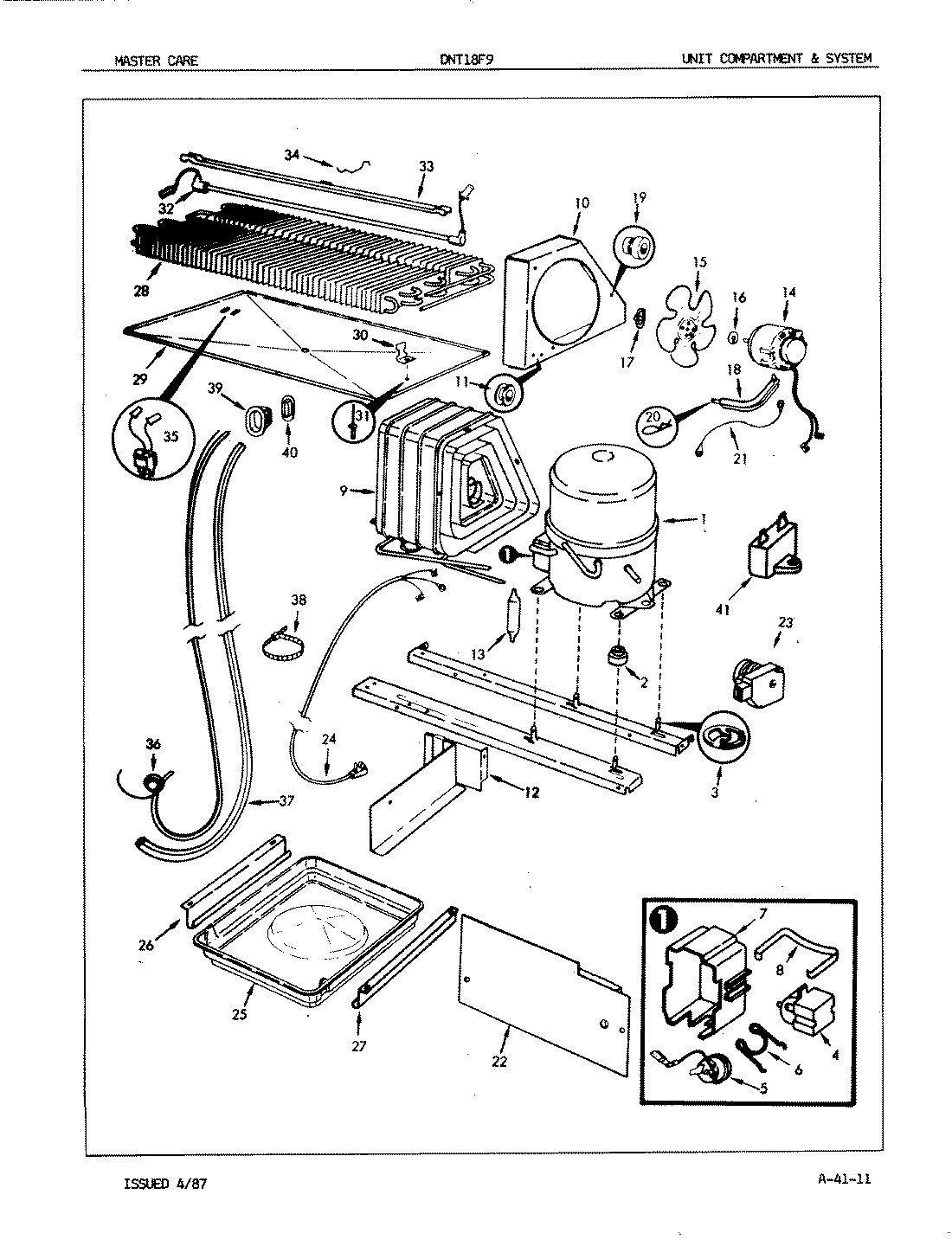

03 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool DNT18F9LH REFRIGERATOR
1
CLAMP WPL 535162 Contact Us For Availability
1
CLAMP, SPRING WPL 603333 Contact Us For Availability
1
TUBE WPL 667582 Contact Us For Availability
1
TRAY, DIVIDER WPL 605766 Contact Us For Availability
1
COMPRESSOR WPL RA997 Contact Us For Availability
2
SCREW WPL 4010181 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
2
SEAL WPL 663256 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
TUBING WPL 556038 Contact Us For Availability
3
GROUND WIRE WPL 2967530 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
3
SCREW WPL 4140011 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
TUBE WPL 556029 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
5
OVERLOAD WPL 6329410 Contact Us For Availability
6
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
7
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
COVER, TERMINAL WPL 665891 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
TUNNEL, AIR WPL 660443 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
TUBING WPL 556023 Contact Us For Availability
9
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
10
TUBE, FILL WPL 584613 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664036 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
BIN, STORAGE WPL 664461 Contact Us For Availability
11
BOTTOM, FRZ. WPL 659591 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
SCREW WPL 405022103 Contact Us For Availability
12
ICE DISP FRONT WPL 662051 Contact Us For Availability
12
FRONT WPL 605031 Contact Us For Availability
12
BAFFLE WPL 664932 Contact Us For Availability
13
INSERT WPL 657072 Contact Us For Availability
13
DOOR, ICE CHUTE WPL 605023 Contact Us For Availability
13
SCREW WPL 652753 Contact Us For Availability
14
NUT, AUGER WPL 660981 Contact Us For Availability
14
HINGE PIN WPL 605051 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
15
HUB, REINFORCING WPL 630841 Contact Us For Availability
15
ICE CHUTE WPL 605041 Contact Us For Availability
15
FAN MOTOR WPL 2805615 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
16
IMPELLER, AUGER WPL 664481 Contact Us For Availability
16
SHELF WPL 605991 Contact Us For Availability
16
WASHER WPL 199134 Contact Us For Availability
17
PIN, AUGER WPL 630711 Contact Us For Availability
17
TRIM WPL 6041452 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
18
AUGER WPL 664361 Contact Us For Availability
18
SCREW WPL 400018103 Contact Us For Availability
18
WASHER WPL 420051900 Contact Us For Availability
18
WASHER WPL 420052900 Contact Us For Availability
18
DIVIDER WPL 606511 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
19
RING, DRIVE WPL 630171 Contact Us For Availability
19
SCREW WPL 4000161 Contact Us For Availability
19
LATCH WPL 661461 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
20
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
20
IM ENCL FRONT WPL 656271 Contact Us For Availability
21
AUGER MOTOR BOX WPL 653683 Contact Us For Availability
21
INSERT WPL 656283 Contact Us For Availability
21
GROUND WIRE WPL 296753 Contact Us For Availability
22
IM MOTOR WPL 641433 Contact Us For Availability
22
MOTOR MTG SHIM WPL 655791 Contact Us For Availability
22
IM DUCT WPL 657596 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663382 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
TRAY, ICE WPL 596881 Contact Us For Availability
23
SWITCH WPL 557322 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 665561 Contact Us For Availability
24
SCREW WPL 4000211 Contact Us For Availability
24
MECHANISM, ICE MAKER WPL RA437148 Contact Us For Availability
24
CUP, SHELF WPL 603131 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
SENSOR ARM WPL 604671 Contact Us For Availability
25
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
25
MOISTROL PAN WPL 298395 Contact Us For Availability
26
SHAFT, DRIVE WPL 653191 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
RING, RETAINER WPL 587061 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
28
EVAPORATOR WPL RA4362011 Contact Us For Availability
29
SPACER WPL 653171 Contact Us For Availability
29
TRAY, DRIP WPL 601018 Contact Us For Availability
30
SCREW WPL 405009103 Contact Us For Availability
30
SPOUT, FILL WPL 537481 Contact Us For Availability
30
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
31
SCREW WPL 4050221 Contact Us For Availability
31
DISPENSER, WATER WPL 630003 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
32
HEATER WPL 605081 Contact Us For Availability
32
HEATER, DEFROST WPL 6010635 Contact Us For Availability
33
ACTUATOR ARM (ICE) WPL 666201 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
34
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
34
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
35
COVER WPL 666161 Contact Us For Availability
35
ACTUATOR ARM (WATER) WPL 666181 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
36
CLIP WPL 630352 Contact Us For Availability
36
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
37
PAD, ARM WPL 630661 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
SPRING WPL 633061 Contact Us For Availability
38
WIRE TIE WPL 662231 Contact Us For Availability
39
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
39
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
40
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
40
COVER WPL 600673 Contact Us For Availability
40
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
40
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
40
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
40
WIRE HARNESS WPL 606232 Contact Us For Availability
40
WIRE HARNESS WPL 663291 Contact Us For Availability
41
SCREW WPL 4000171 Contact Us For Availability
41
PIN, ICE DOOR WPL 630531 Contact Us For Availability
41
CAPACITOR, RUN WPL 658892 Contact Us For Availability
42
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
43
INSULATION WPL 630892 Contact Us For Availability
43
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
44
MOTOR, INERTIA WPL 652121 Contact Us For Availability
44
CLIP WPL 655171 Contact Us For Availability
45
GRILL WPL 630252 Contact Us For Availability
46
WIRE HARNESS WPL 606231 Contact Us For Availability
47
FOIL, BARRIER FRONT WPL 630361 Contact Us For Availability
48
BRACKET, SWITCH WPL 630132 Contact Us For Availability
49
INSULATOR, SWITCH WPL 653331 Contact Us For Availability
50
SWITCH, ICE & WATER WPL 554402 Contact Us For Availability
51
SCREW WPL 4050711 Contact Us For Availability
51
SWITCH, LIGHT WPL 630401 Contact Us For Availability
52
SOCKET, LIGHT WPL 630391 Contact Us For Availability
53
SCREW WPL 4010111 Contact Us For Availability
54
BULB, LIGHT WPL 631791 Contact Us For Availability
55
CLAMP, SPRING WPL 603331 Contact Us For Availability
56
CLAMP WPL 535169 Contact Us For Availability
57
CLAMP, TUBING WPL 96029 Contact Us For Availability
58
WATER LINE WPL 630382 Contact Us For Availability
59
SCREW WPL 4000221 Contact Us For Availability
59
WIRE TIE WPL 575763 Contact Us For Availability
59
CLAMP, SPRING WPL 603332 Contact Us For Availability
59
WIRE HARNESS WPL 605231 Contact Us For Availability
59
WIRE HARNESS WPL 606241 Contact Us For Availability
59
SPACER WPL 620284 Contact Us For Availability
59
INSTALATION KIT WPL 634592 Contact Us For Availability
59
TU WPL 6500215 Contact Us For Availability
60
WPL 592051 WPL 592051 Contact Us For Availability
× ![]()
