Model Whirlpool DM80KB-2 MICROWAVE – Common Parts & Diagrams

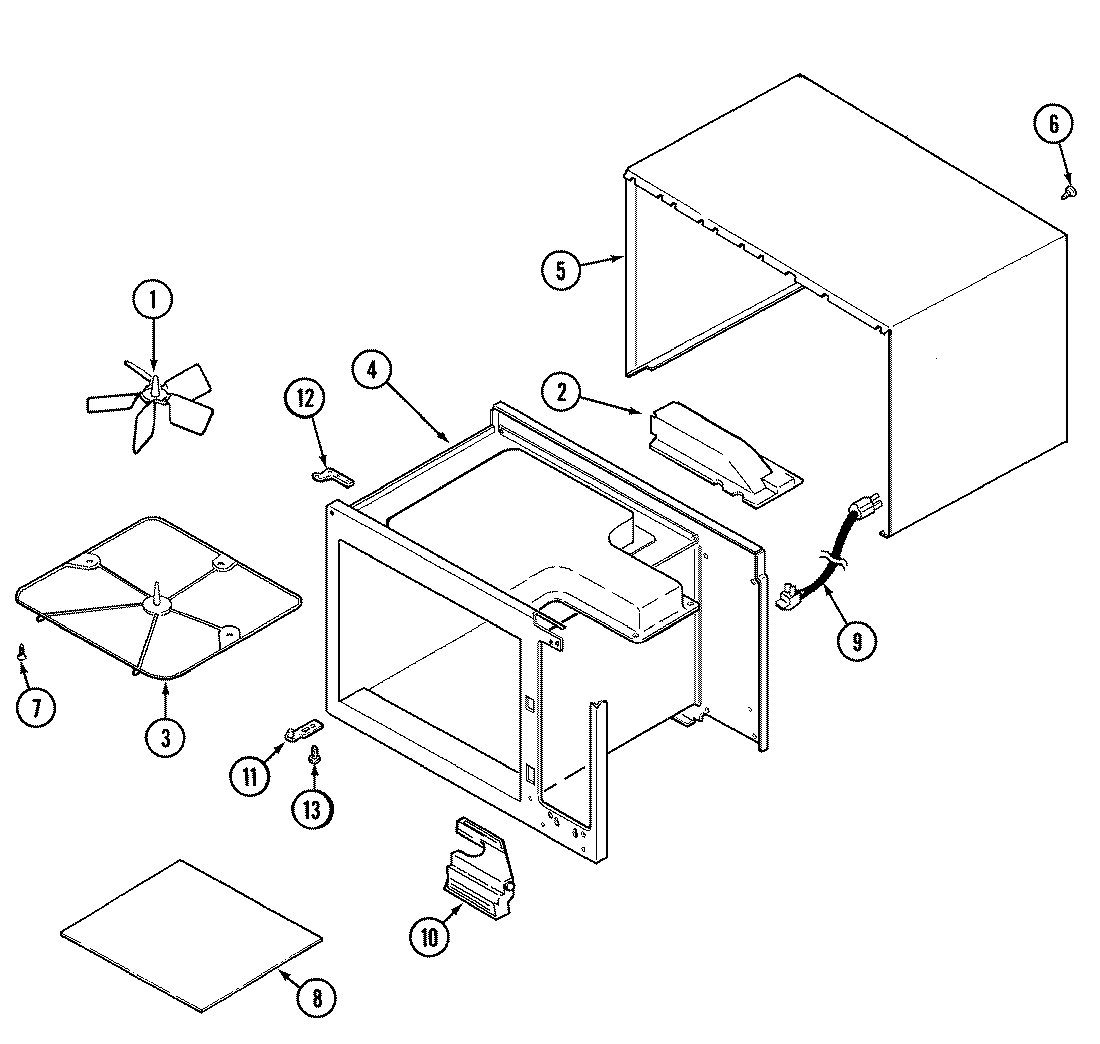

01 - BASE

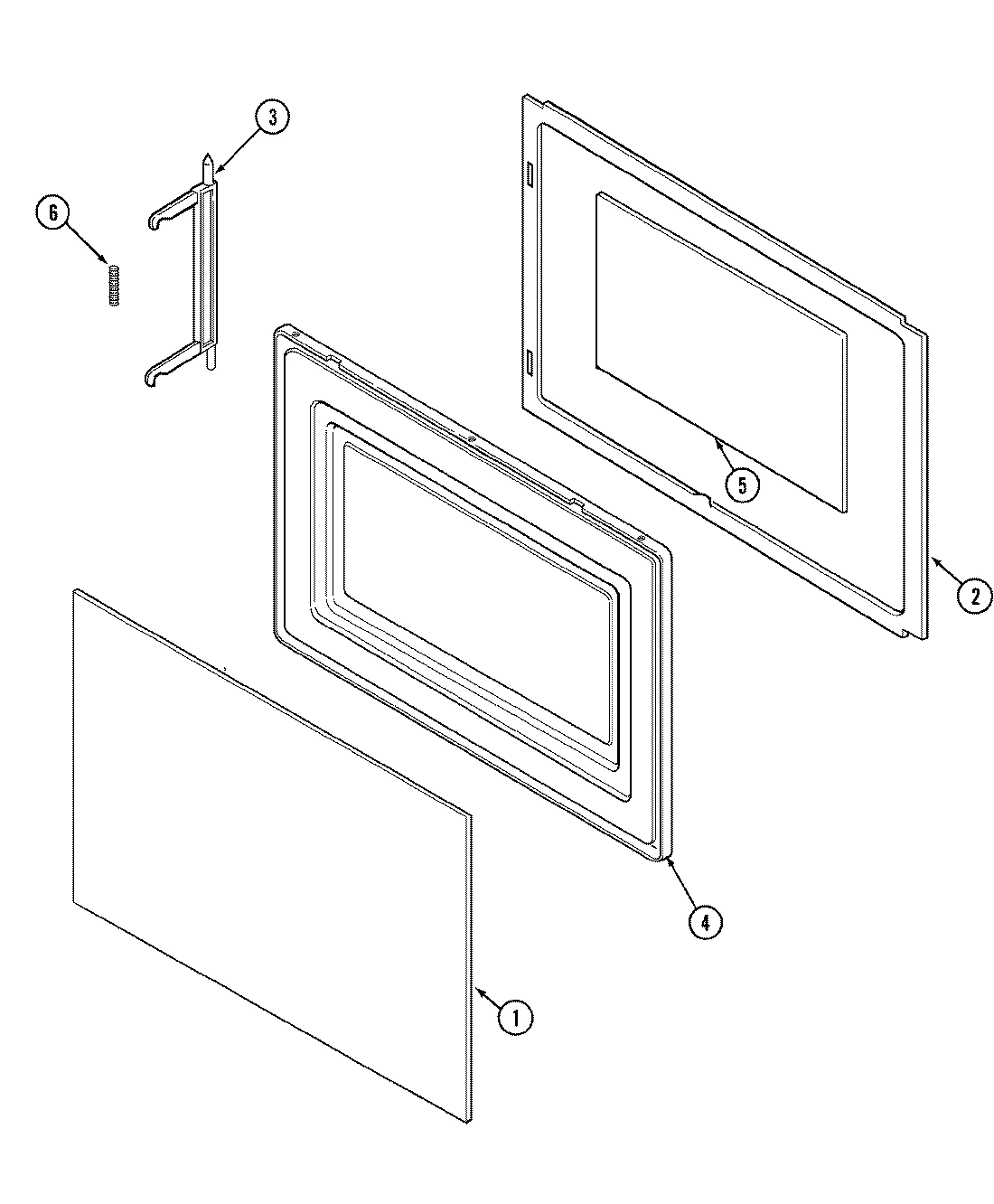

03 - DOOR

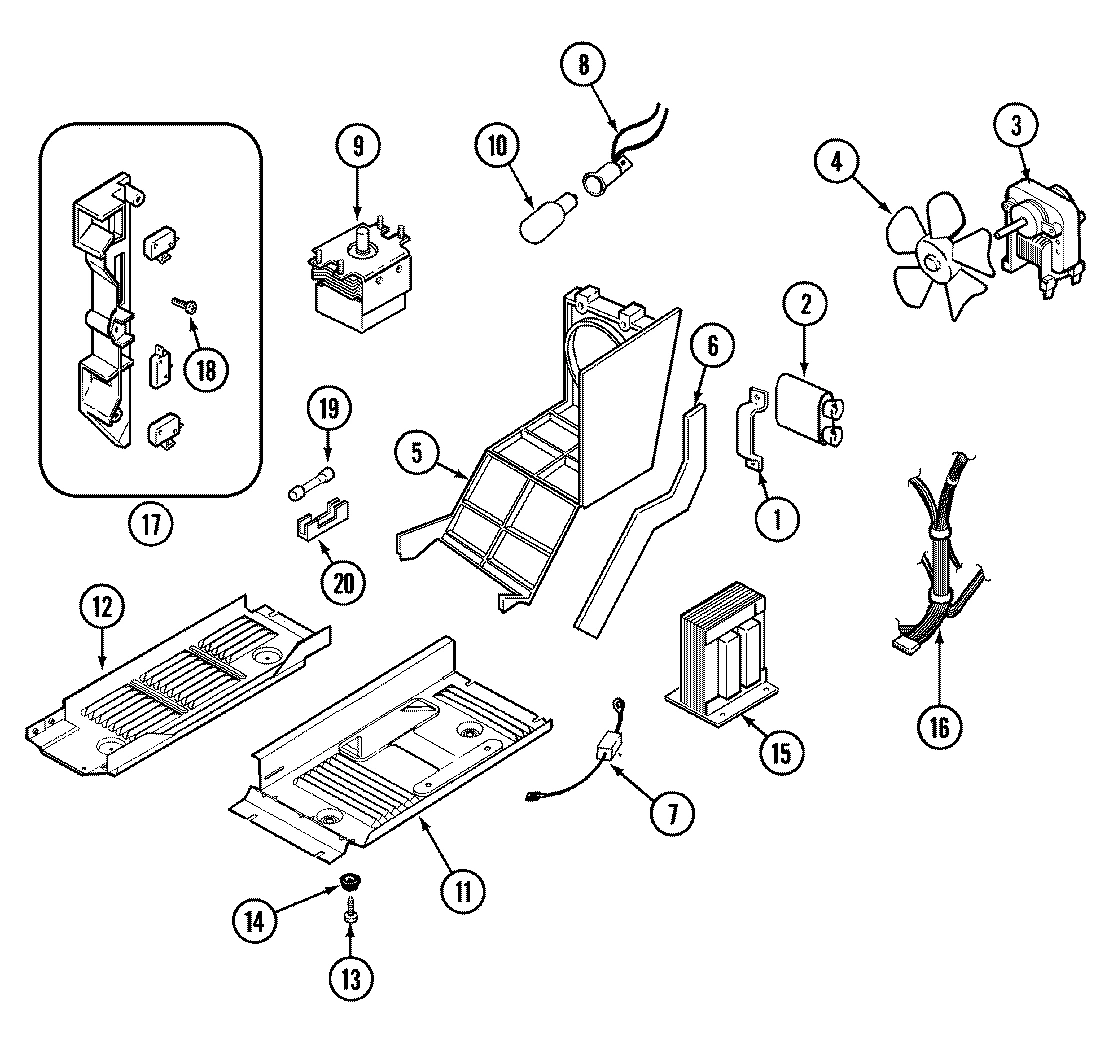

04 - INTERNAL CONTROLS

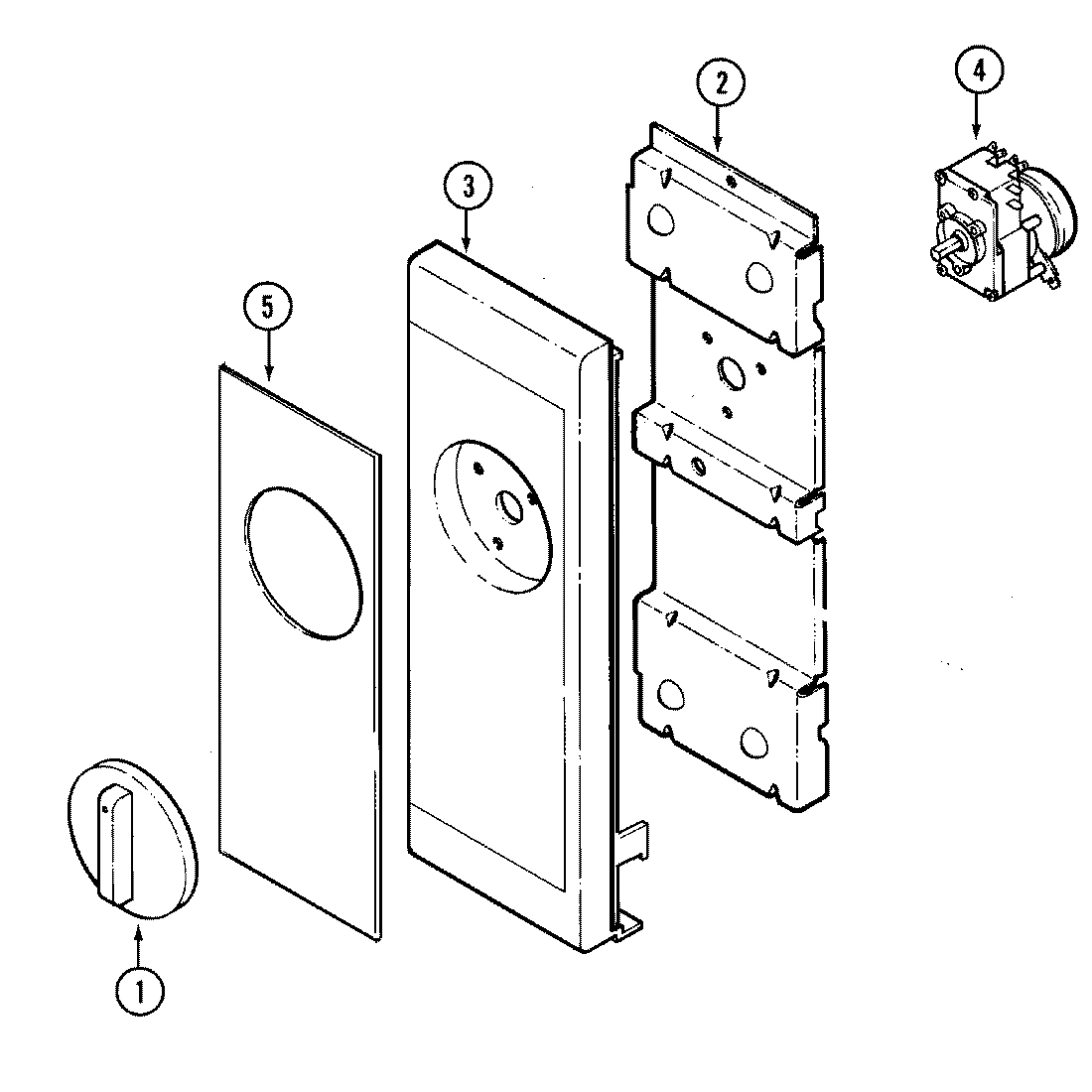

02 - CONTROL SYSTEM

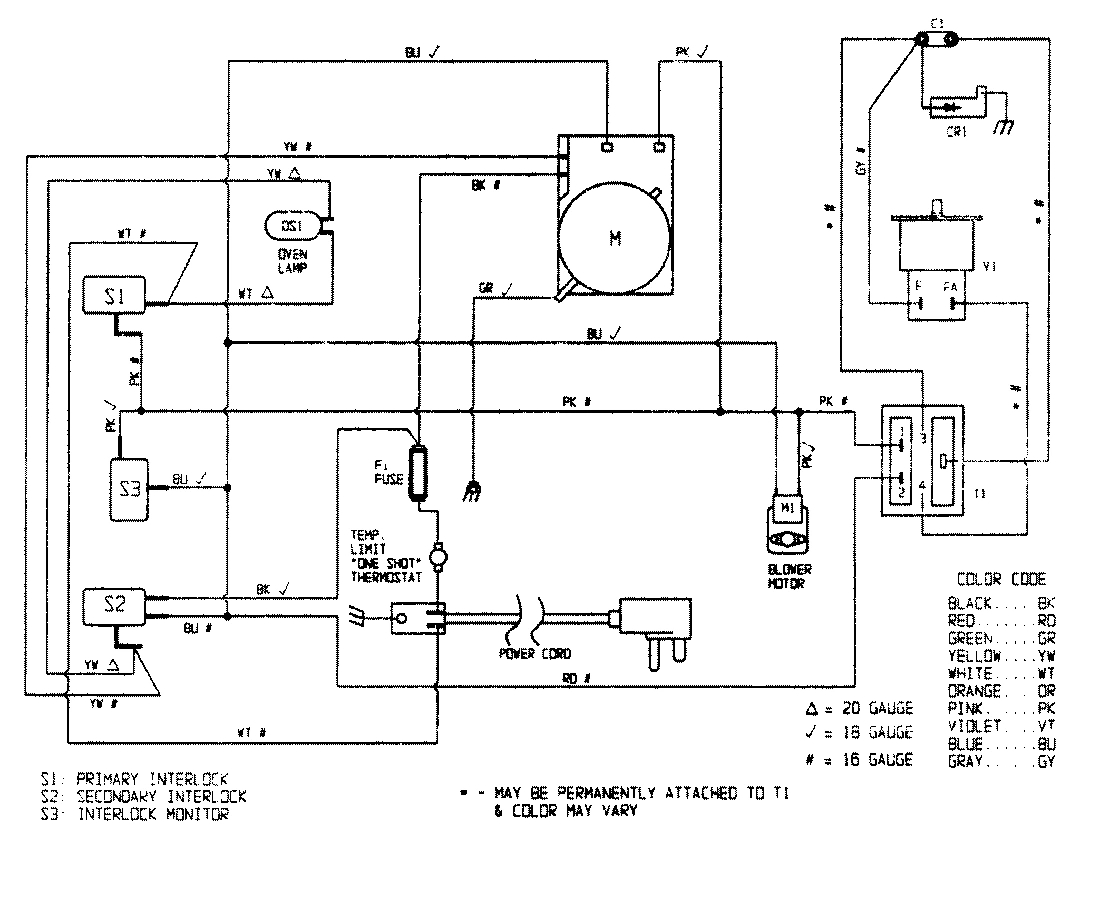

05 - WIRING INFORMATION
Common parts from model Whirlpool DM80KB-2 MICROWAVE
1
BLADE, STIRRER WPL 51001048 Contact Us For Availability
1
CHOKE, DOOR (BLK) WPL 51001038 Contact Us For Availability
1
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
1
KNOB, CONTROL (BLK) WPL 51001070 Contact Us For Availability
2
DUCT, STIRRER WPL 51001027 Contact Us For Availability
2
BAFFLE, STIRRER DUCT WPL 51001210 Contact Us For Availability
2
WINDOW, DOOR (OUTER-BLK) WPL 51001080 Contact Us For Availability
2
CAPACITOR (800/1100 WATT) WPL 51001301 Contact Us For Availability
2
BRACKET, CONTROL WPL 51001067 Contact Us For Availability
3
COVER, STIRRER WPL 51001028 Contact Us For Availability
3
LATCH, STRIKE WPL 51001036 Contact Us For Availability
3
SCREW WPL 51001101 Contact Us For Availability
3
MOTOR, FAN WPL 51001228 Contact Us For Availability
3
TRIM, CONTROL (BLK) WPL 51001097 Contact Us For Availability
4
CAVITY (WHT) WPL 51001079 Contact Us For Availability
4
LINING, DOOR (BLK) WPL 51001257 Contact Us For Availability
4
LINING, DOOR (BLK) WPL 51001295 Contact Us For Availability
4
BLADE, FAN WPL 51001051 Contact Us For Availability
4
TIMER, 15 MINUTE WPL 01070043 Contact Us For Availability
5
WRAPPER, CABINET (WHT) WPL 51001099 Contact Us For Availability
5
WINDOW, DOOR (INNER) WPL 51001039 Contact Us For Availability
5
BRACKET, FAN WPL 51001049 Contact Us For Availability
5
SCREW WPL 51001094 Contact Us For Availability
5
INSERT, OVERLAY (BLK) WPL 51001098 Contact Us For Availability
6
SPRING, DOOR WPL 51001197 Contact Us For Availability
6
TAPE, FOAM WPL 05140007 Contact Us For Availability
6
MANUAL, USE & CARE WPL 51001126 Contact Us For Availability
7
CLIP WPL Y03110050 Contact Us For Availability
7
DIODE ASSY. WPL Y04010219 Contact Us For Availability
7
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
8
TRAY, PLASTIC (WHT) WPL 51001072 Contact Us For Availability
8
CLIP, CANOE WPL 03110061 Contact Us For Availability
8
BAFFLE, BULB WPL 51001030 Contact Us For Availability
8
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
9
CORD, POWER WPL 01080066 Contact Us For Availability
9
MAGNETRON (700 WATT) WPL 51001074 Contact Us For Availability
10
BUTTON, DOOR RELEASE (BLK) WPL 51001041 Contact Us For Availability
10
BULB, LIGHT WPL Y01060024 Contact Us For Availability
11
HINGE, DOOR (LOWER) WPL 51001047 Contact Us For Availability
11
CHANNEL, BASE (RT) WPL 51001059 Contact Us For Availability
12
SCREW WPL 03020030 Contact Us For Availability
12
HINGE, DOOR (UPPER) WPL 51001035 Contact Us For Availability
12
CHANNEL, BASE (LT) WPL 51001057 Contact Us For Availability
12
BAFFLE, AIR (LT) WPL 51001058 Contact Us For Availability
13
WASHER WPL 51001100 Contact Us For Availability
13
SCREW WPL Y03020076 Contact Us For Availability
13
SCREW WPL 51001241 Contact Us For Availability
14
FOOT, BASE WPL 02230012 Contact Us For Availability
14
FOOT, BASE WPL Y02230009 Contact Us For Availability
15
SCREW WPL 257764 Contact Us For Availability
15
TRANSFORMER (700 WATT) WPL 51001073 Contact Us For Availability
16
HARNESS, WIRE (MAIN) WPL 51001102 Contact Us For Availability
17
INTERLOCK ASSY. WPL 51001245 Contact Us For Availability
18
SCREW WPL 51001217 Contact Us For Availability
19
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
20
HOLDER, FUSE WPL Y01100044 Contact Us For Availability
21
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
22
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
23
CLIP WPL Y03110078 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001294 Contact Us For Availability
× ![]()
