Model Whirlpool DM15KW-16T-WZ MICROWAVE – Common Parts & Diagrams
01 - BODY

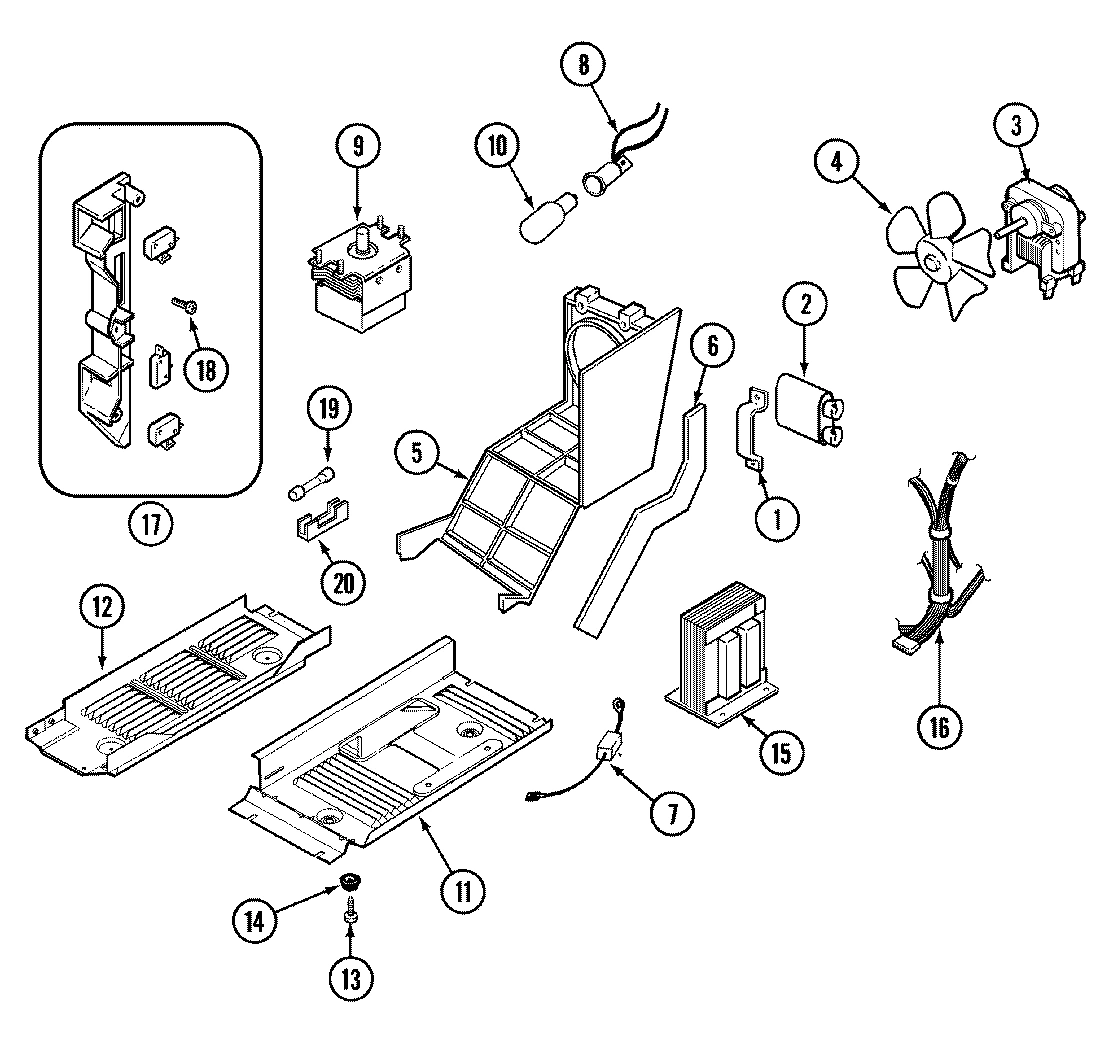

04 - INTERNAL CONTROLS

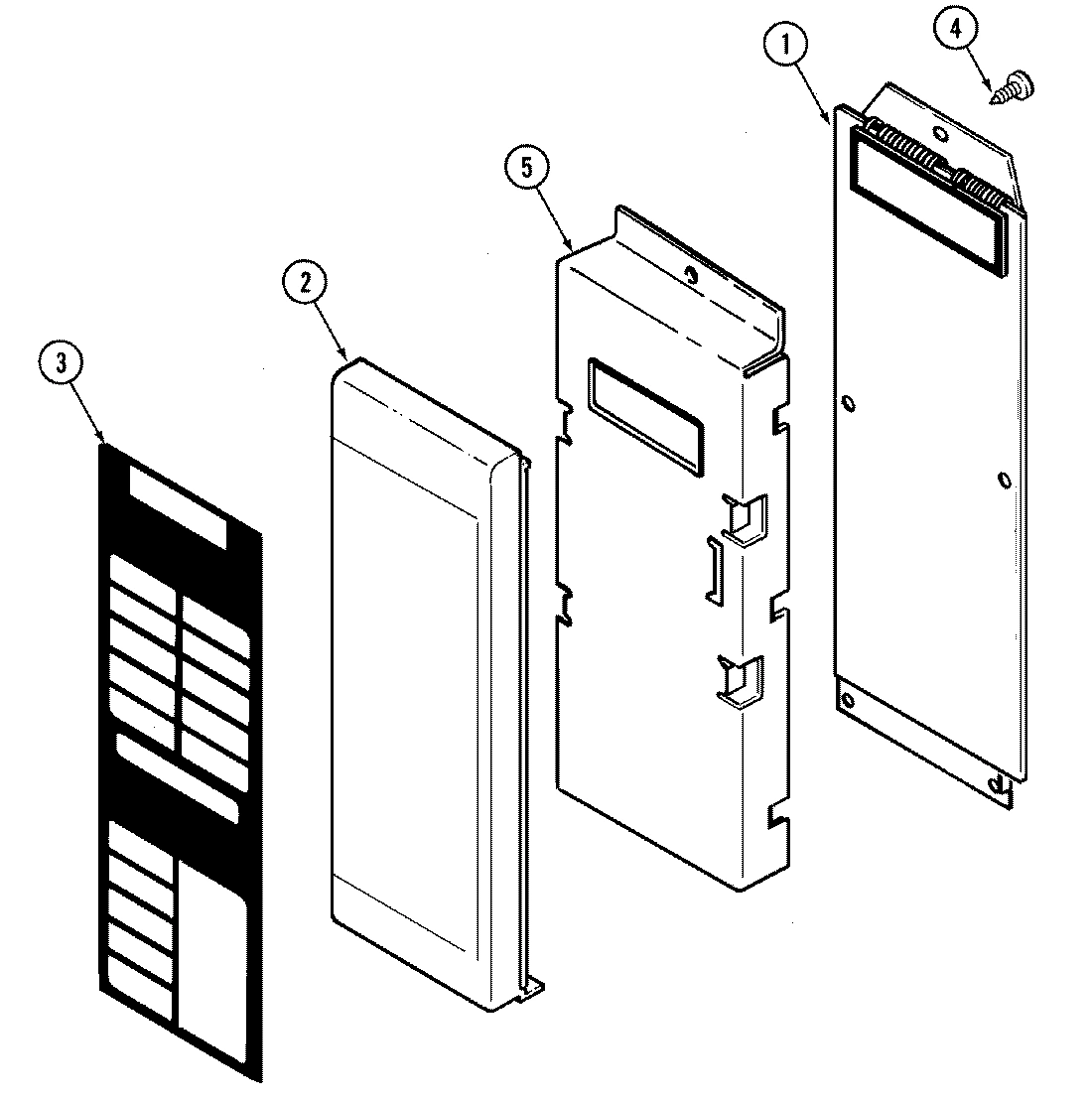

02 - CONTROL BOARD

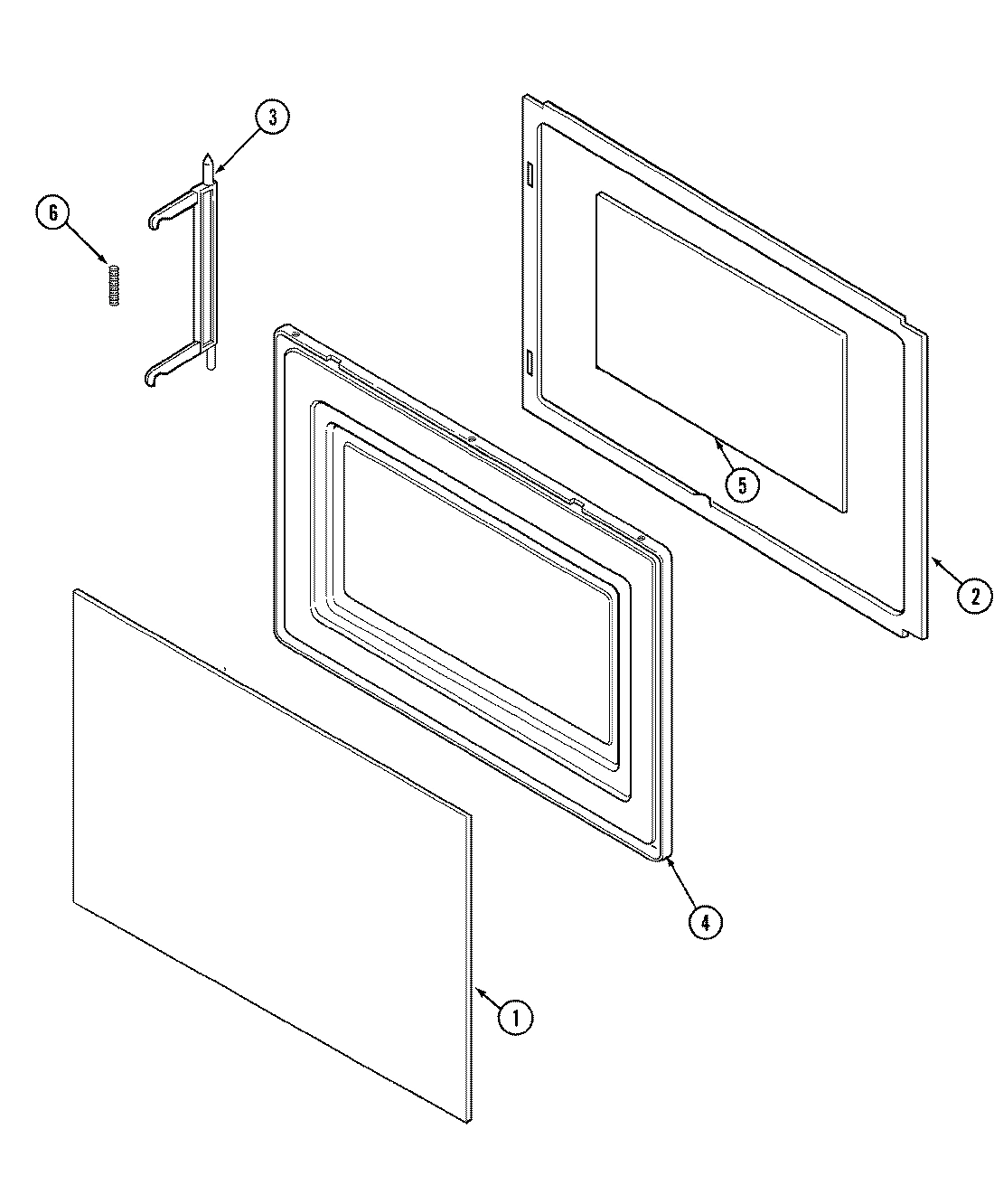

03 - DOOR
Common parts from model Whirlpool DM15KW-16T-WZ MICROWAVE
1
BLADE, STIRRER WPL 51001048 Contact Us For Availability
1
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
1
BOARD, CONTROL WPL 51001053 Contact Us For Availability
1
WINDOW, OUTER DOOR (WHT) WPL 51001267 Contact Us For Availability
2
DUCT, STIRRER WPL 51001027 Contact Us For Availability
2
BAFFLE, STIRRER DUCT WPL 51001210 Contact Us For Availability
2
CAPACITOR (900 WATT) WPL 51001056 Contact Us For Availability
2
TRIM, CONTROL (WHT) WPL 51001185 Contact Us For Availability
2
CHOKE, DOOR (WHT) WPL 51001154 Contact Us For Availability
3
COVER, STIRRER WPL 51001028 Contact Us For Availability
3
SCREW WPL 51001101 Contact Us For Availability
3
MOTOR, FAN WPL 51001228 Contact Us For Availability
3
SWITCH, CONTROL (WHT) WPL 51001268 Contact Us For Availability
3
LATCH, STRIKE WPL 51001036 Contact Us For Availability
4
CAVITY (WHT) WPL 51001042 Contact Us For Availability
4
LABEL, COOKING GUIDE WPL 51001319 Contact Us For Availability
4
BLADE, FAN WPL 51001051 Contact Us For Availability
4
LINING, DOOR (WHT) WPL 51001280 Contact Us For Availability
5
WRAPPER, CABINET (WHT) WPL 51001099 Contact Us For Availability
5
BRACKET, FAN WPL 51001049 Contact Us For Availability
5
BRACKET, CONTROL WPL 51001054 Contact Us For Availability
5
WINDOW, DOOR (INNER) WPL 51001039 Contact Us For Availability
6
TAPE, FOAM WPL 05140007 Contact Us For Availability
6
MANUAL, USE & CARE/COOKBOOK WPL 51001318 Contact Us For Availability
6
SPRING, DOOR WPL 51001197 Contact Us For Availability
7
CLIP WPL Y03110050 Contact Us For Availability
7
DIODE ASSY. WPL Y04010219 Contact Us For Availability
7
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
8
CORD, POWER WPL 01080066 Contact Us For Availability
8
CLIP, CANOE WPL 03110061 Contact Us For Availability
8
BAFFLE, BULB WPL 51001030 Contact Us For Availability
8
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
9
BUTTON, DOOR RELEASE (WHT) WPL 51001156 Contact Us For Availability
9
MAGNETRON (900 WATT) WPL 51001063 Contact Us For Availability
10
HINGE, DOOR (UPPER) WPL 51001285 Contact Us For Availability
10
BULB, LIGHT WPL Y01060024 Contact Us For Availability
11
SCREW WPL 03020030 Contact Us For Availability
11
HINGE, DOOR (LOWER) WPL 51001284 Contact Us For Availability
11
CHANNEL, BASE (RT) WPL 51001059 Contact Us For Availability
12
CHANNEL, BASE (LT) WPL 51001057 Contact Us For Availability
12
BAFFLE, AIR (LT) WPL 51001058 Contact Us For Availability
13
TURNTABLE WPL 51001145 Contact Us For Availability
13
SCREW WPL 51001241 Contact Us For Availability
14
ROLLER WPL 02210011 Contact Us For Availability
14
FOOT, BASE WPL Y02230009 Contact Us For Availability
15
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
15
SCREW WPL 03010094 Contact Us For Availability
15
TRANSFORMER (900 WATT) WPL 51001062 Contact Us For Availability
16
PIN, PIVOT WPL Y03070041 Contact Us For Availability
16
WIRE HARNESS WPL 51001064 Contact Us For Availability
17
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
17
INTERLOCK ASSY. WPL 51001245 Contact Us For Availability
18
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
18
SCREW WPL 51001217 Contact Us For Availability
19
SCREW WPL 03010151 Contact Us For Availability
20
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
20
HOLDER, FUSE WPL Y01100044 Contact Us For Availability
21
COVER, TURNTABLE MOTOR WPL 51001061 Contact Us For Availability
21
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
21
CLIP WPL Y03110078 Contact Us For Availability
22
SCREW WPL Y03020076 Contact Us For Availability
22
WIRE, H.V. LEAD (16``) WPL 51001146 Contact Us For Availability
× ![]()
