Model Whirlpool DM15KW-15B RV MICROWAVE – Common Parts & Diagrams

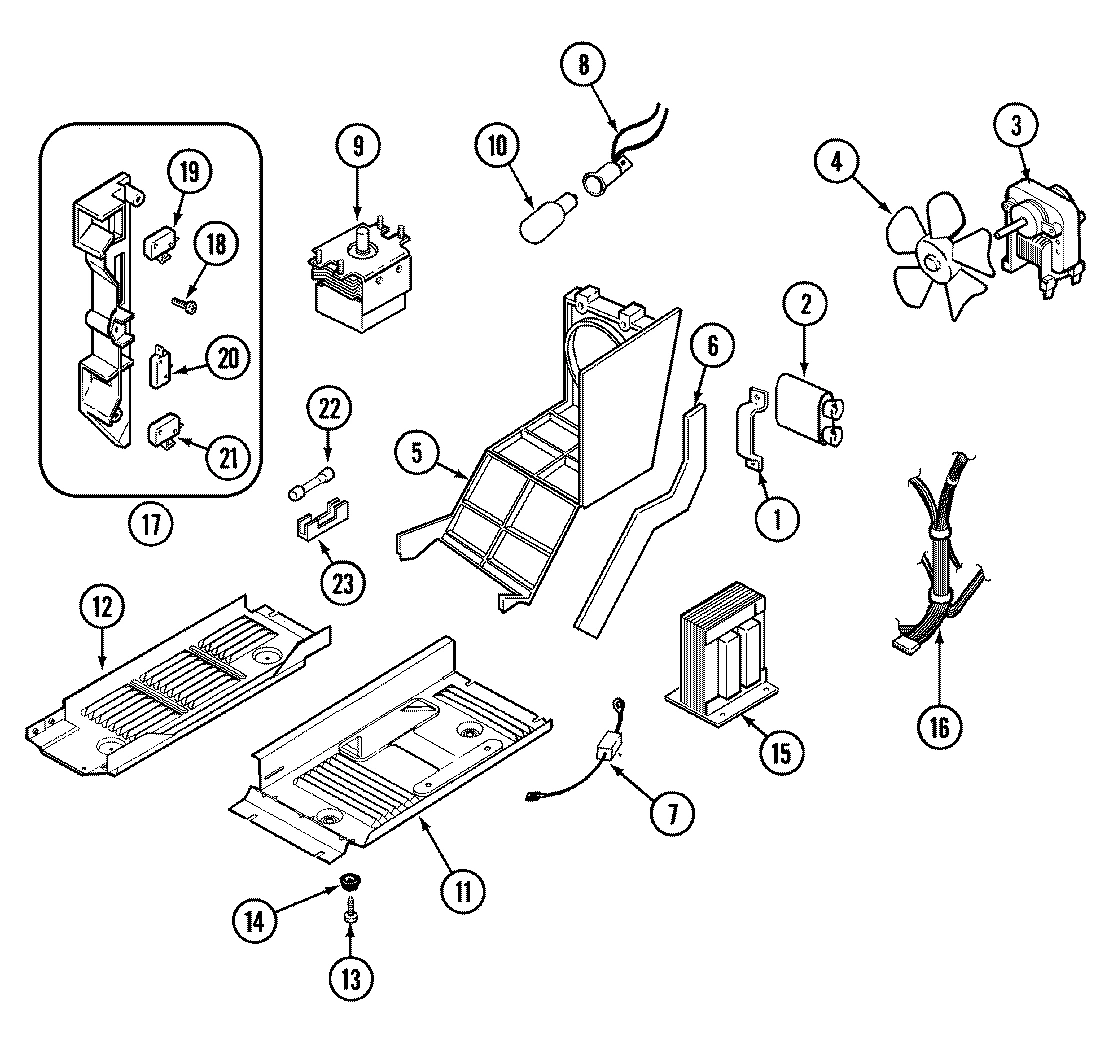

03 - INTERNAL CONTROLS

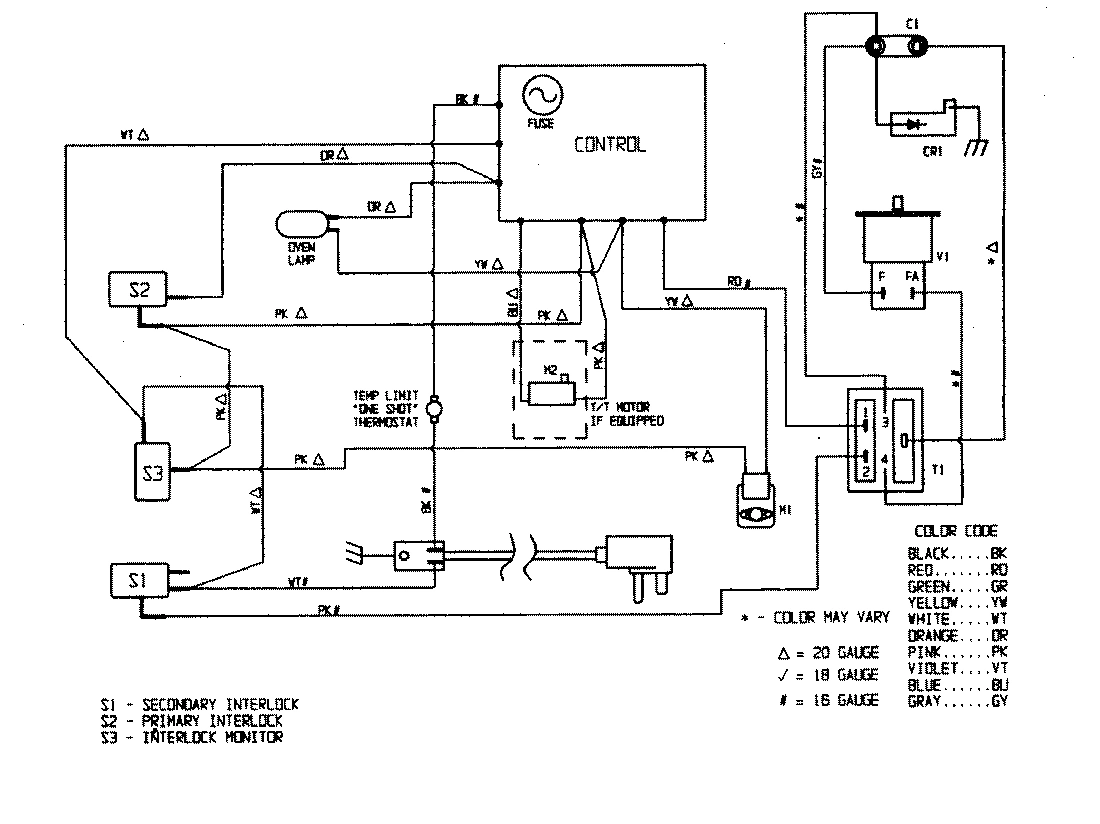

04 - WIRING INFORMATION

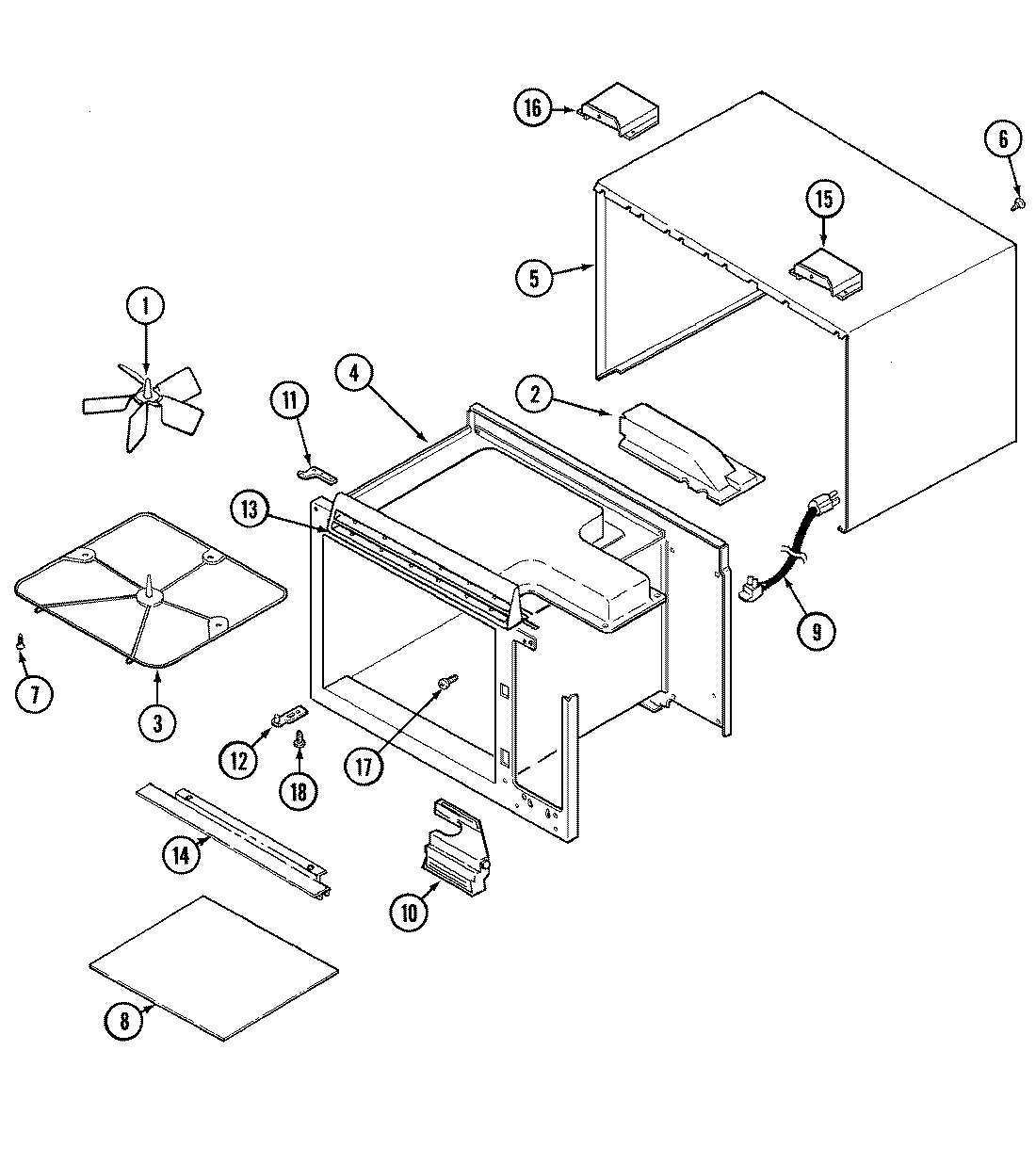

01 - BASE

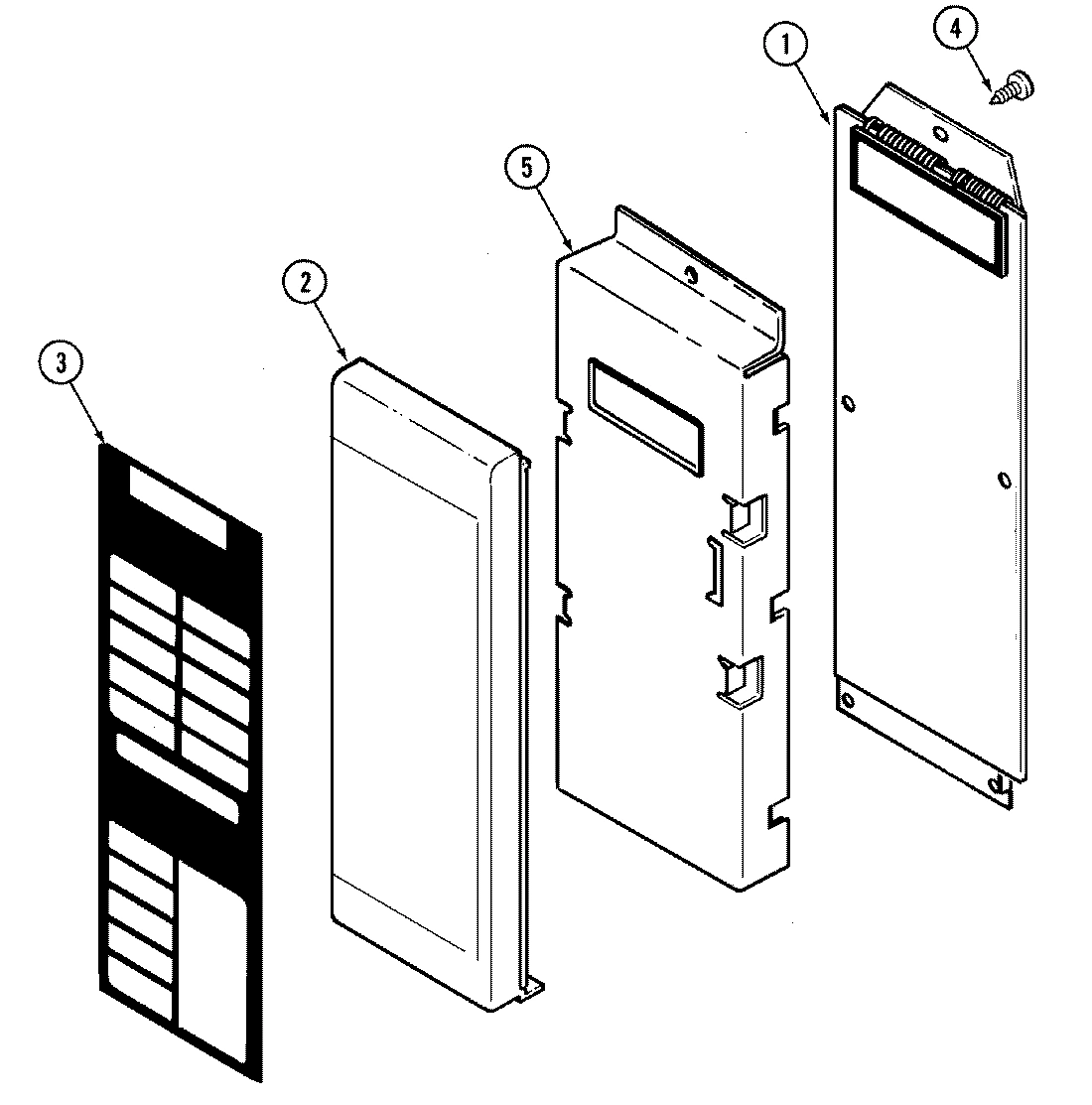

02 - CONTROL PANEL
Common parts from model Whirlpool DM15KW-15B RV MICROWAVE
1
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
1
BLADE, STIRRER WPL 51001048 Contact Us For Availability
1
BOARD, CONTROL WPL 51001320 Contact Us For Availability
1
BOARD, CONTROL (W/OUT FUSE) WPL 51001336 Contact Us For Availability
1
BOARD, CONTROL WPL 51001360 Contact Us For Availability
2
DUCT, STIRRER WPL 51001027 Contact Us For Availability
2
BAFFLE, STIRRER DUCT WPL 51001210 Contact Us For Availability
2
TRIM, CONTROL (WHT) WPL 51001185 Contact Us For Availability
3
SCREW WPL 51001101 Contact Us For Availability
3
MOTOR, FAN WPL 51001228 Contact Us For Availability
3
COVER, STIRRER WPL 51001028 Contact Us For Availability
3
INSERT, OVERLAY (WHT) WPL 51001363 Contact Us For Availability
4
BLADE, FAN WPL 51001051 Contact Us For Availability
4
CAVITY (WHT) WPL 51001083 Contact Us For Availability
5
BRACKET, FAN WPL 51001049 Contact Us For Availability
5
WRAPPER, CABINET (WHT) WPL 51001273 Contact Us For Availability
5
BRACKET, CONTROL WPL 51001054 Contact Us For Availability
6
TAPE, FOAM WPL 05140007 Contact Us For Availability
7
DIODE ASSY. WPL Y04010219 Contact Us For Availability
7
CLIP WPL Y03110050 Contact Us For Availability
7
MANUAL, USE & CARE/COOKBOOK WPL 51001133 Contact Us For Availability
8
CLIP, CANOE WPL 03110061 Contact Us For Availability
8
BAFFLE, BULB WPL 51001030 Contact Us For Availability
8
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
8
TRAY, PLASTIC (WHT) WPL 51001213 Contact Us For Availability
9
MAGNETRON (900 WATT) WPL 51001063 Contact Us For Availability
9
SCREW WPL 03020030 Contact Us For Availability
9
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
10
BULB, LIGHT WPL Y01060024 Contact Us For Availability
10
BUTTON, DOOR RELEASE (WHT) WPL 51001156 Contact Us For Availability
11
CHANNEL, BASE (RT) WPL 51001059 Contact Us For Availability
11
HINGE, DOOR (UPPER) WPL 51001285 Contact Us For Availability
12
BAFFLE, AIR (LT) WPL 51001058 Contact Us For Availability
12
CHANNEL, BASE (LT) WPL 51001104 Contact Us For Availability
12
HINGE, DOOR (LOWER) WPL 51001047 Contact Us For Availability
13
SCREW WPL 51001241 Contact Us For Availability
13
TRIM, VENT (UPPER-WHT) WPL 51001226 Contact Us For Availability
14
FOOT, BASE WPL Y02230008 Contact Us For Availability
14
TRIM, VENT (LOWER-WHT) WPL 51001227 Contact Us For Availability
15
TRANSFORMER (900W) WPL 51001323 Contact Us For Availability
15
BRACKET, TRIM MTG. WPL 51001091 Contact Us For Availability
16
HARNESS, WIRE WPL 51001330 Contact Us For Availability
16
SCREW, 8A X 1/4 WPL 03020083 Contact Us For Availability
16
DUCT, EXHAUST WPL 51001090 Contact Us For Availability
17
INTERLOCK ASSY. WPL 51001245 Contact Us For Availability
18
SCREW WPL 51001217 Contact Us For Availability
18
WASHER WPL 51001100 Contact Us For Availability
18
SCREW WPL Y03020076 Contact Us For Availability
18
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
19
SWITCH, INTERLOCK (PRIMARY) WPL 51001044 Contact Us For Availability
20
SWITCH, INTERLOCK (MONITOR) WPL 51001045 Contact Us For Availability
21
SWITCH, INTERLOCK (SECONDARY) WPL 51001046 Contact Us For Availability
23
HOLDER, FUSE WPL Y01100044 Contact Us For Availability
24
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
24
CLIP WPL Y03110078 Contact Us For Availability
24
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001259 Contact Us For Availability
× ![]()
