Model Whirlpool DM15K-7BS RV MICROWAVE – Common Parts & Diagrams
01 - BASE

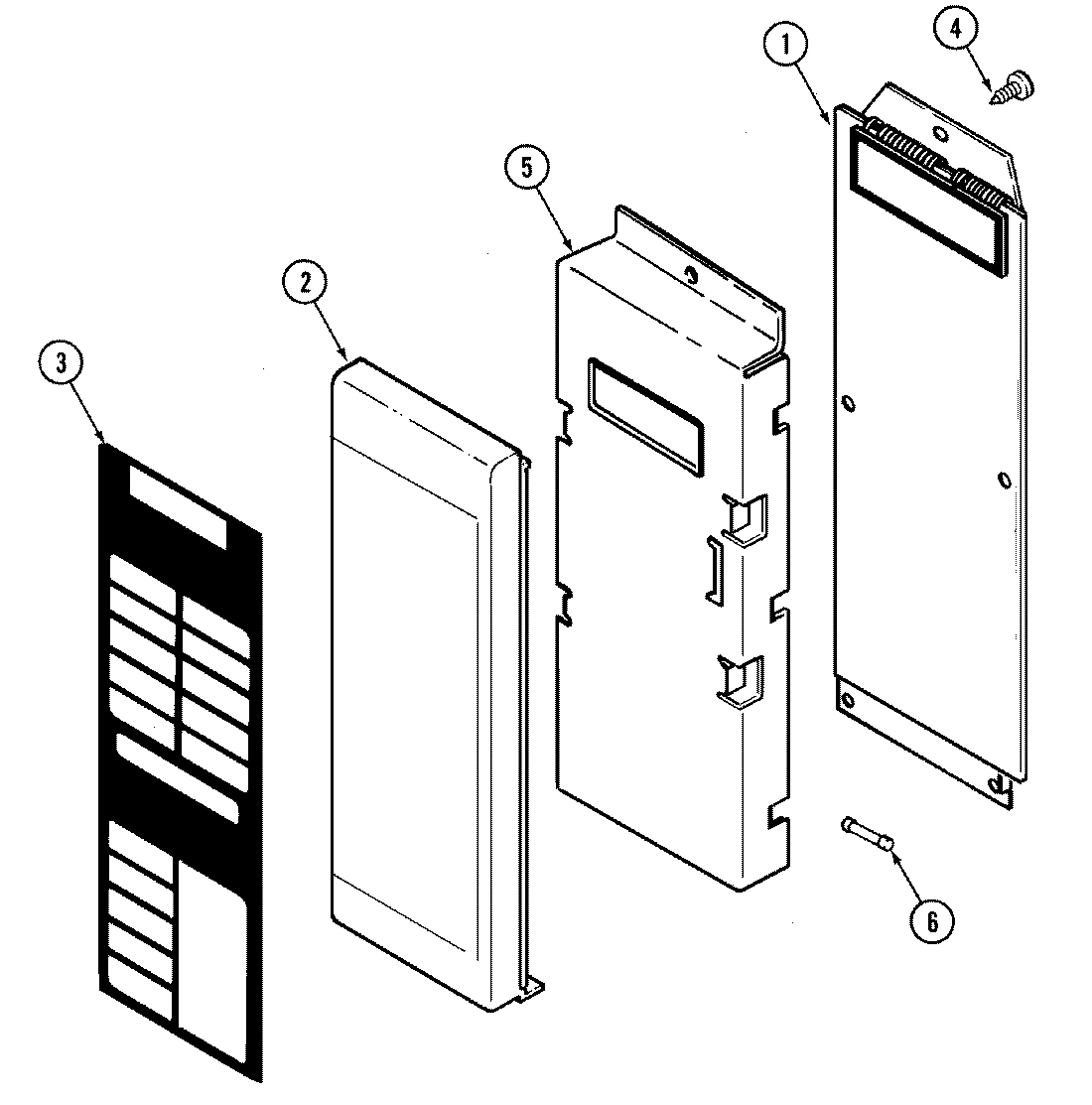

02 - CONTROL PANEL

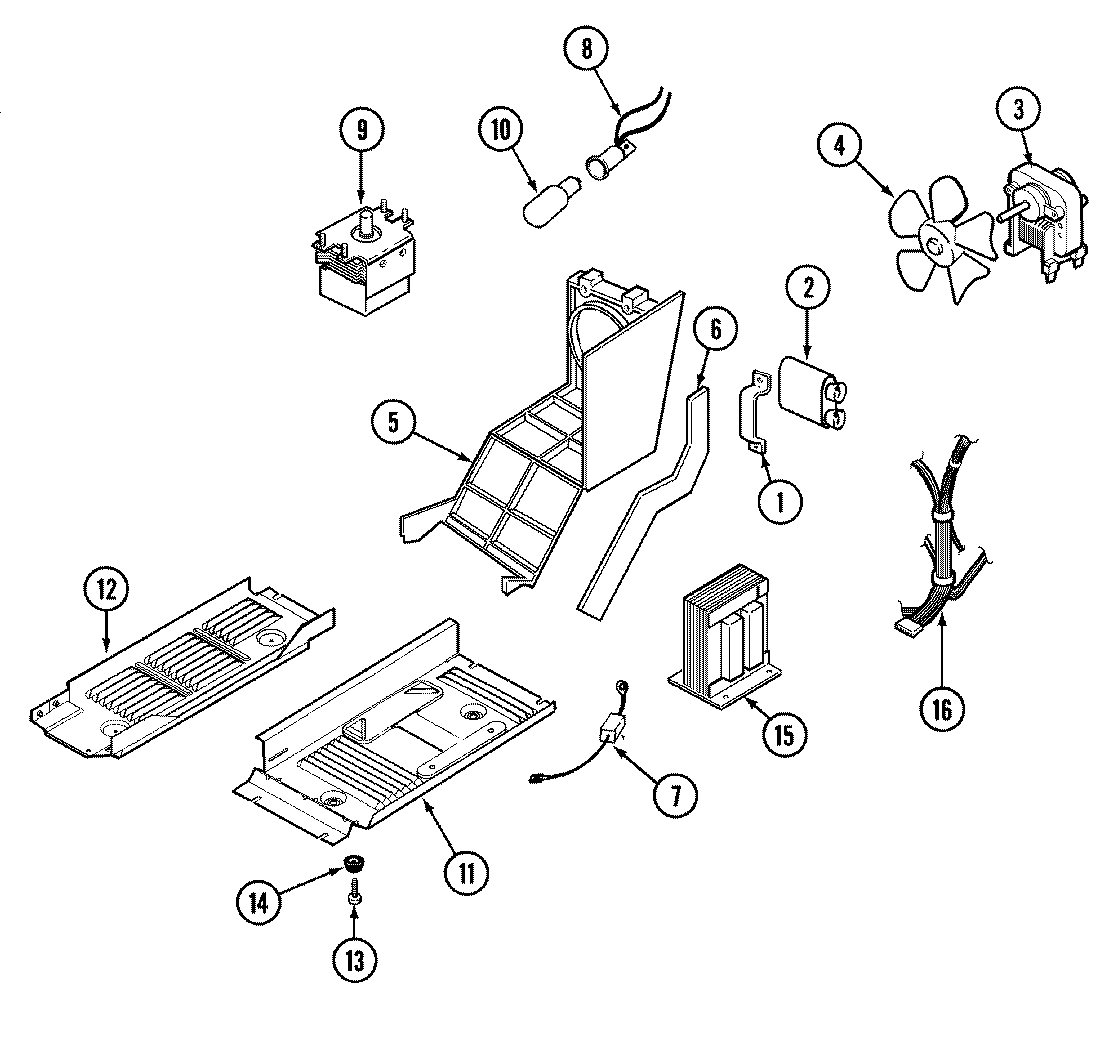

05 - INTERNAL CONTROLS

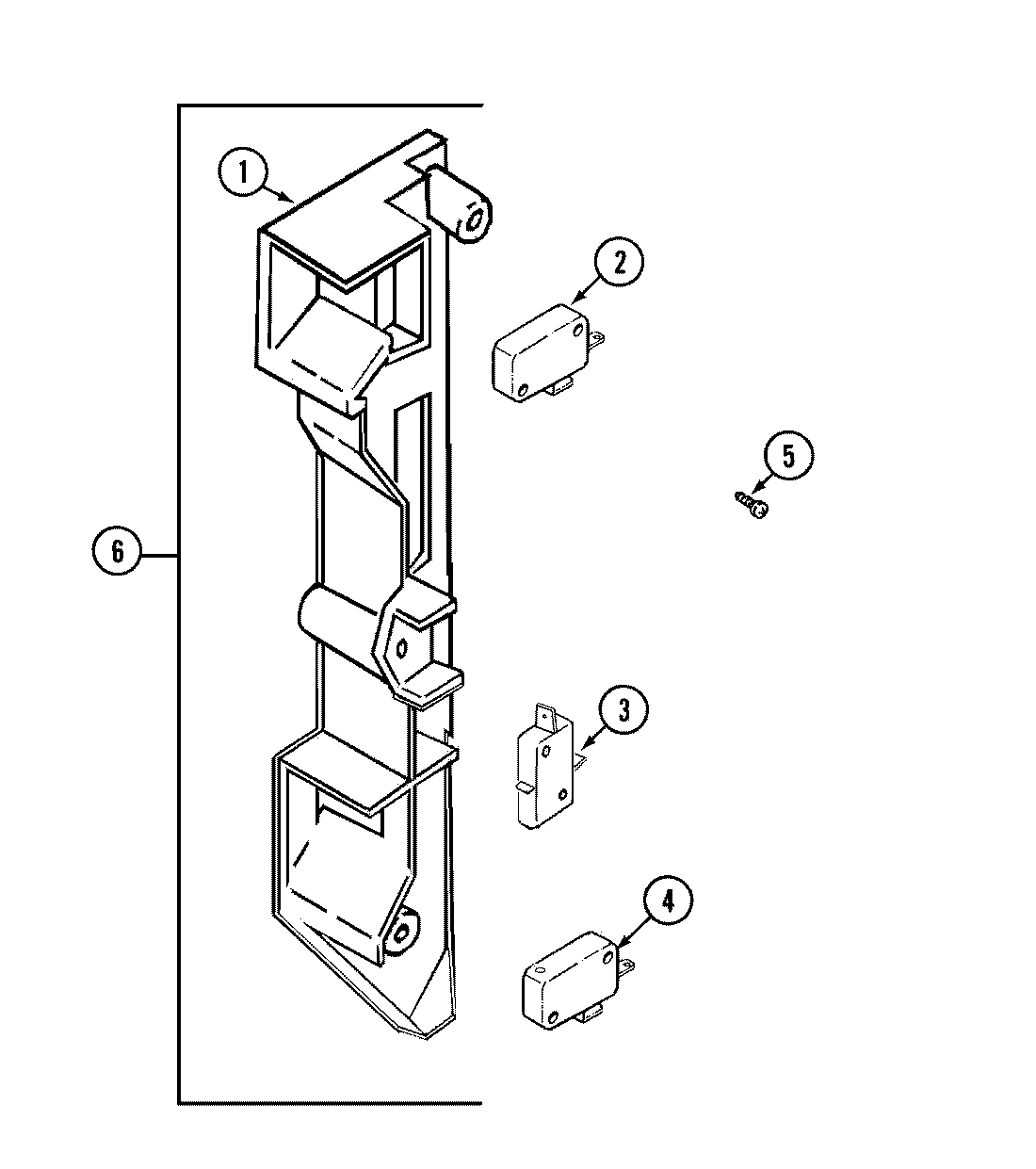

04 - INTERLOCK SWITCHES

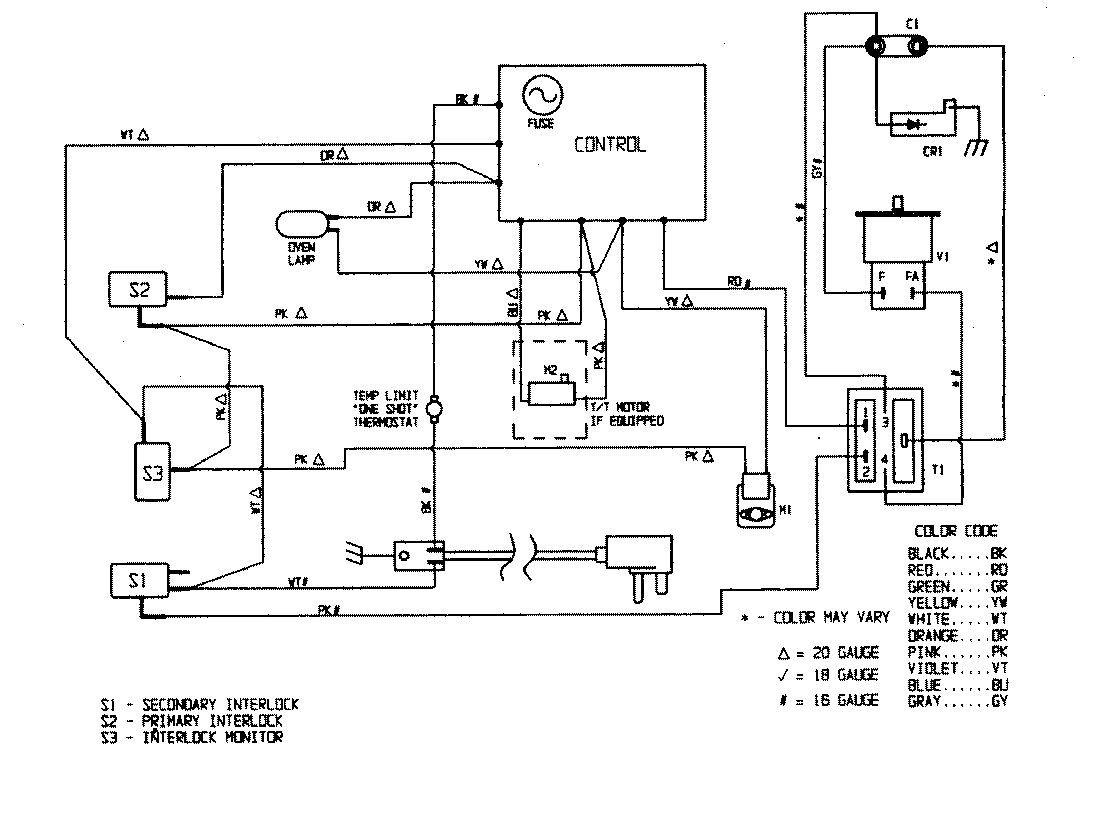

06 - WIRING INFORMATION

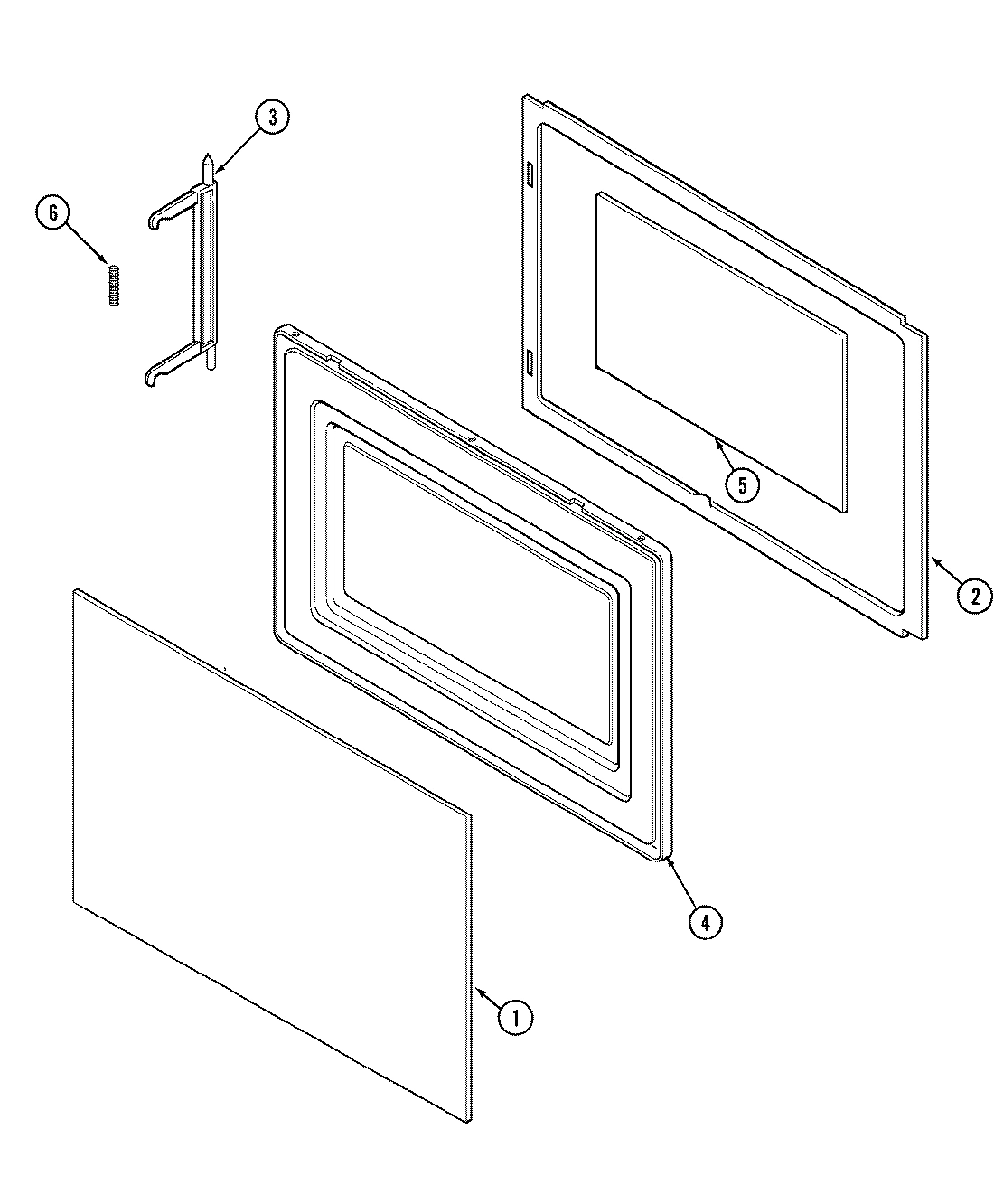

03 - DOOR
Common parts from model Whirlpool DM15K-7BS RV MICROWAVE
1
BLADE, STIRRER WPL 51001048 Contact Us For Availability
1
BOARD, CONTROL WPL 51001053 Contact Us For Availability
1
BOARD, CONTROL WPL 51001351 Contact Us For Availability
1
BOARD, CONTROL WPL 51001359 Contact Us For Availability
1
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
1
BRACKET, SWITCH WPL 51001043 Contact Us For Availability
1
WINDOW, DOOR (OUTER-BLK) WPL 51001080 Contact Us For Availability
2
DUCT, STIRRER WPL 51001027 Contact Us For Availability
2
BAFFLE, STIRRER DUCT WPL 51001210 Contact Us For Availability
2
PANEL, CONTROL (BLK) WPL 51001052 Contact Us For Availability
2
CAPACITOR (800/1100 WATT) WPL 51001301 Contact Us For Availability
2
SWITCH, INTERLOCK (PRIMARY) WPL 51001044 Contact Us For Availability
2
CHOKE, DOOR (BLK) WPL 51001038 Contact Us For Availability
3
COVER, STIRRER WPL 51001028 Contact Us For Availability
3
INSERT, OVERLAY (BLK) WPL 51001152 Contact Us For Availability
3
MOTOR, FAN WPL 51001050 Contact Us For Availability
3
SCREW WPL 51001101 Contact Us For Availability
3
SWITCH, INTERLOCK (MONITOR) WPL 51001045 Contact Us For Availability
3
LATCH, STRIKE WPL 51001036 Contact Us For Availability
4
CAVITY (WHT) WPL 51001083 Contact Us For Availability
4
BLADE, FAN WPL 51001051 Contact Us For Availability
4
SWITCH, INTERLOCK (SECONDARY) WPL 51001046 Contact Us For Availability
4
LINING, DOOR (BLK) WPL 51001081 Contact Us For Availability
4
LINING, DOOR (BLK) WPL 51001295 Contact Us For Availability
5
WRAPPER, CABINET (BLK) WPL 51001088 Contact Us For Availability
5
BRACKET, CONTROL WPL 51001054 Contact Us For Availability
5
BRACKET, FAN WPL 51001049 Contact Us For Availability
5
SCREW WPL 51001094 Contact Us For Availability
5
LOCKWASHER No.6 WPL 03030001 Contact Us For Availability
5
SCREW WPL 51001217 Contact Us For Availability
5
WINDOW, DOOR (INNER) WPL 51001039 Contact Us For Availability
6
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
6
TAPE, FOAM WPL 05140007 Contact Us For Availability
6
INTERLOCK ASSY. WPL 51001078 Contact Us For Availability
6
SPRING, DOOR WPL 51001037 Contact Us For Availability
7
CLIP WPL Y03110050 Contact Us For Availability
7
MANUAL, USE & CARE/COOKBOOK WPL 51001139 Contact Us For Availability
7
MANUAL, USE & CARE/COOKBOOK WPL 51001349 Contact Us For Availability
7
DIODE ASSY. WPL Y04010219 Contact Us For Availability
8
TRAY, PLASTIC (WHT) WPL 51001213 Contact Us For Availability
8
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
8
CLIP, CANOE WPL 03110061 Contact Us For Availability
8
BAFFLE, BULB WPL 51001030 Contact Us For Availability
8
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
9
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
9
MAGNETRON (700 WATT) WPL 51001074 Contact Us For Availability
10
BUTTON, DOOR RELEASE (BLK) WPL 51001041 Contact Us For Availability
10
BULB, LIGHT WPL Y01060024 Contact Us For Availability
11
SCREW WPL 03020030 Contact Us For Availability
11
HINGE, DOOR (UPPER) WPL 51001035 Contact Us For Availability
11
CHANNEL, BASE (RT) WPL 51001059 Contact Us For Availability
12
HINGE, DOOR (LOWER) WPL 51001047 Contact Us For Availability
12
BAFFLE, AIR (LT) WPL 51001058 Contact Us For Availability
12
CHANNEL, BASE (LT) WPL 51001104 Contact Us For Availability
13
TRIM, VENT (UPPER-BLK) WPL 51001093 Contact Us For Availability
14
TRIM, VENT (LOWER-BLK) WPL 51001092 Contact Us For Availability
14
FOOT, BASE WPL Y02230008 Contact Us For Availability
15
BRACKET, TRIM MTG. WPL 51001091 Contact Us For Availability
15
SCREW WPL 257764 Contact Us For Availability
15
TRANSFORMER (700 WATT) WPL 51001073 Contact Us For Availability
16
SCREW, 8A X 1/4 WPL 03020083 Contact Us For Availability
16
DUCT, EXHAUST WPL 51001090 Contact Us For Availability
16
HARNESS, WIRE (MAIN) WPL 51001151 Contact Us For Availability
17
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
18
WASHER WPL 51001100 Contact Us For Availability
18
SCREW WPL Y03020076 Contact Us For Availability
18
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
19
CLIP WPL Y03110078 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001259 Contact Us For Availability
× ![]()
