Model Whirlpool DM125 MICROWAVE – Common Parts & Diagrams

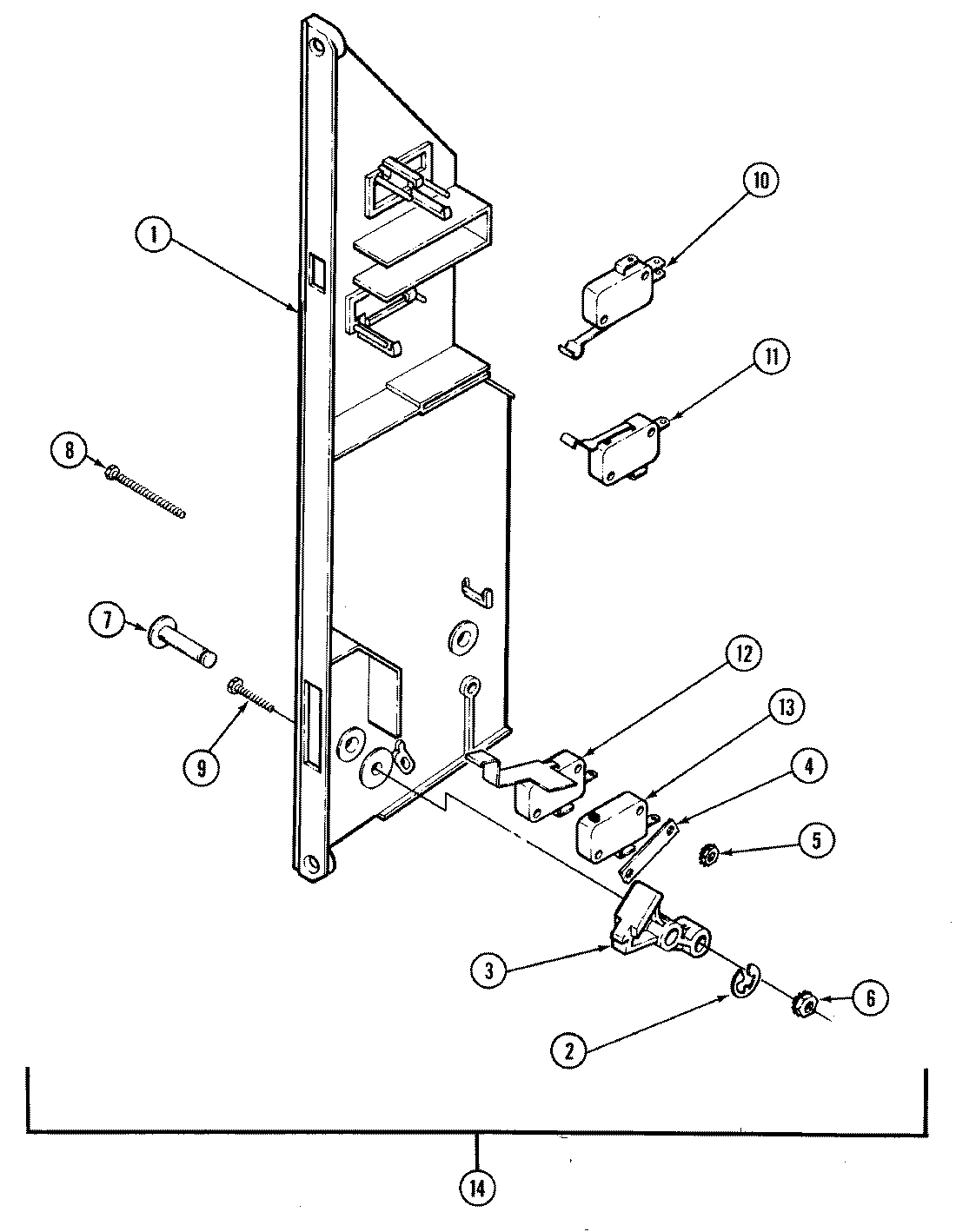

04 - INTERLOCK SWITCHES

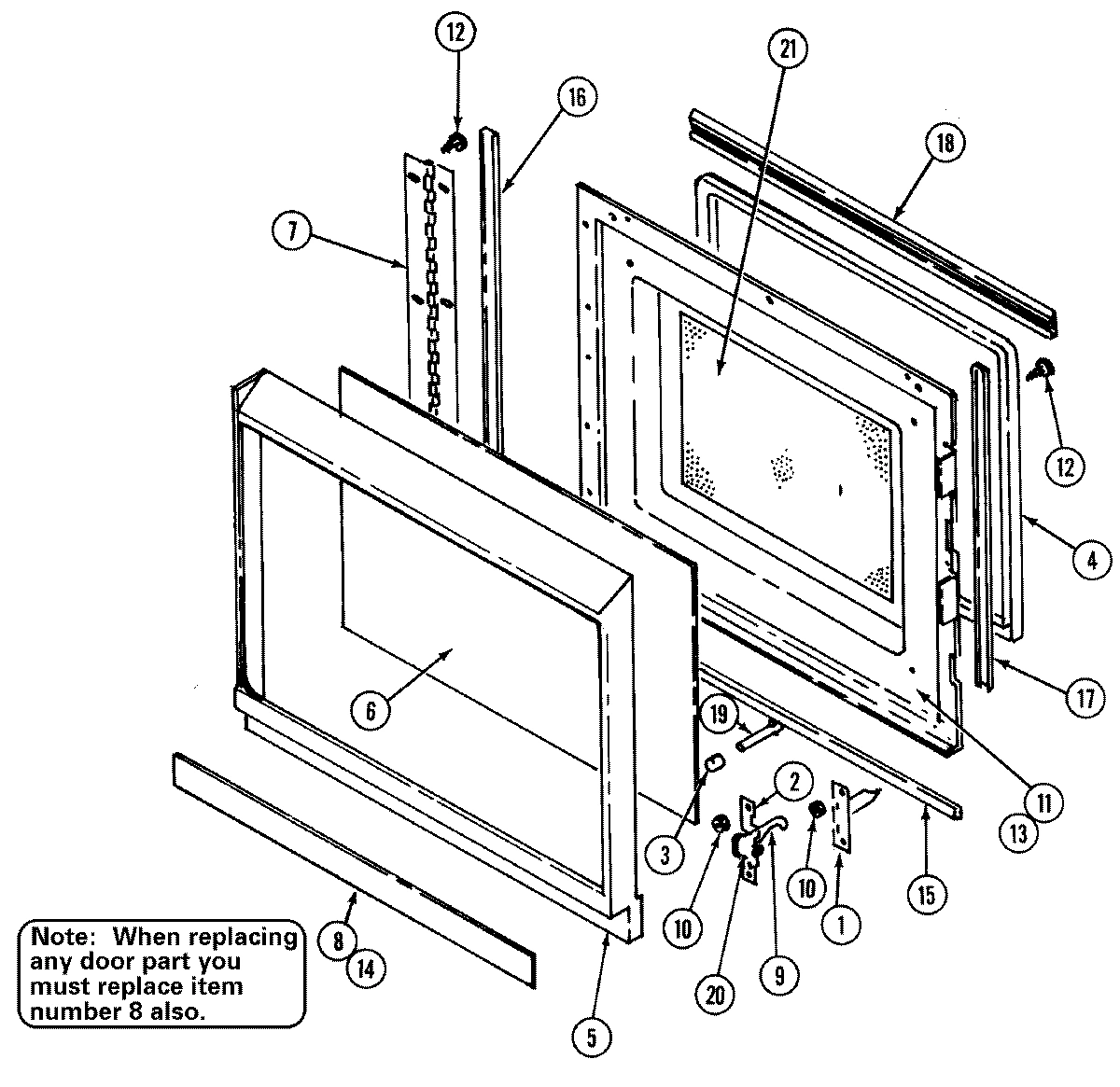

03 - DOOR

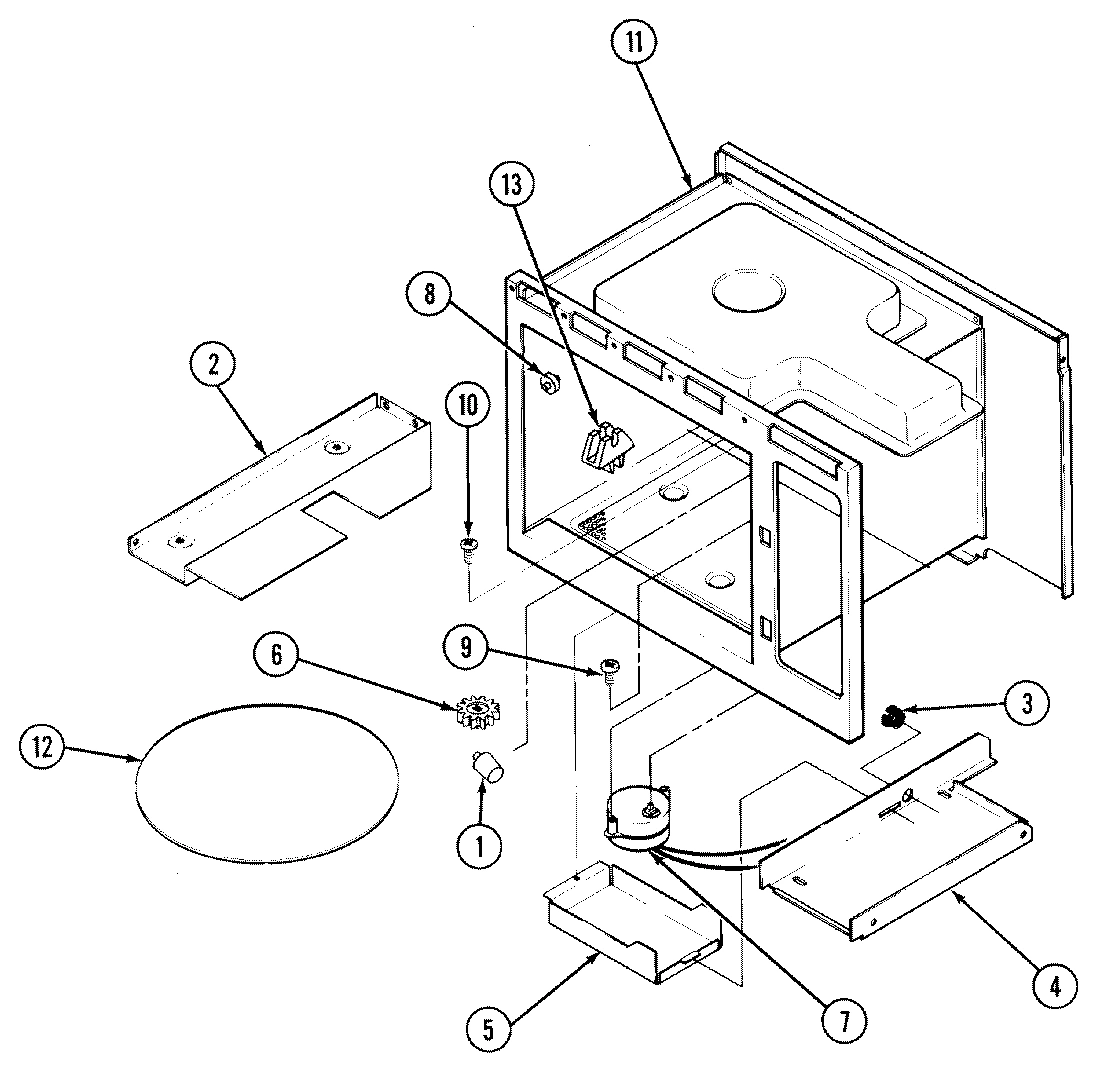

05 - TURNTABLE

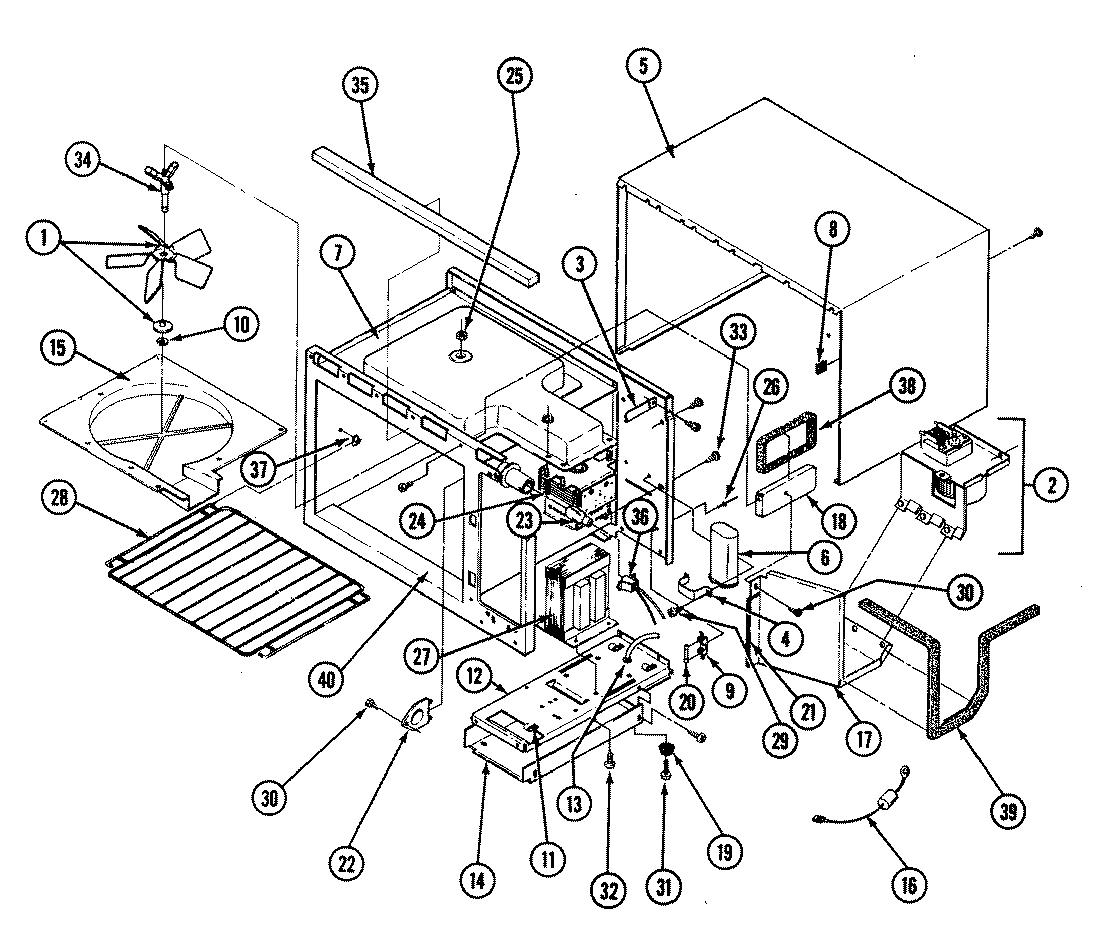

01 - BASE & CAVITY

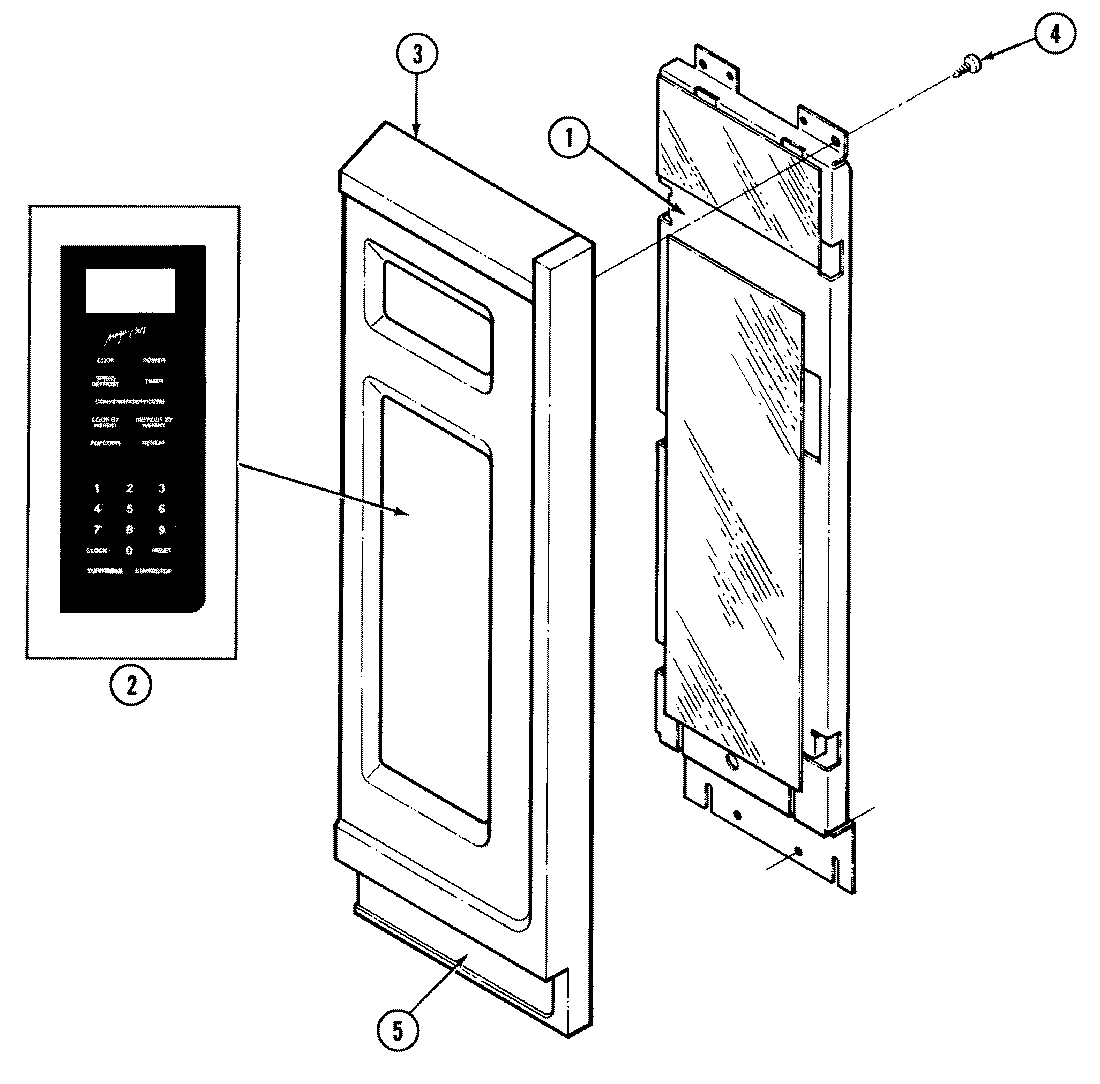

02 - CONTROL PANEL
Common parts from model Whirlpool DM125 MICROWAVE
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
PIN, PIVOT WPL Y03070041 Contact Us For Availability
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
BOARD, CONTROL WPL 01210093 Contact Us For Availability
1
BRACKET, CONTROL WPL Y02030173 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
2
BRACE, LOWER SUPPORT WPL 04021455 Contact Us For Availability
2
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
2
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
2
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
2
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
2
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
2
SWITCH, PANEL WPL 02060365 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
BUMPER WPL Y02100135 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
3
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
3
BRACE, LOWER LEFT SUPPORT WPL 04020957 Contact Us For Availability
3
FRAME, CONTROL PANEL WPL 02100243 Contact Us For Availability
3
SCREW WPL 03020041 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
LEVER, INTERLOCK SWITCH WPL Y02180016 Contact Us For Availability
4
CHOKE, FILLER (BLK) WPL Y02100166 Contact Us For Availability
4
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
4
SCREW WPL 03020011 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
DOOR TRIM ASSEMBLY WPL 04021543 Contact Us For Availability
5
INSERT, CONTROL/DOOR WPL 02100244 Contact Us For Availability
5
COVER, MOTOR TURNTABLE WPL Y02300050 Contact Us For Availability
5
WRAPPER WPL Y02140042 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
EXTRUSION, HANDLE (BLK) WPL 02120151 Contact Us For Availability
6
GLASS, DOOR WPL Y02220096 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
6
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
6
CAPACITOR WPL Y01020023 Contact Us For Availability
6
MANUAL, USE & CARE WPL Y06010337 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
HINGE, DOOR WPL Y02200017 Contact Us For Availability
7
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
7
CAVITY WPL 04021554 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
ROLLER WPL 02210011 Contact Us For Availability
8
BEARING WPL Y02440001 Contact Us For Availability
8
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
8
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
8
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
9
SCREW WPL Y03010113 Contact Us For Availability
9
SCREW WPL 03010151 Contact Us For Availability
9
CLIP WPL Y03110050 Contact Us For Availability
10
SWITCH, LOGIC WPL Y01140085 Contact Us For Availability
10
CLIP, STIRRER WPL 03110066 Contact Us For Availability
11
SWITCH, MONITOR WPL Y01140084 Contact Us For Availability
11
DOOR ASSY WPL 04021542 Contact Us For Availability
11
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
12
SWITCH, PRIMARY WPL 01140083 Contact Us For Availability
12
TURNTABLE WPL Y02460009 Contact Us For Availability
12
PLATE, COMPONENT MOUNTING WPL Y02040101 Contact Us For Availability
13
SWITCH, TERTIARY (LOGIC) WPL Y01140086 Contact Us For Availability
13
SCREW WPL Y03010118 Contact Us For Availability
13
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
13
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
14
INTERLOCK SWITCH ASSEMBLY WPL Y04021550 Contact Us For Availability
14
COVER, MTG PLATE WPL 02300039 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
15
COVER, STIRRER WPL Y02300045 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
16
DIODE ASSY WPL 01030013 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
17
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
18
SEAL, TOP WPL 02120153 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
18
SUPPORT, MAG DUCT WPL Y02170112 Contact Us For Availability
19
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
19
FOOT, BASE WPL 02230012 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
20
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
21
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
21
TAPE, FOAM WPL 02310071 Contact Us For Availability
22
LENS, BULB WPL Y02400007 Contact Us For Availability
23
BULB, LIGHT WPL Y01060024 Contact Us For Availability
24
MAGNETRON WPL 01040004 Contact Us For Availability
25
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
26
PLATE, POPCORN WPL 02040094 Contact Us For Availability
27
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
28
RACK, OVEN WPL Y02410004 Contact Us For Availability
29
SCREW WPL Y03020076 Contact Us For Availability
30
SCREW WPL 03010098 Contact Us For Availability
31
SCREW WPL 03020081 Contact Us For Availability
32
SCREW WPL 03020077 Contact Us For Availability
33
SCREW WPL 03010060 Contact Us For Availability
34
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
36
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
37
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
37
SUPPORT, RACK WPL 02010031 Contact Us For Availability
38
TAPE, FOAM WPL 02310109 Contact Us For Availability
39
TRIM, INTAKE WPL 02100251 Contact Us For Availability
39
TAPE, FOAM WPL 02310070 Contact Us For Availability
40
SCREW, 6-32 X 3/8 PH BLACK WPL Y03010157 Contact Us For Availability
40
COVER, FRONT EDGE WPL 02300057 Contact Us For Availability
40
LABEL, COOK GUIDE WPL 02240747 Contact Us For Availability
40
WIRE HARNESS WPL 04010283 Contact Us For Availability
40
CLIP WPL Y03110059 Contact Us For Availability
40
CLIP WPL Y03110078 Contact Us For Availability
40
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
40
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
