LG DLEV833W Dryer Parts List

*001

Manual Assembly,Owners LGE AFN31041313 Contact Us For Availability

View on Model

*002

Box,Carton LGE 3890EZ3632A Contact Us For Availability

View on Model

A160

PCB Assembly,Main LGE 6871EL1016A Contact Us For Availability

View on Model

B104

1TCL0403132 LG Tapping Screw Backorder LGE 1TCL0403132 $6.61

View on Model

B105

Screw,Customzied LGE 1SZZEL4001A Contact Us For Availability

View on Model

B106

Gasket LGE 4986EL1002A Contact Us For Availability

View on Model

B107

Cap,Hole LGE 5006EL4005A Contact Us For Availability

View on Model

B108

Cap,Hole LGE 5006EL3006A Contact Us For Availability

View on Model

B120

Cover Assembly,Front LGE 3551EL1001K Contact Us For Availability

View on Model

B122

Cable & Wire,Unclassified LGE 6631EL2003C Contact Us For Availability

View on Model

B123

Harness,Multi LGE 6631EL1004B Contact Us For Availability

View on Model

B124

Parts Assembly LGE 383EEL3001A Contact Us For Availability

View on Model

B125

Cover,Lamp LGE 3550EL3005B Contact Us For Availability

View on Model

B126

HOLDER LGE 4930ER4001A Contact Us For Availability

View on Model

B127

Frame,Cover(Front) LGE 3210EL1002A Contact Us For Availability

View on Model

B128

6913EL3001E LG Dryer Incandescent Lamp In Stock LGE 6913EL3001E $11.59

View on Model

B129

Holder LGE 4930EL3017A Contact Us For Availability

View on Model

B130

Switch,Micro LGE 6601EL3001B Contact Us For Availability

View on Model

B131

4986EL1003A LG Gasket Backorder LGE 4986EL1003A $31.28

View on Model

B132

6323EL2001C LG Dryer Thermistor Backorder LGE 6323EL2001C $28.05

View on Model

B133

Screw,Customzied LGE 1SZZEL3002C Contact Us For Availability

View on Model

B134

Screw,Customzied LGE 1SZZEL3002B Contact Us For Availability

View on Model

B136

Gasket LGE 4986EL2003A Contact Us For Availability

View on Model

B140

Cover Assembly,Cabinet LGE 3551EL1002C Contact Us For Availability

View on Model

B141

Cap,Hole LGE 5006EL3007A Contact Us For Availability

View on Model

B142

Cap,Cover LGE 5006EL3005A Contact Us For Availability

View on Model

B150

4027EL2002A LG Locker Assembly Backorder LGE 4027EL2002A $52.55

View on Model

B160

Grille LGE 3530EL1001A Contact Us For Availability

View on Model

B170

Cover,Safety LGE 3550EL2011A Contact Us For Availability

View on Model

C140

Base Assembly,Cabinet LGE 3041EL1005B Contact Us For Availability

View on Model

C142

LEG ASSEMBLY Backorder LGE 4779EA3001B $15.80

View on Model

C150

Spring,Coil LGE 4970EL3003C Contact Us For Availability

View on Model

C160

4930EL3015A LG Holder In Stock LGE 4930EL3015A $6.61

View on Model

C170

1NZZEL4002B LG Nut Common Backorder LGE 1NZZEL4002B $6.61

View on Model

C180

Impeller,Blower LGE 5834EL2002A Contact Us For Availability

View on Model

C190

Supporter Assembly LGE 4981EL1002A Contact Us For Availability

View on Model

C200

Motor,AC LGE 4681EL1009B Contact Us For Availability

View on Model

C230

4276EL3002A LG Slider Backorder LGE 4276EL3002A $6.61

View on Model

C240

4850EL3002A LG Damper Backorder LGE 4850EL3002A $15.80

View on Model

C290

Cover,Blower LGE 3550EL1014A Contact Us For Availability

View on Model

C320

Accessory Assembly LGE 5001EL3002A Contact Us For Availability

View on Model

D100

Belt,Poly V LGE 4400EL1001A Contact Us For Availability

View on Model

D120

Tub Assembly,Drum LGE 3045EL1003A Contact Us For Availability

View on Model

D121

4432EL1003A LG Lifter Backorder LGE 4432EL1003A $15.80

View on Model

D122

383EEL3003E LG Assembly Parts Backorder LGE 383EEL3003E $117.98

View on Model

D123

1WZZEL3001A LG Dryer Common Backorder LGE 1WZZEL3001A $10.54

View on Model

D130

Cabinet LGE 3090EL0005A Contact Us For Availability

View on Model

D131

Cabinet LGE 3090EL0005B Contact Us For Availability

View on Model

D150

Cover Assembly,Rear LGE 3551EL1003J Contact Us For Availability

View on Model

D151

4930EL1002A LG Holder Backorder LGE 4930EL1002A $10.54

View on Model

D152

3921EL1001A LG Packing Assembly Backorder LGE 3921EL1001A $68.72

View on Model

D153

Supporter,Plate(Top) LGE 4980EL2005A Contact Us For Availability

View on Model

D155

Supporter,Plate(Top) LGE 4980EL2005B Contact Us For Availability

View on Model

D156

4980EL4001A LG Holder Supporter Backorder LGE 4980EL4001A $10.54

View on Model

D157

1SZZEL3002A LG Customized Screw Backorder LGE 1SZZEL3002A $6.61

View on Model

D170

Duct Assembly LGE 5209EL1005B Contact Us For Availability

View on Model

D200

Heater Assembly LGE 5301EL1002F Contact Us For Availability

View on Model

D201

6931EL3001D LG Dryer Thermostat Assembly Backorder LGE 6931EL3001D $68.72

View on Model

D230

3210EL1003A LG Top Frame Backorder LGE 3210EL1003A $15.80

View on Model

D240

Cap,Drier LGE 5006EL2001A Contact Us For Availability

View on Model

D250

4930EL3026A LG Holder Backorder LGE 4930EL3026A $6.61

View on Model

D260

3550EL1015A LG Protective Cover Backorder LGE 3550EL1015A $21.74

View on Model

D270

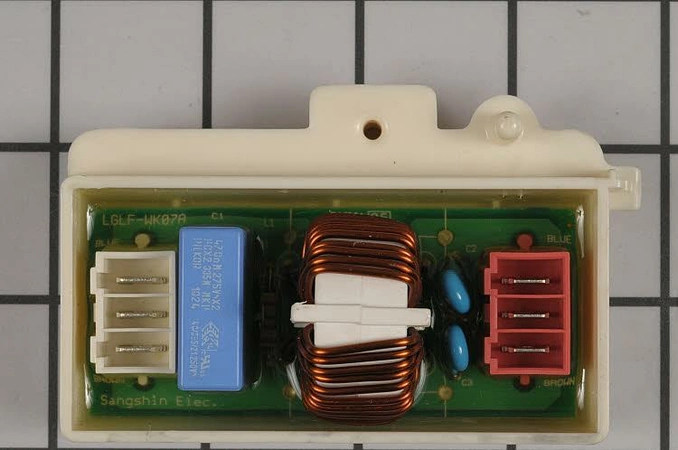

6201EC1007B LG Dryer AC Line Filter Backorder LGE 6201EC1007B $59.74

View on Model

D270

Filter Assembly LGE 6201EC1007C Contact Us For Availability

View on Model
