Model LG DLEC733W Dryer – Common Parts & Diagrams
Diagram 0

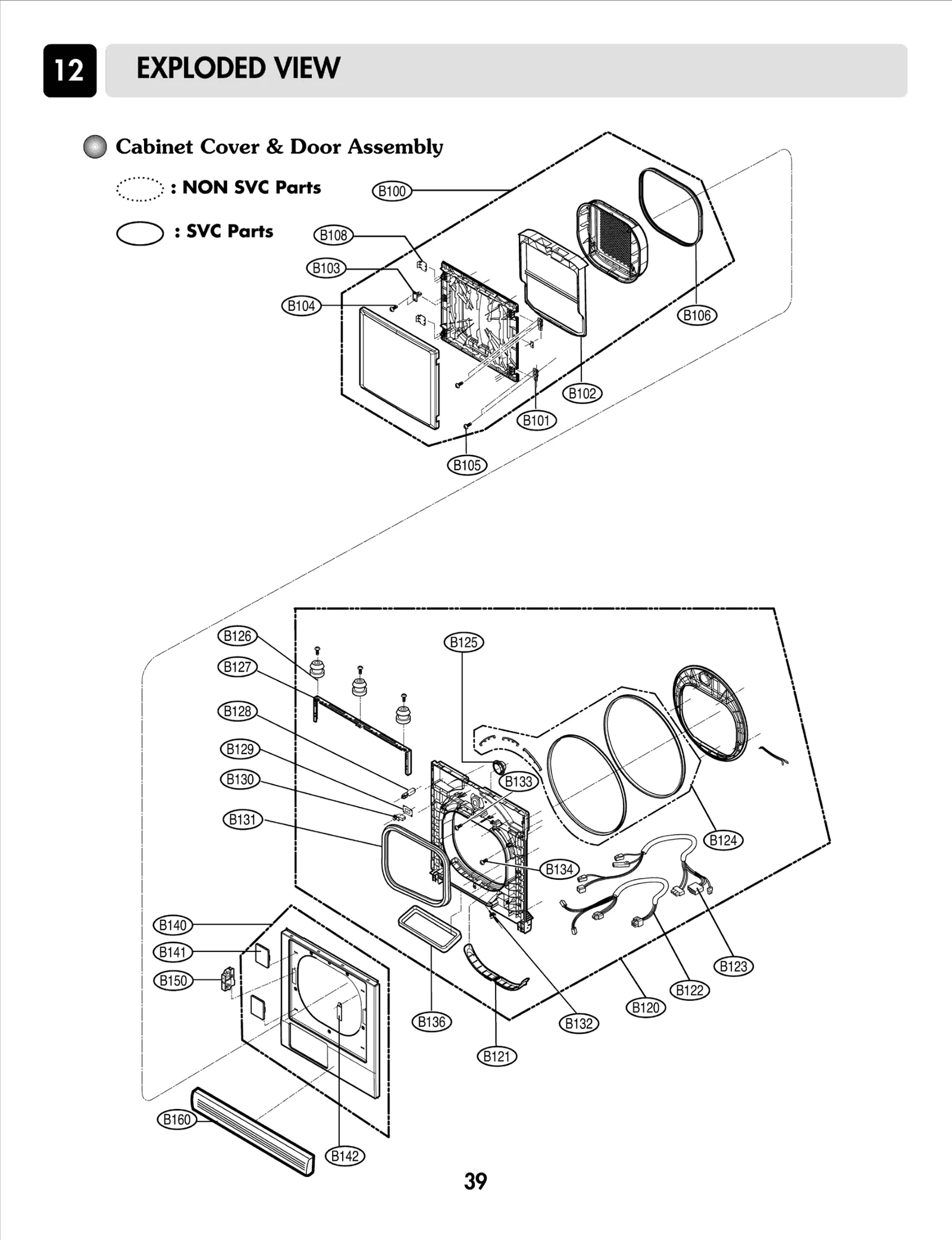

Diagram 1

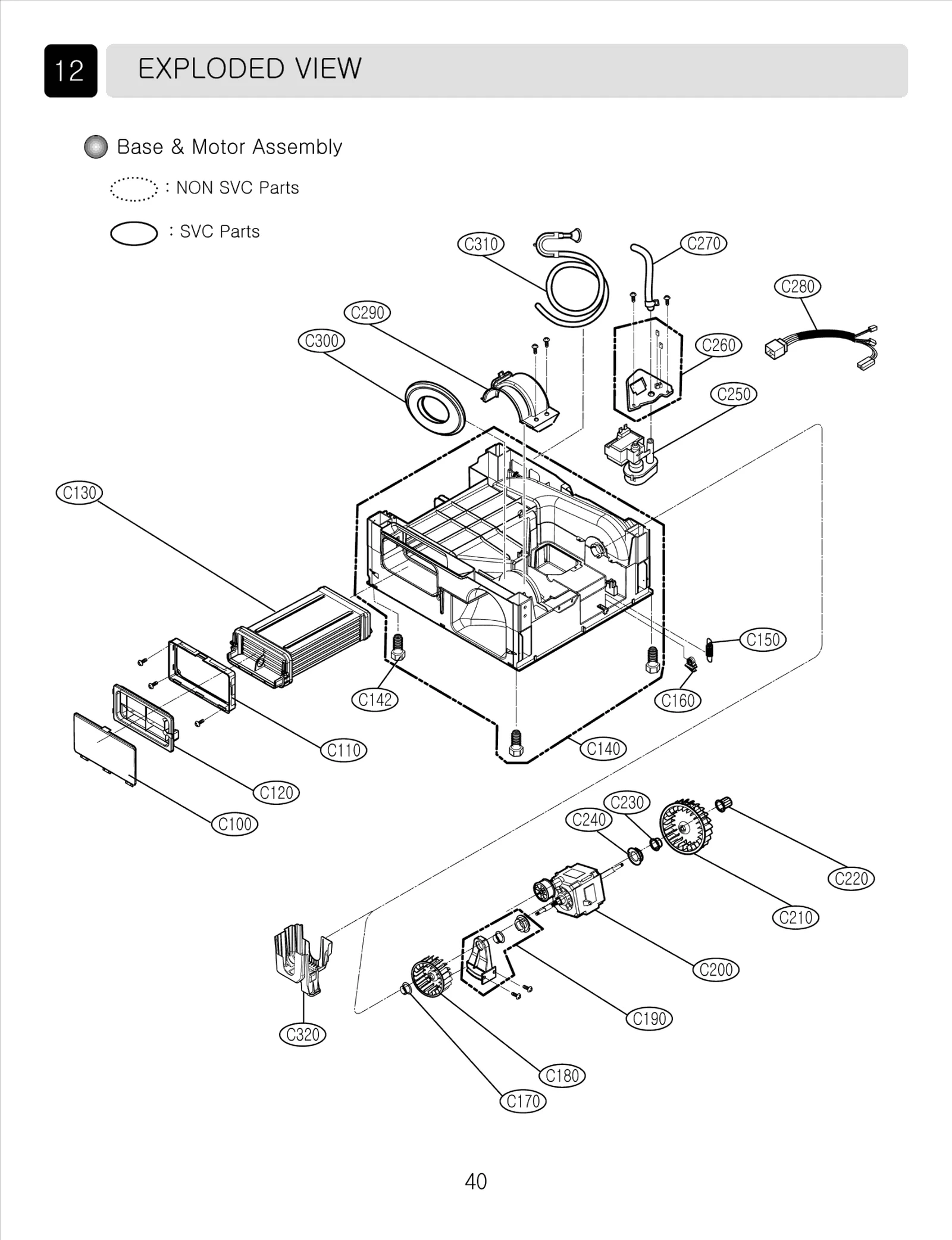

Diagram 2
Diagram 3
Diagram 4
Common parts from model LG DLEC733W Dryer
*001
Manual Assembly,Owners LGE 3829EL3005H Contact Us For Availability
*002
Box,Carton LGE 3890EZ3632A Contact Us For Availability
A160
PCB Assembly,Main LGE 6871EL1016B Contact Us For Availability
B100
Door Assembly LGE 3581EL1002C Contact Us For Availability
B101
Hinge Assembly LGE 4775EL2001A Contact Us For Availability
B102
Frame LGE 3070EL1001C Contact Us For Availability
B103
Locker,Hook LGE 4026EL3008A Contact Us For Availability
B105
Screw,Customzied LGE 1SZZEL4001A Contact Us For Availability
B106
Gasket LGE 4986EL1002A Contact Us For Availability
B107
Cap,Hole LGE 5006EL4005A Contact Us For Availability
B108
Cap,Hole LGE 5006EL3006A Contact Us For Availability
B120
Cover Assembly,Front LGE 3551EL1001M Contact Us For Availability
B121
Frame LGE 3070EL2001A Contact Us For Availability
B122
Harness,Multi LGE 6631EL1004B Contact Us For Availability
B123
Cable & Wire,Unclassified LGE 6631EL2003C Contact Us For Availability
B124
Parts Assembly LGE 383EEL3001A Contact Us For Availability
B125
Cover,Lamp LGE 3550EL3005B Contact Us For Availability
B126
HOLDER LGE 4930ER4001A Contact Us For Availability
B127
Frame,Cover(Front) LGE 3210EL1002A Contact Us For Availability
B129
Holder LGE 4930EL3017A Contact Us For Availability
B130
Switch,Micro LGE 6601EL3001B Contact Us For Availability
B133
Screw,Customzied LGE 1SZZEL3002C Contact Us For Availability
B134
Screw,Customzied LGE 1SZZEL3002B Contact Us For Availability
B136
Gasket LGE 4986EL2003A Contact Us For Availability
B140
Cover Assembly,Cabinet LGE 3551EL1002A Contact Us For Availability
B141
Cap,Hole LGE 5006EL3007A Contact Us For Availability
B142
Cap,Cover LGE 5006EL3005A Contact Us For Availability
B150
Locker Assembly LGE 4027EL3001A Contact Us For Availability
B160
Grille LGE 3530EL1001A Contact Us For Availability
C100
Cover,Lower LGE 3550EL2006A Contact Us For Availability
C110
Case LGE 3110EL2001A Contact Us For Availability
C120
Cover Assembly,Safety LGE 3551EL2001A Contact Us For Availability
C140
Base Assembly,Cabinet LGE 3041EL1002A Contact Us For Availability
C150
Spring,Coil LGE 4970EL3003A Contact Us For Availability
C180
Impeller,Blower LGE 5834EL2002A Contact Us For Availability
C200
Motor,AC LGE 4681EL1009A Contact Us For Availability
C210
Impeller,Blower LGE 5834EL2001A Contact Us For Availability
C250
Pump Assembly,Drain LGE 5859EL2001C Contact Us For Availability
C260
Sensor Assembly LGE 6501EL3003A Contact Us For Availability
C270
Hose Assembly,Connector LGE 5215EL3001A Contact Us For Availability
C280
Harness,Single LGE 6631EL2001A Contact Us For Availability
C290
Cover Assembly,Base LGE 3551EL2002A Contact Us For Availability
C300
Guide,Air LGE 4974EL3004A Contact Us For Availability
C310
Accessory Assembly LGE 5001EL2001F Contact Us For Availability
C320
Cover,Safety LGE MCK34438901 Contact Us For Availability
D100
Belt,Poly V LGE 4400EL1001A Contact Us For Availability
D120
Tub Assembly,Drum LGE 3045EL1003A Contact Us For Availability
D130
Cabinet LGE 3090EL1001B Contact Us For Availability
D131
Cabinet LGE 3090EL1001A Contact Us For Availability
D150
Cover Assembly,Rear LGE 3551EL1003G Contact Us For Availability
D153
Supporter,Plate(Top) LGE 4980EL2005A Contact Us For Availability
D155
Supporter,Plate(Top) LGE 4980EL2005B Contact Us For Availability
D160
Guide,Air LGE 4974EL3006A Contact Us For Availability
D170
Duct Assembly LGE 5209EL1005B Contact Us For Availability
D190
Cap,Cover LGE 5006EL3010A Contact Us For Availability
D210
Holder LGE 4930EL3020A Contact Us For Availability
D280
Harness,Multi Terminal Block only LGE 6877EL1022C Contact Us For Availability
× ![]()
