Model Whirlpool DHU709 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

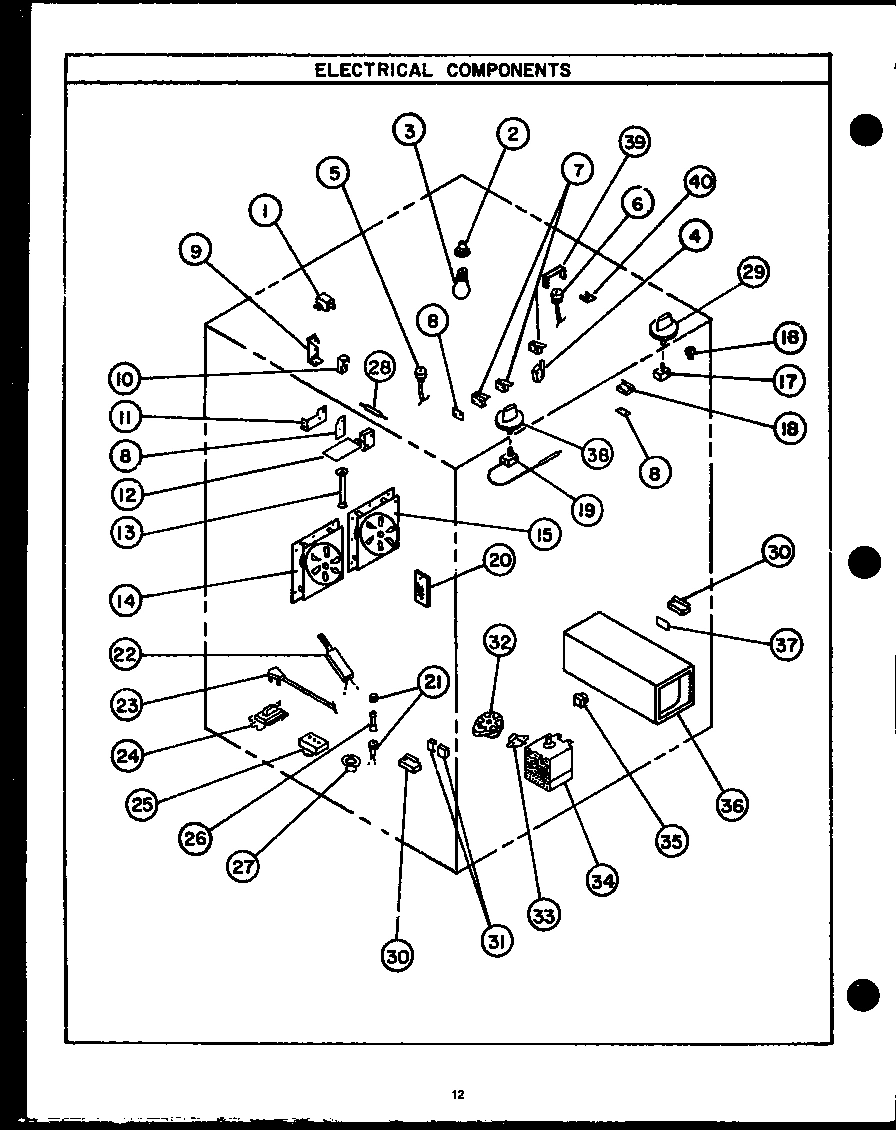

02 - ELECTRICAL COMPONENTS

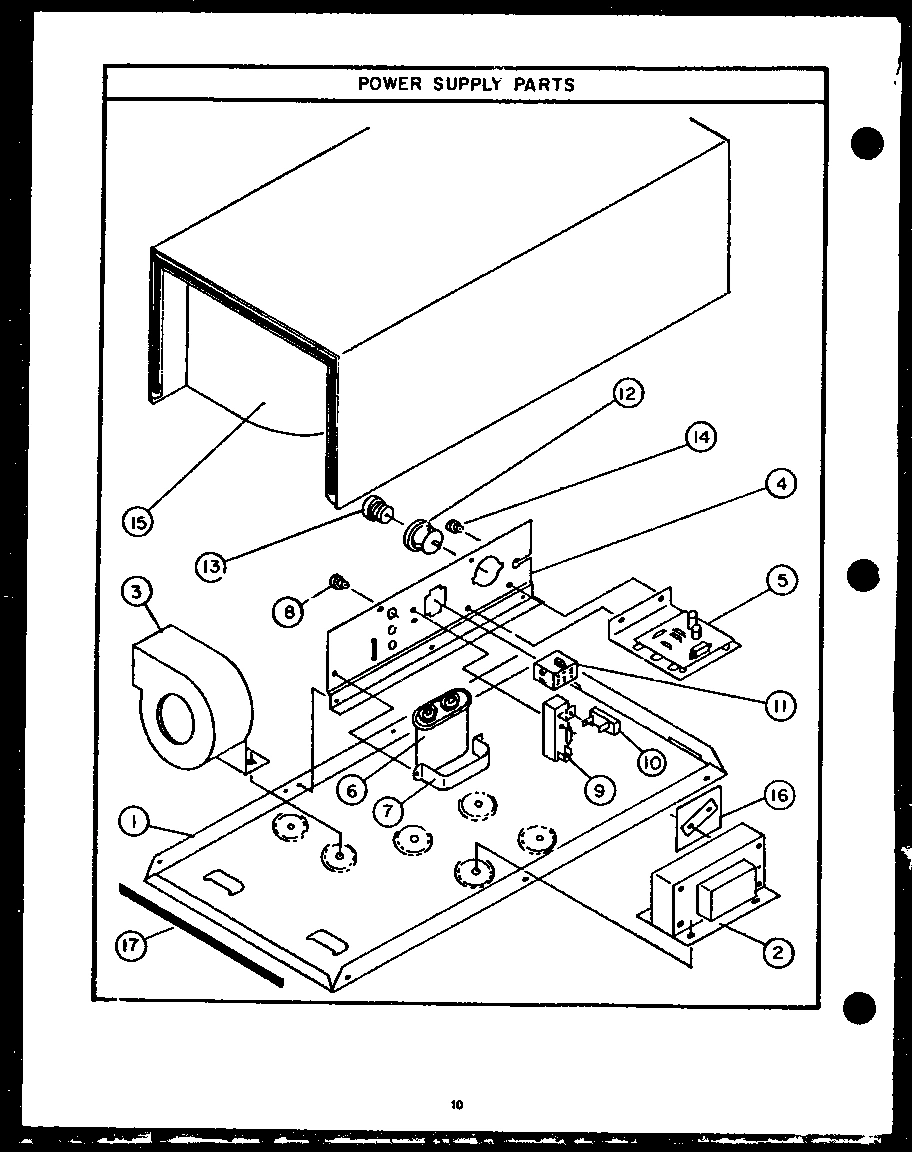

07 - POWER SUPPLY PARTS

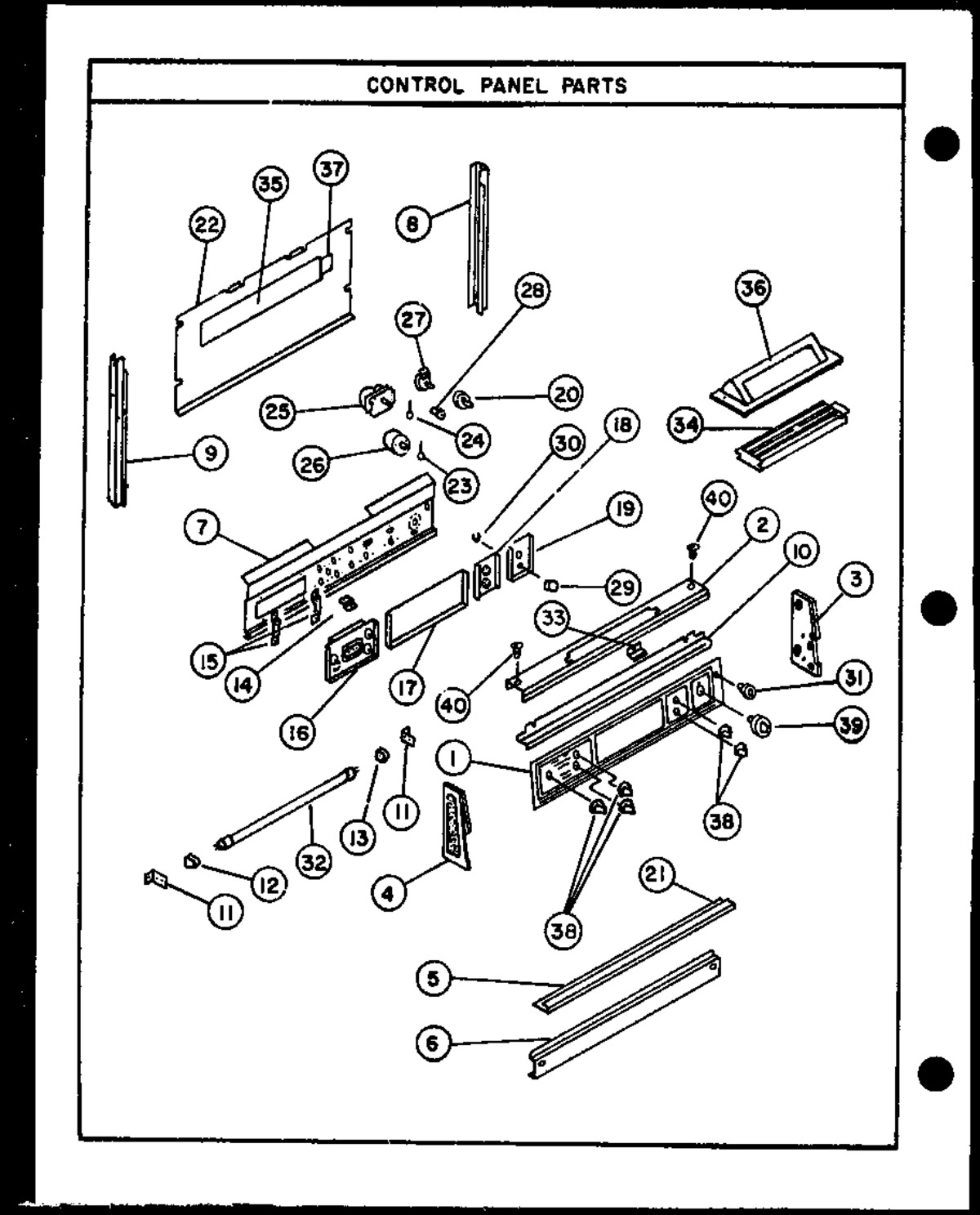

01 - CONTROL PANEL PARTS

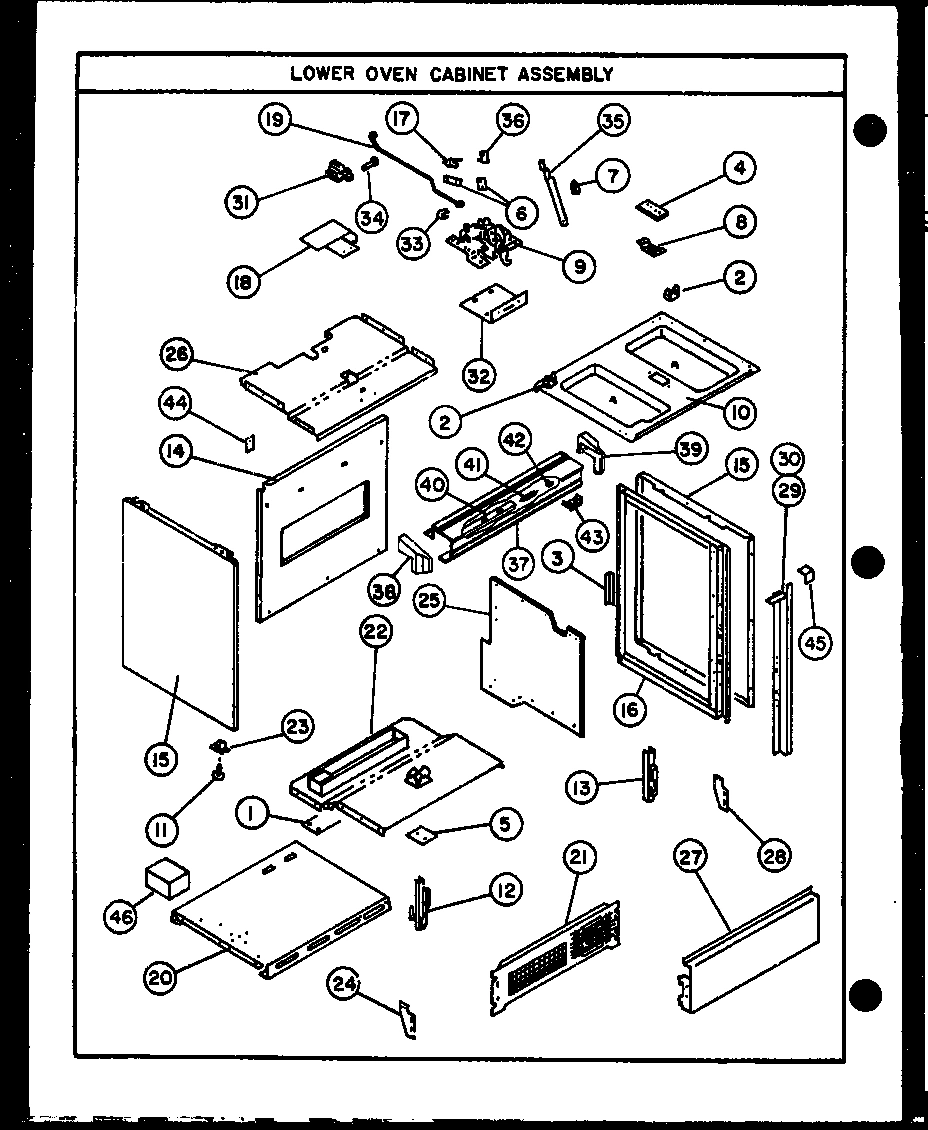

03 - LOWER OVEN CABINET ASSY

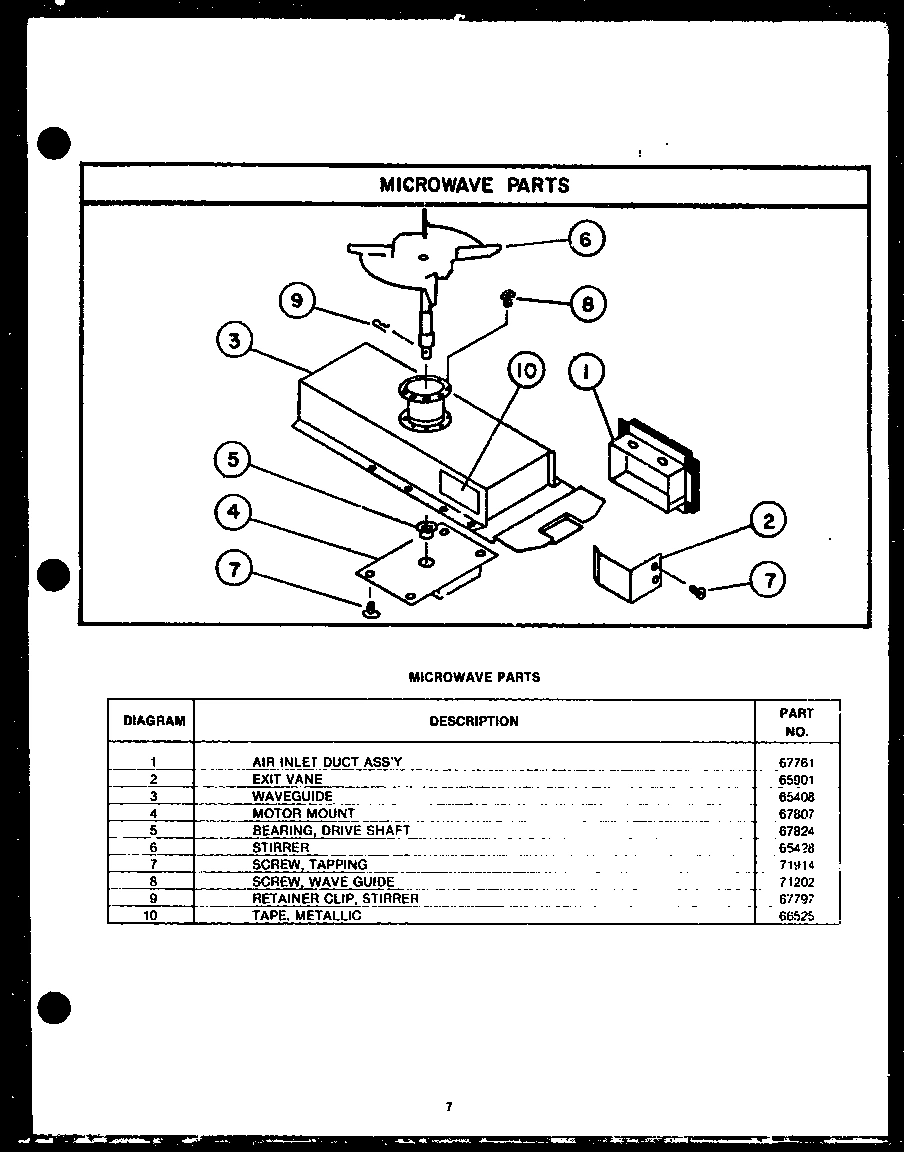

04 - MICROWAVE PARTS

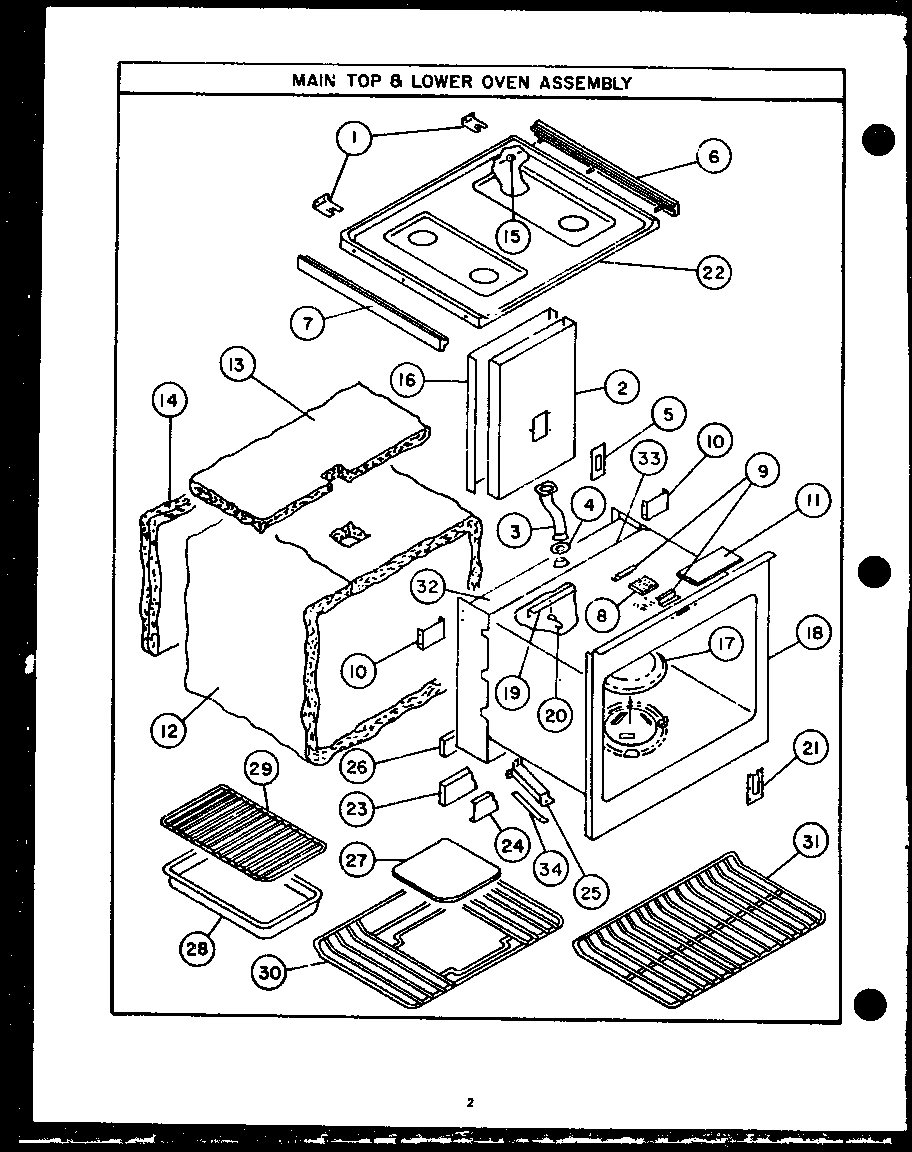

06 - Page 1

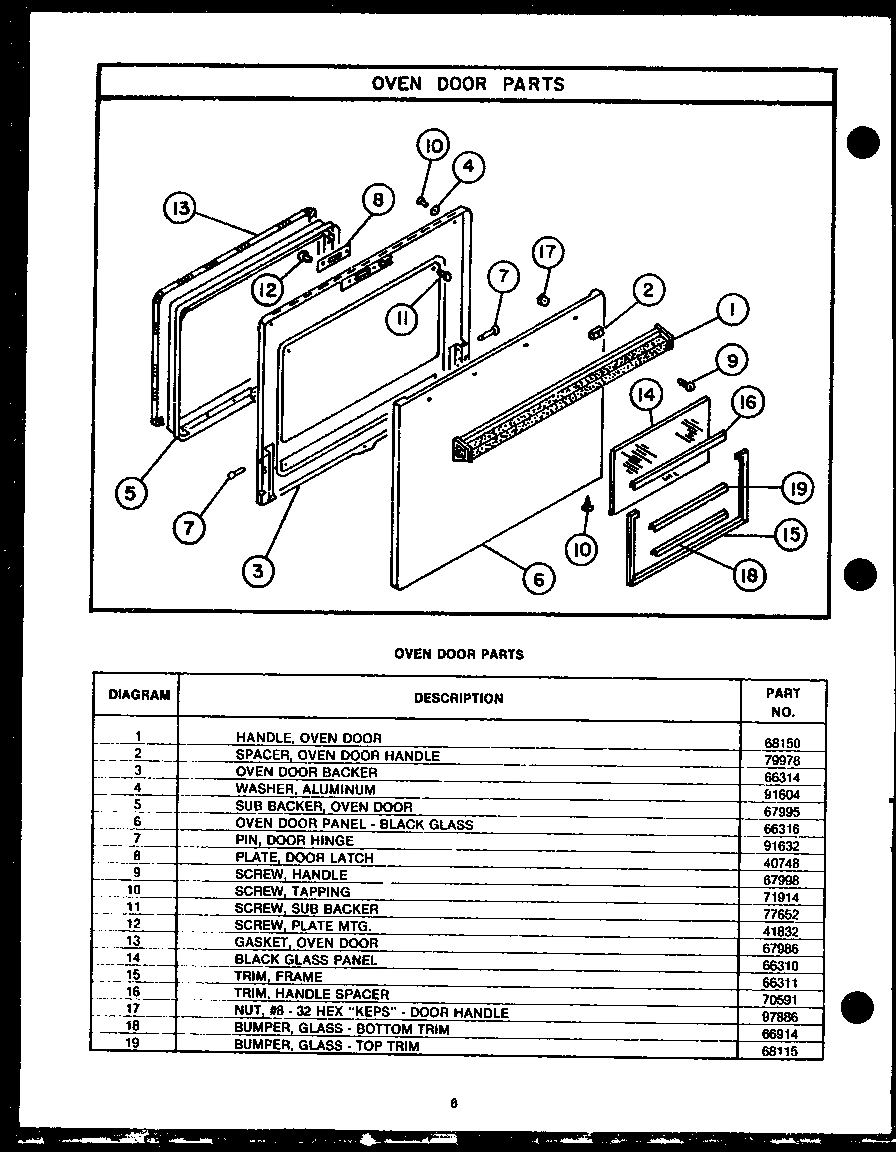

05 - OVEN DOOR PARTS
Common parts from model Whirlpool DHU709 ELECTRIC WALL OVEN/MICROWAVE COMBO
1
BASE POWER SUPPLY WPL 65424 Contact Us For Availability
1
GLASS, CONTROL PANEL WPL Y64139 Contact Us For Availability
1
BAFFLE - BURNER ADJUSTMENT WPL 66344 Contact Us For Availability
1
AIR INLET DUCT ASS`Y WPL 67761 Contact Us For Availability
1
HINGE, UPPER - MAIN TOP WPL 66368 Contact Us For Availability
1
HANDLE, OVEN DOOR WPL 68150 Contact Us For Availability
2
SOCKET, LAMP WPL 79394 Contact Us For Availability
2
SPACER WPL 79978 Contact Us For Availability
2
TRANSFORMER, HIGH VOLTAGE WPL 67845 Contact Us For Availability
2
TRIM, TOP WPL Y64137 Contact Us For Availability
2
HINGE, LOWER, MAIN TOP WPL 66374 Contact Us For Availability
2
EXIT VANE WPL 65901 Contact Us For Availability
2
FLUE, DILUTION WPL Y66427 Contact Us For Availability
3
BLOWER ASS`Y WPL 66621 Contact Us For Availability
3
END CAP, R.H. WPL Y68023 Contact Us For Availability
3
STIFFENER ANGLE - SIDE FRAME WPL 66958 Contact Us For Availability
3
WAVEGUIDE WPL 65408 Contact Us For Availability
3
TUBE, OVEN VENT WPL 66423 Contact Us For Availability
3
OVEN DOOR BACKER WPL Y66314 Contact Us For Availability
4
PANEL, POWER SUPPLY WPL 67773 Contact Us For Availability
4
END CAP, L.H. WPL 68024 Contact Us For Availability
4
COVER PLATE, OVEN LAMP WPL Y67879 Contact Us For Availability
4
MOTOR MOUNT WPL 67807 Contact Us For Availability
4
GASKET, OVEN VENT TUBE WPL Y66129 Contact Us For Availability
4
WASHER WPL Y0091604 Contact Us For Availability
5
ASSY`S ELECTRODE - L.H. WPL 68867 Contact Us For Availability
5
CONTROL, VARIABLE POWER WPL 67789 Contact Us For Availability
5
TRIM, CENTER WPL 68040 Contact Us For Availability
5
COVER PLATE - ORIFICE WPL Y73887 Contact Us For Availability
5
BEARING, DRIVE SHAFT WPL 67824 Contact Us For Availability
5
COVER - VENT TUBE WPL 66421 Contact Us For Availability
5
SUB BACKER, OVEN DOOR WPL 67995 Contact Us For Availability
6
INSULATION, ESM WPL Y0091523 Contact Us For Availability
6
CAPACITOR WPL 67848 Contact Us For Availability
6
PANEL, LOWER WPL 66306 Contact Us For Availability
6
STIRRER WPL 65428 Contact Us For Availability
6
TRIM, MAIN TOP - R.H. WPL 66370 Contact Us For Availability
6
OVEN DOOR PANEL - BLACK GLASS WPL Y66316 Contact Us For Availability
7
BRACKET, CAPACITOR WPL 67793 Contact Us For Availability
7
PANEL, CONTROL MOUNTING WPL 66308 Contact Us For Availability
7
KNOB, DOOR LATCH WPL 67844 Contact Us For Availability
7
TRIM, MAIN TOP - L.H. WPL 66369 Contact Us For Availability
7
RIVET WPL 0091632 Contact Us For Availability
8
BUSHING, TERMINAL WPL Y67776 Contact Us For Availability
8
SUPPORT WPL Y0091554 Contact Us For Availability
8
HOUSING, OVEN LAMP WPL 67880 Contact Us For Availability
8
LENS, OVEN LIGHT WPL 67985 Contact Us For Availability
8
SUB 52039, LATCH PLATE WPL Y0040748 Contact Us For Availability
9
BRACKET - SPARK MODULE WPL Y65458 Contact Us For Availability
9
TERMINAL BLOCK, POWER SUPPLY WPL 67787 Contact Us For Availability
9
SUPPORT CHANNEL, L.H. WPL Y91555 Contact Us For Availability
9
LATCH ASSEMBLY, OVEN DOOR WPL 91532 Contact Us For Availability
9
RETAINER CLIP, STIRRER WPL 67797 Contact Us For Availability
9
CLIP, LENS WPL 67972 Contact Us For Availability
9
SCREW, HANDLE WPL Y67998 Contact Us For Availability
10
SPARK MODULE WPL 66564 Contact Us For Availability
10
DIODE WPL 67918 Contact Us For Availability
10
SEAL, BACKGUARD WPL 67855 Contact Us For Availability
10
BURNER BOX BOTTOM WPL 66379 Contact Us For Availability
10
SCREW, S.M. WPL Y71914 Contact Us For Availability
10
TAPE, METALLIC WPL 66525 Contact Us For Availability
10
SUPPORT BRACKET - OVEN TANK WPL 66444 Contact Us For Availability
11
BRACKET - SAIL SWITCH WPL 66318 Contact Us For Availability
11
CONNECTOR, 9 PIN WPL Y67823 Contact Us For Availability
11
SUPPORT, LAMP SOCKET WPL 67997 Contact Us For Availability
11
LEVELING LEG WPL 76205 Contact Us For Availability
11
INSULATION - TANK TOP, FRONT WPL 66408 Contact Us For Availability
11
CAPACITOR WPL 77652 Contact Us For Availability
12
SAIL SWITCH WPL 66207 Contact Us For Availability
12
FUSE HOLDER WPL 67596 Contact Us For Availability
12
WASHER, THRUST WPL 75036 Contact Us For Availability
12
OVEN HINGE, L.H. WPL 67155 Contact Us For Availability
12
INSULATION - OVEN TANK WPL 66411 Contact Us For Availability
12
SCREW No.8X3/8 SQ. DRIVE WPL Y0041832 Contact Us For Availability
13
TUBING, SAIL SWITCH WIRING WPL Y66300 Contact Us For Availability
13
FUSE WPL 67593 Contact Us For Availability
13
SERVICE CORD WPL 75037 Contact Us For Availability
13
OVEN HINGE, R.H. WPL 67795 Contact Us For Availability
13
INSULATION - TANK TOP, REAR WPL Y66410 Contact Us For Availability
13
GASKET, OVEN DOOR WPL 67986 Contact Us For Availability
14
ASS`Y, MOTOR AND FAN - L.H. BL WPL 66338 Contact Us For Availability
14
BUSHING, WIRING, VAR. POWER WPL Y67778 Contact Us For Availability
14
BRACKET, TRIM SUPPORT WPL 67916 Contact Us For Availability
14
REAR PANEL WPL Y66400 Contact Us For Availability
14
INSULATION - TANK BACK WPL 66409 Contact Us For Availability
14
BLACK GLASS PANEL WPL 66310 Contact Us For Availability
15
ASS`Y, MOTOR AND FAN - R.H. GR WPL 66325 Contact Us For Availability
15
COVER, POWER SUPPLY WPL Y67780 Contact Us For Availability
15
PLATE, CLOCK MOUNTING WPL 67925 Contact Us For Availability
15
MAIN END, DARK COPPER WPL 67978C Contact Us For Availability
15
MAIN END, GOLD WPL 67978D Contact Us For Availability
15
MAIN END, SNOW WHITE WPL 67978F Contact Us For Availability
15
MAIN END, ALMOND WPL 67978N Contact Us For Availability
15
MAIN END, AVOCADO WPL 67978V Contact Us For Availability
15
NUT WPL Y0091593 Contact Us For Availability
15
TRIM, FRAME WPL 66311 Contact Us For Availability
16
INDICATOR LIGHT WPL 79426 Contact Us For Availability
16
THERMAL CUT - OUT TERM. BOARD WPL Y67591 Contact Us For Availability
16
CLOCK, DIGITAL - 60 CYC. WPL 64144 Contact Us For Availability
16
FRAME, MAIN END PANEL WPL 67838 Contact Us For Availability
16
INSULATION - DILUTION FLUE WPL 66301 Contact Us For Availability
16
TRIM, HANDLE SPACER WPL 70591 Contact Us For Availability
17
SWITCH, PRIMARY INTERLOCK WPL 67919 Contact Us For Availability
17
SWITCH SELECTOR WPL Y65421 Contact Us For Availability
17
TESAMOL SEAL WPL 67764 Contact Us For Availability
17
PANEL, CONTROL WPL Y64068 Contact Us For Availability
17
STIRRER COVER WPL 67866 Contact Us For Availability
18
SWITCH, SPARK MODULE WPL 70902 Contact Us For Availability
18
DIAL, DUAL TIMER WPL 66939 Contact Us For Availability
18
BRACKET, SOLENOID SUPPORT WPL 66406 Contact Us For Availability
18
BUMPER, GLASS - BOTTOM TRIM WPL 66914 Contact Us For Availability
19
OVEN CONTROL WPL 66363 Contact Us For Availability
19
PANEL, POWER SELECTOR WPL 66938 Contact Us For Availability
19
ACTIVATOR ROD - SOLENOID/LATCH WPL Y65900 Contact Us For Availability
19
ANGLE, AIR DEFLECTION WPL 66443 Contact Us For Availability
19
BUMPER, GLASS - TOP TRIM WPL 68115 Contact Us For Availability
20
JUNCTION BLOCK WPL 67934 Contact Us For Availability
20
SWITCH, FLUORESCENT LIGHT WPL Y67947 Contact Us For Availability
20
SUPPORT SHELF WPL 66390 Contact Us For Availability
20
CLIP, THERMOSTAT BULB WPL 67053 Contact Us For Availability
21
FLEX TUBE, 3/4`` X 24`` WPL 70405 Contact Us For Availability
21
TESAMOL STRIP WPL 66726 Contact Us For Availability
21
SHIELD, POWER SUPPLY WPL 66395 Contact Us For Availability
21
CHOKE, HEAT CONTROL CAPILLARY WPL Y66134 Contact Us For Availability
22
IGNITOR, OVEN WPL Y68043 Contact Us For Availability
22
REAR COVER PLATE WPL 66398 Contact Us For Availability
22
INSULATION RETAINER, BOTTOM WPL 66419 Contact Us For Availability
22
MAIN TOP, CHROME WPL Y64156 Contact Us For Availability
23
SUPPLY CORD WPL 68751 Contact Us For Availability
23
HAND, DELAY TIMER WPL Y63649 Contact Us For Availability
23
NUT, SNAP - IN WPL 76204 Contact Us For Availability
23
INSULATION, COMBUSTION CHAMBER WPL Y66429 Contact Us For Availability
24
BALLAST WPL 71869 Contact Us For Availability
24
HAND, MICROWAVE TIMER WPL 66746 Contact Us For Availability
24
BRACKET, INTERLOCK MOUNTING, L WPL 67359 Contact Us For Availability
24
RETAINER, INSULATION WPL 66133 Contact Us For Availability
25
TIMER, MICROWAVE WPL 67791 Contact Us For Availability
25
INSULATION RETAINER, SIDES WPL 66416 Contact Us For Availability
25
BRACKET, IGNITOR WPL Y66343 Contact Us For Availability
26
FUSE, 5 AMP WPL 72211 Contact Us For Availability
26
DELAY TIMER, MICROWAVE WPL 67792 Contact Us For Availability
26
INSULATION RETAINER, TOP WPL 66418 Contact Us For Availability
26
INSULATION, COMBUSTION CHAMBER WPL Y66519 Contact Us For Availability
27
RECEPTACLE, FLANGED INLET WPL 66387 Contact Us For Availability
27
SWITCH, VARIABLE POWER SELECTO WPL 67788 Contact Us For Availability
27
ACCESS PANEL, BLACK WPL Y64151 Contact Us For Availability
27
COOKING PLATE, MICROWAVE WPL 67822 Contact Us For Availability
28
RESISTOR, 10K-OHM, 2 WATT WPL 65382 Contact Us For Availability
28
INDICATOR LIGHT WPL Y67944 Contact Us For Availability
28
BRACKET INTERLOCK MOUNTING, R. WPL 67960 Contact Us For Availability
28
BROILER PAN WPL Y63708 Contact Us For Availability
29
LENS, RED WPL 67928 Contact Us For Availability
29
FRONT TRIM. R.H. WPL 66401 Contact Us For Availability
29
BROILER GRATE WPL Y63707 Contact Us For Availability
30
SWITCH, DOOR INTERLOCK WPL 66360 Contact Us For Availability
30
RING, RETAINING WPL 67943 Contact Us For Availability
30
FRONT TRIM, L.H. WPL 66402 Contact Us For Availability
30
OVEN RACK - MICROWAVE WPL 67820 Contact Us For Availability
31
SOLENOID, LATCH WPL Y0091393 Contact Us For Availability
31
BEZEL, PANEL LIGHT SWITCH WPL 67946 Contact Us For Availability
32
MOTOR, STIRRER WPL 64287 Contact Us For Availability
32
BRACKET, LATCH MOUNTING WPL 66405 Contact Us For Availability
33
THERMAL OVERLOAD PROTECTOR WPL 67878 Contact Us For Availability
33
RETAINER, BACKGUARD GLASS WPL 66567 Contact Us For Availability
33
RETAINER RING WPL Y0091671 Contact Us For Availability
33
SEE NOTE GASKET WPL Y00000000 Contact Us For Availability
34
MAGNETRON WPL 67882 Contact Us For Availability
34
VANE & COMB ASS`Y WPL 66163 Contact Us For Availability
34
COTTER PIN WPL Y65665 Contact Us For Availability
34
SHIM, IGNITOR WPL Y66209 Contact Us For Availability
35
PLUG, 9 PIN CONNECTOR WPL Y67782 Contact Us For Availability
35
INSULATION, BACKGUARD WPL 66397 Contact Us For Availability
35
LATCH HANDLE WPL Y66403 Contact Us For Availability
36
SWITCH, LATCH SOLENOID WPL 67468 Contact Us For Availability
36
COVER, GRILLE WPL Y66512 Contact Us For Availability
37
INSULATION, MONITOR SWITCH WPL Y67586 Contact Us For Availability
37
INSULATION, TEMP. PROBE WPL 66396 Contact Us For Availability
37
CONTROL PANEL WPL Y64136 Contact Us For Availability
38
KNOB - OVEN CONTROL WPL 64248 Contact Us For Availability
38
KNOB, CLOCK WPL 64411 Contact Us For Availability
38
END CAP - L.H. WPL 66366 Contact Us For Availability
39
GROUNDING BRACKET, ELECTRODE WPL 70928 Contact Us For Availability
39
KNOB, VARIABLE POWER SELECTOR WPL 66941 Contact Us For Availability
39
END CAP - R.H. WPL 66365 Contact Us For Availability
40
MOUNTING CLIP, ELECTRODE WPL 70927 Contact Us For Availability
40
SCREW, TAPPING WPL 74807 Contact Us For Availability
40
ACTUATOR - SPARK IGNITION WPL 66638 Contact Us For Availability
41
SPRING WPL 70919 Contact Us For Availability
42
CAM WPL 66639 Contact Us For Availability
43
BRACKET, SWITCH MOUNTING - TOP WPL Y66640 Contact Us For Availability
44
STOP, SPRING WPL Y0091529 Contact Us For Availability
45
FILLER PLATE WPL 65917 Contact Us For Availability
NI
WALL PLATE, RECEPTACLE WPL 68260 Contact Us For Availability
NI
RECEPTACLE 20A, 125 VAC WPL 68277 Contact Us For Availability
NI
GRATE, TOP BURNER WPL 67909 Contact Us For Availability
NI
SET OF 4 PCS. 07517400 GRATE WPL Y0089314 Contact Us For Availability
× ![]()
Login and Registration Form
