Model LG DH404EY7 – Common Parts & Diagrams

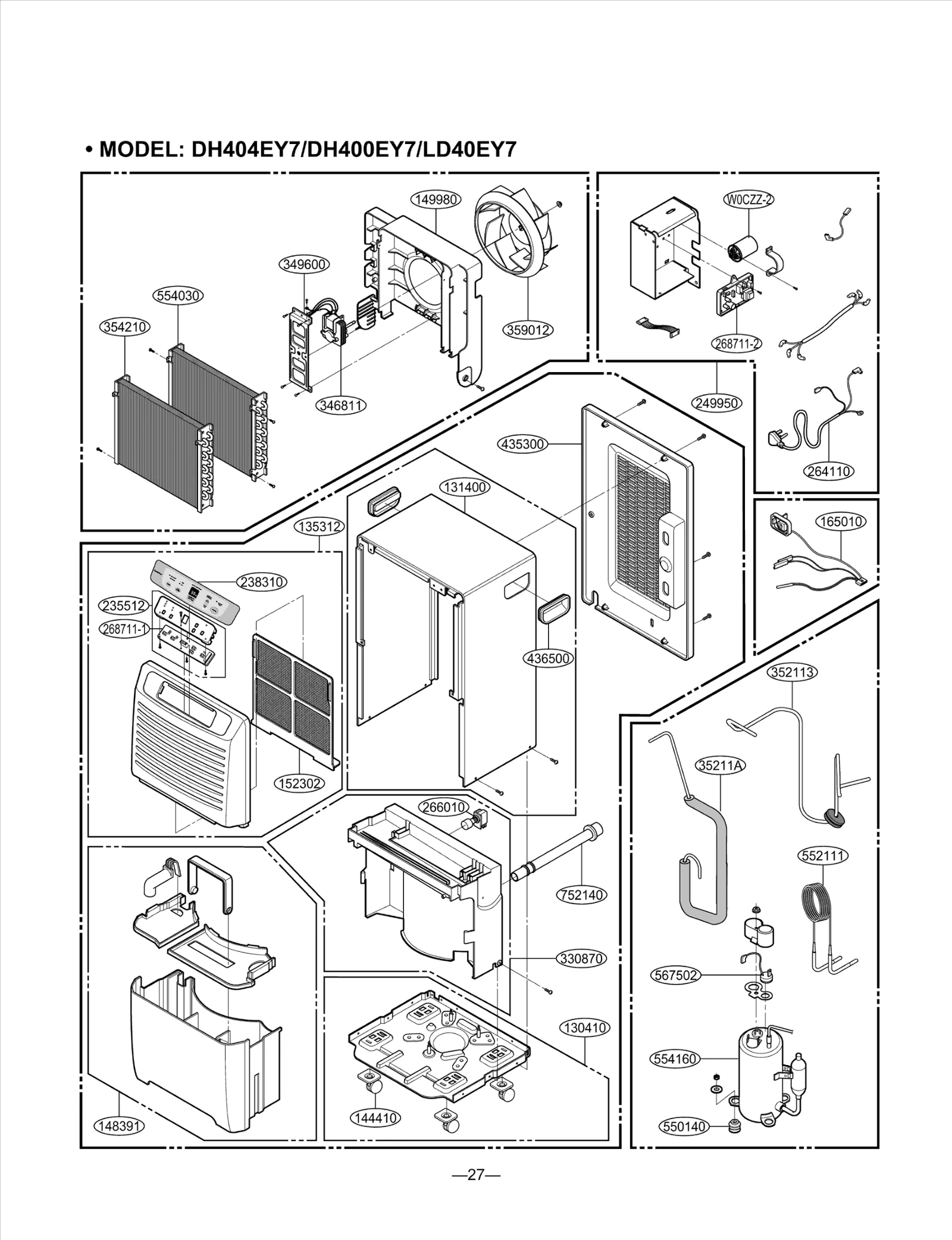

Diagram 0
Common parts from model LG DH404EY7
135312
GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A18012A Contact Us For Availability
148391
TANK ASSEMBLY,BUCKET LGE 4839A10002A Contact Us For Availability
149980
SHROUD LGE 4998A10034B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20040A Contact Us For Availability
165010
SENSOR ASSEMBLY LGE 6877A30013L Contact Us For Availability
235512
COVER ASSEMBLY,DISPLAY LGE 3551A20109D Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20079A Contact Us For Availability
249950
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20622F Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20001Z Contact Us For Availability
266010
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
268711-1
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20600A Contact Us For Availability
268711-2
PWB(PCB) ASSEMBLY,MAIN LGE 6871A20888A Contact Us For Availability
330870
DRAIN PAN ASSEMBLY LGE 3087A10019C Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20040Q Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20009B Contact Us For Availability
352113
Tube Assembly,Discharge LGE 5211A10644D Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10009X Contact Us For Availability
435300
GRILLE,REAR LGE 3530A10193B Contact Us For Availability
550140
Washer, Customized LGE 1WZZA31003A Contact Us For Availability
552111
Tube Assembly,Capillary LGE 5211A30869D Contact Us For Availability
554030
CONDENSER ASSY,FIRST LGE 5403A10008D Contact Us For Availability
554160
Compressor Set,China LGE TBZ30871801 Contact Us For Availability
567502
Overload Protect LGE EAF35787201 Contact Us For Availability
752140
HOSE,CONNECTOR LGE 5214A20027B Contact Us For Availability
W0CZZ-2
CAPACITOR,DRAWING LGE 0CZZA20005N Contact Us For Availability
× ![]()
