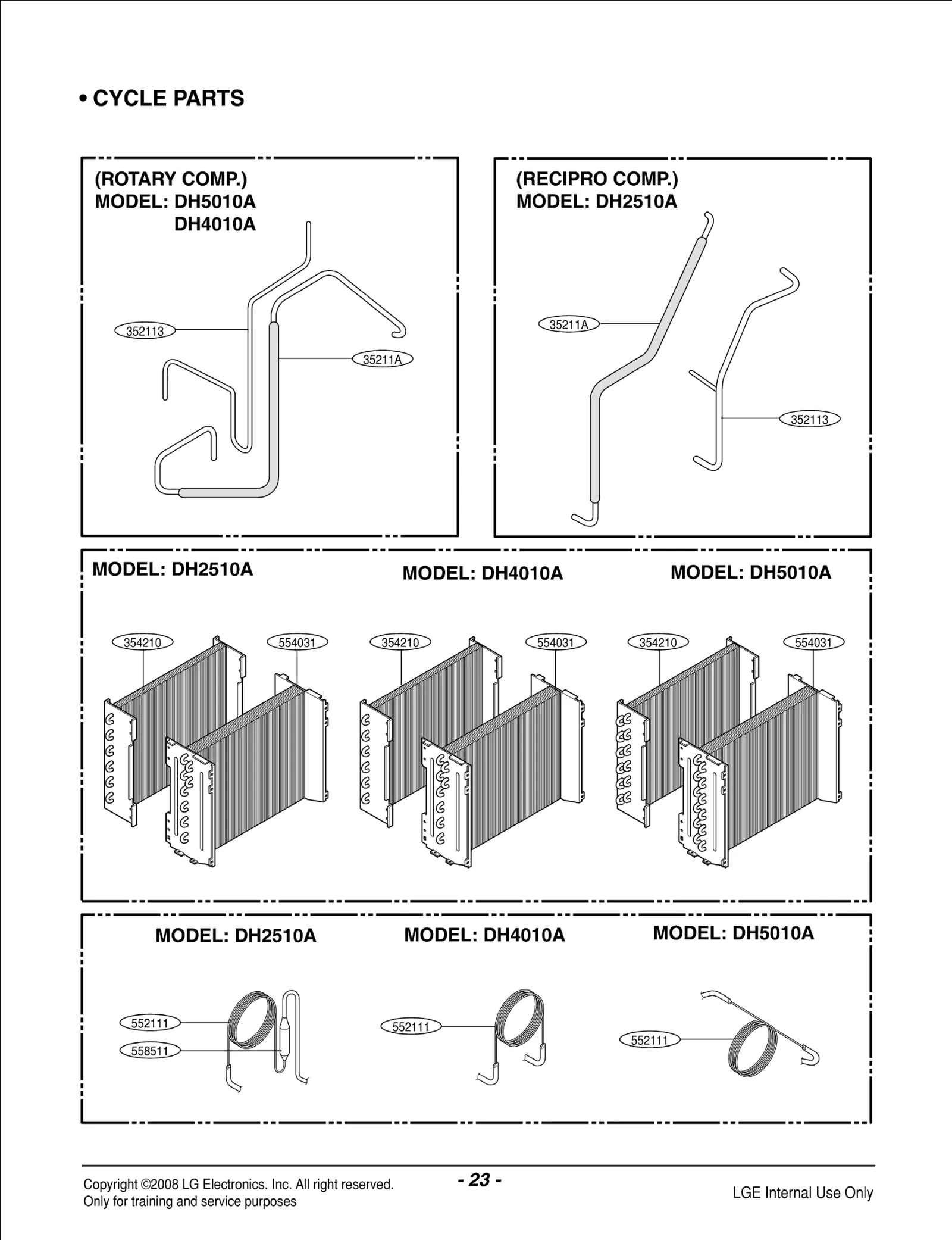

Model LG DH4010A – Common Parts & Diagrams

35211A
TUBE ASSY,SUCTION SINGLE
TUBE ASSY,SUCTION SINGLE LGE 5211A30286A Contact Us For Availability
View on Model
131400
CABINET
CABINET LGE 3090A10001J Contact Us For Availability
View on Model
131410
BASE ASSY,WELD[SINGL
BASE ASSY,WELD[SINGL LGE 3041AD2007A Contact Us For Availability
View on Model
135316
GRILLE ASSY,FRONT
GRILLE ASSY,FRONT LGE 3531A20012A Contact Us For Availability
View on Model
135500
TERMINAL COVER LUCKY LUMAX GP-
TERMINAL COVER LUCKY LUMAX GP- LGE 3550-CL001D Contact Us For Availability
View on Model
148380
Tank,Bucket
Tank,Bucket LGE 4838AD1002E Contact Us For Availability
View on Model
149410
KNOB ASSY
KNOB ASSY LGE 4941A30002A Contact Us For Availability
View on Model
152302
FILTER(MECH),AIR
FILTER(MECH),AIR LGE 5230AD3005A Contact Us For Availability
View on Model
247810A
CASTER ASSY, ROLLER
CASTER ASSY, ROLLER LGE 4441A30001A Contact Us For Availability
View on Model
247810B
***NLA***
***NLA*** LGE 6614A30001D Contact Us For Availability
View on Model
249941
Base
Base LGE 4994A20011A Contact Us For Availability
View on Model
252160
HUMIDISTAT
HUMIDISTAT LGE 5216A20001A Contact Us For Availability
View on Model
264110
POWER CORD ASSY
POWER CORD ASSY LGE 6411A20001K Contact Us For Availability
View on Model
266003
SWITCH,ROTARY
SWITCH,ROTARY LGE 6600A20001A Contact Us For Availability
View on Model
266010
SWITCH ASSY,MICRO
SWITCH ASSY,MICRO LGE 6600A30003A Contact Us For Availability
View on Model
269310
Lamp,Neon
Lamp,Neon LGE 6912A30001D Contact Us For Availability
View on Model
336601
Housing,Side
Housing,Side LGE 3660A00003A Contact Us For Availability
View on Model
346810
MOTOR ASSY,SINGLE
MOTOR ASSY,SINGLE LGE 4681A20034A Contact Us For Availability
View on Model
352113
Tube Assembly,Discharge
Tube Assembly,Discharge LGE 5211A30285A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY
EVAPORATOR ASSY LGE 5421A20046B Contact Us For Availability
View on Model
359011
FAN ASSY,PROPELLER
FAN ASSY,PROPELLER LGE 5900AD2013A Contact Us For Availability
View on Model
552111
TUBE ASSY,CAPILLARY
TUBE ASSY,CAPILLARY LGE 5211A30008E Contact Us For Availability
View on Model
554031
CONDENSER ASSY
CONDENSER ASSY LGE 5403A20027C Contact Us For Availability
View on Model
648600
Clamp,Capacitor
Clamp,Capacitor LGE 4H00442G Contact Us For Availability
View on Model
W0CZZA
CAPACITOR
CAPACITOR LGE 6120AR2194S Contact Us For Availability
View on Model
W0CZZB
Capacitor,Unclassified
Capacitor,Unclassified LGE 3H00660Q Contact Us For Availability
View on Model
W4986
GASKET SILICON T-1.0 LW-B0811C
GASKET SILICON T-1.0 LW-B0811C LGE 4986U-L001B Contact Us For Availability
View on Model
W49700A
SPRING,PAN
SPRING,PAN LGE 4970AD4001A Contact Us For Availability
View on Model
W49700B
SPRING O.L.P STS304-WPA D-1.2
SPRING O.L.P STS304-WPA D-1.2 LGE 4970U-L002A Contact Us For Availability
View on Model
W54100
Insulator
Insulator LGE 5400AR3260N Contact Us For Availability
View on Model
