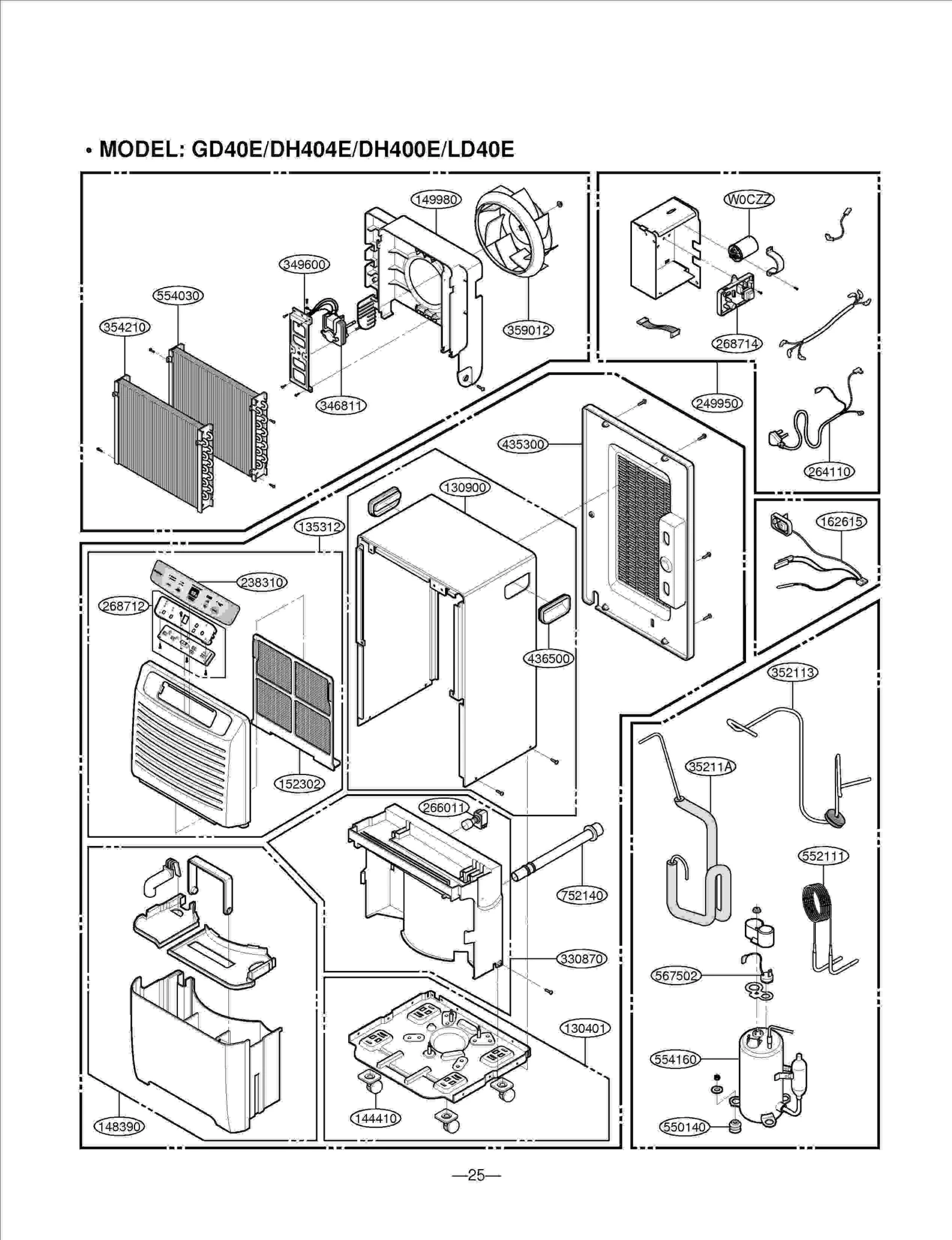

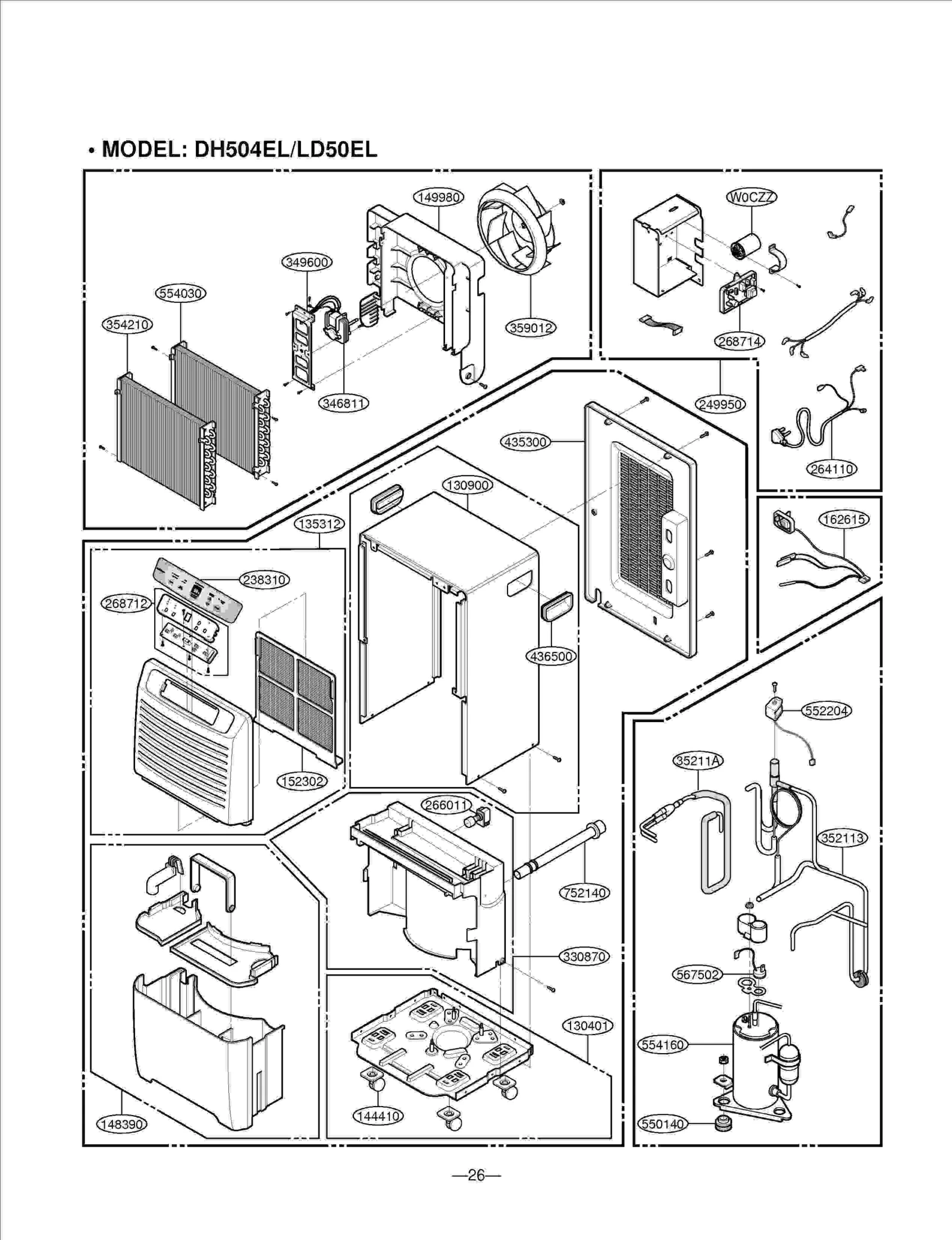

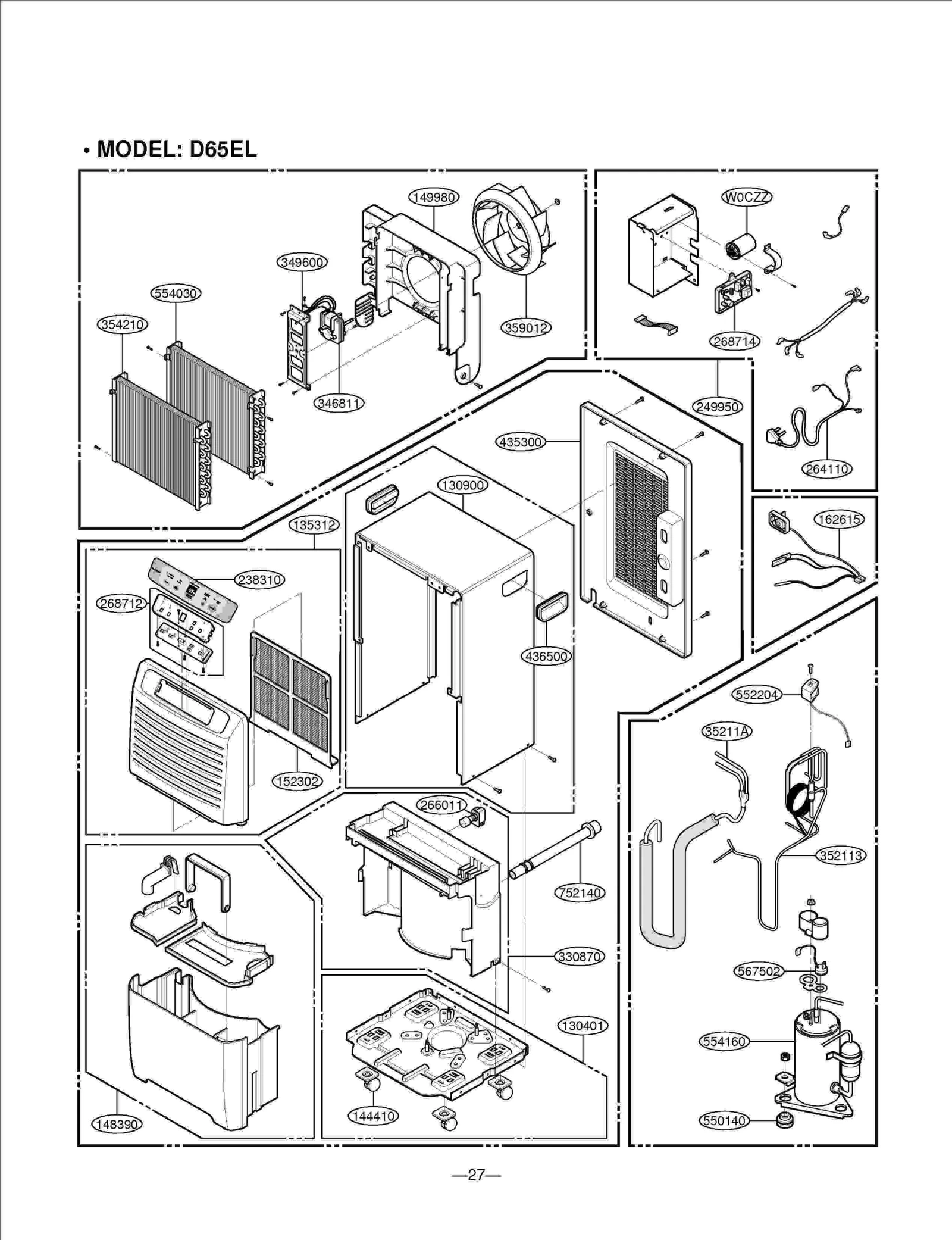

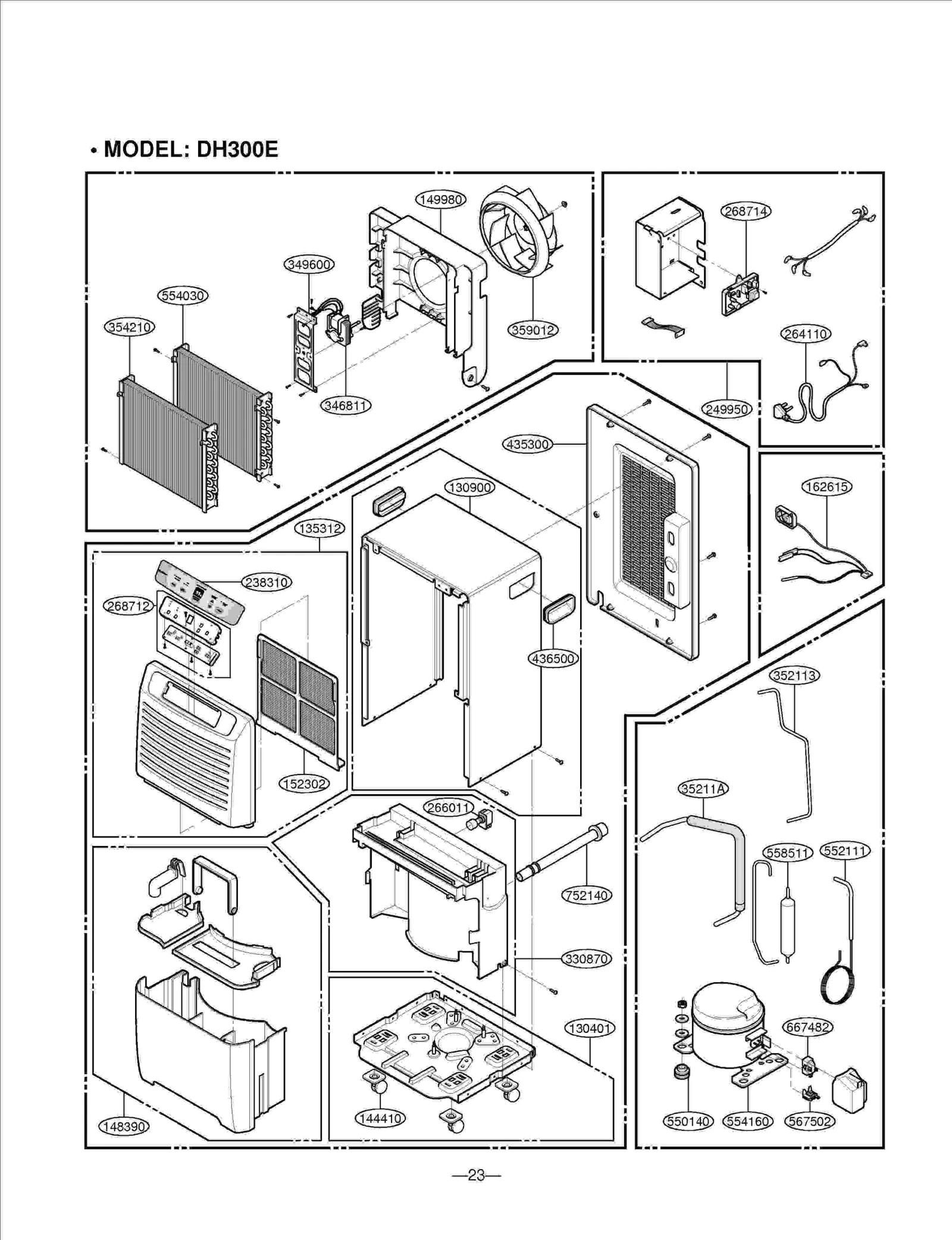

Model LG DH304 Dehumidifier – Common Parts & Diagrams

35211A
TUBE ASSEMBLY,SUCTION SINGLE
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A10464A Contact Us For Availability
View on Model
130411
BASE ASSEMBLY,SINGLE
BASE ASSEMBLY,SINGLE LGE 3041A10042C Contact Us For Availability
View on Model
130910
CABINET
CABINET LGE 3090A10042A Contact Us For Availability
View on Model
135312
GRILLE ASSEMBLY,FRONT(INDOOR)
GRILLE ASSEMBLY,FRONT(INDOOR) LGE 3531A10285C Contact Us For Availability
View on Model
148380
TANK ASSEMBLY,BUCKET
TANK ASSEMBLY,BUCKET LGE 4839A10002A Contact Us For Availability
View on Model
149410
KNOB ASSEMBLY
KNOB ASSEMBLY LGE 4941A30019B Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998A10034A Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5230A20040A Contact Us For Availability
View on Model
162615
SENSOR ASSEMBLY
SENSOR ASSEMBLY LGE 6877A30013L Contact Us For Availability
View on Model
235512
COVER ASSEMBLY,DISPLAY
COVER ASSEMBLY,DISPLAY LGE 3551A20122A Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A20079M Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20359J Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20001Z Contact Us For Availability
View on Model
266002
SWITCH,ROCKER
SWITCH,ROCKER LGE 6600FX5001G Contact Us For Availability
View on Model
266003
SWITCH ASSEMBLY,ROTARY
SWITCH ASSEMBLY,ROTARY LGE 6601A30001B Contact Us For Availability
View on Model
266011
SWITCH ASSY,MICRO
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
View on Model
268712
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20289B Contact Us For Availability
View on Model
268714
PWB(PCB) ASSEMBLY,MAIN
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10142A Contact Us For Availability
View on Model
330870
DRAIN PAN ASSEMBLY
DRAIN PAN ASSEMBLY LGE 3087A10019B Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A20040J Contact Us For Availability
View on Model
349600
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960A20009B Contact Us For Availability
View on Model
352113
TUBE ASSEMBLY,DISCHARGE SINGLE
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A11019A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10009P Contact Us For Availability
View on Model
359012
FAN,TURBO
FAN,TURBO LGE 5900A20007A Contact Us For Availability
View on Model
435300
GRILLE,REAR
GRILLE,REAR LGE 3530A10193A Contact Us For Availability
View on Model
552111
TUBE ASSEMBLY,CAPILLARY
TUBE ASSEMBLY,CAPILLARY LGE 5211A30720A Contact Us For Availability
View on Model
554030
CONDENSER ASSEMBLY,FIRST
CONDENSER ASSEMBLY,FIRST LGE 5403A10008N Contact Us For Availability
View on Model
554160
RE-COMPRESSOR,SET ASSEMBLY
RE-COMPRESSOR,SET ASSEMBLY LGE 2521C-A8626 Contact Us For Availability
View on Model
558511
DRIER ASSY
DRIER ASSY LGE 5851A30001A Contact Us For Availability
View on Model
567502
O.L.P
O.L.P LGE 6750C-0009E Contact Us For Availability
View on Model
752140
HOSE,CONNECTOR
HOSE,CONNECTOR LGE 5214A20027A Contact Us For Availability
View on Model
