Model Whirlpool DG6240 WASHER – Common Parts & Diagrams

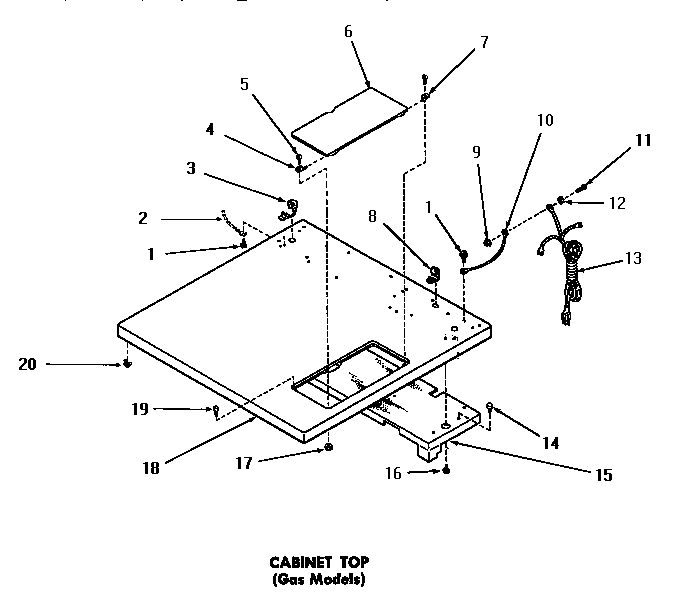

06 - CABINET TOP

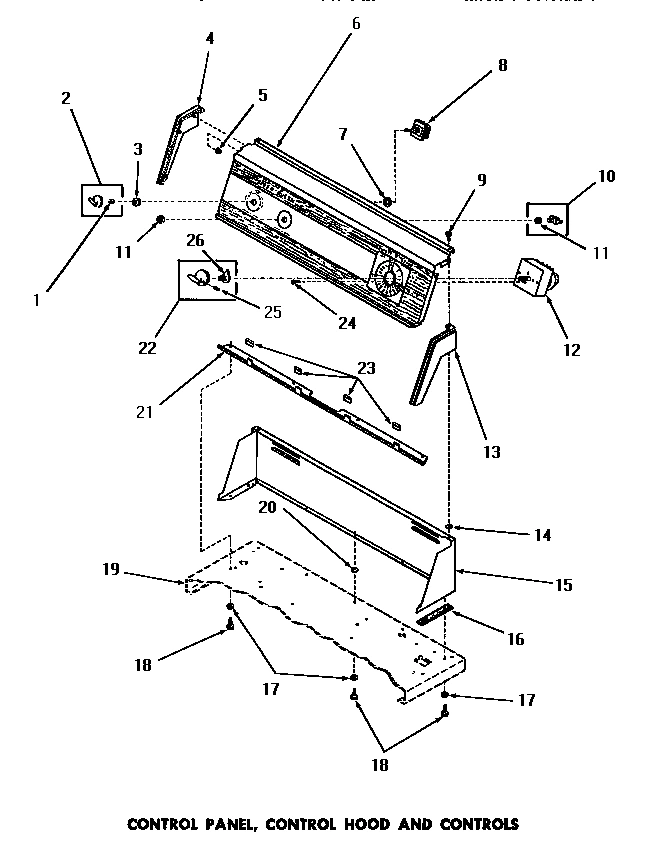

08 - CONTROL PANEL, CONTROL HOOD & CONTROLS

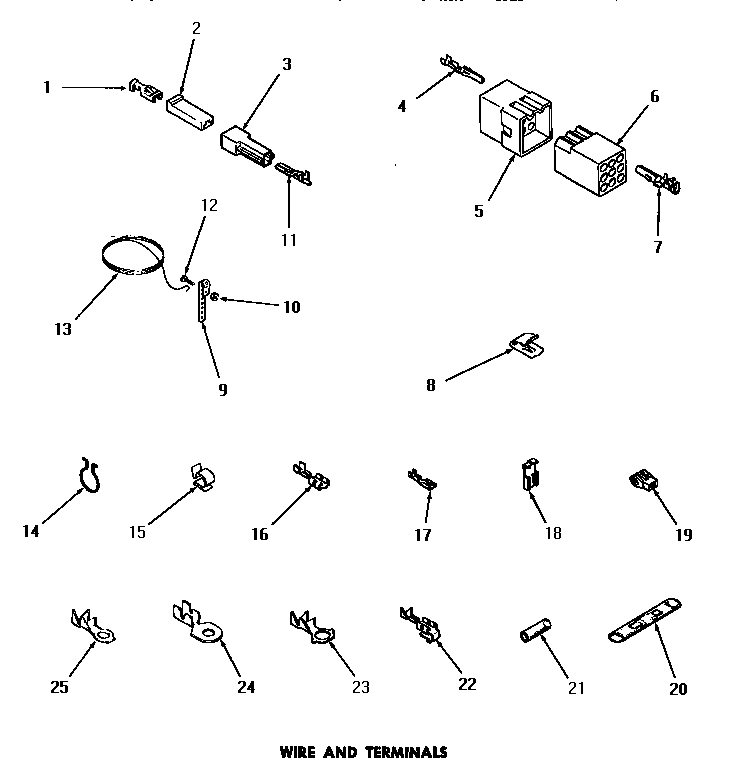

23 - WIRE & TERMINALS

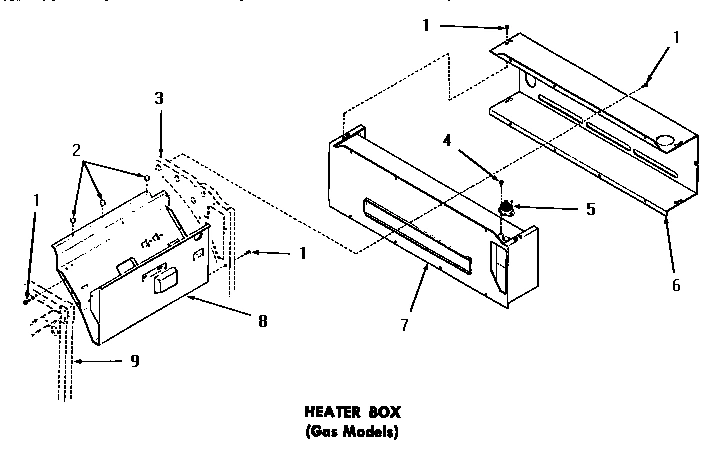

16 - HEATER BOX

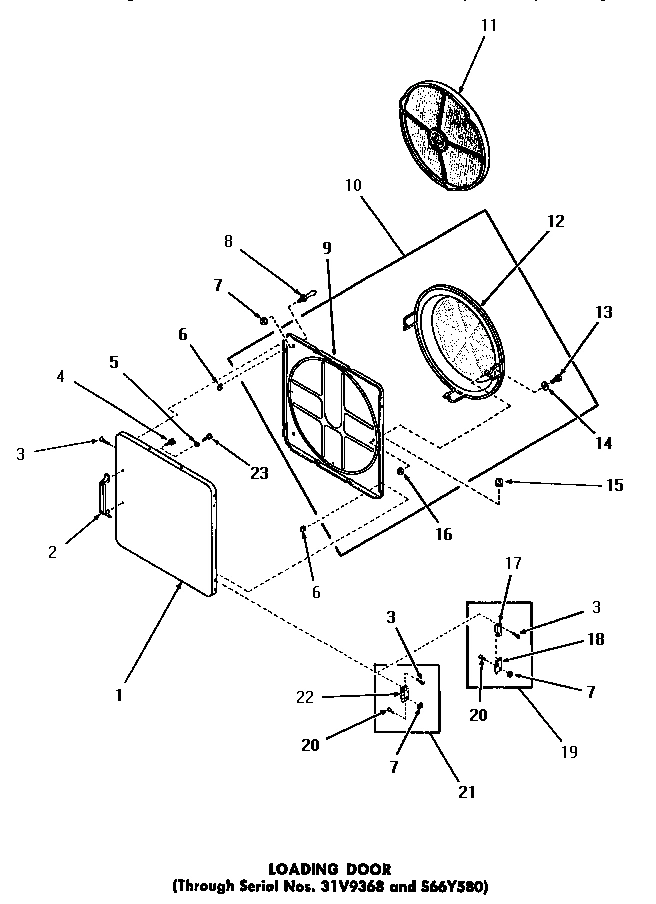

17 - LOADING DOOR

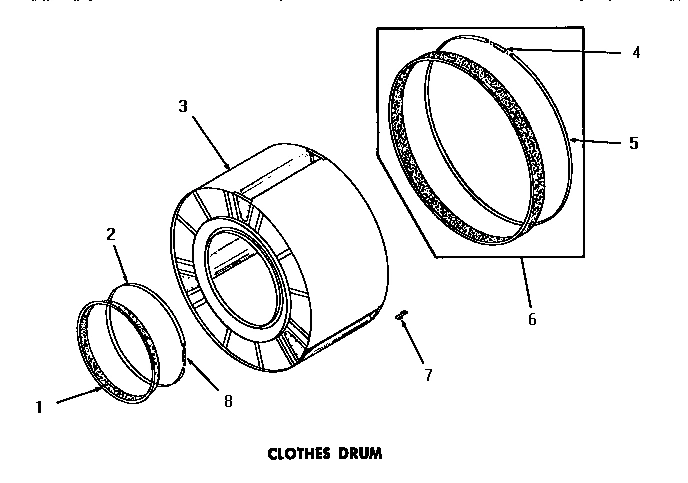

07 - CLOTHES DRUM

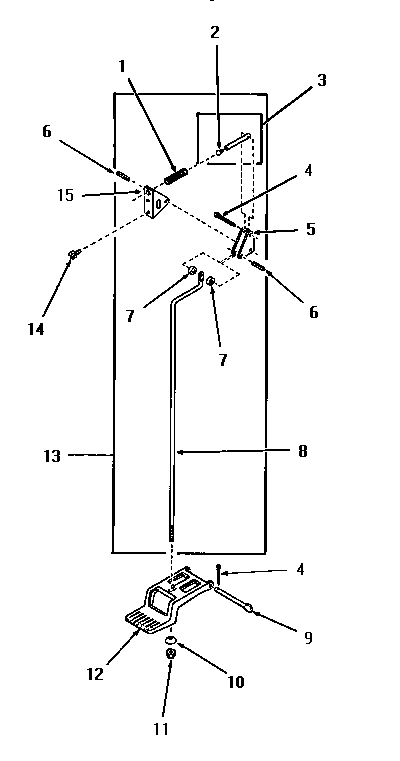

09 - DOOR RELEASE

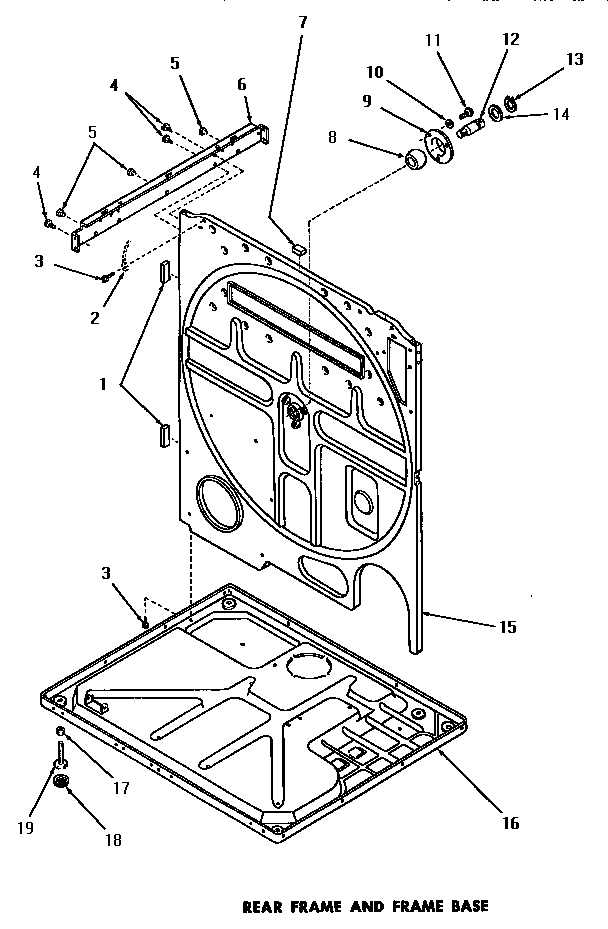

22 - REAR FRAME & FRAME BASE

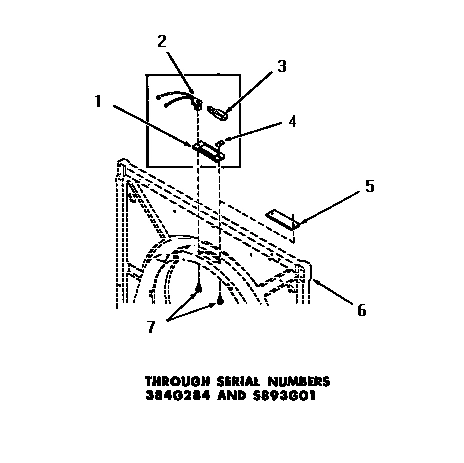

10 - DRUM LIGHT & COVER PLATE

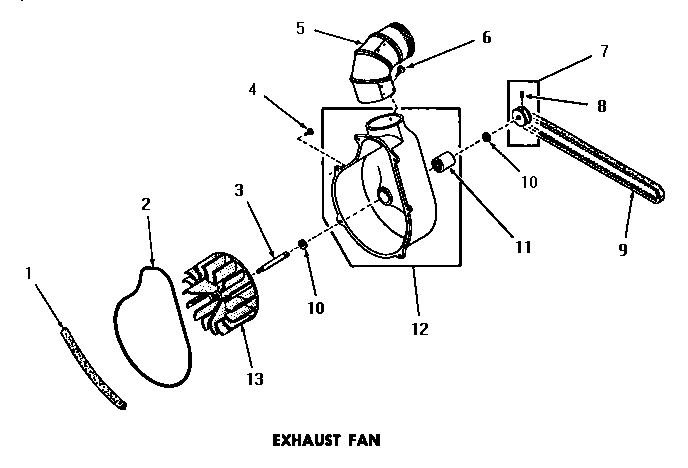

12 - EXHAUST FAN

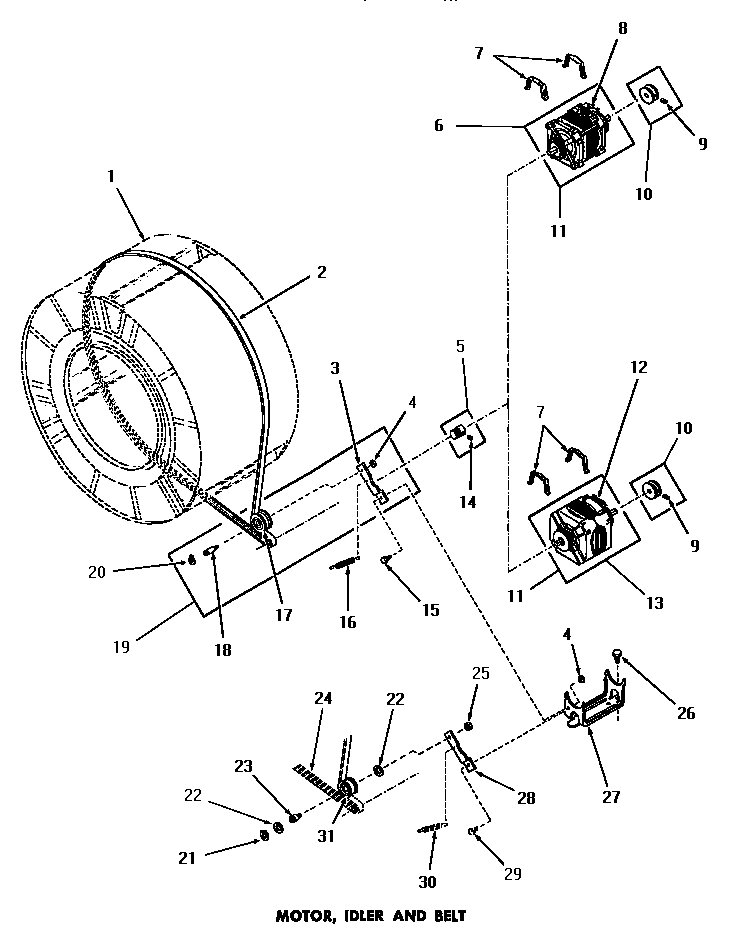

19 - MOTOR, IDLER & BELT

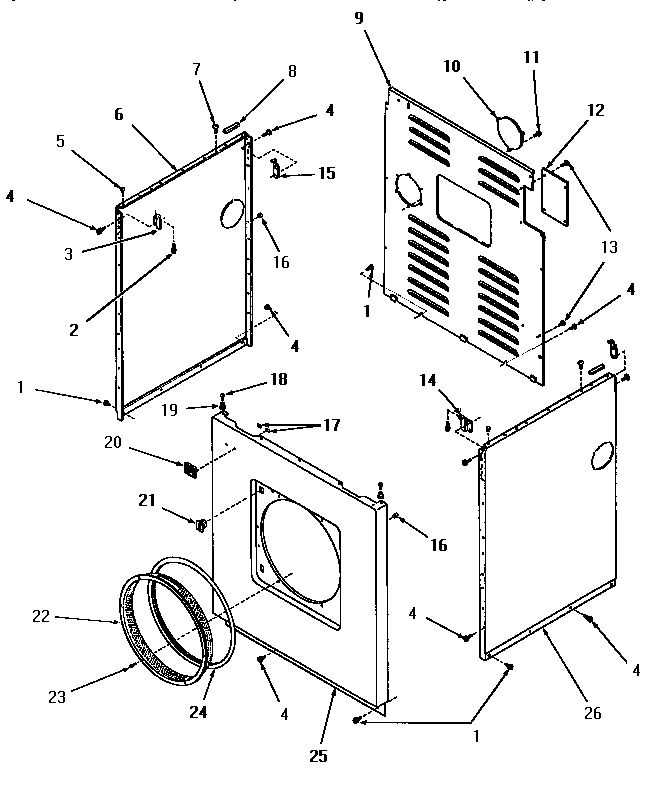

21 - PANELS

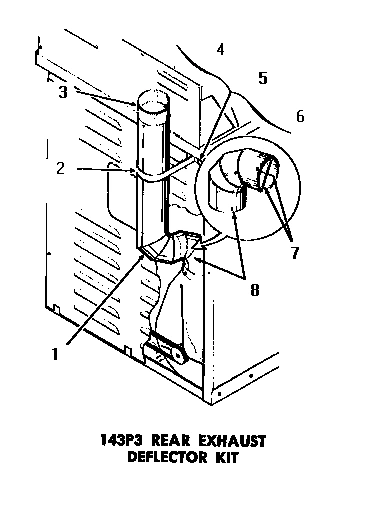

02 - 143P3 REAR EXHAUST DEFLECTOR KIT

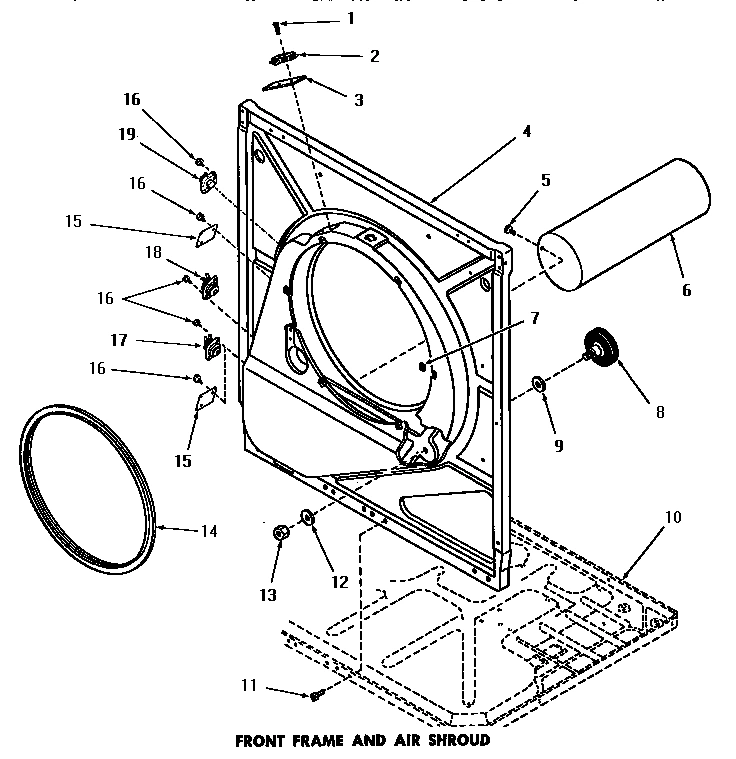

13 - FRONT FRAME & AIR SHROUD

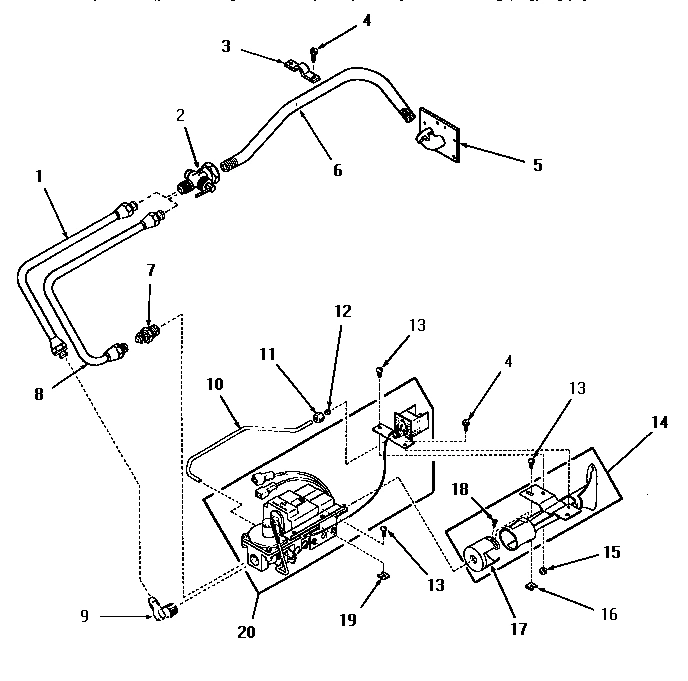

20 - NON-``M`` MODELS--STANDING PILOT BURNER

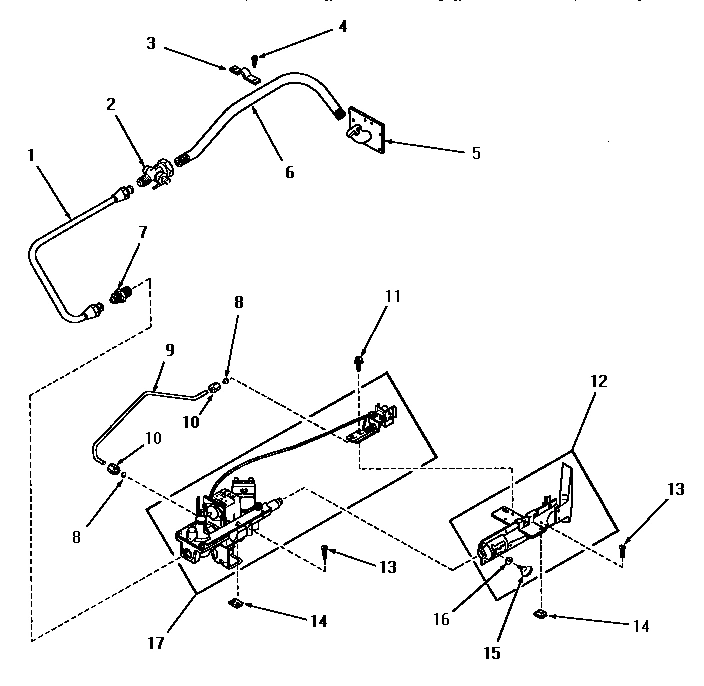

01 - ``M`` MODELS--STANDING PILOT BURNER

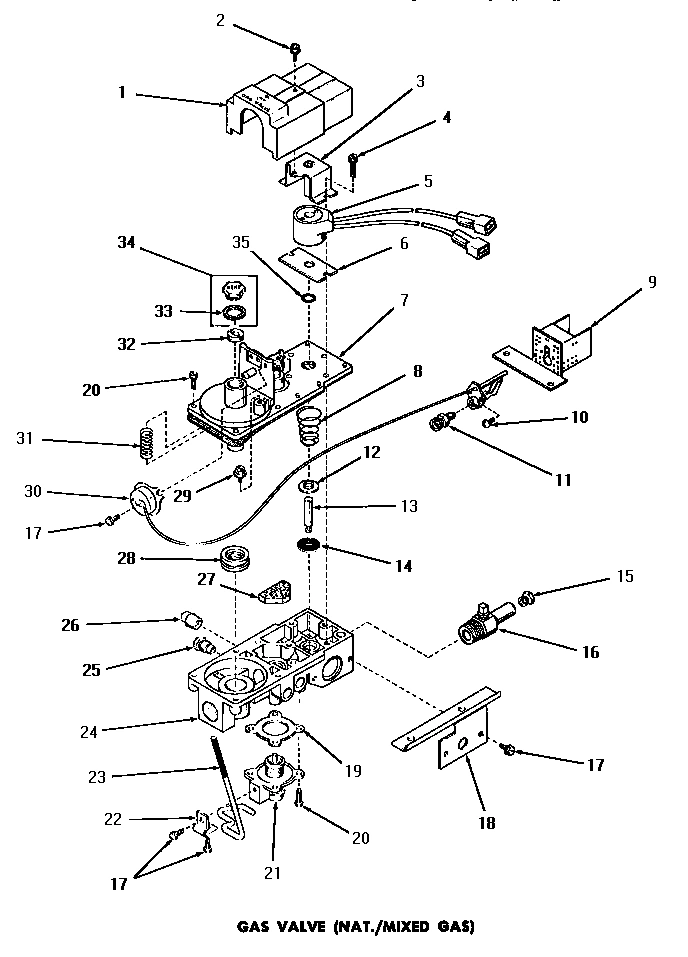

14 - GAS VALVE (NAT. / MIXED GAS)

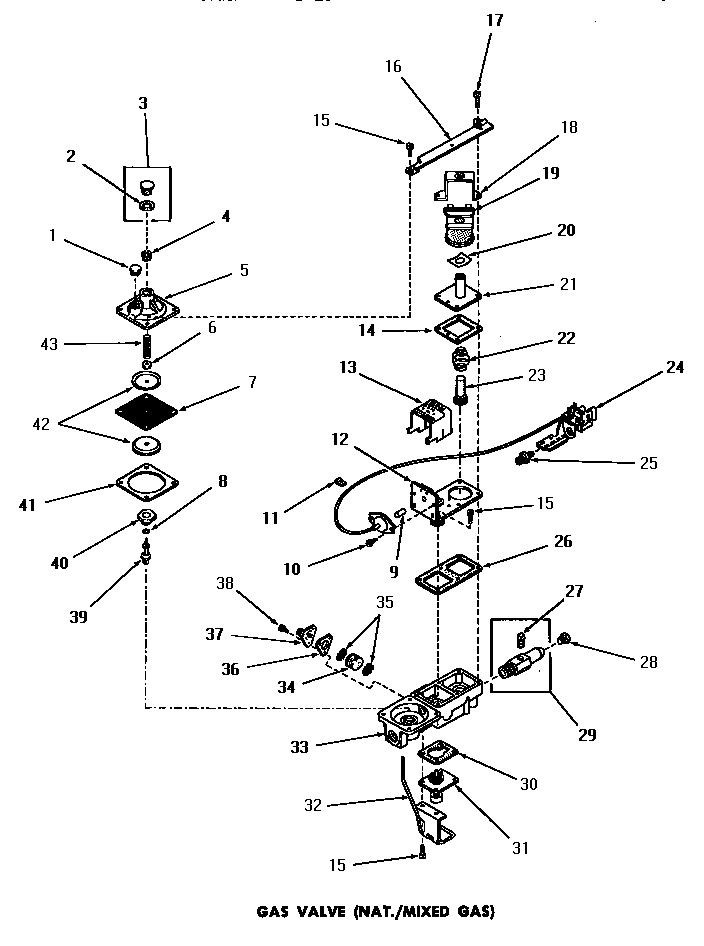

15 - GAS VALVE (NAT. / MIXED GAS)

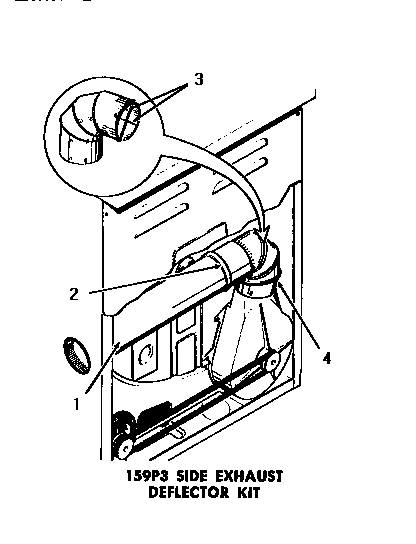

03 - 159P3 SIDE EXHAUST DEFLECTOR KIT
05 - 20600 VENT KIT

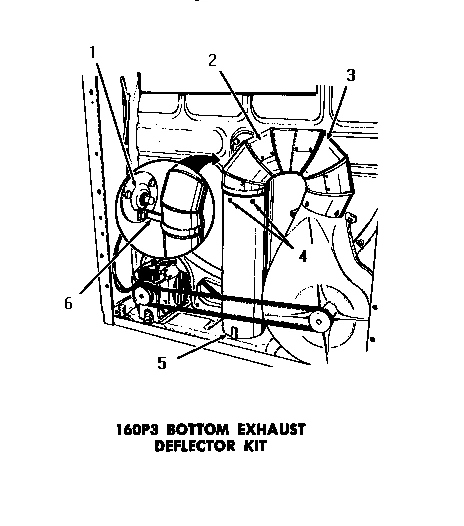

04 - 160P3 BOTTOM EXHAUST DEFLECTOR KIT
11 - DRUM LIGHT & COVER PLATE

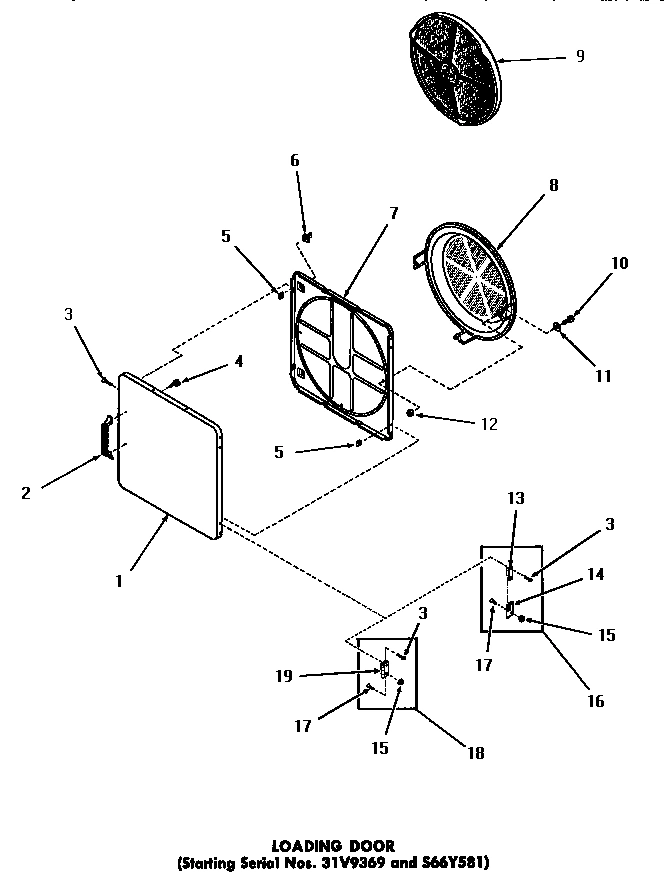

18 - LOADING DOOR
Common parts from model Whirlpool DG6240 WASHER
HOUSING AND PANEL ASSEMBLY WILL BE SUPPLIED W WPL NOTE Contact Us For Availability
1
SCREW,10-24 X 1/2 HEX WPL 51924 Contact Us For Availability
1
CLIP FOR 26816 KNOB WPL 23392 Contact Us For Availability
1
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
1
OUTER DOOR PANEL, AVOCADO WPL 52489A Contact Us For Availability
1
OUTER DOOR PANEL, COPPERTONE WPL 52489C Contact Us For Availability
1
OUTER DOOR PANEL, HARVEST GOLD WPL 52489H Contact Us For Availability
1
OUTER DOOR PANEL, WHITE WPL 52489W Contact Us For Availability
1
SEAL,FRONT WPL 51881 Contact Us For Availability
1
DOOR RELEASE SPRING WPL 51065 Contact Us For Availability
1
BUMPER PAD WPL 20354 Contact Us For Availability
1
SEAL WPL 51790 Contact Us For Availability
1
SCREW,6B-20 X 7/8 HEX WPL 51783 Contact Us For Availability
1
INLET GAS TUBE WPL 53381 Contact Us For Availability
1
INLET,GAS TUBE WPL 54460 Contact Us For Availability
1
CAP,VENT WPL 54477 Contact Us For Availability
1
VALVE HOUSING WPL 53377S Contact Us For Availability
1
HANDLE, OVEN DOOR (J) WPL Y0052776 Contact Us For Availability
1
WEATHER HOOD WPL 20601 Contact Us For Availability
2
KNOB,CONTROL WPL 23402 Contact Us For Availability
2
CONNECTOR WPL 90789 Contact Us For Availability
2
BUMPER, OVEN DOOR WPL 52552 Contact Us For Availability
2
PULL,DOOR WPL 54068 Contact Us For Availability
2
STRAP,RETAINER WPL 50169 Contact Us For Availability
2
PLUG WPL 51786 Contact Us For Availability
2
GASKET,HOUSING WPL 51791 Contact Us For Availability
2
BELT WPL 52556 Contact Us For Availability
2
SCREW,10-24 X 3/4 SEMS WPL 23008 Contact Us For Availability
2
ELBOW WPL 51917 Contact Us For Availability
2
SUPPORT BRACKET WPL 52127 Contact Us For Availability
2
SWITCH WPL Y51143 Contact Us For Availability
2
VALVE WPL Y51058 Contact Us For Availability
2
HEX HEAD SCREW WPL 53379B Contact Us For Availability
2
USE D7425607 WPL 0054474 Contact Us For Availability
2
SHORT 90 DEGREES ELBOW WPL 52699 Contact Us For Availability
3
RELIEF,STRAIN WPL 52113 Contact Us For Availability
3
NUT,KNURLED 3/8-24 WPL 24205 Contact Us For Availability
3
HOUSING,TAB WPL 90788 Contact Us For Availability
3
SCREW, 8B-16X5/8 TAP WPL 52864 Contact Us For Availability
3
ASSY,DRUM WPL 53135 Contact Us For Availability
3
DOOR RELEASE PIN ASSEMBLY WPL 51841 Contact Us For Availability
3
EXHAUST FAN SHAFT WPL 53519 Contact Us For Availability
3
LEVER,IDLER WPL 54410 Contact Us For Availability
3
BRACKET WPL 22847 Contact Us For Availability
3
EXHAUST PIPE, 4`` X 18`` WPL Y52129 Contact Us For Availability
3
INSULATION WPL 52112 Contact Us For Availability
3
GAS PIPE CLAMP WPL 51828 Contact Us For Availability
3
GASKET, DR REF. WPL Y0054476 Contact Us For Availability
3
PLUNGER GUIDE AND BRACKET WPL 53377B Contact Us For Availability
3
SUB 126A2533 WPL 20602 Contact Us For Availability
3
PLUG BUTTON WPL 54610 Contact Us For Availability
4
HINGE,FRONT WPL 51350 Contact Us For Availability
4
CONTROL HOOD END, LEFT WPL 25124 Contact Us For Availability
4
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
4
SCREW,10B-16 X 1/2 HEX WPL 51784 Contact Us For Availability
4
SCREW, THERMOSTAT WPL 52150 Contact Us For Availability
4
SPRING WPL 52310 Contact Us For Availability
4
PIN,COTTER WPL 02578 Contact Us For Availability
4
FRONT FRAME AND AIR SHROUD WPL 51850 Contact Us For Availability
4
HEX HEAD SCREW WPL 53379C Contact Us For Availability
4
REGULATOR SCREW WPL 54486C Contact Us For Availability
5
SCREW,6-32 X 3/8 ROUND WPL 03630 Contact Us For Availability
5
LOCKWASHER,No.10 EXT SHK WPL 03815 Contact Us For Availability
5
PALNUT,3/16 SF188 WPL 25126 Contact Us For Availability
5
PLUG,9 CIRCUIT WPL 23033 Contact Us For Availability
5
THERMOSTAT,HEATER BOX WPL 51185 Contact Us For Availability
5
LOCKWASHER WPL Y20278 Contact Us For Availability
5
SPEED NUT WPL 52865 Contact Us For Availability
5
STRAP,SEAL WPL 50781 Contact Us For Availability
5
DOOR RELEASE LEVER WPL 51041 Contact Us For Availability
5
BUMPER WPL 21685 Contact Us For Availability
5
COVER PLATE WPL 53911 Contact Us For Availability
5
SWITCH, LIGHT (BLK) WPL Y0052707 Contact Us For Availability
5
ASSY,MOTOR PULLEY WPL 52593 Contact Us For Availability
5
BUMPER WPL 21176 Contact Us For Availability
5
PIPE SUPPORT WPL 51842 Contact Us For Availability
5
COIL,BURNER WPL 53377A Contact Us For Availability
5
REGULATOR COVER WPL 51402Q Contact Us For Availability
5
EXHAUST TUBE WPL 52698 Contact Us For Availability
6
ACCESS DOOR, AVOCADO WPL 52518A Contact Us For Availability
6
ACCESS DOOR, COPPERTONE WPL 52518C Contact Us For Availability
6
xREPLACE WPL 52518H Contact Us For Availability
6
ACCESS DOOR, WHITE WPL 52518W Contact Us For Availability
6
CONTROL PANEL WPL 54985 Contact Us For Availability
6
RECEPTACLE,9 CIRCUIT WPL 26163 Contact Us For Availability
6
HEATER BOX WPL Y51862 Contact Us For Availability
6
ASSY,SEAL WPL 51883A Contact Us For Availability
6
PIN,ROLL 1/8 X 3/4 WPL 51161 Contact Us For Availability
6
SUPPORT CHANNEL, RIGHT OR LEFT WPL 51818 Contact Us For Availability
6
SIDE PANEL, LEFT, AVOCADO WPL 52669A Contact Us For Availability
6
SIDE PANEL, LEFT, COPPERTONE WPL 52669C Contact Us For Availability
6
SIDE PANEL, LEFT, HARVEST GOLD WPL 52669H Contact Us For Availability
6
SIDE PANEL, LEFT, WHITE WPL 52669W Contact Us For Availability
6
EXHAUST DUCT WPL 51821 Contact Us For Availability
6
INLET GAS PIPE WPL 51775 Contact Us For Availability
6
PLATE WPL 53377C Contact Us For Availability
6
NUT WPL 51402V Contact Us For Availability
6
SUPT-TOP BRNR,LH, WPL 0052775 Contact Us For Availability
7
HINGE,REAR WPL 51351 Contact Us For Availability
7
LOCKWASHER,3/8 INTSHKP WPL 91176 Contact Us For Availability
7
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
7
ASSY,HEATER BOX WPL 54717 Contact Us For Availability
7
CLIP WPL 51201 Contact Us For Availability
7
DOOR RELEASE SPACER WPL 51121 Contact Us For Availability
7
ELEMENT, LARGE 120V WPL Y0054053 Contact Us For Availability
7
ASSY,PULLEY WPL 53521 Contact Us For Availability
7
REPLACED BY 58047 WPL 51789 Contact Us For Availability
7
SCREW, No.10-16 X 3/8`` WPL 52442 Contact Us For Availability
7
CONNECTOR,MALE WPL 54408 Contact Us For Availability
7
VALVE COVER AND GASKET WPL 53377K Contact Us For Availability
7
DIAPHRAGM WPL 51402X Contact Us For Availability
7
INNER DOOR PANEL WPL 54665 Contact Us For Availability
8
STRAIN RELIEF WPL 21903 Contact Us For Availability
8
TEMPERATURE SELECTOR SWITCH WPL 53380 Contact Us For Availability
8
CABLE CLIP WPL 20309 Contact Us For Availability
8
BURNER SHIELD WPL Y52584 Contact Us For Availability
8
STRIKE,DOOR WPL 51992 Contact Us For Availability
8
ASSY,GRILL&SUPPORT-PUR WPL 54731 Contact Us For Availability
8
SPRING WPL 50168 Contact Us For Availability
8
DOOR RELEASE ROD WPL 51837 Contact Us For Availability
8
BEARING,DRUM SHAFT WPL Y52079 Contact Us For Availability
8
SWITCH WPL 53249 Contact Us For Availability
8
BUMPER PAD WPL 80312 Contact Us For Availability
8
DRUM ROLLER WPL 53555 Contact Us For Availability
8
ASSY,INLET GAS TUBE WPL 54407 Contact Us For Availability
8
SLEEVE,COMPRESSION WPL 52860 Contact Us For Availability
8
VALVE SPRING WPL 53377Y Contact Us For Availability
8
GASKET WPL 51402Y Contact Us For Availability
9
SCREW,8AB-18X7/8 OVAL WPL 25232 Contact Us For Availability
9
STRAP,GROUND WPL 21430 Contact Us For Availability
9
INNER DOOR PANEL WPL 54730 Contact Us For Availability
9
NO LONGER AVAILABLE WPL 53002 Contact Us For Availability
9
PEDAL HINGE PIN WPL 51045 Contact Us For Availability
9
COVER,BEARING WPL 51826 Contact Us For Availability
9
SCREW,1/4-20X3/8 HEX S WPL 02771 Contact Us For Availability
9
BELT WPL 51994 Contact Us For Availability
9
REAR PANEL, GRAY, AVOCADO WPL 52677GRA Contact Us For Availability
9
REAR PANEL, GRAY, COPPERTONE WPL 52677GRC Contact Us For Availability
9
REAR PANEL, GRAY, HARVEST GOLD WPL 52677GRH Contact Us For Availability
9
REAR PANEL, GRAY, WHITE WPL 52677GRW Contact Us For Availability
9
WASHER WPL 52123 Contact Us For Availability
9
MALE ELBOW WPL Y51266 Contact Us For Availability
9
TUBE,PILOT WPL 54489 Contact Us For Availability
9
PILOT SHIELD WPL 53377F Contact Us For Availability
9
ACTUATING PIN WPL 54486Z Contact Us For Availability
10
GROUND WIRE, GREEN WPL 54300 Contact Us For Availability
10
ASSY, SWITCH WPL 53768 Contact Us For Availability
10
NUT WPL Y20276 Contact Us For Availability
10
ASSY,HOUSING & PANEL WPL 54738 Contact Us For Availability
10
CAP SCREW WPL 24688 Contact Us For Availability
10
NYLON WASHER WPL 51046 Contact Us For Availability
10
LOCKWASHER,1/4 STD-C P WPL 03189 Contact Us For Availability
10
PULLEY,MOTOR WPL 53522 Contact Us For Availability
10
REAR PANEL COVER PLATE, GRAY, WPL 51855GRA Contact Us For Availability
10
REAR PANEL COVER PLATE, GRAY, WPL 51855GRC Contact Us For Availability
10
REAR PANEL COVER PLATE, GRAY, WPL 51855GRH Contact Us For Availability
10
REAR PANEL COVER PLATE, GRAY, WPL 51855GRW Contact Us For Availability
10
TUBE,PILOT xREPLACE WPL 53382 Contact Us For Availability
10
NUT,COMPRESSION WPL 52861 Contact Us For Availability
10
ROUND HEAD SCREW WPL 53379F Contact Us For Availability
10
SCREW WPL 54486K Contact Us For Availability
11
NUT,HEX 15/32-32 WPL 52947 Contact Us For Availability
11
TERMINAL,TAB-1/4 MALE WPL 00133 Contact Us For Availability
11
WASHER WPL Q6275 Contact Us For Availability
11
NUT WPL 51271 Contact Us For Availability
11
SCREW,1/4-20 X 5/8 HEX WPL 53589 Contact Us For Availability
11
BEARING WPL 51991 Contact Us For Availability
11
MOTOR WPL 52697 Contact Us For Availability
11
SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability
11
ORIFICE,NG WPL 53387 Contact Us For Availability
11
CLAMP WPL 54486N Contact Us For Availability
12
TIMER WPL 52167 Contact Us For Availability
12
ROUND HEAD SCREW WPL 21431 Contact Us For Availability
12
PEDAL,FOOT WPL 51802 Contact Us For Availability
12
SHAFT,DRUM WPL 53132 Contact Us For Availability
12
HOUSING,BLOWER WPL 51946 Contact Us For Availability
12
SWITCH WPL 53213 Contact Us For Availability
12
MOTOR SWITCH, DELCO WPL 53214 Contact Us For Availability
12
SWITCH,MOTOR WPL 53226 Contact Us For Availability
12
TERMINAL BLOCK ACCESS PLATE, G WPL 52108GRA Contact Us For Availability
12
TERMINAL BLOCK ACCESS PLATE, G WPL 52108GRC Contact Us For Availability
12
TERMINAL BLOCK ACCESS PLATE, G WPL 52108GRH Contact Us For Availability
12
TERMINAL BLOCK ACCESS PLATE, G WPL 52108GRW Contact Us For Availability
12
WASHER WPL 52122 Contact Us For Availability
12
TUBE,BURNER WPL 54471 Contact Us For Availability
12
STIFFENER WPL 53377L Contact Us For Availability
12
PILOT VALVE LATCH AND PLATE WPL 54486D Contact Us For Availability
13
SCREW,10-24 X 3/8 ROUND WPL 20267 Contact Us For Availability
13
POWER CORD WPL 51508 Contact Us For Availability
13
CONTROL HOOD END, RIGHT WPL 25123 Contact Us For Availability
13
GROUND WIRE WPL Y21429 Contact Us For Availability
13
DOOR RELEASE ASSEMBLY WPL 51844 Contact Us For Availability
13
IMPELLER WPL 90585 Contact Us For Availability
13
NUT WPL 52124 Contact Us For Availability
13
PLUNGER SHAFT WPL 53377M Contact Us For Availability
13
LATCH COVER WPL 54486G Contact Us For Availability
14
BUMPER WPL 51355 Contact Us For Availability
14
NUT,SPEED-8AB-18 C1995 WPL 24522 Contact Us For Availability
14
CLIP,WIRE WPL 51291 Contact Us For Availability
14
SCREW WPL 51246 Contact Us For Availability
14
SETSCREW WPL 52906 Contact Us For Availability
14
BRACKET WPL 22846 Contact Us For Availability
14
GASKET WPL 51798 Contact Us For Availability
14
TUBE,BURNER WPL 53011 Contact Us For Availability
14
NUT,SPEED WPL 21747 Contact Us For Availability
14
PLUNGER SEAT WPL 53377N Contact Us For Availability
14
GASKET WPL 54486T Contact Us For Availability
15
TOP BAFFLE ASSEMBLY WPL 52614 Contact Us For Availability
15
CONTROL HOOD, AVOCADO WPL 53446A Contact Us For Availability
15
CONTROL HOOD, COPPERTONE WPL 53446C Contact Us For Availability
15
CONTROL HOOD, HARVEST GOLD WPL 53446H Contact Us For Availability
15
CONTROL HOOD, WHITE WPL 53446W Contact Us For Availability
15
CLIP,CABLE WPL 21036 Contact Us For Availability
15
NUT K WPL 51236 Contact Us For Availability
15
GROMMET WPL 51858 Contact Us For Availability
15
DOOR RELEASE BRACKET WPL 51052 Contact Us For Availability
15
FRAME,REAR WPL 52574 Contact Us For Availability
15
BOLT,SHOULDER WPL 52567 Contact Us For Availability
15
LUG,HOLD-DOWN WPL 52487 Contact Us For Availability
15
NUT WPL 03673 Contact Us For Availability
15
COVER PLATE WPL 52550 Contact Us For Availability
15
THUMB SCREW WPL 54466 Contact Us For Availability
15
SCREW WPL 54486J Contact Us For Availability
16
GASKET,CONTROL BOX END WPL 23028 Contact Us For Availability
16
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
16
FRAME BASE WPL Y52572 Contact Us For Availability
16
SPRING WPL 52323 Contact Us For Availability
16
BUMPER WPL 20387 Contact Us For Availability
16
NUT,SPEED 10-24 WPL 20249 Contact Us For Availability
16
WASHER WPL 54735 Contact Us For Availability
16
BURNER ORIFICE ADAPTER WPL 53377W Contact Us For Availability
16
MOUNTING BRACKET WPL 54485 Contact Us For Availability
17
NUT,NYLON WPL 22678 Contact Us For Availability
17
WASHER,11/64IDX3/8ODX3 WPL 20493 Contact Us For Availability
17
TERMINAL,SPADE-3/16 FE WPL 00112 Contact Us For Availability
17
SCREW,8-32 X 13/32 FL WPL 22649 Contact Us For Availability
17
NUT, HEX 3/8-16 WPL 52794 Contact Us For Availability
17
CLIP WPL 22161 Contact Us For Availability
17
THERMOSTAT WPL 54736 Contact Us For Availability
17
SHUTTER,AIR WPL 53007 Contact Us For Availability
17
GAS VALVE WPL 54488 Contact Us For Availability
17
HEX HEAD SCREW WPL 53379D Contact Us For Availability
17
SCREW WPL 54486L Contact Us For Availability
18
SEE NOTE ALL OTHER MODELS WPL Y00000000 Contact Us For Availability
18
CABINET TOP, AVOCADO WPL 52503A Contact Us For Availability
18
CABINET TOP, COPPERTONE WPL 52503C Contact Us For Availability
18
CABINET TOP, HARVEST GOLD WPL 52503H Contact Us For Availability
18
CABINET TOP, WHITE WPL 52503W Contact Us For Availability
18
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
18
SHAFT,IDLER LEVER WPL 54411 Contact Us For Availability
18
SCREW,10B-16 X 3/4 ROU WPL Q6535 Contact Us For Availability
18
THERMOSTAT WPL 54737 Contact Us For Availability
18
ROUND HEAD SCREW WPL 53006 Contact Us For Availability
18
MOUNTING BRACKET WPL 53377Q Contact Us For Availability
18
COIL HOLD-DOWN BRACKET WPL 54486F Contact Us For Availability
19
BUMPER WPL 53445 Contact Us For Availability
19
INSULATOR,BLUE WPL 70210 Contact Us For Availability
19
HINGE (COMML. PART) WPL 70014 Contact Us For Availability
19
LEVER,IDLER WPL 54415 Contact Us For Availability
19
MOUNT,PANEL WPL 23020 Contact Us For Availability
19
THERMOSTAT WPL 53708 Contact Us For Availability
19
GASKET WPL 53377H Contact Us For Availability
19
COIL,BURNER WPL 54486A Contact Us For Availability
20
CAGED NUT WPL 23007 Contact Us For Availability
20
WASHER,7/32IDX7/16ODX. WPL 23425 Contact Us For Availability
20
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
20
MONOGRAM WPL 22086 Contact Us For Availability
20
VALVE,GAS WPL 53377 Contact Us For Availability
20
HEX HEAD SCREW WPL 53379E Contact Us For Availability
20
LEAF SPRING WPL 51402G Contact Us For Availability
21
PANEL SUPPORT BRACKET WPL 52912 Contact Us For Availability
21
INSULATOR SLEEVE WPL Y21365 Contact Us For Availability
21
RING,RETAINING WPL 70061 Contact Us For Availability
21
STRIKER CATCH WPL 51993 Contact Us For Availability
21
RESET VALVE WPL 53377G Contact Us For Availability
21
PLUNGER GUIDE WPL 54486U Contact Us For Availability
22
ASSY,KNOB-TIMER WPL 24858 Contact Us For Availability
22
TERMINAL,SPADE-1/4 FEM WPL Y00114 Contact Us For Availability
22
WASHER WPL Y52564 Contact Us For Availability
22
DUCT RING, GRAY WPL 52052GR Contact Us For Availability
22
CLAMP WPL 53377U Contact Us For Availability
22
SPRING WPL 51999E Contact Us For Availability
23
SLEEVE,SUPPORT ANGLE WPL 24859 Contact Us For Availability
23
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
23
HEX HEAD SCREW WPL 22024 Contact Us For Availability
23
SHAFT,IDLER xREPLACE WPL 52611 Contact Us For Availability
23
SCREW,8B-18 X 1/2 RD H WPL 51778 Contact Us For Availability
23
RESET LEVER WPL 53377J Contact Us For Availability
23
PLUNGER WPL 54486M Contact Us For Availability
24
SCREW,8-32 X 5/32 RD H WPL 70212 Contact Us For Availability
24
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
24
SEAL,OUTER WPL 51799 Contact Us For Availability
24
VALVE BODY WPL 53377P Contact Us For Availability
24
PILOT BURNER WPL 54484 Contact Us For Availability
25
SETSCREW WPL 25285 Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
25
FRONT PANEL, AVOCADO WPL 53592A Contact Us For Availability
25
FRONT PANEL, COPPERTONE WPL 53592C Contact Us For Availability
25
FRONT PANEL, HARVEST GOLD WPL 53592H Contact Us For Availability
25
FRONT PANEL, WHITE WPL 53592W Contact Us For Availability
25
FRONT PANEL, AVOCADO WPL 54664A Contact Us For Availability
25
FRONT PANEL, COPPERTONE WPL 54664C Contact Us For Availability
25
FRONT PANEL, HARVEST GOLD WPL 54664H Contact Us For Availability
25
FRONT PANEL, W WPL 54664W Contact Us For Availability
25
ORIFICE,PILOT WPL 54473 Contact Us For Availability
25
SCREW,COMPRESSION WPL 53377V Contact Us For Availability
26
INDICATOR WPL 24857 Contact Us For Availability
26
CAP SCREW AND LOCKWASHER WPL 23928 Contact Us For Availability
26
SIDE PANEL, RIGHT, AVOCADO WPL 52673A Contact Us For Availability
26
SIDE PANEL, RIGHT, COPPERTONE WPL 52673C Contact Us For Availability
26
SIDE PANEL, RIGHT, HARVEST GOL WPL 52673H Contact Us For Availability
26
WPL 52673W WPL 52673W Contact Us For Availability
26
GASKET WPL 54486R Contact Us For Availability
27
MOUNT,MOTOR WPL 51824 Contact Us For Availability
27
PLUG,PIPE WPL 20247 Contact Us For Availability
27
FILTER WPL 53377T Contact Us For Availability
28
IDLER LEVER WPL 52562 Contact Us For Availability
28
ORIFICE,NG WPL 51209 Contact Us For Availability
28
REGULATOR SEAT WPL 52966R Contact Us For Availability
29
HEX HEAD SCREW WPL 53377Z Contact Us For Availability
29
NET-PAN,DRAIN WPL 0054480 Contact Us For Availability
30
BURNER,PILOT WPL 53377E Contact Us For Availability
30
GASKET WPL 54486S Contact Us For Availability
31
IDLER PULLEY WPL 52561 Contact Us For Availability
31
REGULATOR SPRING WPL 53377X Contact Us For Availability
31
RESET VALVE WPL 54486Q Contact Us For Availability
32
REGUALTOR SCREW WPL 52966M Contact Us For Availability
32
RESET LEVER AND BRACKET WPL 54486E Contact Us For Availability
33
GASKET WPL 52966L Contact Us For Availability
33
VALVE BODY WPL 54486B Contact Us For Availability
34
SCREW,VENT WPL 53558 Contact Us For Availability
34
FILTER WPL 54486Y Contact Us For Availability
35
O-RING WPL 53377D Contact Us For Availability
35
FILTER SCREEN WPL 54486X Contact Us For Availability
36
GASKET WPL 54486W Contact Us For Availability
37
OUTLET WPL 54486P Contact Us For Availability
38
SCREW WPL 54486H Contact Us For Availability
39
REGULATOR PIN WPL 51402AB Contact Us For Availability
40
REGULATOR PIN SEAT WPL 51402AA Contact Us For Availability
41
GASKET WPL 51402Z Contact Us For Availability
42
DIAPHRAGM PLATE WPL 51402W Contact Us For Availability
43
REGULATOR SPRING WPL 51402U Contact Us For Availability
NI
WIRE, 12 GAUGE WPL 20679 Contact Us For Availability
NI
18 GAUGE WIRE WPL 20680 Contact Us For Availability
NI
REAR EXHAUST DEFLECTOR KIT WPL 143P3 Contact Us For Availability
NI
KIT,CONVERSION WPL 213P3 Contact Us For Availability
NI
KIT,CONVERSION WPL 214P3 Contact Us For Availability
NI
ORIFICE,LP No.55 DRILL WPL 51211 Contact Us For Availability
NI
STICKER WPL 52893 Contact Us For Availability
NI
STICKER WPL 52894 Contact Us For Availability
NI
ORIFICE,LP WPL 53389 Contact Us For Availability
NI
PLUG,BLOCK-OPEN WPL 53390 Contact Us For Availability
NI
VALVE CONVERTED STICKER WPL 53392 Contact Us For Availability
NI
LABEL,CHANGE-OVER WPL 53408 Contact Us For Availability
NI
STICKER,CONVERSION WPL 53556 Contact Us For Availability
NI
STICKER WPL 53557 Contact Us For Availability
NI
KIT,CONVERSION WPL 240P3 Contact Us For Availability
NI
KIT,CONVERSION WPL 241P3 Contact Us For Availability
NI
STICKER WPL 54472 Contact Us For Availability
NI
STICKER WPL 54491 Contact Us For Availability
NI
ORIFICE,PILOT WPL 54492 Contact Us For Availability
NI
PLUG,BLOCK-OPEN WPL 54495 Contact Us For Availability
NI
SIDE EXHAUST DEFLECTOR KIT WPL 159P3 Contact Us For Availability
NI
VENT KIT WPL 20600 Contact Us For Availability
NI
BOTTOM EXHAUST DEFLECTOR KIT WPL 160P3 Contact Us For Availability
× ![]()
Login and Registration Form
