Model Whirlpool DG32CM WASHER – Common Parts & Diagrams

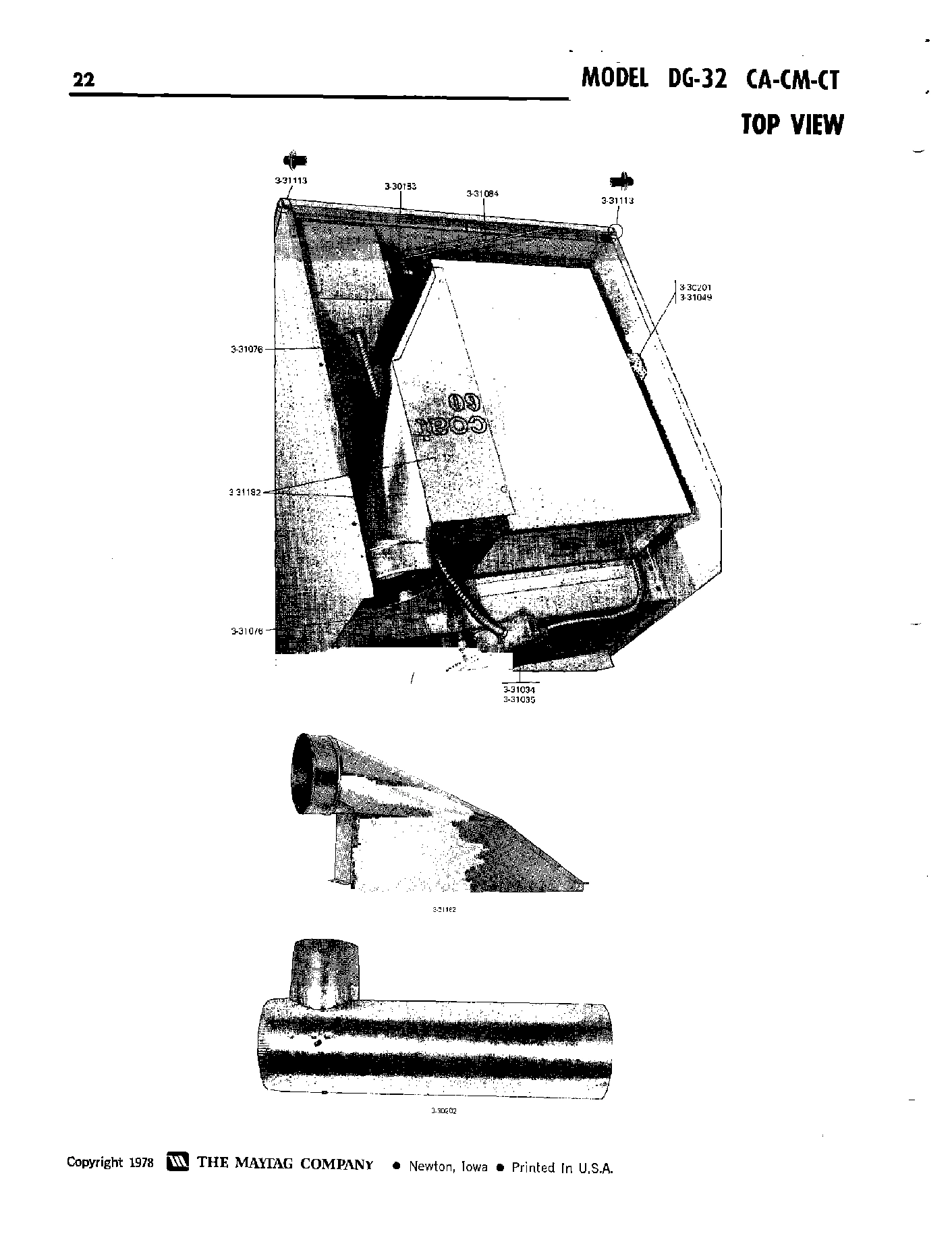

09 - TOP VIEW

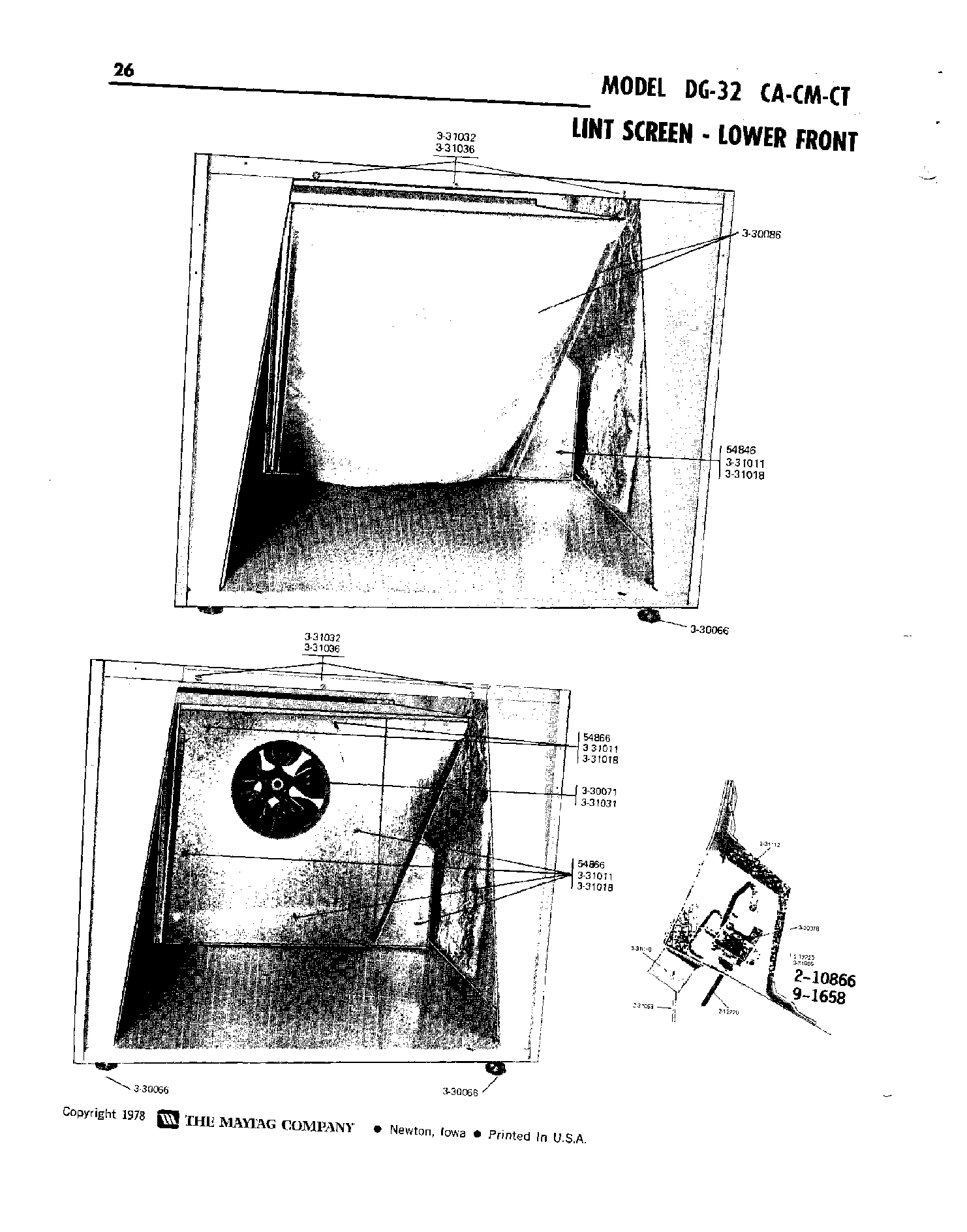

11 - LINT SCREEN-LOWER FRONT

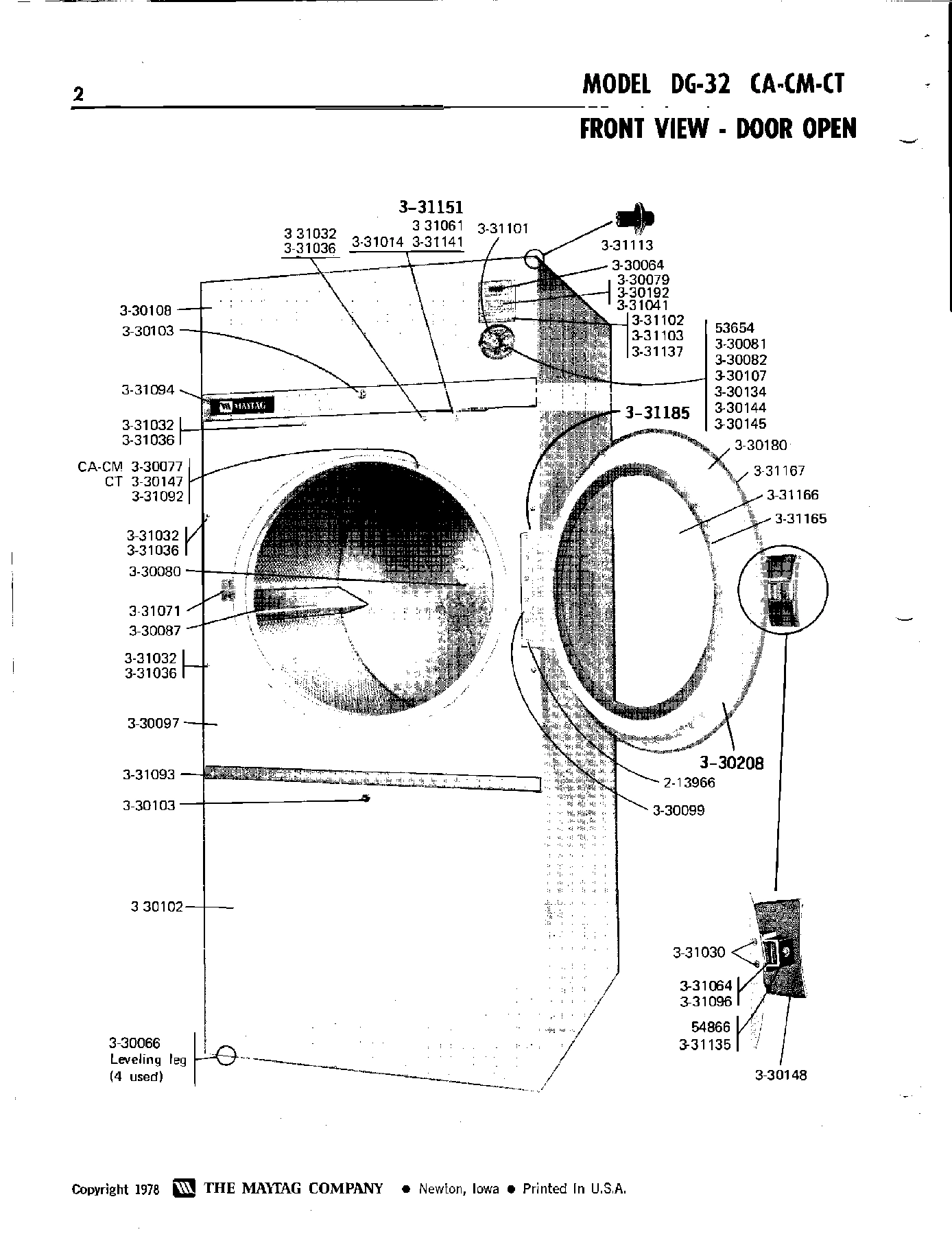

01 - FRONT VIEW-DOOR OPEN
18 - 240 VOLT, 50HZ PARTS

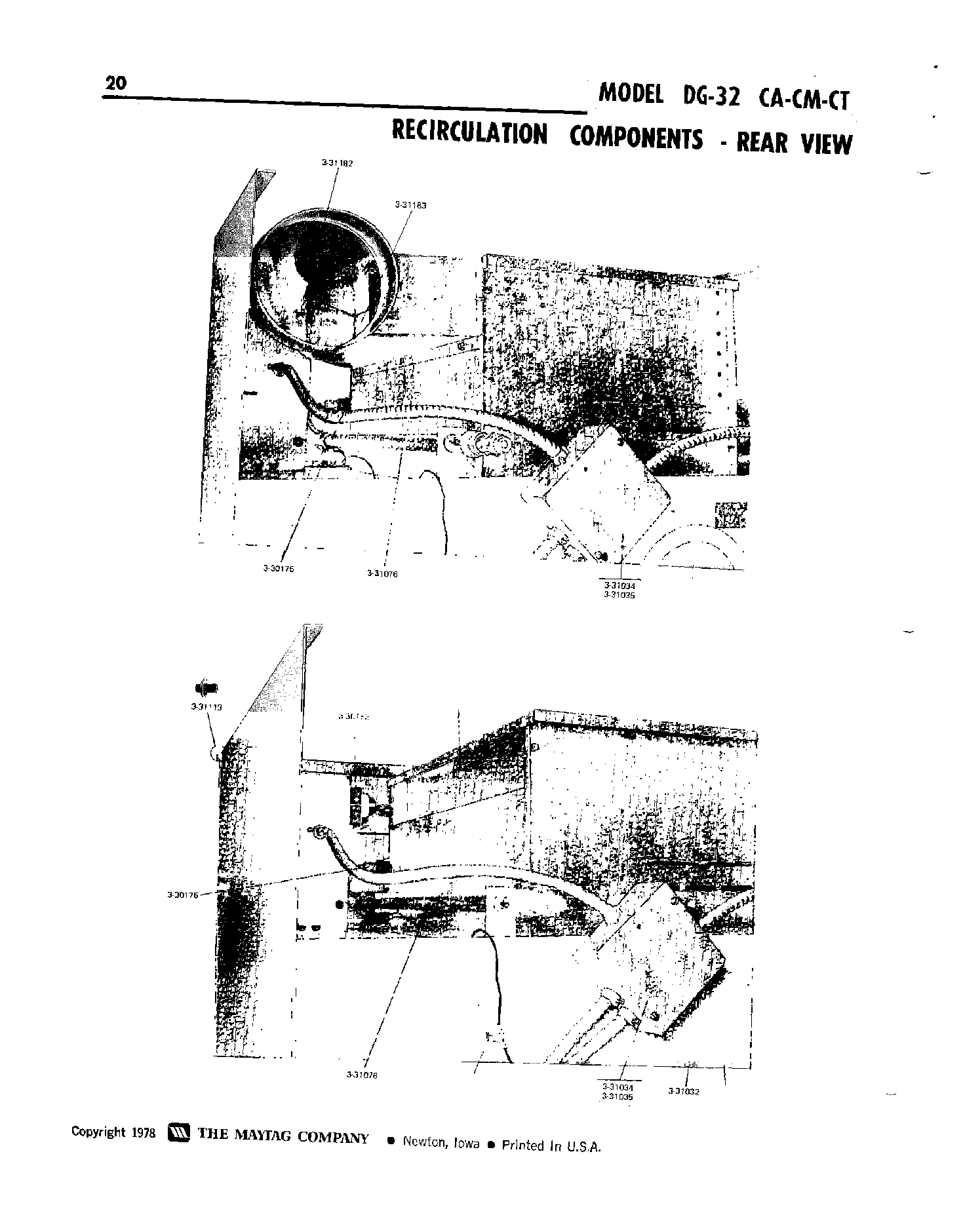

08 - RECIRCULATION COMPONENTS-REAR VIEW

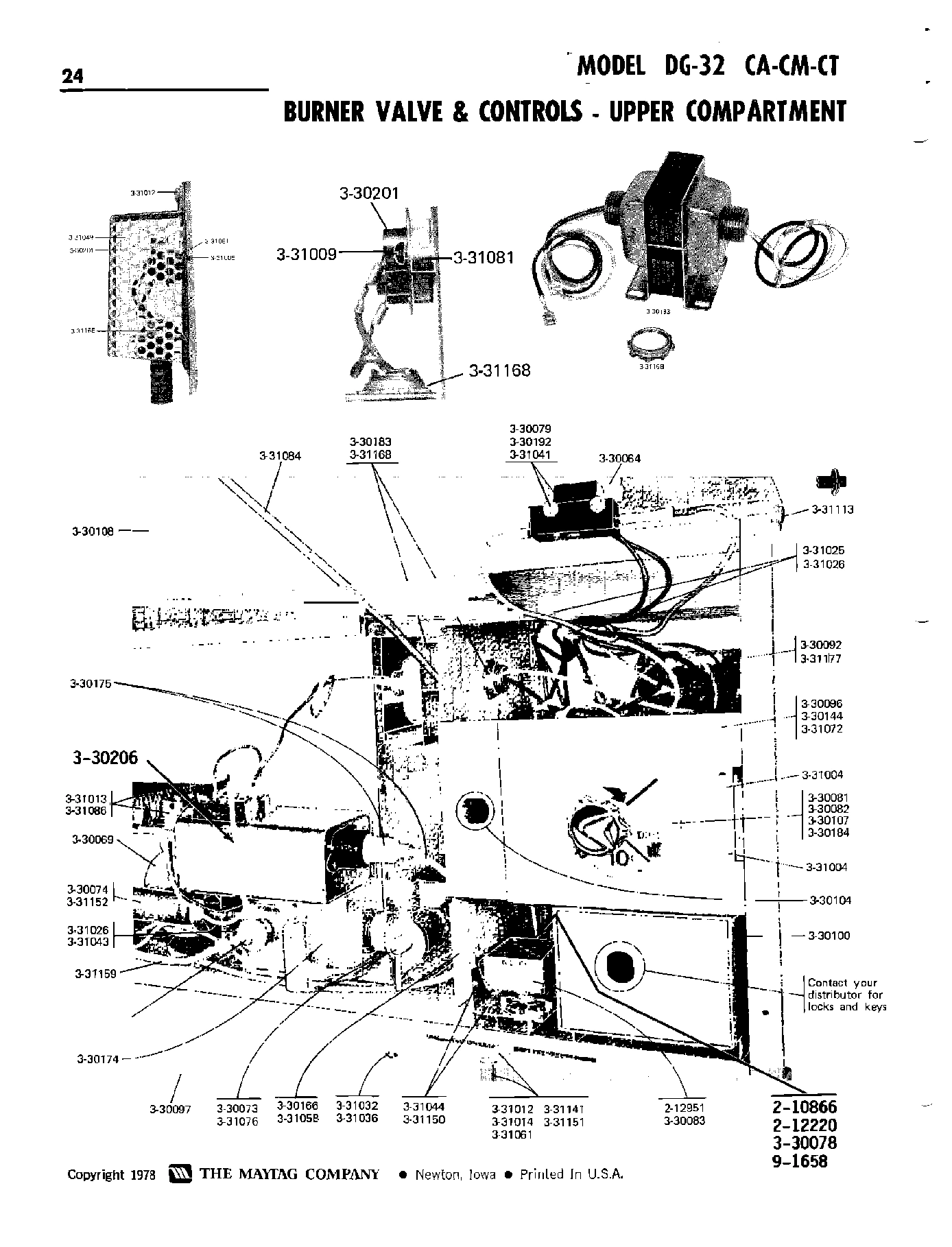

10 - BURNER VALVE & CONTROLS-UPPER COMP.

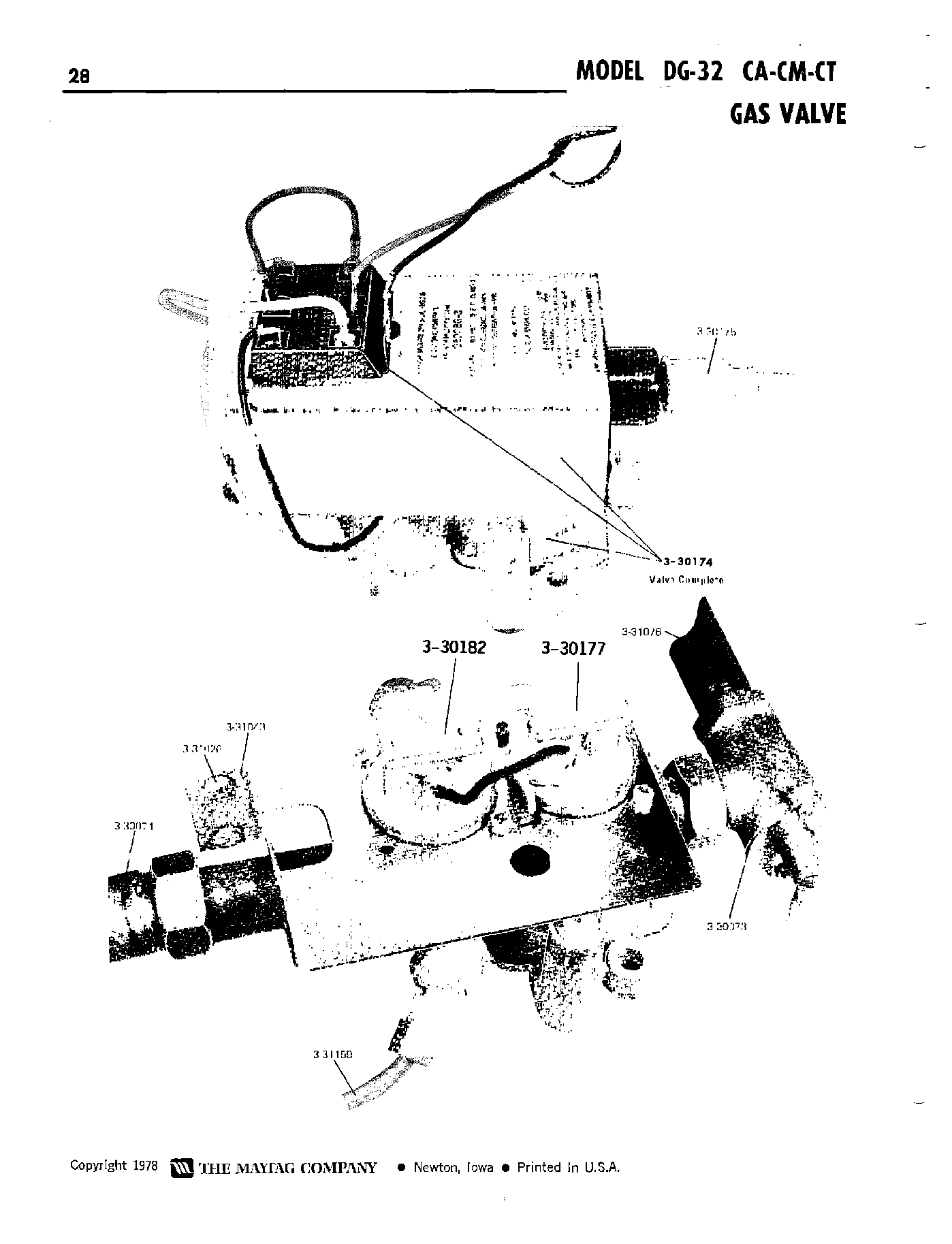

12 - GAS VALVE

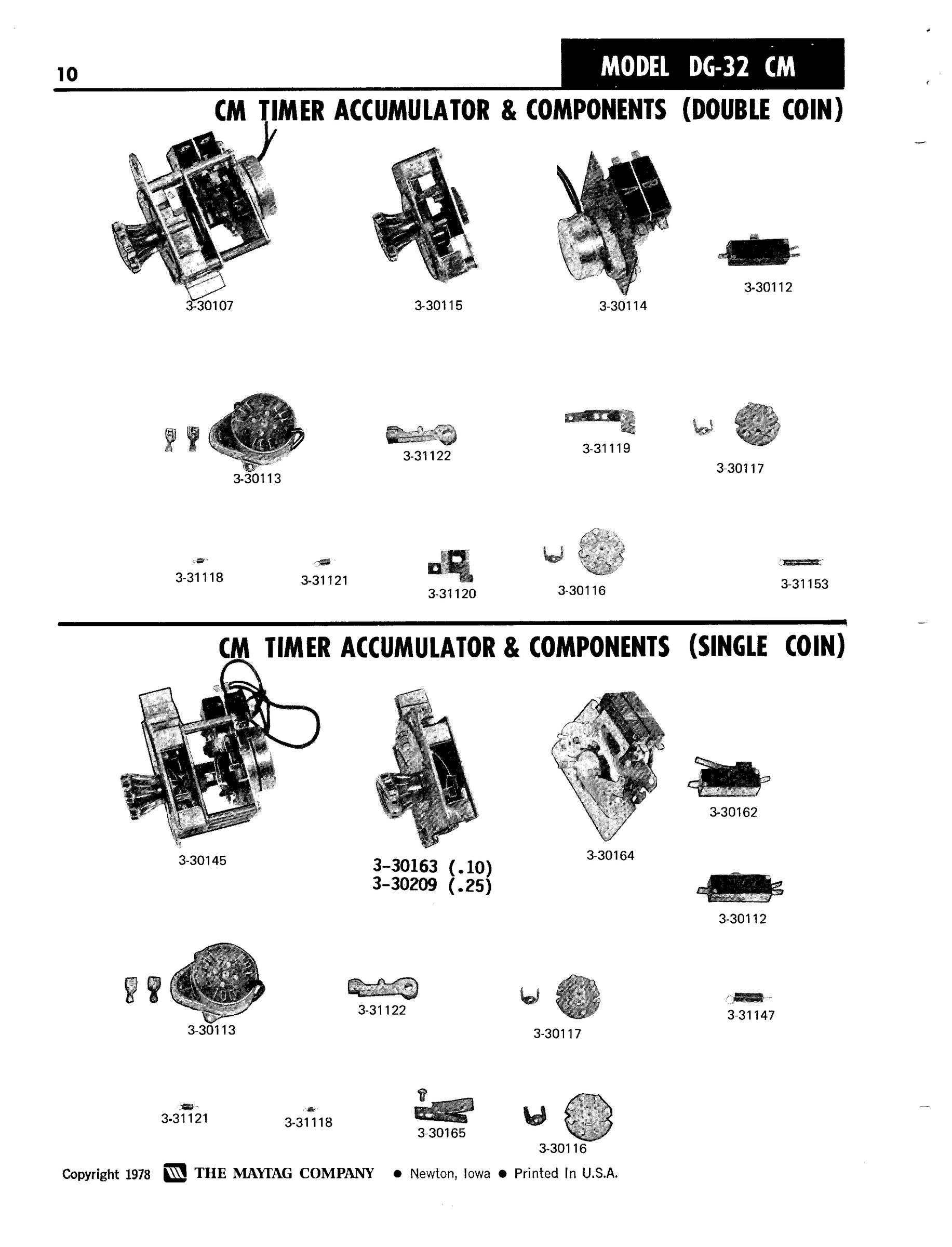

05 - CM TIMER ACCUMULATOR & COMPONENTS DOUBLE

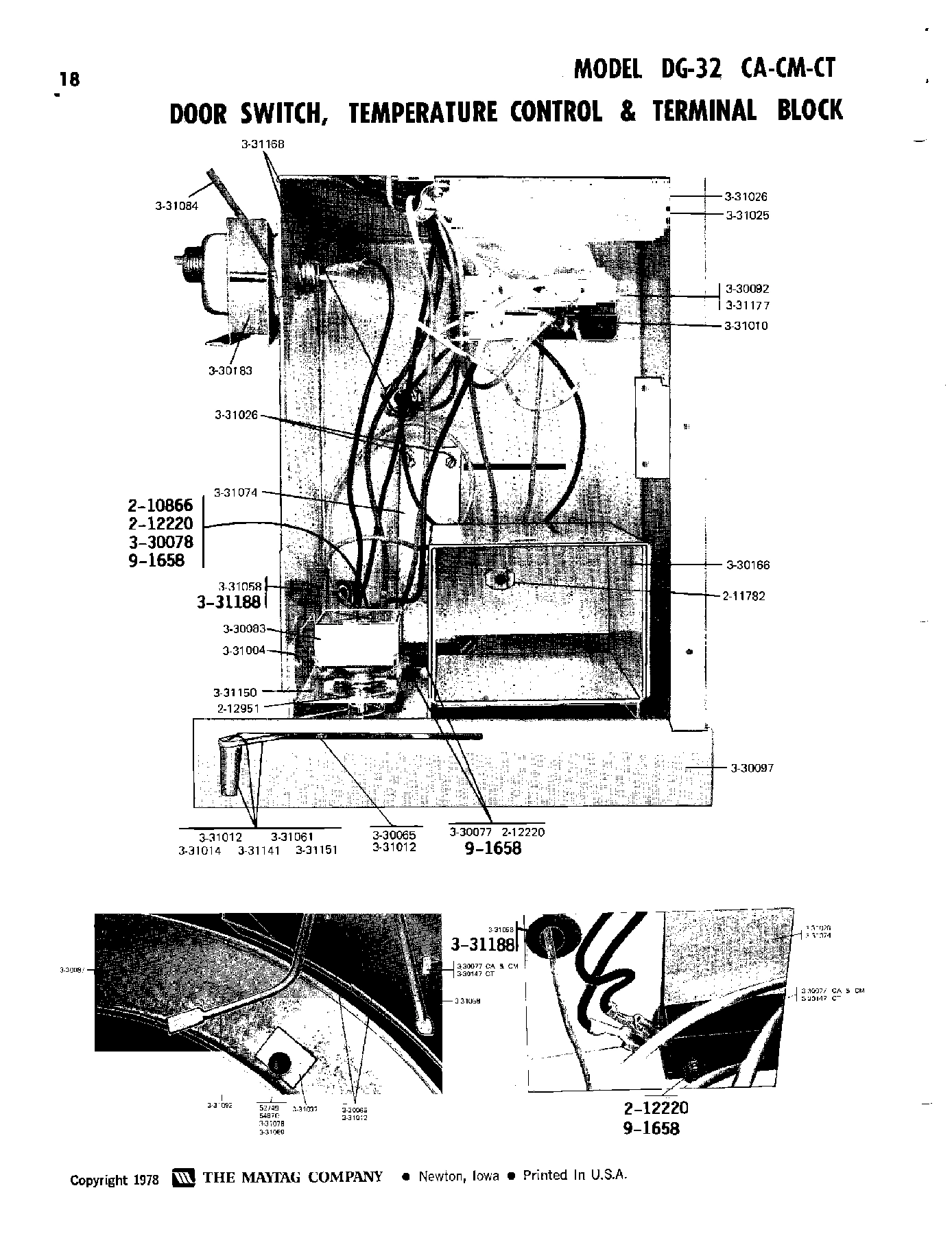

07 - DOOR SWITCH, TEMP CONTROL & TERMINAL BLK

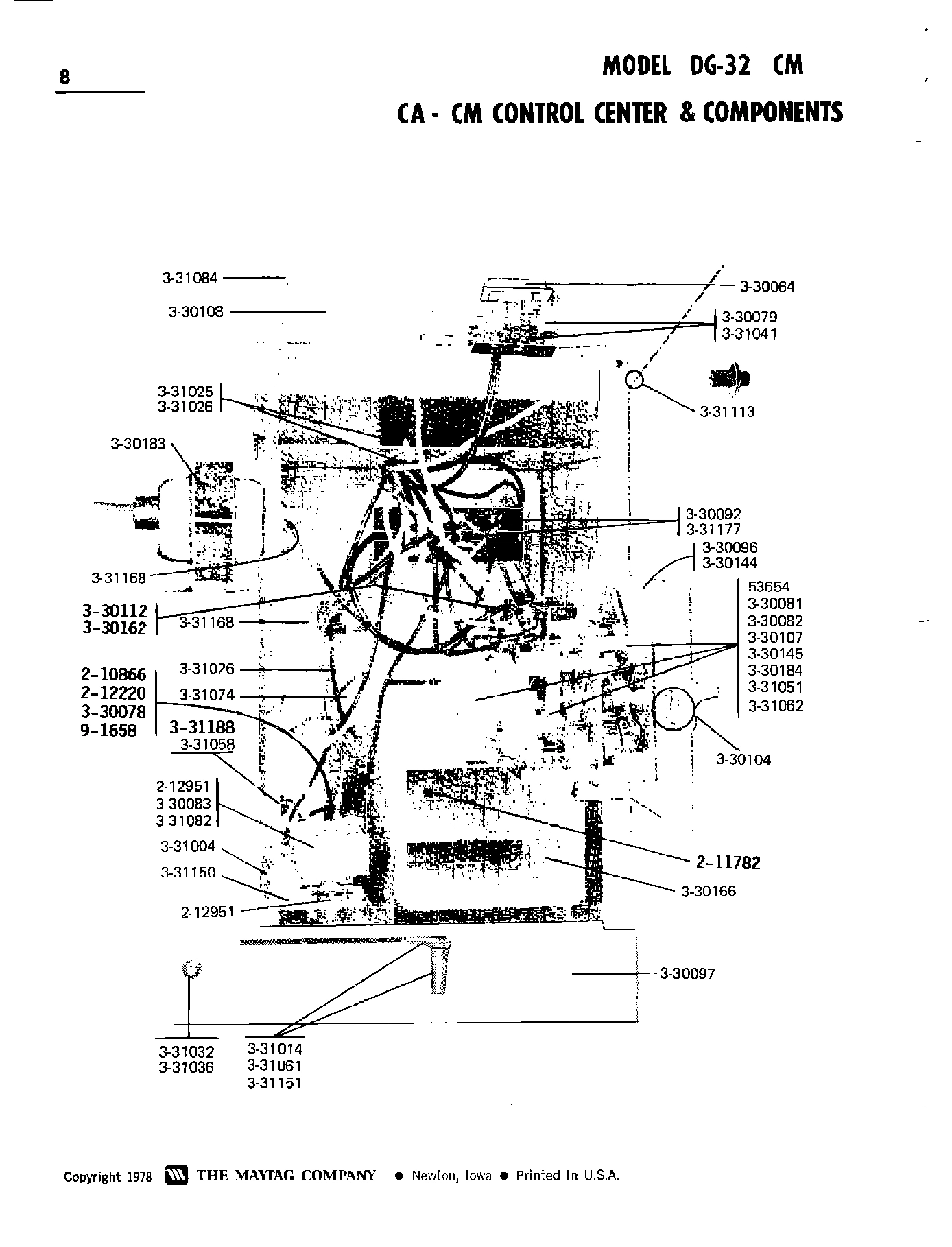

04 - CA & CM CONTROL CENTER & COMPONENTS

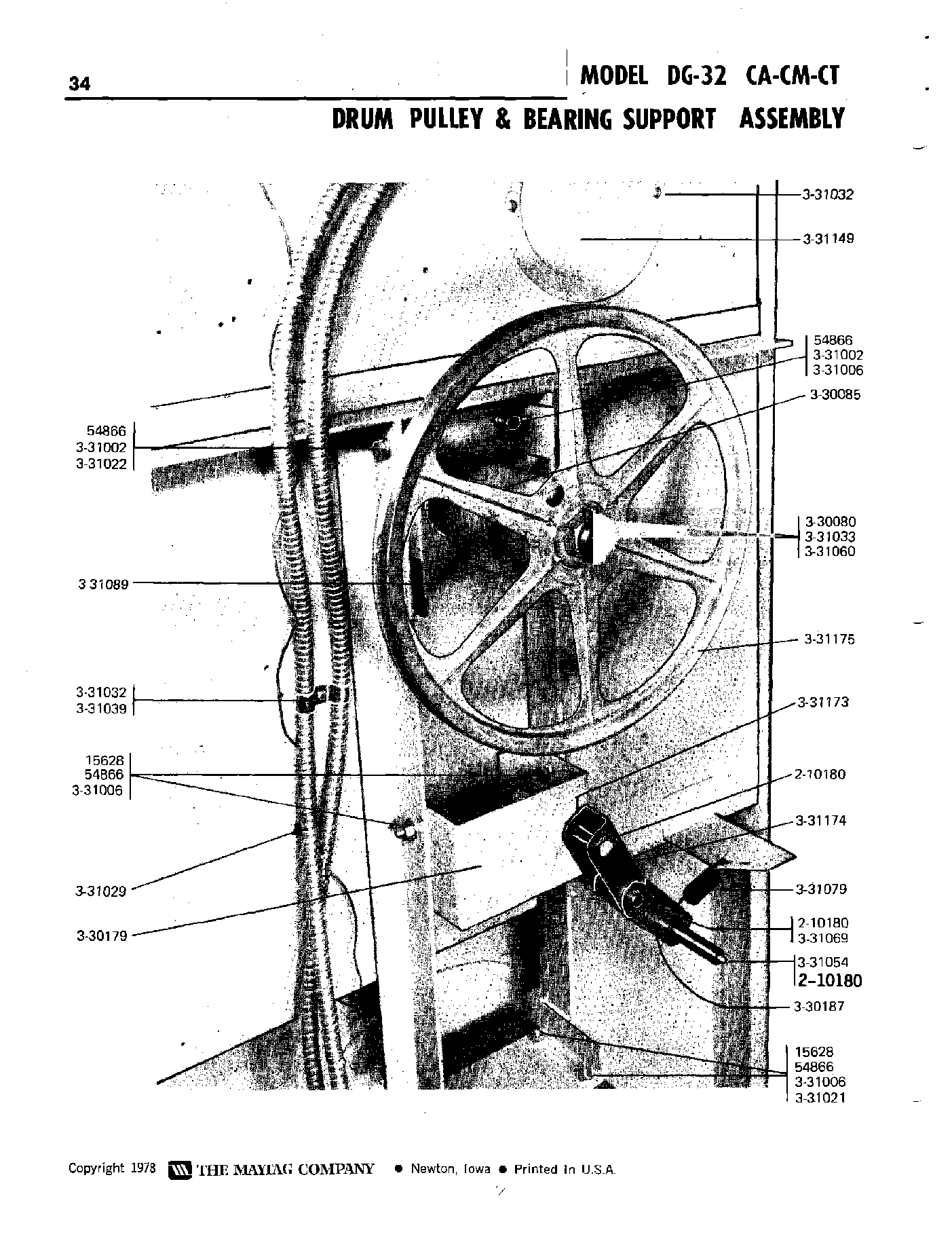

15 - DRUM PULLEY & BEARING SUPPORT ASSEMBLY

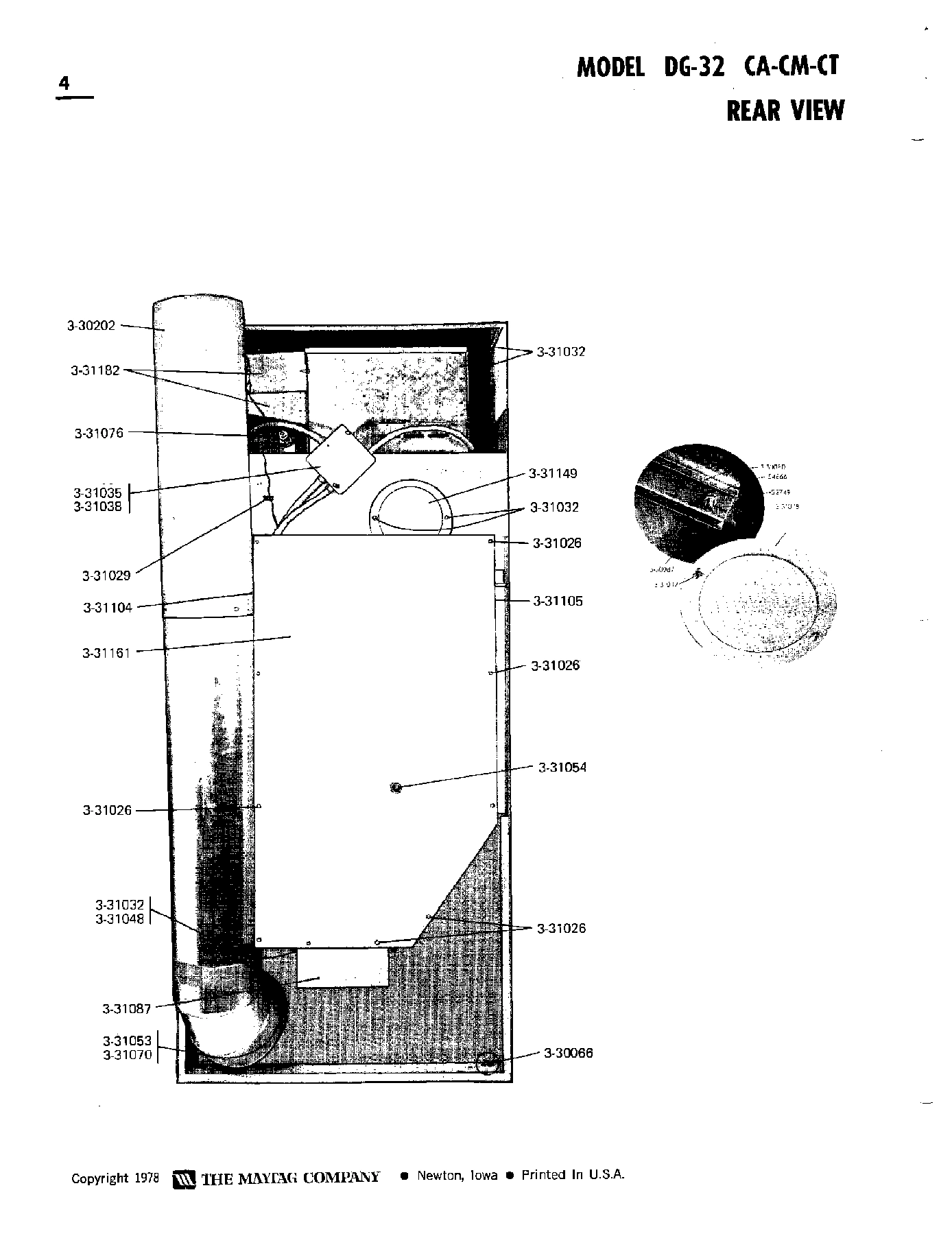

02 - REAR VIEW

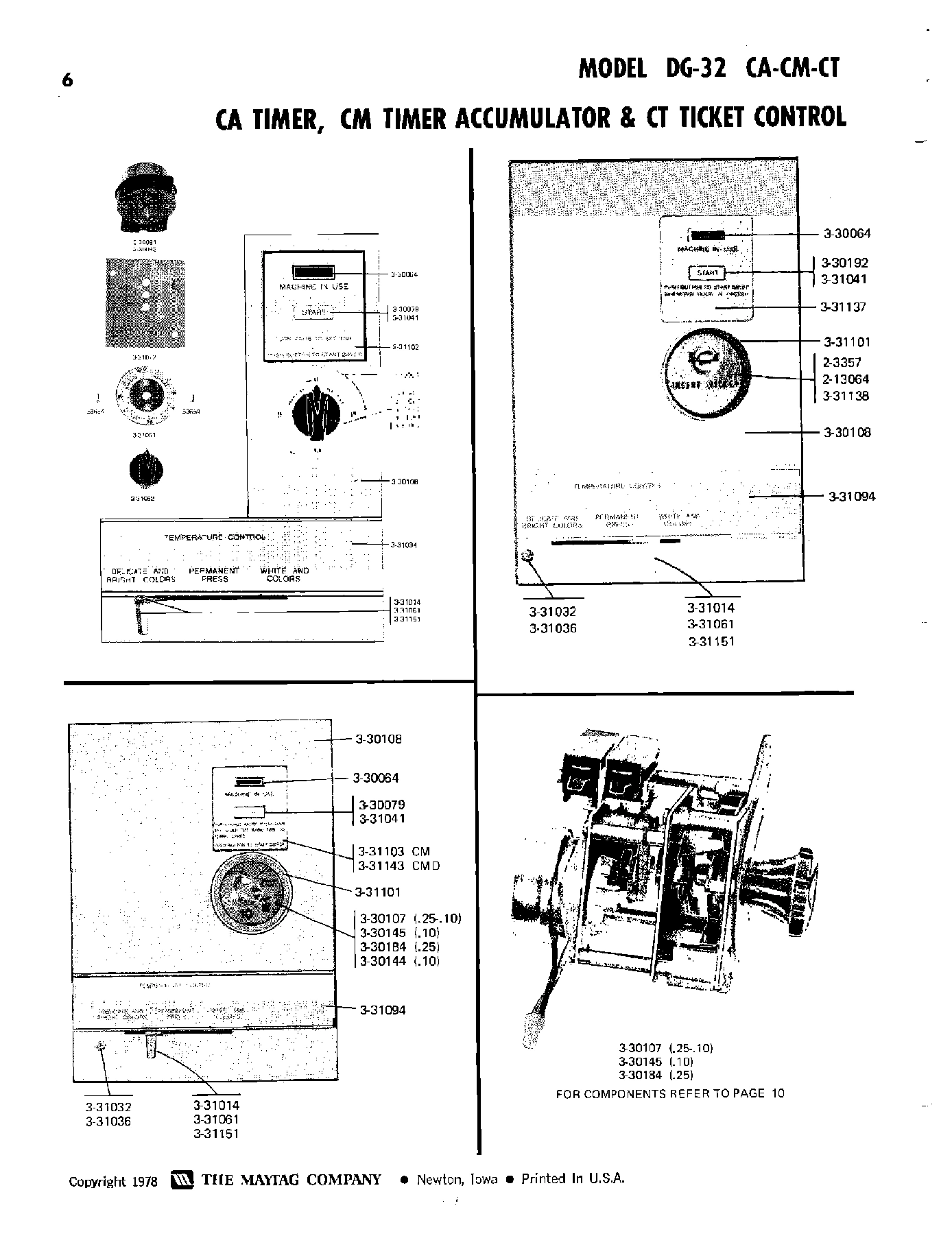

03 - CA & CM TIMER ACCUMULATOR, CT TICKET

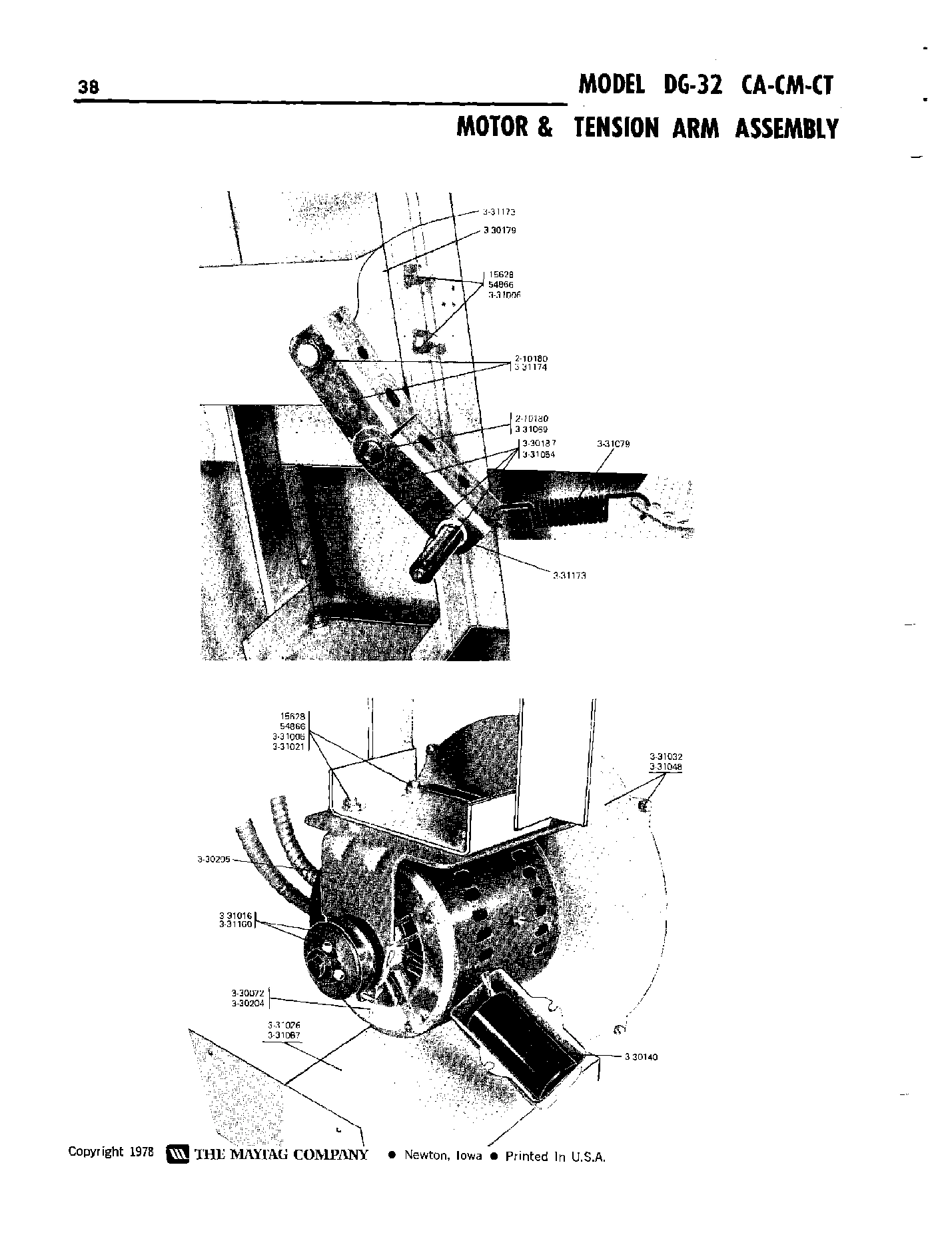

17 - MOTOR & TENSION ARM ASSEMBLY

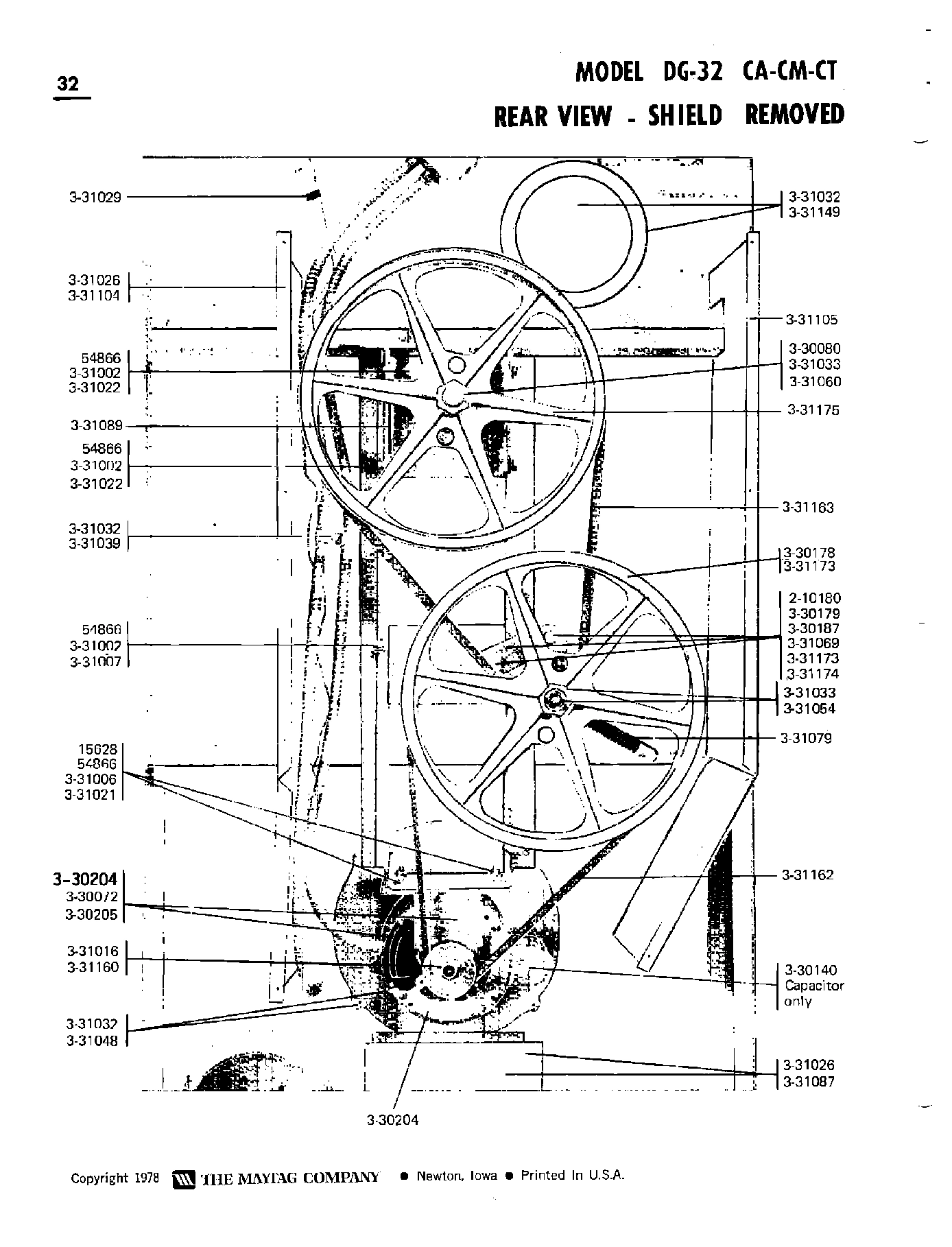

14 - REAR VIEW-SHIELD REMOVED

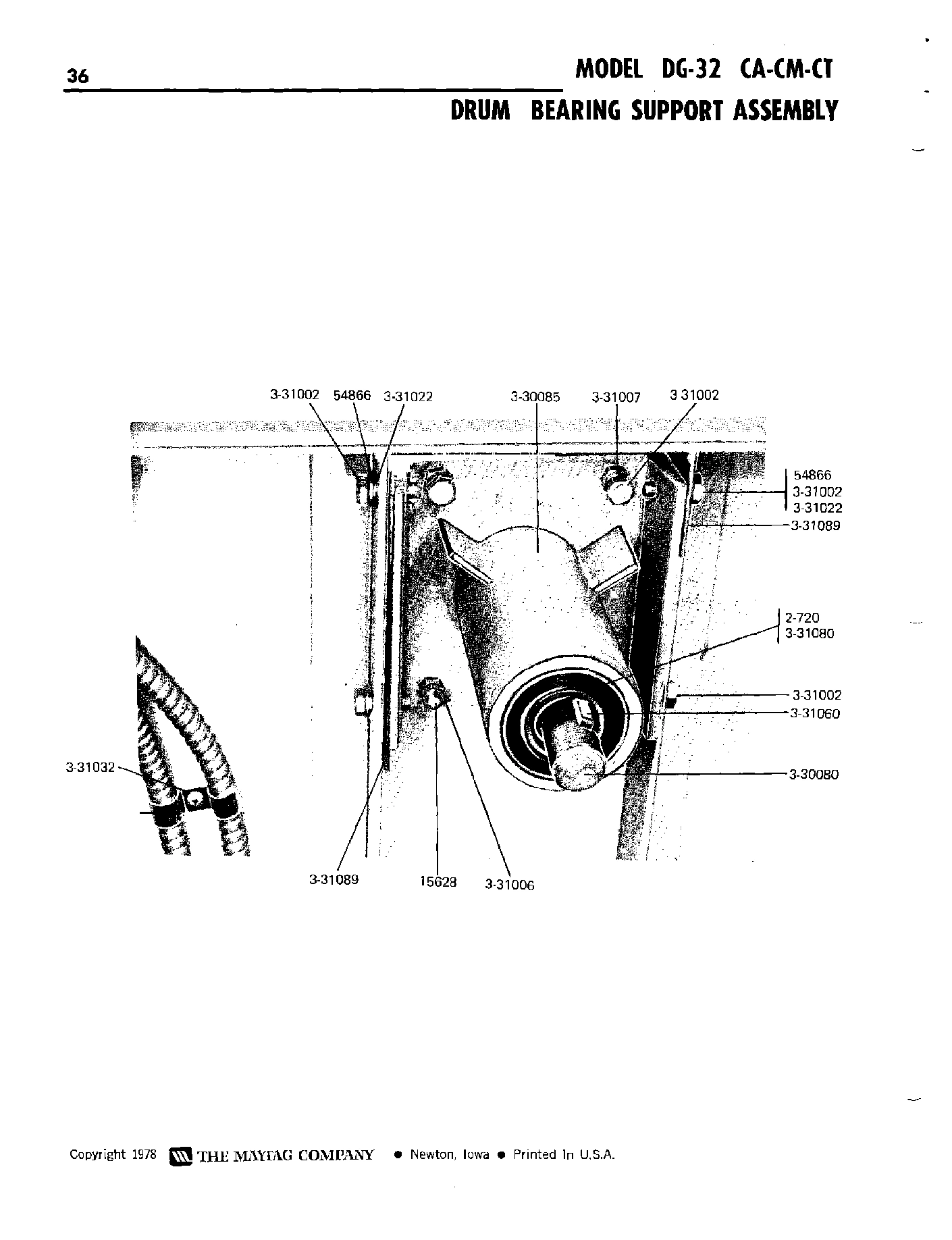

16 - DRUM BEARING SUPPORT ASSEMBLY
06 - CM TIMER ACCUMULATOR & COMPONENTS SINGLE

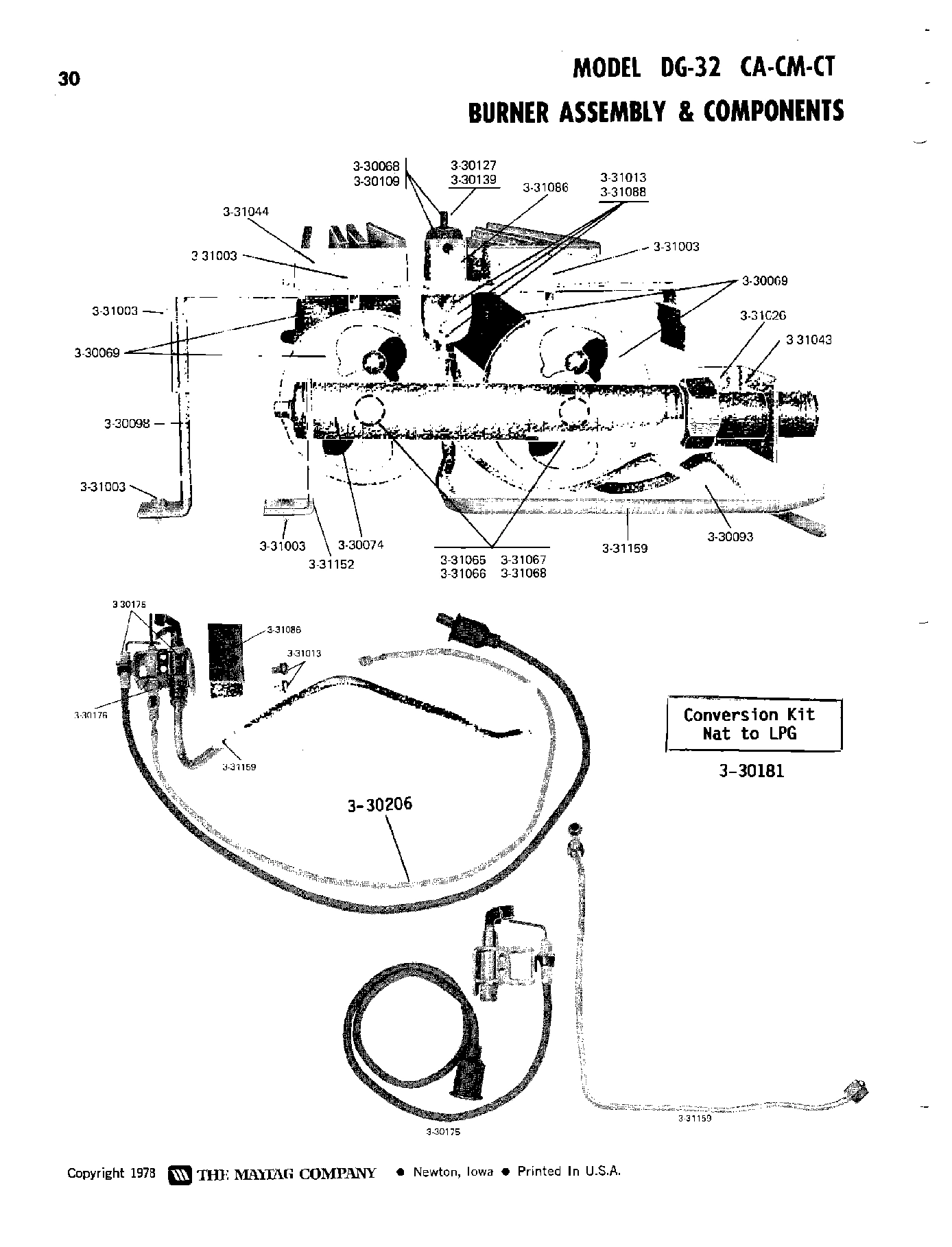

13 - BURNER ASSEMBLY & COMPONENTS
Common parts from model Whirlpool DG32CM WASHER
001
TWIN SPEED NUT WPL 210866 Contact Us For Availability
001
PILOT BURNER - NAT. WPL Y330068 Contact Us For Availability
001
SHUT-OFF, VALVE WPL Y330073 Contact Us For Availability
002
LOCK WASHER WPL Y054866 Contact Us For Availability
002
SWITCH, DAMPER WPL Y330078 Contact Us For Availability
002
SWITCH, ACTUATOR WPL 330112 Contact Us For Availability
003
ELECTRONIC IGNITION CONTROL WPL Y330174 Contact Us For Availability
003
TIMER MOTOR WPL 330113 Contact Us For Availability
003
BALL BEARING, RADIAL WPL Y200720 Contact Us For Availability
004
SPIDER & SHAFT ASSEMBLY WPL Y330080 Contact Us For Availability
004
TIMING CAM - 8 PINS WPL 330116 Contact Us For Availability
004
RETAINING RING WPL 210180 Contact Us For Availability
005
SCREW-HEX HD TYPE B No.6 X 15/16 WPL 212220 Contact Us For Availability
005
IMPELLER, BLOWER WPL Y330071 Contact Us For Availability
005
PILOT LIGHT WPL Y330064 Contact Us For Availability
005
BURNER SOLENOID-MAIN WPL Y330177 Contact Us For Availability
005
TIMING CAM - 6 PINS WPL 330117 Contact Us For Availability
005
DRUM SUPPORT HOUSING WPL Y330085 Contact Us For Availability
006
RECIRCULATION TEE ASSEMBLY WPL Y330202 Contact Us For Availability
006
SWITCH, PUSH-TO-START WPL Y330079 Contact Us For Availability
006
CONTA ACCUMULATOR ASSEMBLY WPL Y330145 Contact Us For Availability
006
MOTOR 240-50 WPL Y330157 Contact Us For Availability
006
BURNER SOLENOID-PILOT WPL Y330182 Contact Us For Availability
006
MOTOR COMPLETE WPL Y330072 Contact Us For Availability
007
LINT SCREEN W/FRAME WPL Y330086 Contact Us For Availability
007
TIMER - CA 60 MINUTES WPL 330081 Contact Us For Availability
007
DRUM ASSEMBLY COMPLETE WPL Y330087 Contact Us For Availability
007
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
007
SWITCH, TIME DELAY WPL Y330162 Contact Us For Availability
008
TIMER - CA 15 MINUTES WPL Y330082 Contact Us For Availability
009
DOOR SWITCH WPL Y330077 Contact Us For Availability
009
PILOT BURNER WPL Y330175 Contact Us For Availability
009
REDUCTION PULLEY WPL Y330178 Contact Us For Availability
010
PILOT LIGHT 240-50 WPL Y330169 Contact Us For Availability
010
SENSING PROBE WPL Y330176 Contact Us For Availability
010
BRACKET, PIN WPL Y330179 Contact Us For Availability
010
RETAINER SPRING & SCREW KIT WPL Y330165 Contact Us For Availability
011
SET SCREW, IMPELLER WPL 331031 Contact Us For Availability
011
DOOR SWITCH WPL Y330147 Contact Us For Availability
011
IMPELLER, BLOWER (50 CYCLE) WPL Y330193 Contact Us For Availability
011
CONVERSION KIT (NAT.TO LP) WPL 330181 Contact Us For Availability
011
IDLER ARM ASSEMBLY W/PIN WPL 330187 Contact Us For Availability
011
KEY, DRUM WPL 331060 Contact Us For Availability
012
SPACER, CENTER BEARING WPL 331080 Contact Us For Availability
013
DAMPER WPL 331053 Contact Us For Availability
013
CONTROL, TEMPERATURE WPL Y330083 Contact Us For Availability
013
TIMER ACCUMULATOR-25 WPL 330184 Contact Us For Availability
013
PILOT ORIFICE (LP) WPL Y330195 Contact Us For Availability
013
COIL SPRING, CARRIER RETURN WPL 331153 Contact Us For Availability
013
SHIM, DRUM ROD WPL 331089 Contact Us For Availability
014
SWITCH, PUSH TO START WPL Y330192 Contact Us For Availability
014
TERMINAL BLOCK WPL Y330092 Contact Us For Availability
015
FRONT PANEL (WHT) WPL Y330102 Contact Us For Availability
015
MOUNTING PLATE-ACCUMULATOR WPL Y330096 Contact Us For Availability
016
SCREW, SHIELD (SUPPORT) WPL 331013 Contact Us For Availability
017
WASHER-FRONT PANEL SCREWS WPL 331036 Contact Us For Availability
017
COIN BOX ASSEMBLY WPL Y330100 Contact Us For Availability
018
BUTTON-PUSH-TO-START SWITCH WPL 331041 Contact Us For Availability
019
LOCK WPL Y330103 Contact Us For Availability
020
KNOB, TEMPERATURE CONTROL WPL 331061 Contact Us For Availability
023
HEX NUT-DRUM PULLEY SHAFT WPL 331033 Contact Us For Availability
024
TRANSFORMER WPL 330183 Contact Us For Availability
024
BEZEL, TIMER (ACCUMULATOR) WPL 331101 Contact Us For Availability
024
SHIELD, PILOT BURNER WPL 331086 Contact Us For Availability
025
COVER, BLOWER IMPELLER WPL 331048 Contact Us For Availability
026
GREASE FITTING - PULLEY PIN WPL 331054 Contact Us For Availability
028
PILOT SHIELD WPL NLA Contact Us For Availability
028
PIVOT PIN, TENSION ARMS WPL 331069 Contact Us For Availability
029
WIRE, SENSING PROBE WPL Y330206 Contact Us For Availability
030
LEVER-TEMPERATURE CONTROL WPL 331151 Contact Us For Availability
030
TENSION SPRING WPL 331079 Contact Us For Availability
034
GROMMET-TEMP. CONTROL TUBIN WPL 331058 Contact Us For Availability
036
MAGNET, DOOR HANDLE WPL 331064 Contact Us For Availability
036
MOTOR PULLEY WPL 331160 Contact Us For Availability
037
STRIKE PLATE, DOOR WPL 331071 Contact Us For Availability
037
V BELT - DRIVE WPL 331162 Contact Us For Availability
038
SUPPORT, DOOR GLASS WPL 331083 Contact Us For Availability
038
V BELT - REDUCTION WPL 331163 Contact Us For Availability
039
HIGH LIMIT THERMOSTAT WPL Y330201 Contact Us For Availability
039
SUPPORT ROD, UPPER DOOR WPL 331084 Contact Us For Availability
039
WASHER WPL 331173 Contact Us For Availability
040
IDLER BRACKET WPL 331174 Contact Us For Availability
041
DRUM PULLEY WPL 331175 Contact Us For Availability
051
GAS WPL 331165 Contact Us For Availability
052
WPL 331166 WPL 331166 Contact Us For Availability
053
WPL 331167 WPL 331167 Contact Us For Availability
054
WPL 331049 WPL 331049 Contact Us For Availability
× ![]()
