Model Electrolux DE400EDF5 DRYER – Common Parts & Diagrams

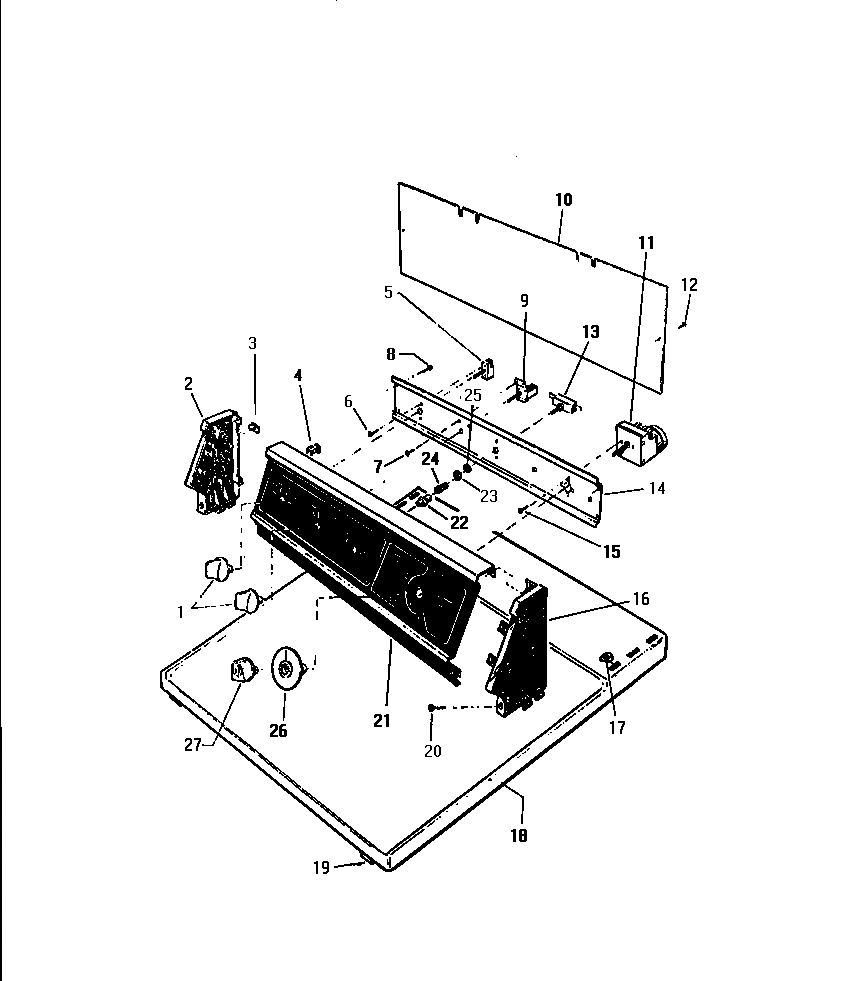

02 - CONSOLE & CONTROLS

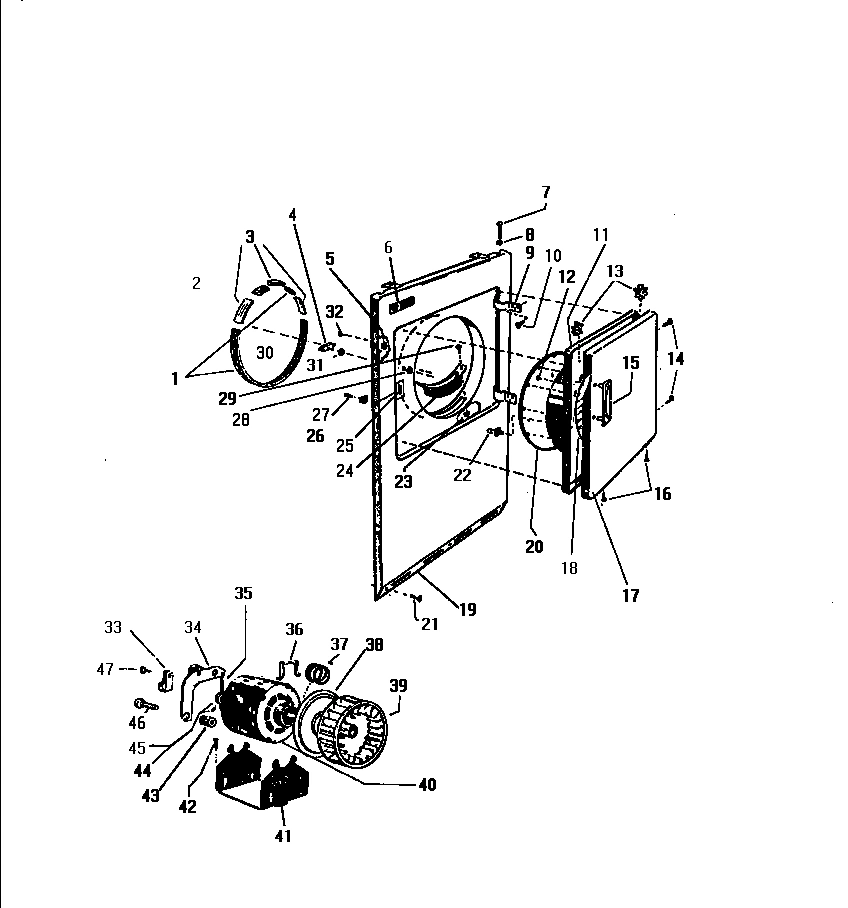

03 - CABINET, TOP PANEL, DOOR BASE

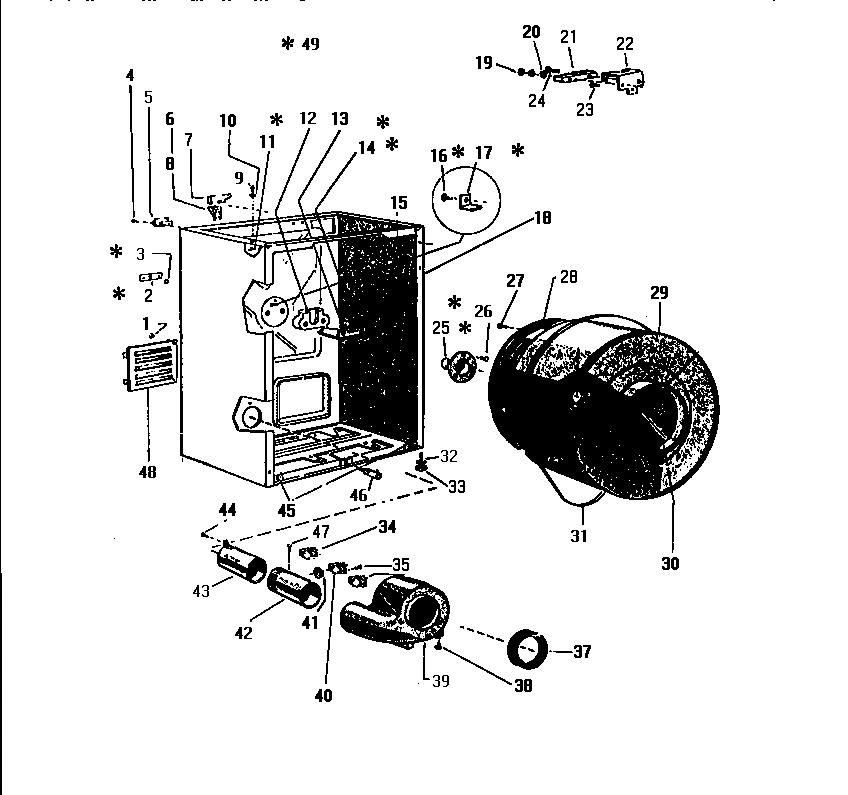

04 - DRUM

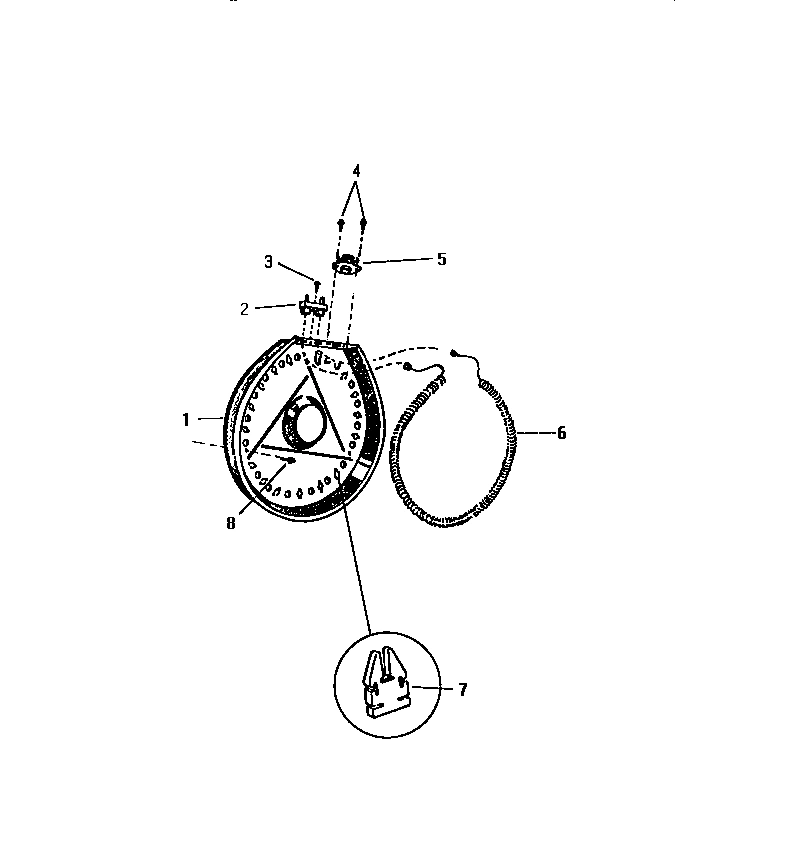

06 - HEATER HOUSING

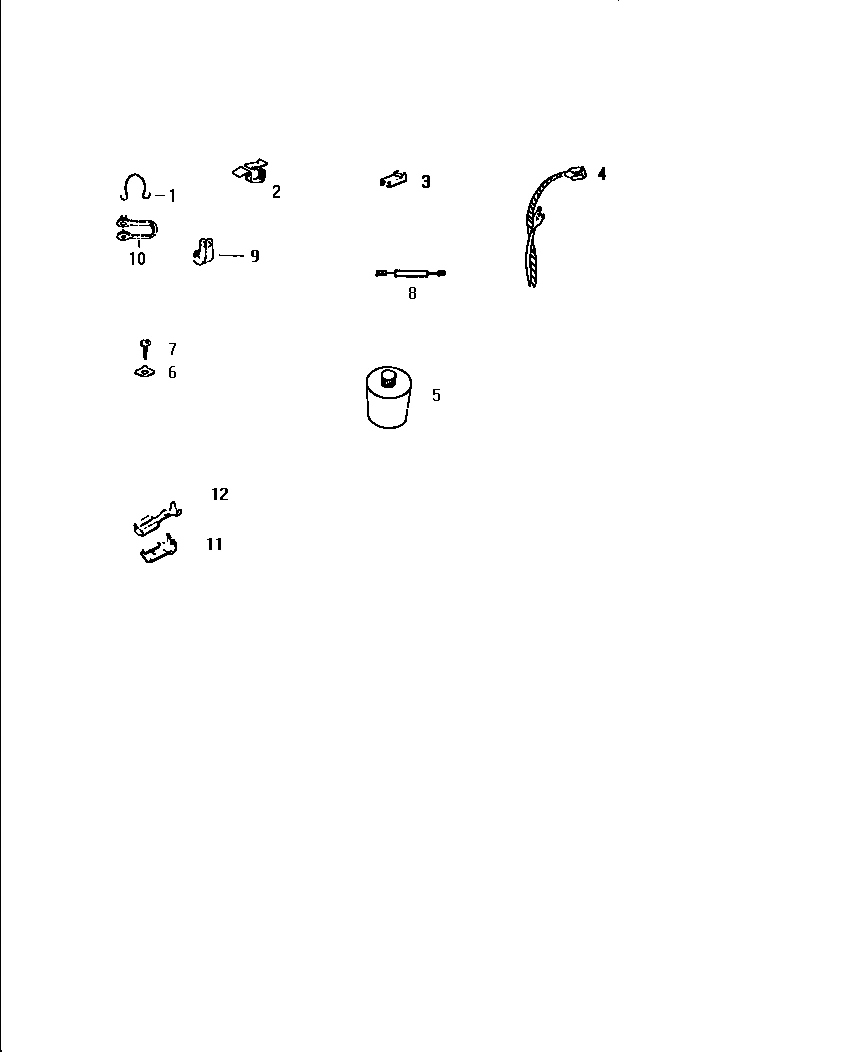

07 - HARNESS & MISCELLANEOUS
Common parts from model Electrolux DE400EDF5 DRYER
*70000
WCI Q2794 WCI Q2794 Contact Us For Availability
*70001
WCI 1443982 WCI 1443982 Contact Us For Availability
1
WCI Q142888 WCI Q142888 Contact Us For Availability
1
WCI Q619691 WCI Q619691 Contact Us For Availability
1
WCI Q62196 WCI Q62196 Contact Us For Availability
2
WCI Q616731 WCI Q616731 Contact Us For Availability
2
WCI Q15141 WCI Q15141 Contact Us For Availability
2
WCI Q500537 WCI Q500537 Contact Us For Availability
2
WCI Q622211 WCI Q622211 Contact Us For Availability
2
WCI Q502207 WCI Q502207 Contact Us For Availability
3
SPEEDNUT (8) WCI Q502955 Contact Us For Availability
3
WCI Q142887 WCI Q142887 Contact Us For Availability
3
WCI Q22224 WCI Q22224 Contact Us For Availability
3
WCI Q435010 WCI Q435010 Contact Us For Availability
3
WCI Q503462 WCI Q503462 Contact Us For Availability
4
WCI Q435026 WCI Q435026 Contact Us For Availability
4
WCI Q618121 WCI Q618121 Contact Us For Availability
4A
WCI Q504803 WCI Q504803 Contact Us For Availability
4B
WCI Q622422 WCI Q622422 Contact Us For Availability
4B
WCI Q632061 WCI Q632061 Contact Us For Availability
5
WCI Q617633 WCI Q617633 Contact Us For Availability
5
HINGE BRKT WCI Q155561 Contact Us For Availability
5
WCI Q602994 WCI Q602994 Contact Us For Availability
5
WCI Q171156 WCI Q171156 Contact Us For Availability
6
SCREW WCI 1467854 Contact Us For Availability
6
WCI Q604442 WCI Q604442 Contact Us For Availability
6
WCI Q435098 WCI Q435098 Contact Us For Availability
6
WCI Q622032 WCI Q622032 Contact Us For Availability
6
WCI Q500411 WCI Q500411 Contact Us For Availability
7
WCI Q55021 WCI Q55021 Contact Us For Availability
7
WCI Q133281 WCI Q133281 Contact Us For Availability
7
WCI Q622212 WCI Q622212 Contact Us For Availability
7
WCI Q500665 WCI Q500665 Contact Us For Availability
8
WCI Q500155 WCI Q500155 Contact Us For Availability
8
SCREW (4) WCI Q505564 Contact Us For Availability
8
KO BRKT WCI Q133283 Contact Us For Availability
8
WCI Q14905 WCI Q14905 Contact Us For Availability
9
WCI Q94651 WCI Q94651 Contact Us For Availability
9
WCI Q502482 WCI Q502482 Contact Us For Availability
9
CLAMP WCI Q502107 Contact Us For Availability
10
WCI Q616741 WCI Q616741 Contact Us For Availability
10
WCI Q500433 WCI Q500433 Contact Us For Availability
10
WCI Q440067 WCI Q440067 Contact Us For Availability
10
WCI Q502063 WCI Q502063 Contact Us For Availability
11
WCI Q168603 WCI Q168603 Contact Us For Availability
11
WCI Q125733 WCI Q125733 Contact Us For Availability
11
WCI 1466314 WCI 1466314 Contact Us For Availability
11
RECEPTACLE, FLAG, FOR 1/4`` BLADE TERM. (Q301 WCI Q8663 Contact Us For Availability
12
WCI Q503952 WCI Q503952 Contact Us For Availability
12
WCI Q143951 WCI Q143951 Contact Us For Availability
12
RECEPTACLE, STRAIGHT FOR 5/16`` BLADE (Q30129 WCI Q503463 Contact Us For Availability
12A
RECEPTACLE, STRAIGHT FOR 3/16`` BLADE TERM. ( WCI Q81021 Contact Us For Availability
12B
RECEPTACLE, STRAIGHT FOR 1/4`` BLADE TERM (Q3 WCI Q81002 Contact Us For Availability
13
START SWITCH WCI Q184711 Contact Us For Availability
13
WCI Q631591 WCI Q631591 Contact Us For Availability
13
WCI Q630226 WCI Q630226 Contact Us For Availability
14
WCI Q616711 WCI Q616711 Contact Us For Availability
14
WCI Q435046 WCI Q435046 Contact Us For Availability
15
SCREW WCI 1825642 Contact Us For Availability
15
WCI Q151326 WCI Q151326 Contact Us For Availability
16
WCI Q616732 WCI Q616732 Contact Us For Availability
16
WCI Q411004 WCI Q411004 Contact Us For Availability
17
WCI Q503065 WCI Q503065 Contact Us For Availability
17
WCI Q125673 WCI Q125673 Contact Us For Availability
17
BRACKET WCI Q94710 Contact Us For Availability
18
WCI Q621247 WCI Q621247 Contact Us For Availability
18
WCI Q115045 WCI Q115045 Contact Us For Availability
18
WCI Q604186 WCI Q604186 Contact Us For Availability
19
SPRING CATCH WCI Q503041 Contact Us For Availability
19
WCI Q401002 WCI Q401002 Contact Us For Availability
19A
WCI Q632692 WCI Q632692 Contact Us For Availability
20
WCI Q504533 WCI Q504533 Contact Us For Availability
20
WCI Q167701 WCI Q167701 Contact Us For Availability
20
WCI Q440082 WCI Q440082 Contact Us For Availability
21
WCI Q616841 WCI Q616841 Contact Us For Availability
21
WCI Q501687 WCI Q501687 Contact Us For Availability
21
TERMINAL BLOCK WCI Q134264 Contact Us For Availability
22
WCI Q621231 WCI Q621231 Contact Us For Availability
22
WCI Q504552 WCI Q504552 Contact Us For Availability
22
BRKT WCI Q133288 Contact Us For Availability
23
WCI Q500255 WCI Q500255 Contact Us For Availability
23
WCI Q409702 WCI Q409702 Contact Us For Availability
24
WCI Q66793 WCI Q66793 Contact Us For Availability
24
WCI Q168541 WCI Q168541 Contact Us For Availability
24
WCI Q403005 WCI Q403005 Contact Us For Availability
25
WCI Q504551 WCI Q504551 Contact Us For Availability
25
WCI Q69634 WCI Q69634 Contact Us For Availability
26
WCI Q617641 WCI Q617641 Contact Us For Availability
26
SCREW SHAFT (INCL. IN REAR BEARING KIT) WCI Q503210 Contact Us For Availability
27
KNOB TIMER WCI Q617652 Contact Us For Availability
27
WCI Q435174 WCI Q435174 Contact Us For Availability
28
WCI Q501450 WCI Q501450 Contact Us For Availability
28
WCI Q165773 WCI Q165773 Contact Us For Availability
29
WCI Q405802 WCI Q405802 Contact Us For Availability
29
WCI Q169844 WCI Q169844 Contact Us For Availability
30
WCI Q15142 WCI Q15142 Contact Us For Availability
30
FRONT (2) WCI Q615892 Contact Us For Availability
30A
WCI Q615891 WCI Q615891 Contact Us For Availability
30B
SCREW, VANE WCI Q501592 Contact Us For Availability
31
WCI Q409004 WCI Q409004 Contact Us For Availability
31
WCI Q63807 WCI Q63807 Contact Us For Availability
33
WCI Q16971 WCI Q16971 Contact Us For Availability
34
WCI Q128472 WCI Q128472 Contact Us For Availability
34
THERM. LOW HEAT (DE 600, 700E) WCI Q169851 Contact Us For Availability
35
SPRING WCI Q94716 Contact Us For Availability
35
SCREW WCI Q405901 Contact Us For Availability
36
WCI Q62206 WCI Q62206 Contact Us For Availability
37
WCI Q94715 WCI Q94715 Contact Us For Availability
37
WCI Q19462 WCI Q19462 Contact Us For Availability
38
WCI Q416306 WCI Q416306 Contact Us For Availability
38
WCI Q94948 WCI Q94948 Contact Us For Availability
39
WCI Q615901 WCI Q615901 Contact Us For Availability
39
WCI Q171281 WCI Q171281 Contact Us For Availability
40
THERMOSTAT REG. & MED. HEAT WCI Q169853 Contact Us For Availability
40B
MOTOR REPLACEMENT ( GE P/N Q616401 ) WCI Q603185 Contact Us For Availability
40C
WCI Q198138 WCI Q198138 Contact Us For Availability
40D
MOTOR REPLACEMENT ( EMER. P/N Q198144) WCI Q301806 Contact Us For Availability
40E
START SWITCH FOR Q198144 WCI Q198144 Contact Us For Availability
41
WCI Q94874 WCI Q94874 Contact Us For Availability
41
WCI Q606131 WCI Q606131 Contact Us For Availability
42
WCI Q500732 WCI Q500732 Contact Us For Availability
42
THERMOSTAT DUCT WCI Q603011 Contact Us For Availability
43
WCI Q600179 WCI Q600179 Contact Us For Availability
43
WCI Q182901 WCI Q182901 Contact Us For Availability
44
WCI 1466411 WCI 1466411 Contact Us For Availability
45
WCI Q600186 WCI Q600186 Contact Us For Availability
45
WCI Q502956 WCI Q502956 Contact Us For Availability
46
WCI Q433401 WCI Q433401 Contact Us For Availability
46
WCI Q504281 WCI Q504281 Contact Us For Availability
47
WCI Q505553 WCI Q505553 Contact Us For Availability
47
WCI Q414002 WCI Q414002 Contact Us For Availability
48
WCI Q94811 WCI Q94811 Contact Us For Availability
49
REAR BEARING KIT WCI Q142850 Contact Us For Availability
× ![]()
