Model Whirlpool DE3671 WASHER – Common Parts & Diagrams
01 - 143P3 REAR EXHAUST DEFLECTOR KIT

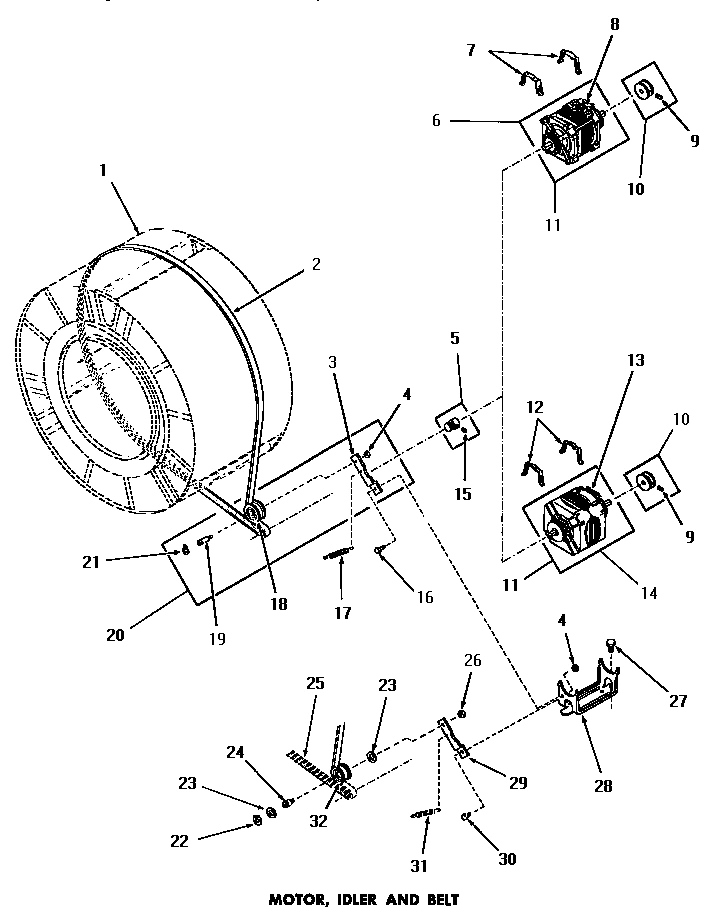

16 - MOTOR, IDLER & BELT

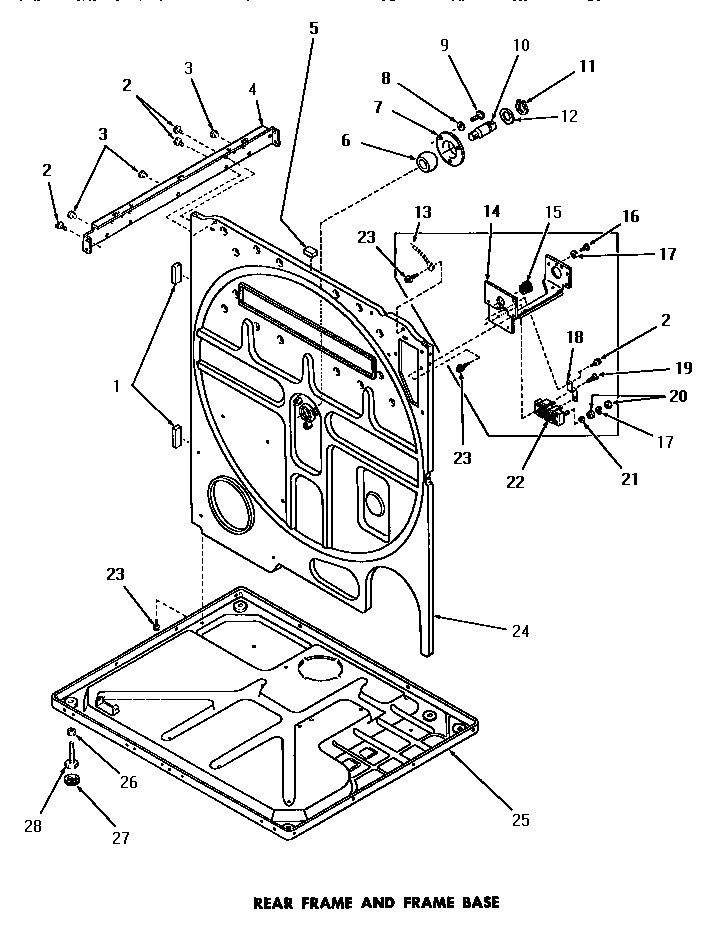

18 - REAR FRAME & FRAME BASE

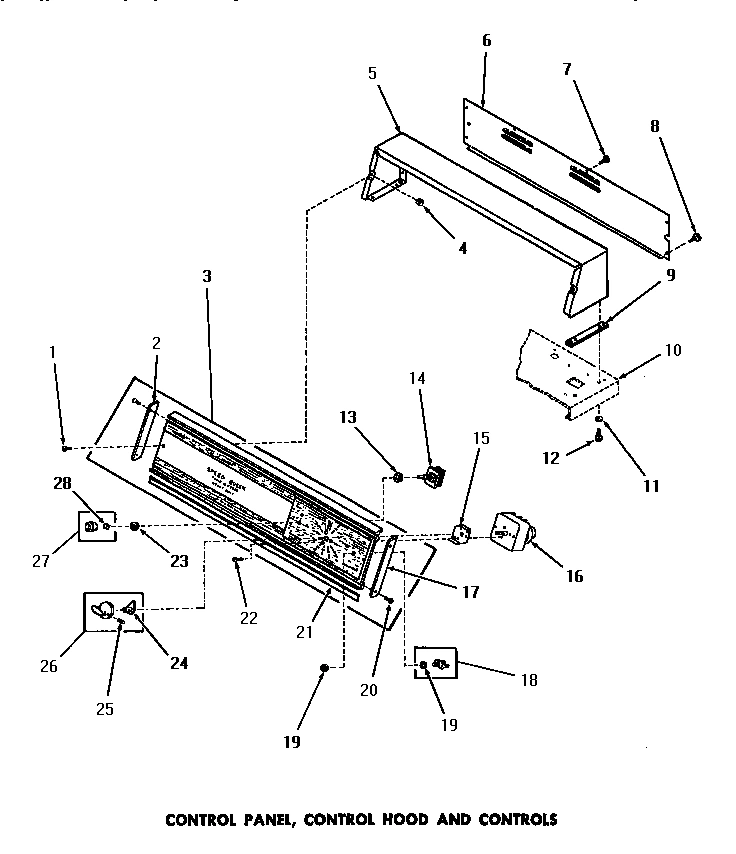

07 - CONTROL PANEL, CONTROL HOOD & CONTROLS

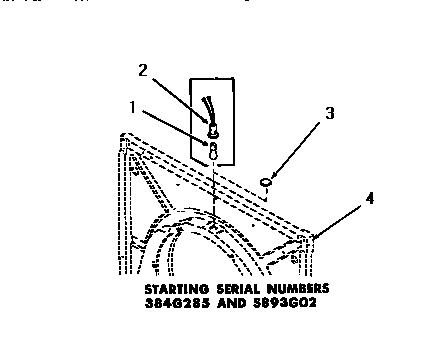

10 - DRUM LIGHT & COVER PLATE

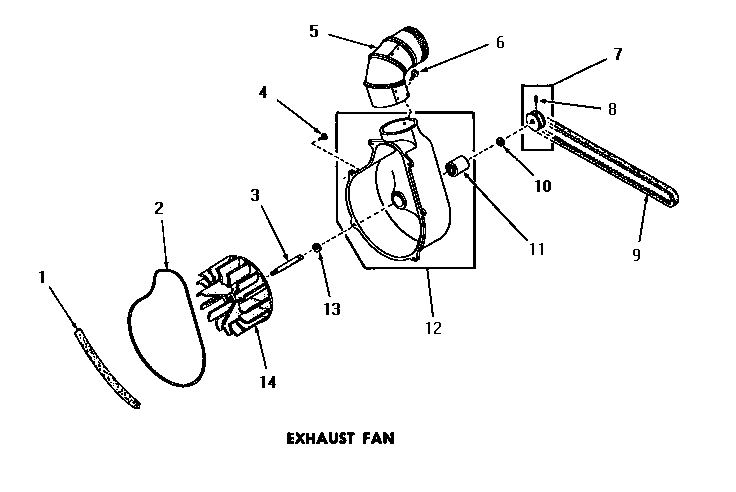

11 - EXHAUST FAN

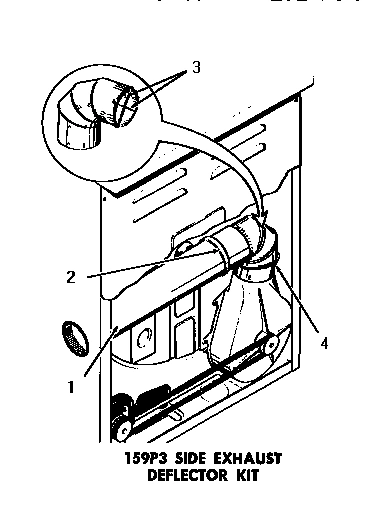

02 - 159P3 SIDE EXHAUST DEFLECTOR KIT

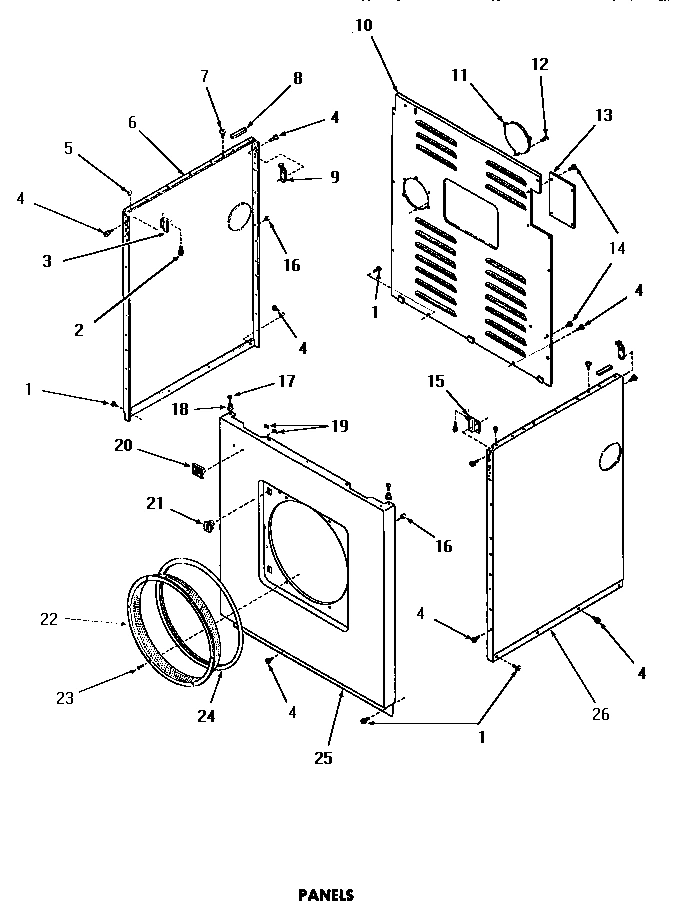

17 - PANELS

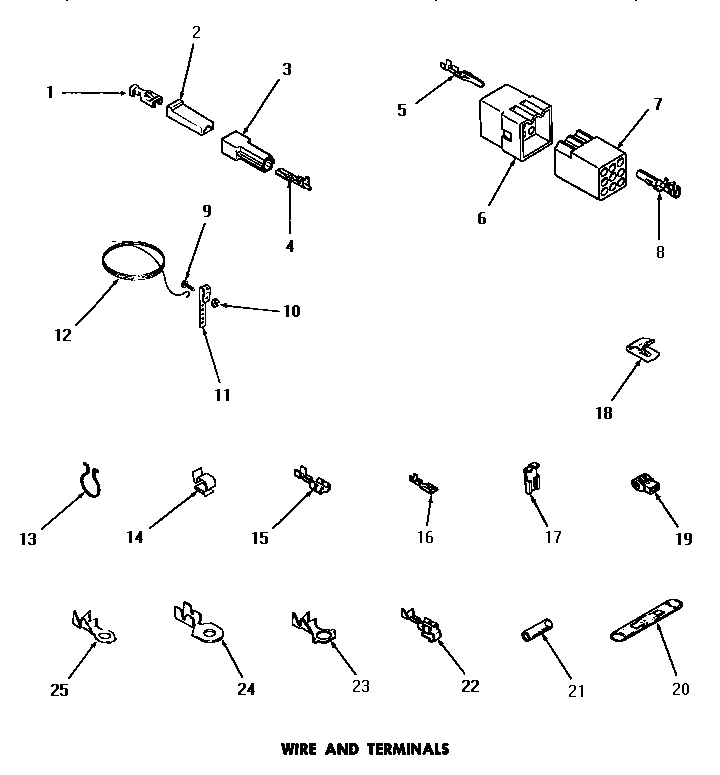

19 - WIRE & TERMINALS

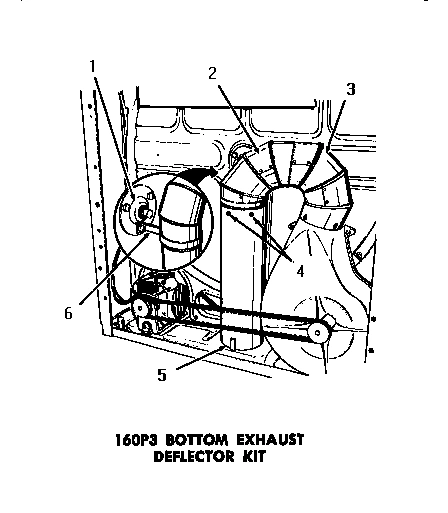

03 - 160P3 BOTTOM EXHAUST DEFLECTOR KIT

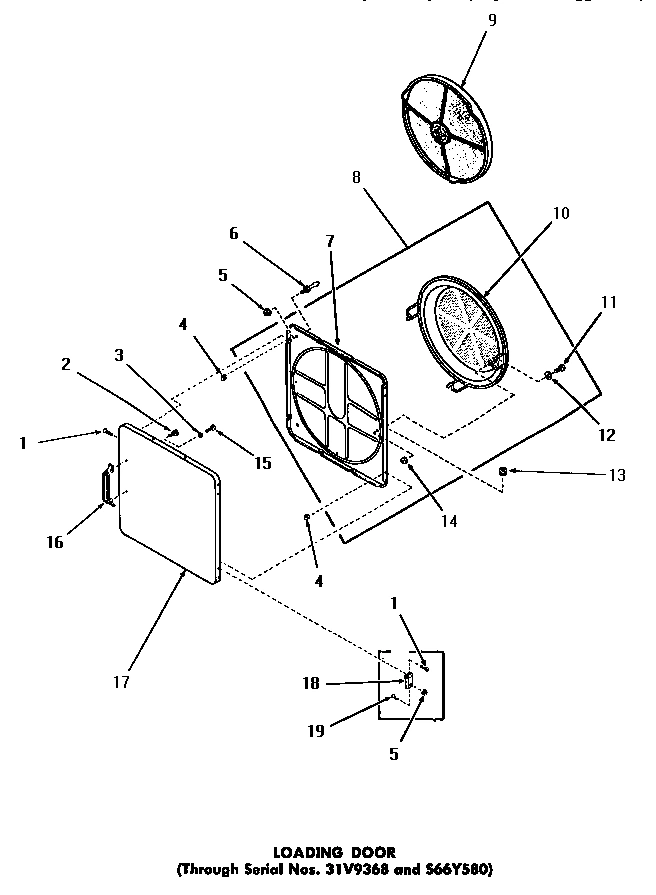

14 - LOADING DOOR

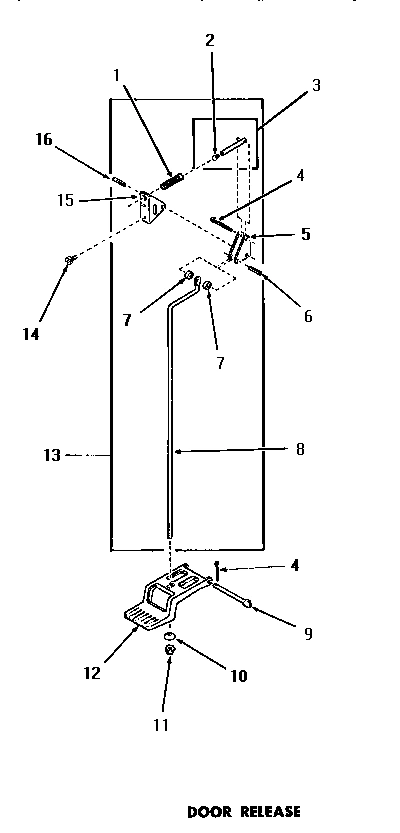

08 - DOOR RELEASE

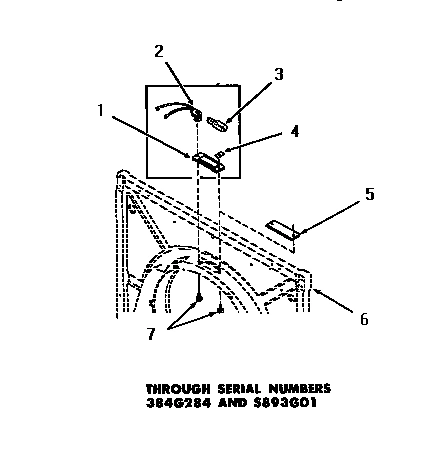

09 - DRUM LIGHT & COVER PLATE
04 - 20600 VENT KIT

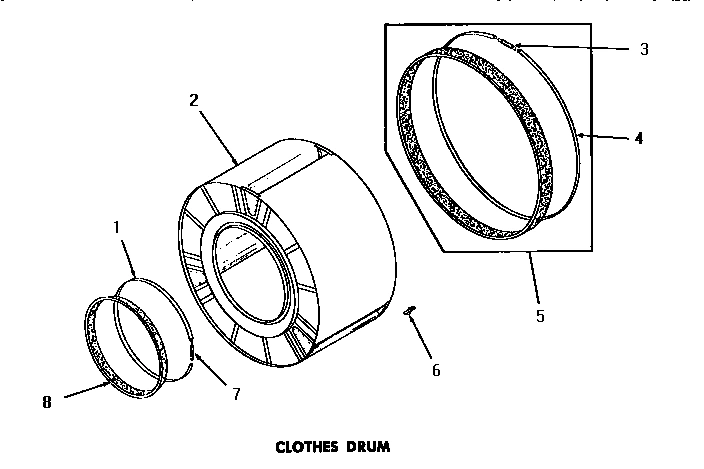

06 - CLOTHES DRUM

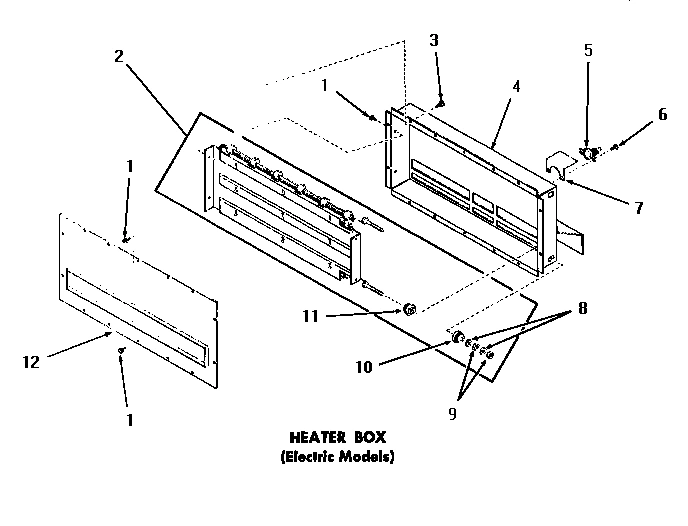

13 - HEATER BOX

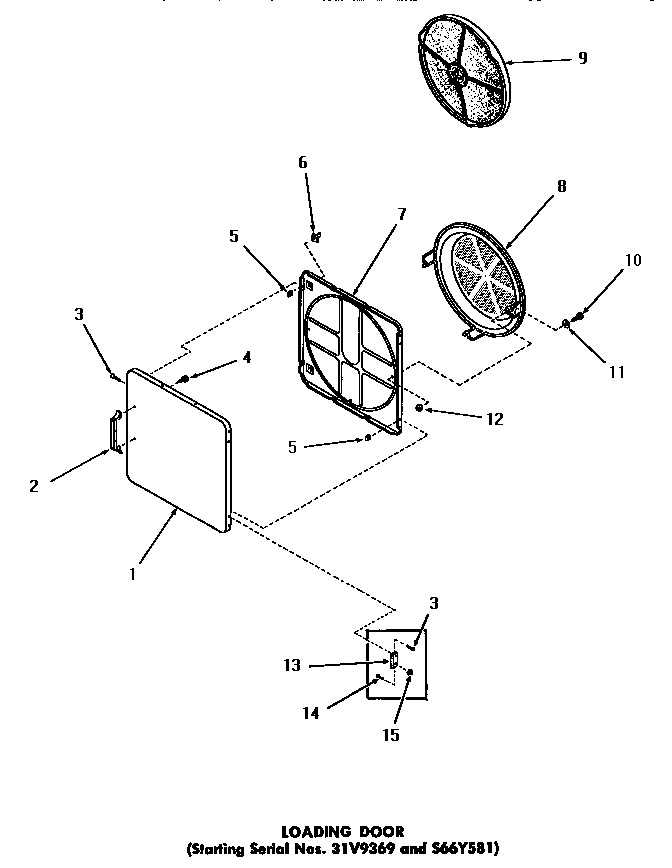

15 - LOADING DOOR

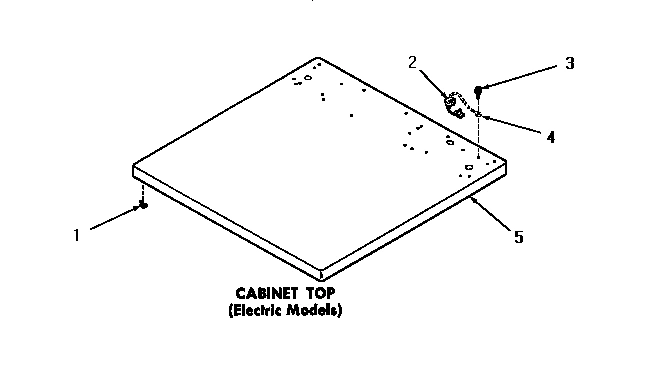

05 - CABINET TOP

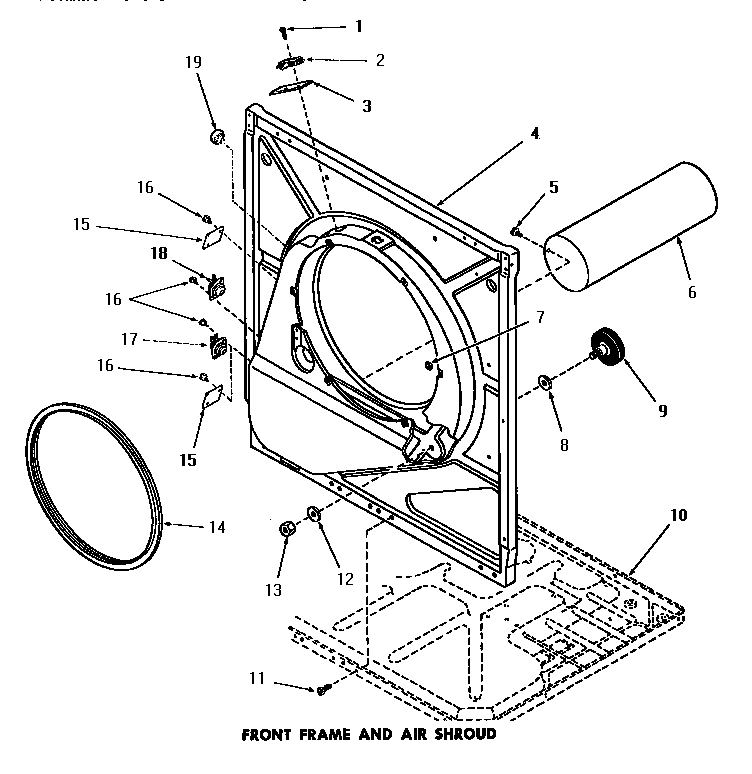

12 - FRONT FRAME & AIR SHROUD
Common parts from model Whirlpool DE3671 WASHER
HOUSING AND PANEL ASSEMBLY WILL BE SUPPLIED W WPL NOTE Contact Us For Availability
1
BUMPER PAD WPL 20354 Contact Us For Availability
1
SCREW,8AB-18X7/8 OVAL WPL 25232 Contact Us For Availability
1
LIGHT BULB WPL Y54608 Contact Us For Availability
1
SEAL WPL 51790 Contact Us For Availability
1
HANDLE, OVEN DOOR (J) WPL Y0052776 Contact Us For Availability
1
TERMINAL,SPADE-1/4 FEM WPL Y00115 Contact Us For Availability
1
OUTER DOOR PANEL, AVOCADO WPL 52489A Contact Us For Availability
1
OUTER DOOR PANEL, COPPERTONE WPL 52489C Contact Us For Availability
1
OUTER DOOR PANEL, HARVEST GOLD WPL 52489H Contact Us For Availability
1
OUTER DOOR PANEL, WHITE WPL 52489W Contact Us For Availability
1
DOOR RELEASE SPRING WPL 51065 Contact Us For Availability
1
LENS,DRUM LIGHT WPL 51070 Contact Us For Availability
1
WEATHER HOOD WPL 20601 Contact Us For Availability
1
STRAP,RETAINER WPL 50169 Contact Us For Availability
1
CAGED NUT WPL 23007 Contact Us For Availability
1
SCREW,6B-20 X 7/8 HEX WPL 51783 Contact Us For Availability
2
ELBOW WPL 51917 Contact Us For Availability
2
SUPPORT BRACKET WPL 52127 Contact Us For Availability
2
BELT WPL 52556 Contact Us For Availability
2
END CAP, LEFT WPL 25072 Contact Us For Availability
2
SUB 56306, WASHER WPL Y0054609 Contact Us For Availability
2
GASKET,HOUSING WPL 51791 Contact Us For Availability
2
SCREW,10-24 X 3/4 SEMS WPL 23008 Contact Us For Availability
2
CONNECTOR WPL 90789 Contact Us For Availability
2
SHORT 90 DEGREES ELBOW WPL 52699 Contact Us For Availability
2
PULL,DOOR WPL 54068 Contact Us For Availability
2
PLUG WPL 51786 Contact Us For Availability
2
BULB RECEPTACLE WPL Y51887 Contact Us For Availability
2
ASSY,DRUM WPL 53137 Contact Us For Availability
2
ELEMENT,HEATER-208V WPL 52306 Contact Us For Availability
2
ELEMENT,HEATER-230V WPL 52608 Contact Us For Availability
2
ELEMENT,HEATER-240V WPL Y52626 Contact Us For Availability
2
RELIEF, STRAIN WPL 52151 Contact Us For Availability
2
SWITCH WPL Y51143 Contact Us For Availability
3
EXHAUST PIPE, 4`` X 18`` WPL Y52129 Contact Us For Availability
3
LEVER,IDLER WPL 54410 Contact Us For Availability
3
BUMPER WPL 21685 Contact Us For Availability
3
CONTROL PANEL WPL 54986 Contact Us For Availability
3
SCREW, 8B-16X5/8 TAP WPL 52864 Contact Us For Availability
3
PLUG BUTTON WPL 54610 Contact Us For Availability
3
EXHAUST FAN SHAFT WPL 53519 Contact Us For Availability
3
BRACKET WPL 22847 Contact Us For Availability
3
HOUSING,TAB WPL 90788 Contact Us For Availability
3
LOCKWASHER WPL Y20278 Contact Us For Availability
3
DOOR RELEASE PIN ASSEMBLY WPL 51841 Contact Us For Availability
3
BULB WPL 21608 Contact Us For Availability
3
SUB 126A2533 WPL 20602 Contact Us For Availability
3
SPRING WPL 52310 Contact Us For Availability
3
SCREW,10-24 X 1/2 HEX WPL 51924 Contact Us For Availability
3
INSULATION WPL 52112 Contact Us For Availability
4
SCREW,10-24 X 3/8 ROUND WPL 20267 Contact Us For Availability
4
SUPPORT CHANNEL, RIGHT OR LEFT WPL 51818 Contact Us For Availability
4
NUT,SPEED U-TYPE WPL 54038 Contact Us For Availability
4
TERMINAL,TAB-1/4 MALE WPL 00133 Contact Us For Availability
4
PIN,COTTER WPL 02578 Contact Us For Availability
4
SPEED NUT WPL Y51788 Contact Us For Availability
4
STRAP,SEAL WPL 50781 Contact Us For Availability
4
HEATER BOX AND SHIELD WPL Y51876 Contact Us For Availability
4
FRONT FRAME AND AIR SHROUD WPL 51850 Contact Us For Availability
5
LOCKWASHER,No.10 EXT SHK WPL 03815 Contact Us For Availability
5
ASSY,MOTOR PULLEY WPL 52593 Contact Us For Availability
5
BUMPER WPL 54024 Contact Us For Availability
5
CONTROL HOOD, AVOCADO WPL 52530A Contact Us For Availability
5
CONTROL HOOD, HARVEST GOLD WPL 52530H Contact Us For Availability
5
CONTROL HOOD, WHITE WPL 52530W Contact Us For Availability
5
SWITCH, LIGHT (BLK) WPL Y0052707 Contact Us For Availability
5
BUMPER WPL 21176 Contact Us For Availability
5
TERMINAL,PIN-1/8 MALE WPL Y00127 Contact Us For Availability
5
EXHAUST TUBE WPL 52698 Contact Us For Availability
5
SCREW, THERMOSTAT WPL 52150 Contact Us For Availability
5
DOOR RELEASE LEVER WPL 51041 Contact Us For Availability
5
COVER PLATE WPL 53911 Contact Us For Availability
5
ASSY,SEAL WPL 51883A Contact Us For Availability
5
THERMOSTAT WPL 55523 Contact Us For Availability
5
CABINET TOP, AVOCADO WPL 52499A Contact Us For Availability
5
CABINET TOP, COPPERTONE WPL 52499C Contact Us For Availability
5
CABINET TOP, HARVEST GOLD WPL 52499H Contact Us For Availability
5
CABINET TOP, WHITE WPL 52499W Contact Us For Availability
5
CABINET TOP, AVOCADO WPL 54759A Contact Us For Availability
5
CABINET TOP, COPPERTONE WPL 54759C Contact Us For Availability
5
CABINET TOP, HARVEST GOLD WPL 54759H Contact Us For Availability
5
CABINET TOP, WHITE WPL 54759W Contact Us For Availability
6
NUT WPL 03673 Contact Us For Availability
6
BEARING,DRUM SHAFT WPL Y52079 Contact Us For Availability
6
CONTROL HOOD REAR COVER, GRAY WPL 52539GR Contact Us For Availability
6
SUPT-TOP BRNR,LH, WPL 0052775 Contact Us For Availability
6
SIDE PANEL, LEFT, AVOCADO WPL 52669A Contact Us For Availability
6
SIDE PANEL, LEFT, COPPERTONE WPL 52669C Contact Us For Availability
6
SIDE PANEL, LEFT, HARVEST GOLD WPL 52669H Contact Us For Availability
6
SIDE PANEL, LEFT, WHITE WPL 52669W Contact Us For Availability
6
PLUG,NYLON WPL 54522 Contact Us For Availability
6
STRIKE,DOOR WPL 51992 Contact Us For Availability
6
CLIP WPL 51201 Contact Us For Availability
6
EXHAUST DUCT WPL 51821 Contact Us For Availability
7
COVER,BEARING WPL 51826 Contact Us For Availability
7
ASSY,PULLEY WPL 53521 Contact Us For Availability
7
SCREW, No.10-16 X 3/8`` WPL 52442 Contact Us For Availability
7
RECEPTACLE,12 CIRCUIT- WPL 54523 Contact Us For Availability
7
SPEED NUT WPL 52865 Contact Us For Availability
7
INNER DOOR PANEL WPL 54730 Contact Us For Availability
7
DOOR RELEASE SPACER WPL 51121 Contact Us For Availability
7
SPRING WPL 50168 Contact Us For Availability
7
THERMOSTAT SHIELD WPL 52117 Contact Us For Availability
7
INNER DOOR PANEL WPL 54665 Contact Us For Availability
8
SWITCH WPL 53249 Contact Us For Availability
8
SCREW,1/4-20X3/8 HEX S WPL 02771 Contact Us For Availability
8
LOCKWASHER,1/4 STD-C P WPL 03189 Contact Us For Availability
8
HEX HEAD SCREW WPL 25724 Contact Us For Availability
8
BUMPER PAD WPL 80312 Contact Us For Availability
8
TERMINAL,PIN-1/8 FEMAL WPL Y00128 Contact Us For Availability
8
ASSY,HOUSING & PANEL WPL 54738 Contact Us For Availability
8
ASSY,GRILL&SUPPORT-PUR WPL 54731 Contact Us For Availability
8
DOOR RELEASE ROD WPL 51837 Contact Us For Availability
8
SEAL,FRONT WPL 51881 Contact Us For Availability
8
WASHER WPL 54532 Contact Us For Availability
8
WASHER WPL 52123 Contact Us For Availability
9
SCREW,1/4-20 X 5/8 HEX WPL 53589 Contact Us For Availability
9
GASKET,CONTROL BOX END WPL 23028 Contact Us For Availability
9
BELT WPL 51994 Contact Us For Availability
9
LUG,HOLD-DOWN WPL 52487 Contact Us For Availability
9
ROUND HEAD SCREW WPL 21431 Contact Us For Availability
9
NO LONGER AVAILABLE WPL 53002 Contact Us For Availability
9
PEDAL HINGE PIN WPL 51045 Contact Us For Availability
9
NUT WPL 54531 Contact Us For Availability
9
DRUM ROLLER WPL 53555 Contact Us For Availability
10
SEE NOTE FRAME BASE WPL Y00000000 Contact Us For Availability
10
PULLEY,MOTOR WPL 53522 Contact Us For Availability
10
SHAFT,DRUM WPL 53132 Contact Us For Availability
10
REAR PANEL, AVOCADO WPL 52677A Contact Us For Availability
10
REAR PANEL, COPPERTONE WPL 52677C Contact Us For Availability
10
PANEL,REAR xREPLACE WPL 52677GR Contact Us For Availability
10
REAR PANEL, HARVEST GOLD WPL 52677H Contact Us For Availability
10
REAR PANEL, WHITE WPL 52677W Contact Us For Availability
10
NUT WPL Y20276 Contact Us For Availability
10
CAP SCREW WPL 24688 Contact Us For Availability
10
NYLON WASHER WPL 51046 Contact Us For Availability
10
INSULATOR WPL 51145 Contact Us For Availability
11
MOTOR WPL 52697 Contact Us For Availability
11
RING,RETAINING WPL 70061 Contact Us For Availability
11
SCREW,10B-16 X 1/2 HEX WPL 51784 Contact Us For Availability
11
WASHER,11/64IDX3/8ODX3 WPL 20493 Contact Us For Availability
11
BEARING WPL 51991 Contact Us For Availability
11
REAR PANEL COVER PLATE, AVOCAD WPL 51855A Contact Us For Availability
11
REAR PANEL COVER PLATE, COPPER WPL 51855C Contact Us For Availability
11
PLATE,COVER WPL 51855GR Contact Us For Availability
11
REAR PANEL COVER PLATE, HARVES WPL 51855H Contact Us For Availability
11
REAR PANEL COVER PLATE, WHITE WPL 51855W Contact Us For Availability
11
STRAP,GROUND WPL 21430 Contact Us For Availability
11
WASHER WPL Q6275 Contact Us For Availability
11
NUT WPL 51271 Contact Us For Availability
11
INSULATOR WPL 51146 Contact Us For Availability
12
REPLACED BY 58047 WPL 51789 Contact Us For Availability
12
WASHER WPL Y52564 Contact Us For Availability
12
HOUSING,BLOWER WPL 51946 Contact Us For Availability
12
SCREW, 6B-20X5/16 WPL 51782 Contact Us For Availability
12
GROUND WIRE WPL Y21429 Contact Us For Availability
12
PEDAL,FOOT WPL 51802 Contact Us For Availability
12
HEATER BOX COVER PLATE WPL 51867 Contact Us For Availability
12
WASHER WPL 52122 Contact Us For Availability
13
SWITCH WPL 53213 Contact Us For Availability
13
MOTOR SWITCH, DELCO WPL 53214 Contact Us For Availability
13
SWITCH,MOTOR WPL 53226 Contact Us For Availability
13
NUT WPL 52124 Contact Us For Availability
13
LOCKWASHER,3/8 INTSHKP WPL 91176 Contact Us For Availability
13
TERMINAL BLOCK ACCESS PLATE, A WPL 52108A Contact Us For Availability
13
TERMINAL BLOCK ACCESS PLATE, C WPL 52108C Contact Us For Availability
13
TERMINAL BLOCK ACCESS PLATE, G WPL 52108GR Contact Us For Availability
13
TERMINAL BLOCK ACCESS PLATE, H WPL 52108H Contact Us For Availability
13
TERMINAL BLOCK ACCESS PLATE, W WPL 52108W Contact Us For Availability
13
CLIP,WIRE WPL 51291 Contact Us For Availability
13
GROMMET WPL 51858 Contact Us For Availability
13
HINGE (COMML. PART) WPL 70014 Contact Us For Availability
13
DOOR RELEASE ASSEMBLY WPL 51844 Contact Us For Availability
14
TERMINAL BLOCK BRACKET WPL Y52110 Contact Us For Availability
14
SWITCH WPL 52624 Contact Us For Availability
14
IMPELLER WPL 90585 Contact Us For Availability
14
CLIP,CABLE WPL 21036 Contact Us For Availability
14
SCREW,8-32 X 13/32 FL WPL 22649 Contact Us For Availability
14
SCREW WPL 51246 Contact Us For Availability
14
GASKET WPL 51798 Contact Us For Availability
15
SETSCREW WPL 52906 Contact Us For Availability
15
RELIEF,STRAIN WPL 52113 Contact Us For Availability
15
SPACER,TIMER WPL 25966 Contact Us For Availability
15
BRACKET WPL 22846 Contact Us For Availability
15
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
15
NUT K WPL 51236 Contact Us For Availability
15
HEX HEAD SCREW WPL 22024 Contact Us For Availability
15
DOOR RELEASE BRACKET WPL 51052 Contact Us For Availability
15
COVER PLATE WPL 52550 Contact Us For Availability
16
BOLT,SHOULDER WPL 52567 Contact Us For Availability
16
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
16
TIMER WPL 52610 Contact Us For Availability
16
BUMPER WPL 20387 Contact Us For Availability
16
TERMINAL,SPADE-3/16 FE WPL 00112 Contact Us For Availability
16
PIN,ROLL 1/8 X 3/4 WPL 51161 Contact Us For Availability
17
SPRING WPL 52323 Contact Us For Availability
17
WASHER,13/64IDX1/2ODX. WPL 51474 Contact Us For Availability
17
SCREW,10B-16 X 3/4 ROU WPL Q6535 Contact Us For Availability
17
END CAP, RIGHT WPL 25073 Contact Us For Availability
17
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
17
THERMOSTAT WPL 51987 Contact Us For Availability
18
STRAP,GROUND WPL 53950 Contact Us For Availability
18
ASSY, SWITCH WPL 53768 Contact Us For Availability
18
MOUNT,PANEL WPL 23020 Contact Us For Availability
18
CABLE CLIP WPL 21312 Contact Us For Availability
18
THERMOSTAT WPL Y52394 Contact Us For Availability
19
SHAFT,IDLER LEVER WPL 54411 Contact Us For Availability
19
NUT,HEX 15/32-32 WPL 52947 Contact Us For Availability
19
CLIP WPL 22161 Contact Us For Availability
19
INSULATOR,BLUE WPL 70210 Contact Us For Availability
19
CAPILLARY & SUCTION LINE ASSY WPL Y0053719 Contact Us For Availability
20
LEVER,IDLER WPL 54415 Contact Us For Availability
20
NUT WPL Q6163 Contact Us For Availability
20
MONOGRAM WPL 22086 Contact Us For Availability
20
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
21
WASHER WPL Q6623 Contact Us For Availability
21
ACTUATOR, WATER WPL Y0053880 Contact Us For Availability
21
STRIKER CATCH WPL 51993 Contact Us For Availability
21
INSULATOR SLEEVE WPL Y21365 Contact Us For Availability
22
NAMEPLATE, HANDLE WPL Y0054441 Contact Us For Availability
22
DUCT RING, GRAY WPL 52052GR Contact Us For Availability
22
TERMINAL,SPADE-1/4 FEM WPL Y00114 Contact Us For Availability
23
NUT,KNURLED 3/8-24 WPL 24205 Contact Us For Availability
23
SCREW,8B-18 X 1/2 RD H WPL 51778 Contact Us For Availability
23
TERMINAL,RING-1/4 STUD WPL Y00113 Contact Us For Availability
24
SHAFT,IDLER xREPLACE WPL 52611 Contact Us For Availability
24
FRAME,REAR WPL 52574 Contact Us For Availability
24
INDICATOR WPL 24857 Contact Us For Availability
24
SEAL,OUTER WPL 51799 Contact Us For Availability
24
TERMINAL,RING-10 STUD WPL Y00111 Contact Us For Availability
25
FRAME BASE WPL Y52572 Contact Us For Availability
25
SETSCREW WPL 25285 Contact Us For Availability
25
FRONT PANEL, AVOCADO WPL 53592A Contact Us For Availability
25
FRONT PANEL, COPPERTONE WPL 53592C Contact Us For Availability
25
FRONT PANEL, HARVEST GOLD WPL 53592H Contact Us For Availability
25
FRONT PANEL, WHITE WPL 53592W Contact Us For Availability
25
FRONT PANEL, AVOCADO WPL 54664A Contact Us For Availability
25
FRONT PANEL, COPPERTONE WPL 54664C Contact Us For Availability
25
FRONT PANEL, HARVEST GOLD WPL 54664H Contact Us For Availability
25
FRONT PANEL, W WPL 54664W Contact Us For Availability
25
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
26
NUT, HEX 3/8-16 WPL 52794 Contact Us For Availability
26
ASSY,KNOB-TIMER WPL 24858 Contact Us For Availability
26
SIDE PANEL, RIGHT, AVOCADO WPL 52673A Contact Us For Availability
26
SIDE PANEL, R WPL 52673C Contact Us For Availability
26
WPL 52673H WPL 52673H Contact Us For Availability
26
WPL 52673W WPL 52673W Contact Us For Availability
27
CAP SCREW AND LOCKWASHER WPL 23928 Contact Us For Availability
27
xREPLACE WPL 22245 Contact Us For Availability
28
MOUNT,MOTOR WPL 51824 Contact Us For Availability
28
CLIP,C xREPLACE WPL 22244 Contact Us For Availability
29
IDLER LEVER WPL 52562 Contact Us For Availability
32
IDLER PULLEY WPL 52561 Contact Us For Availability
NI
REAR EXHAUST DEFLECTOR KIT WPL 143P3 Contact Us For Availability
NI
SIDE EXHAUST DEFLECTOR KIT WPL 159P3 Contact Us For Availability
NI
WIRE, 12 GAUGE WPL 20679 Contact Us For Availability
NI
18 GAUGE WIRE WPL 20680 Contact Us For Availability
NI
BOTTOM EXHAUST DEFLECTOR KIT WPL 160P3 Contact Us For Availability
NI
VENT KIT WPL 20600 Contact Us For Availability
× ![]()
Login and Registration Form
