Model Whirlpool DE25D6AM ELECTRIC DRYER – Common Parts & Diagrams
05 - EXTERIOR

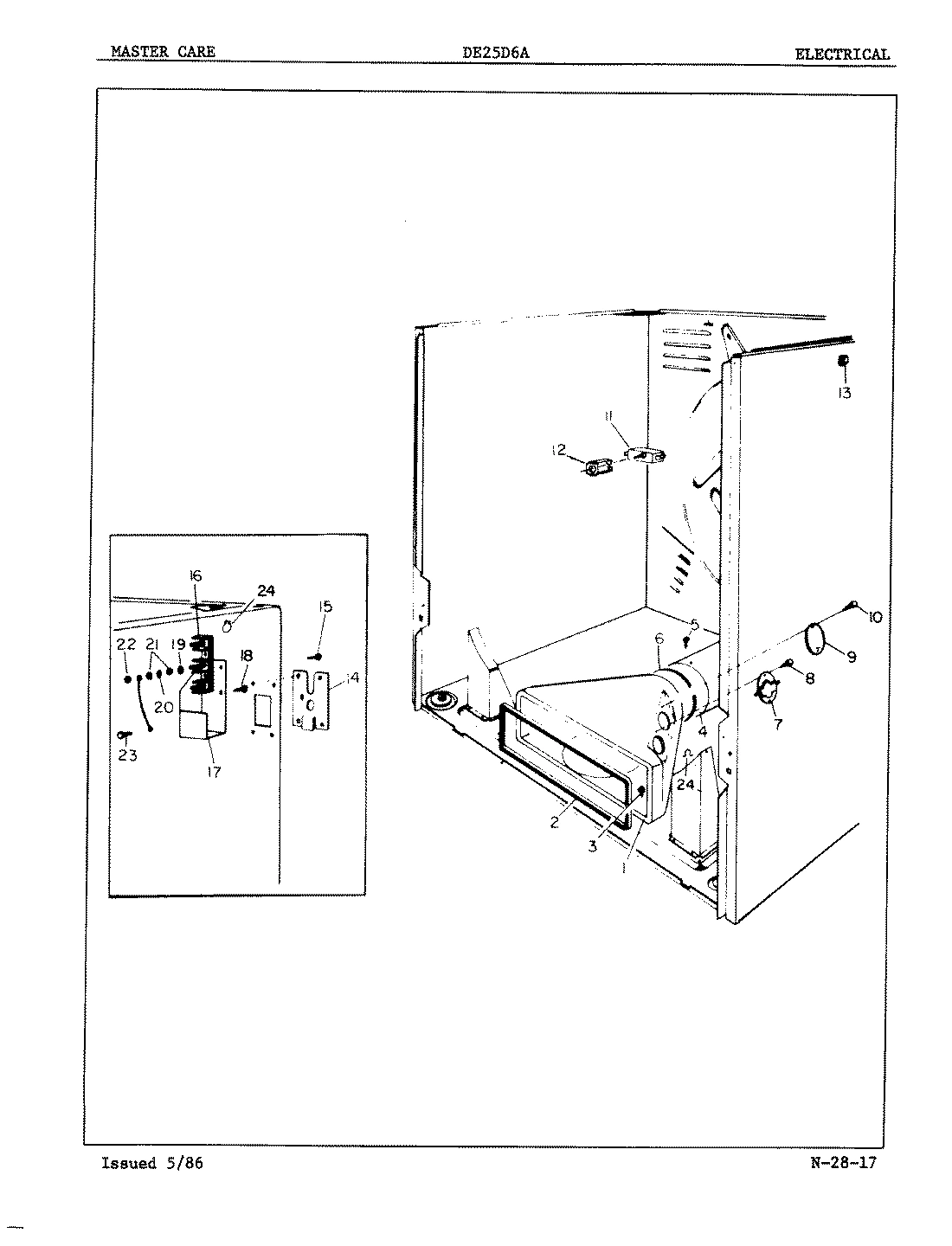

04 - ELECTRICAL

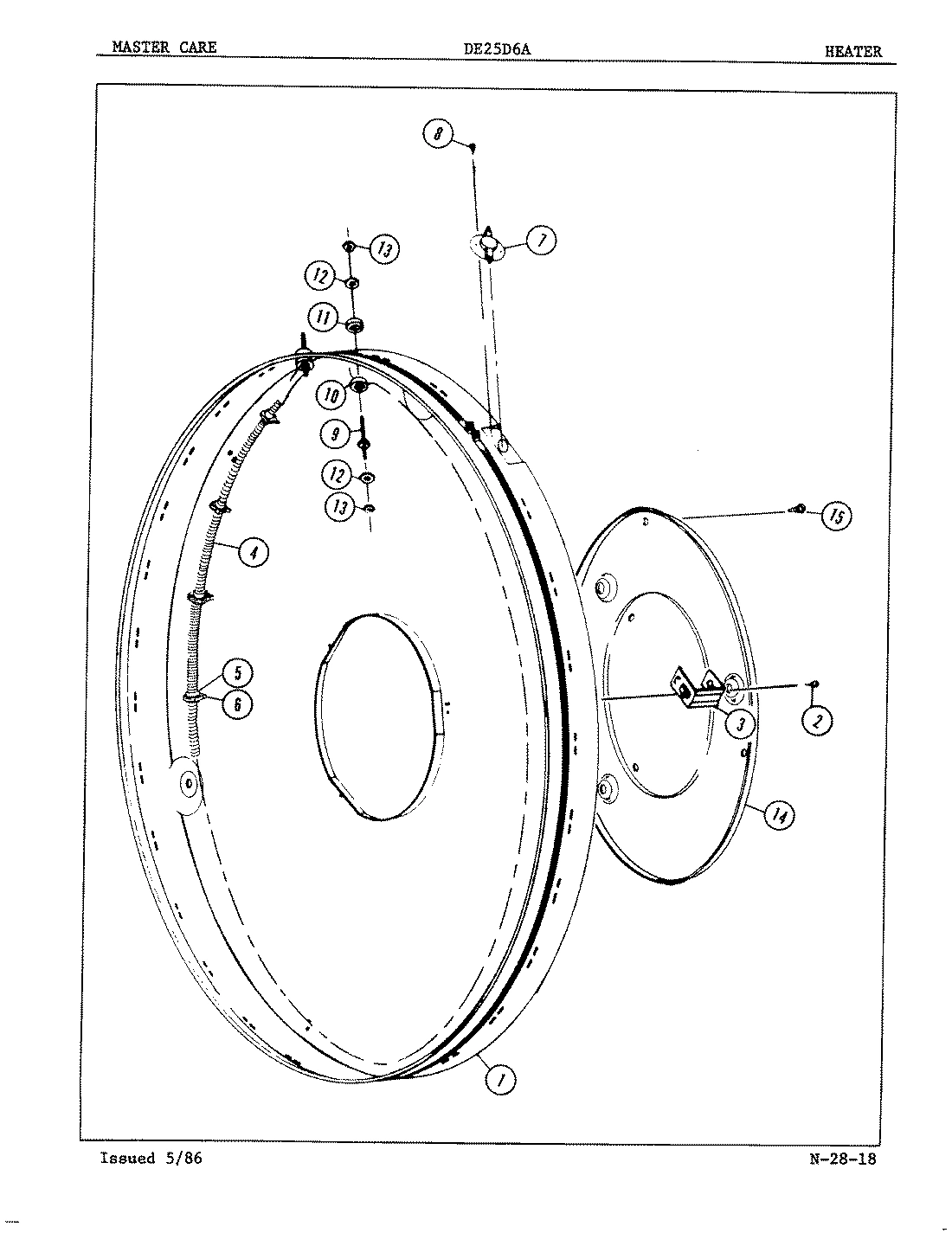

06 - HEATER

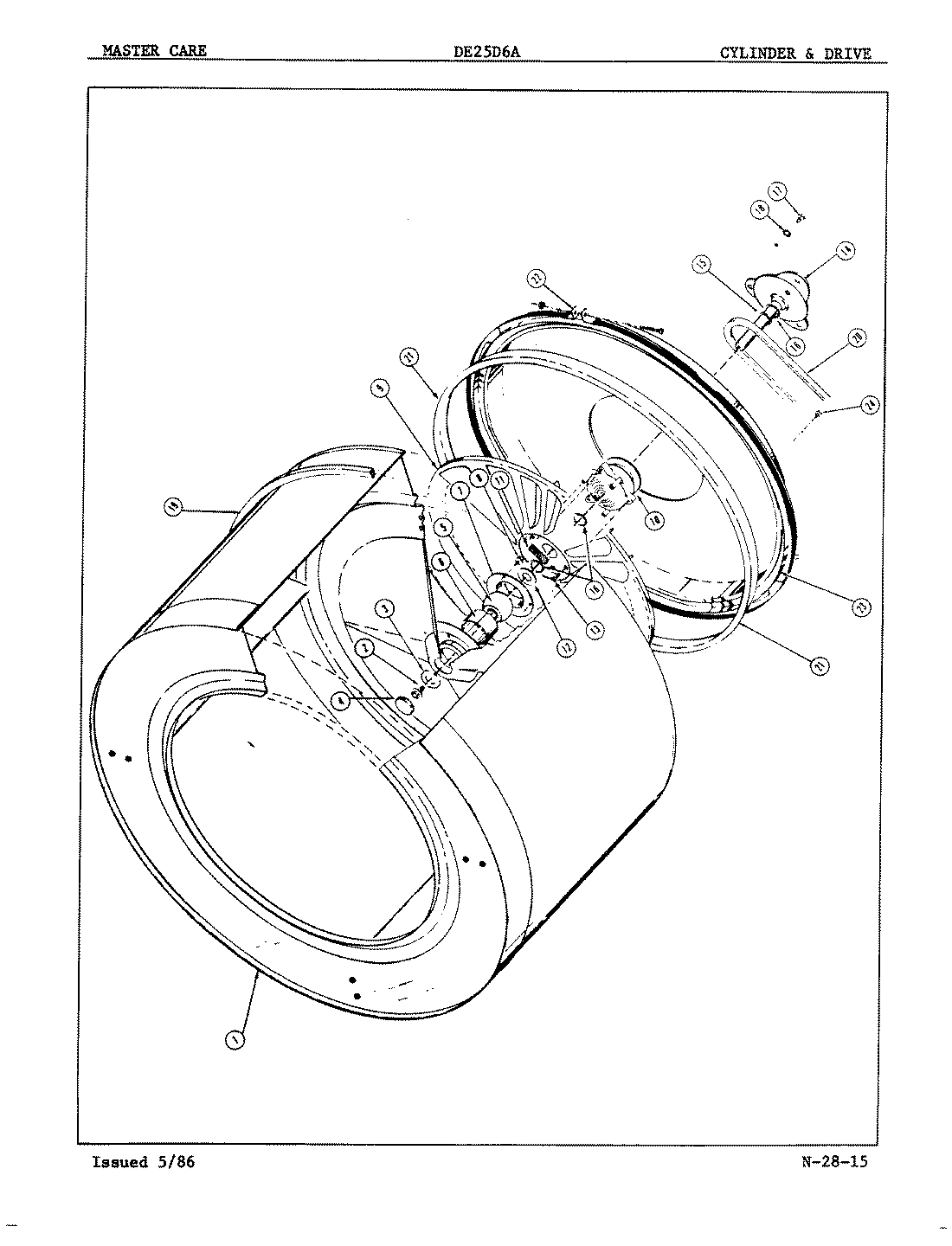

02 - CYLINDER & DRIVE

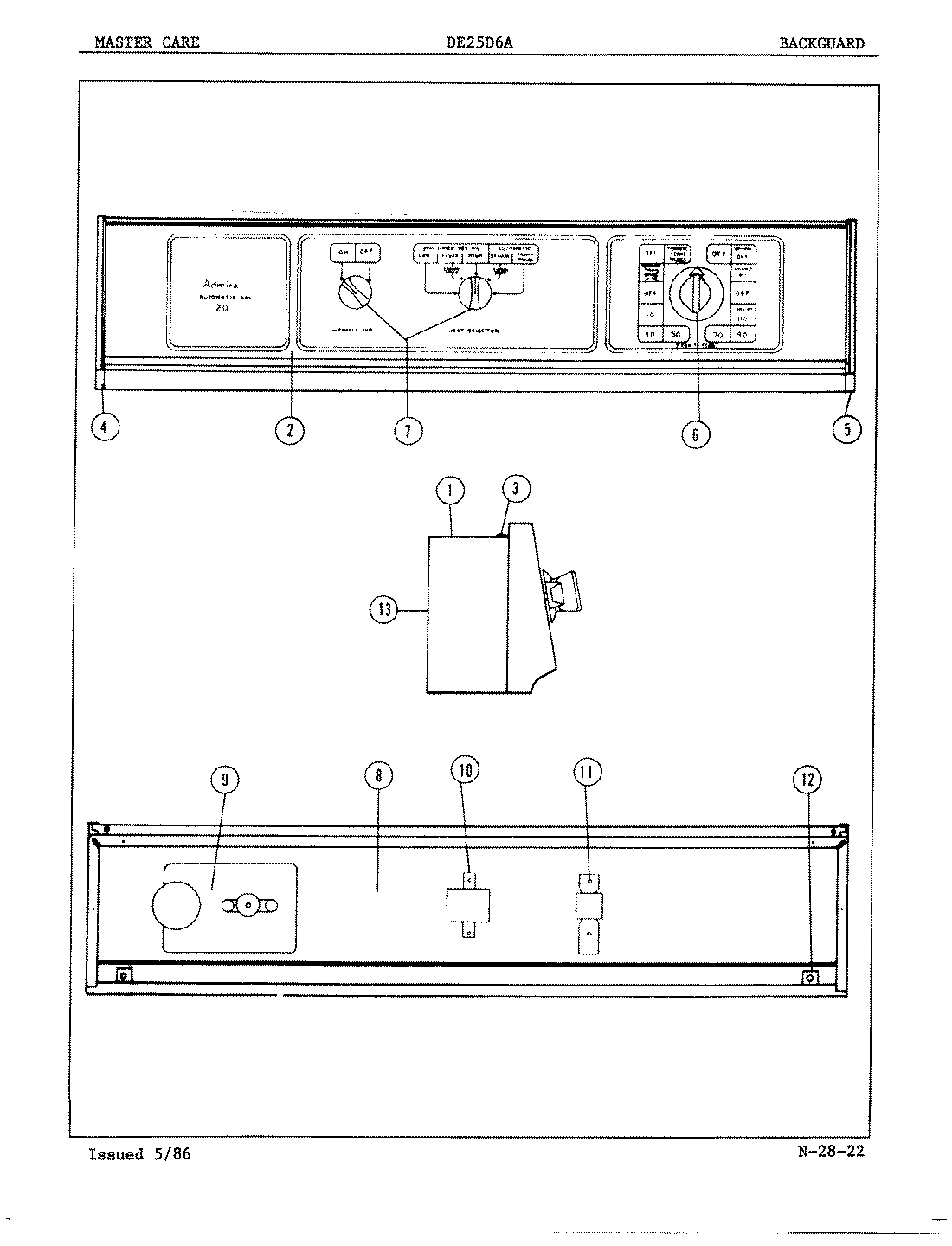

01 - CONTROL PANEL

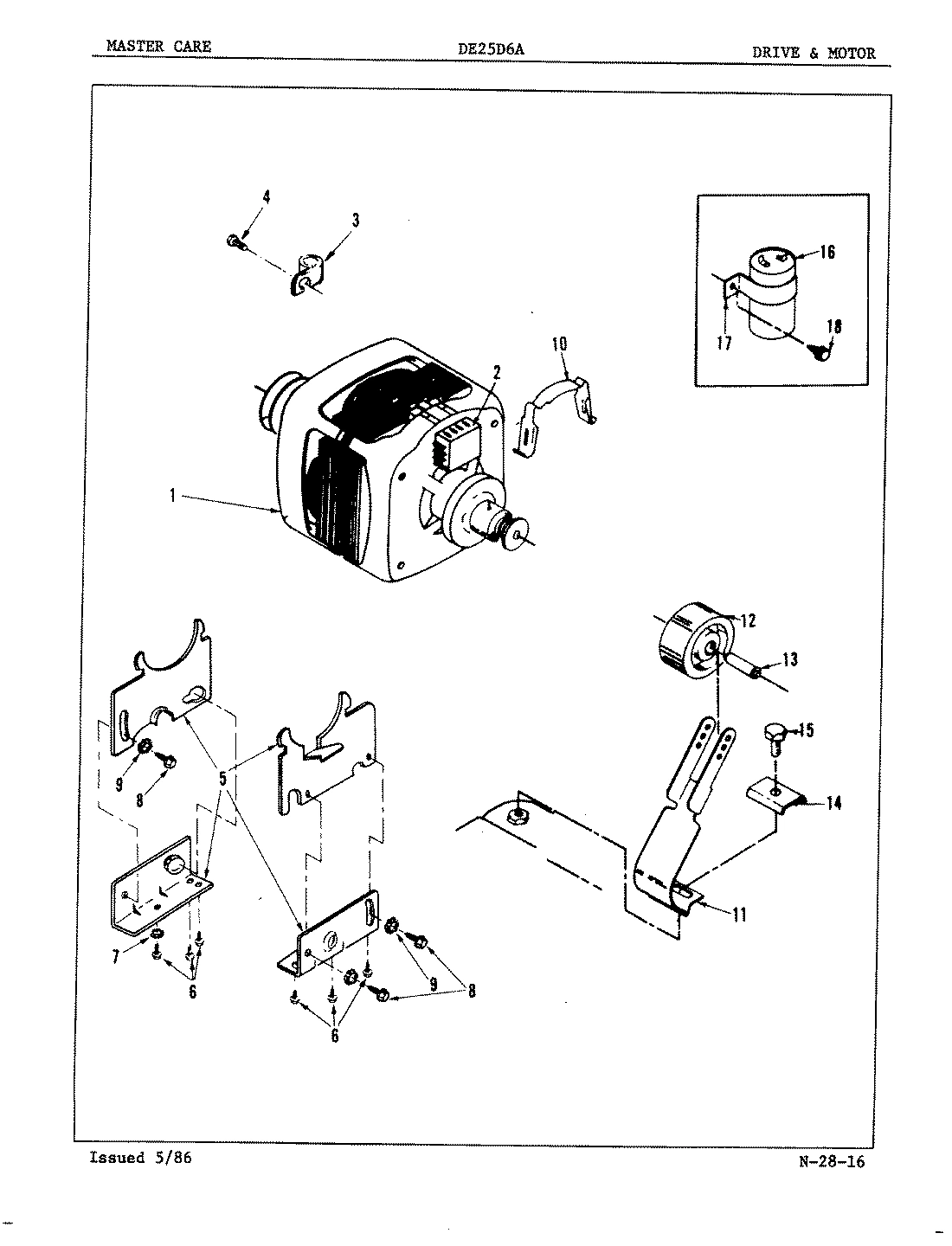

03 - DRIVE & MOTOR
Common parts from model Whirlpool DE25D6AM ELECTRIC DRYER
1
CABINET TOP WPL 63613524 Contact Us For Availability
1
TRANSITION DUCT WPL 635114 Contact Us For Availability
1
HEATER HOUSING WPL 636368 Contact Us For Availability
1
CYLINDER ASM WPL 635981 Contact Us For Availability
1
WRAPPER WPL 63656824 Contact Us For Availability
1
MOTOR, EXPORT WPL 636014 Contact Us For Availability
2
SCREW WPL 257740 Contact Us For Availability
2
CABINET ASM WPL 63599824 Contact Us For Availability
2
DUCT GASKET WPL 632599 Contact Us For Availability
2
HEX HD BOLT WPL 253682 Contact Us For Availability
2
CONTROL PANEL WPL 635961 Contact Us For Availability
2
SWITCH WPL 633198 Contact Us For Availability
3
DRYER GLIDE KIT WPL 632834N Contact Us For Availability
3
LEG, LEVELING WPL 635519 Contact Us For Availability
3
WIRING CLAMP WPL 257265 Contact Us For Availability
3
SPACER WPL 635631 Contact Us For Availability
3
WASHER WPL 253382 Contact Us For Availability
4
RH CYL GLIDE WPL 633804 Contact Us For Availability
4
LH CYL GLIDE WPL 633805 Contact Us For Availability
4
VENT DUCT WPL 635848 Contact Us For Availability
4
HEATER ELEMENT WPL 636369 Contact Us For Availability
4
PLUG BUTTON WPL 635865 Contact Us For Availability
4
LH END CAP WPL 336765 Contact Us For Availability
4
SCREW WPL 257111 Contact Us For Availability
5
RH GLIDE CUSHN WPL 635718 Contact Us For Availability
5
LH GLIDE CUSHN WPL 635719 Contact Us For Availability
5
INSULATOR WPL 636362 Contact Us For Availability
5
CYL BEARING WPL 631258 Contact Us For Availability
5
SCREW WPL 257496 Contact Us For Availability
5
RH END CAP WPL 336766 Contact Us For Availability
5
MOTOR MTG KIT WPL 632832 Contact Us For Availability
6
CLAMP WPL 631202 Contact Us For Availability
6
CLIP WPL 636363 Contact Us For Availability
6
CUSHION ASM WPL 632797 Contact Us For Availability
6
SET SCREW WPL 256044 Contact Us For Availability
6
TIMER KNOB WPL 332862 Contact Us For Availability
6
SCREW WPL 257581 Contact Us For Availability
7
THERMOSTAT WPL 636142 Contact Us For Availability
7
THERMOSTAT WPL 636370 Contact Us For Availability
7
BEARING COVER WPL 631262 Contact Us For Availability
7
SELECTOR KNOB WPL 337509 Contact Us For Availability
7
LOCKWASHER WPL 257071 Contact Us For Availability
8
GUIDE WPL 633651 Contact Us For Availability
8
SCREW WPL 253083 Contact Us For Availability
8
TRMNL INSL KIT WPL 632838N Contact Us For Availability
8
SCREW WPL 253670 Contact Us For Availability
8
CONTRL SHIELD WPL 635847 Contact Us For Availability
8
BOLT WPL 257681 Contact Us For Availability
9
COVER PLATE WPL 631216N Contact Us For Availability
9
HEATER STUD WPL 633980 Contact Us For Availability
9
BLOWER FAN WPL 636258 Contact Us For Availability
9
SCREW WPL 250205 Contact Us For Availability
9
TIMER WPL 636494 Contact Us For Availability
9
TIMER MOTOR WPL 636495 Contact Us For Availability
9
LOCKWASHER WPL 253415 Contact Us For Availability
10
DOOR SWITCH KIT WPL 632837N Contact Us For Availability
10
INSULATOR WPL 633982 Contact Us For Availability
10
BLOWER HUB KIT WPL 632844N Contact Us For Availability
10
HUB ASM WPL 636030 Contact Us For Availability
10
SWITCH WPL 635775 Contact Us For Availability
10
RETAINER CLIP WPL 635611 Contact Us For Availability
11
SCREW WPL 257683 Contact Us For Availability
11
DOOR SWITCH WPL 635991 Contact Us For Availability
11
INSULATOR WPL 633981 Contact Us For Availability
11
DEFLECTOR STRAP WPL 636348 Contact Us For Availability
11
SEL SWITCH WPL 635352 Contact Us For Availability
11
IDLER BRACKET WPL 633053 Contact Us For Availability
12
SLEEVE WPL 635546 Contact Us For Availability
12
CLIP, SWITCH WPL 635990 Contact Us For Availability
12
WASHER WPL 256125 Contact Us For Availability
12
CLIP WPL 257461 Contact Us For Availability
12
IDLER PULLEY WPL 635753 Contact Us For Availability
13
SCREW WPL 253092 Contact Us For Availability
13
CLIP, WIRING WPL 253034 Contact Us For Availability
13
NUT WPL 256124 Contact Us For Availability
13
SCREW WPL 257764 Contact Us For Availability
13
SHIELD WPL 635954 Contact Us For Availability
13
PIN WPL 633054 Contact Us For Availability
14
HINGE, CABINET TOP WPL 635712 Contact Us For Availability
14
SUPPORT WPL 631195 Contact Us For Availability
14
REINFORCEMENT WPL 635852 Contact Us For Availability
14
CYL SHAFT ASM WPL 636032 Contact Us For Availability
14
IDLER PLATE WPL 633819 Contact Us For Availability
15
PAD, TOP HINGE WPL 330930 Contact Us For Availability
15
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
15
TRMNL BLOCK KIT WPL 632836N Contact Us For Availability
15
WASHER WPL 253109 Contact Us For Availability
16
TERMINAL BLOCK WPL 631244 Contact Us For Availability
16
RETAINING RING WPL 257175 Contact Us For Availability
16
CAPACITOR WPL 633199 Contact Us For Availability
17
FRONT PANEL WPL 63598224 Contact Us For Availability
17
SHIELD WPL 635805 Contact Us For Availability
17
SCREW WPL 253736 Contact Us For Availability
17
CLAMP WPL 633204 Contact Us For Availability
18
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
18
SCREW WPL 252134 Contact Us For Availability
18
SCREW WPL 259103 Contact Us For Availability
19
WIRING CLIP WPL 253032 Contact Us For Availability
19
WASHER, FLAT WPL 253122 Contact Us For Availability
19
CYL DRIVE BELT WPL 634664 Contact Us For Availability
20
HINGE WPL 634526 Contact Us For Availability
20
WASHER, CUP WPL 253123 Contact Us For Availability
20
REAR SEAL KIT WPL 632853N Contact Us For Availability
20
FAN BELT WPL 636333 Contact Us For Availability
21
NUT (No.10-32) WPL 250027 Contact Us For Availability
21
REAR SEAL WPL 636227 Contact Us For Availability
22
COLLECTR DUCT WPL 635451 Contact Us For Availability
22
CLAMP KIT WPL 6318161 Contact Us For Availability
23
COLL DUCT FRONT WPL 635448 Contact Us For Availability
23
SCREW TAP TY 10-32X3/8 WPL 253461 Contact Us For Availability
23
HEATER HOUSING WPL 635794 Contact Us For Availability
24
CLIP, WIRING WPL 257027 Contact Us For Availability
24
SEMS SCREW WPL 257745 Contact Us For Availability
25
TRAP SEAL WPL 631192 Contact Us For Availability
26
LNT TRP SEAL WPL 635449 Contact Us For Availability
27
FOAM SEAL WPL 635478 Contact Us For Availability
28
SEAL WPL 635477 Contact Us For Availability
29
SCREW WPL 257742 Contact Us For Availability
30
LINT SCREEN WPL 635431 Contact Us For Availability
31
FRONT CYL SEAL WPL 635972 Contact Us For Availability
32
SCREW WPL 257453 Contact Us For Availability
33
SCREW WPL 257123 Contact Us For Availability
34
CATCH ASM WPL 635569 Contact Us For Availability
35
SCREW WPL 257715 Contact Us For Availability
36
SPACER WPL 635596 Contact Us For Availability
37
OUTER PANEL WPL 63606724 Contact Us For Availability
38
INNER PANEL WPL 636068 Contact Us For Availability
39
POLY PAD WPL 636090 Contact Us For Availability
40
SCREW, OUTER TO INNER DOOR WPL 257770 Contact Us For Availability
41
DOOR STRIKE WPL 636069 Contact Us For Availability
43
NUT WPL 250048 Contact Us For Availability
44
DOOR HANDLE WPL 635560 Contact Us For Availability
45
SCREW WPL 257650 Contact Us For Availability
46
PLUG BUTTON, DOOR WPL 253534 Contact Us For Availability
47
DOOR GASKET WPL 633693 Contact Us For Availability
48
HINGE CLIP WPL 635099 Contact Us For Availability
× ![]()
