Model Whirlpool DCS21101WOA DISHWASHER – Common Parts & Diagrams
03 - MOTOR

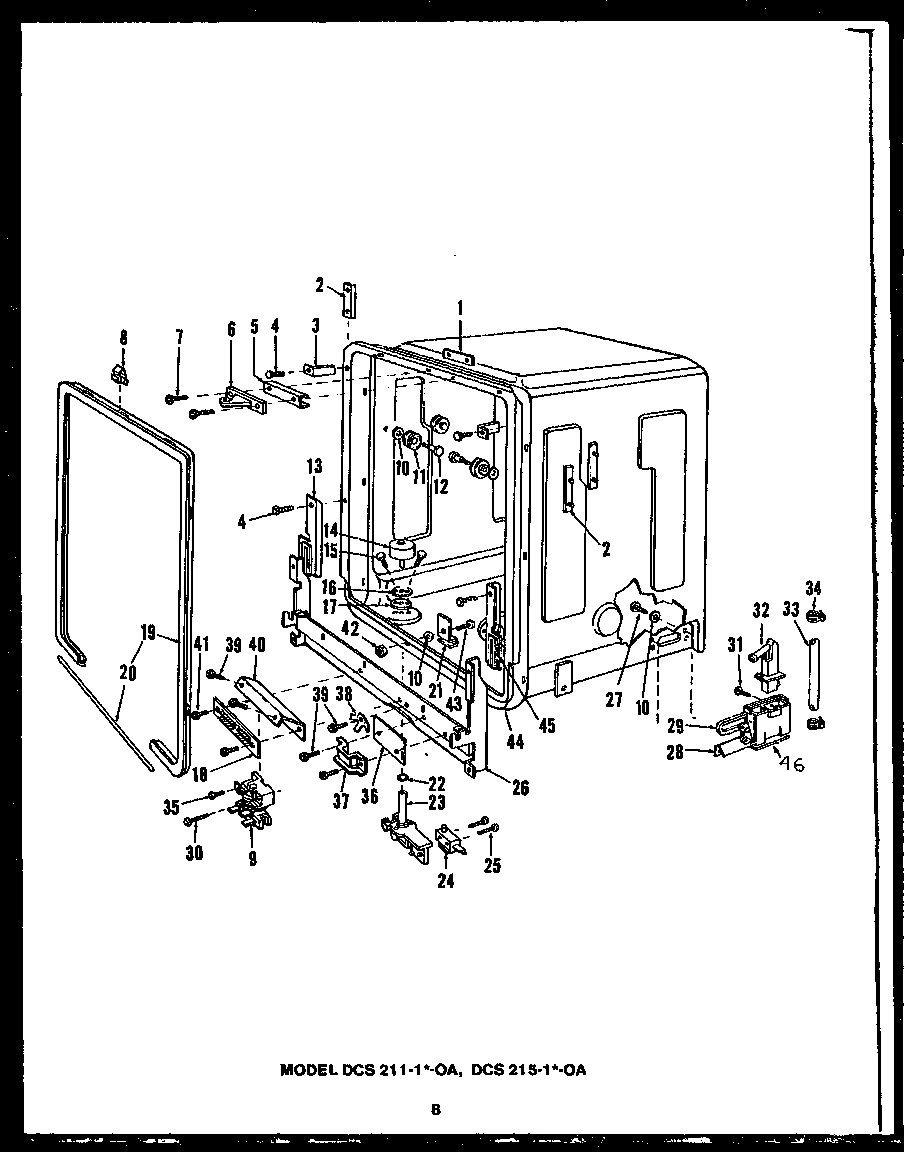

05 - Page 4

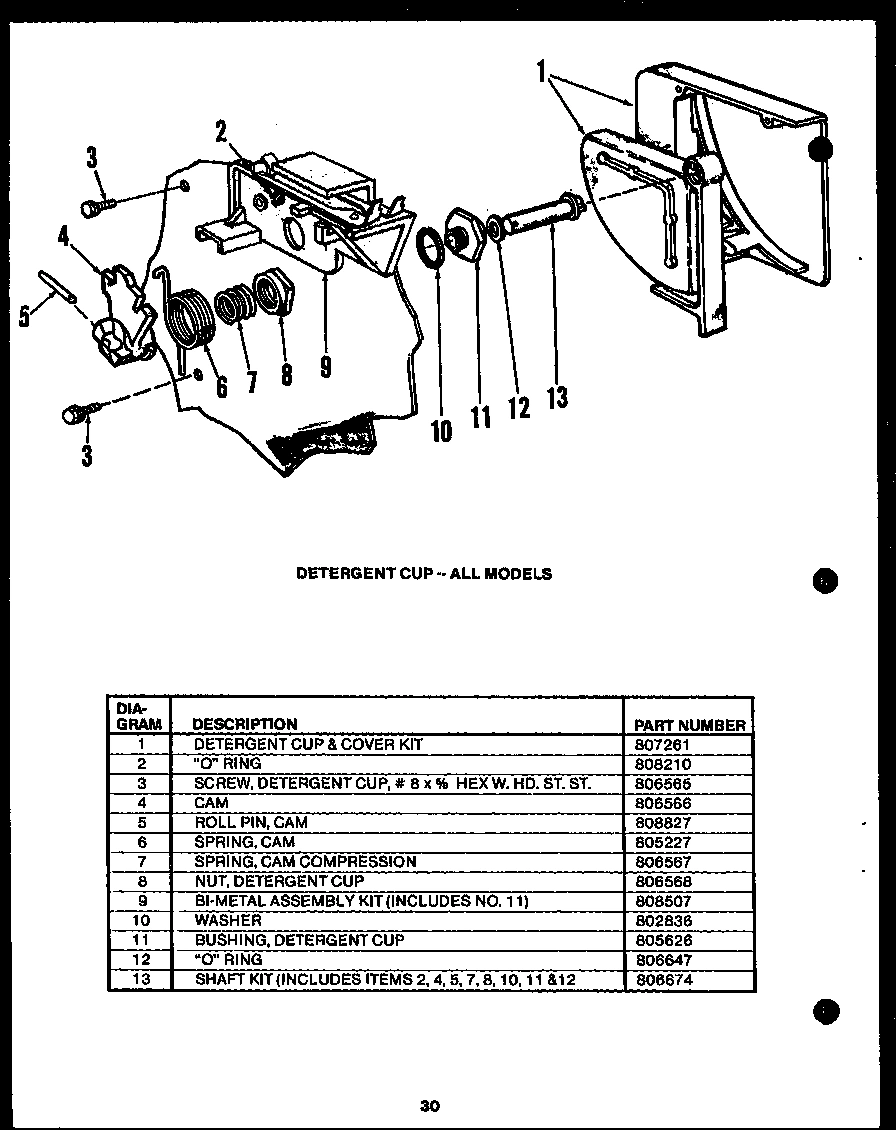

02 - DETERGENT CUP

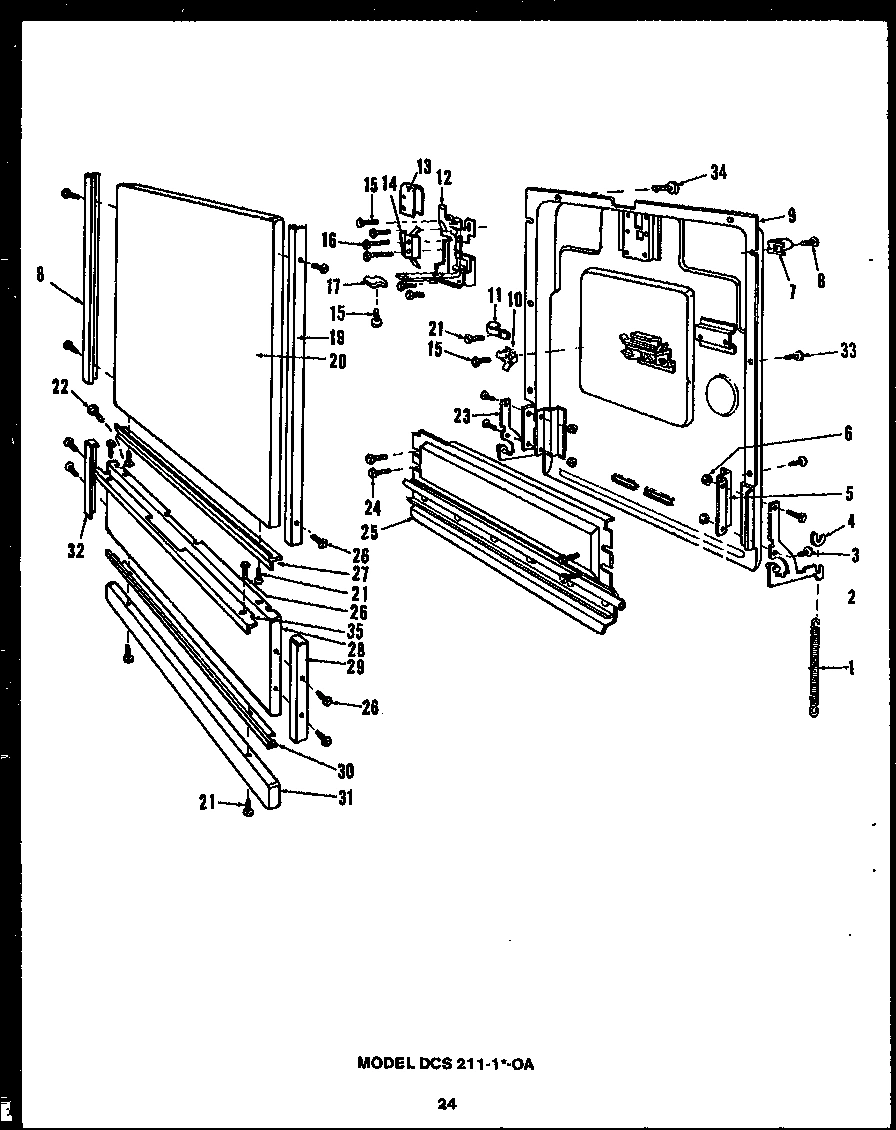

04 - Page 12

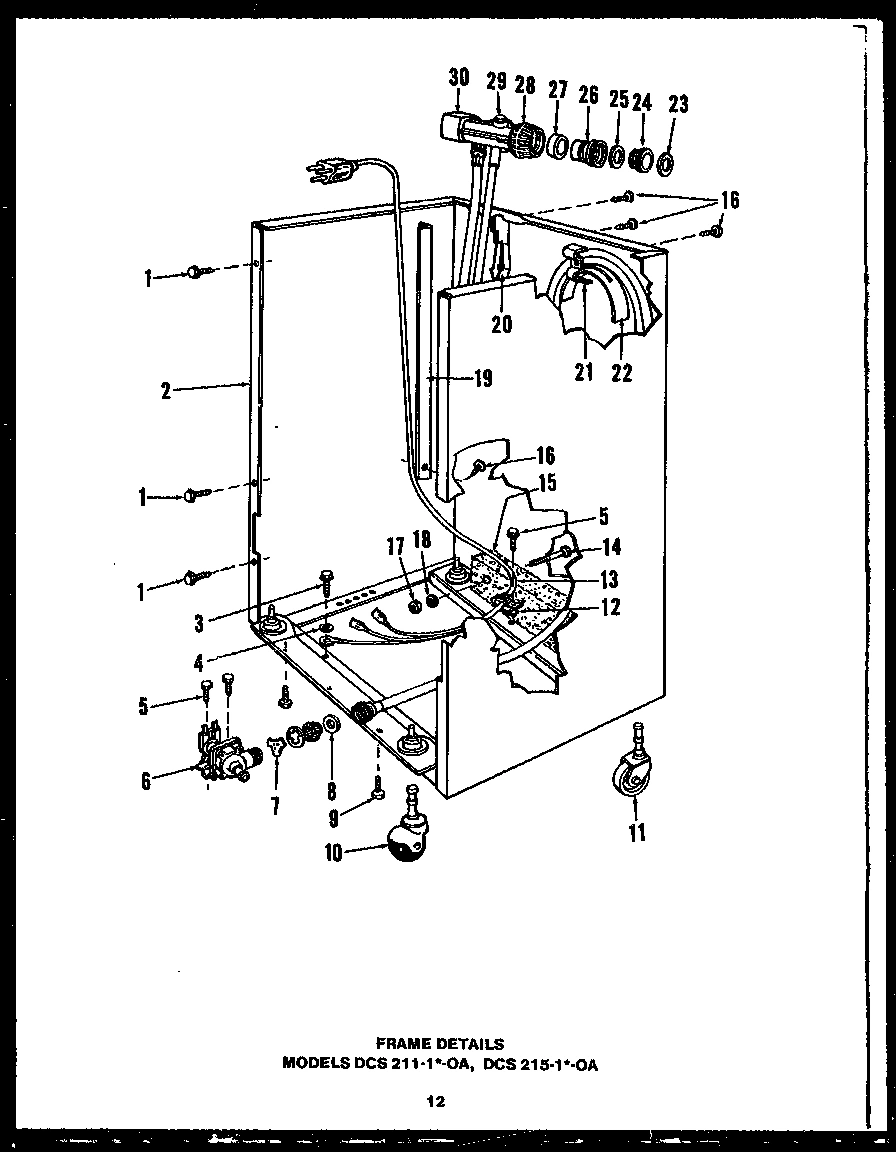

06 - Page 6

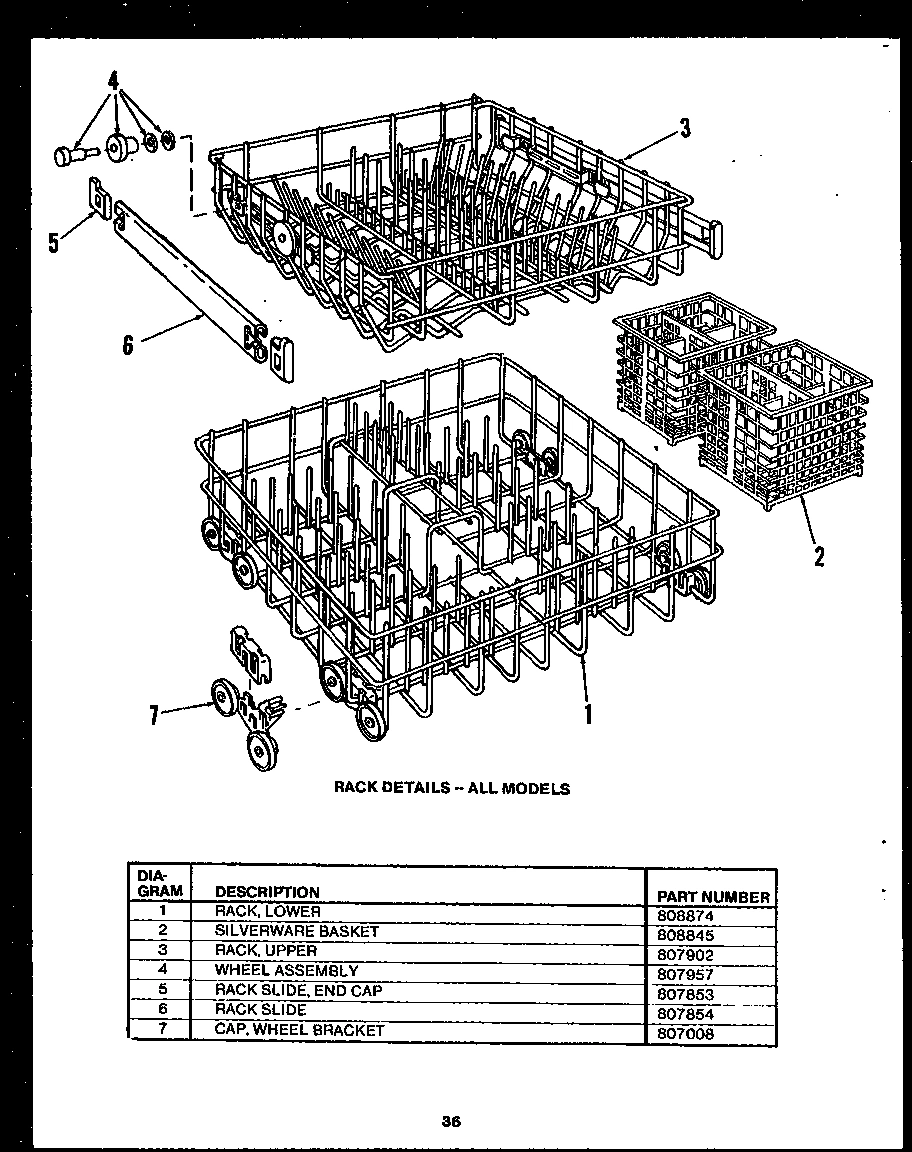

07 - RACK DETAILS

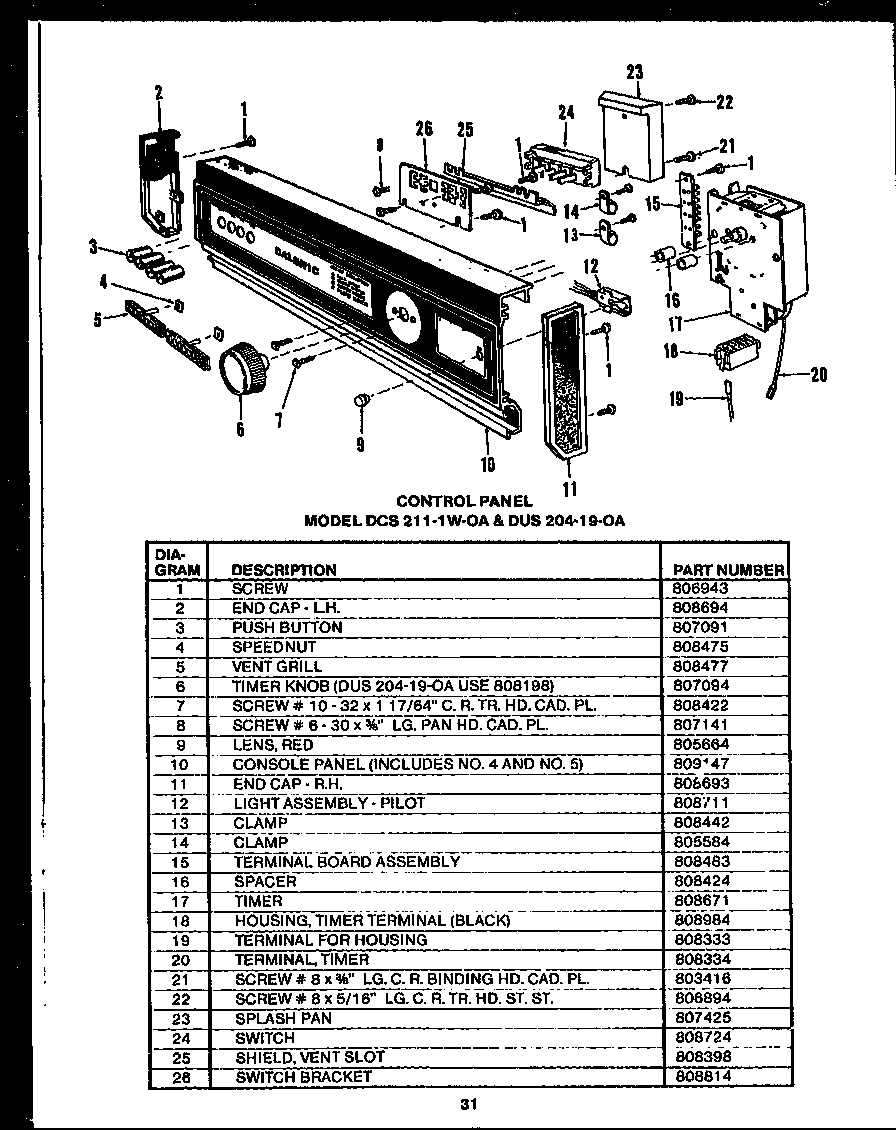

01 - CONTROL PANEL

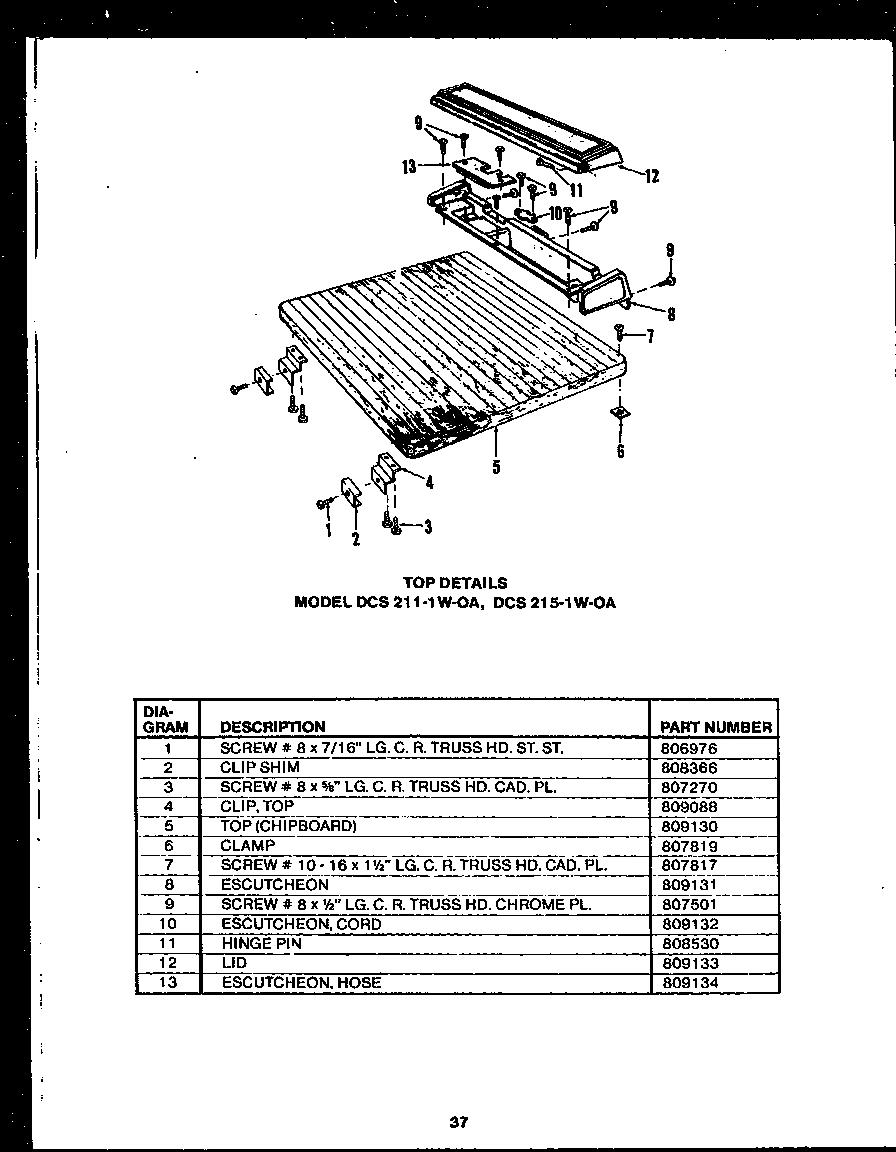

08 - TOP DETAILS
Common parts from model Whirlpool DCS21101WOA DISHWASHER
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
1
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
1
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
1
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
1
LOWER RACK ASSY WPL Y0808874 Contact Us For Availability
1
SCREW WPL 0806943 Contact Us For Availability
1
SCREW WPL 0806976 Contact Us For Availability
2
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
2
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
2
``O`` RING WPL Y0808210 Contact Us For Availability
2
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
2
SEE NOTE FRAME ASSEMBLY - NOT SERVICED WPL Y00000000 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0808845 Contact Us For Availability
2
END CAP, LH WPL 0808694 Contact Us For Availability
2
SHIM WPL Y0808366 Contact Us For Availability
3
HEATER WPL Y0809060 Contact Us For Availability
3
SCREW WPL 0807270 Contact Us For Availability
3
TUB PAD WPL 807454 Contact Us For Availability
3
SCREW WPL 0806565 Contact Us For Availability
3
SCREW WPL 0803311 Contact Us For Availability
3
SCREW WPL 0807951 Contact Us For Availability
3
RACK, UPPER WPL 0807902 Contact Us For Availability
3
PUSHBUTTON WPL Y0807091 Contact Us For Availability
4
UPPER IMPELLER WPL Y0809005 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
4
SPRING PAD WPL 0805884 Contact Us For Availability
4
WASHER WPL 0807373 Contact Us For Availability
4
ROLLER WPL Y0807957 Contact Us For Availability
4
SPEED NUT WPL Y0808475 Contact Us For Availability
4
CLIP WPL 0809088 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
SHIM STRIKE WPL 0807073 Contact Us For Availability
5
SPIROL PIN WPL Y0808827 Contact Us For Availability
5
ARM BRACKET WPL Y0806717 Contact Us For Availability
5
SCREW WPL Y0807950 Contact Us For Availability
5
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
5
VENT GRILLE WPL Y0808477 Contact Us For Availability
5
TOP, CHIPBOARD WPL 0809130 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
STRIKE WPL Y0807015 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
6
VALVE WPL 0808667 Contact Us For Availability
6
RACK SLIDE WPL 0807854 Contact Us For Availability
6
SUB 808482 KNOB, TIMER WPL Y0807094 Contact Us For Availability
6
CLAMP, TOP WPL Y0807819 Contact Us For Availability
7
PUMP PLATE WPL 0807884 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
7
DOOR GUIDE WPL 0807449 Contact Us For Availability
7
FLOW WASHER WPL 0808432 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
SCREW, No.10-32 X 1 7/64 WPL 0808422 Contact Us For Availability
7
SCREW WPL Y0807817 Contact Us For Availability
8
GASKET, PUMP WPL Y0807709 Contact Us For Availability
8
FASTENER GASKET WPL Y0805763 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
8
SCREW WPL Y0808749 Contact Us For Availability
8
WASHER, 19/32 IDX1.031 WPL Y0800787 Contact Us For Availability
8
SCREW WPL 0807141 Contact Us For Availability
8
ESCUTCHEON WPL 0809131 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
RELAY WPL 0805255 Contact Us For Availability
9
TRIGGER ASSY WPL Y0808507 Contact Us For Availability
9
SUB 809288, INNER DOOR PANEL WPL 0807191 Contact Us For Availability
9
LENS WPL 0805664 Contact Us For Availability
10
PUMP SEAL KIT WPL Y0809116 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
10
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
10
CASTER,FRONT WPL 0808542 Contact Us For Availability
10
CONSOLE PANEL WPL 0809147 Contact Us For Availability
10
CORD, ESCUTCHEON WPL 0809132 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
11
CASTER, REAR WPL Y0808543 Contact Us For Availability
11
END CAP, RH WPL 0808693 Contact Us For Availability
11
HINGE PIN WPL Y0808530 Contact Us For Availability
12
GASKET WPL Y0809008 Contact Us For Availability
12
KIT, SCREW & WASHER WPL 0808564 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
12
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
12
RELIEF, STRAIN WPL Y0804426 Contact Us For Availability
12
LIGHT ASSY. WPL 0808711 Contact Us For Availability
12
LID WPL 0809133 Contact Us For Availability
13
CLAMP WPL Y0808442 Contact Us For Availability
13
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
13
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
13
SWITCH COVER WPL 0807450 Contact Us For Availability
13
CORD, POWER WPL 0805046 Contact Us For Availability
13
HOSE ESCUTCHEON WPL 0809134 Contact Us For Availability
14
PUMP HOUSING WPL Y0809059 Contact Us For Availability
14
FLOAT WPL Y0804630 Contact Us For Availability
14
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
14
SCREW WPL 0808612 Contact Us For Availability
15
SCREW WPL Y0807268 Contact Us For Availability
15
CLAMP RING WPL Y0807712 Contact Us For Availability
15
SCREW WPL 0806830 Contact Us For Availability
15
WEIGHT WPL 0808615 Contact Us For Availability
15
TERMINAL BOARD ASSY. WPL Y0808483 Contact Us For Availability
16
SLINGER, PLASTIC WPL 0808899 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
16
SCREW WPL 0808618 Contact Us For Availability
16
SPACER WPL 0808424 Contact Us For Availability
17
TOLERANCE RING WPL 0808898 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
17
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
17
NUT WPL 0808661 Contact Us For Availability
17
TIMER WPL 0808671 Contact Us For Availability
18
MOTOR ASSY WPL Y0809100 Contact Us For Availability
18
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
18
DOOR PNL TRIM, LH WPL 0808977 Contact Us For Availability
18
WASHER WPL 0808613 Contact Us For Availability
18
TIMER TERMINAL HOUSING WPL 0808984 Contact Us For Availability
19
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
19
SUB 808959, GASKET & WIRE ASSY WPL Y0809034 Contact Us For Availability
19
DOOR PNL TRIM, RH WPL 0808976 Contact Us For Availability
19
HOSE GUARD WPL 0808120 Contact Us For Availability
19
TERMINAL, (PACK OF 25) WPL 0808333 Contact Us For Availability
20
SHIM GAUGE WPL 0807077 Contact Us For Availability
20
JUNCTION, WIRE GASKET WPL 0808344 Contact Us For Availability
20
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
20
DOOR PANEL, ALMOND WPL Y0808523 Contact Us For Availability
20
DOOR PANEL, GOLD WPL Y0808524 Contact Us For Availability
20
GUIDE, HOSE WPL 0805859 Contact Us For Availability
20
TERMINAL END WPL 0808334 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
21
USE M0217224 WPL Y0803416 Contact Us For Availability
21
BRACKET RETAINING WPL 0806142 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
22
SCREW WPL 0806894 Contact Us For Availability
22
SUPPORT, HOSE WPL 0806143 Contact Us For Availability
23
GROMMET WPL Y0806833 Contact Us For Availability
23
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
23
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
23
WASHER, COUPLER WPL Y0803393 Contact Us For Availability
23
SPLASH PAN WPL 0807425 Contact Us For Availability
24
NUT WPL 0806834 Contact Us For Availability
24
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
24
USE 0806976 WPL 0806810 Contact Us For Availability
24
ADAPTER WPL Y0800782 Contact Us For Availability
24
SWITCH WPL 0808724 Contact Us For Availability
25
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
25
SUB 809243, VENT PLATE ASSY. WPL Y0809122 Contact Us For Availability
25
WASHER, ADAPTER WPL Y0803392 Contact Us For Availability
25
SHIELD, VENT PLATE WPL Y0808398 Contact Us For Availability
26
HINGE WELD ASSY. WPL 0808739 Contact Us For Availability
26
BRACKET WPL 0808814 Contact Us For Availability
27
IMPELLER, HOUSING KIT WPL Y0809119 Contact Us For Availability
27
SCREW WPL Y0806901 Contact Us For Availability
27
DOOR TRIM, BOTTOM WPL Y0807347 Contact Us For Availability
28
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
28
TAPPING PLATE WPL 0808705 Contact Us For Availability
28
ACCESS PANEL, WHITE WPL 0809108 Contact Us For Availability
28
ACCESS PANEL, GOLD WPL Y0808525 Contact Us For Availability
28
ACCESS PANEL, ALMOND WPL Y0808526 Contact Us For Availability
28
SUB 809139, COLLAR WPL Y0807499 Contact Us For Availability
29
BEARING WPL Y0809046 Contact Us For Availability
29
GASKET WPL Y0806797 Contact Us For Availability
29
TRIM, R.H. WPL 0808028 Contact Us For Availability
29
KIT, PRESSURE RELIEF WPL 0807498 Contact Us For Availability
30
SPRAY ARM BOLT WPL Y0809018 Contact Us For Availability
30
SCREW WPL 0804672 Contact Us For Availability
30
TRIM, ACCESS, BOTTOM WPL Y0808521 Contact Us For Availability
30
FAUCET COUPLER ASSEMBLY WPL Y0807496 Contact Us For Availability
31
SPRAY ARM WPL 0808177 Contact Us For Availability
31
SCREW WPL 0808818 Contact Us For Availability
31
TOE PLATE WPL Y0808522 Contact Us For Availability
32
TOWER BASE WPL Y0808178 Contact Us For Availability
32
INLET NOZZLE WPL 0808707 Contact Us For Availability
33
TOWER SECTION WPL Y0808179 Contact Us For Availability
33
TUBE, INLET WPL 0807891 Contact Us For Availability
33
SCREW WPL 0806967 Contact Us For Availability
34
TOWER TIP WPL Y0808180 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
35
SCREW WPL Y0809022 Contact Us For Availability
35
TRIM, TOP, ACCESS PANEL WPL 0808346 Contact Us For Availability
36
WIRE SHIELD WPL 0809144 Contact Us For Availability
37
WIRING CLAMP WPL 0806723 Contact Us For Availability
40
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
42
USE M0281003 WPL 0803346 Contact Us For Availability
44
TUB & GASKET ASSY WPL 0809141 Contact Us For Availability
45
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
46
VENT STACK WPL 0808706 Contact Us For Availability
NI
SUB 808928, CONVERSION KIT WPL 0090896 Contact Us For Availability
× ![]()
Login and Registration Form
