Model Whirlpool DCR2251COK DISHWASHER – Common Parts & Diagrams

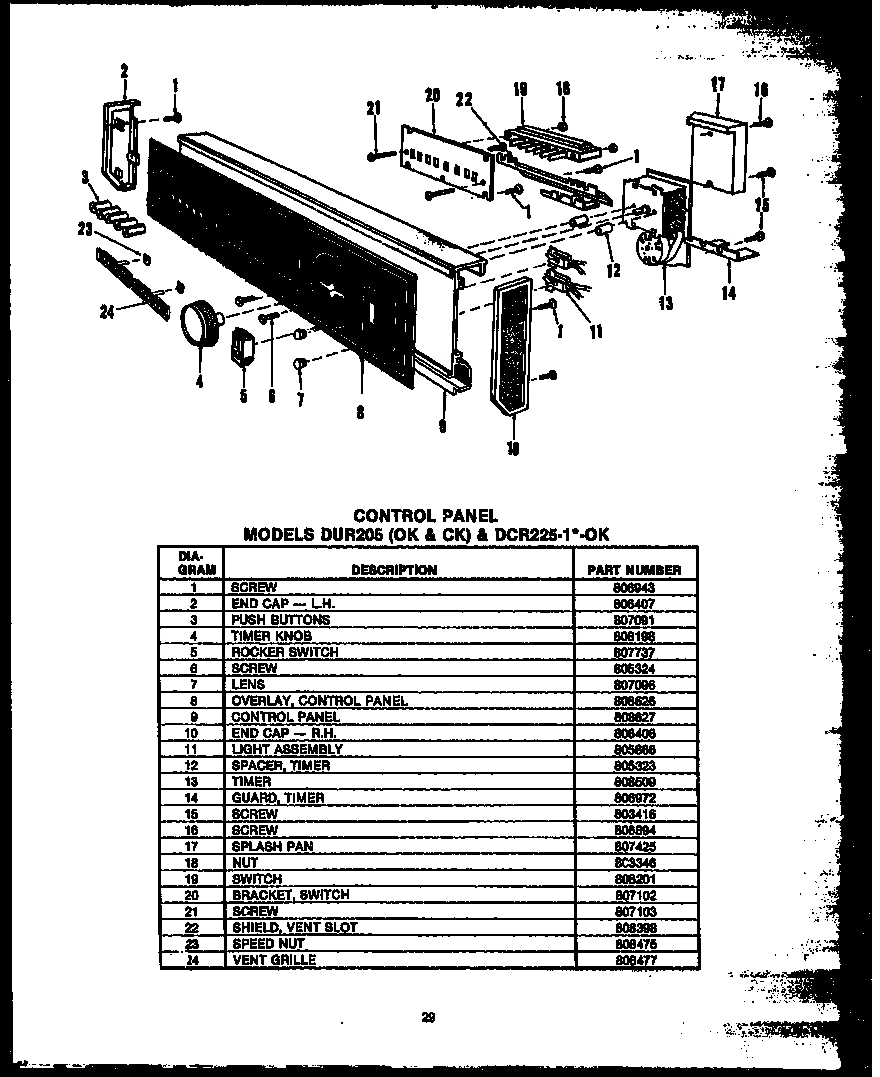

01 - CONTROL PANEL

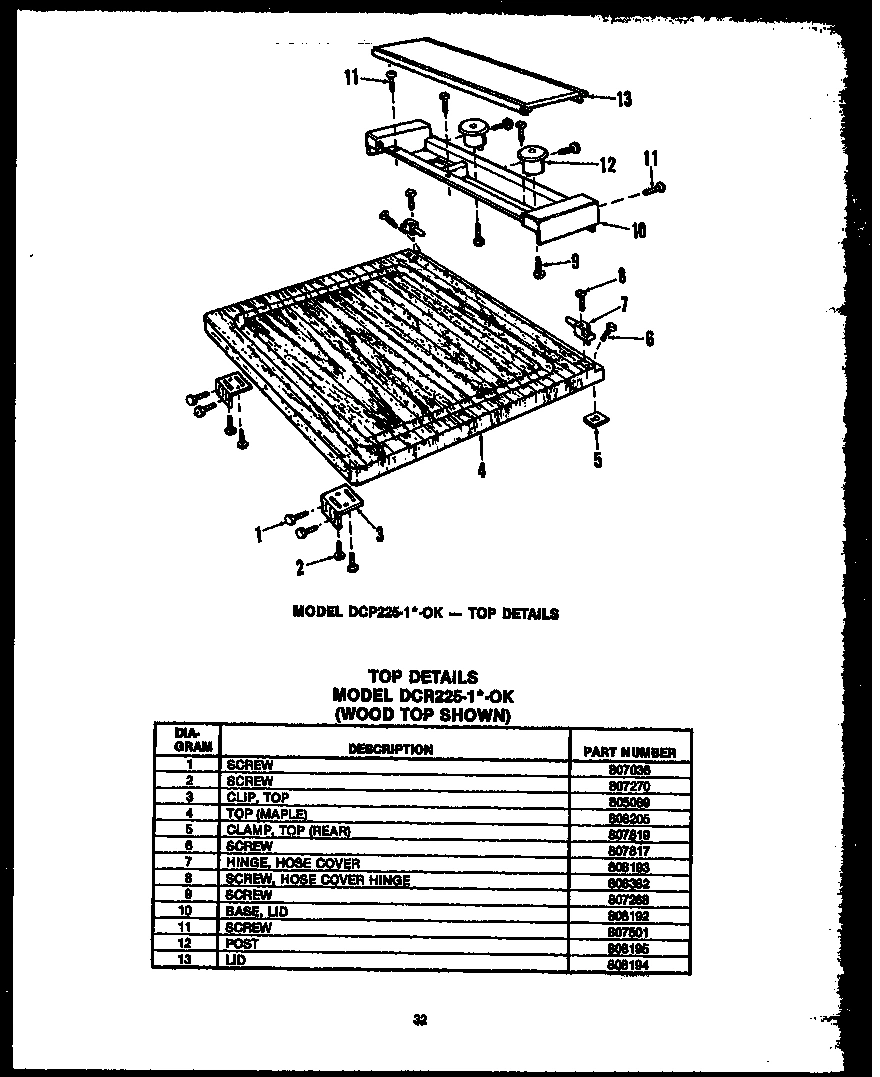

08 - TOP DETAILS

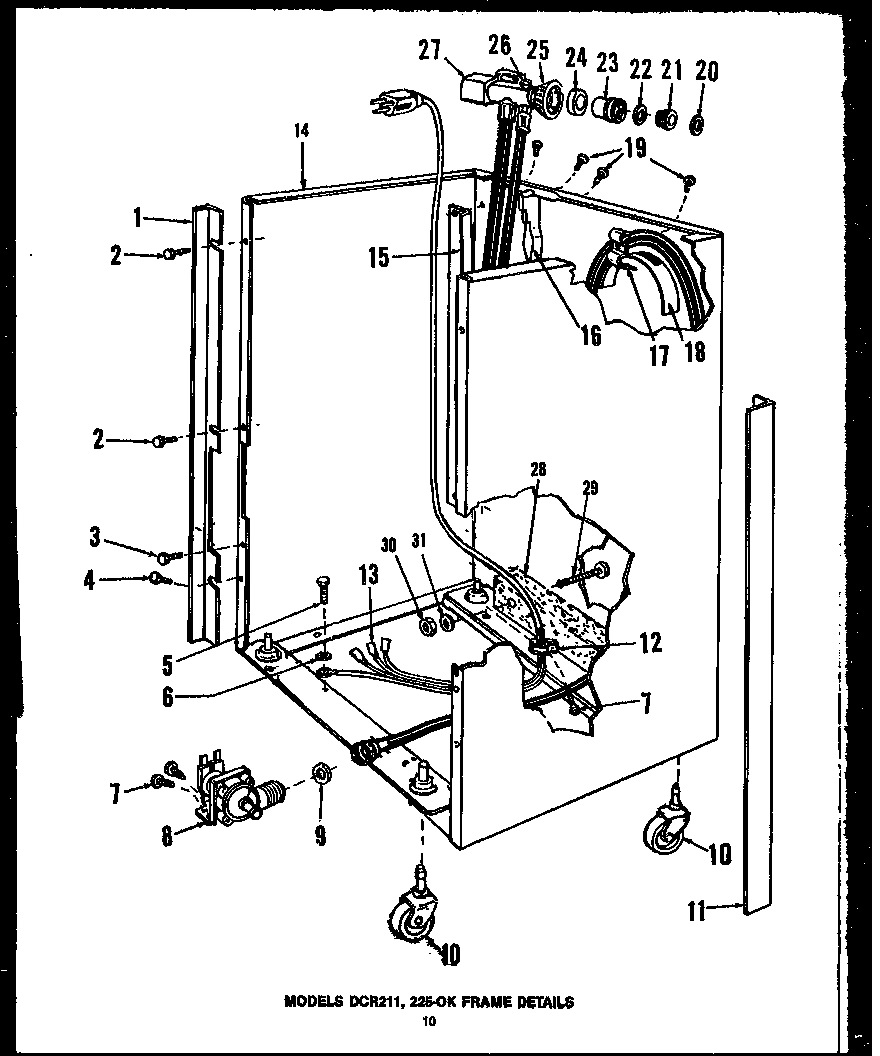

04 - FRAME DETAILS

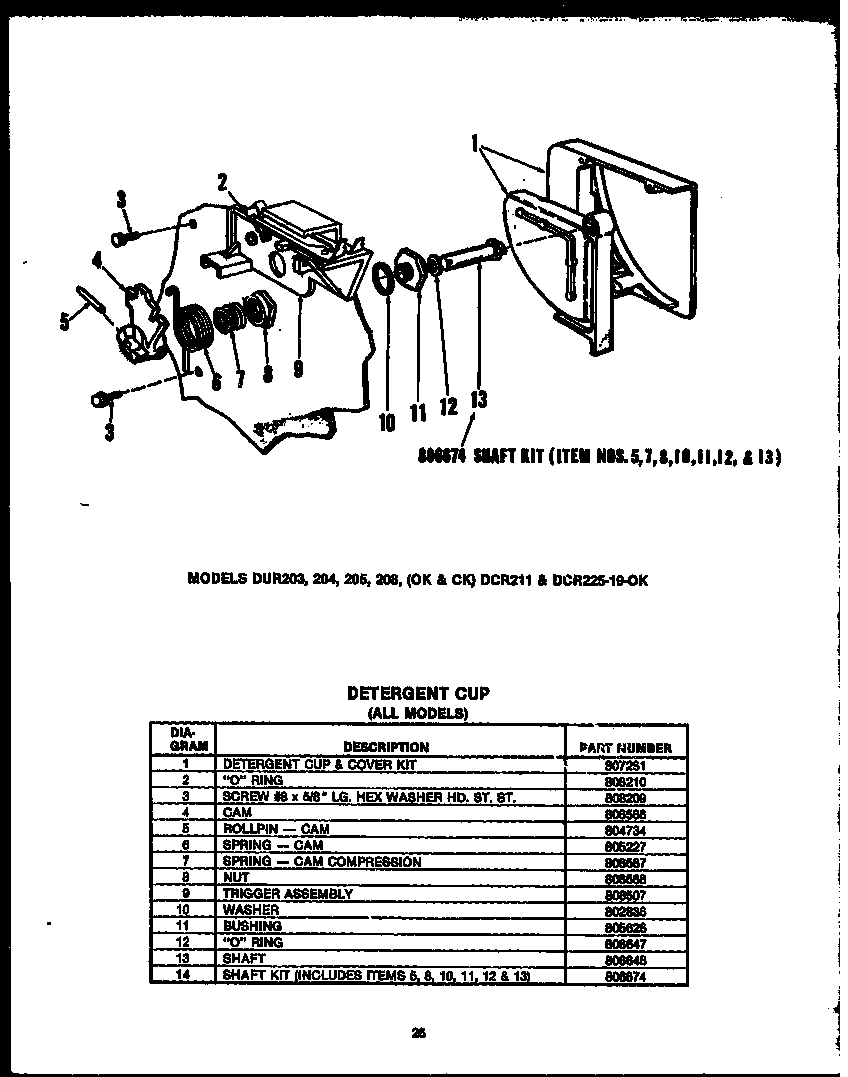

02 - DETERGENT CUP

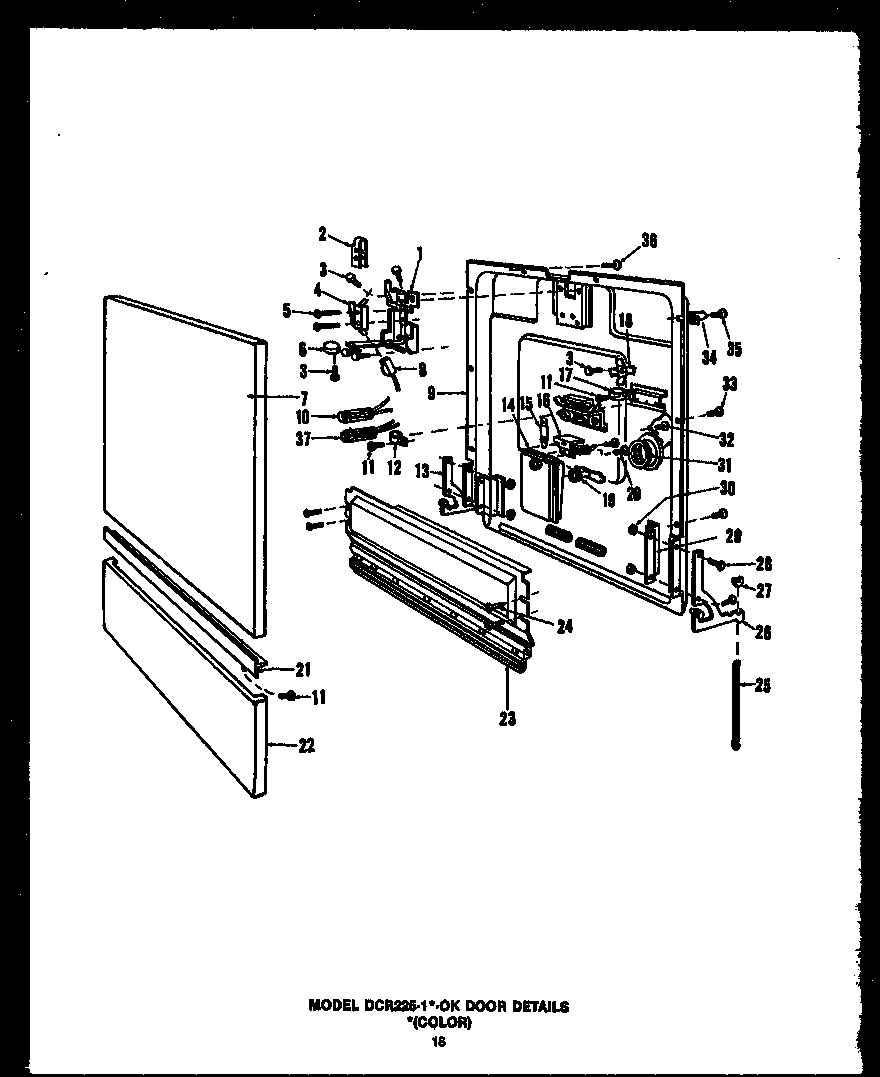

03 - DOOR DETAILS

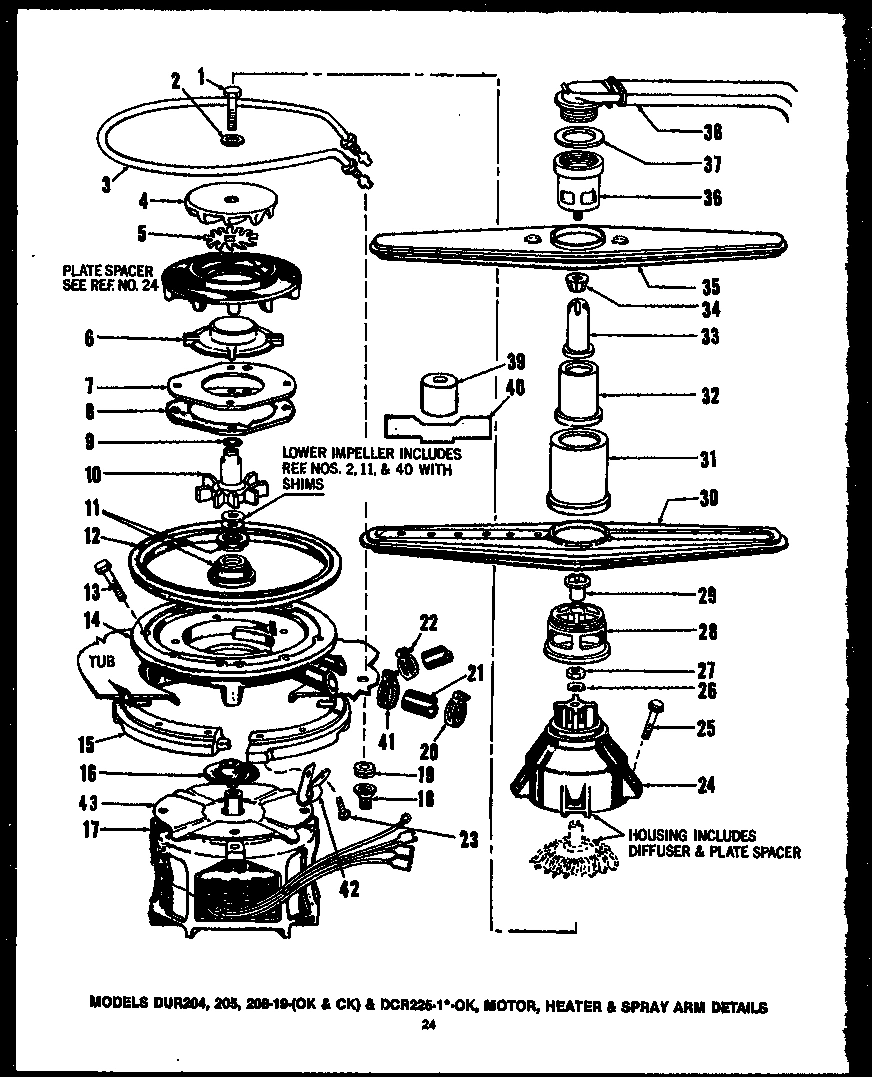

05 - MOTOR

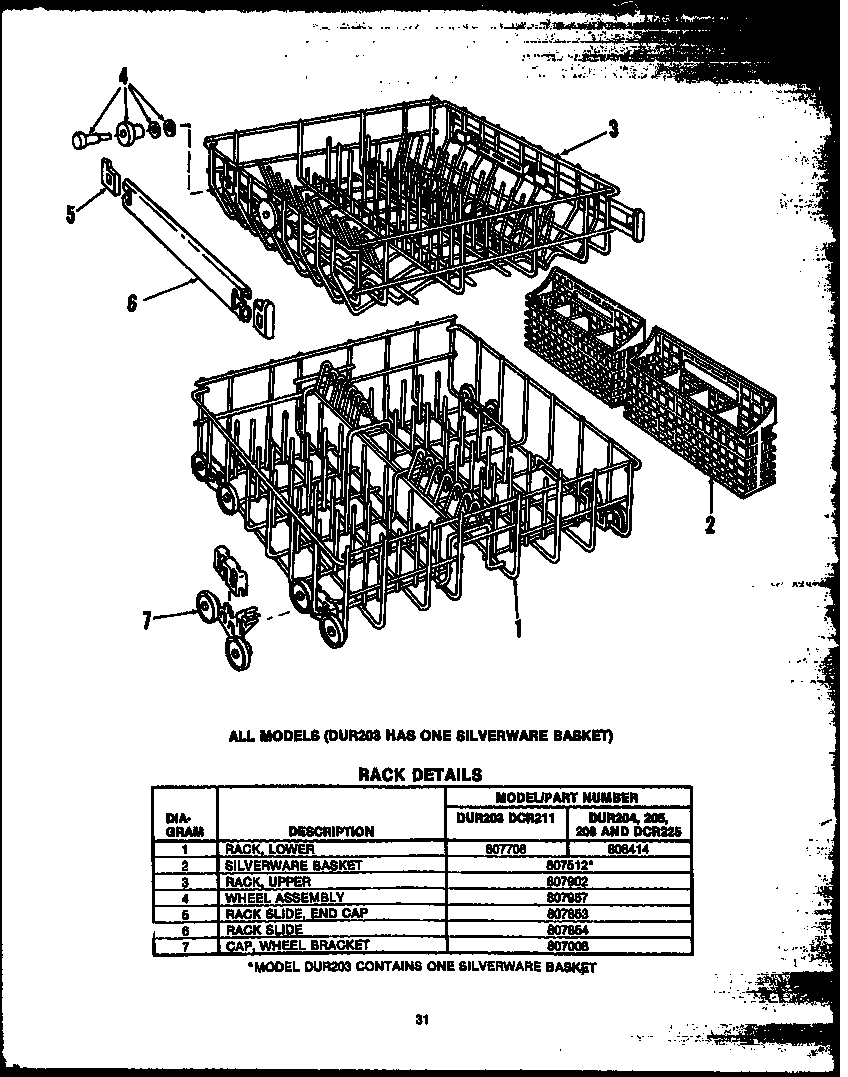

07 - RACK DETAILS

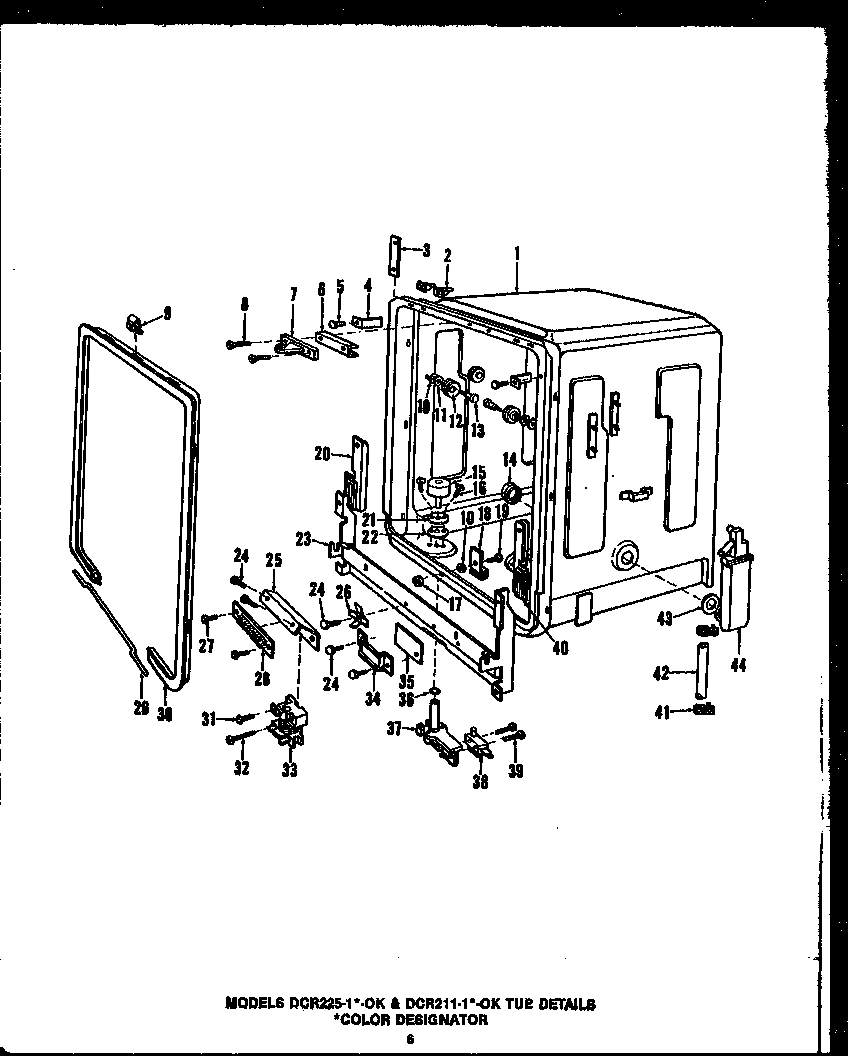

06 - Page 3
Common parts from model Whirlpool DCR2251COK DISHWASHER
1
SCREW WPL 0806943 Contact Us For Availability
1
SCREW WPL 0807036 Contact Us For Availability
1
CABINET TRIM - L.H. WPL 0806902 Contact Us For Availability
1
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
1
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
SUB 808946, RACK, LOWER WPL 0808414 Contact Us For Availability
1
SUB 809261, TUB & GASKET ASSY. WPL 0808187 Contact Us For Availability
2
LH END CAP WPL 806407 Contact Us For Availability
2
``O`` RING WPL Y0808210 Contact Us For Availability
2
SWITCH COVER WPL 0807450 Contact Us For Availability
2
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
2
PLASTIC NUT WPL 0807018 Contact Us For Availability
3
PUSHBUTTON WPL Y0807091 Contact Us For Availability
3
CLIP WPL 805069 Contact Us For Availability
3
SCREW WPL 0806663 Contact Us For Availability
3
SUB 806565, SCREW WPL 0808209 Contact Us For Availability
3
SUB 806864 HEATER SERVICE KIT WPL Y0806836 Contact Us For Availability
3
RACK, UPPER WPL 0807902 Contact Us For Availability
3
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
4
KNOB, TIMER WPL Y0808198 Contact Us For Availability
4
TOP, MAPLE WPL Y0808205 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
4
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
4
IMPELLER, UPPER WPL 0808041 Contact Us For Availability
4
ROLLER WPL Y0807957 Contact Us For Availability
4
TUB PAD WPL 807454 Contact Us For Availability
5
x ROCKER SWITCH WPL 0807737 Contact Us For Availability
5
CLAMP, TOP WPL Y0807819 Contact Us For Availability
5
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
5
SCREW WPL 0807951 Contact Us For Availability
5
SUB 808827, ROLL PIN WPL Y0804734 Contact Us For Availability
5
SCREW WPL Y0808425 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
6
SCREW WPL 0805324 Contact Us For Availability
6
SCREW WPL Y0807817 Contact Us For Availability
6
WASHER WPL 0807373 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
6
SUB 806893 LATCH KNOB WPL 0806398 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
RACK SLIDE WPL 0807854 Contact Us For Availability
6
SHIM STRIKE WPL 0807073 Contact Us For Availability
7
LENS WPL 0807096 Contact Us For Availability
7
HINGE, HOSE COVER WPL Y0808193 Contact Us For Availability
7
SCREW WPL Y0807950 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
7
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
7
DOOR PANEL, AVOCADO WPL 0807642 Contact Us For Availability
7
DOOR PANEL, GOLD WPL 0807643 Contact Us For Availability
7
DOOR PANEL WPL 807595 Contact Us For Availability
7
DOOR PANEL WPL 807641 Contact Us For Availability
7
PUMP PLATE WPL 0807884 Contact Us For Availability
7
WHEEL ASSY WPL Y0807008 Contact Us For Availability
7
STRIKE WPL Y0807015 Contact Us For Availability
8
OVERLAY, CONTROL PNL. WPL 0808626 Contact Us For Availability
8
SCREW ASSY WPL 0806382 Contact Us For Availability
8
SUB 808667, VALVE WPL Y0808431 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
8
TERMINAL INSULATOR WPL 0806846 Contact Us For Availability
8
GASKET, PUMP WPL Y0807709 Contact Us For Availability
9
OVERLAY, CNTL. PANEL WPL 0808627 Contact Us For Availability
9
WASHER, 19/32 IDX1.031 WPL Y0800787 Contact Us For Availability
9
TRIGGER ASSY WPL Y0808507 Contact Us For Availability
9
INNER DR. ASSY. WPL 0807194 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
FASTENER GASKET WPL Y0805763 Contact Us For Availability
10
END CAP R.H. WPL 0806406 Contact Us For Availability
10
BASE, LID WPL Y0808192 Contact Us For Availability
10
SUB 808972, CASTER WPL 0806171 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
10
THERMOSTAT, 155 DEGREES WPL 0808559 Contact Us For Availability
10
KIT, IMPELLER WPL 0808042 Contact Us For Availability
10
USE 0809044 WPL 0805776 Contact Us For Availability
11
LIGHT ASSEMBLY (WHITE) WPL 0805866 Contact Us For Availability
11
USE M0217224 WPL Y0803416 Contact Us For Availability
11
CABINET TRIM - R.H. WPL 0806903 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
11
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
12
SPACER WPL 0805323 Contact Us For Availability
12
POST WPL Y0808195 Contact Us For Availability
12
RELIEF, STRAIN WPL Y0804426 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
12
SUB 809008, GASKET, PUMP WPL Y0807710 Contact Us For Availability
12
ROLLER WPL 0807180 Contact Us For Availability
13
TIMER WPL Y0808509 Contact Us For Availability
13
LID WPL 0808194 Contact Us For Availability
13
CORD, POWER WPL 0805046 Contact Us For Availability
13
SHAFT WPL 806648 Contact Us For Availability
13
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
13
SUB 808564, KIT, SCREW & WSR. WPL 0807181 Contact Us For Availability
14
TIMER GUARD WPL 0806972 Contact Us For Availability
14
SEE NOTE FRAME ASS`Y WRAPPER WPL Y00000000 Contact Us For Availability
14
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
14
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
14
SUB 809102, PUMP HSG. WPL Y0807711 Contact Us For Availability
14
NUT PLASTIC WPL 0805669 Contact Us For Availability
15
HOSE GUARD WPL 0808120 Contact Us For Availability
15
PLUNGER WPL 0806757 Contact Us For Availability
15
CLAMPING RING WPL Y707712 Contact Us For Availability
15
FLOAT WPL Y0804630 Contact Us For Availability
16
SCREW WPL Y0807268 Contact Us For Availability
16
GUIDE, HOSE WPL 0805859 Contact Us For Availability
16
BRACKET ASSEMBLY WPL 0806756 Contact Us For Availability
16
SLINGER WPL 0800062 Contact Us For Availability
17
SPLASH PAN WPL 0807425 Contact Us For Availability
17
USE M0281003 WPL 0803346 Contact Us For Availability
17
BRACKET RETAINING WPL 0806142 Contact Us For Availability
17
MOTOR ASSEMBLY WPL Y0806300 Contact Us For Availability
18
SUPPORT, HOSE WPL 0806143 Contact Us For Availability
18
NUT WPL 0806834 Contact Us For Availability
18
CLIP, GASKET WPL 0808115 Contact Us For Availability
19
SWITCH WPL Y0808201 Contact Us For Availability
19
SUB 807673 FILL PLUG WPL Y0806843 Contact Us For Availability
19
GROMMET WPL Y0806833 Contact Us For Availability
20
BRACKET, SWITCH WPL 0807102 Contact Us For Availability
20
WASHER, COUPLER WPL Y0803393 Contact Us For Availability
20
CLAMP WPL 0805495 Contact Us For Availability
20
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
21
SCREW WPL 0807103 Contact Us For Availability
21
ADAPTER WPL Y0800782 Contact Us For Availability
21
DOOR BOTTOM TRIM WPL 0806912 Contact Us For Availability
21
HOSE CONNECTOR WPL 0808174 Contact Us For Availability
21
RING WPL Y0808064 Contact Us For Availability
22
SHIELD, VENT PLATE WPL Y0808398 Contact Us For Availability
22
WASHER, ADAPTER WPL Y0803392 Contact Us For Availability
22
ACCESS PANEL ASSY., WHITE WPL 0808069 Contact Us For Availability
22
ACCESS PANEL ASSY., ALMOND WPL 0808081 Contact Us For Availability
22
ACCESS PANEL ASSY, DARK COPPER WPL 0808082 Contact Us For Availability
22
ACCESS PANEL ASSY, AVOCADO WPL 0808083 Contact Us For Availability
22
ACCESS PANEL ASSY., GOLD WPL 0808084 Contact Us For Availability
22
CLAMP, HOSE WPL 0806090 Contact Us For Availability
22
GASKET WPL Y0808063 Contact Us For Availability
23
SPEED NUT WPL Y0808475 Contact Us For Availability
23
SCREW WPL 0807270 Contact Us For Availability
23
VENT PLATE ASSEMBLY WPL 0808369 Contact Us For Availability
23
WELD ASSEMBLY, HINGE WPL Y0807885 Contact Us For Availability
24
VENT GRILLE WPL Y0808477 Contact Us For Availability
24
SCREW WPL 0806830 Contact Us For Availability
24
USE 0806976 WPL 0806810 Contact Us For Availability
24
HOUSING WPL Y0806978 Contact Us For Availability
25
SUB 809139, COLLAR WPL Y0807499 Contact Us For Availability
25
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
25
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
25
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
26
KIT, PRESSURE RELIEF WPL 0807498 Contact Us For Availability
26
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
26
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
26
LOCKWASHER WPL 0804526 Contact Us For Availability
27
FAUCET COUPLER ASSEMBLY WPL Y0807496 Contact Us For Availability
27
SPRING PAD WPL 0805884 Contact Us For Availability
27
NUT WPL 0804527 Contact Us For Availability
28
WEIGHT WPL 0808615 Contact Us For Availability
28
SCREW WPL 0803311 Contact Us For Availability
28
BEARING WPL Y0808175 Contact Us For Availability
28
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
29
SUB 806967 SCREW WPL 0806812 Contact Us For Availability
29
ARM BRACKET WPL Y0806717 Contact Us For Availability
29
NUT WPL Y0808176 Contact Us For Availability
29
JUNCTION, WIRE GASKET WPL 0808344 Contact Us For Availability
30
NUT WPL 0808614 Contact Us For Availability
30
SPRAY ARM WPL 0808177 Contact Us For Availability
30
SUB 808959, GASKET & WIRE ASSY WPL Y0808345 Contact Us For Availability
31
WASHER WPL 0808613 Contact Us For Availability
31
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
31
TOWER BASE WPL Y0808178 Contact Us For Availability
32
SCREW WPL 0806863 Contact Us For Availability
32
TOWER SECTION WPL Y0808179 Contact Us For Availability
32
SCREW WPL 0804672 Contact Us For Availability
33
SCREW WPL 0806967 Contact Us For Availability
33
TOWER TIP WPL Y0808180 Contact Us For Availability
33
SUB 805255 RELAY WPL 0806121 Contact Us For Availability
34
DOOR GUIDE WPL 0807449 Contact Us For Availability
34
NUT, SPRAY ARM WPL Y0808181 Contact Us For Availability
34
WIRING CLAMP WPL 0806723 Contact Us For Availability
35
SCREW WPL 0806976 Contact Us For Availability
35
SPRAY ARM, UPPER WPL 0808259 Contact Us For Availability
35
WIRE SHIELD WPL 0808013 Contact Us For Availability
36
SCREW WPL 0806894 Contact Us For Availability
36
DISTRIBUTOR WPL 0808183 Contact Us For Availability
36
``0`` RING WPL Y0807759 Contact Us For Availability
37
THERMOSTAT,124 DEGREES WPL Y0808560 Contact Us For Availability
37
GASKET WPL 0808184 Contact Us For Availability
37
SUB 809859,FLOAT ASSY WPL Y0807677 Contact Us For Availability
38
ELBOW & TUBE ASSY WPL 0808185 Contact Us For Availability
38
FLOAT SWITCH WPL Y0807680 Contact Us For Availability
39
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
39
SCREW 4-40 X 5/8 LG HEX HD CAD WPL 0804594 Contact Us For Availability
40
SHIM GAUGE WPL 0807077 Contact Us For Availability
40
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
41
CLAMP WPL Y0807813 Contact Us For Availability
42
CLAMP WPL Y0808442 Contact Us For Availability
42
TUBE, INLET WPL 0807891 Contact Us For Availability
43
WATER SHIELD ASSY WPL 0808435 Contact Us For Availability
43
WASHER WPL Y0803573 Contact Us For Availability
44
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
NI
SUB 808928, CONVERSION KIT WPL 0090896 Contact Us For Availability
NI
FLOW WASHER WPL 0808432 Contact Us For Availability
× ![]()
Login and Registration Form
