Model Whirlpool DCFM623WDD00 Chest Freezer – Common Parts & Diagrams

Common parts from model Whirlpool DCFM623WDD00 Chest Freezer

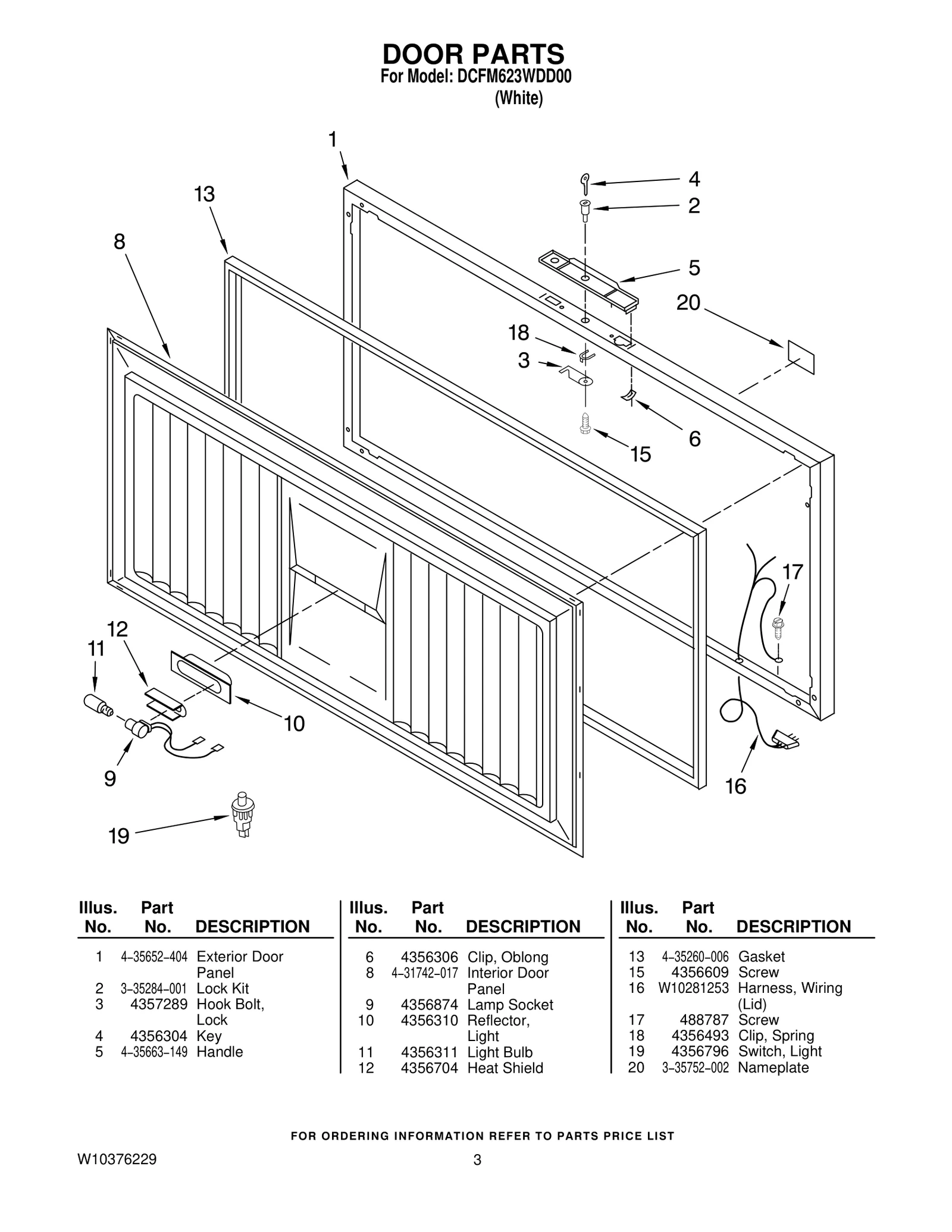

CABINET PARTS

Print

• This Diagram
• All Diagrams

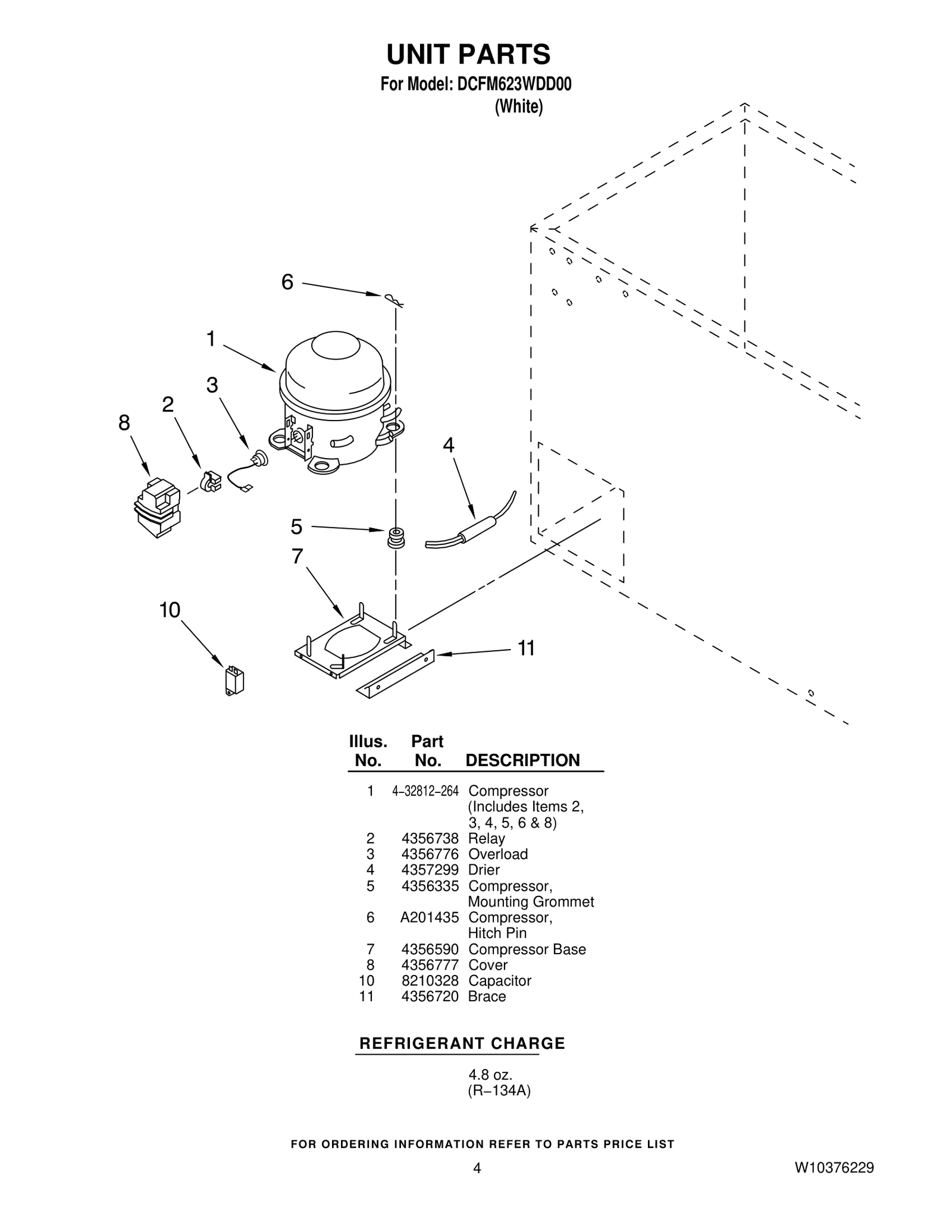

1

4−32812−264 Compressor (Includes Items 2, WPL N/S Contact Us For Availability

View on Model

2

Relay WPL 4356738 Contact Us For Availability

View on Model

3

2-34286-021 Whirlpool Refrigerator Overload R Backorder WPL 2-34286-021 View Details $98.12

View on Model

3

Hook Bolt, Lock WPL 4357289 Contact Us For Availability

View on Model

4

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 View Details $31.99

View on Model

4

Key WPL 4356304 Contact Us For Availability

View on Model

5

Compressor, Mounting Grommet WPL 4356335 Contact Us For Availability

View on Model

6

A201435 Whirlpool Refrigerator Clip Backorder WPL A201435 View Details $5.85

View on Model

6

Clip, Oblong WPL 4356306 Contact Us For Availability

View on Model

7

Compressor Base WPL 4356590 Contact Us For Availability

View on Model

8

4356777 Whirlpool Term Cover Backorder WPL 4356777 View Details $99.80

View on Model

9

Lamp Socket WPL 4356874 Contact Us For Availability

View on Model

10

3-25693-001 Whirlpool Freezer Defrost Light Backorder WPL 3-25693-001 View Details $12.41

View on Model

10

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 View Details $13.22

View on Model

10

Capacitor WPL 8210328 Contact Us For Availability

View on Model

11

3-81556-001 Whirlpool Brace Backorder WPL 3-81556-001 View Details $9.25

View on Model

11

W10873798 Whirlpool Refrigerator Light Bulb Backorder WPL W10873798 View Details $9.65

View on Model

12

Drain, Plug WPL 4356456 Contact Us For Availability

View on Model

12

Heat Shield WPL 4356704 Contact Us For Availability

View on Model

14

Access Panel WPL 4356622 Contact Us For Availability

View on Model

15

3-24004-049 Whirlpool Screw Backorder WPL 3-24004-049 View Details $5.46

View on Model

15

W11233072 Whirlpool Screw In Stock WPL W11233072 View Details $11.38

View on Model

16

4356491 Whirlpool Refrigerator Screw Backorder WPL 4356491 View Details $8.98

View on Model

16

W10620417 Whirlpool Freezer Harness Backorder WPL W10620417 View Details $96.51

View on Model

17

4356641 Whirlpool Freezer Trim Bracket Backorder WPL 4356641 View Details $111.64

View on Model

17

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 View Details $6.83

View on Model

18

W11045298 Whirlpool Freezer Trim Bracket Backorder WPL W11045298 View Details $92.07

View on Model

18

Clip, Spring WPL 4356493 Contact Us For Availability

View on Model

19

W10917237 Whirlpool Freezer Switch Backorder WPL W10917237 View Details $27.59

View on Model

19

W11045300 Whirlpool Freezer Trim Bracket Backorder WPL W11045300 View Details $60.72

View on Model

20

Divider WPL 4356477 Contact Us For Availability

View on Model

21

W11663505 Whirlpool Hose Adapter Backorder WPL W11663505 View Details $11.01

View on Model

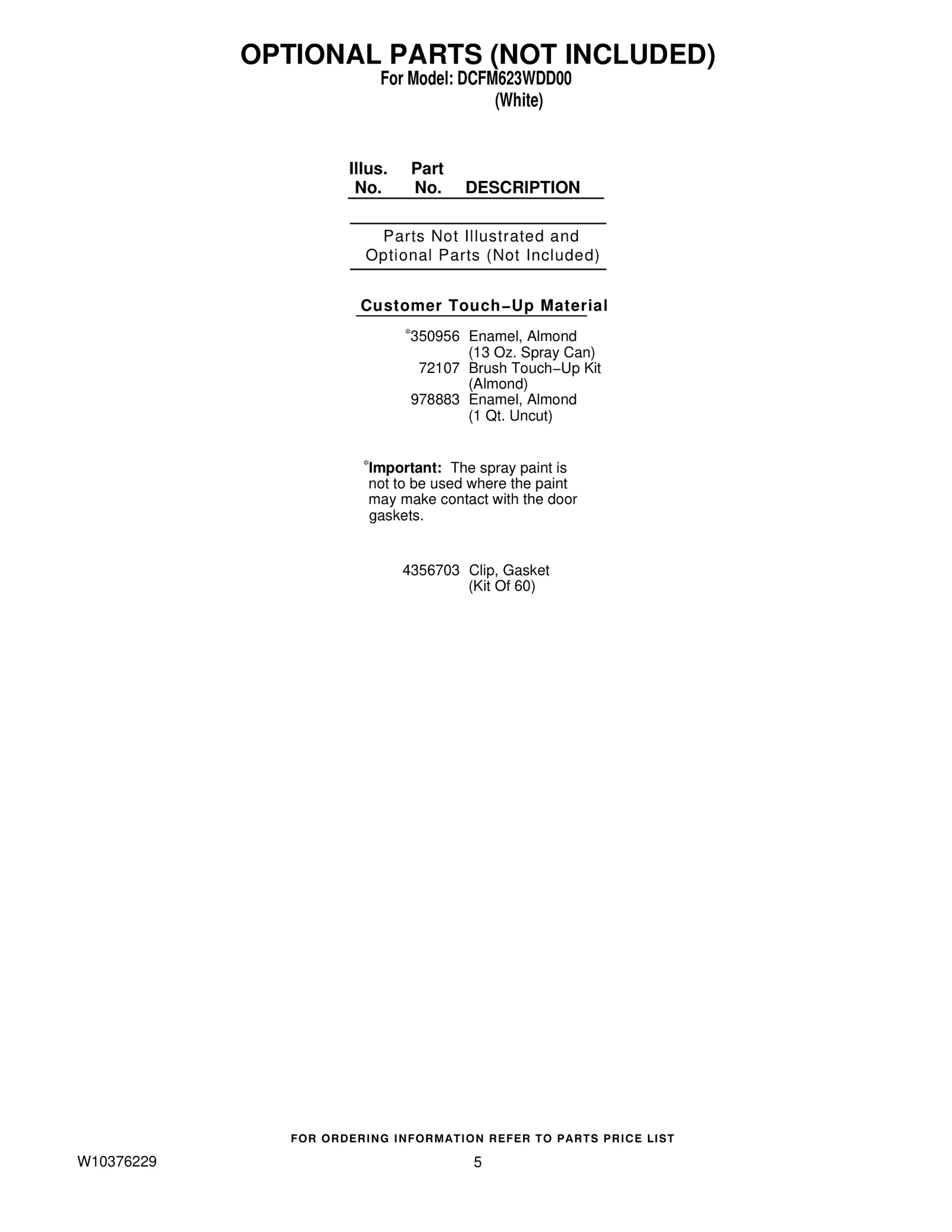

OPT-1

350956 Whirlpool Spray Assembly In Stock WPL 350956 View Details $26.25

View on Model

OPT-2

WP72107 Whirlpool Touchup In Stock WPL WP72107 View Details $10.96

View on Model

OPT-3

Enamel, Almond WPL 978883 Contact Us For Availability

View on Model

OPT-4

Clip, Gasket WPL 4356703 Contact Us For Availability

View on Model

×

Search result for :
