Model Maytag D3167XVALT GAS RANGE – Common Parts & Diagrams

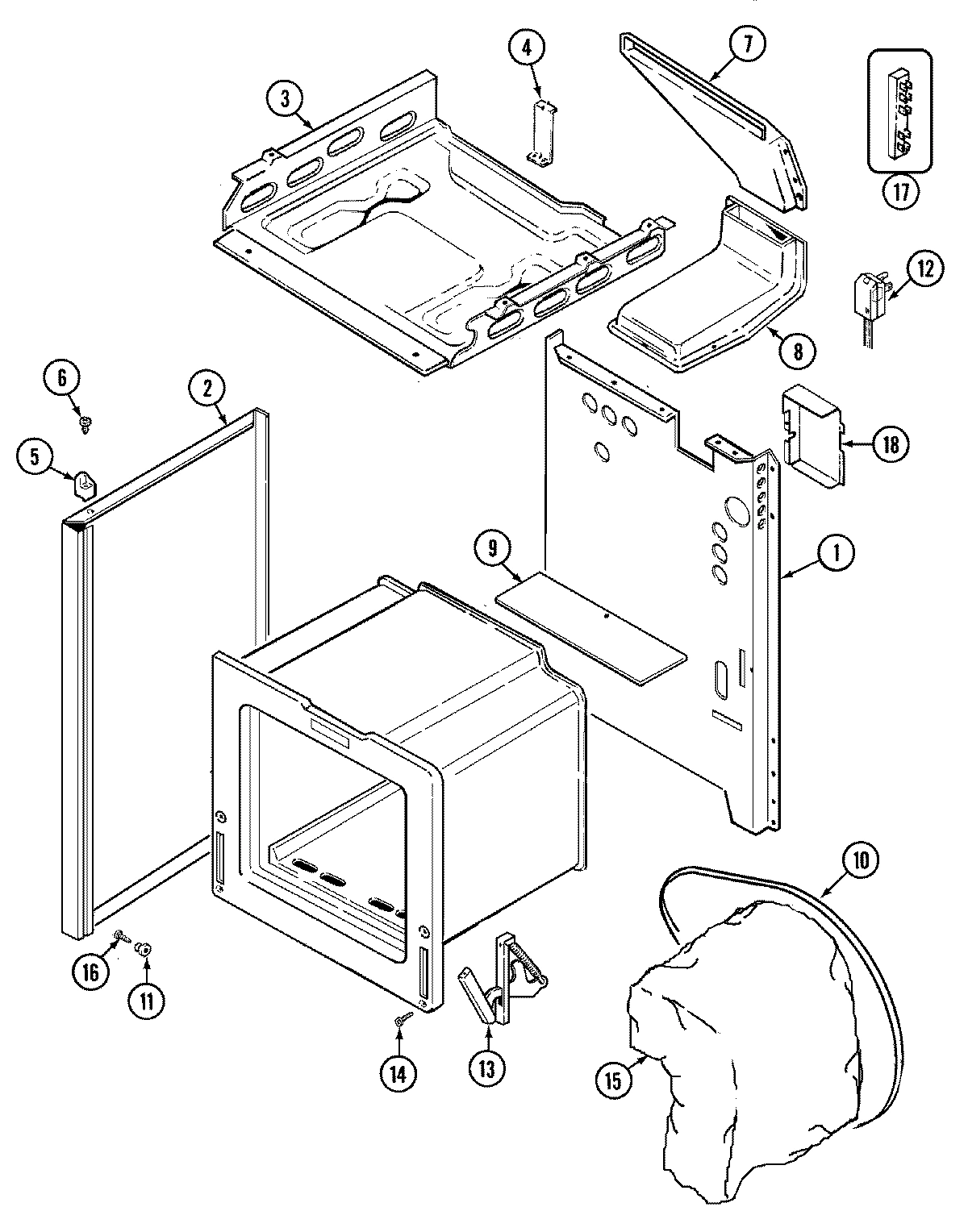

01 - BODY

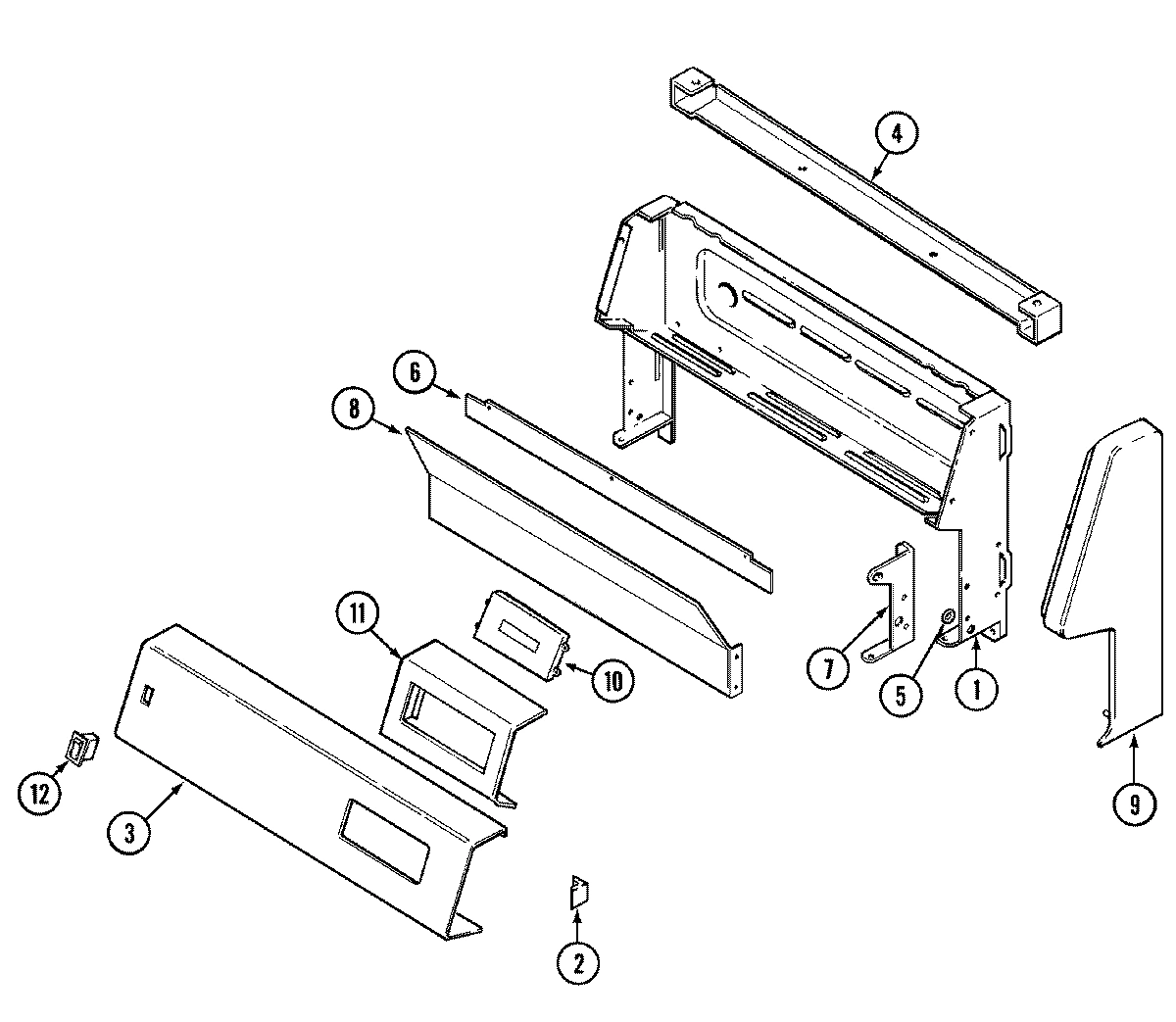

02 - CONTROL PANEL

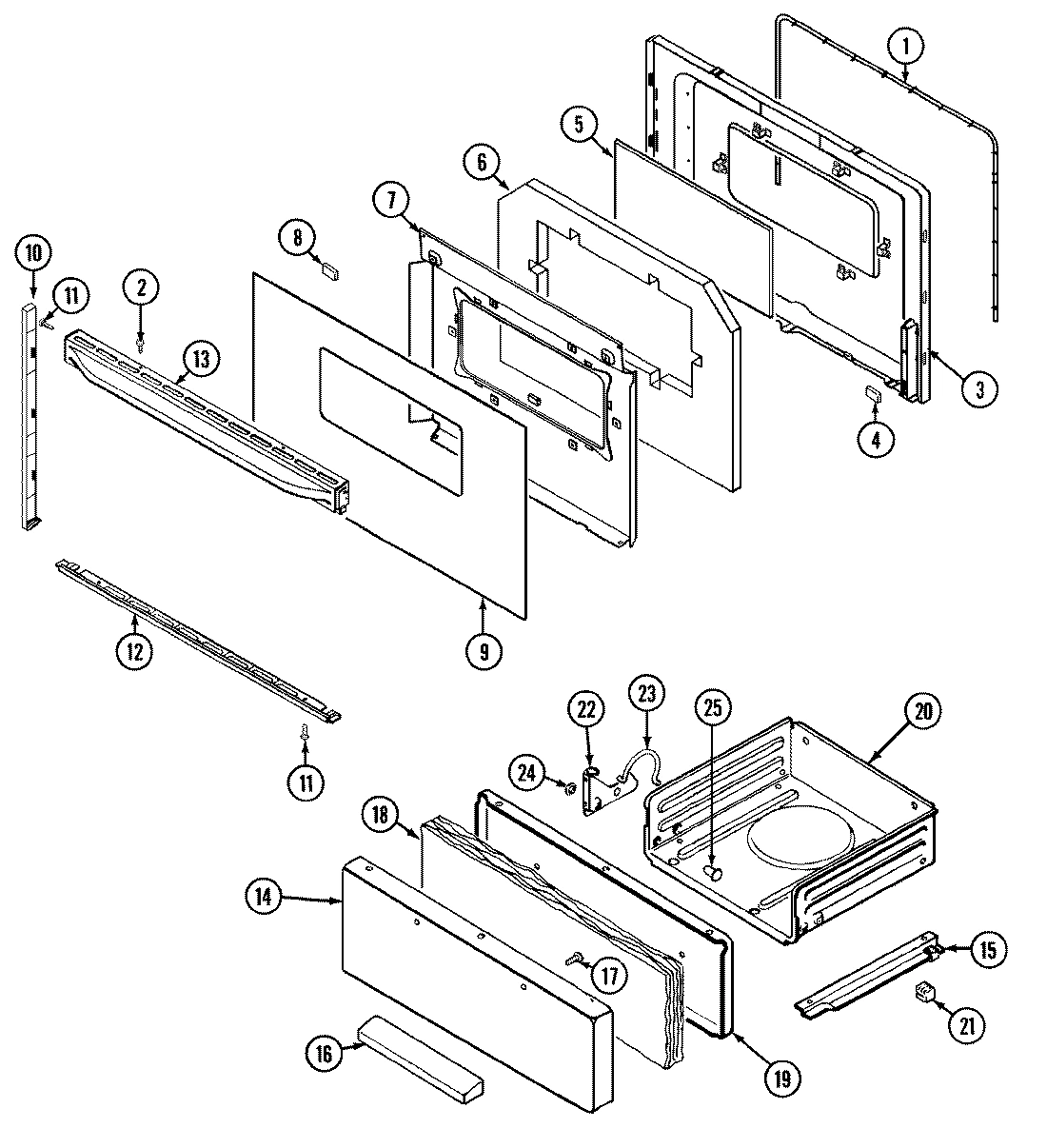

03 - DOOR/DRAWER

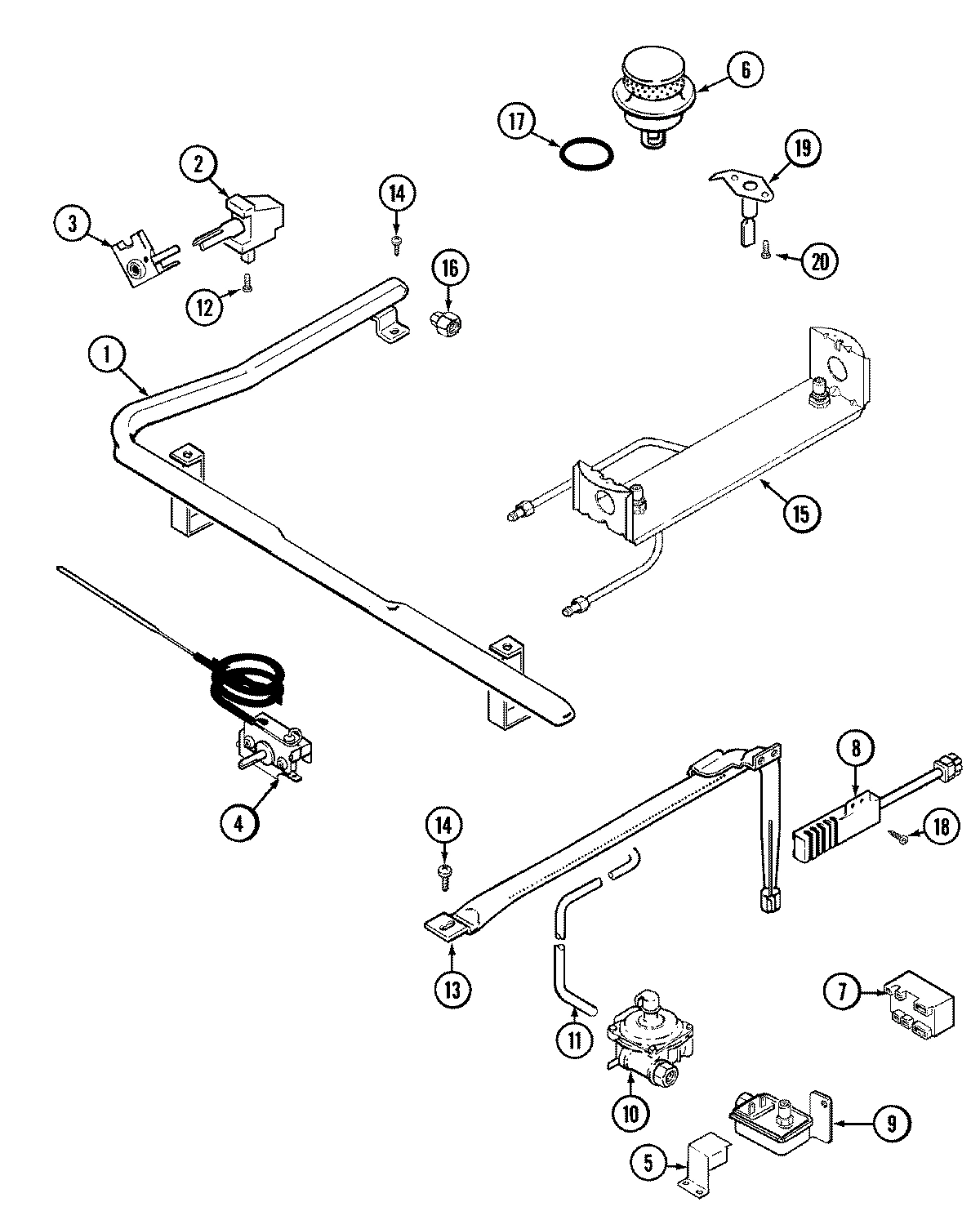

04 - GAS CONTROLS (D3167XVxLT)

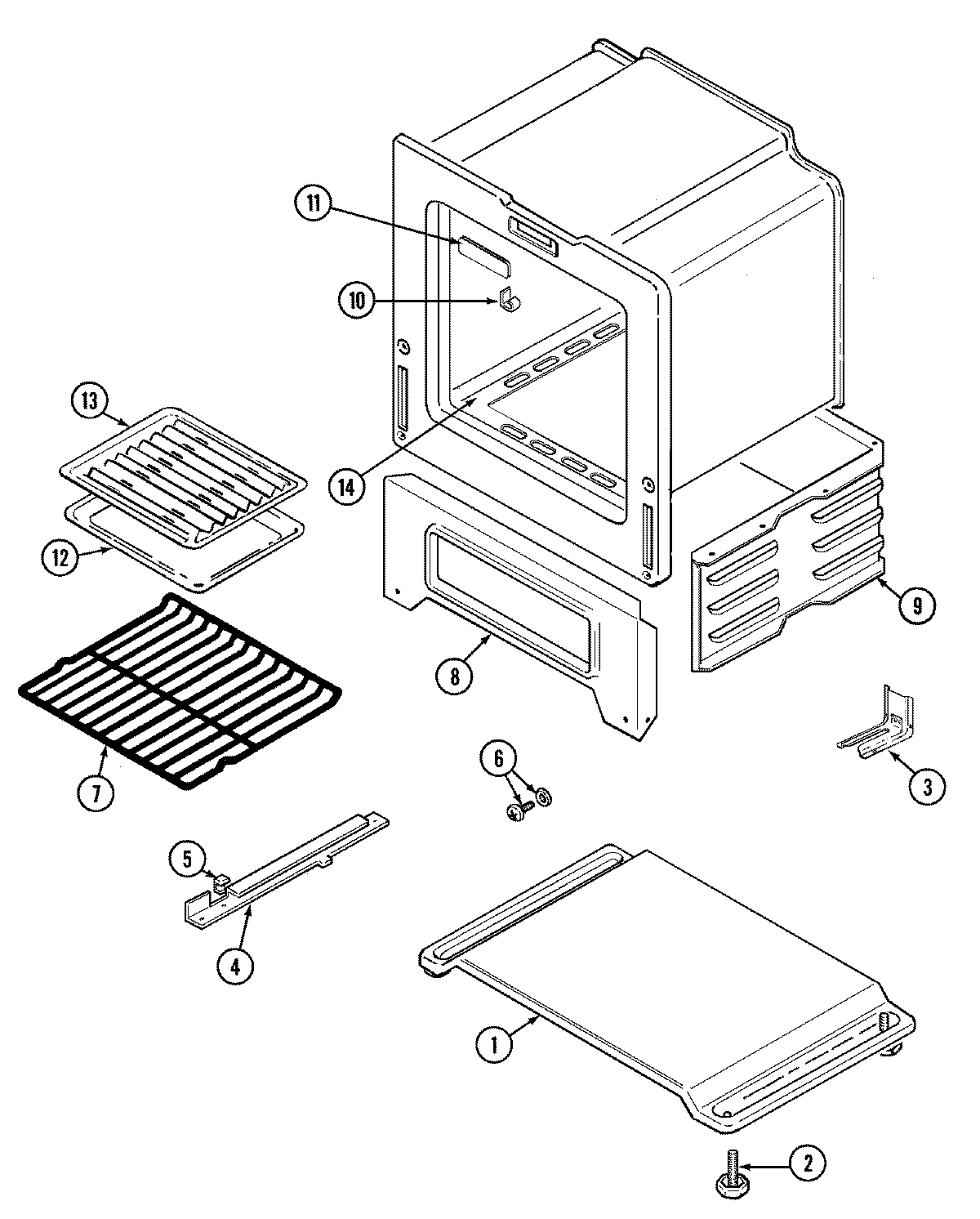

05 - OVEN/BASE

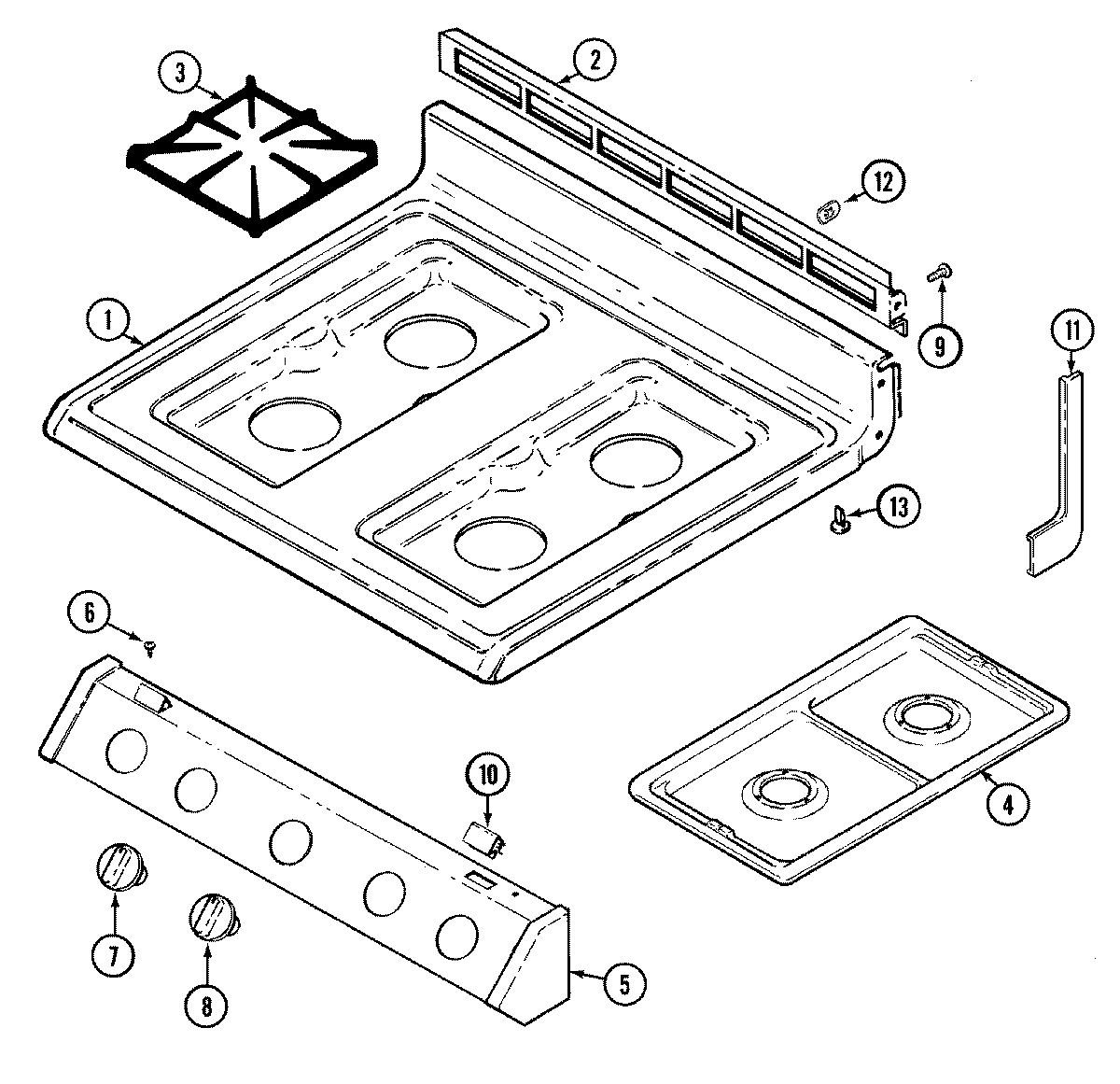

06 - TOP ASSEMBLY

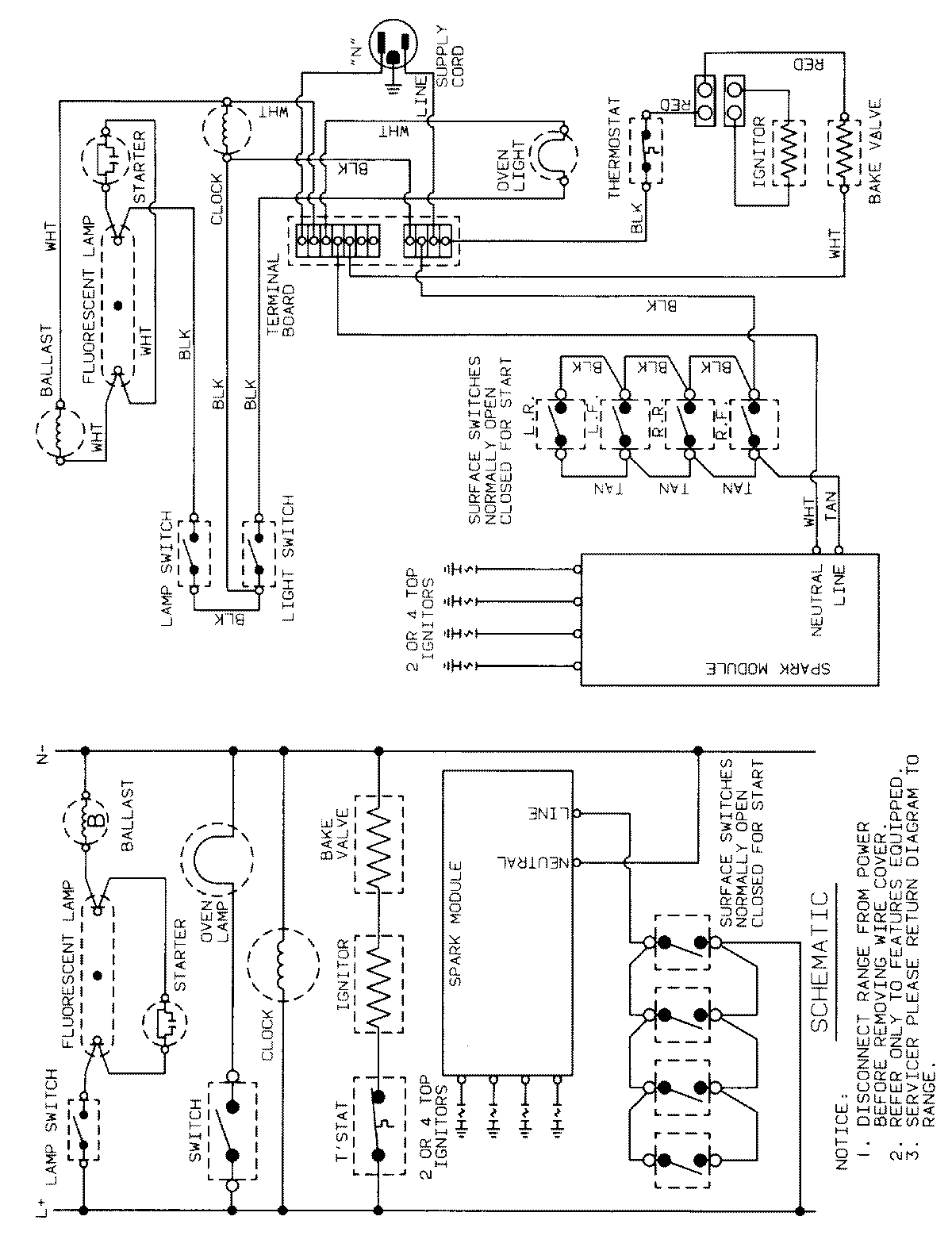

07 - WIRING INFORMATION
Common parts from model Maytag D3167XVALT GAS RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 4005F448-45 MAY 4005F448-45 Contact Us For Availability
1
MAY 7513P120-60 MAY 7513P120-60 Contact Us For Availability
1
MAY 4003W029-80 MAY 4003W029-80 Contact Us For Availability
1
MAY 2001W085-84 MAY 2001W085-84 Contact Us For Availability
1
MAY 7101P343-60 MAY 7101P343-60 Contact Us For Availability
2
MAY 74001311 MAY 74001311 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 7502P250-60 MAY 7502P250-60 Contact Us For Availability
2
MAY 3608F042-09 MAY 3608F042-09 Contact Us For Availability
3
MAY 7703P568-60 MAY 7703P568-60 Contact Us For Availability
3
MAY 7719P071-60 MAY 7719P071-60 Contact Us For Availability
3
MAY 2402W213-19 MAY 2402W213-19 Contact Us For Availability
3
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
3
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
3
MAY 2003W027-00 MAY 2003W027-00 Contact Us For Availability
4
MAY 7404P087-60 MAY 7404P087-60 Contact Us For Availability
4
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
4
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
4
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
4
MAY 3404F018-51 MAY 3404F018-51 Contact Us For Availability
4
MAY 3404F021-51 MAY 3404F021-51 Contact Us For Availability
4
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
5
MAY 7103P129-60 MAY 7103P129-60 Contact Us For Availability
5
MAY 7902P319-60 MAY 7902P319-60 Contact Us For Availability
5
MAY 4005F333-51 MAY 4005F333-51 Contact Us For Availability
5
MAY 8016P010-60 MAY 8016P010-60 Contact Us For Availability
5
MAY 7712P134-60 MAY 7712P134-60 Contact Us For Availability
6
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
6
MAY 7002P158-60 MAY 7002P158-60 Contact Us For Availability
6
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
6
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
7
MAY 7731P071-60 MAY 7731P071-60 Contact Us For Availability
7
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
7
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
7
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
7
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
7
MAY 3601F240-80 MAY 3601F240-80 Contact Us For Availability
7
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
7
MAY 3807F432-45 MAY 3807F432-45 Contact Us For Availability
7
MAY 7431P027-60 MAY 7431P027-60 Contact Us For Availability
7
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
8
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
8
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
8
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
8
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
8
MAY 2201F077-19 MAY 2201F077-19 Contact Us For Availability
8
MAY 7733P065-60 MAY 7733P065-60 Contact Us For Availability
9
MAY 3807F416-45 MAY 3807F416-45 Contact Us For Availability
9
MAY 7726P046-60 MAY 7726P046-60 Contact Us For Availability
9
MAY 7726P050-60 MAY 7726P050-60 Contact Us For Availability
9
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
9
MAY 7501P138-60 MAY 7501P138-60 Contact Us For Availability
9
MAY 4016F044-45 MAY 4016F044-45 Contact Us For Availability
9
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
10
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
10
MAY 7602P118-60 MAY 7602P118-60 Contact Us For Availability
10
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
10
MAY 7507P123-60 MAY 7507P123-60 Contact Us For Availability
10
MAY 7510P068-60 MAY 7510P068-60 Contact Us For Availability
10
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
11
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
11
MAY 74001728 MAY 74001728 Contact Us For Availability
11
MAY 3414F104-44 MAY 3414F104-44 Contact Us For Availability
11
MAY 7718P013-60 MAY 7718P013-60 Contact Us For Availability
11
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
11
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
12
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
12
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
12
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 7106P055-60 MAY 7106P055-60 Contact Us For Availability
13
MAY 7701P144-60 MAY 7701P144-60 Contact Us For Availability
13
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
13
MAY 3403D023-45 MAY 3403D023-45 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
14
MAY 2403F028-64 MAY 2403F028-64 Contact Us For Availability
14
MAY 3601F239-47 MAY 3601F239-47 Contact Us For Availability
14
MAY 5504A003-19 MAY 5504A003-19 Contact Us For Availability
15
MAY 4804F039-60 MAY 4804F039-60 Contact Us For Availability
15
MAY 4804F044-60 MAY 4804F044-60 Contact Us For Availability
15
MAY 3404F022-51 MAY 3404F022-51 Contact Us For Availability
15
MAY 3404F023-51 MAY 3404F023-51 Contact Us For Availability
15
MAY 5187D033-60 MAY 5187D033-60 Contact Us For Availability
16
MAY 74001449 MAY 74001449 Contact Us For Availability
16
MAY 74001820 MAY 74001820 Contact Us For Availability
16
MAY 7701P012-60 MAY 7701P012-60 Contact Us For Availability
16
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
17
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
17
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
18
MAY 4005F385-51 MAY 4005F385-51 Contact Us For Availability
18
MAY 4804F025-60 MAY 4804F025-60 Contact Us For Availability
19
MAY 2404F035-19 MAY 2404F035-19 Contact Us For Availability
20
MAY 3407F012-19 MAY 3407F012-19 Contact Us For Availability
21
MAY 8016P011-60 MAY 8016P011-60 Contact Us For Availability
22
MAY 3418F079-51 MAY 3418F079-51 Contact Us For Availability
22
MAY 3418F080-51 MAY 3418F080-51 Contact Us For Availability
23
MAY 7803P064-60 MAY 7803P064-60 Contact Us For Availability
23
MAY 7803P065-60 MAY 7803P065-60 Contact Us For Availability
24
MAY 7103P022-60 MAY 7103P022-60 Contact Us For Availability
25
MAY 7113P012-60 MAY 7113P012-60 Contact Us For Availability
NI
MAY 16000329 MAY 16000329 Contact Us For Availability
NI
MAY 5180D138-60 MAY 5180D138-60 Contact Us For Availability
NI
MAY 8113P012-60 MAY 8113P012-60 Contact Us For Availability
NI
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
NI
MAY 5140D038-60 MAY 5140D038-60 Contact Us For Availability
NI
MAY 5195D078-60 MAY 5195D078-60 Contact Us For Availability
NI
MAY 7111P017-60 MAY 7111P017-60 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
NI
MAY Y707113 MAY Y707113 Contact Us For Availability
NI
MAY 15001339 MAY 15001339 Contact Us For Availability
× ![]()
