Model Whirlpool D16C FREEZER – Common Parts & Diagrams
02 - CABINET AND REFRIGERATION ASSY

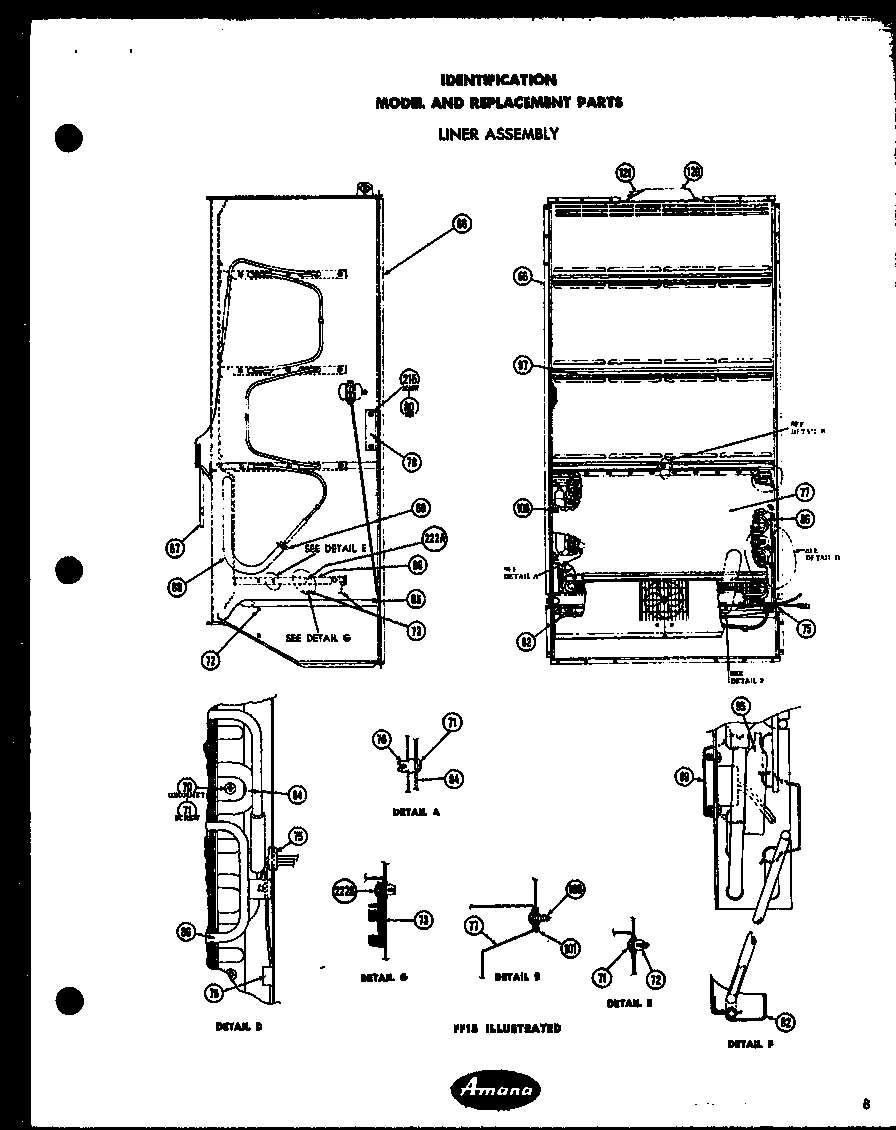

04 - LINER ASSY

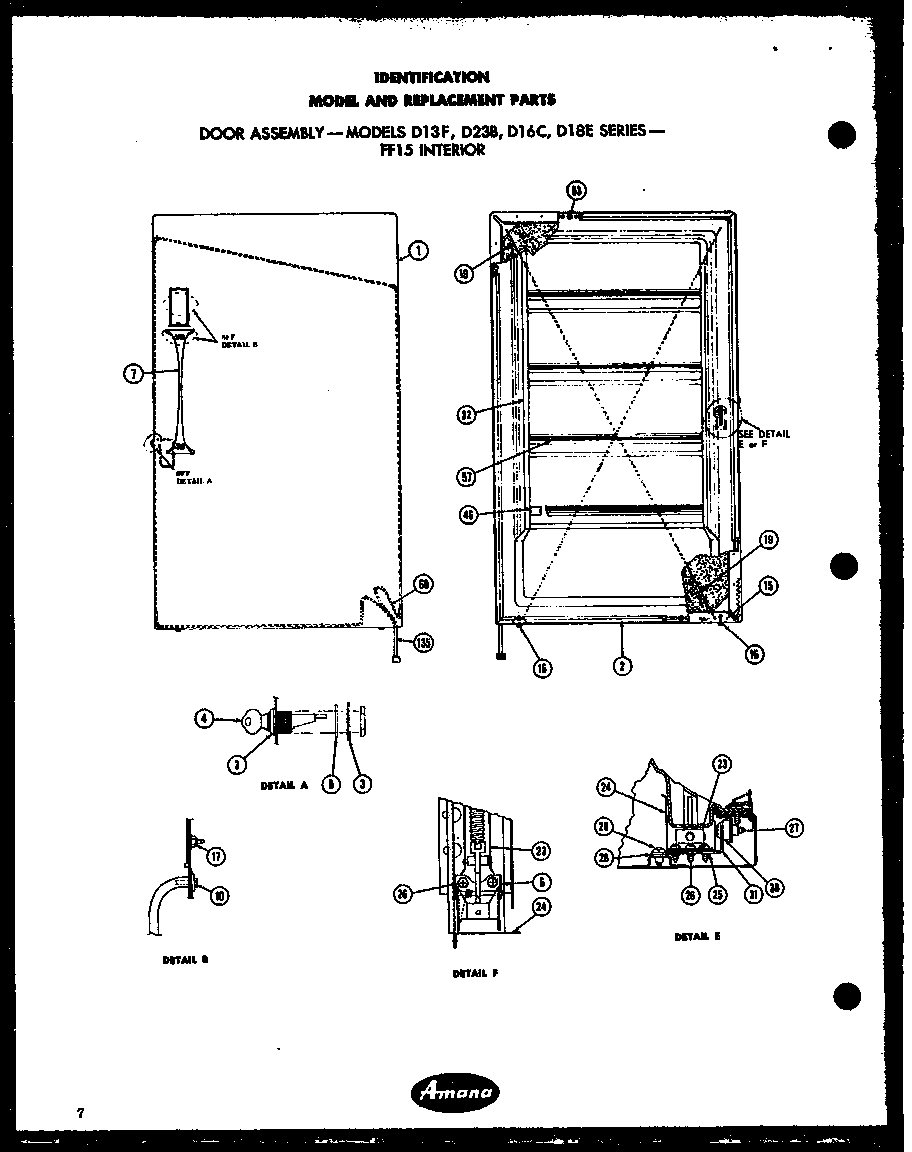

03 - DOOR ASSY

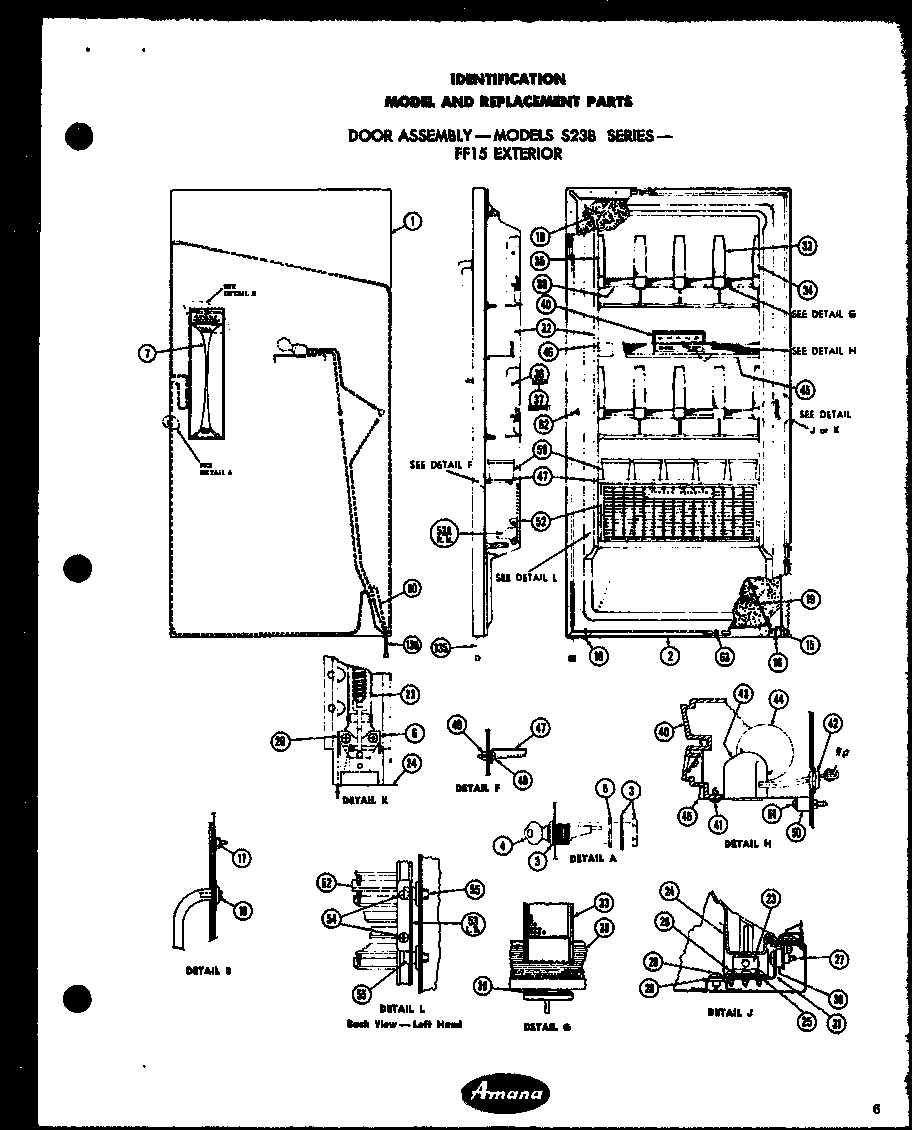

05 - Page 1

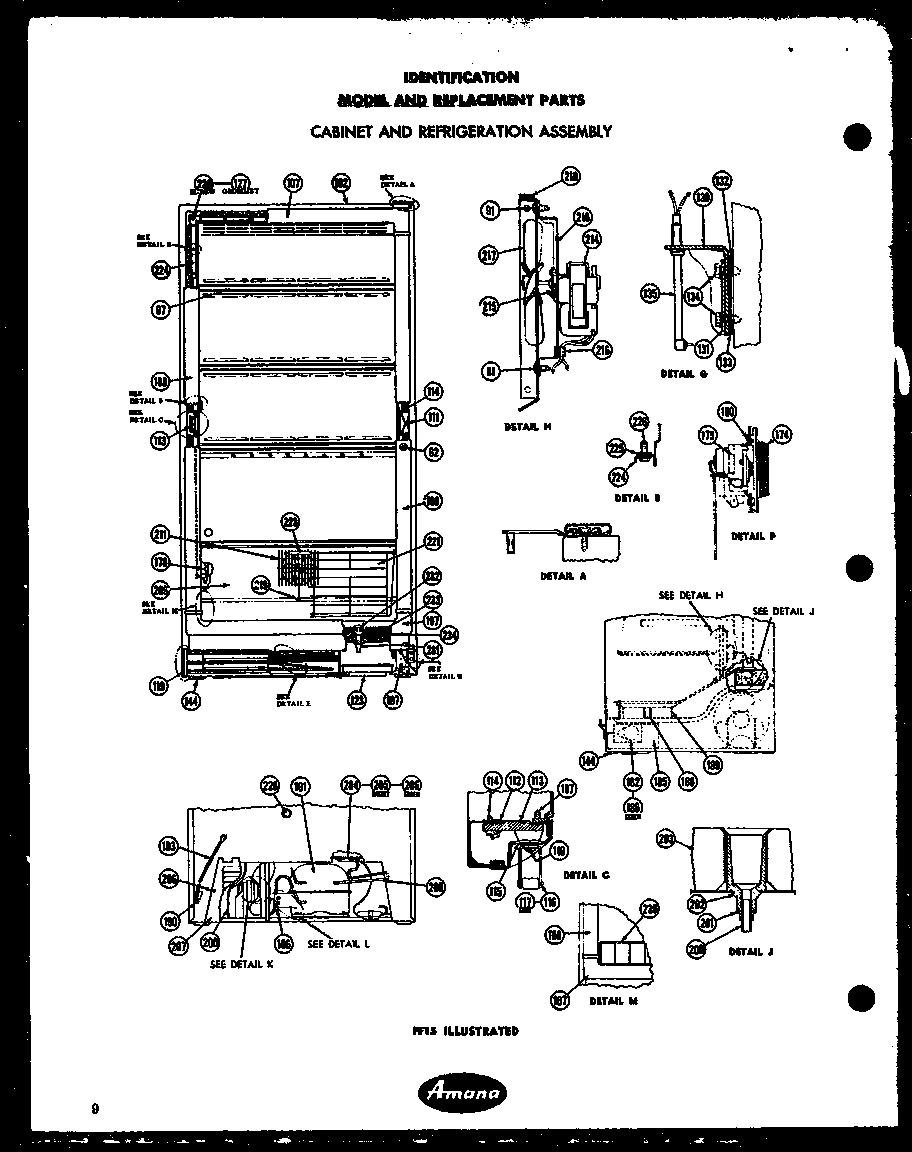

01 - CABINET AND REFRIGERATION ASSY
Common parts from model Whirlpool D16C FREEZER
1
DOOR SHELL WPL D3889507 Contact Us For Availability
2
GASKET WPL D3771703 Contact Us For Availability
3
LOCK ASSY WPL B0479301 Contact Us For Availability
4
KEYS WPL A0382001 Contact Us For Availability
5
SEALING WASHER, SEALING LOCK A WPL A0320201 Contact Us For Availability
6
LOCK LEVER WPL B0484301 Contact Us For Availability
7
HANDLE, DOOR WPL D3890301 Contact Us For Availability
10
SEMS FASTENER WPL A3014702 Contact Us For Availability
11
SEMS FASTENER WPL A3014701 Contact Us For Availability
12
ESCUTCHEON, DOOR WPL C3562901 Contact Us For Availability
14
NAMEPLATE WPL B0563401 Contact Us For Availability
15
SPRING CLIP WPL B0544001 Contact Us For Availability
16
SEMS FASTNER WPL A3033301 Contact Us For Availability
17
THREAD CUTTING NUT WPL A0392101 Contact Us For Availability
19
TIE ROD WPL B0544402 Contact Us For Availability
23
LATCH MECH WPL B0467904 Contact Us For Availability
24
BARRIER, LATCH MECHANISM WPL B0467801 Contact Us For Availability
25
SPEED NUT WPL A0318901 Contact Us For Availability
26
SEMS FASTENER, LATCH MECHANISM WPL A0379201 Contact Us For Availability
28
SPACER, LATCH MTG. WPL B0483401 Contact Us For Availability
29
SCREW WPL A0334501 Contact Us For Availability
29
SCREW WPL A0337501 Contact Us For Availability
30
GROMMET WPL A0364601 Contact Us For Availability
31
BRACKET WPL B0511801 Contact Us For Availability
32
INNER DOOR LINER, PLASTIC PANE WPL D3888901 Contact Us For Availability
44
LIGHT BULB WPL A0318001 Contact Us For Availability
57
PACKAGE RETAINER WPL C3563201 Contact Us For Availability
60
WIRING HARNESS WPL C3527502 Contact Us For Availability
62
SWITCH WPL B0533301 Contact Us For Availability
63
SEMS FASTENER WPL A3032201 Contact Us For Availability
66
LINER AND TUBING ASSEMBLY WPL D3899501 Contact Us For Availability
67
HEAT EXCHANGER ASSEMBLY WPL D3890402 Contact Us For Availability
73
GLIDE BASKET WPL B0543101 Contact Us For Availability
79
TAP STRIP, FZ LINER, STRIKE MT WPL B0494901 Contact Us For Availability
80
KEPS NUT WPL A0257001 Contact Us For Availability
81
NUT A WPL A0259701 Contact Us For Availability
97
TRIM, SHELF WPL B0560001 Contact Us For Availability
102
SEALED OUTER CASE WELDMENT WPL D3859102 Contact Us For Availability
103
WIRING HARNESS WPL D3857101 Contact Us For Availability
107
BREAKER FRAME WPL D3710304 Contact Us For Availability
109
BREAKER FRAME, CABINET, HINGE WPL D3779308 Contact Us For Availability
110
SEMS FASTENER WPL A0356401 Contact Us For Availability
111
TIE STRIP, LINER TO BACINET MT WPL D3778301 Contact Us For Availability
112
SPEEDNUT, TIE STRIP MTG. WPL A0284901 Contact Us For Availability
113
STRIKE PAD WPL D3778201 Contact Us For Availability
114
SCREW, STRIKE BLOCK MT.G 8A X WPL A0284001 Contact Us For Availability
115
COVER, STRIKE HOLE WPL A0389501 Contact Us For Availability
116
STRIKE WPL A0365401 Contact Us For Availability
117
SHIM WPL A0374401 Contact Us For Availability
119
GRILLE ASSEMBLY WPL C3564301 Contact Us For Availability
120
LIGHT HOUSING WPL C3540301 Contact Us For Availability
121
ANGLE SOCKET WPL B0542701 Contact Us For Availability
123
DRAIN PAN WPL C3523101 Contact Us For Availability
130
BOTTOM HINGE ASSEMBLY WPL C3525201 Contact Us For Availability
131
HINGE PLATE, BOTTOM WPL B0528101 Contact Us For Availability
132
SHIM WPL A3015201 Contact Us For Availability
133
SHIM WPL A3015202 Contact Us For Availability
134
SCREW WPL A3015501 Contact Us For Availability
135
WIRE ASSEMBLY, BOTTOM HINGE WPL B0532701 Contact Us For Availability
141
HINGE BEARING WPL B0539701 Contact Us For Availability
143
BEARING FLAT (TOP HINGE) WPL B0539805 Contact Us For Availability
144
GLIDER BOLT WPL A0317401 Contact Us For Availability
174
RIVET PLASTIC WPL A3032601 Contact Us For Availability
174
CONTROL, TEMPERATURE WPL B0543805 Contact Us For Availability
174
KNOB WPL C3545402 Contact Us For Availability
176
CLAMP WPL A0368101 Contact Us For Availability
180
SCREW WPL A0381701 Contact Us For Availability
187
SCREW, SM WPL A0229501 Contact Us For Availability
190
STRAIN RELIEF WPL A0319701 Contact Us For Availability
191
TERMINAL COVER WPL B0551801 Contact Us For Availability
191
COMP, TEC. 1/4 H.P. 50/60 CYCL WPL D3871902 Contact Us For Availability
193
OVERLOAD WPL C3533701 Contact Us For Availability
194
RELAY WPL C3553401 Contact Us For Availability
195
GROMMET K WPL A4002702 Contact Us For Availability
196
CLIP, COMPRESSOR MTG. WPL A0367001 Contact Us For Availability
198
SEMS FASTNER WPL A0332601 Contact Us For Availability
199
MACHINE SCREW WPL A0260201 Contact Us For Availability
204
COVER PLATE -G WPL A0382901 Contact Us For Availability
205
GASKET WPL A0382801 Contact Us For Availability
208
VIBRATIOON LOOP, SUCTION LINE WPL B0539901 Contact Us For Availability
215
SCREW WPL A0261401 Contact Us For Availability
221
SPRING CLIP, BASKET GUIDE WPL A3024901 Contact Us For Availability
221
BASKET WPL D3892001 Contact Us For Availability
222
SCREW WPL A0241501 Contact Us For Availability
223
HANDLE, SLIDE OUT BASKET WPL B0543201 Contact Us For Availability
224
LINER GUSSET WPL C3523801 Contact Us For Availability
225
TAP STRIP WPL A3013201 Contact Us For Availability
226
SCREW WPL A0285901 Contact Us For Availability
227
SCREW GROMMET, LINER MTG. WPL B0496601 Contact Us For Availability
228
SEMS FASTNER WPL A0381901 Contact Us For Availability
229
PLUG WPL A0353901 Contact Us For Availability
231
DRAIN-VALVE WPL A3044501 Contact Us For Availability
232
SCREEN WPL B0553401 Contact Us For Availability
233
BLOCK WPL B0555403 Contact Us For Availability
234
INSULATION (1 = 1FT.) WPL B0523523 Contact Us For Availability
NI
CLIP WPL A0327501 Contact Us For Availability
NI
SPRING K WPL A3043601 Contact Us For Availability
NI
SPUD WPL B0544301 Contact Us For Availability
NI
SUPPORT WPL C3523601 Contact Us For Availability
NI
SCREW, SHEET METAL WPL A0325701 Contact Us For Availability
NI
WASHER, FLAT-HINGE PIN MTG. WPL A0305201 Contact Us For Availability
NI
SHIPPING ENVELOPE ASSEMBLY, CO WPL A0277801 Contact Us For Availability
NI
CLIP, WIRING WPL A0287201 Contact Us For Availability
NI
CLAMP WPL A0384201 Contact Us For Availability
NI
ENVELOPE ASSY WPL A0395105 Contact Us For Availability
NI
TOP HINGE SHIM WPL A3009801 Contact Us For Availability
NI
SEMS FASTENER, 1/4-28 UNF X 3/ WPL A3015301 Contact Us For Availability
NI
PLUG BRACKET WPL A3029001 Contact Us For Availability
NI
GASKET (INCH) WPL A3030301 Contact Us For Availability
NI
WALL SPACER WPL A3032901 Contact Us For Availability
NI
TOP HINGE PLATE WPL B0525801 Contact Us For Availability
NI
COVER WPL B0526601 Contact Us For Availability
NI
CLIP WPL B0535702 Contact Us For Availability
NI
TOP HINGE ASSY WPL C3524001 Contact Us For Availability
× ![]()
