Model Whirlpool CWGA800AAE GAS WALL OVEN – Common Parts & Diagrams

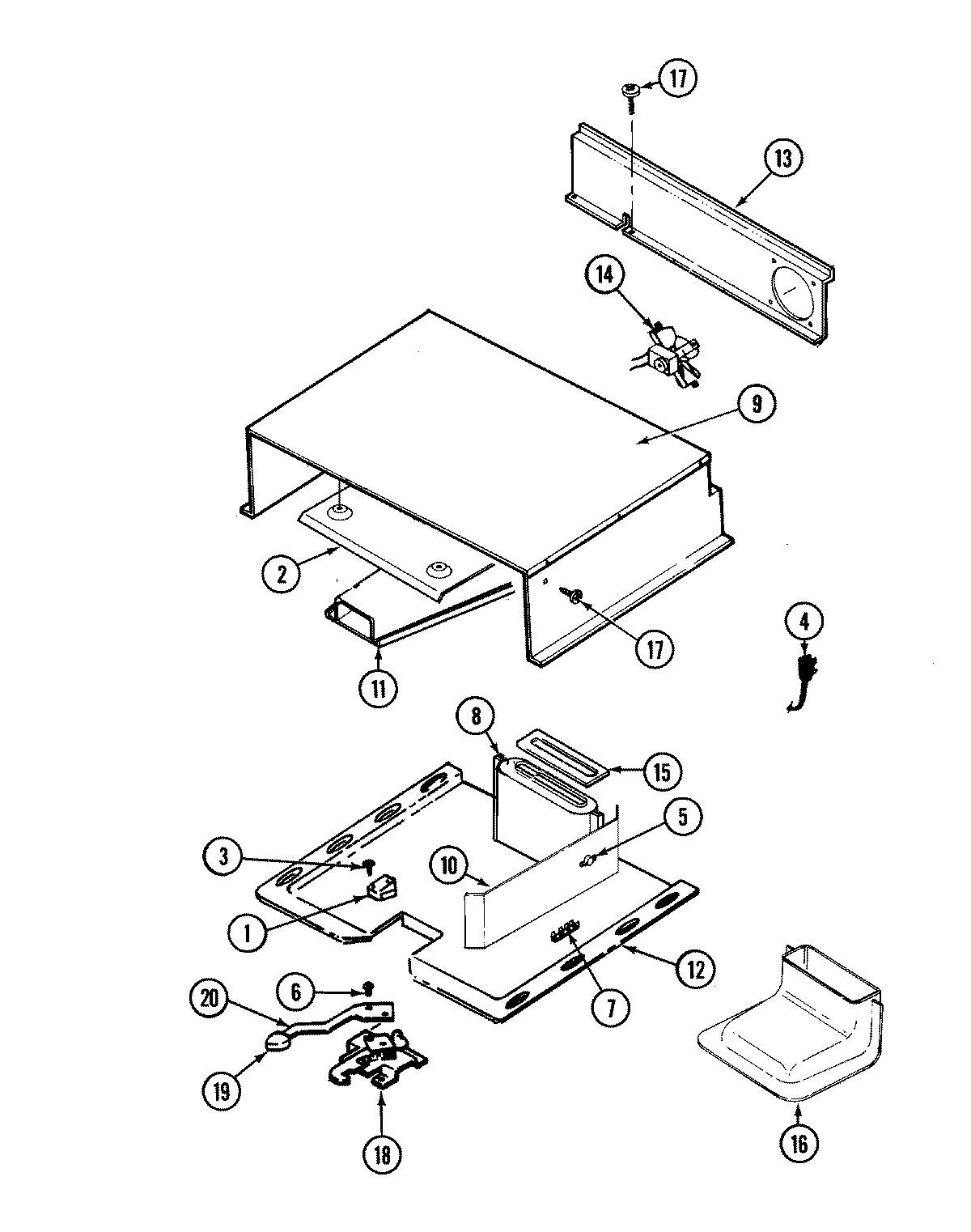

04 - INTERNAL CONTROLS

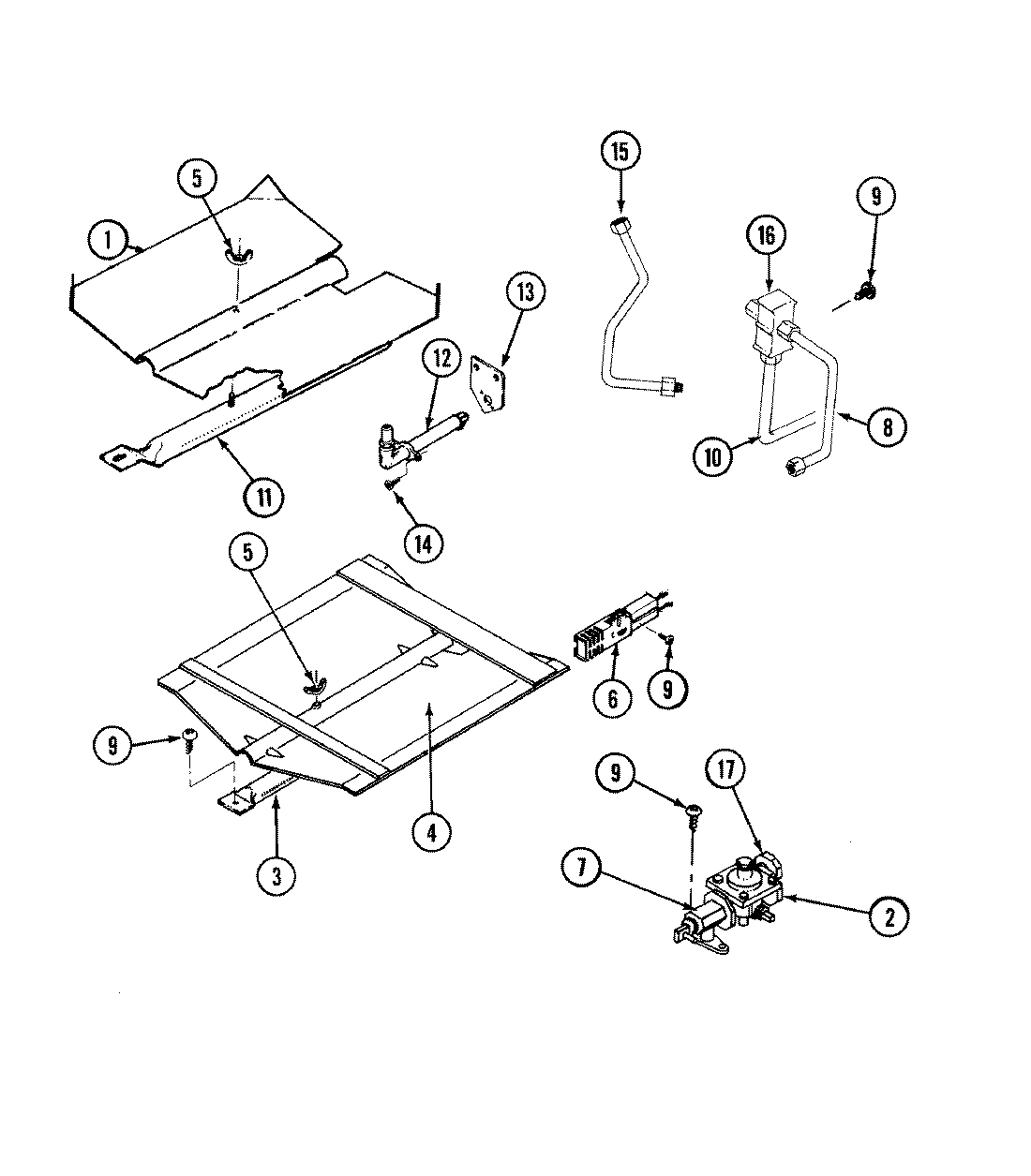

03 - GAS CONTROLS

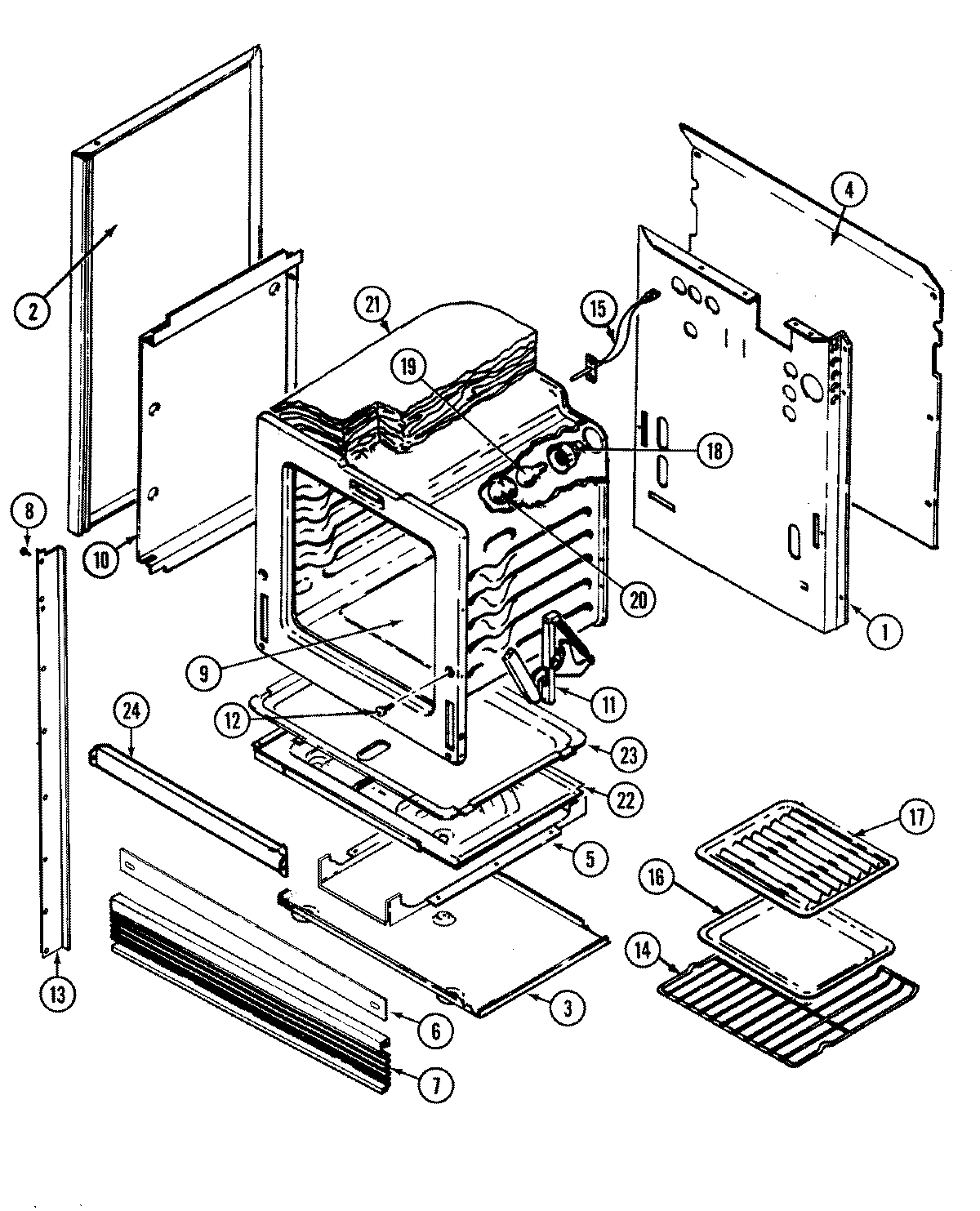

01 - BODY

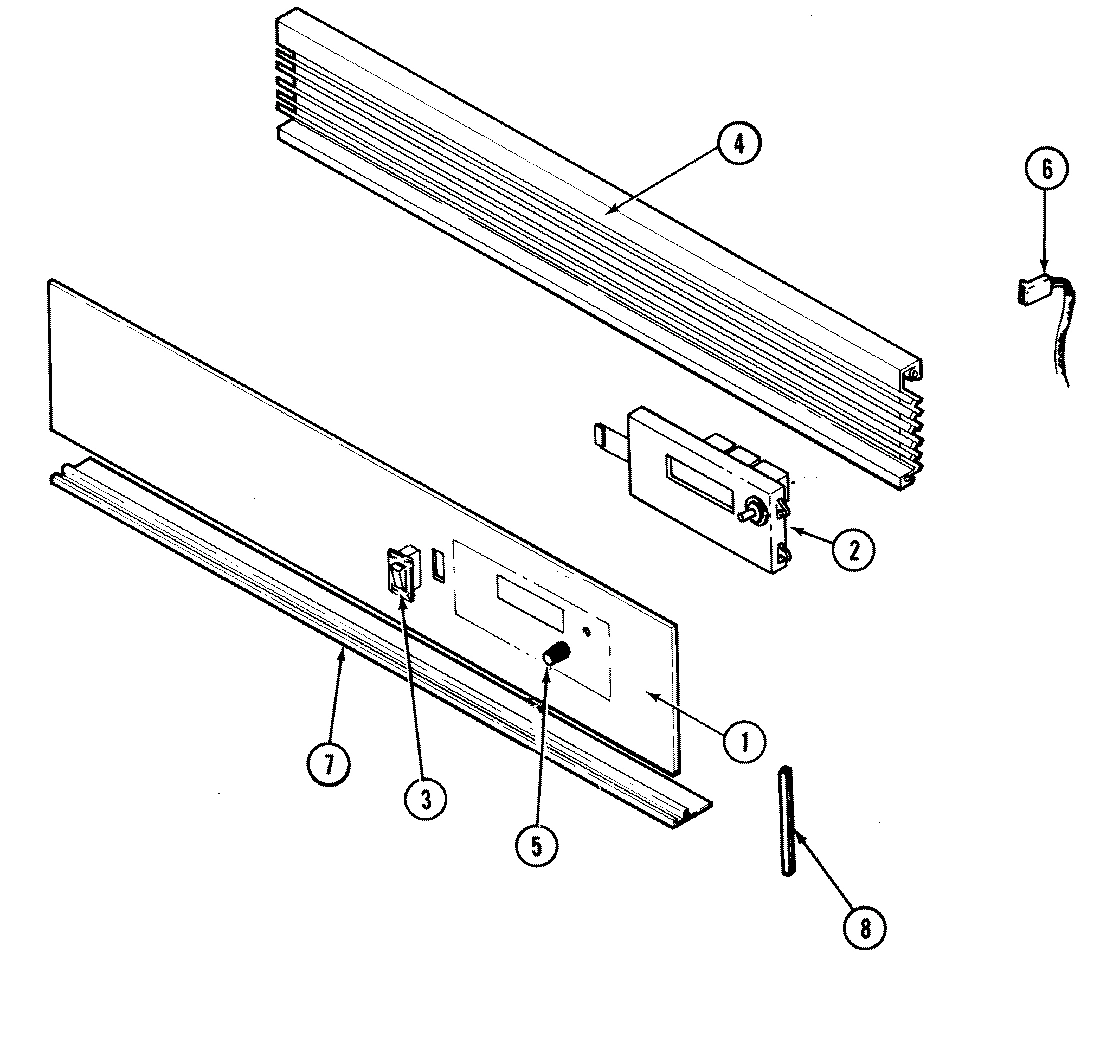

02 - CONTROL PANEL
Common parts from model Whirlpool CWGA800AAE GAS WALL OVEN
1
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
1
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
1
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
1
BACK, MAIN WPL 4002F20651 Contact Us For Availability
1
GROMMET, SNAP WPL 8008P02160 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 7721P05060 Contact Us For Availability
2
SHIELD, HEAT WPL 3604F16645 Contact Us For Availability
2
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
2
BRACKET, REGULATOR WPL 3801F29051 Contact Us For Availability
2
SCREW WPL 7101P08560 Contact Us For Availability
2
REGULATOR, PRESSURE WPL 7510P04760 Contact Us For Availability
2
PANEL, BODY WPL 2618F08351 Contact Us For Availability
2
INSULATION, FIBERBOARD WPL 7003P05660 Contact Us For Availability
2
CLOCK WPL 7601P23260 Contact Us For Availability
3
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
3
BURNER, BAKE WPL 3403D03445 Contact Us For Availability
3
BOTTOM, MAIN WPL 4011F19051 Contact Us For Availability
3
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
4
CORD, POWER WPL 7402P04360 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM WPL 3601F23445 Contact Us For Availability
4
COVER, BACK WPL 4005F40551 Contact Us For Availability
4
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
4
EXTRUSION, VENT GRILL (CHR) WPL 7756P08560 Contact Us For Availability
5
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
5
NUT, WING WPL 7103P03060 Contact Us For Availability
5
SUPPORT, CAVITY WPL 3807F42951 Contact Us For Availability
5
KNOB, CLOCK (WHT) WPL 7711P48760 Contact Us For Availability
6
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
6
SCREW WPL 7101P29060 Contact Us For Availability
6
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
6
STRIP, BOTTOM (WHT) WPL 4005F35471 Contact Us For Availability
6
HARNESS, SENSOR PROBE WPL 5170P13660 Contact Us For Availability
7
SCREW WPL 7118P01760 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
7
VALVE, SHUT OFF WPL 7501P04160 Contact Us For Availability
7
EXTRUSION, VENT (BTM-CHR) WPL 7756P09660 Contact Us For Availability
7
EXTRUSION, LOWER (WHT) WPL 7756P07860 Contact Us For Availability
8
RISER, DUCT ASSY. WPL 4006D12845 Contact Us For Availability
8
TUBING, BAKE WPL 7507P09760 Contact Us For Availability
8
TRIM, CONTROL PANEL (WHT) WPL 7720P15960 Contact Us For Availability
9
COVER, TOP WPL 4005F40251 Contact Us For Availability
9
SCREW WPL 7101P32860 Contact Us For Availability
9
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
10
SHIELD, AIR WPL 3604F20051 Contact Us For Availability
10
TUBING, REGULATOR (3/8``) WPL 3414F10644 Contact Us For Availability
10
RETAINER, INSULATION (SIDE) WPL 3804F10851 Contact Us For Availability
11
SUPPORT, DUCT WPL 3807F45251 Contact Us For Availability
11
DUCT ASSY. WPL 4006D10147 Contact Us For Availability
11
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
11
HINGE WPL 7106P05760 Contact Us For Availability
12
RETAINER, TOP INSULATION WPL 3804F12951 Contact Us For Availability
12
FITTING, BROIL BURNER WPL 7507P06760 Contact Us For Availability
12
SCREW WPL 7101P11560 Contact Us For Availability
13
HOUSING, FAN WPL 4001F08351 Contact Us For Availability
13
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
13
EXTRUSION, SIDE (LT-CHR) WPL 7750P09360 Contact Us For Availability
13
EXTRUSION, SIDE (RT-CHR) WPL 7750P09460 Contact Us For Availability
14
FAN ASSY. WPL 7427P01060 Contact Us For Availability
14
SCREW, TRIM WPL 7101P25060 Contact Us For Availability
14
RACK, OVEN WPL 7801P04760 Contact Us For Availability
15
GASKET, FLUE TOP WPL 7201P04860 Contact Us For Availability
15
TUBING, BROIL (3/8``) WPL 3414F10744 Contact Us For Availability
15
PROBE, OVEN SENSOR WPL 7430P00960 Contact Us For Availability
16
BOX, FLUE WPL 4006W11745 Contact Us For Availability
16
VALVE WPL 7501P11660 Contact Us For Availability
16
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
17
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
17
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
18
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
18
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
18
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
19
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
19
HANDLE, DOOR LATCH (WHT) WPL 7701P13360 Contact Us For Availability
19
BULB-OVEN WPL 7407P10360 Contact Us For Availability
20
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
20
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
20
COVER, BULB WPL 7724P04760 Contact Us For Availability
21
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
21
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
22
RETAINER, INSULATION WPL 3804F11247 Contact Us For Availability
23
PAN, BAKE BURNER WPL 3401F02547 Contact Us For Availability
24
BAFFLE, OVEN FRONT WPL 3601F20845 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
HARNESS, MAIN WPL 5170D21360 Contact Us For Availability
NI
HARNESS, SENSOR/LOCK WPL 5170P20760 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02260 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P04160 Contact Us For Availability
× ![]()
