Model Whirlpool CWGA200AAB GAS WALL OVEN – Common Parts & Diagrams

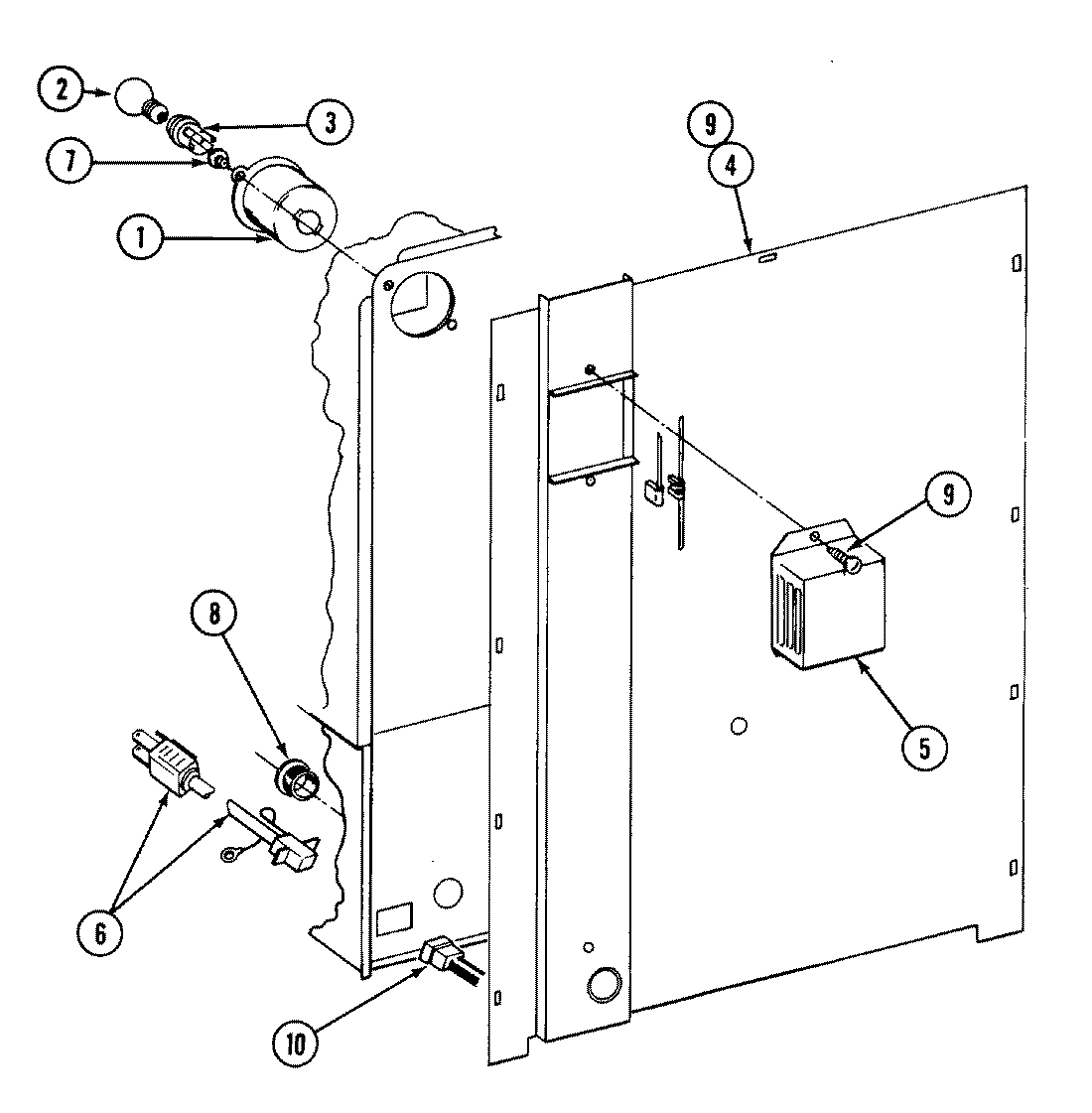

02 - BODY (REAR)

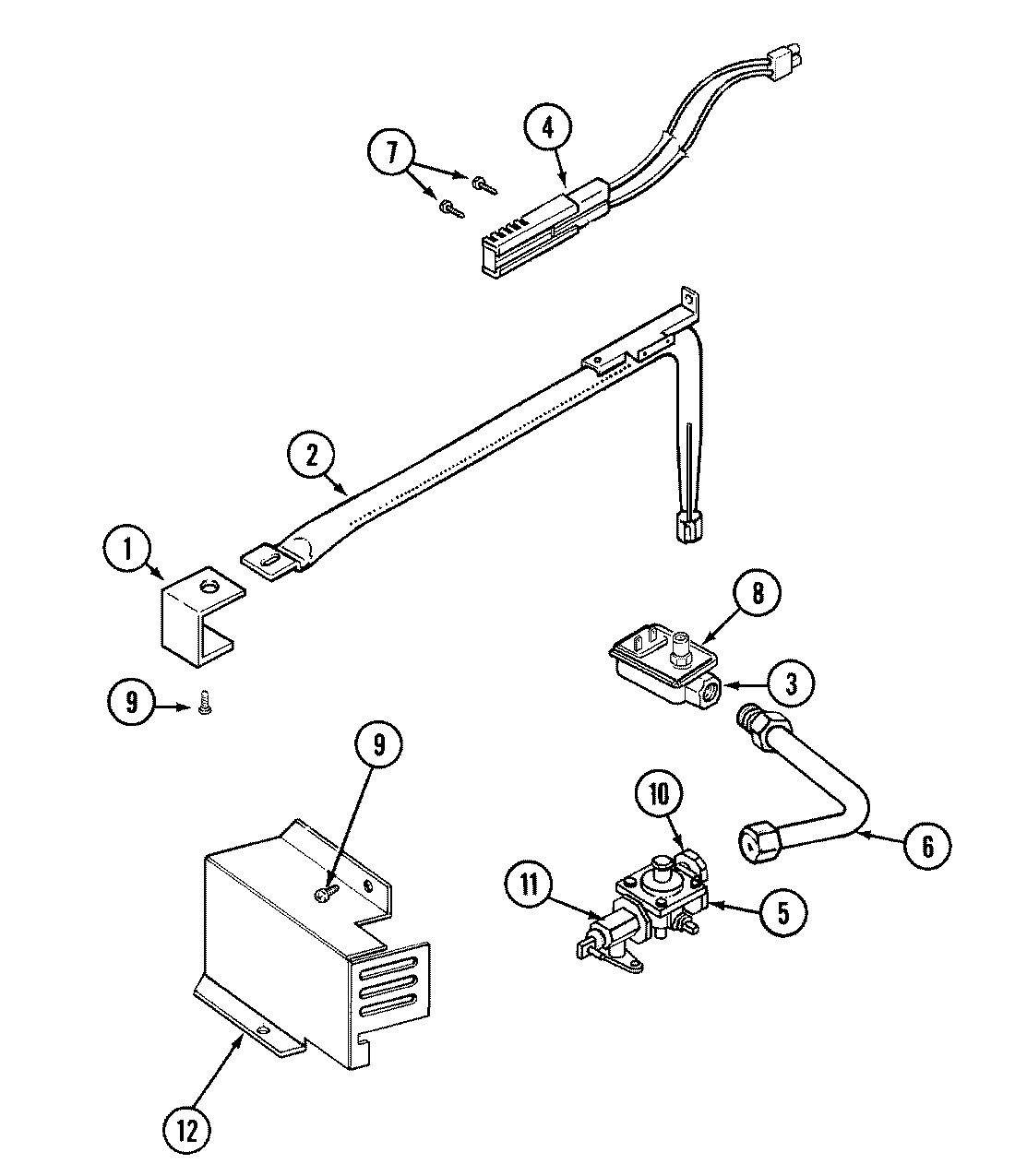

06 - GAS CONTROLS

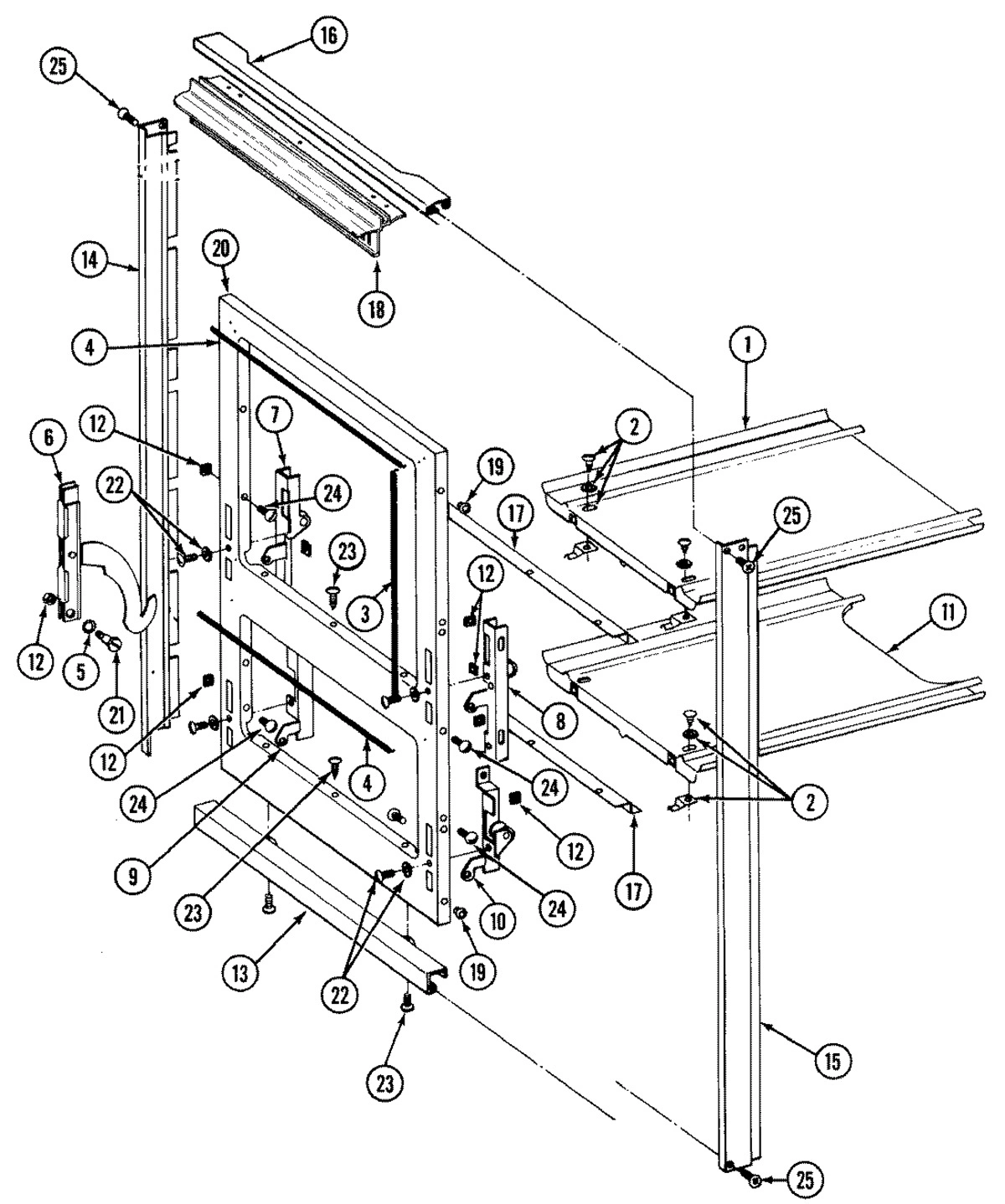

01 - BODY

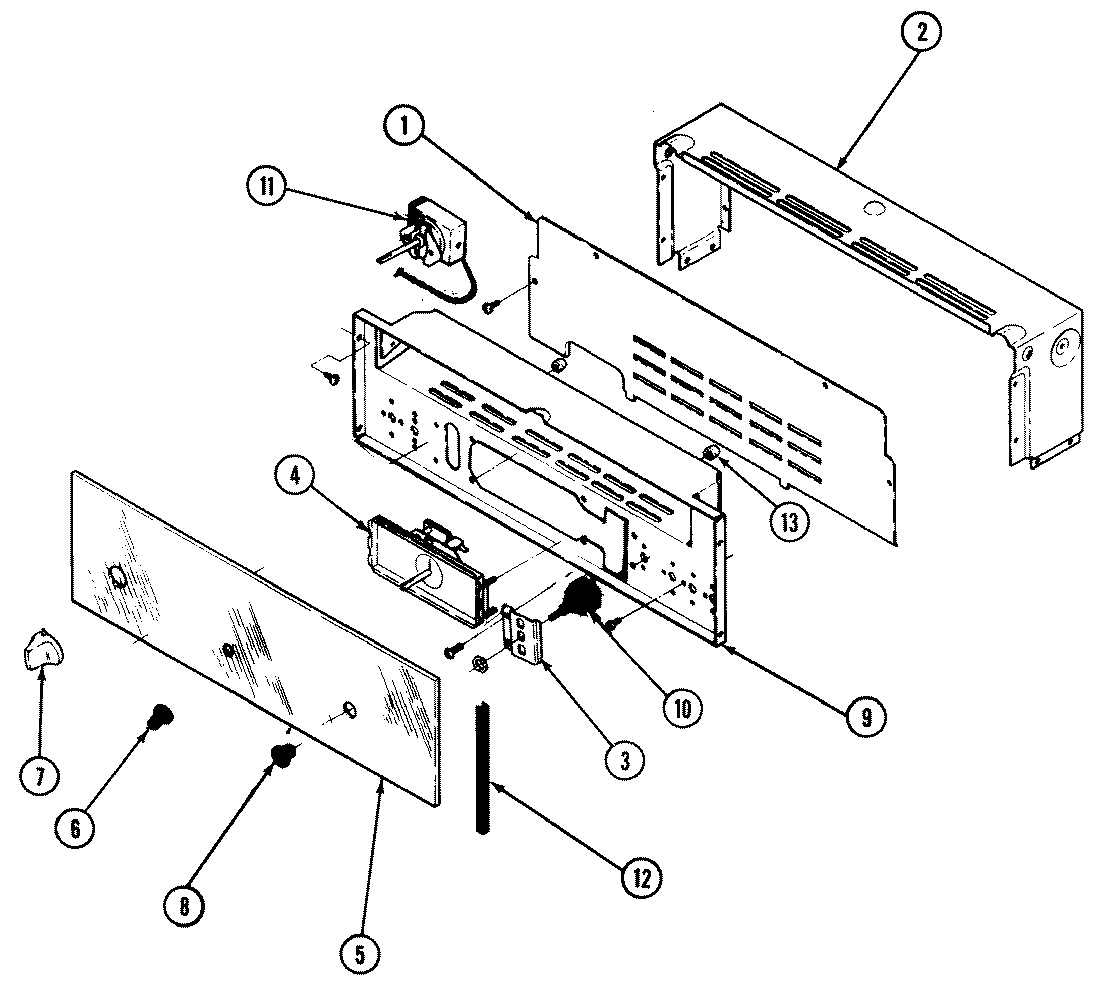

03 - CONTROL PANEL

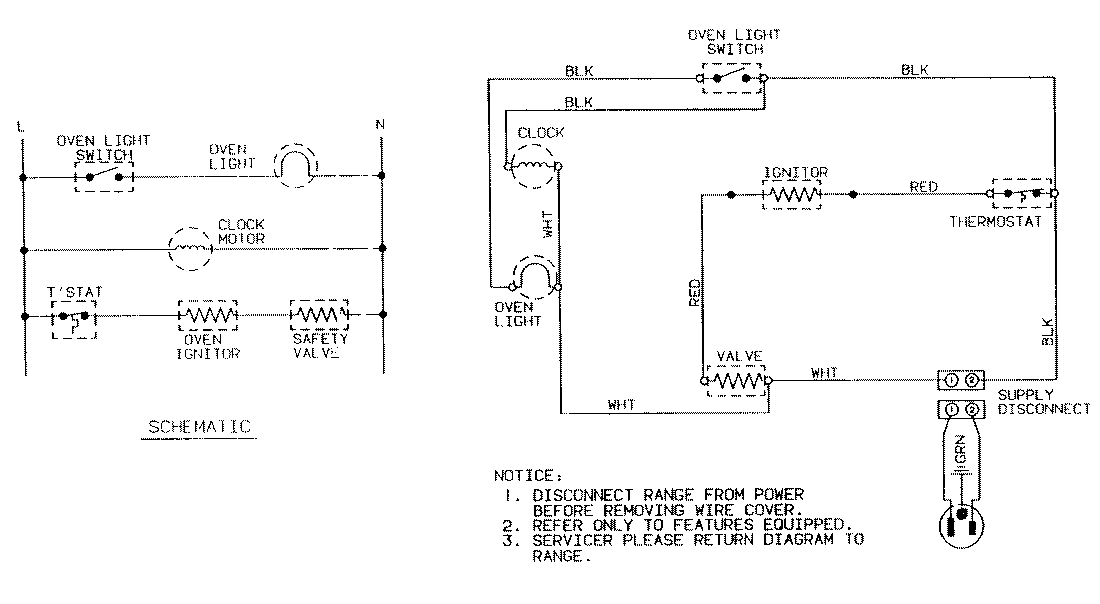

08 - WIRING INFORMATION

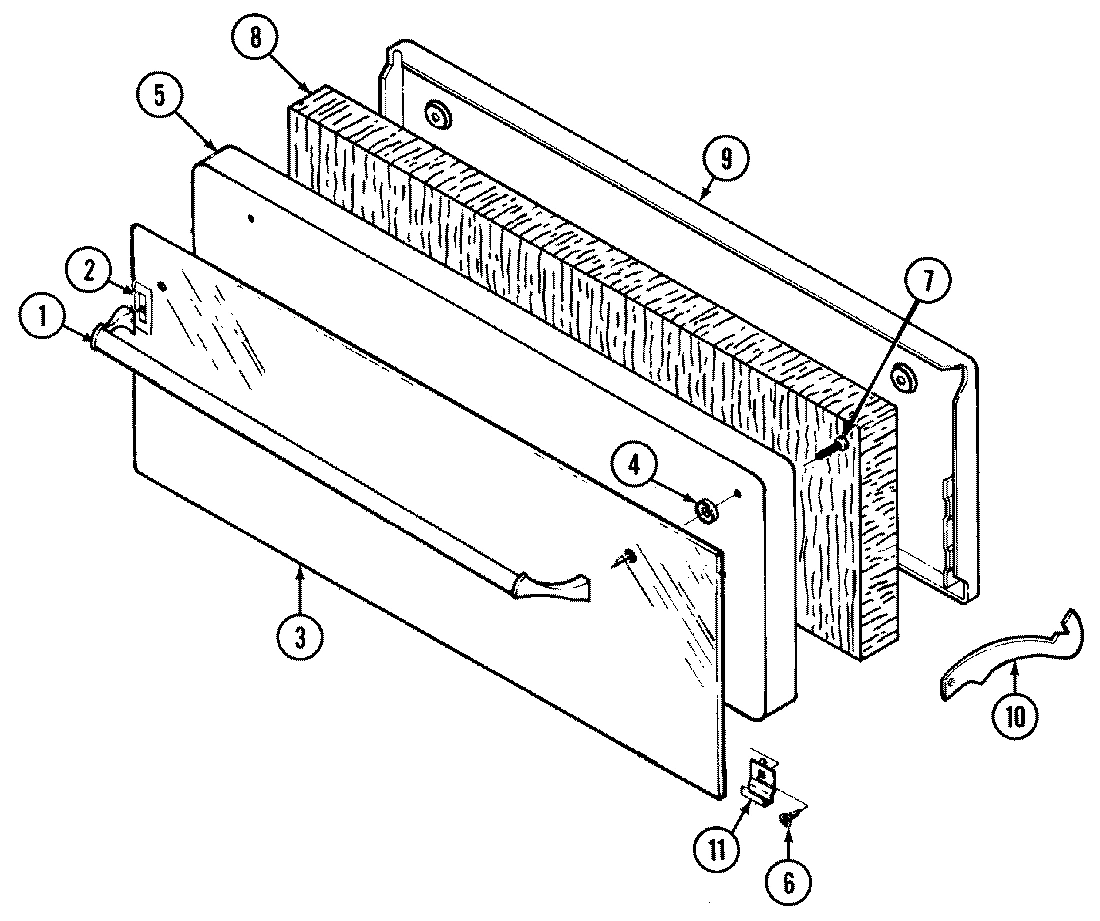

05 - DRAWER

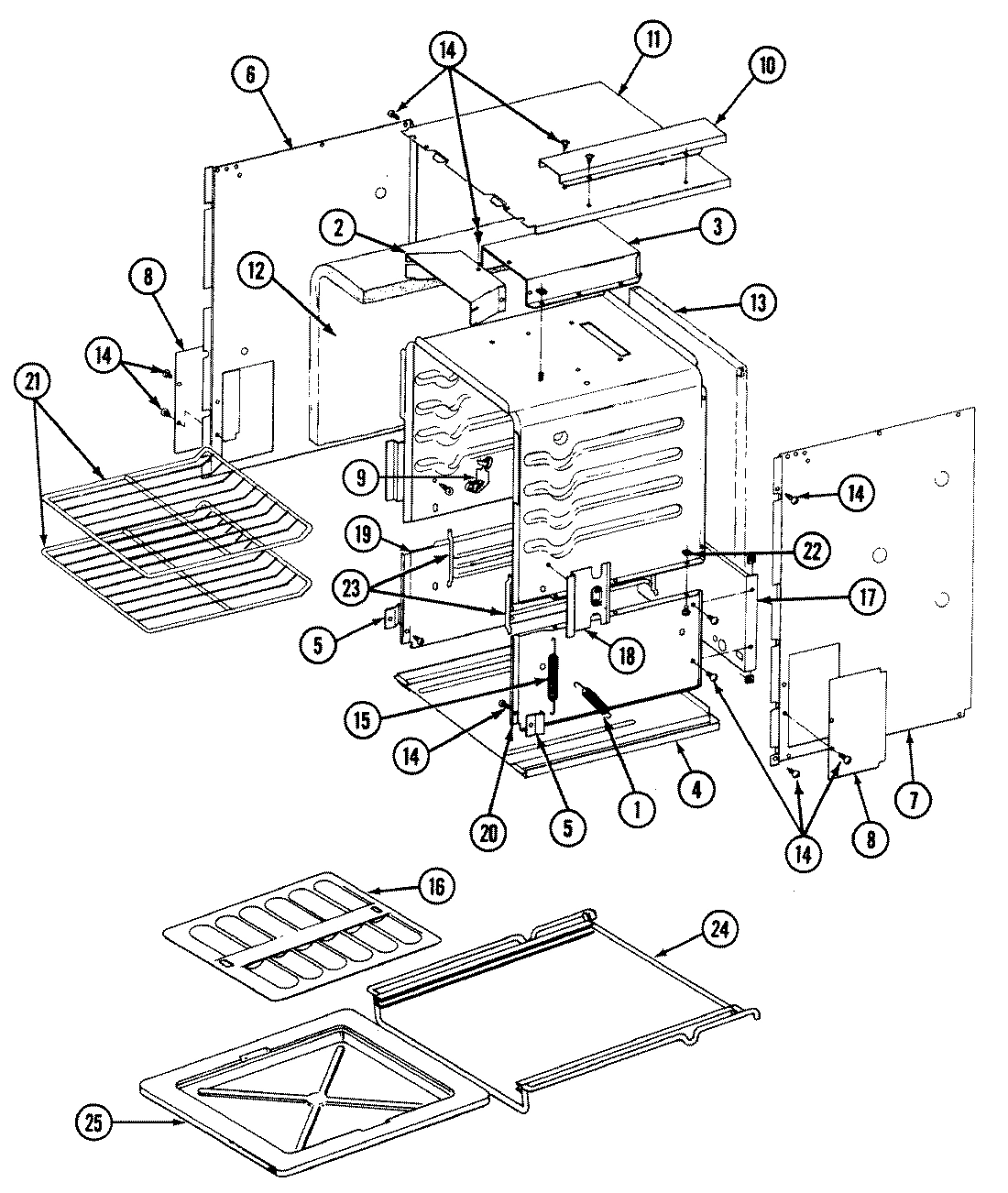

07 - OVEN

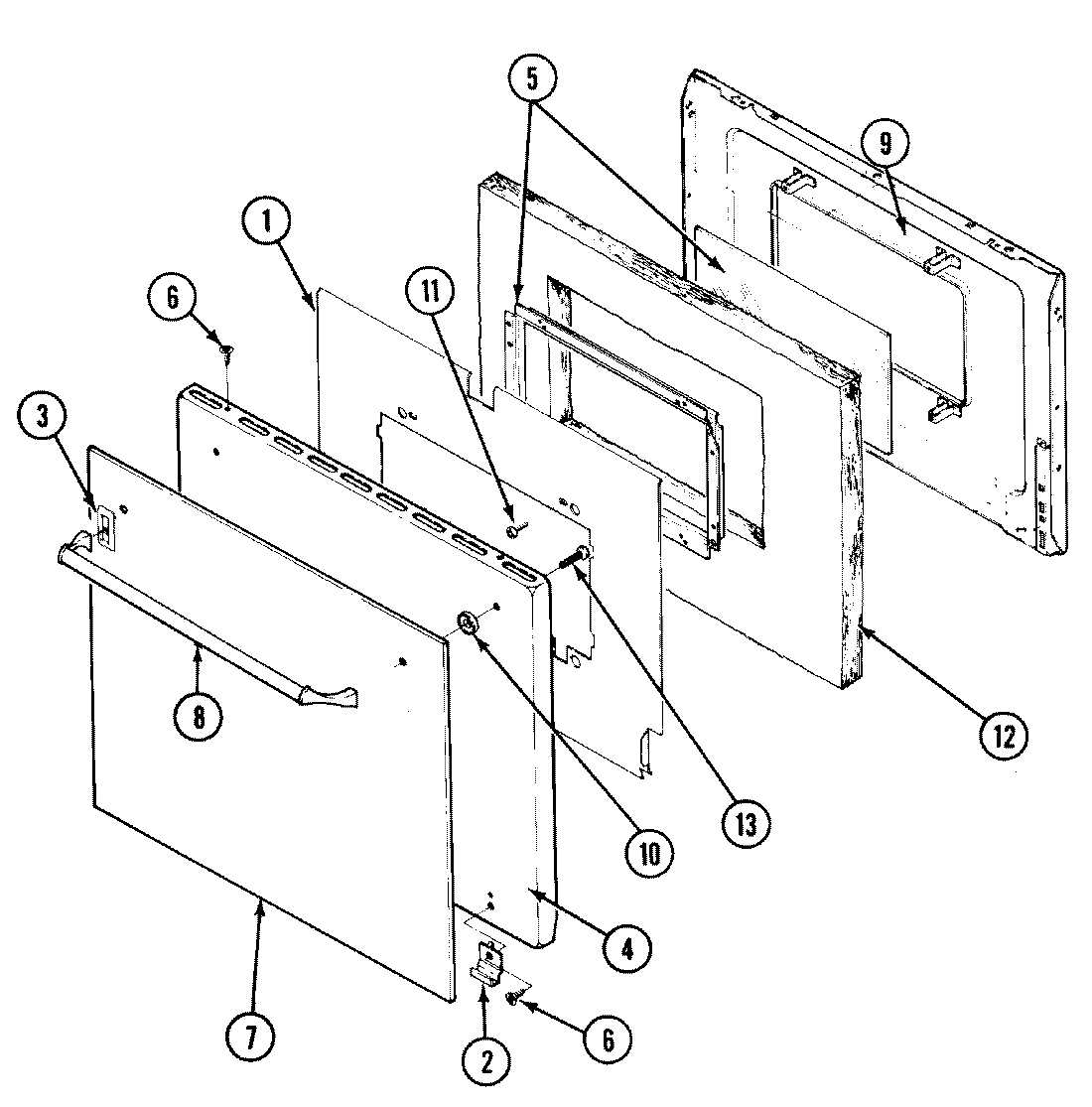

04 - DOOR
Common parts from model Whirlpool CWGA200AAB GAS WALL OVEN
1
BOX, OVEN LIGHT WPL 8028P00160 Contact Us For Availability
1
SUPPORT, OVEN BRNR-F WPL 3807F29551 Contact Us For Availability
1
PLATE, OVEN BOTTOM A WPL 5720A00523 Contact Us For Availability
1
BACK CONTROL BOX WPL 4002F09851 Contact Us For Availability
1
SPRING, BROILER DOOR WPL 7803P03460 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
2
BULB-OVEN WPL 7407P10360 Contact Us For Availability
2
BURNER WPL 3403D04745 Contact Us For Availability
2
CLIP, OVEN BOTTOM PLATE WPL 1430315 Contact Us For Availability
2
BOX CONTROL WPL 4006F05751 Contact Us For Availability
2
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
2
TAPE WPL 8270P06560 Contact Us For Availability
2
EXTENSION, VENT BOX WPL 3826F00480 Contact Us For Availability
3
RECEPTACLE, BULB WPL 7408P03760 Contact Us For Availability
3
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
3
3/8`` MICRO LOXIT NUT WPL 1555257 Contact Us For Availability
3
SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability
3
BRACKET, SWITCH MTG WPL 3801F15680 Contact Us For Availability
3
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
3
GLASS BROILER PANEL WPL 7914P00960 Contact Us For Availability
3
BOX, VENT WPL 4006W07851 Contact Us For Availability
4
BACK, MAIN WPL 4002F10151 Contact Us For Availability
4
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
4
SEAL, OVEN DOOR WPL 7212P01860 Contact Us For Availability
4
CLOCK, REGULATOR WPL 7602P06060 Contact Us For Availability
4
BASE ASSY WPL 4003W01851 Contact Us For Availability
4
PANEL DOOR WPL 2401W10370 Contact Us For Availability
5
COVER, LIGHT SOCKET WPL 4005F22951 Contact Us For Availability
5
REGULATOR PRESSURE WPL 7510P03660 Contact Us For Availability
5
WASHER WPL 7109P02360 Contact Us For Availability
5
GLASS, CONTROL WPL 7912P03860 Contact Us For Availability
5
PANEL DRAWER WPL 2403W02470 Contact Us For Availability
5
BRACKET, OVEN DOOR S WPL 3801F15151 Contact Us For Availability
5
GLASS DOOR WPL 7907P01160 Contact Us For Availability
6
POWER CORD WPL 5700A31760 Contact Us For Availability
6
TUBING, SAFETY 8`` WPL 3414F09544 Contact Us For Availability
6
HINGE, DOOR WPL 3418A04535 Contact Us For Availability
6
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
6
SCREW, No.10-16AB WPL 7101P22160 Contact Us For Availability
6
PANEL, END-LT WPL 2618F06151 Contact Us For Availability
7
SCREW, No.10A X 1/2 WPL 7101P17860 Contact Us For Availability
7
SUPPORT, HINGE (LT) WPL 3807A29234 Contact Us For Availability
7
KNOB, CONTROL (CHR) WPL 7711P35060 Contact Us For Availability
7
PANEL, END-RT WPL 2618F06251 Contact Us For Availability
7
GLASS DOOR SCREENED WPL 7902P35660 Contact Us For Availability
8
BUSHING, SNAP WPL 8008P00260 Contact Us For Availability
8
WASHER WPL 7109P01960 Contact Us For Availability
8
VALVE WPL 7501P13460 Contact Us For Availability
8
SUPPORT, HINGE (RT) WPL 3807A29334 Contact Us For Availability
8
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
8
HANDLE, DOOR (BLK) WPL 7701P02460 Contact Us For Availability
8
INSULATION, BROILER DOOR WPL 7002P06760 Contact Us For Availability
8
COVER, HINGE WPL 4005F22451 Contact Us For Availability
9
SCREW WPL 7101P06160 Contact Us For Availability
9
SUPPORT BROILER DR WPL 3807A25834 Contact Us For Availability
9
SUPPORT, CLOCK WPL 3807F22351 Contact Us For Availability
9
LINING DOOR BROILER WPL 2404W02419 Contact Us For Availability
9
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
9
LINING, OVEN DOOR WPL 2402W19716 Contact Us For Availability
10
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
10
FITTING WPL 7507P05960 Contact Us For Availability
10
SUPPORT BROILER DR WPL 3807A25934 Contact Us For Availability
10
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
10
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
10
HINGE WPL 3418F04134 Contact Us For Availability
10
COVER WIRE TOP WPL 4005F24051 Contact Us For Availability
11
VALVE, SHUT OFF WPL 7501P04160 Contact Us For Availability
11
BOTTOM, BROILER COMPARTMENT WPL 3428A00319 Contact Us For Availability
11
THERMOSTAT WPL 7404P10160 Contact Us For Availability
11
COVER, INSULATION WPL 3804F05651 Contact Us For Availability
11
SCREW WPL 7101P01660 Contact Us For Availability
12
COVE FUSE WPL 4005F33551 Contact Us For Availability
12
TRIM, BKGD. GLASS WPL 3608F01970 Contact Us For Availability
12
INSULATION, OVEN WRAP WPL 7002P08360 Contact Us For Availability
12
INSULATION, OVEN DOOR WPL 7002P05860 Contact Us For Availability
13
NUT, LOCK WPL 7103P08560 Contact Us For Availability
13
SCREW, DOOR HANDLE WPL 7101P08960 Contact Us For Availability
13
INSULATION, OVEN BAC WPL 7002P08960 Contact Us For Availability
14
TRIM, SIDE LT WPL 7750P00560 Contact Us For Availability
14
SCREW WPL 7101P35660 Contact Us For Availability
15
TRIM, SIDE RT WPL 7750P00660 Contact Us For Availability
15
SPRING, OVEN DOOR WPL 7803P04160 Contact Us For Availability
16
EXTRUSION, BOTTOM TRIM WPL 7754P00160 Contact Us For Availability
16
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
17
SUPPORT, PLATE BOTTO WPL 3807F25523 Contact Us For Availability
17
BACK BROILER WPL 4002F13519 Contact Us For Availability
18
EXTRUSTION, VENT (BLACK) WPL 7756P07360 Contact Us For Availability
18
GUARD, HINGE WPL 3609F00361 Contact Us For Availability
19
NUT, EXPANSION WPL 7103P08060 Contact Us For Availability
19
SIDE BROILER L.T. WPL 2228F00319 Contact Us For Availability
20
FRONT, MAIN WPL 2201F05319 Contact Us For Availability
20
SIDE BROILER RIGHT WPL 2228F00419 Contact Us For Availability
21
SCREW, SHOULDER WPL 7101P13560 Contact Us For Availability
21
RACK, OVEN WPL 7801P02060 Contact Us For Availability
22
NUT 10-24 WPL 7103P07160 Contact Us For Availability
22
SCREW, W/WASHER WPL 7101P18860 Contact Us For Availability
23
RUNNER, BROILER RACK WPL 7808P00360 Contact Us For Availability
24
SCREW WPL 7101P07260 Contact Us For Availability
24
RACK, BROILER PAN WPL 7801P01860 Contact Us For Availability
25
SCREW WPL 7101P15760 Contact Us For Availability
25
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
WIRES, CONTROL PANEL WPL 5195A06460 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8112P06460 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001163 Contact Us For Availability
× ![]()
